Installation Procedure

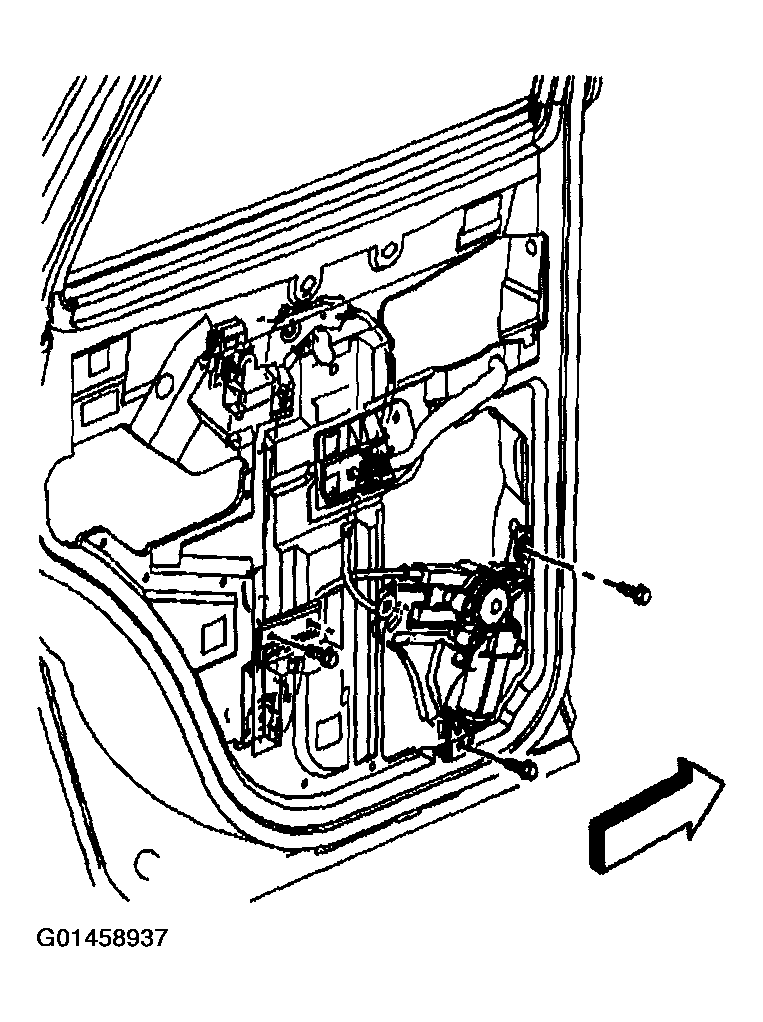

Fig 1: Installing Rear Power Window Module

Courtesy of GENERAL MOTORS CORP.

Install the bolts retaining the regulator to the door.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Tighten

Tighten the bolts to 9 N.m(7 lb ft).
Align the window to the regulator, and tighten the clamp bolts.
Tighten

Tighten the clamp bolts to 9 N.m(7 lb ft).
Connect the window motor electrical connector.
Install the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR (TAHOE/YUKON/ESCALADE) or WATER DEFLECTOR REPLACEMENT - REAR DOOR (SUBURBAN/YUKON XL/AVALANCHE/ESCLD EXT) .
Install the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (TAHOE/YUKON/ESCALADE) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (SUBURBAN/YUKON XL/AVALANCHE/ESCLD EXT) .
