Removal Procedure

  1. Pull back the front door sealing weatherstrip (1) to expose the windshield reveal molding screws.

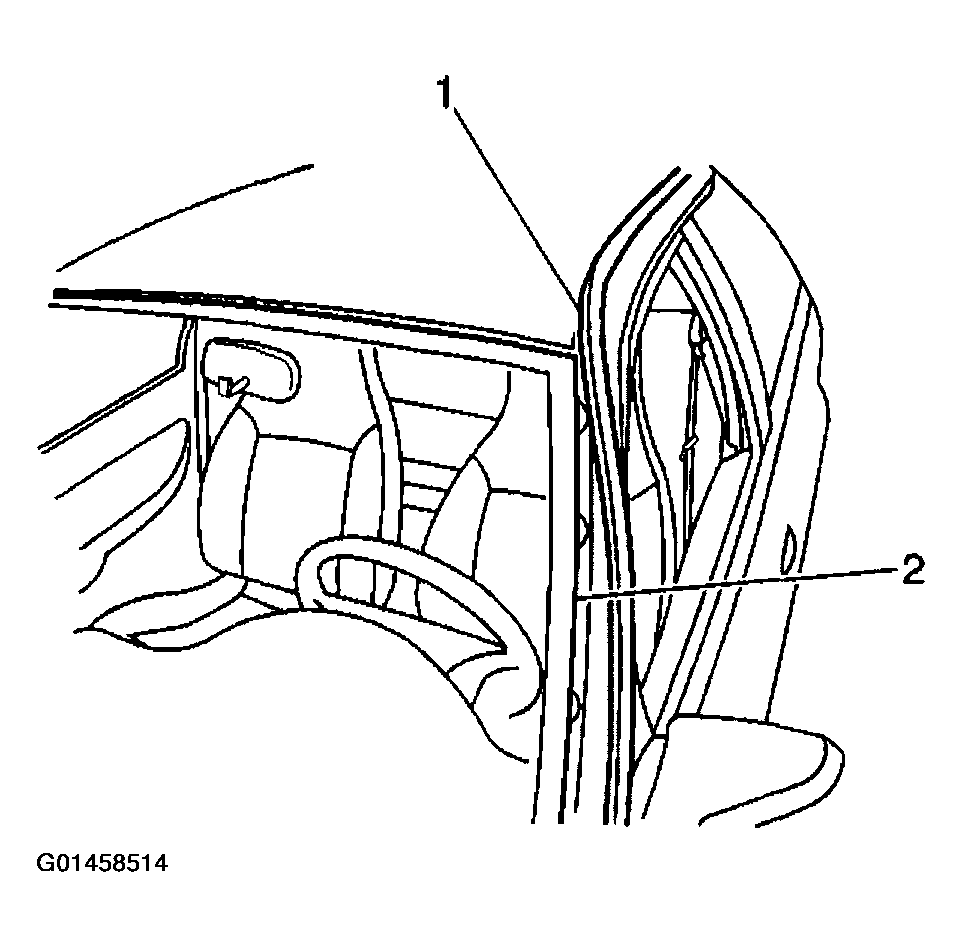

    Fig 1: Pulling Back Front Door Sealing Weatherstrip
    G01458514Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the windshield reveal molding.
  3. Remove the windshield reveal molding from the windshield pillar.

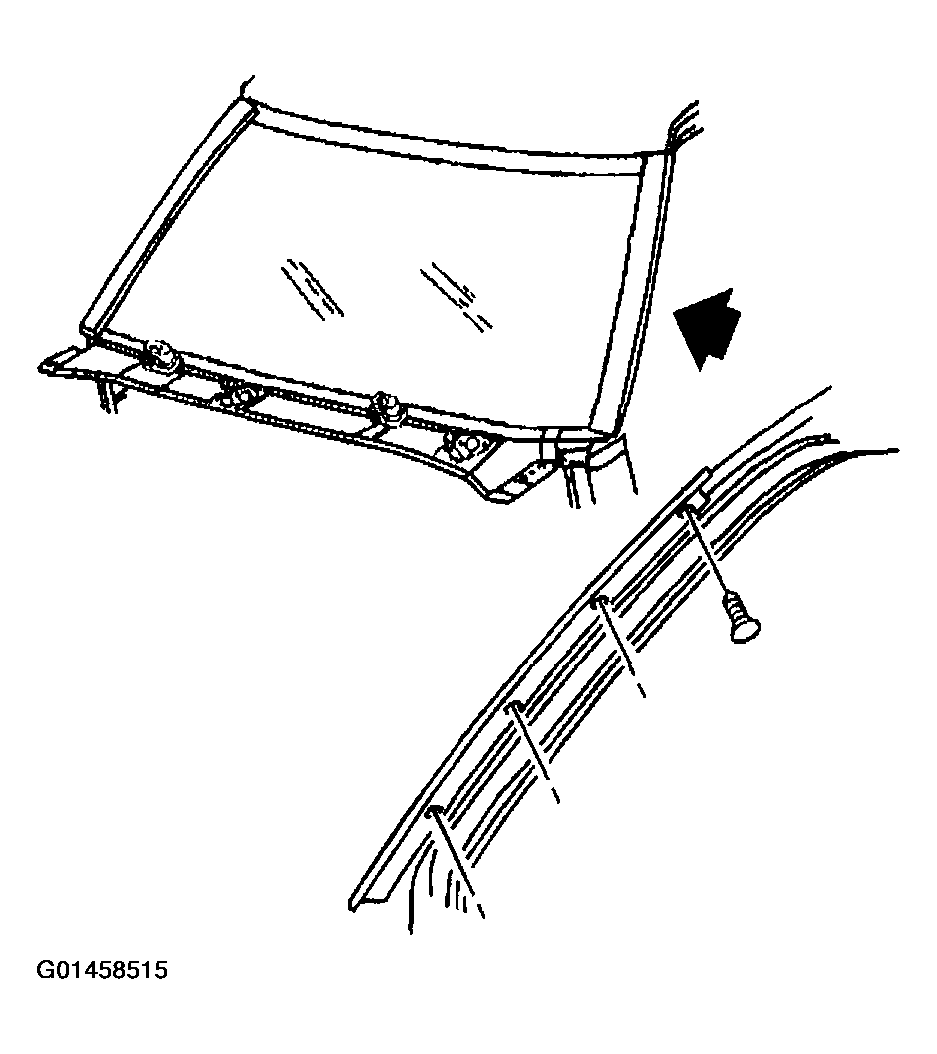

    Fig 2: Removing Screws From Windshield Reveal Molding
    G01458515Courtesy of GENERAL MOTORS CORP.
