Scan Tool Output Controls

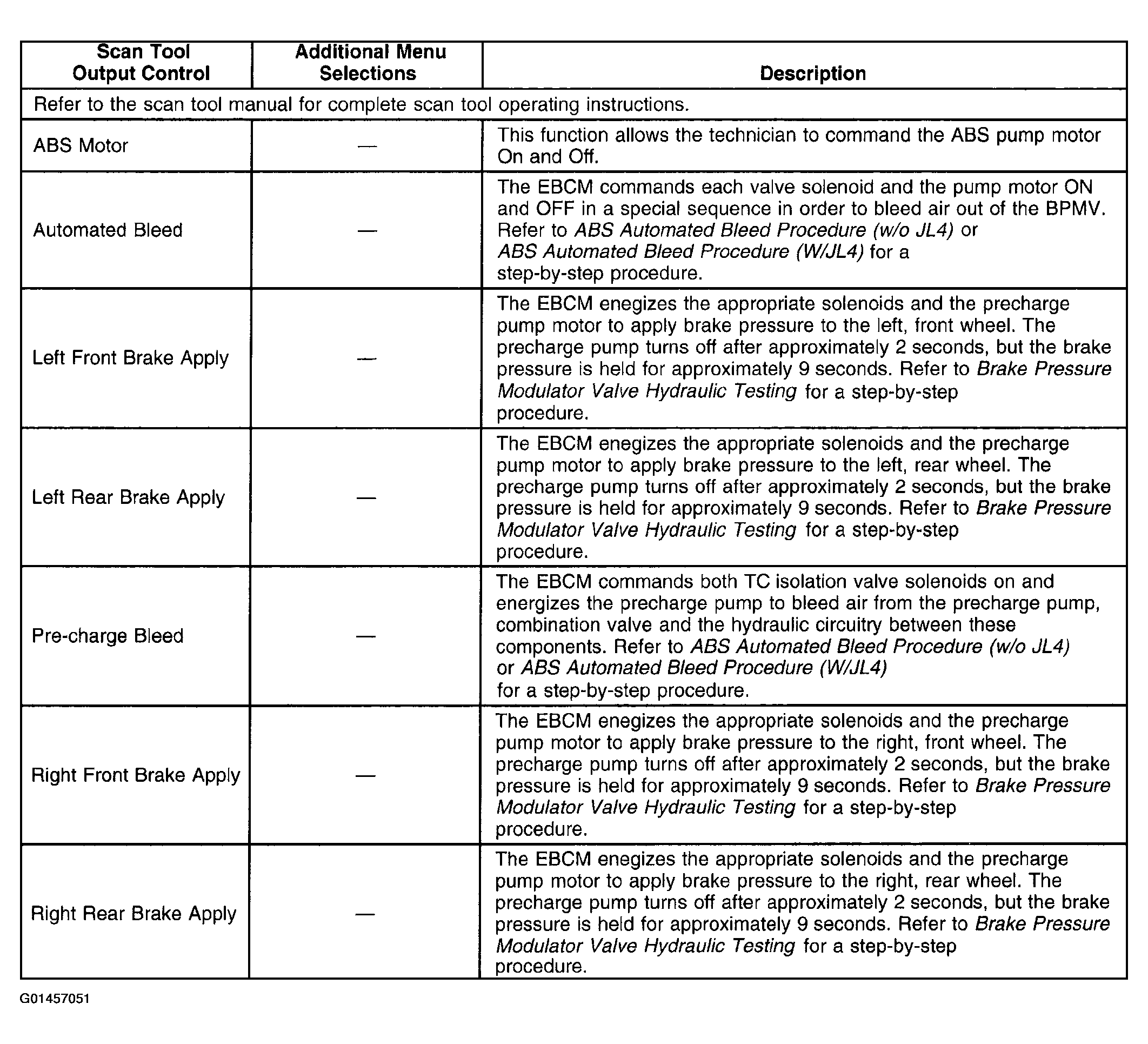

Fig 1: Scan Tool Output Controls (w/JL4) Description (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

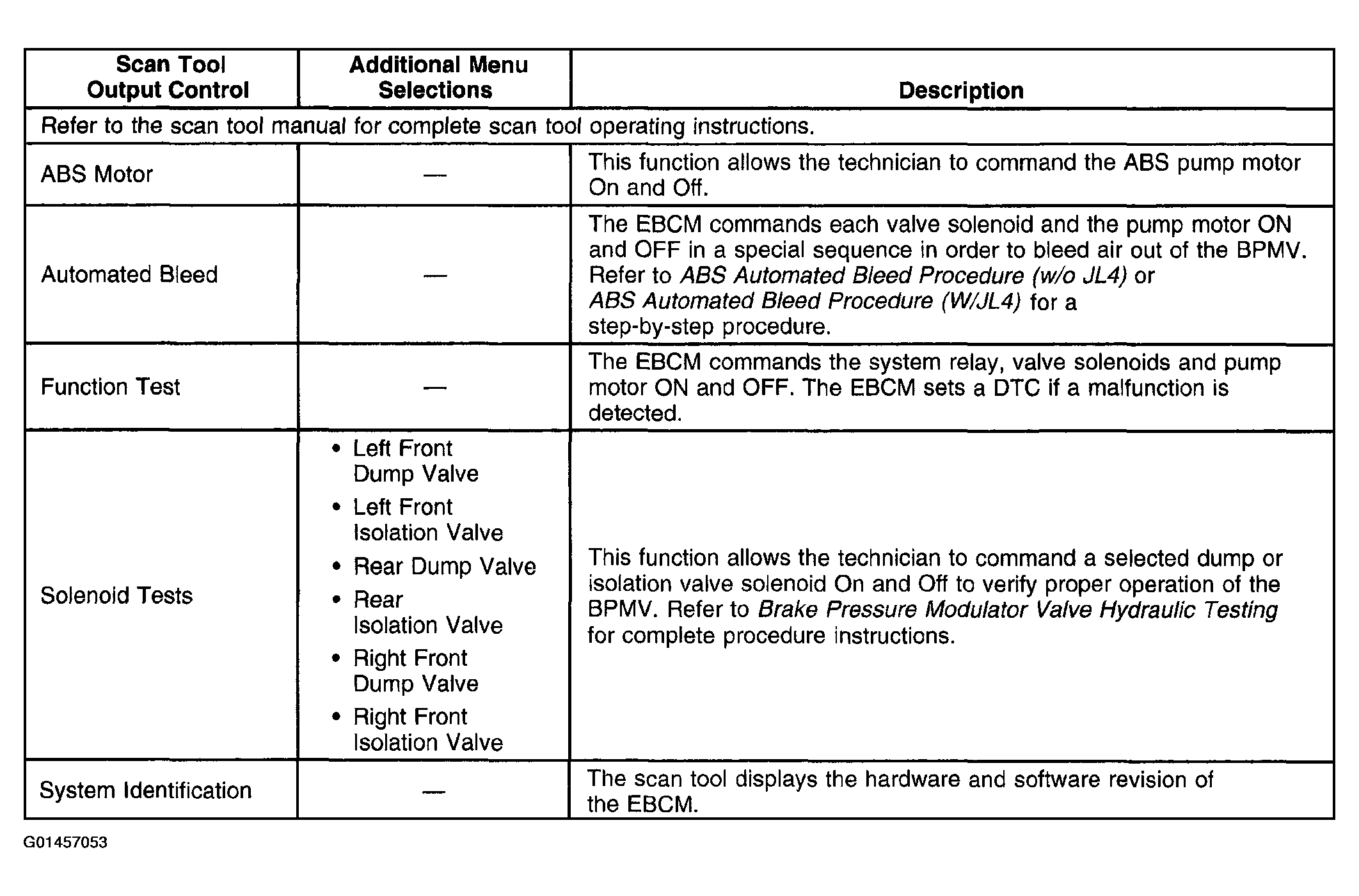

Fig 2: Scan Tool Output Controls (w/JL4) Description (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

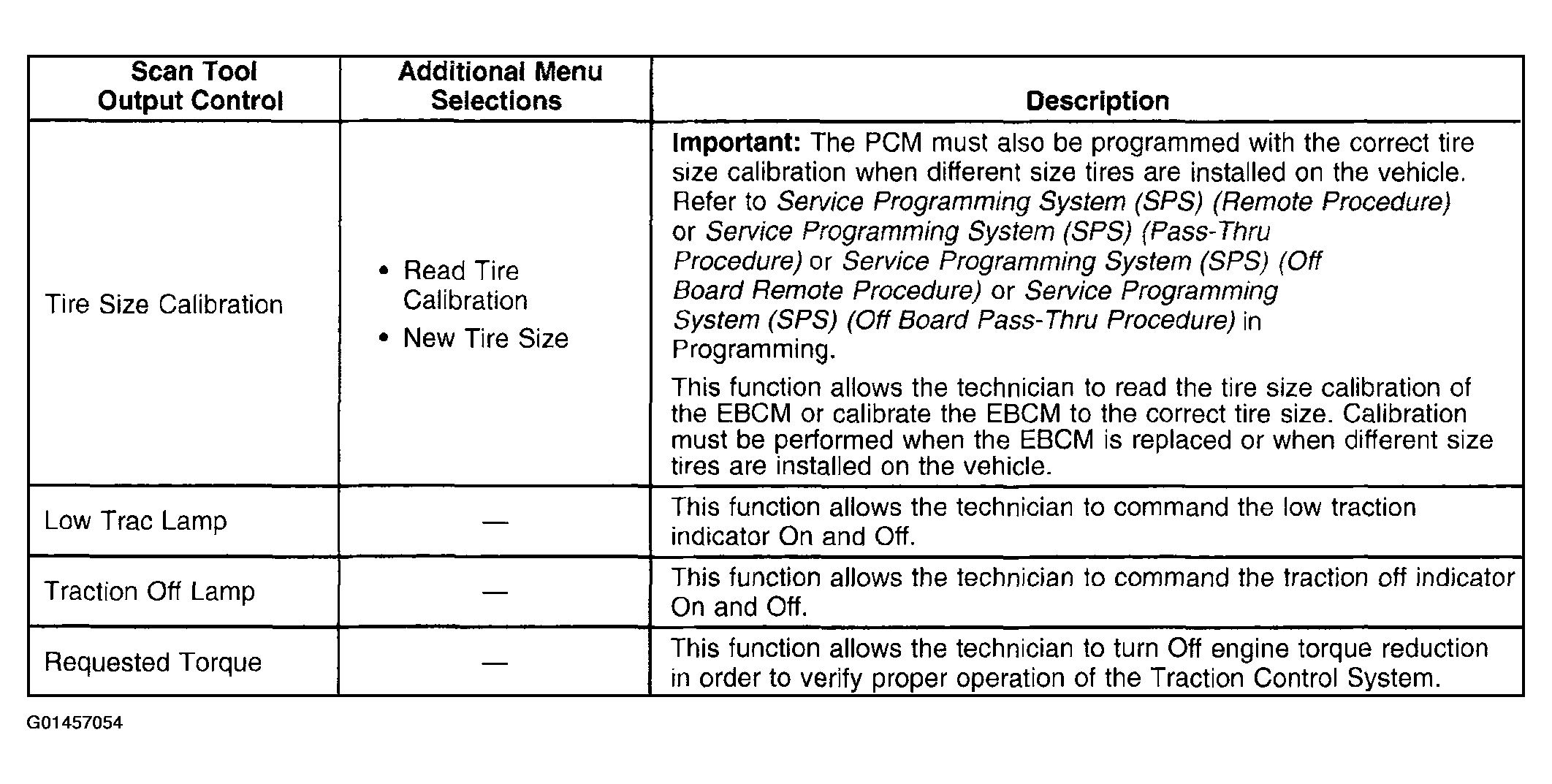

Fig 3: Scan Tool Output Controls (w/NW7) Description (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

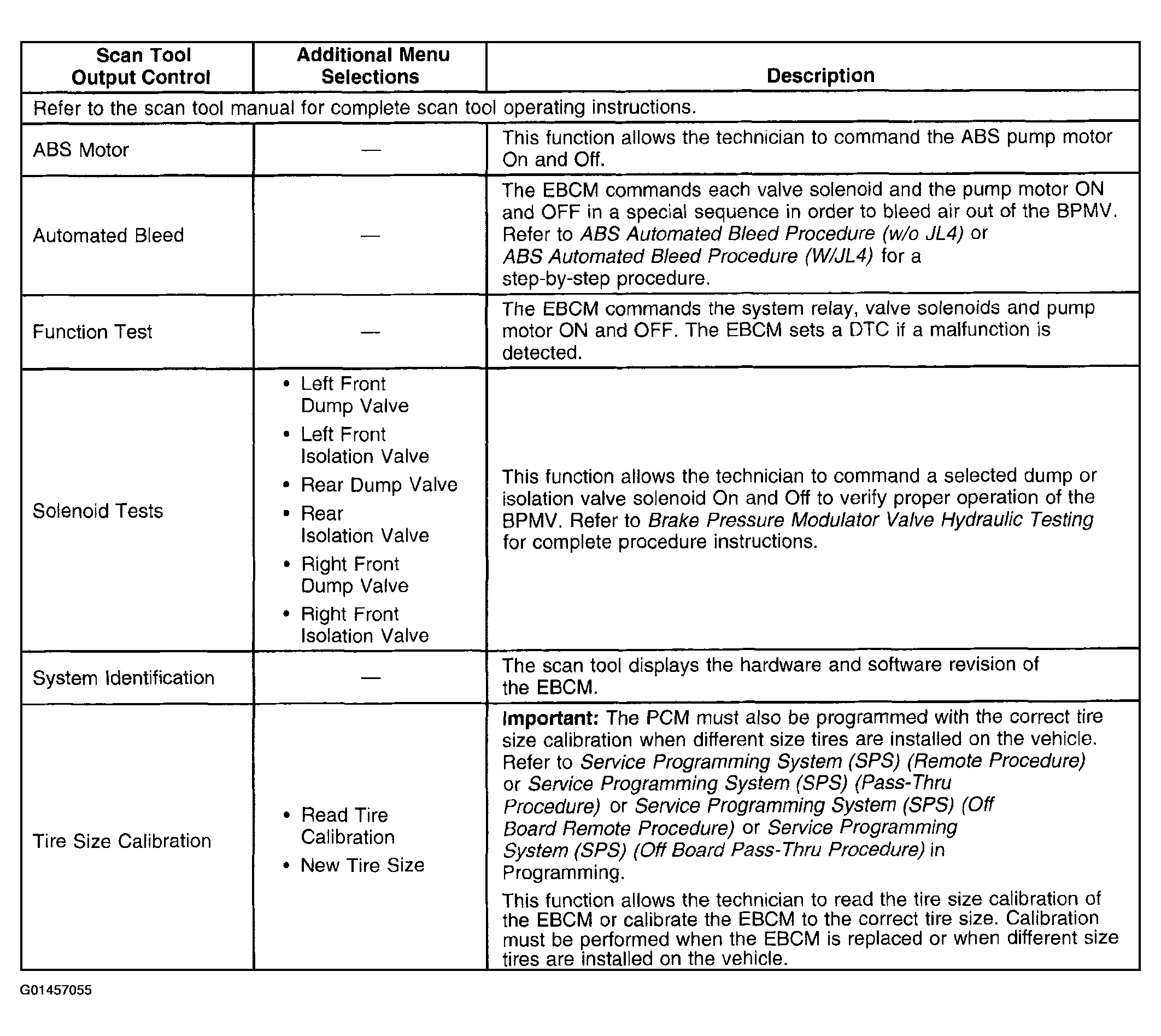

Fig 4: Scan Tool Output Controls (w/NW7) Description (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

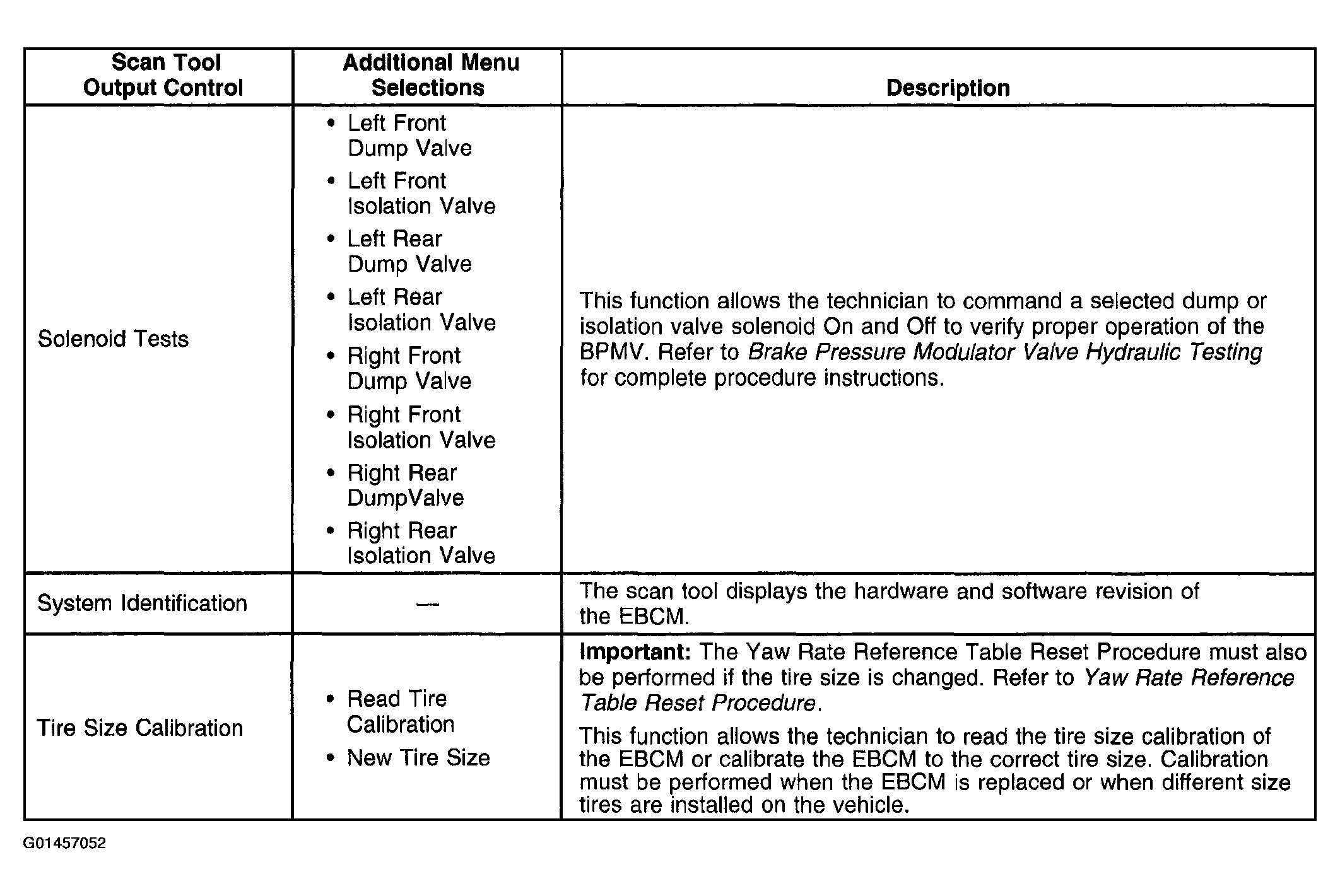

Fig 5: Scan Tool Output Controls (w/o JL4 Or NW7) Description

Courtesy of GENERAL MOTORS CORP.
