Installation Procedure

  1. Connect the electrical connectors to the switches in the assembly
  2. Install the accessory switch assembly into the IP till it snaps into place.
  3. Install the IP trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .

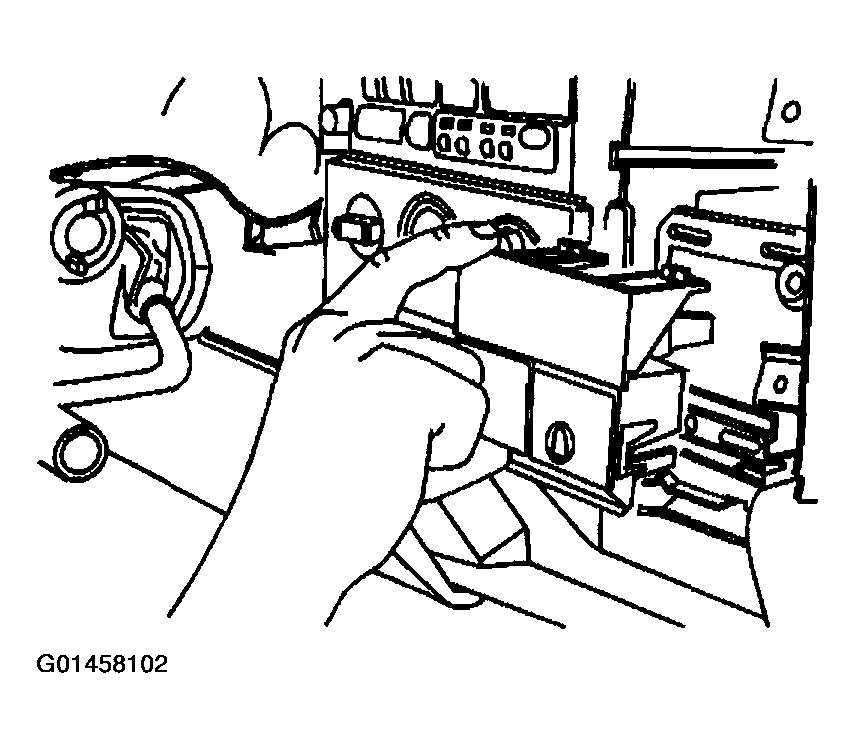

    Fig 1: Installing Accessory Switch Assembly
    G01458102Courtesy of GENERAL MOTORS CORP.
