Output Speed Sensor: Installation

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

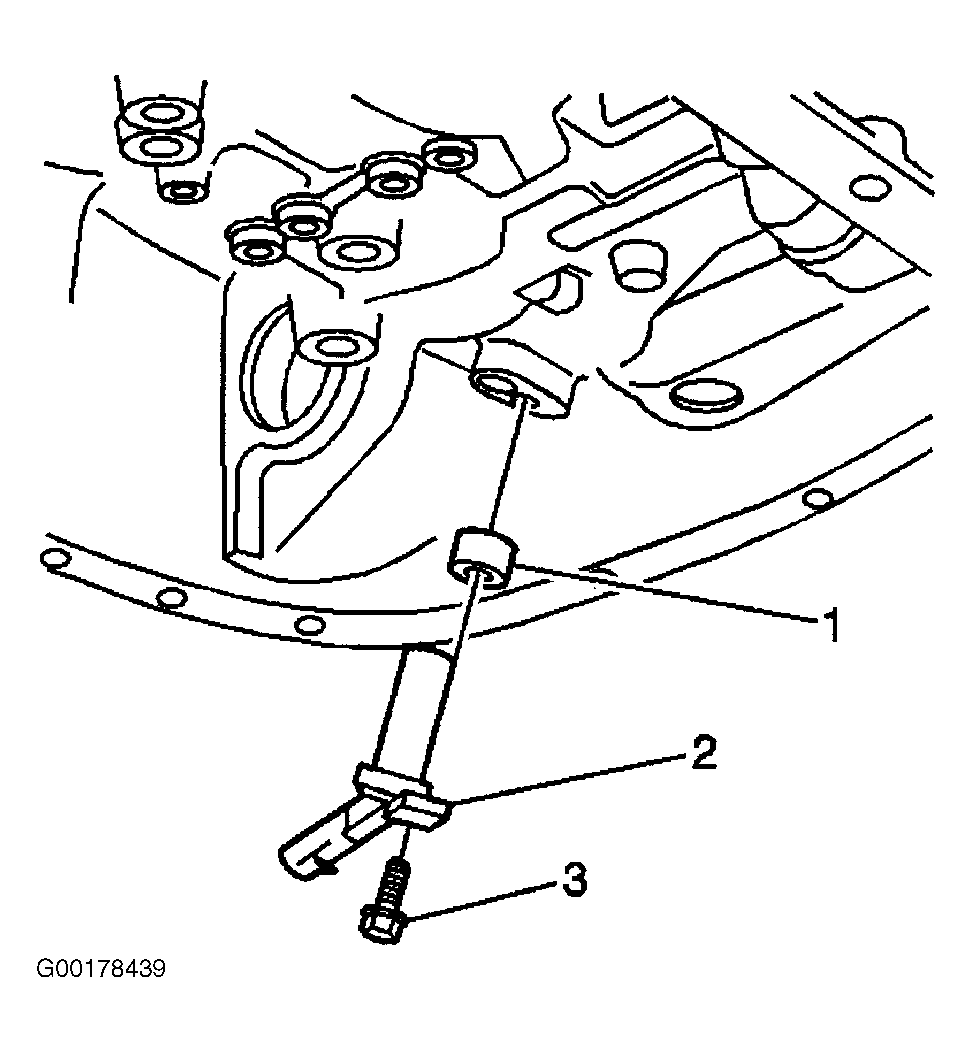

  1. Install the output speed sensor spacer (1). See Figure.
  2. Install the output speed sensor (2).
  3. Install the output speed sensor bolt (3). Tighten to specification. See TORQUE SPECIFICATIONS .

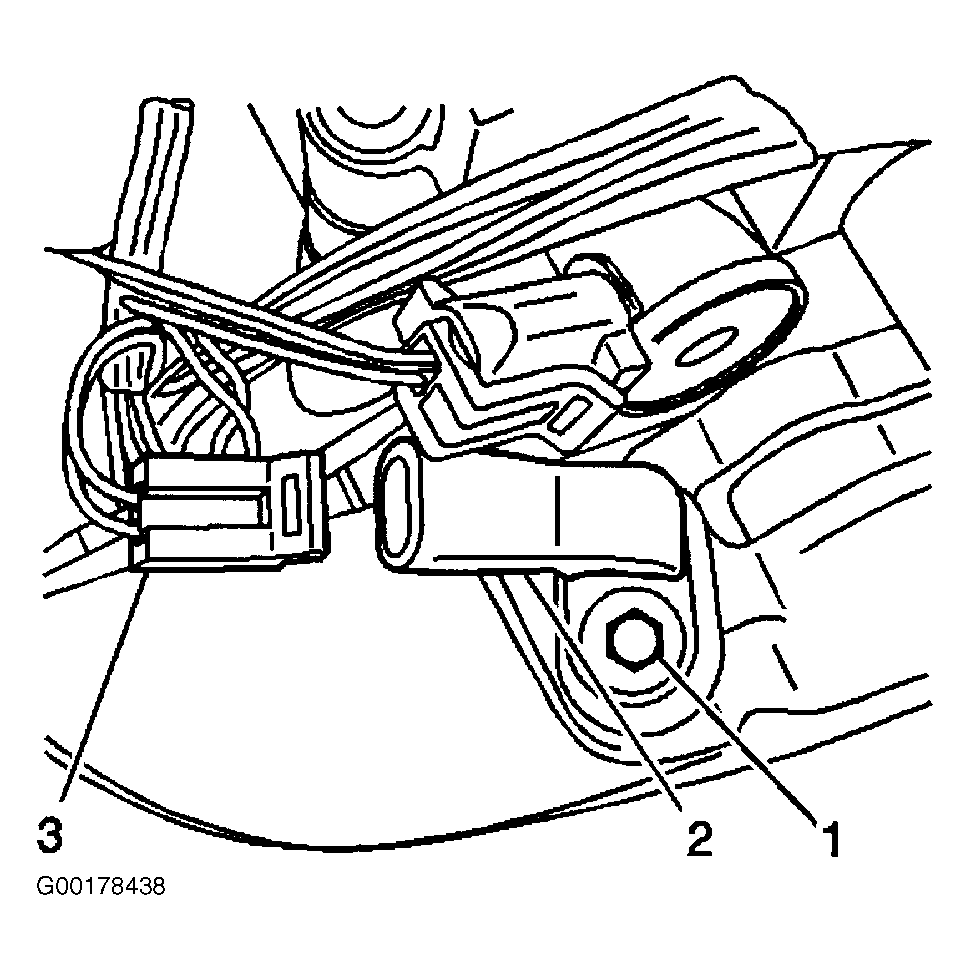

  4. Connect the electrical wiring harness connector (3) to the output speed sensor (2). See Figure.
  5. Install the transmission oil pan and filter.
