Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the armrest (3) to the front door panel.
  2. Press the armrest (3) towards the door trim panel in order to engage the armrest clips.

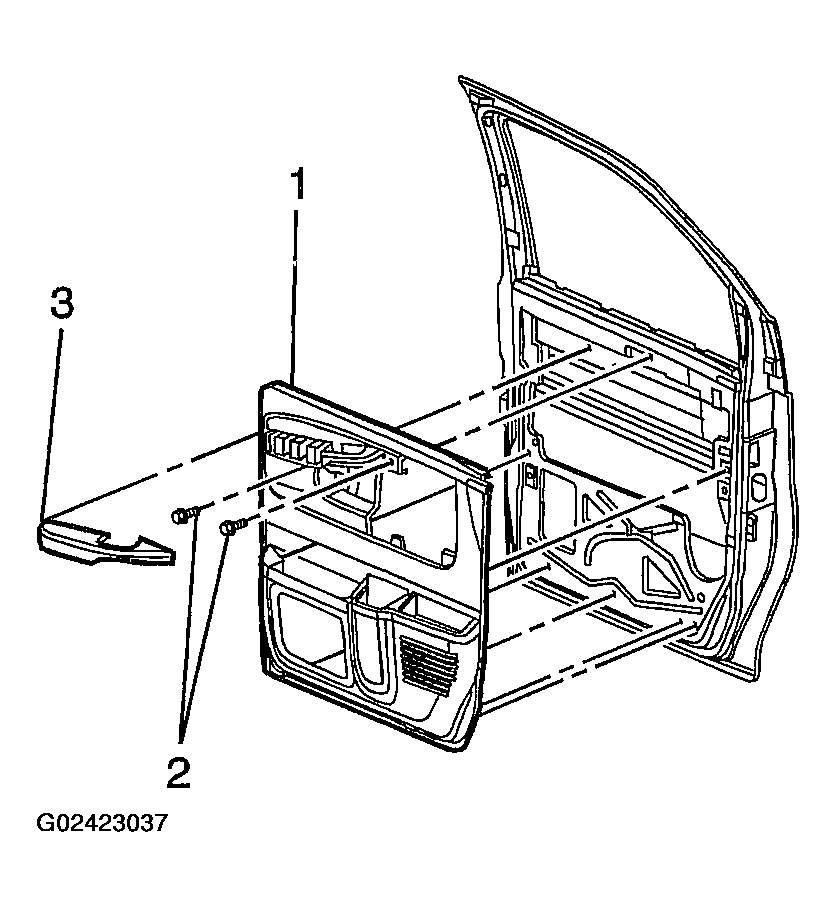

    Fig 1: Installing Armrest
    G02423037Courtesy of GENERAL MOTORS CORP.
