Removal Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front door trim plate. Refer to Door Trim Plate Replacement - Front .

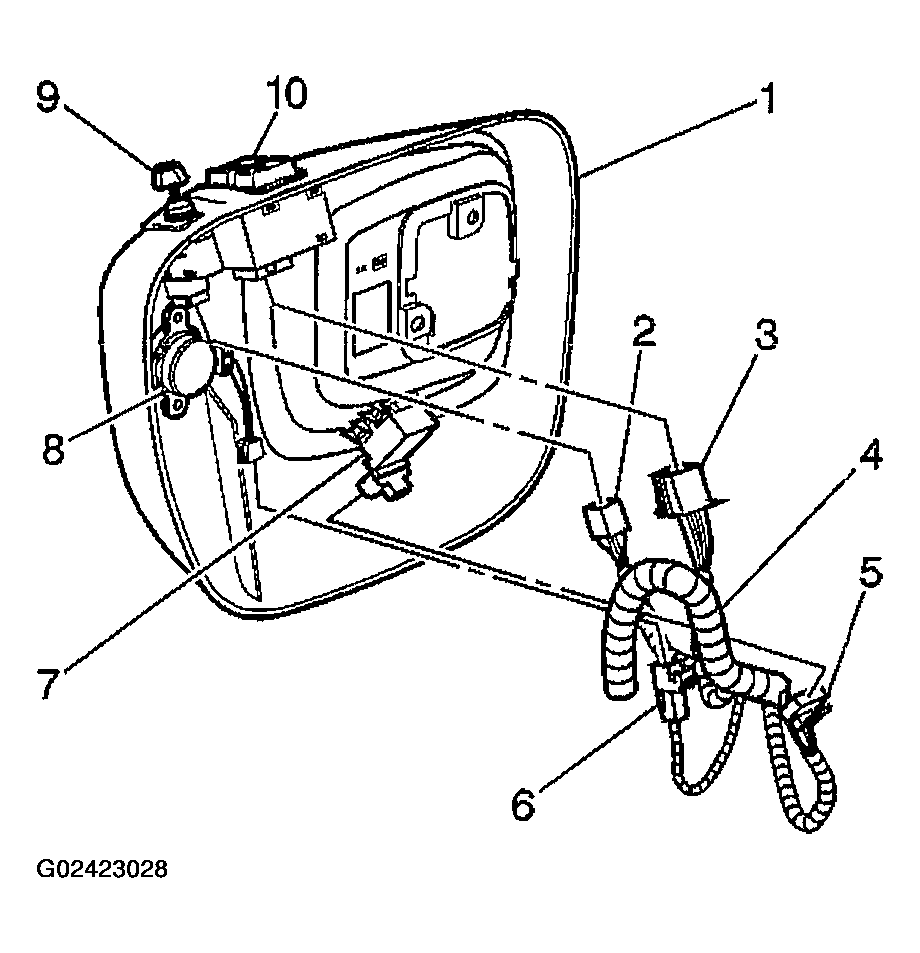

- Remove the electrical connector (5) from the power door lock switch (7).
- Release the retaining tabs on the power door lock switch (7).
- Remove the power door lock switch (7) from the front door trim plate (1).
