Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

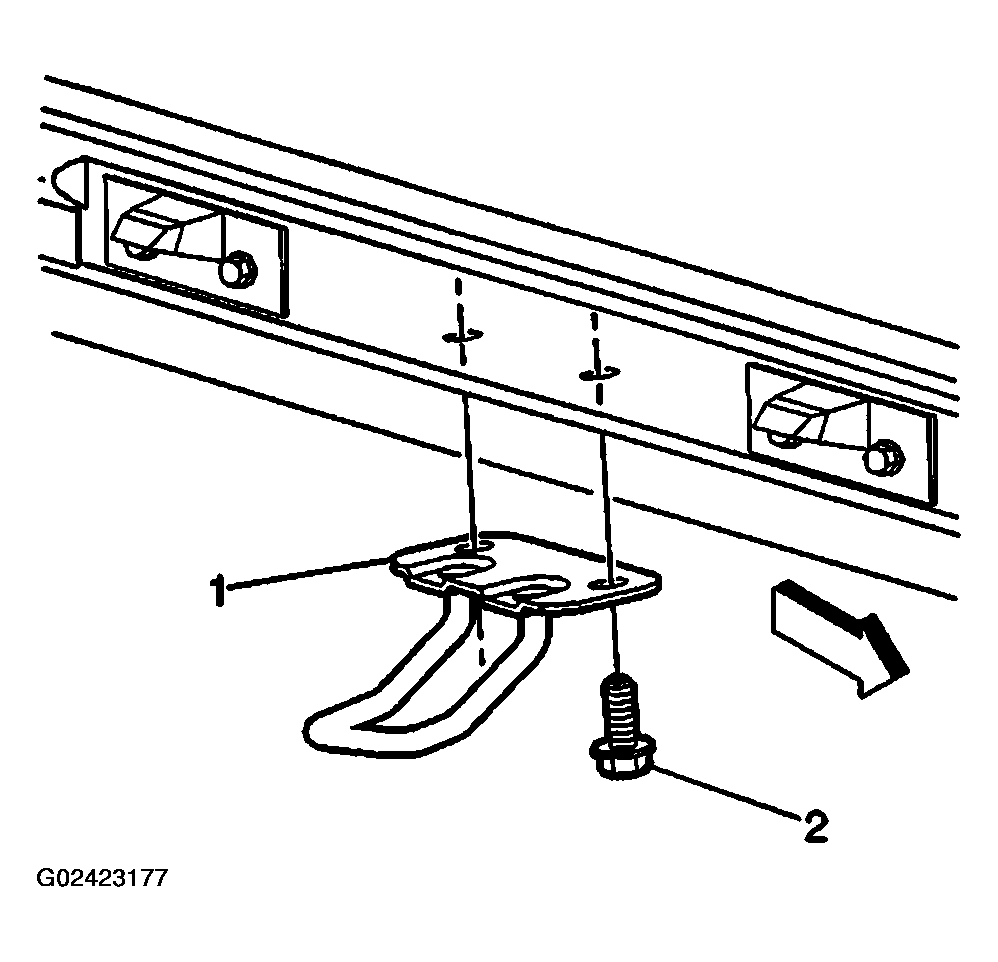

- Install the side door upper striker (1) to the door opening.CAUTION: Refer to FASTENER NOTICE .
- Install the bolts (2) that retain the side door upper striker (1) to the door opening.
Tighten
Tighten the bolts to 10 N.m (89 lb in).
