Radiator Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- Remove the battery cover.
- Disconnect the negative battery cable.
- Remove the under cover.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Disconnect the coolant reservoir hose from the radiator.
- Position the front wiring harnesses out of the way.

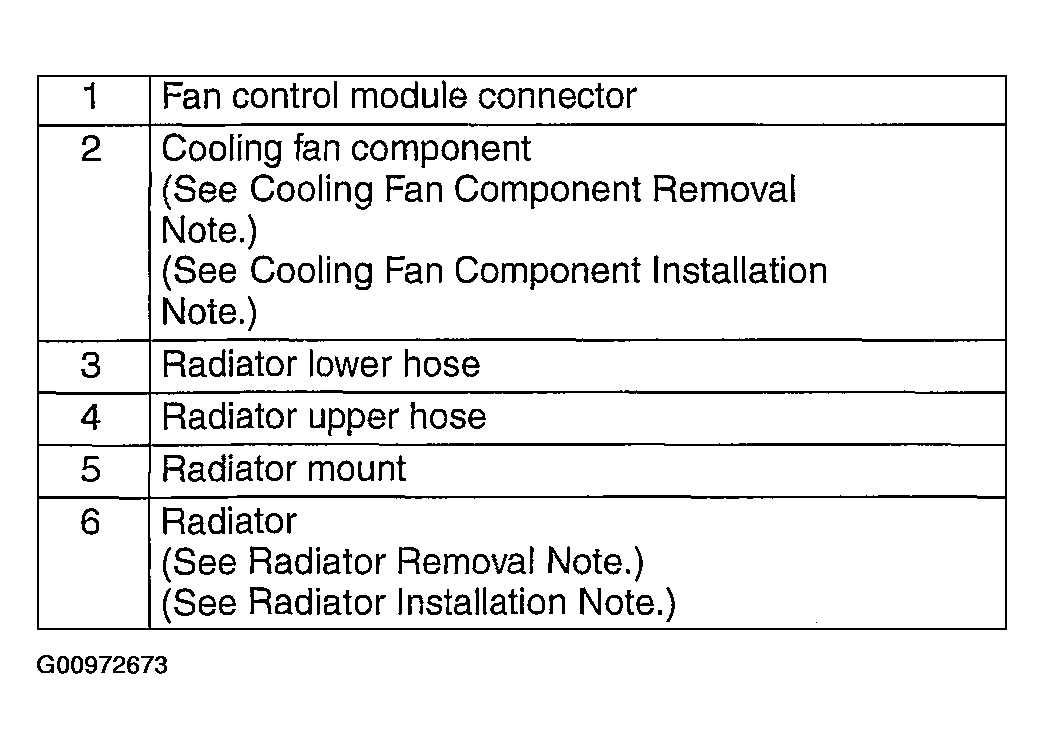

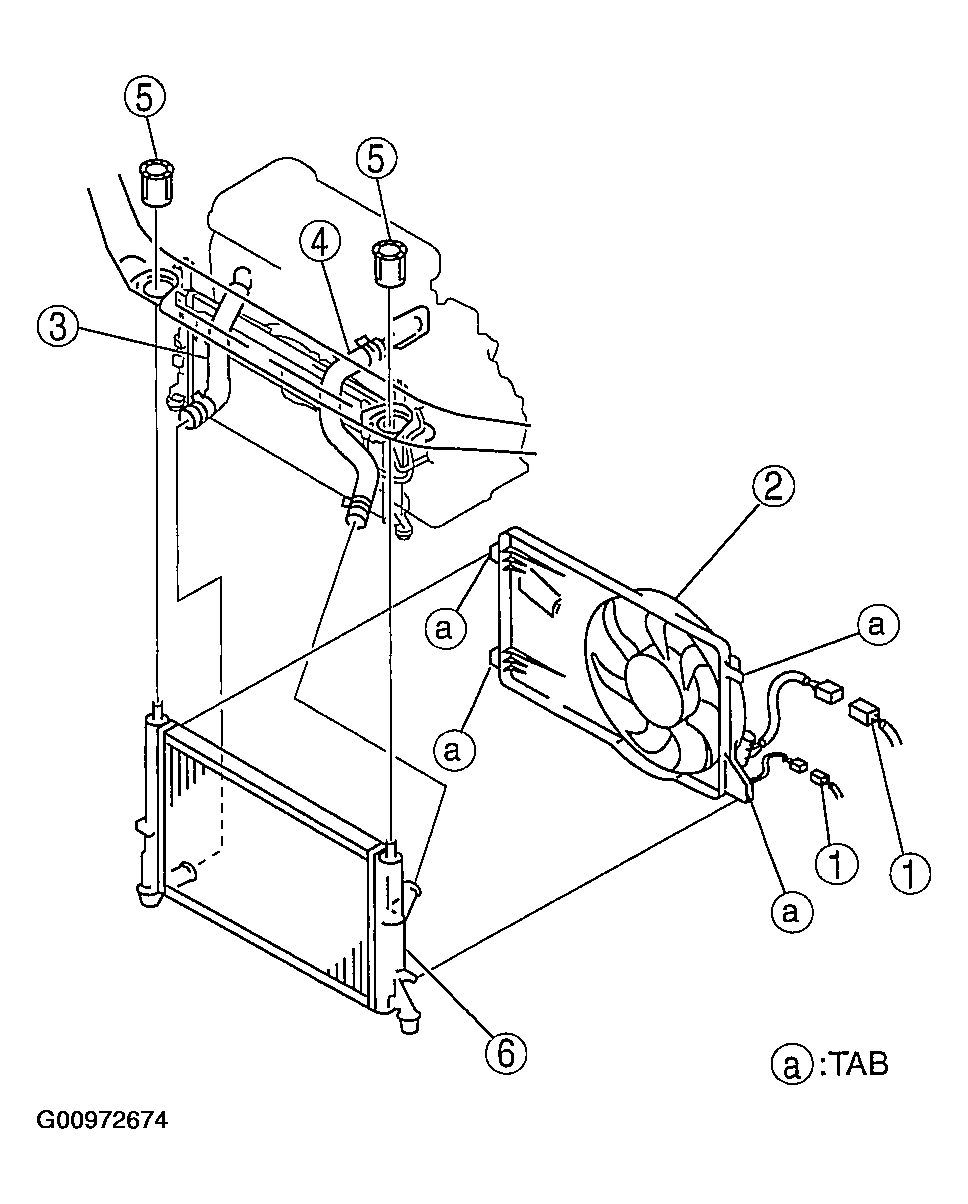

- Remove in the order indicated in the figure.
- Install the reverse order or removal.
- Add engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
