Power Window Main Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

When inspecting the passenger-side and rear power windows, turn the power-cut switch to UNLOCK.
Inspect for continuity between the power window main switch terminals.
- If not as specified, replace the power window main switch.
Connect battery positive voltage to terminal E and ground to terminal I. Verify that there is continuity.
- If not as specified, replace the power window main switch.

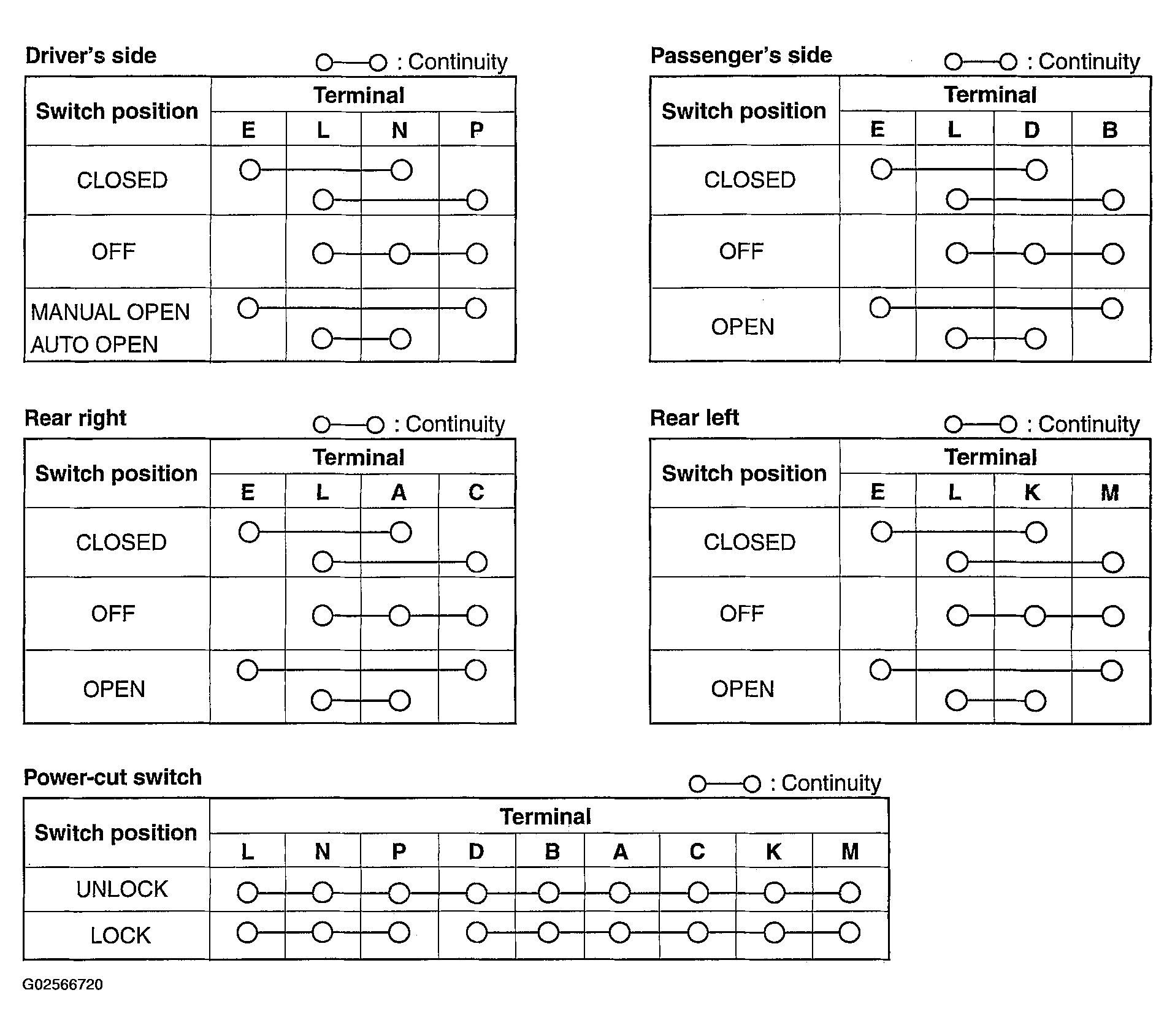

  Fig 1: Power Window Main Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

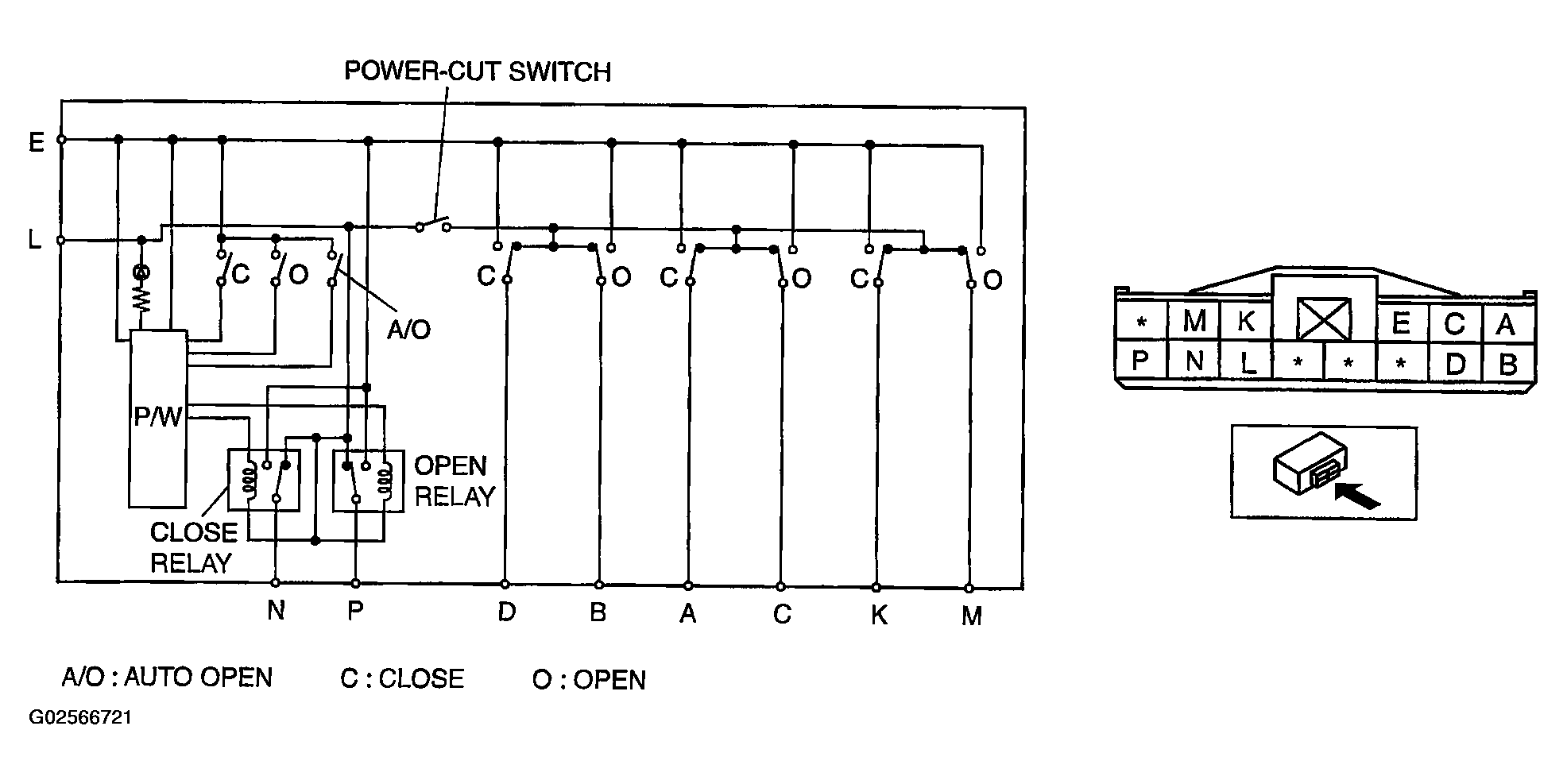

  Fig 2: Power Cut Switch Circuit
  Courtesy of MAZDA MOTORS CORP.
