Regulator Handle Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Fully raise the door glass.
- Install the clip to the regulator handle.

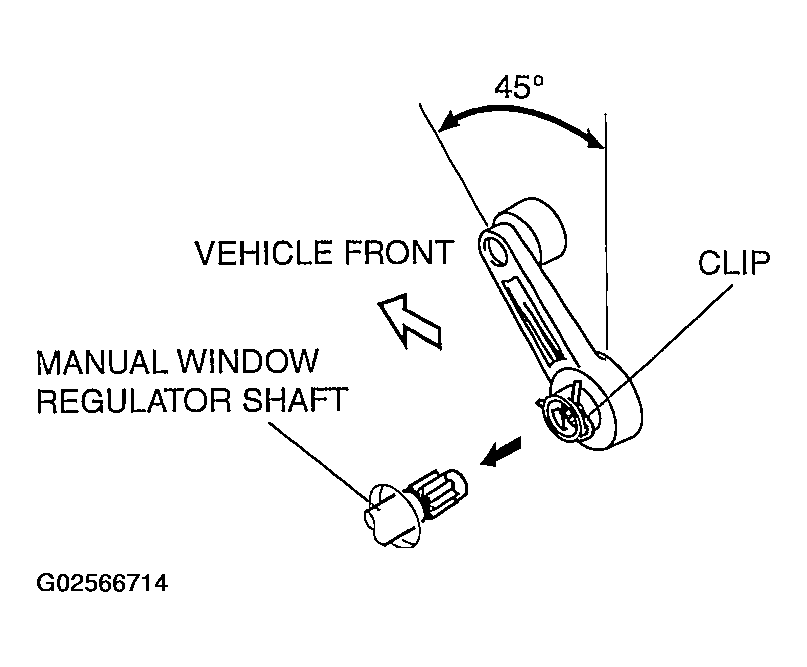

- Install the regulator handle while tilting it as shown in the figure and press it onto the shaft.
Courtesy of MAZDA MOTORS CORP.
