Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

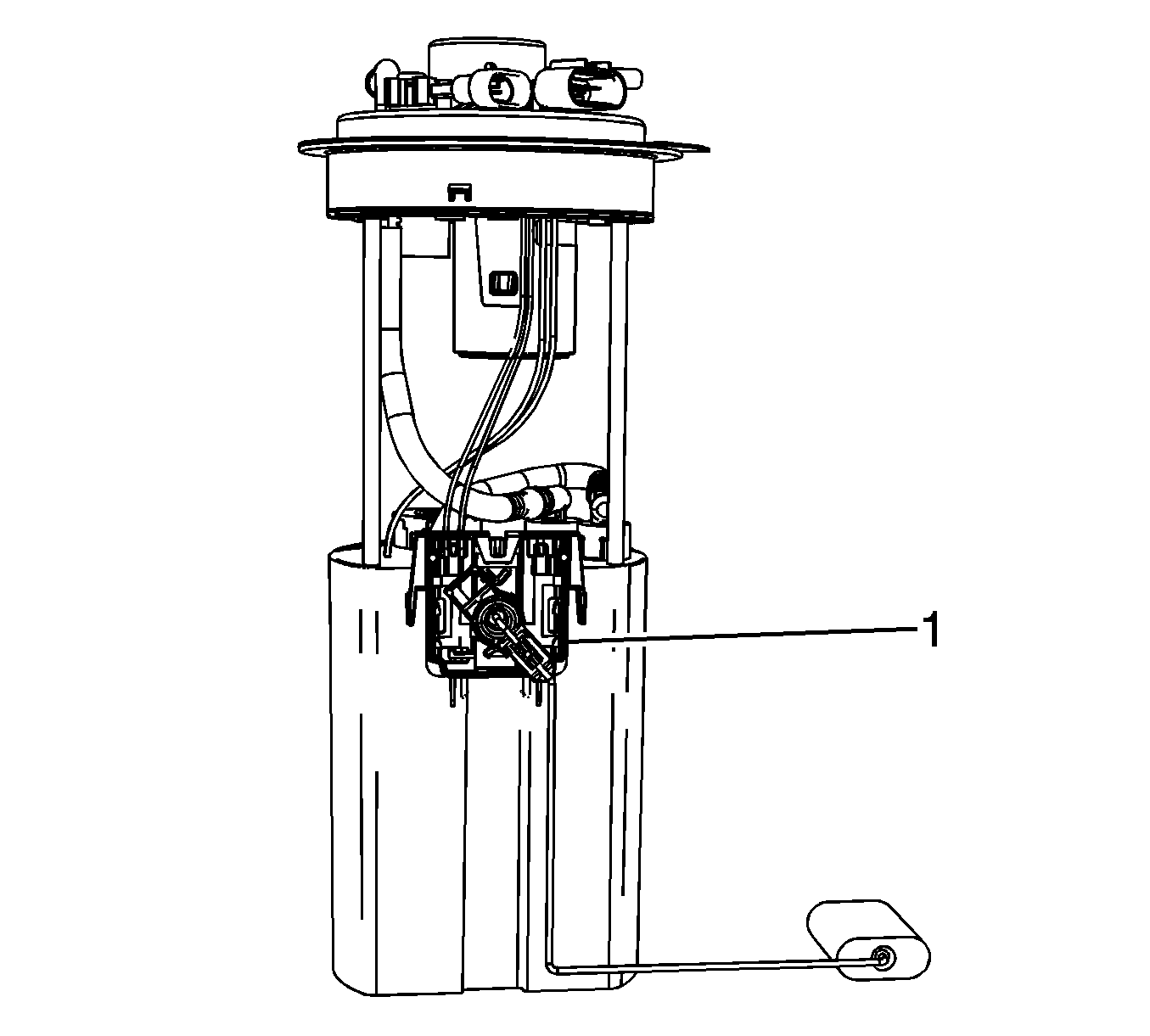

    Fig 1: Fuel Level Sensor
    GM1306358Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (1).
  2. Install the fuel level sensor retaining clip.
  3. Connect the fuel level sensor electrical connector.
  4. Install the fuel lever sensor electrical connector retaining clip.
  5. Connect the fuel pump electrical connector.
  6. Install the sending unit. Refer to Fuel Sender Assembly Replacement .
