Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Position the module (2) to the bracket (3).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws (1).
Tighten: Tighten the screws to 5 N.m (44 lb in).

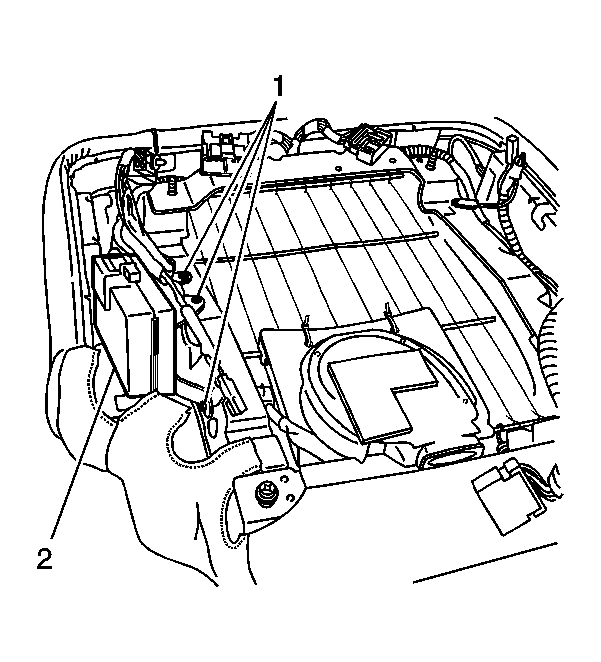

Fig 1: View Of Seat Climate Control Module & Screws

Courtesy of GENERAL MOTORS CORP.

Position the module and bracket assembly to the seat cushion frame.
Install the screws (1).
Tighten: Tighten the screws to 5 N.m (44 lb in).

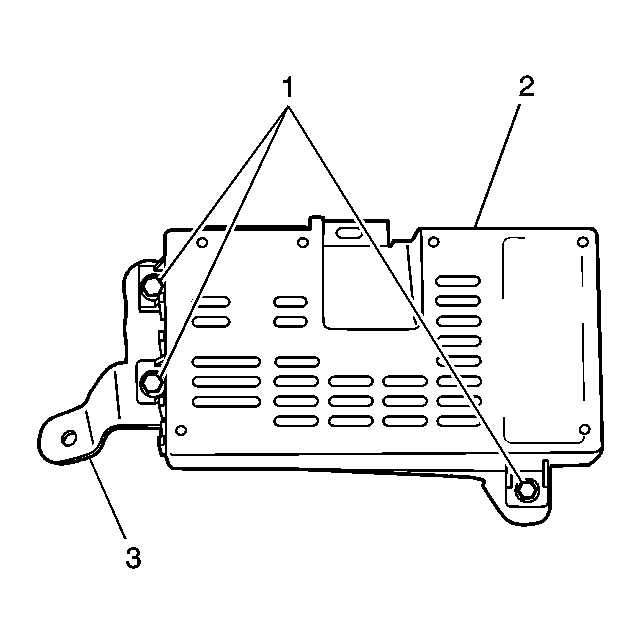

Fig 2: View Of Seat Climate Control Module Bracket & Screw

Courtesy of GENERAL MOTORS CORP.

Connect the climate control module electrical connector.
Install the front seat cushion. Refer to Seat Cushion Frame Replacement - Front .
