Entertainment Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Speaker - RF Door Component View
GM851249Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door-RF
2 Speaker-RF Door
3 Speaker-RF Door Connector
Fig 2: Speaker - LF Door Component View
GM851251Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door-LF
2 Speaker-LF Door
3 Window Motor-Driver Connector
4 Speaker-LF Door Connector
5 Driver Door Module (DDM) Connectors
6 Outside Rearview Mirror-Left Connector
Fig 3: Speaker - LF Tweeter (RF Similar) Component View
GM851254Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left A-Pillar Trim Panel
2 Speaker-LF Tweeter
3 Speaker-LF Tweeter Connector
Fig 4: Speaker - LR Door (RR Similar) Component View
GM851258Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door-LR
2 Window Motor-LR
3 Speaker-LR

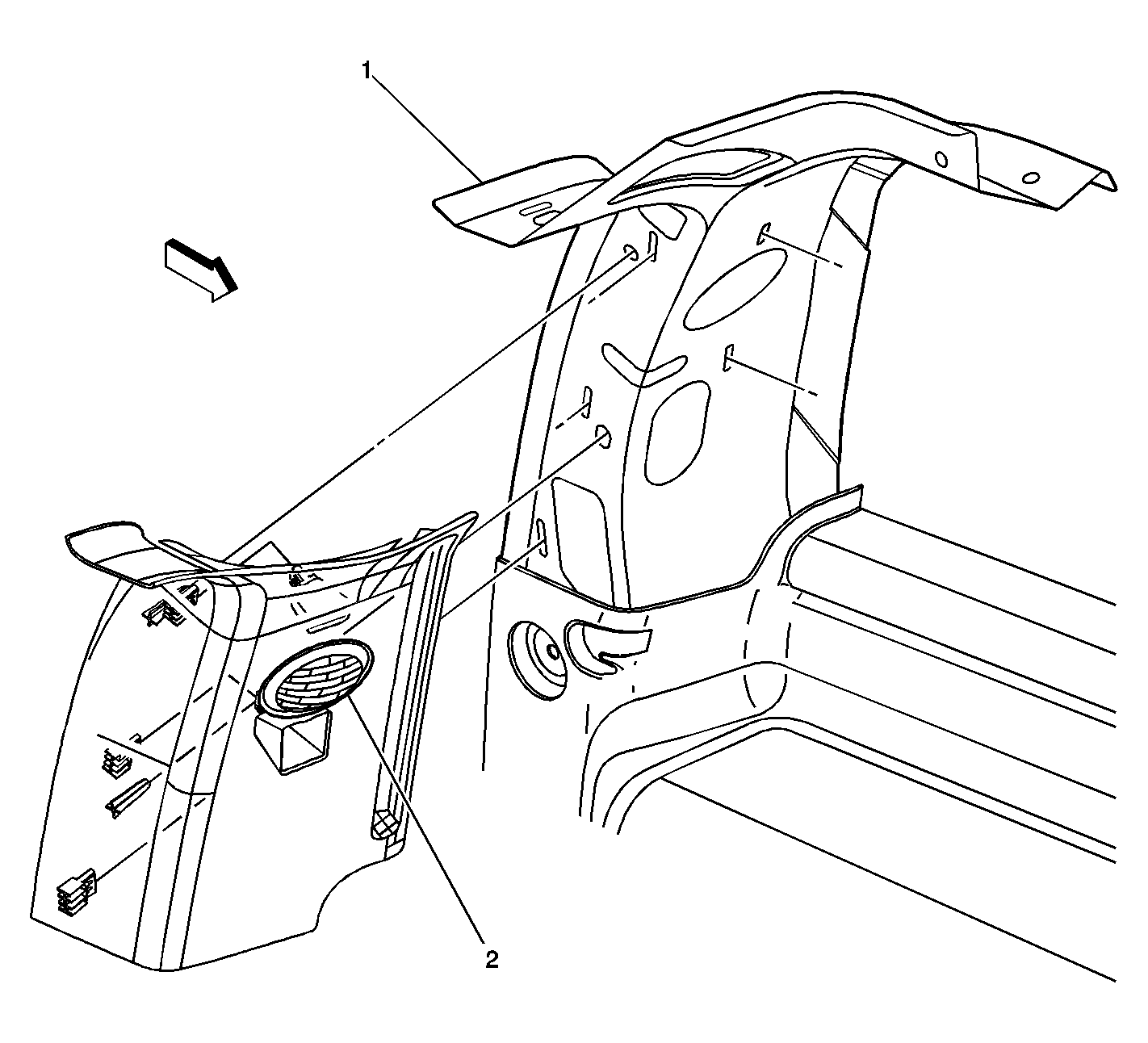

Fig 5: Speaker - Left D-Pillar (Right Similar) Component View
GM851263Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left D-Pillar
2 Speaker-Left D-Pillar

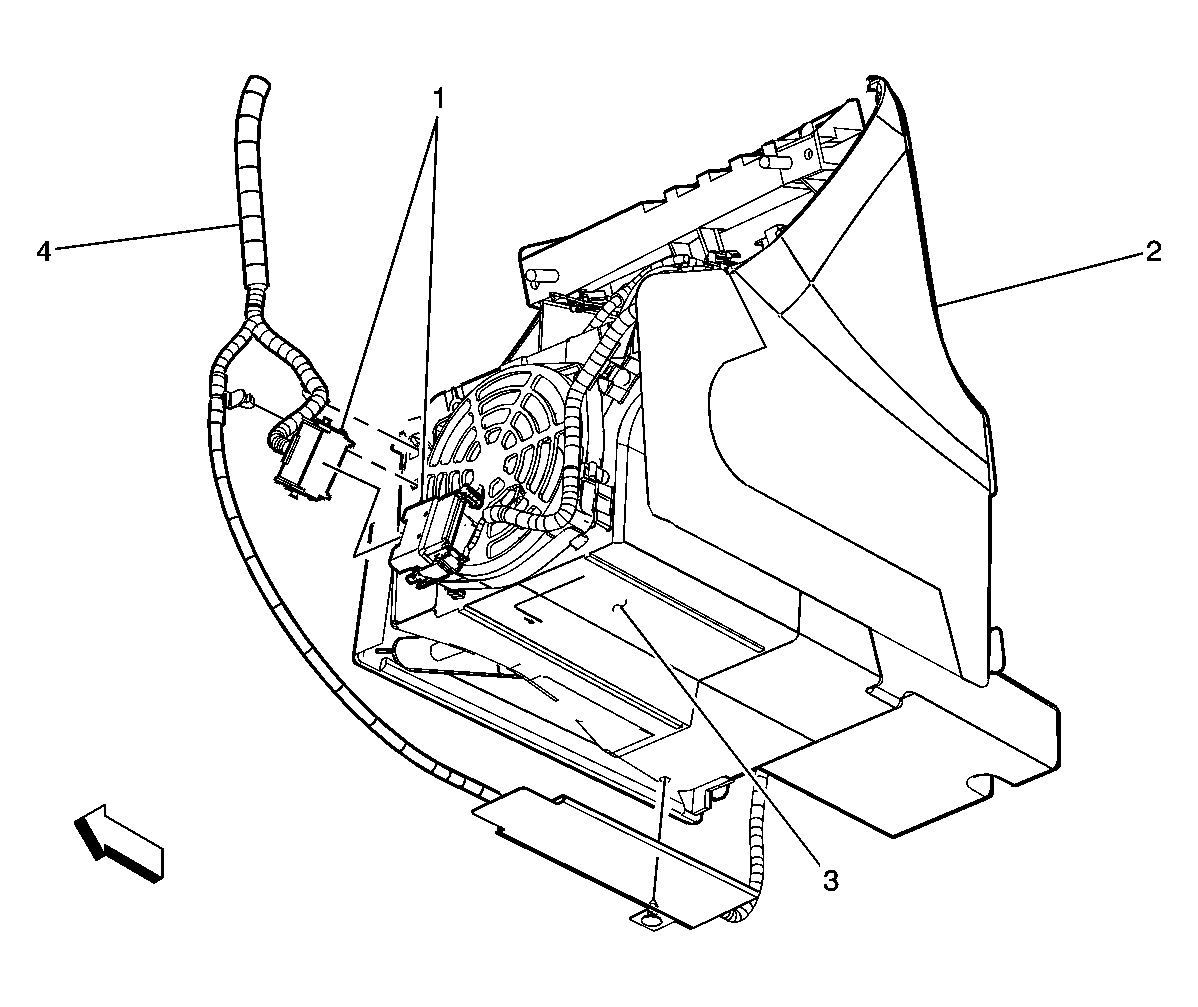

Fig 6: Speaker - Subwoofer Component View
GM813723Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C306
2 Front Floor Console Extension
3 Speaker - Subwoofer
4 I/P Harness
Fig 7: Radio (UB7 w/Y91 Shown, Others Similar) Component View
GM851267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Connectors
2 Radio Antenna
3 Instrument Panel
4 HVAC Control Module
5 Radio
6 HVAC Control Module Connectors
Fig 8: Instrument Panel (I/P) - Right Rear Component View
GM851791Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel (I/P)
2 Vehicle Communication Interface Module (VCIM)
3 Cellular Antenna Coax
4 VCIM Connectors
5 Navigation Antenna Coax
6 Digital Radio Receiver (U2K/U2L)
Fig 9: Splice Pack SP250 (UQ7) Component View
GM1170964Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 C202
3 SP250

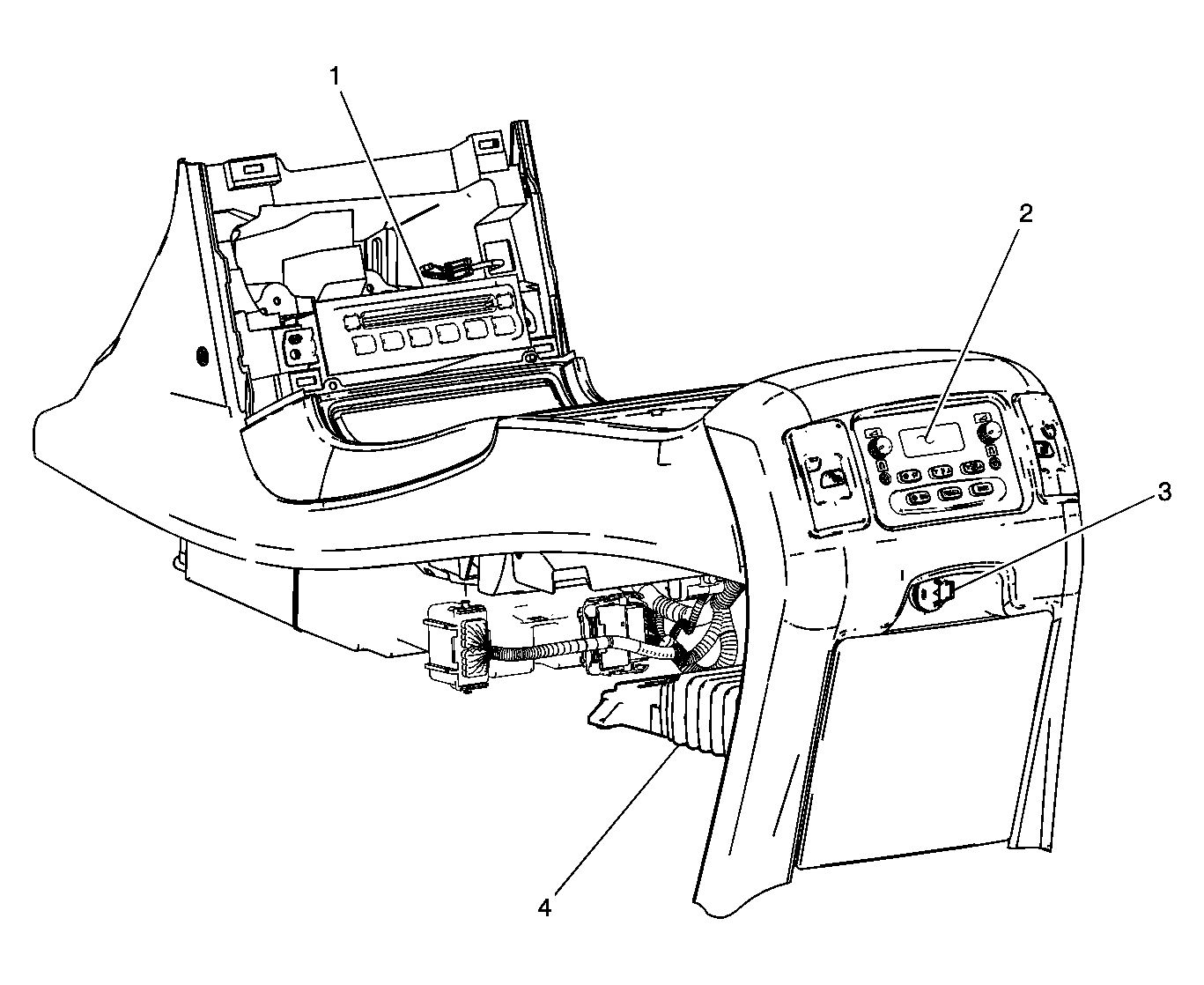

Fig 10: Floor Console Components View
GM1402099Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Playback Device - CD Player
2 Rear Seat Audio (RSA)/Rear HVAC Control Module
3 Auxiliary Power Outlet - Console
4 Audio Amplifier
Fig 11: Steering Wheel Component View
GM851273Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Audio Controls-Left
2 Inflatable Restraint Steering Wheel Module - C4
3 Steering Wheel Audio Controls-Right
4 Steering Wheel Driver Information Center (DIC) Controls-Right
5 Inflatable Restraint Steering Wheel Module - C3
6 Inflatable Restraint Steering Wheel Module - C2
7 Steering Wheel Driver Information Center (DIC) Controls-Left
8 Steering Column
9 Steering Wheel
Fig 12: Remote Playback Device - CD Player Component View
GM851274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lower I/P Bezel
2 Remote Playback Device-CD Player
Fig 13: Digital Radio Receiver Component View
GM851276Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Side of Instrument Panel
2 Digital Radio Receiver
3 Digital Radio Receiver Connector
Fig 14: Rear Seat Entertainment (RSE) Assembly Component View
GM851278Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Rear Seat Entertainment (RSE) Assembly
3 Rear Seat Entertainment (RSE) Display
4 Intermediate Bracket
5 Fir Tree Retainer

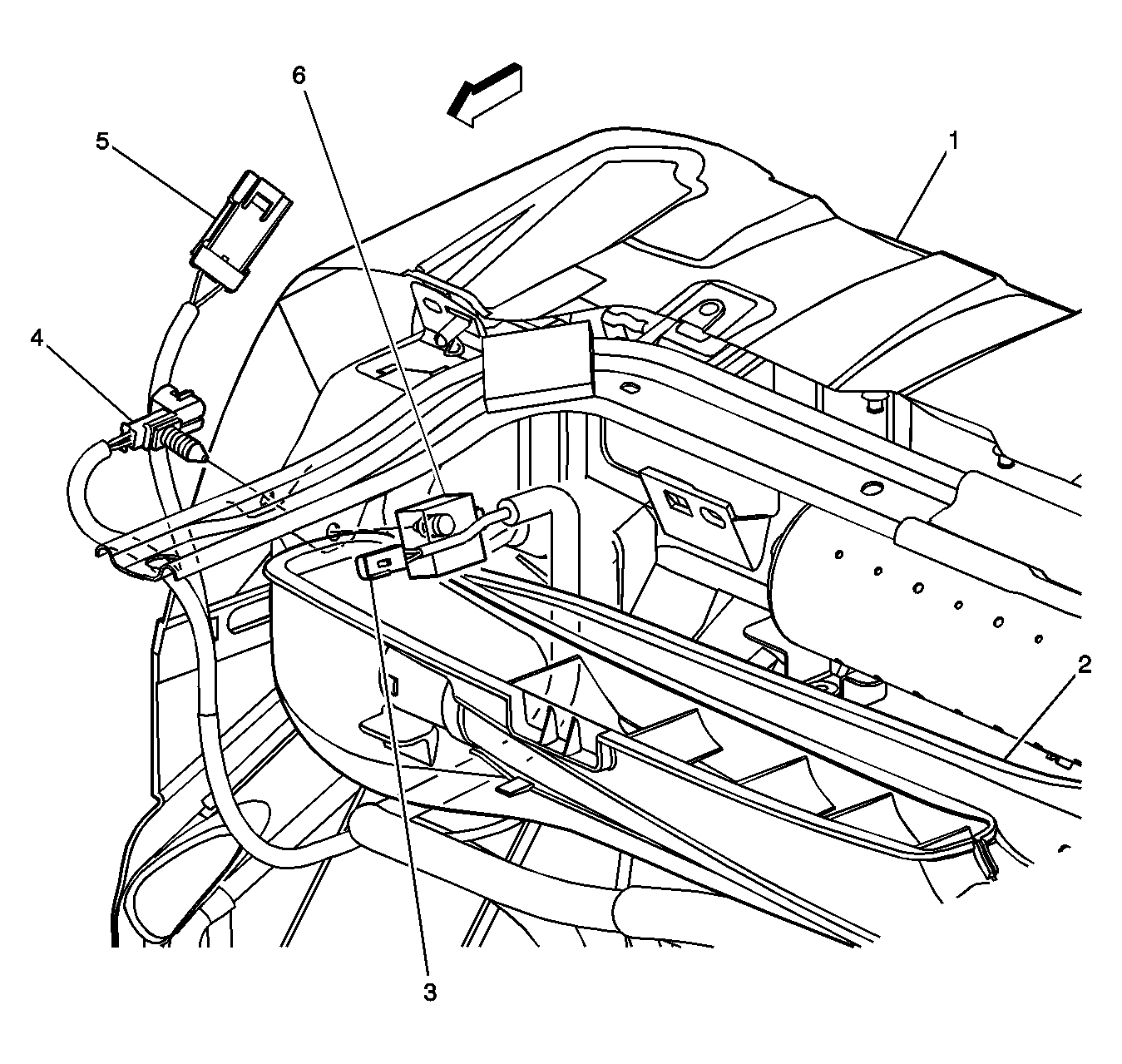

Fig 15: Instrument Panel - RH Rear Component View
GM851281Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Top of Instrument Panel
2 Windshield Defogger Duct
3 C230
4 Radio Antenna Module Connector
5 Speaker-RF Tweeter Connector
6 Antenna Coax Connector

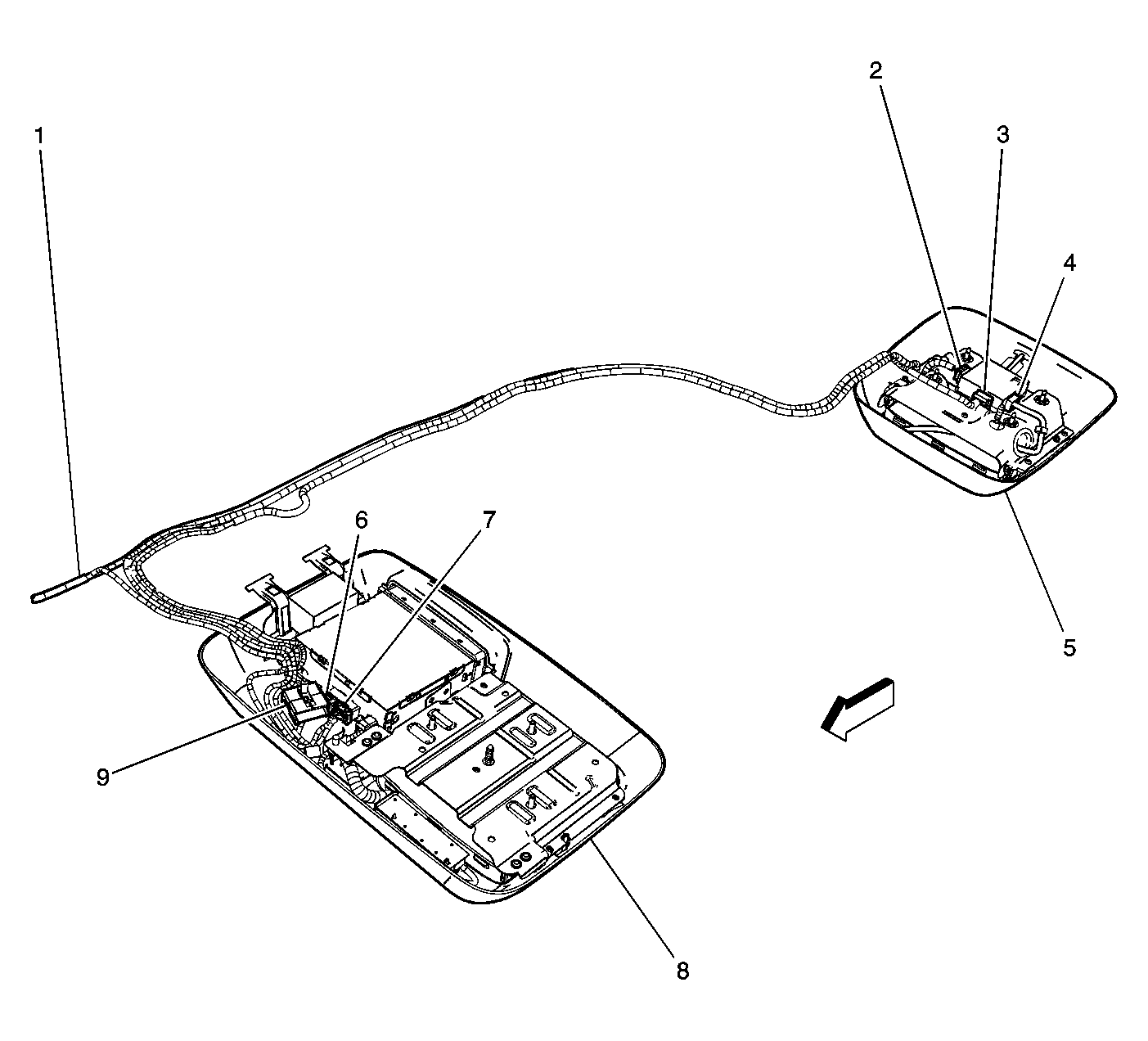

Fig 16: Front & Rear Video Displays - ULT Component View
GM1409641Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner Harness
2 Splitter C2
3 Splitter C1
4 Splitter C3
5 Rear Display
6 DVD Player C1
7 DVD Player C2
8 Disk Player and Video Display
9 C375

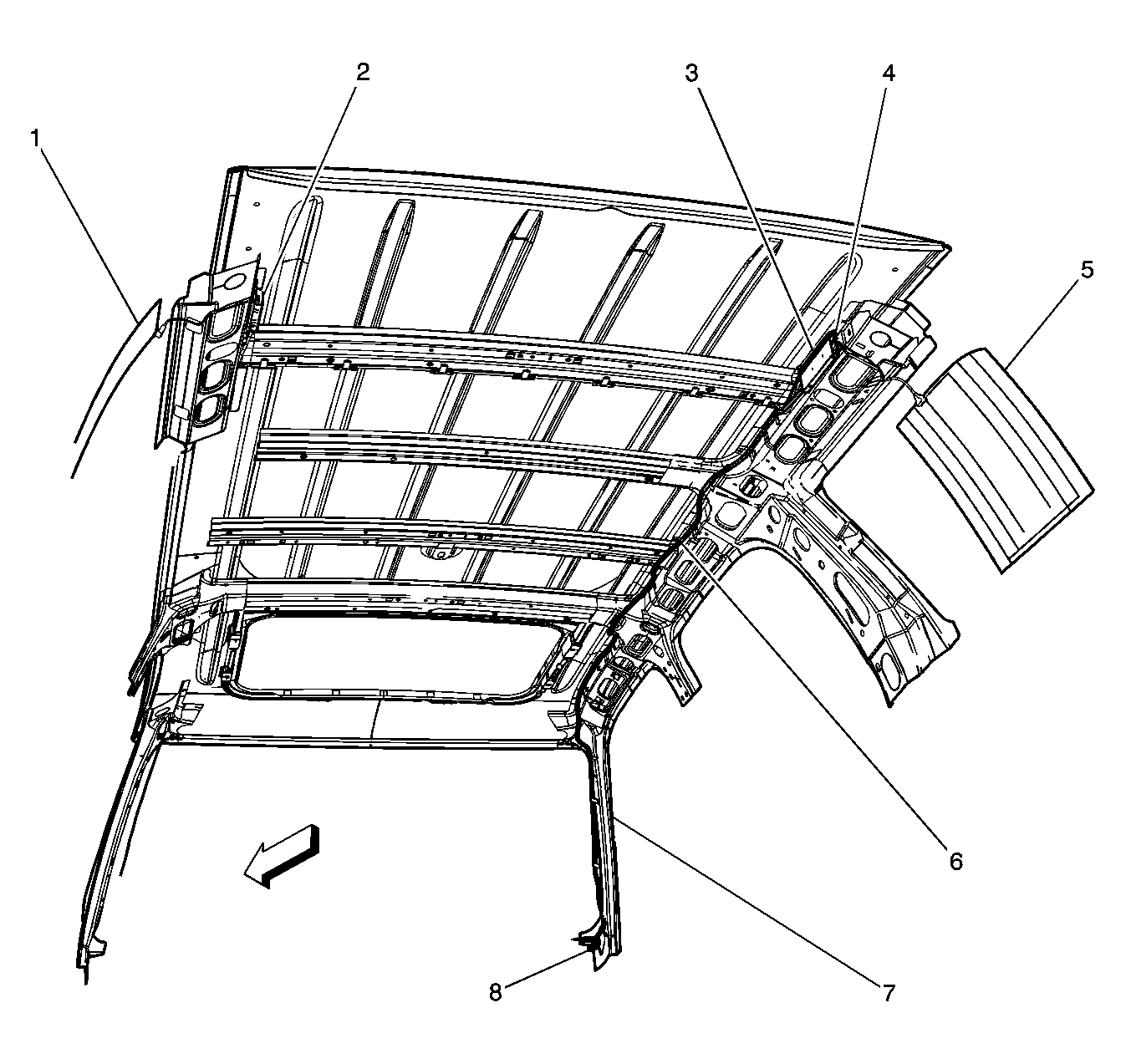

Fig 17: AM-FM Diversity Antenna System Component View
GM1409370Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 FM Antenna
2 FM Impedance Matching Module
3 Radio Antenna Module
4 Module C1
5 AM-FM Antenna
6 Radio Antenna Module Cable
7 Right A-Pillar
8 C231
