Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

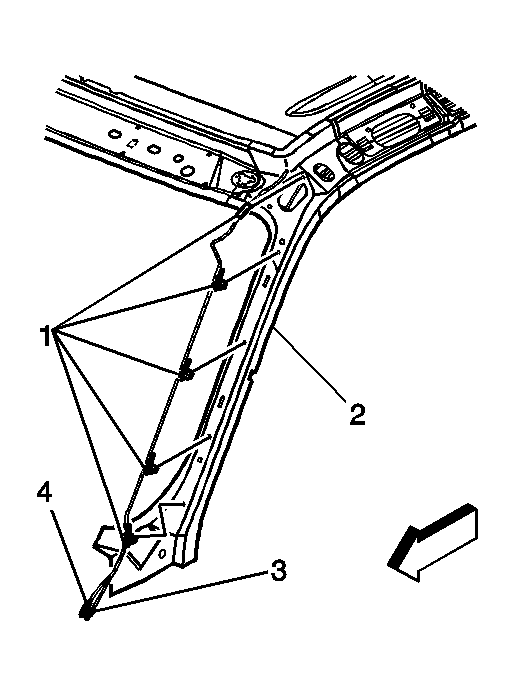

Install the cable clips (1) to the A-pillar.
Connect the electrical wire connector (4).
Connect the cable (3) to the radio.

Fig 1: Installing Cable Clips To A-Pillar & Cable To Radio

Courtesy of GENERAL MOTORS CORP.

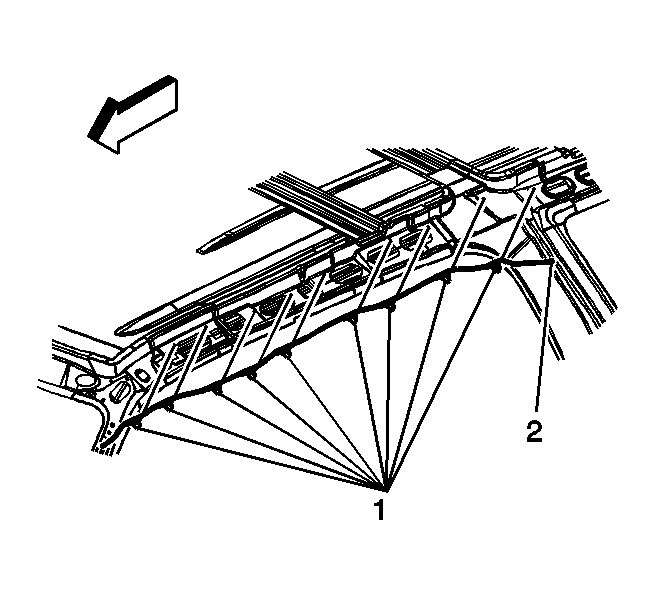

Install the cable clips (1) to the roof.
Connect the cable (2) to the radio antenna module.
Connect the wire connector to the radio antenna module.

Fig 2: Installing Cable Clips To Roof & Cable To Radio Antenna Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt retaining the radio antenna module to the roof.
Tighten: Tighten the retaining bolt to 9 N.m (80 lb in).
Install the headliner. Refer to Headliner Replacement in Interior Trim.
Install the I/P trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
