Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness connector to the stabilitrak switch.

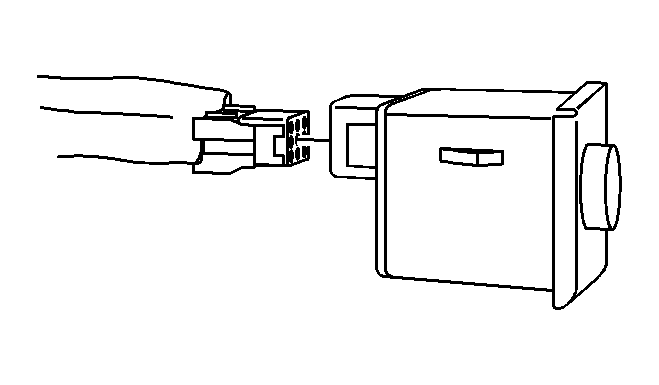

    2. Fig 1: View Of Stabilitrak Switch Harness Connector
    GM788223Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilitrak switch (3) into the I/P assembly (1)
  3. Ensure that the switch is secure into both retaining tabs (2).

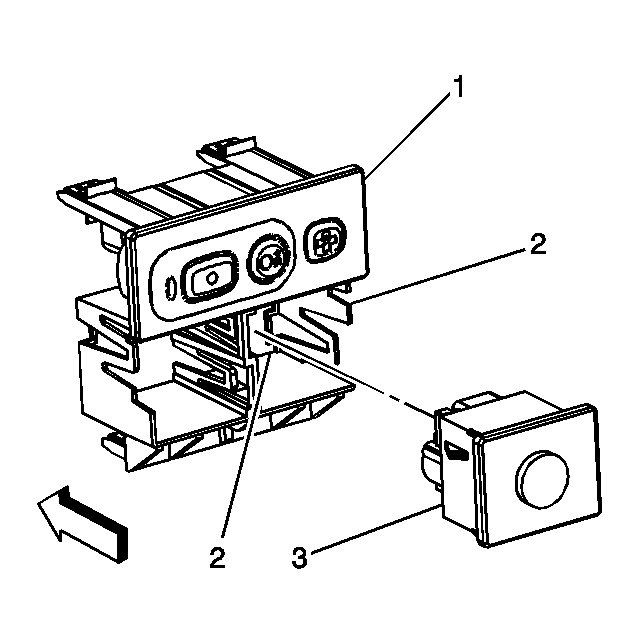

    4. Fig 2: View Of Stabilitrak Switch & I/P Assembly
    GM786376Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.
