Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head lamp leveling switch into accessary switch housing.
  2. Connect the electrical connectors.
  3. Install the accessary switch housing.

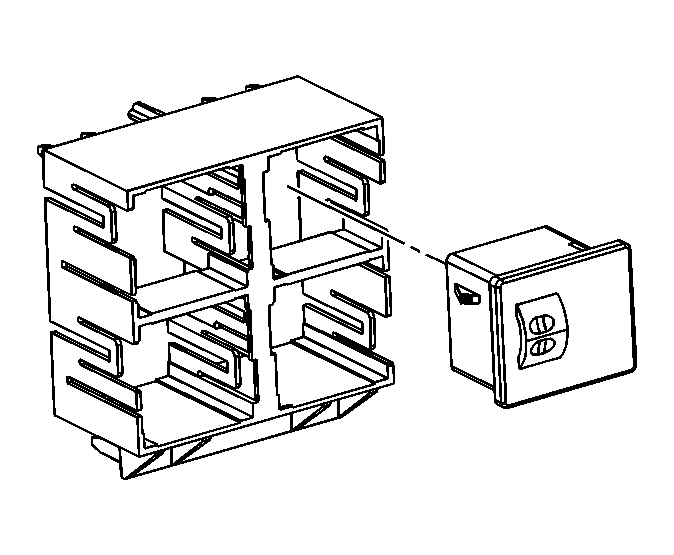

    4. Fig 1: View Of Headlamp Leveling Switch
    GM674452Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages, and Console.
