Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stop lamp switch (2).
  2. Install the pushrod retaining clip (4).
  3. Connect the electrical connector to the stop lamp switch (2).

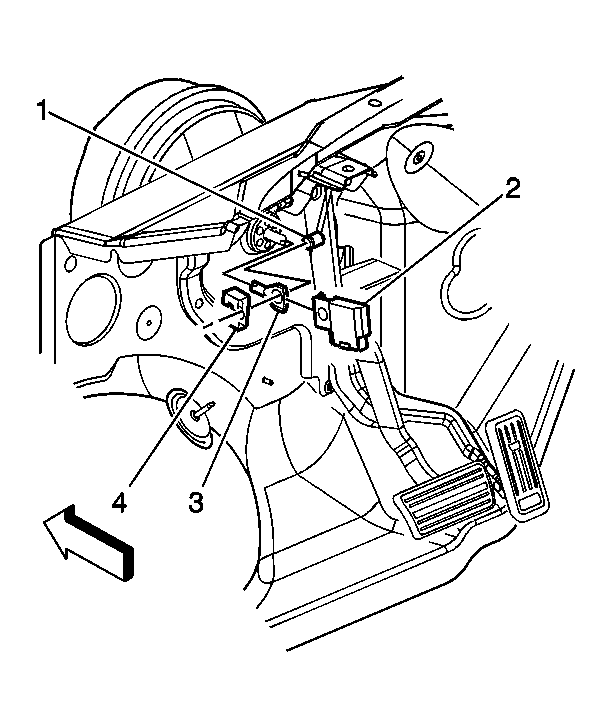

    4. Fig 1: View Of Pedal Stud, Stop Lamp Switch, Pushrod & Retaining Clip
    GM344194Courtesy of GENERAL MOTORS CORP.
