Power Roof Systems Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

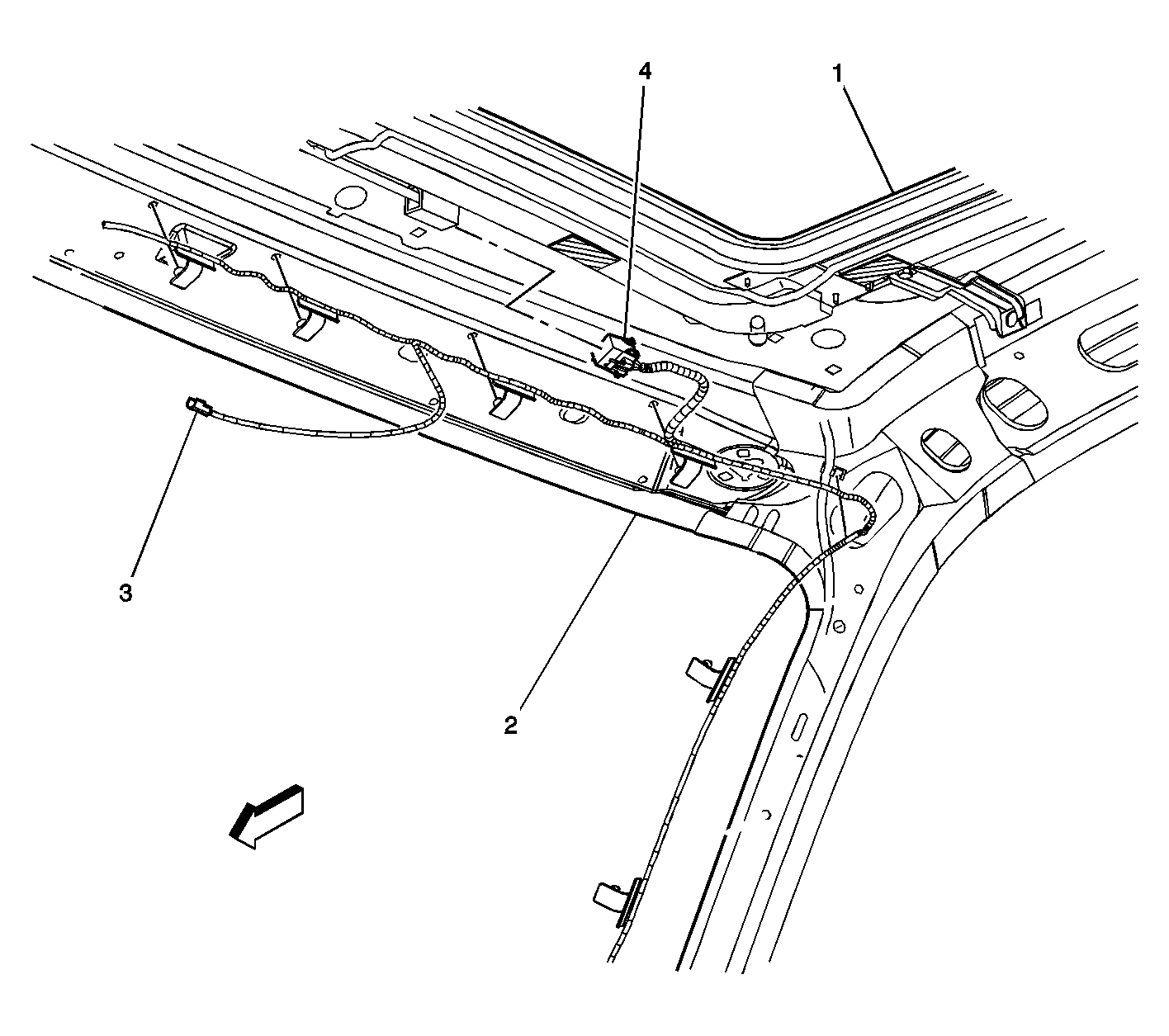

Fig 1: Right A-Pillar Component View - Top

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Opening
2	Front Roof Panel
3	Cellular Microphone Connector
4	C353

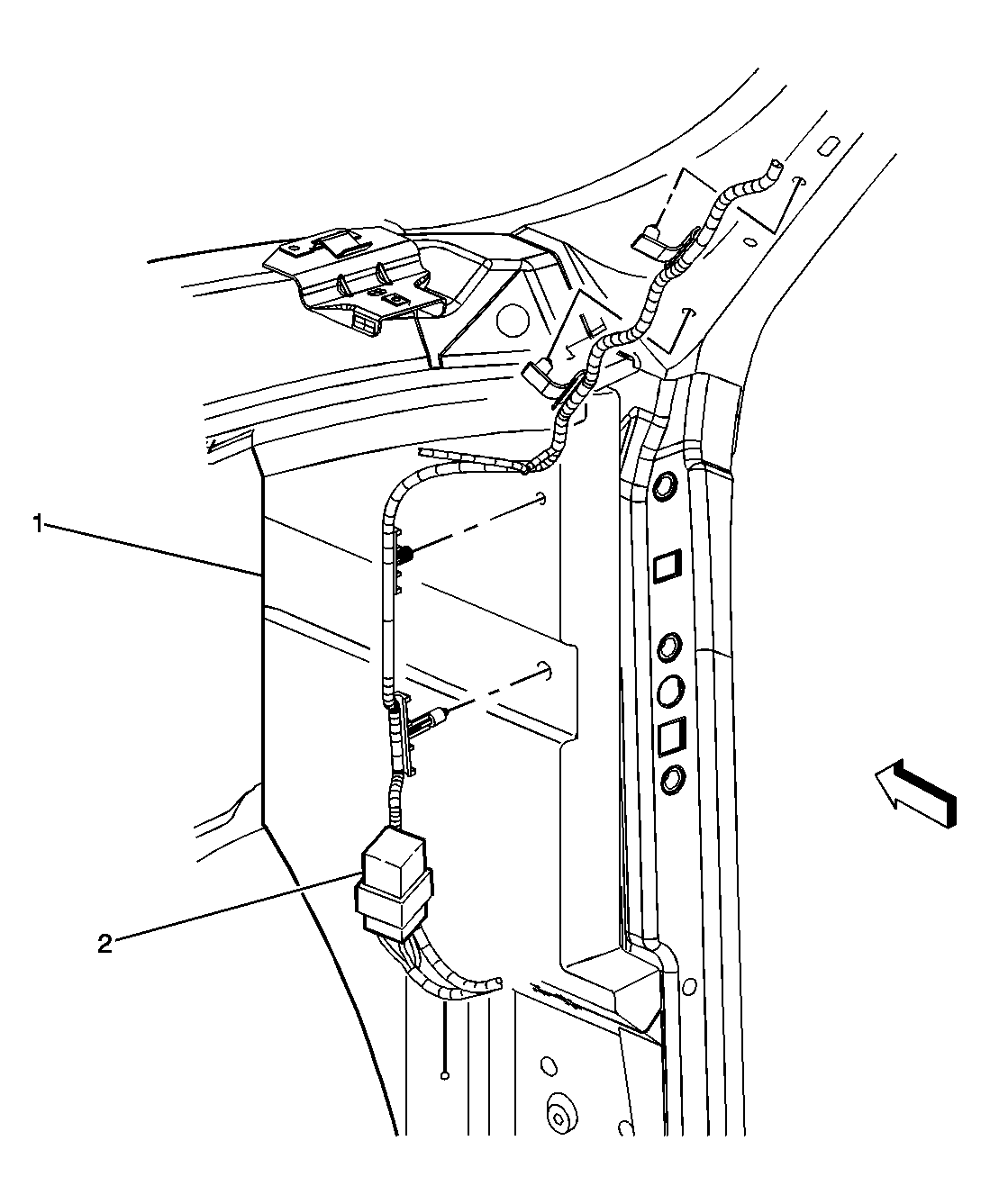

Fig 2: Right A-Pillar Component View - Middle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right A-Pillar
2	Sunroof Relay
