Cooling System Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

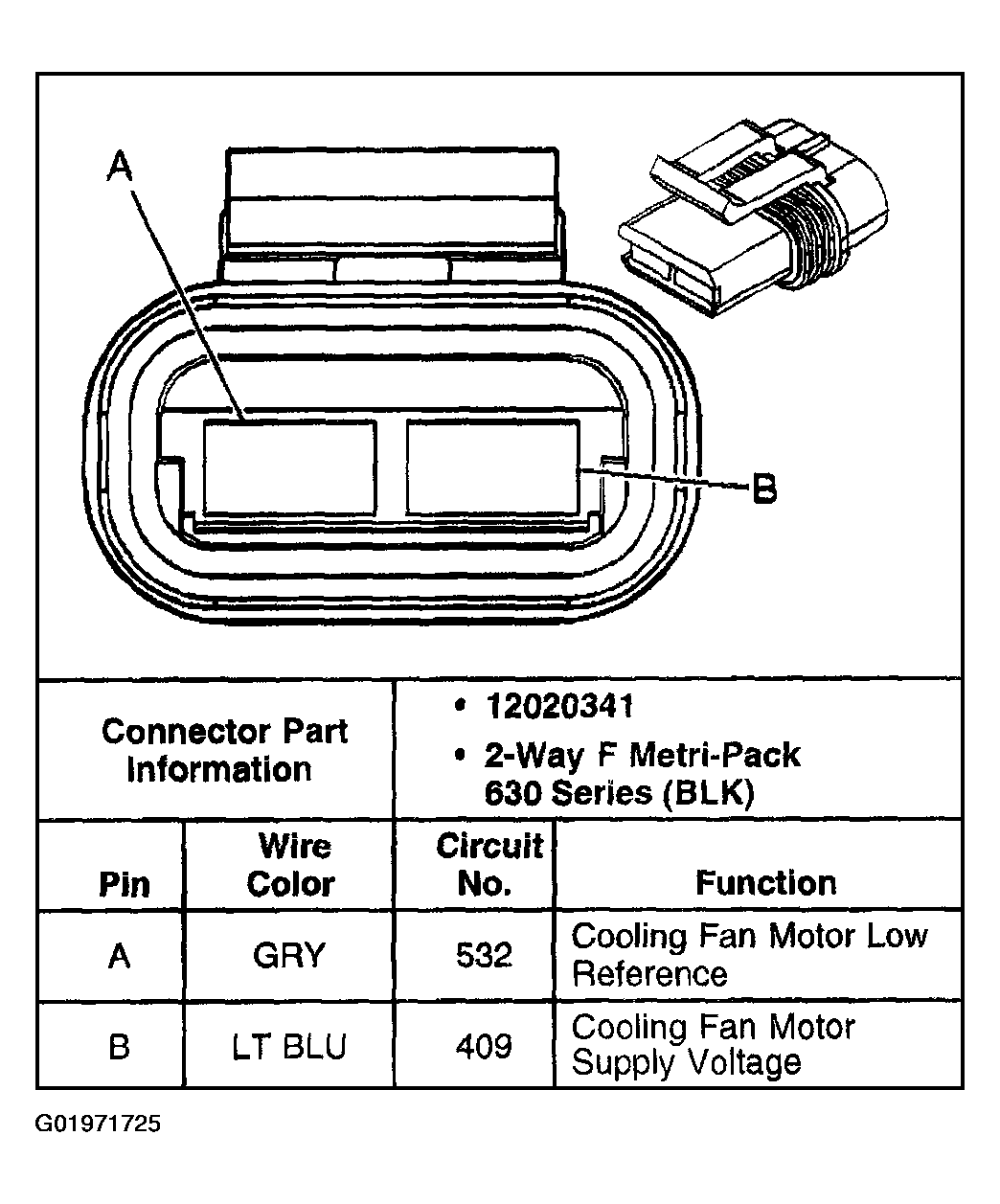

Fig 1: Cooling Fan-Left
G01971725Courtesy of GENERAL MOTORS CORP.

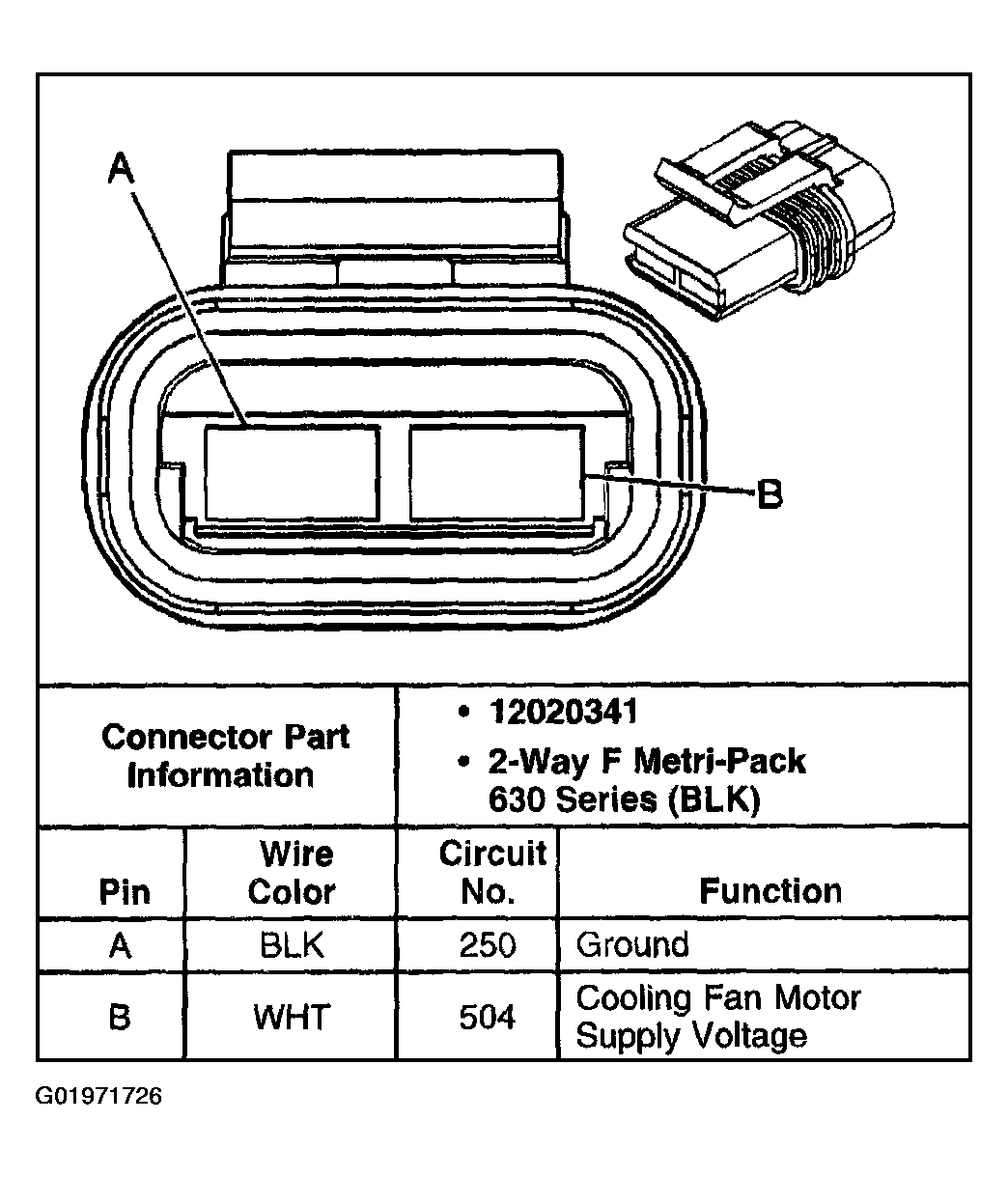

Fig 2: Cooling Fan-Right
G01971726Courtesy of GENERAL MOTORS CORP.
