Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

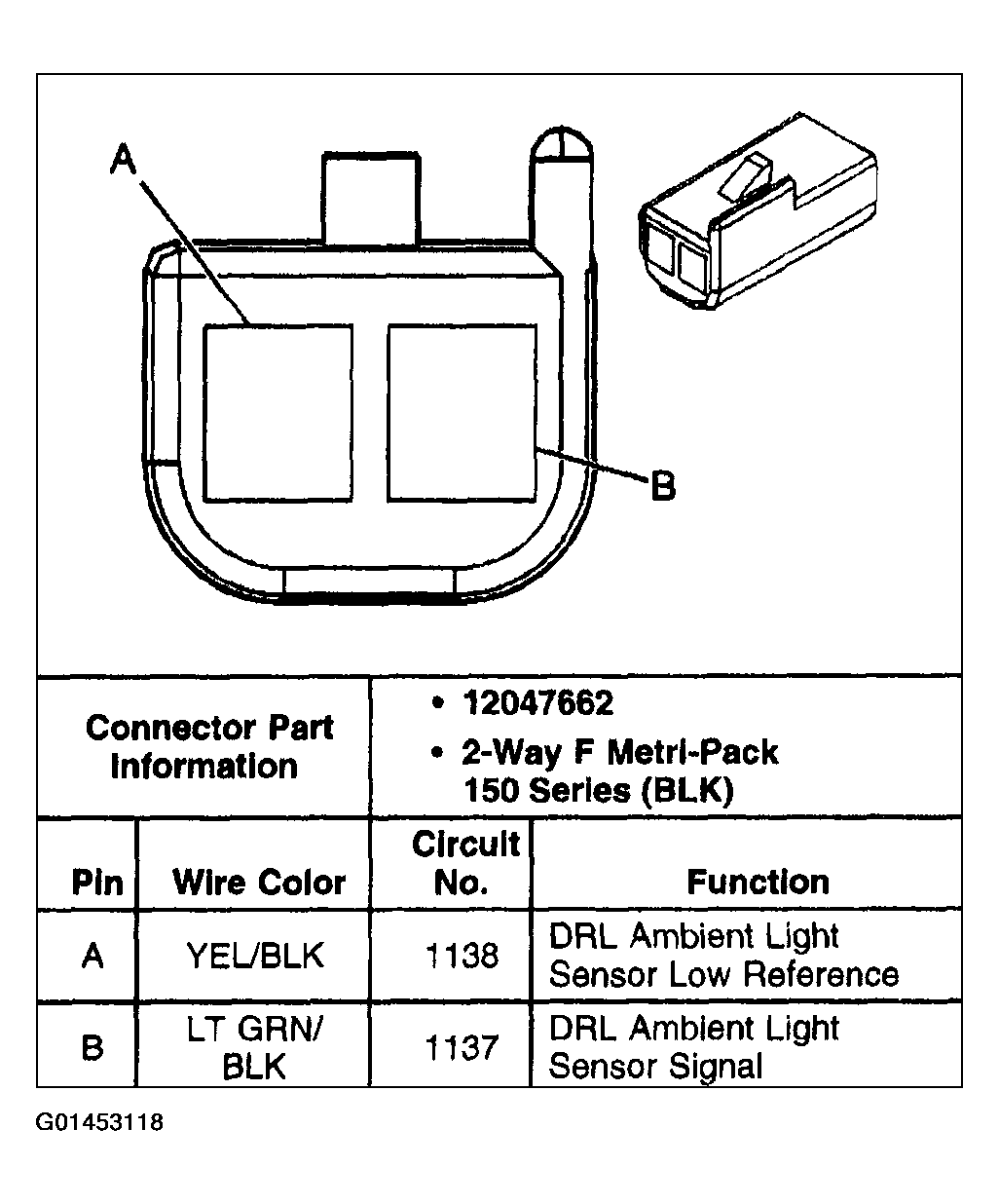

Fig 1: Ambient Light Sensor

G01453118

Courtesy of GENERAL MOTORS CORP.

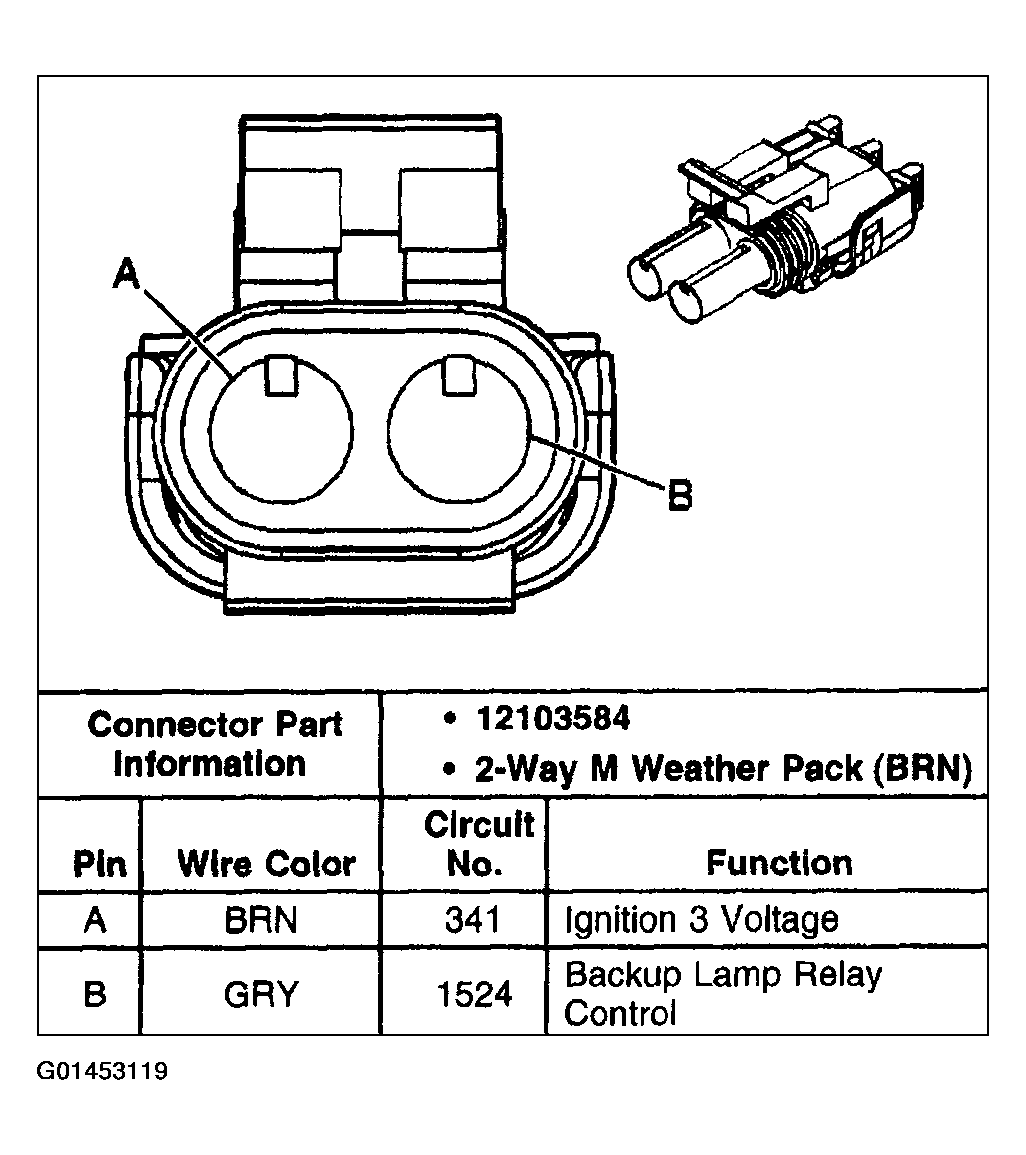

Fig 2: Backup Lamp Switch

G01453119

Courtesy of GENERAL MOTORS CORP.

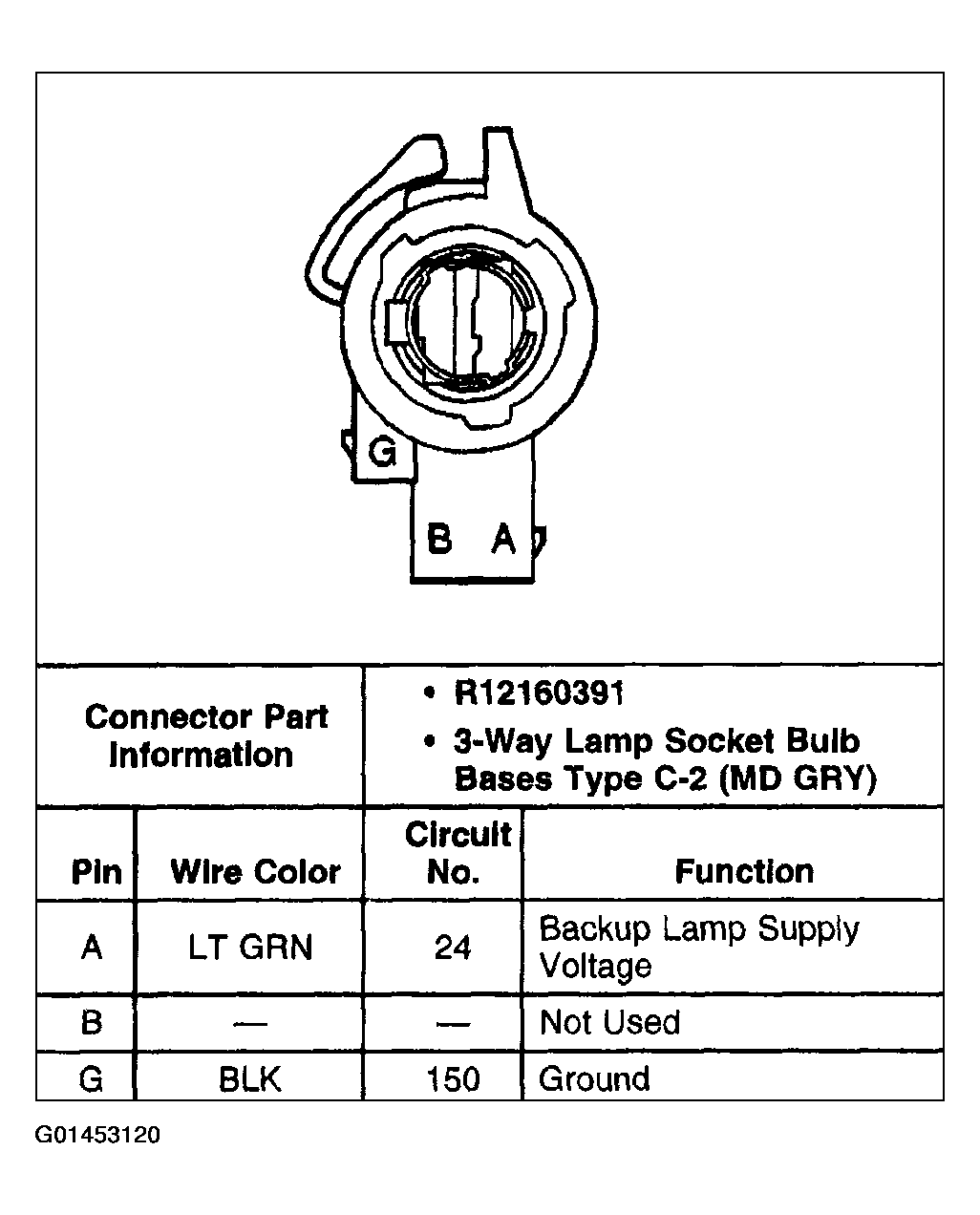

Fig 3: Backup Lamp-Left (Domestic/Japan)

G01453120

Courtesy of GENERAL MOTORS CORP.

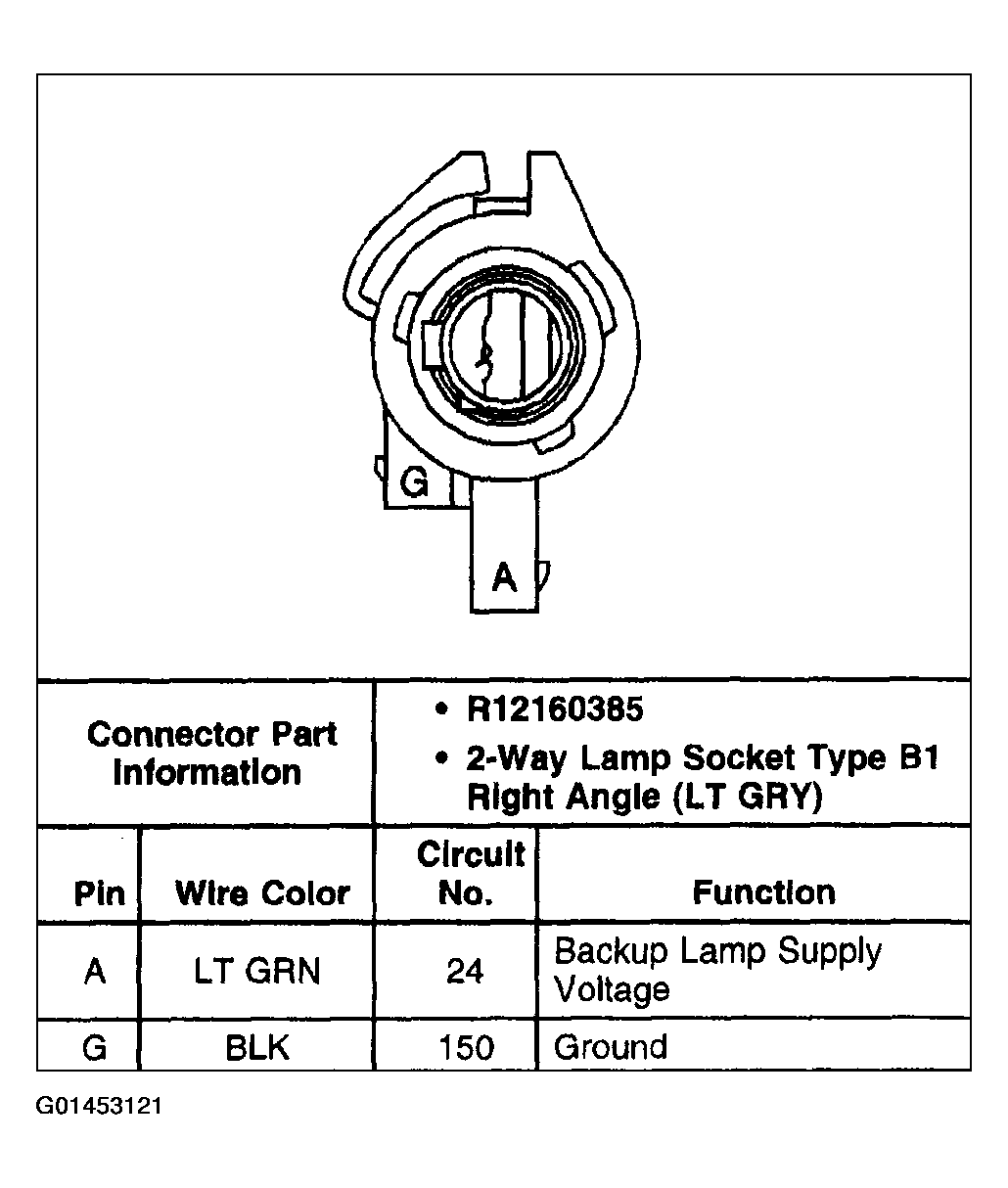

Fig 4: Backup Lamp-Left (Europe)

G01453121

Courtesy of GENERAL MOTORS CORP.

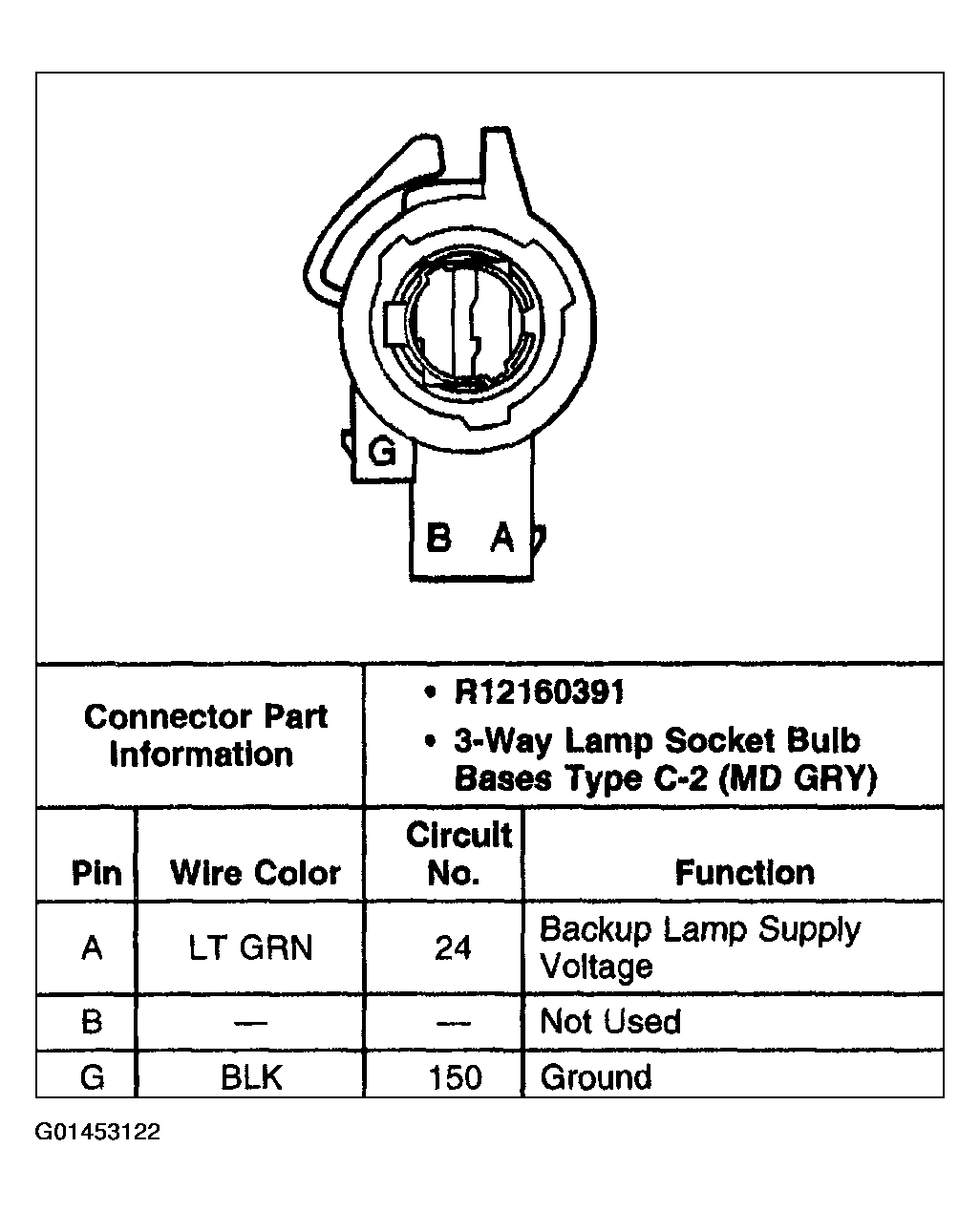

Fig 5: Backup Lamp-Right (Domestic/Japan)

G01453122

Courtesy of GENERAL MOTORS CORP.

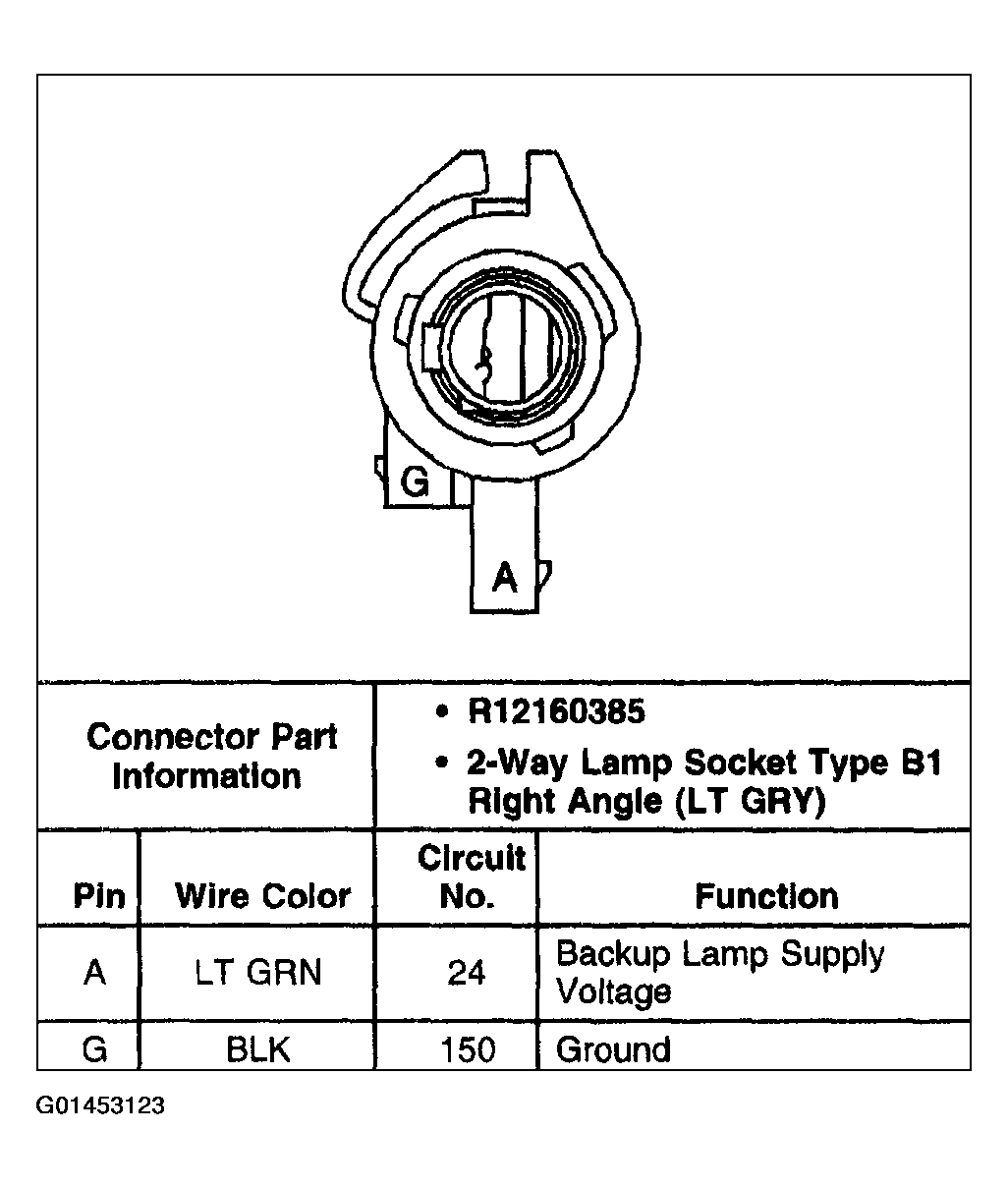

Fig 6: Backup Lamp-Right (Europe)

G01453123

Courtesy of GENERAL MOTORS CORP.

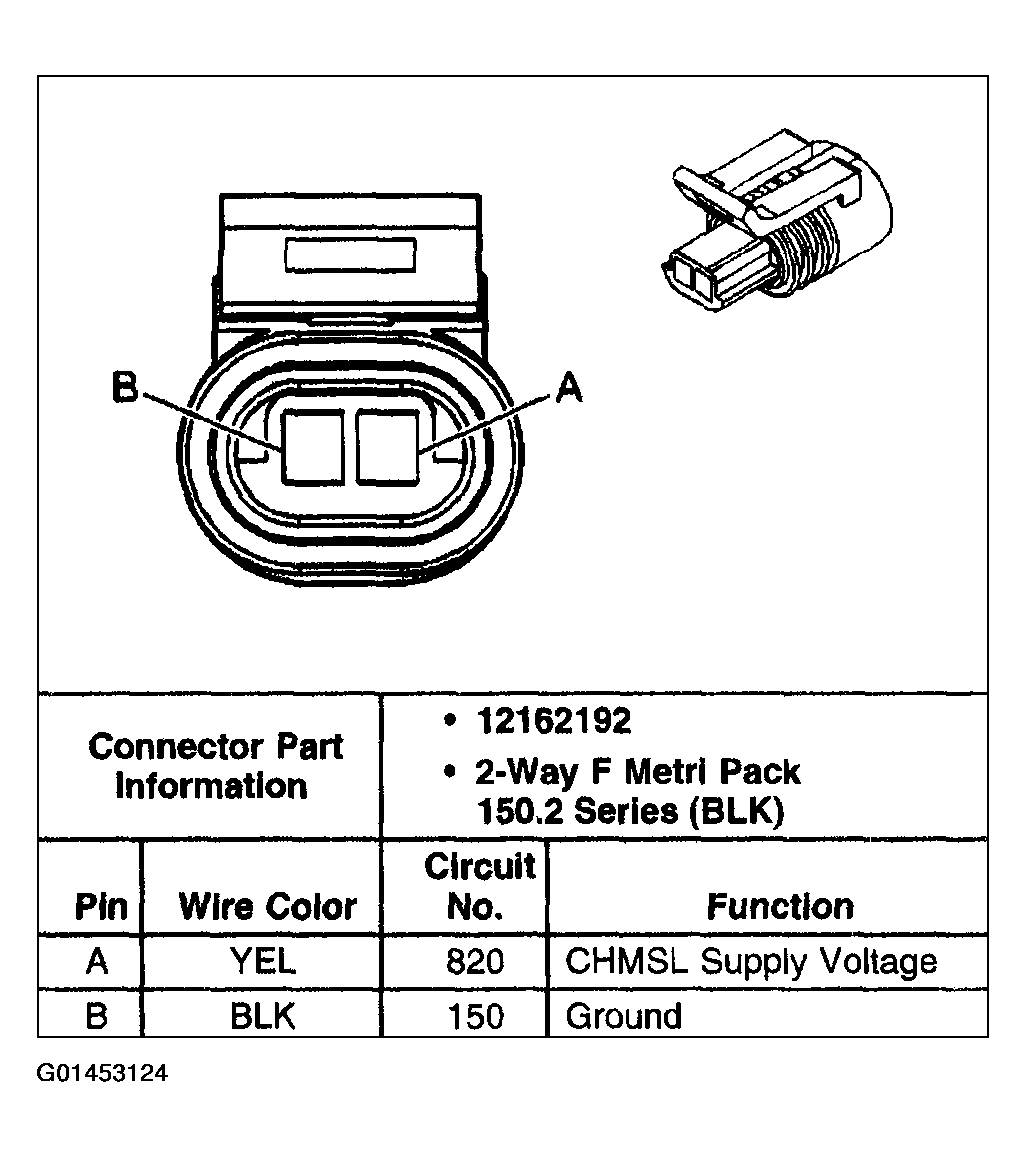

Fig 7: Center High Mounted Stop Lamp

G01453124

Courtesy of GENERAL MOTORS CORP.

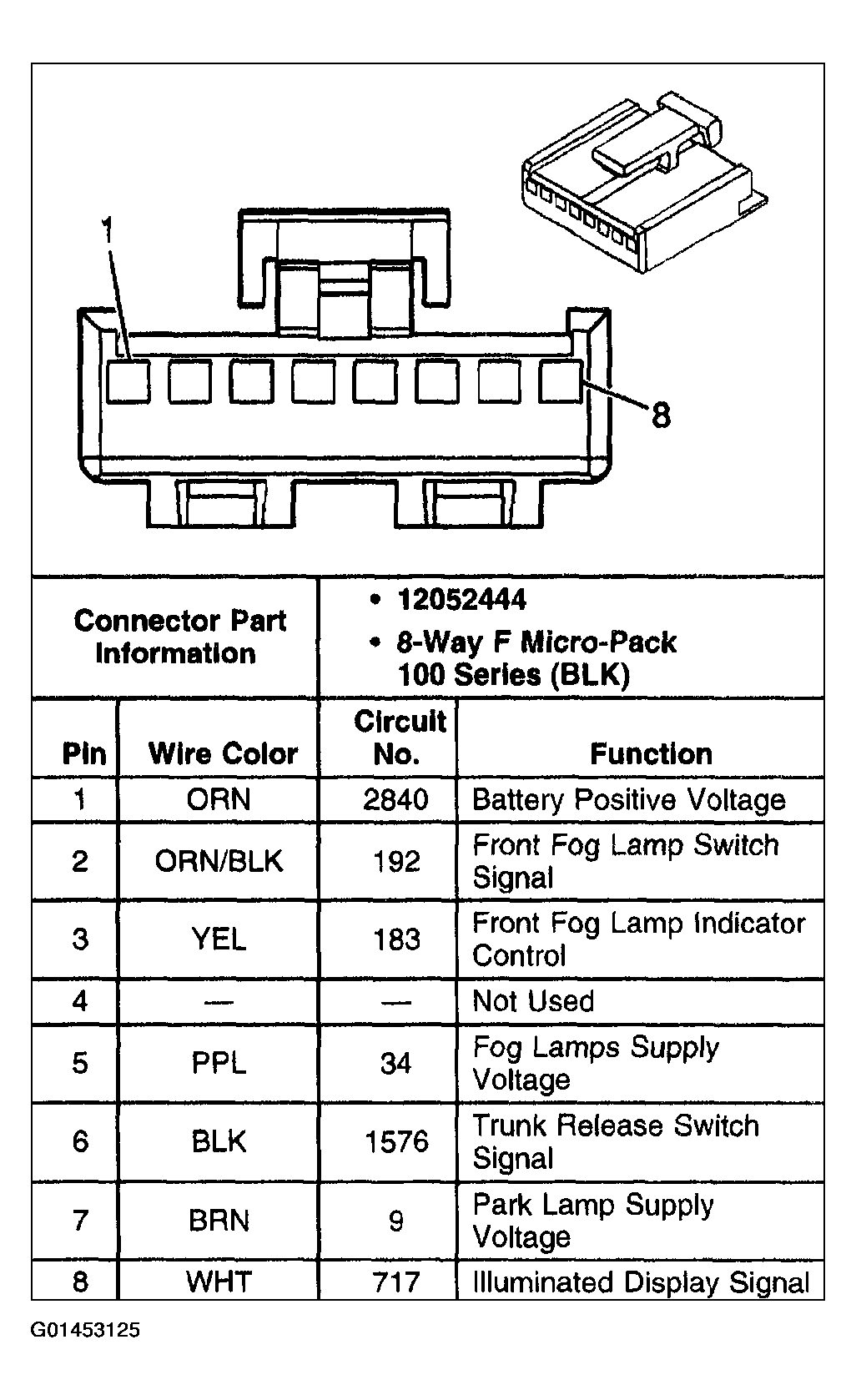

Fig 8: Fog Lamp/Rear Compartment Lid Release Switch (Domestic)

G01453125

Courtesy of GENERAL MOTORS CORP.

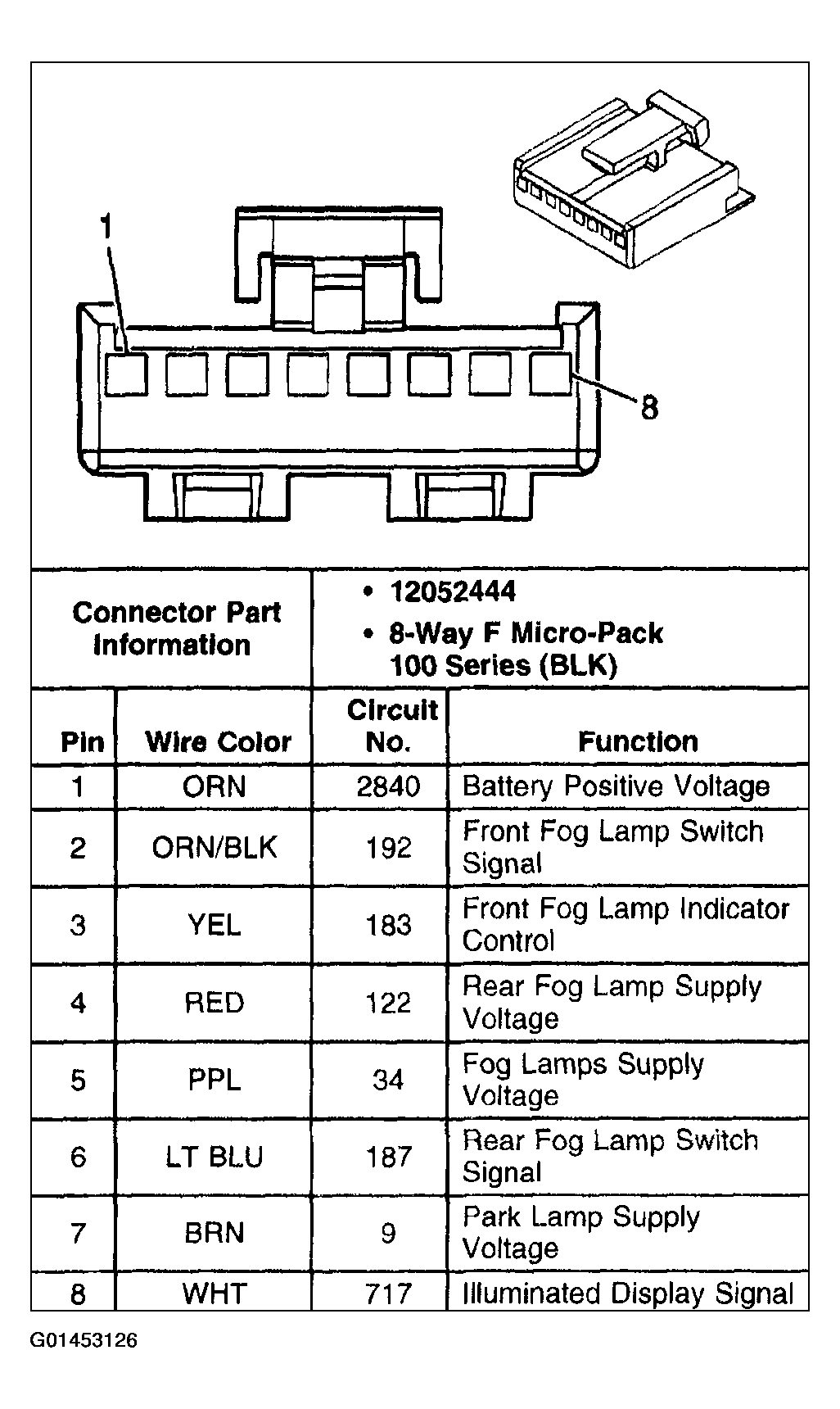

Fig 9: Fog Lamp Switch (Export)

G01453126

Courtesy of GENERAL MOTORS CORP.

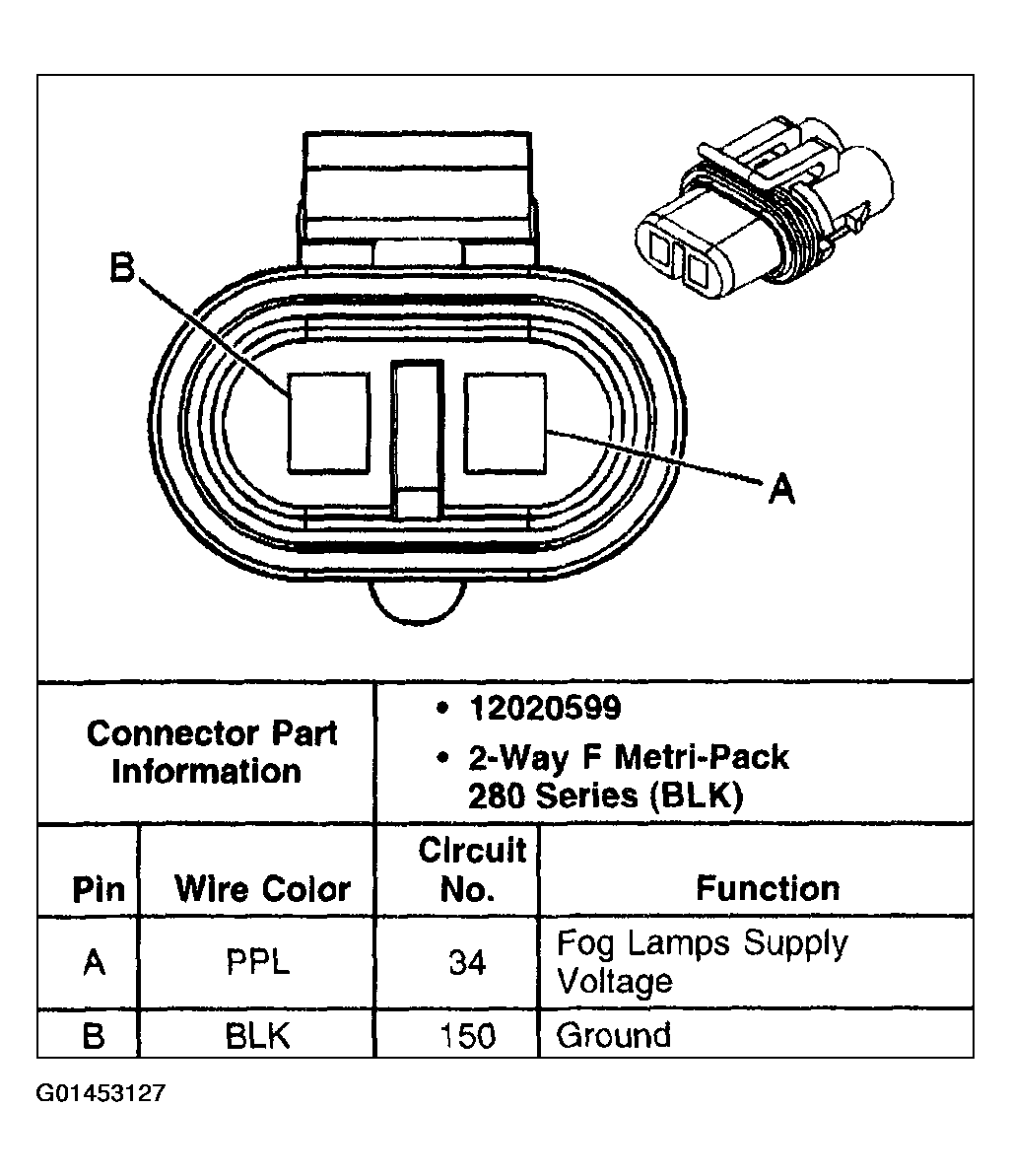

Fig 10: Fog Lamp-LF (Domestic)

G01453127

Courtesy of GENERAL MOTORS CORP.

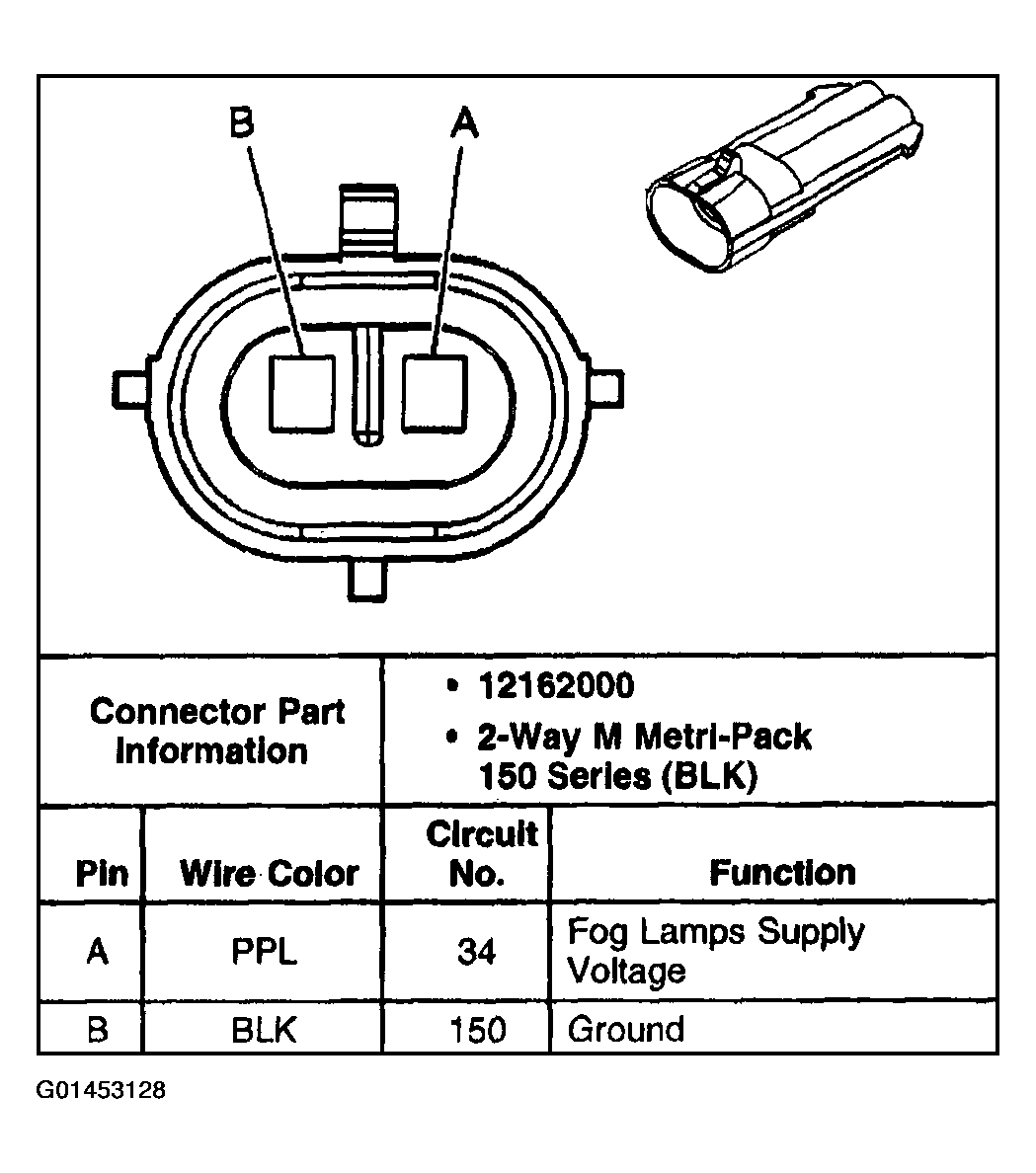

Fig 11: Fog Lamp-LF (Export)

G01453128

Courtesy of GENERAL MOTORS CORP.

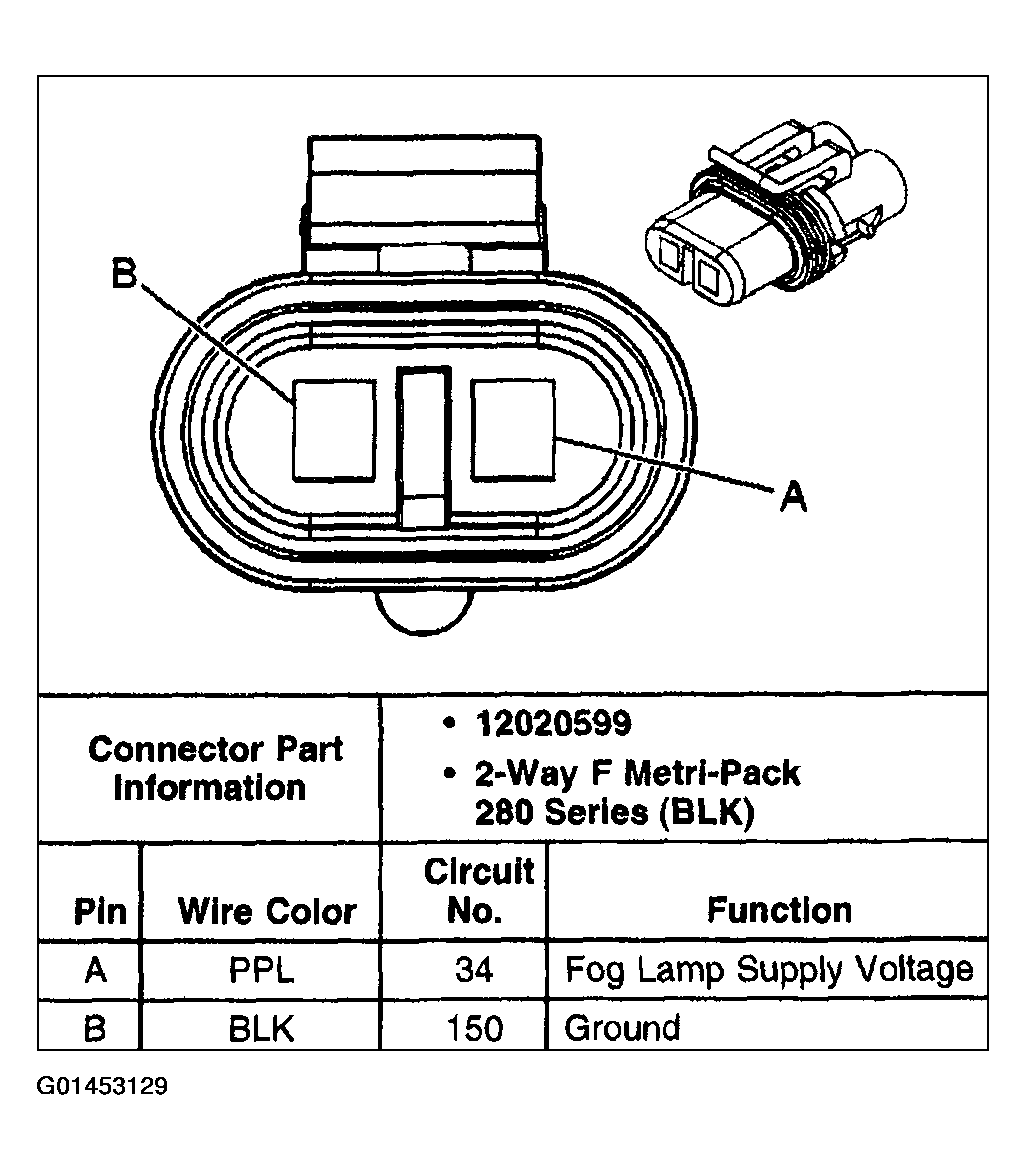

Fig 12: Fog Lamp-RF (Domestic)

G01453129

Courtesy of GENERAL MOTORS CORP.

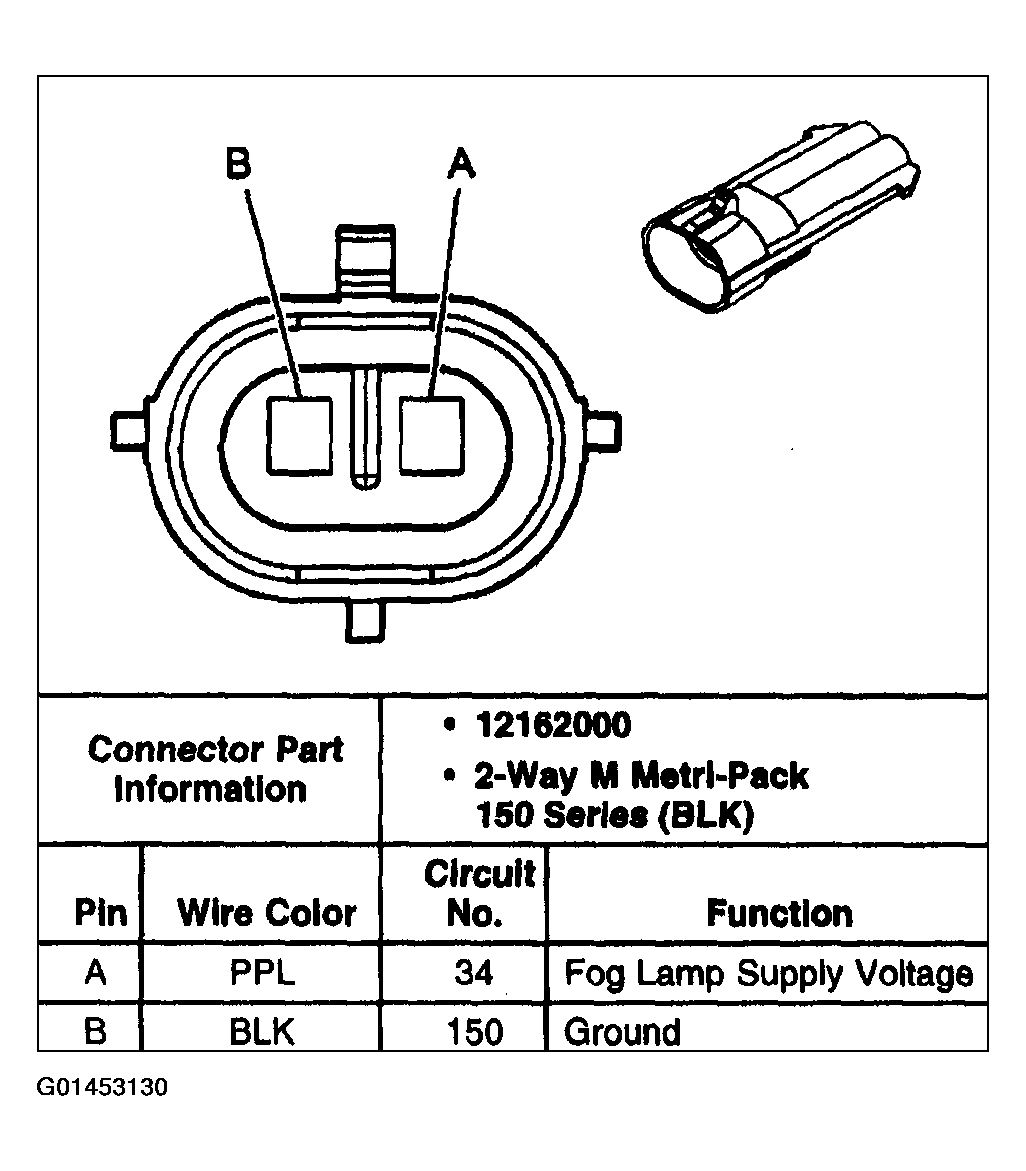

Fig 13: Fog Lamp-RF (Export)

G01453130

Courtesy of GENERAL MOTORS CORP.

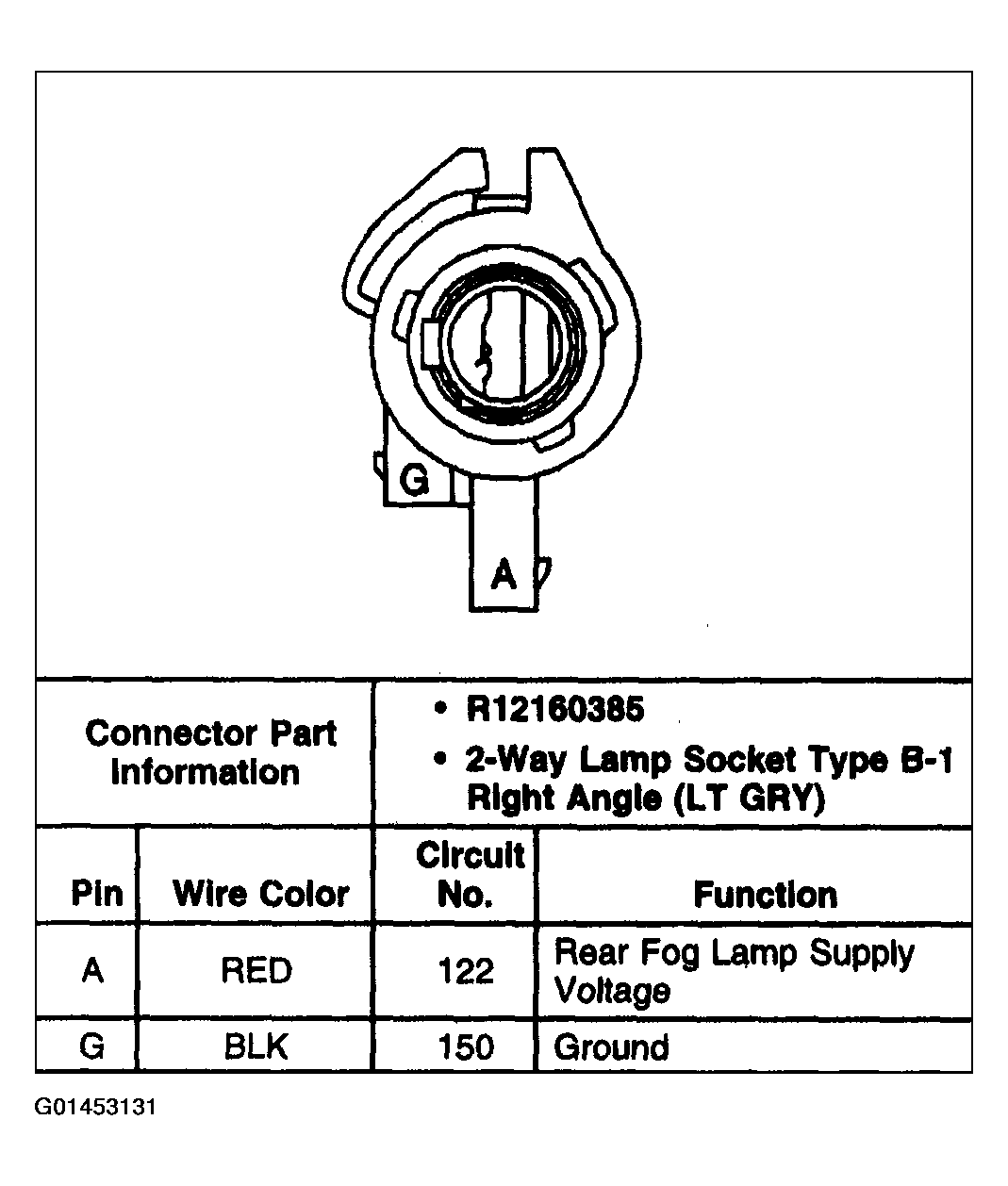

Fig 14: Fog Lamp-LR (Europe)

G01453131

Courtesy of GENERAL MOTORS CORP.

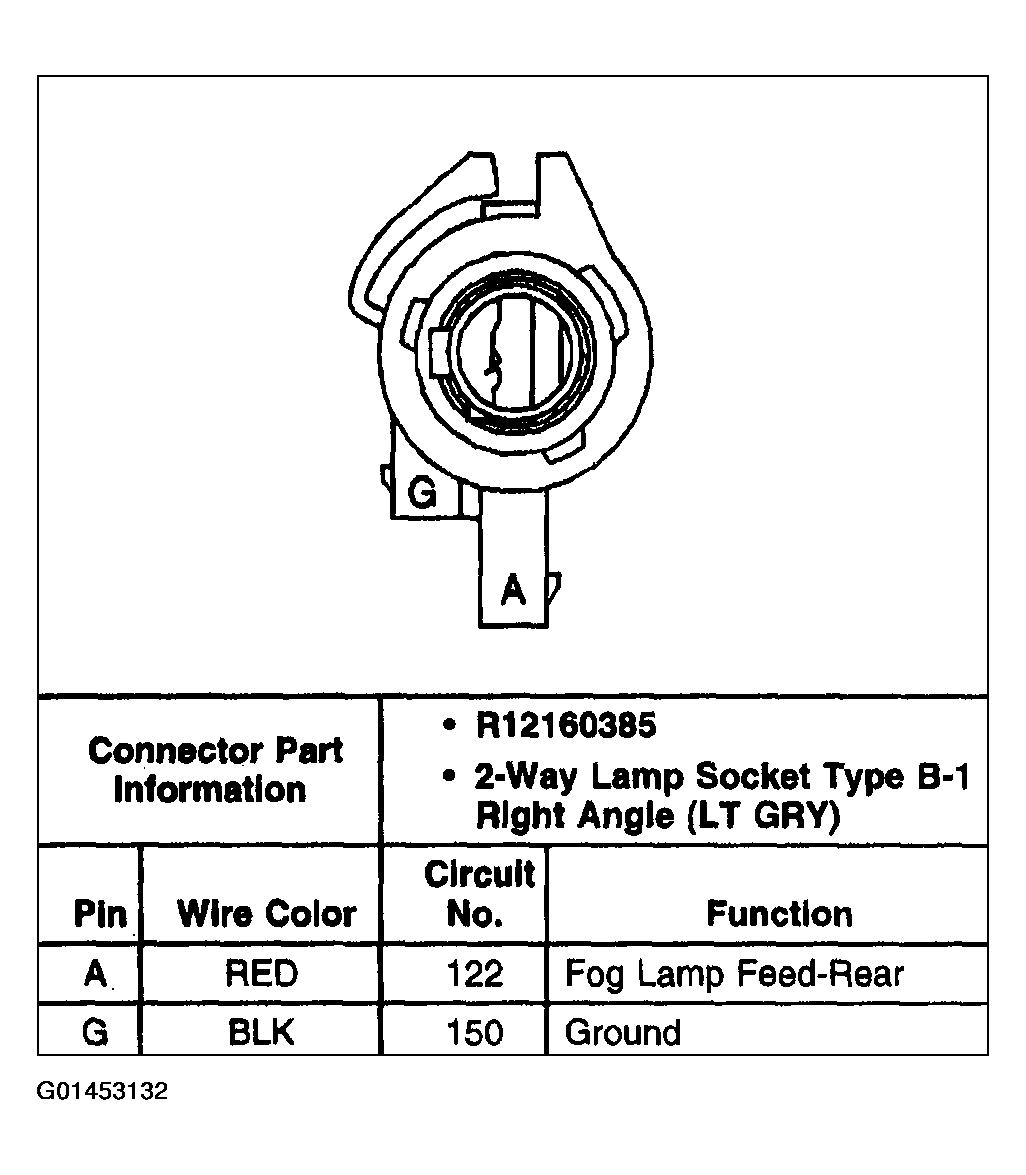

Fig 15: Fog Lamp-RR (Europe)

G01453132

Courtesy of GENERAL MOTORS CORP.

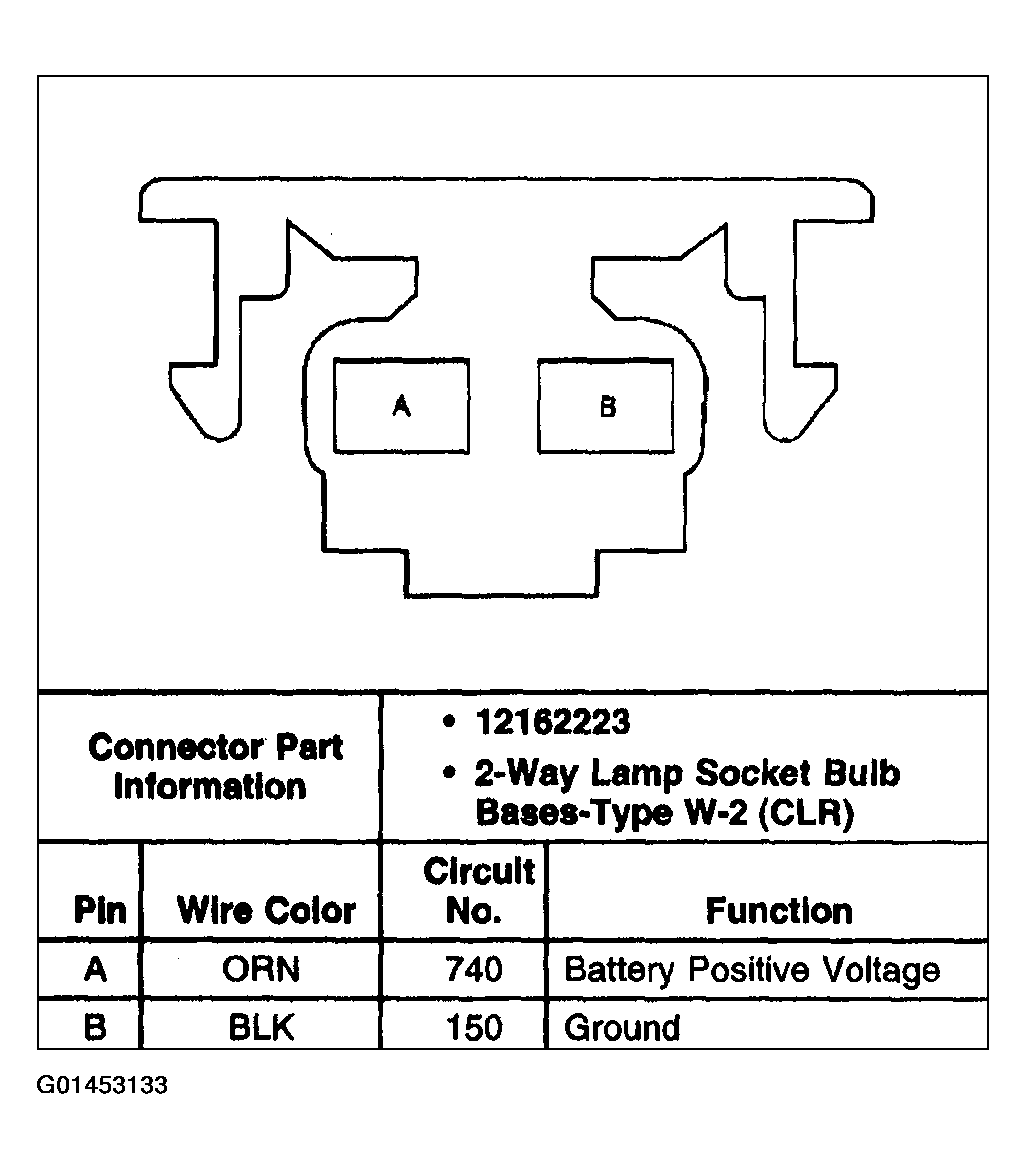

Fig 16: Footwell Courtesy Lamp-Left

G01453133

Courtesy of GENERAL MOTORS CORP.

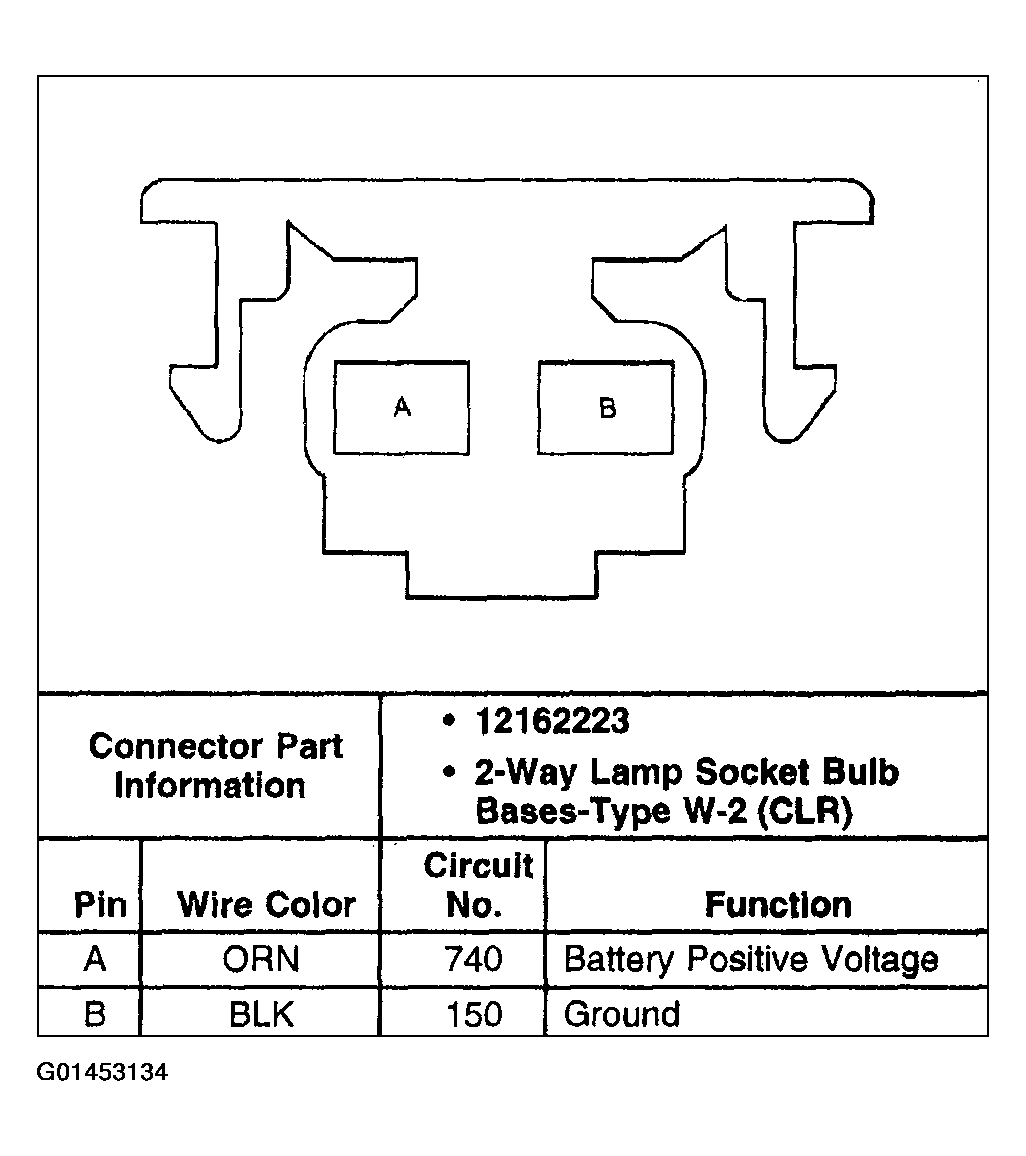

Fig 17: Footwell Courtesy Lamp-Right

G01453134

Courtesy of GENERAL MOTORS CORP.

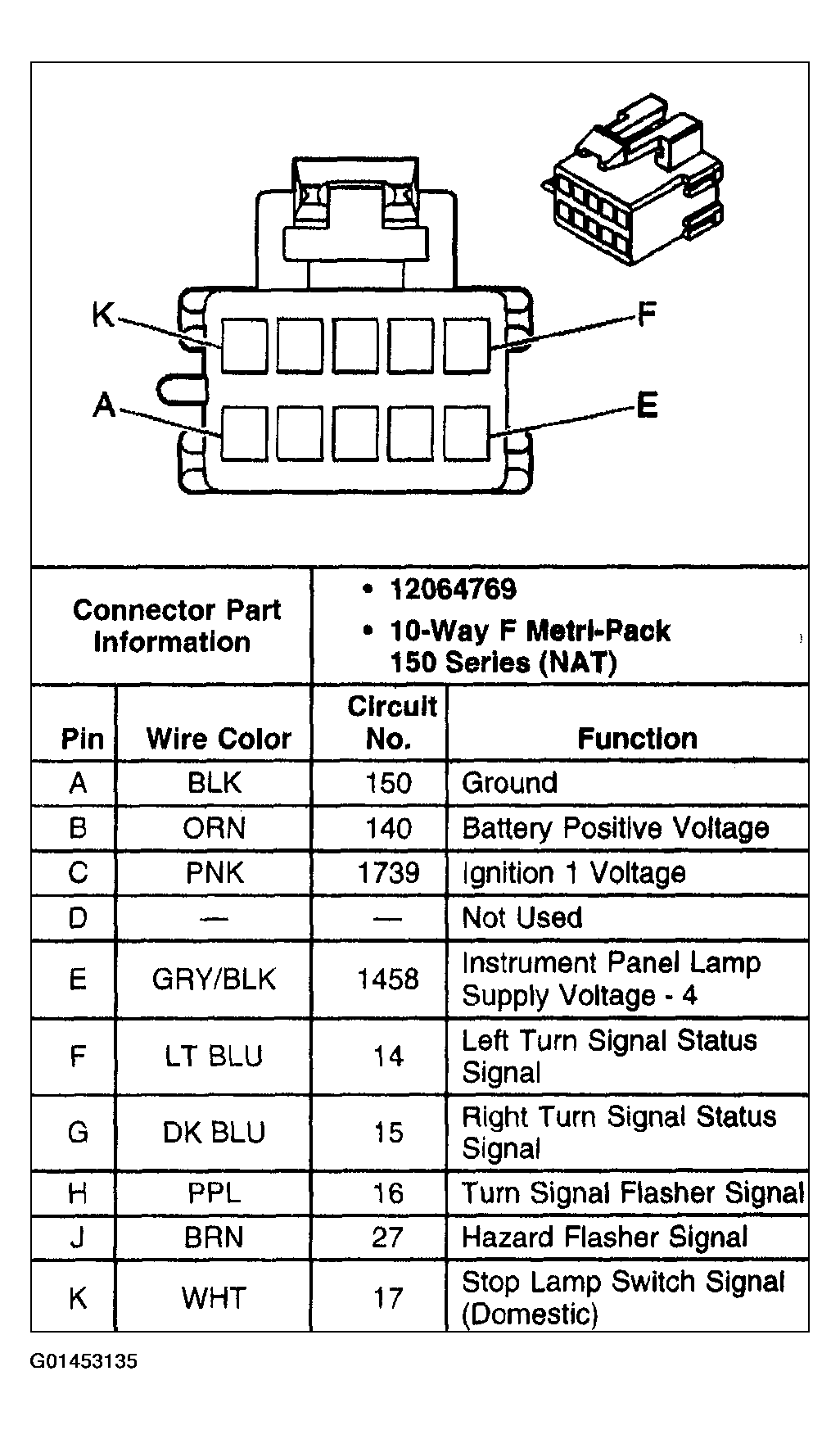

Fig 18: Hazard Switch

G01453135

Courtesy of GENERAL MOTORS CORP.

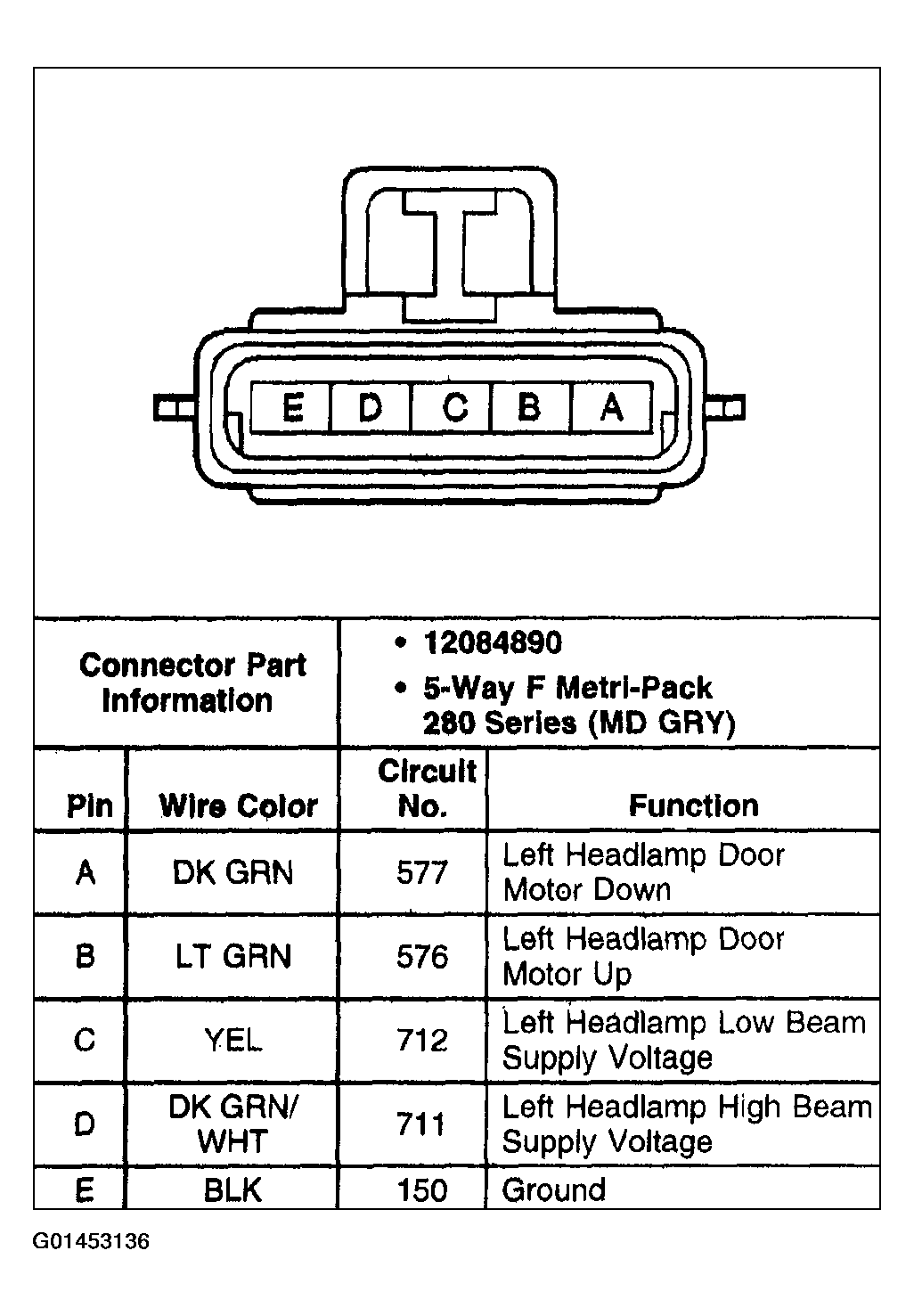

Fig 19: Headlamp Door Assembly-Left

G01453136

Courtesy of GENERAL MOTORS CORP.

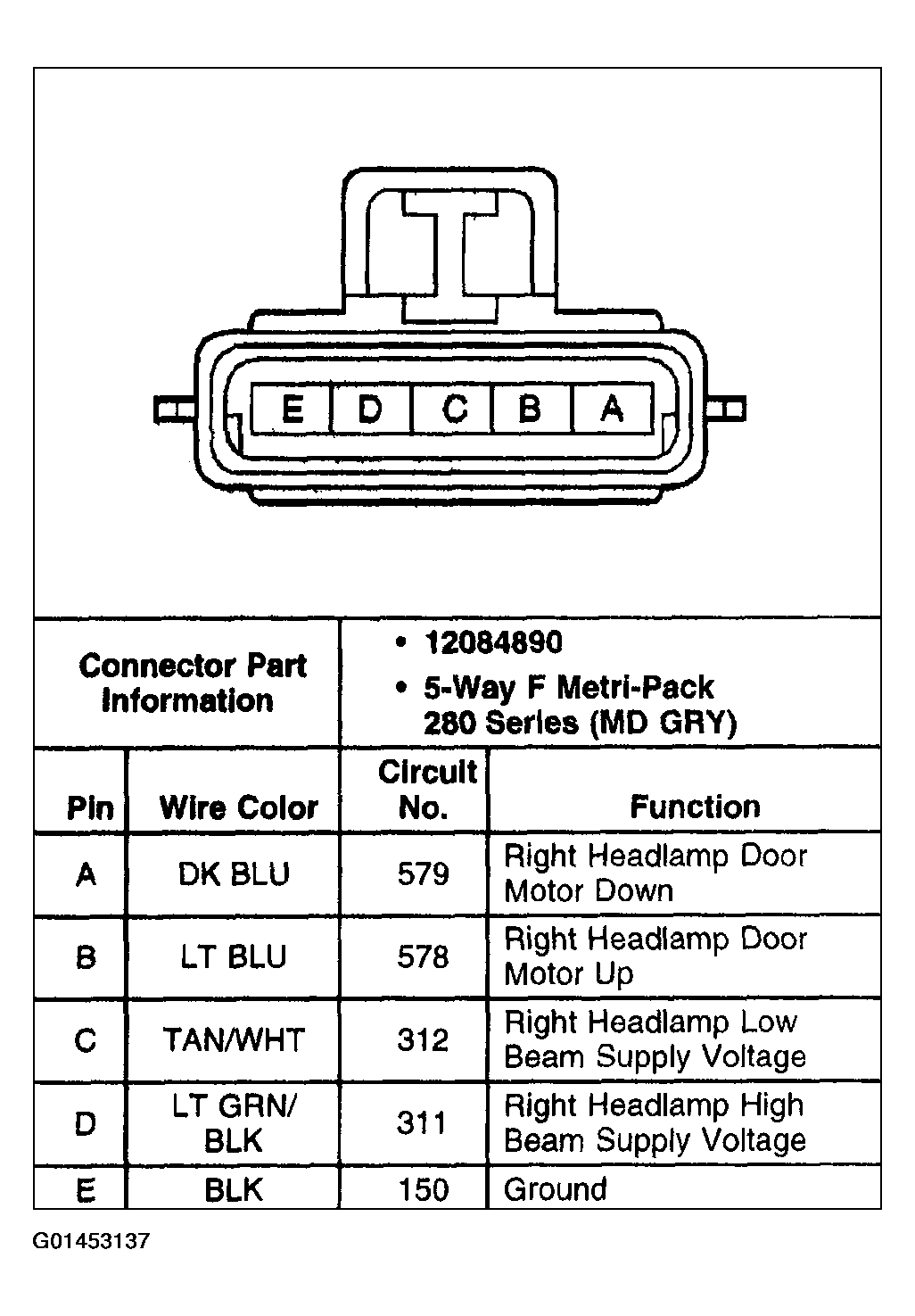

Fig 20: Headlamp Door Assembly-Right

G01453137

Courtesy of GENERAL MOTORS CORP.

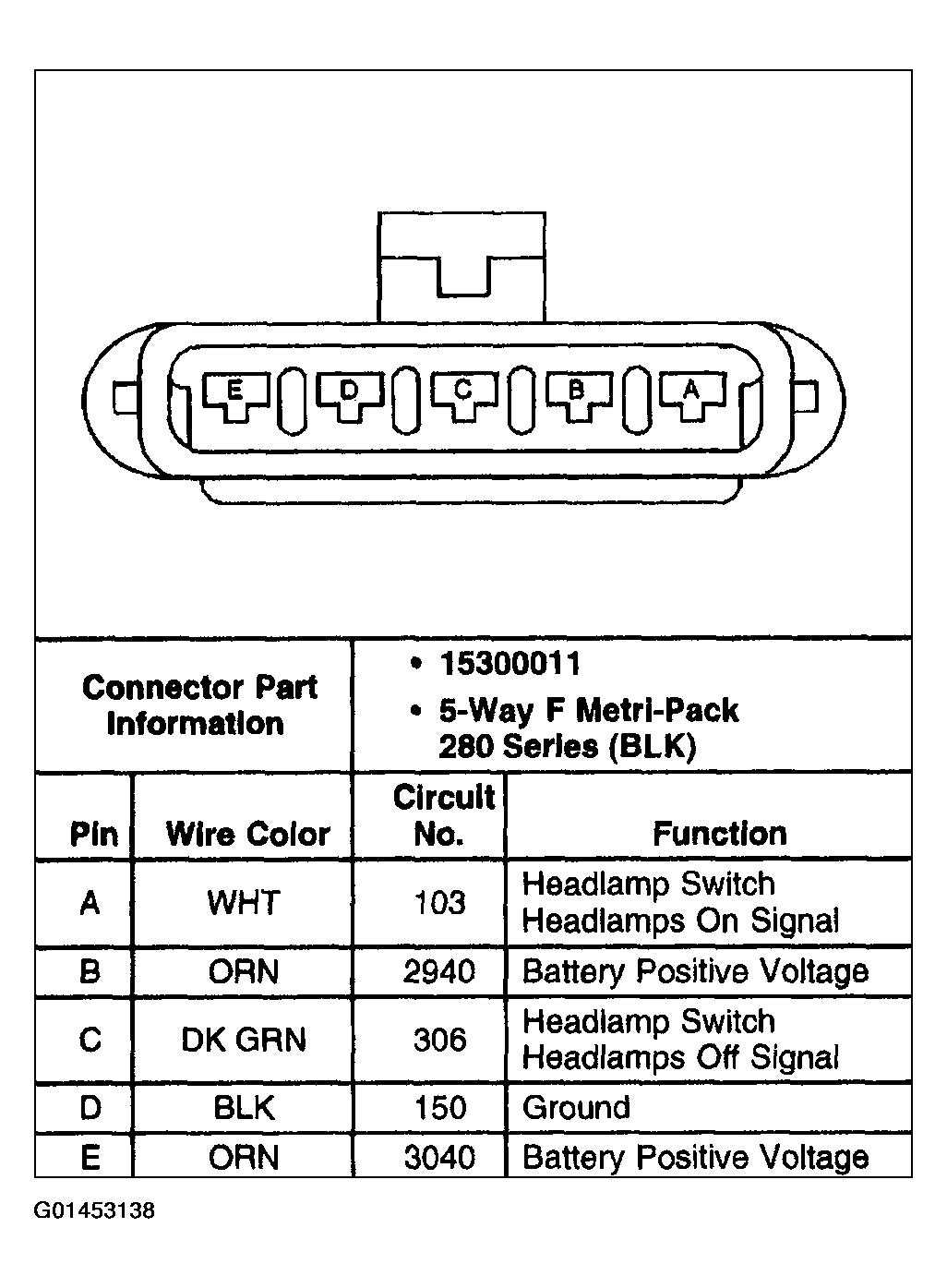

Fig 21: Headlamp Door Control Module - C1

G01453138

Courtesy of GENERAL MOTORS CORP.

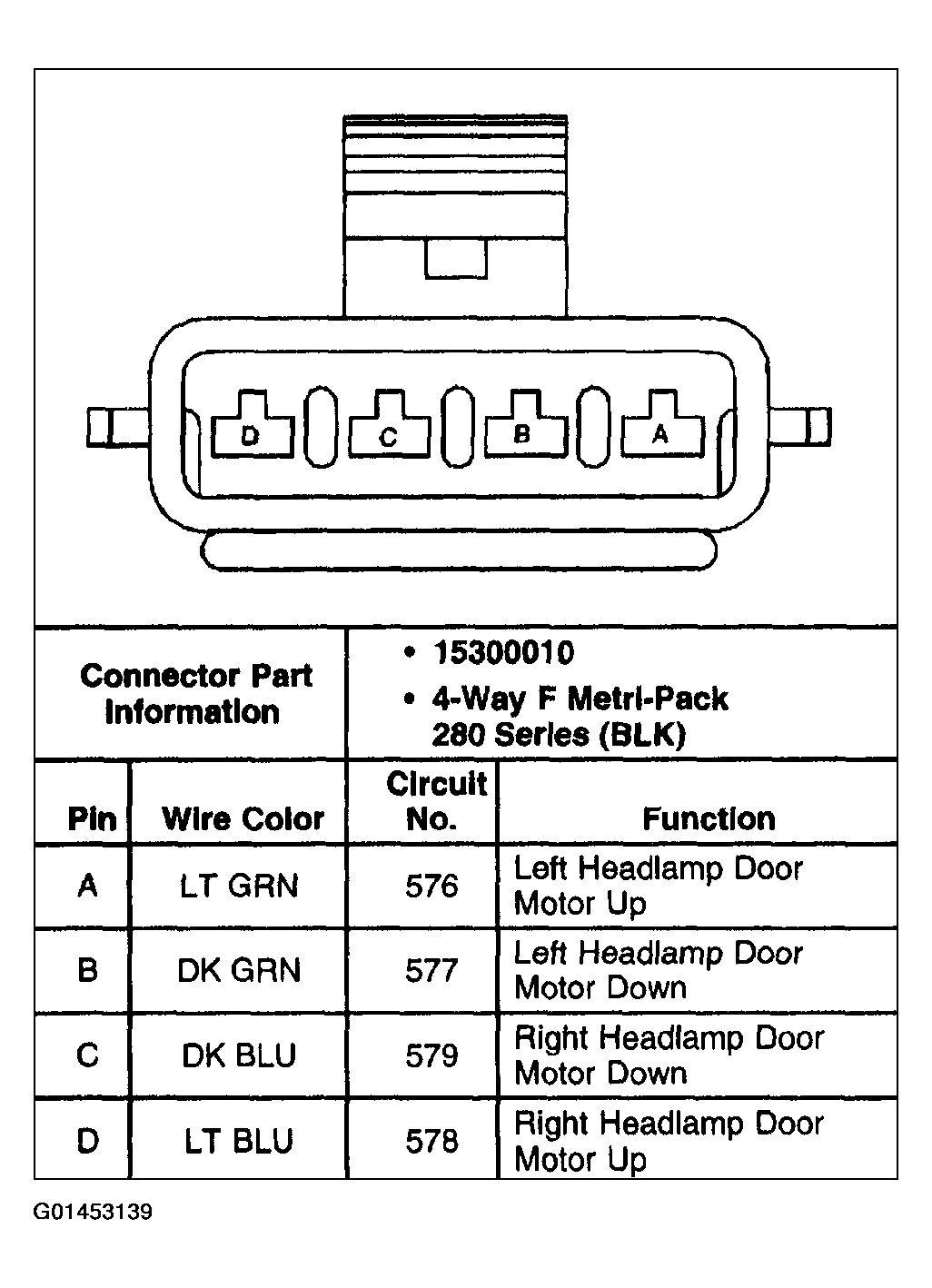

Fig 22: Headlamp Door Control Module - C2

G01453139

Courtesy of GENERAL MOTORS CORP.

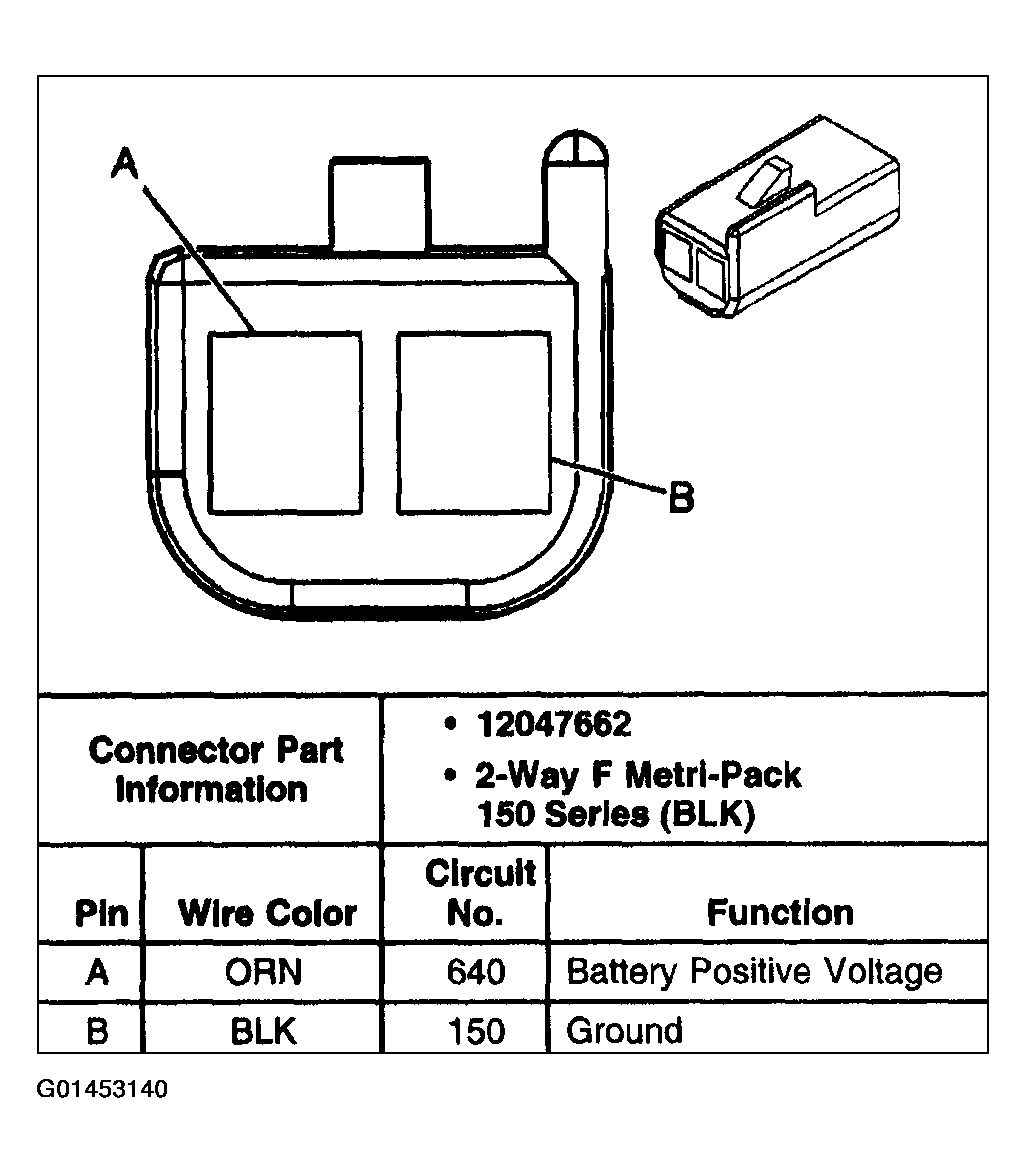

Fig 23: IP Compartment Lamp

G01453140

Courtesy of GENERAL MOTORS CORP.

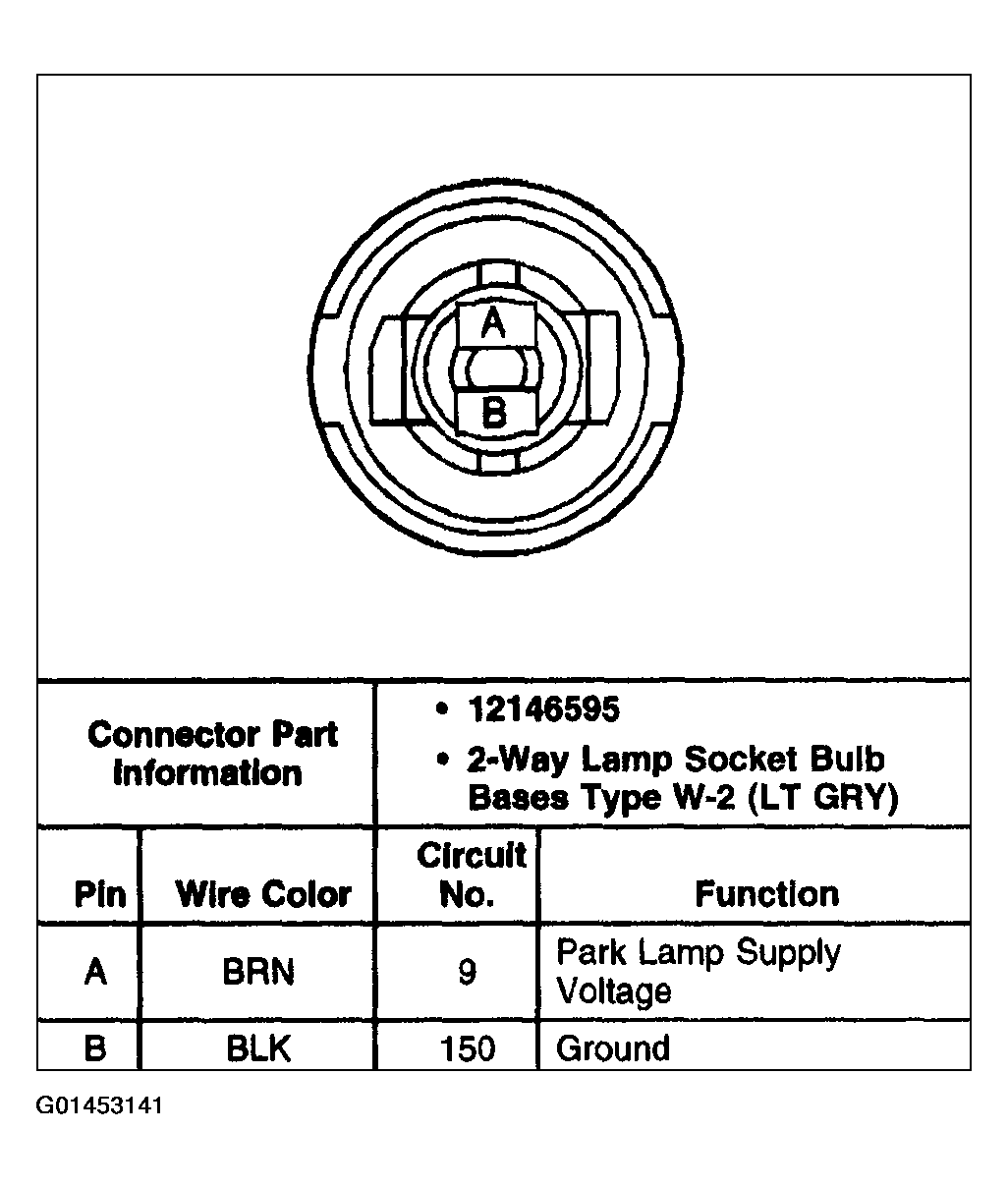

Fig 24: License Lamp-Left

G01453141

Courtesy of GENERAL MOTORS CORP.

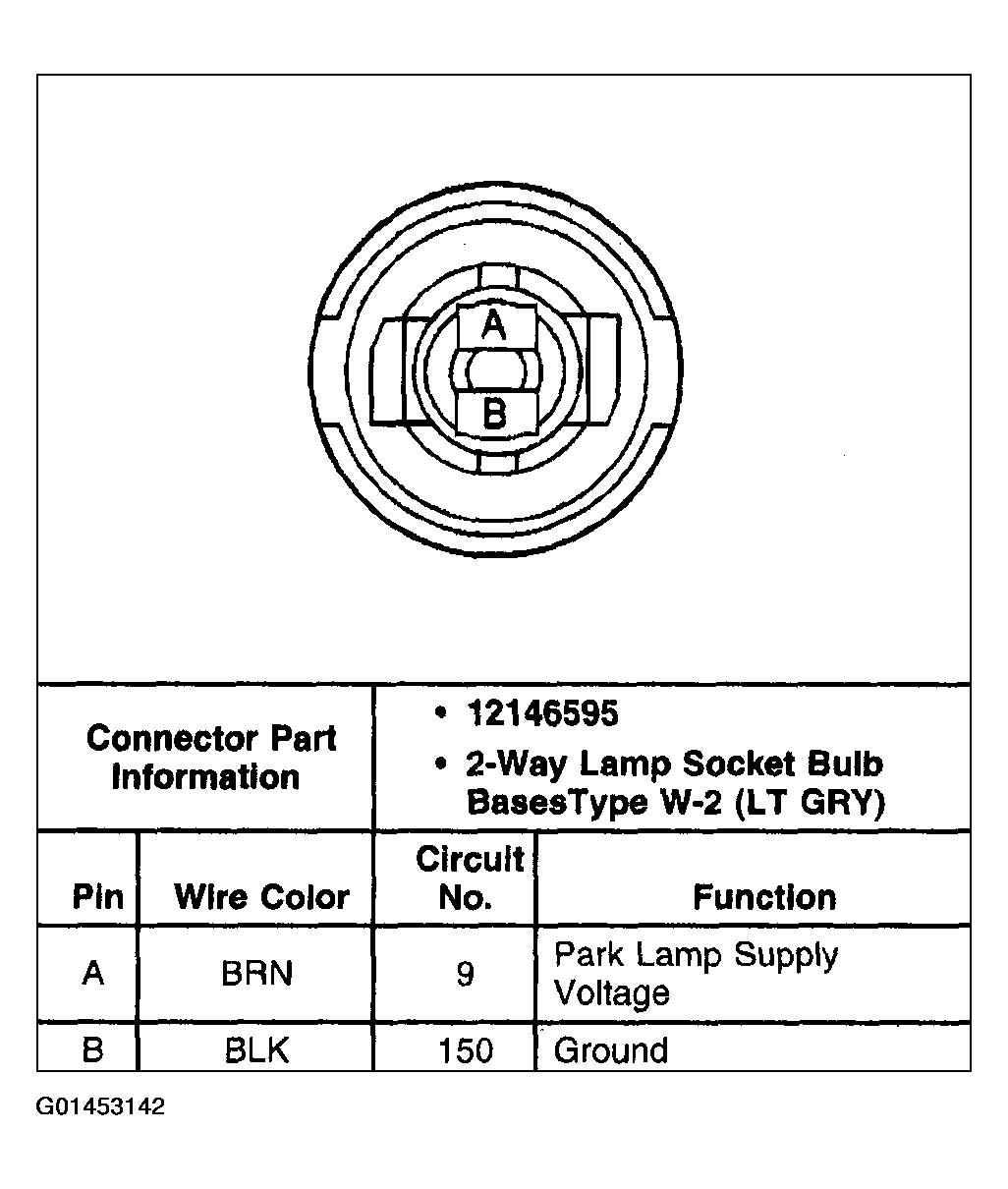

Fig 25: License Lamp-Right

G01453142

Courtesy of GENERAL MOTORS CORP.

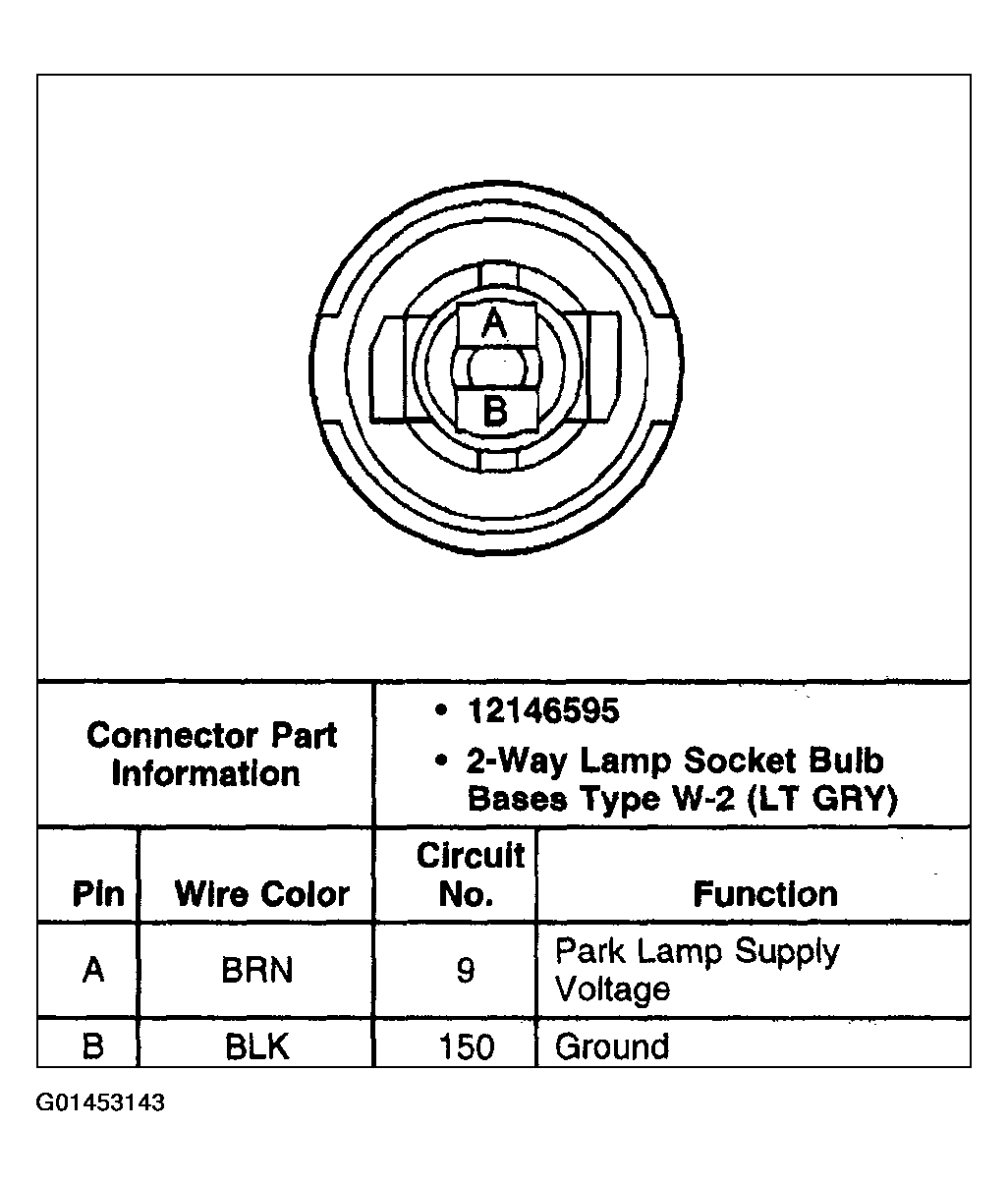

Fig 26: Marker Lamp-LF

G01453143

Courtesy of GENERAL MOTORS CORP.

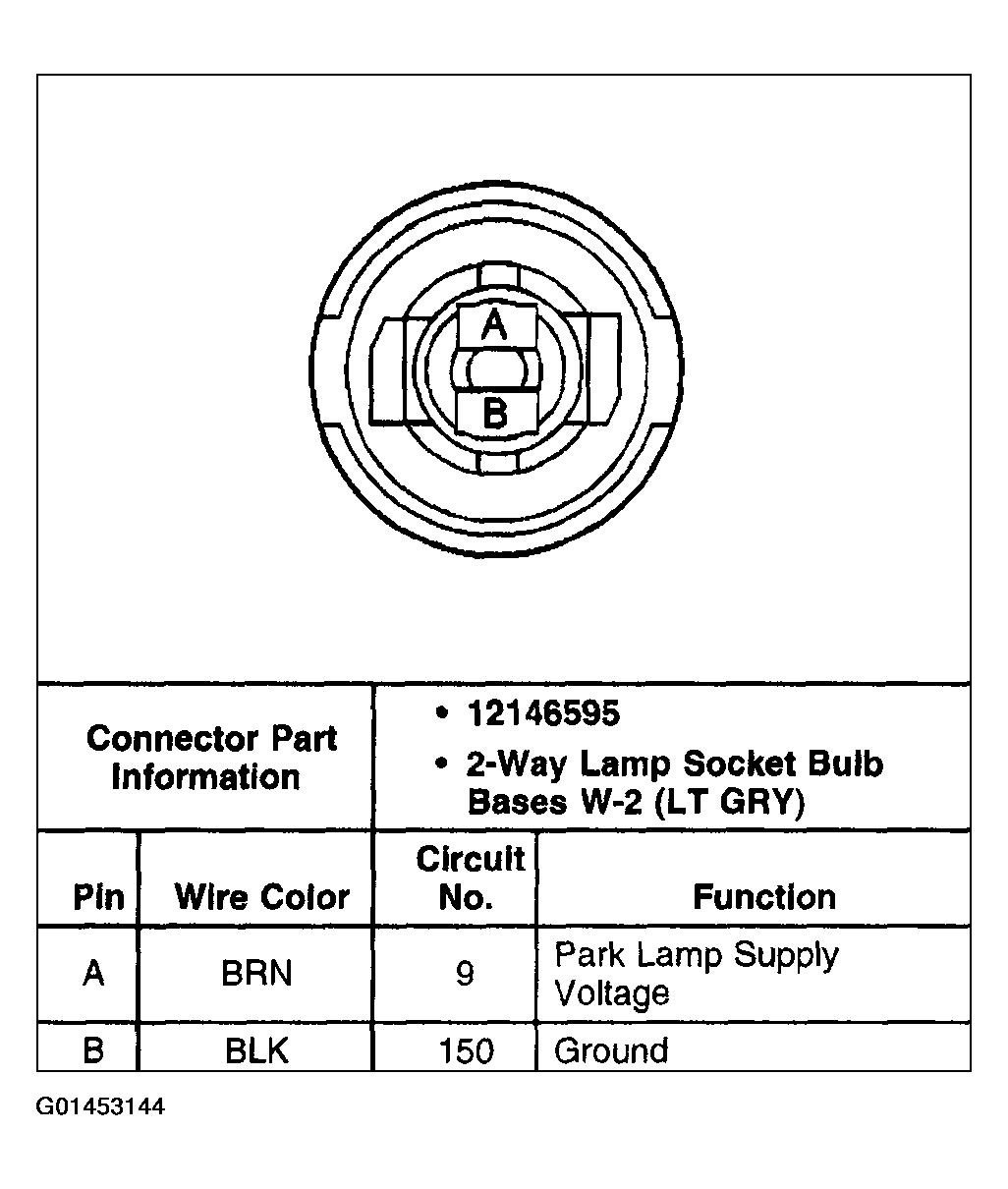

Fig 27: Marker Lamp-LR

G01453144

Courtesy of GENERAL MOTORS CORP.

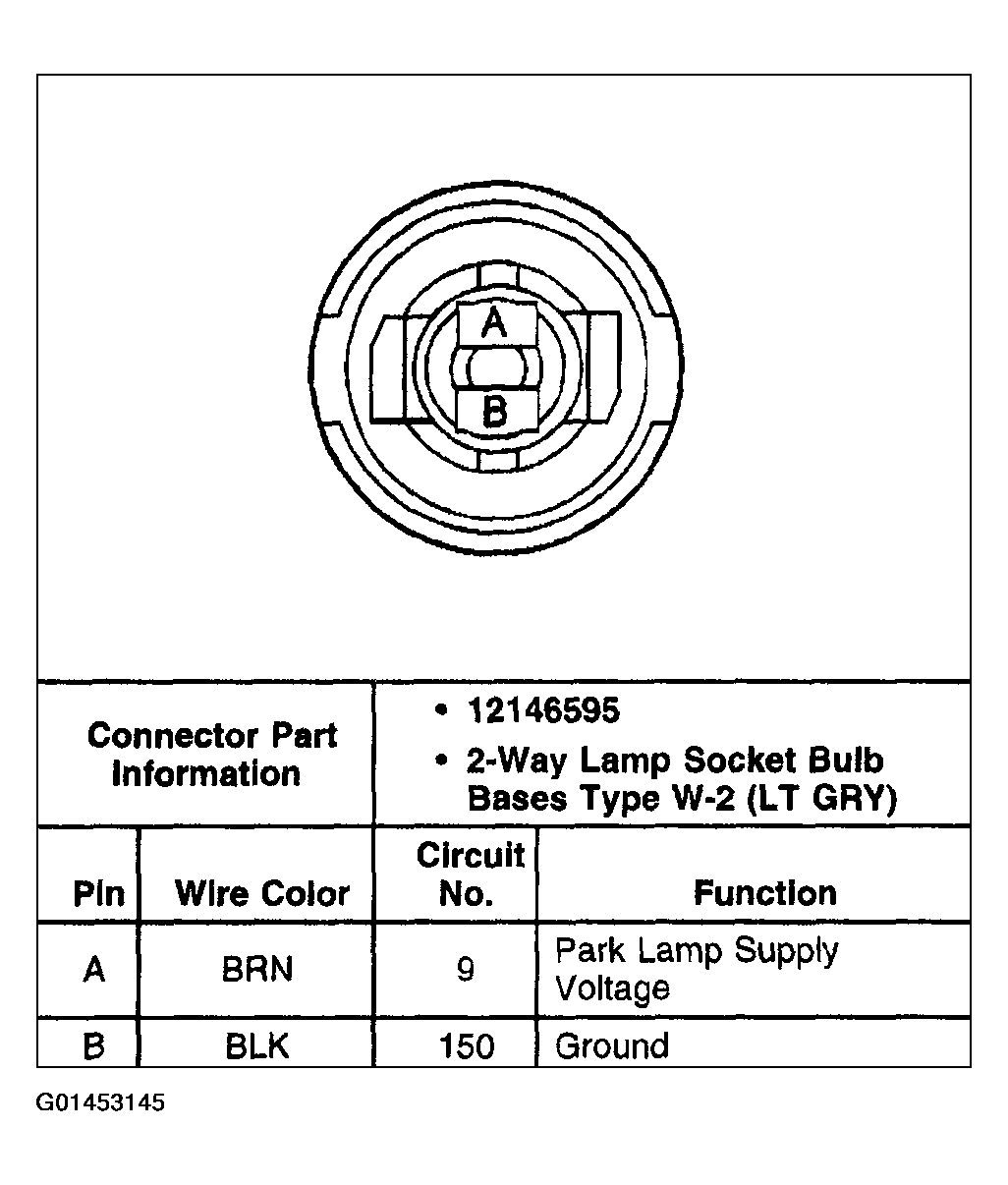

Fig 28: Marker Lamp-RF

G01453145

Courtesy of GENERAL MOTORS CORP.

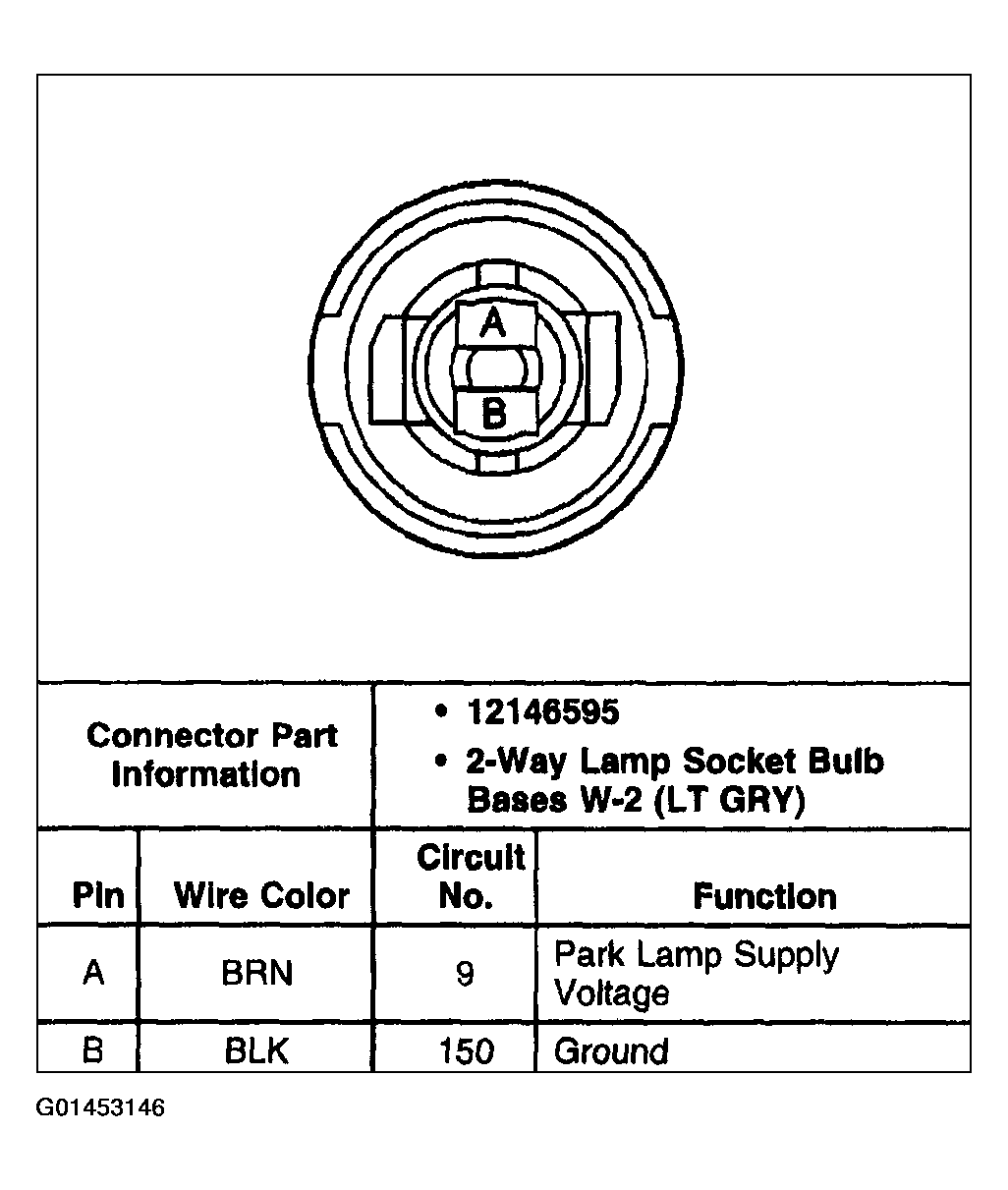

Fig 29: Marker Lamp-RR

G01453146

Courtesy of GENERAL MOTORS CORP.

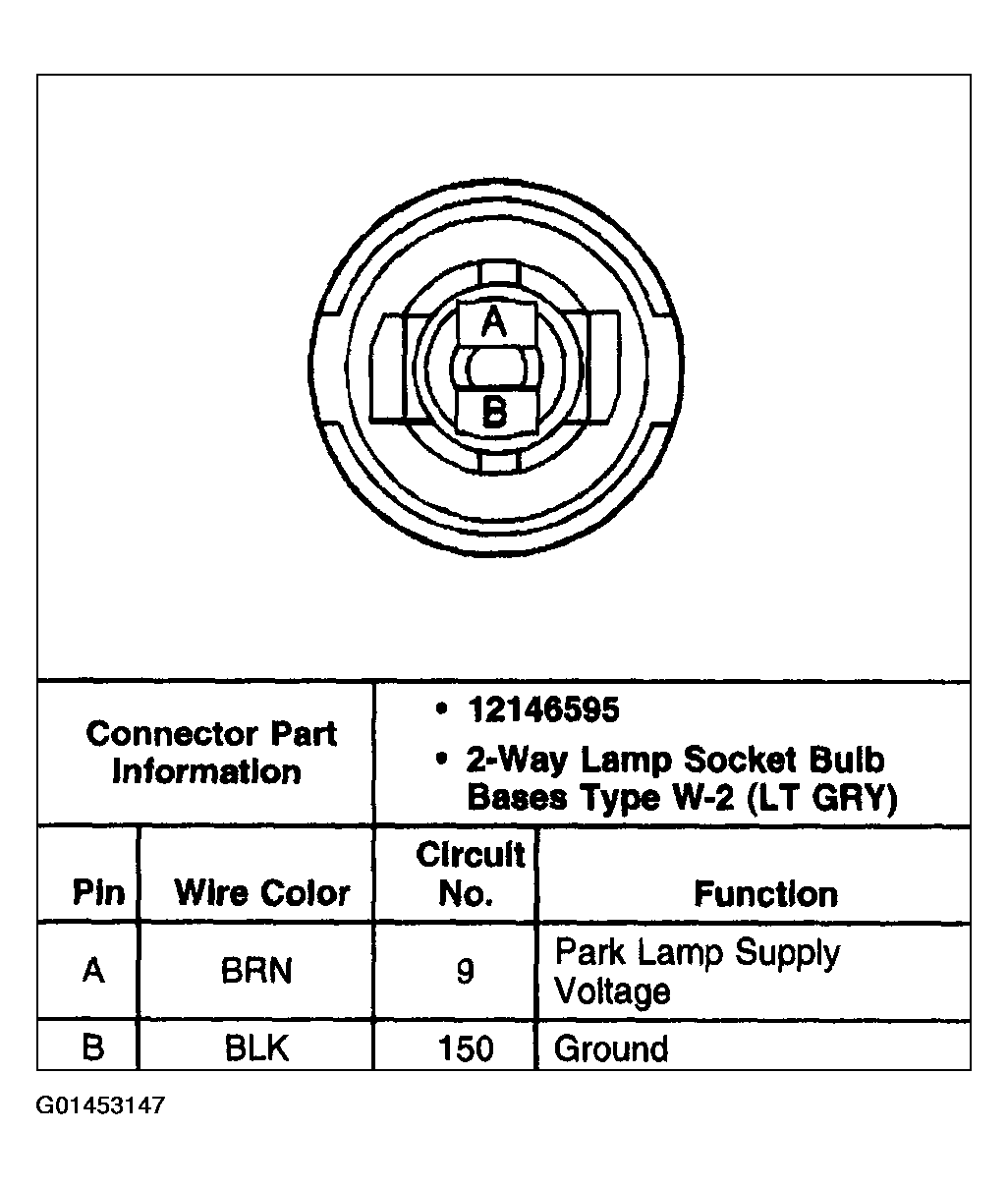

Fig 30: Park Lamp-LF (Export)

G01453147

Courtesy of GENERAL MOTORS CORP.

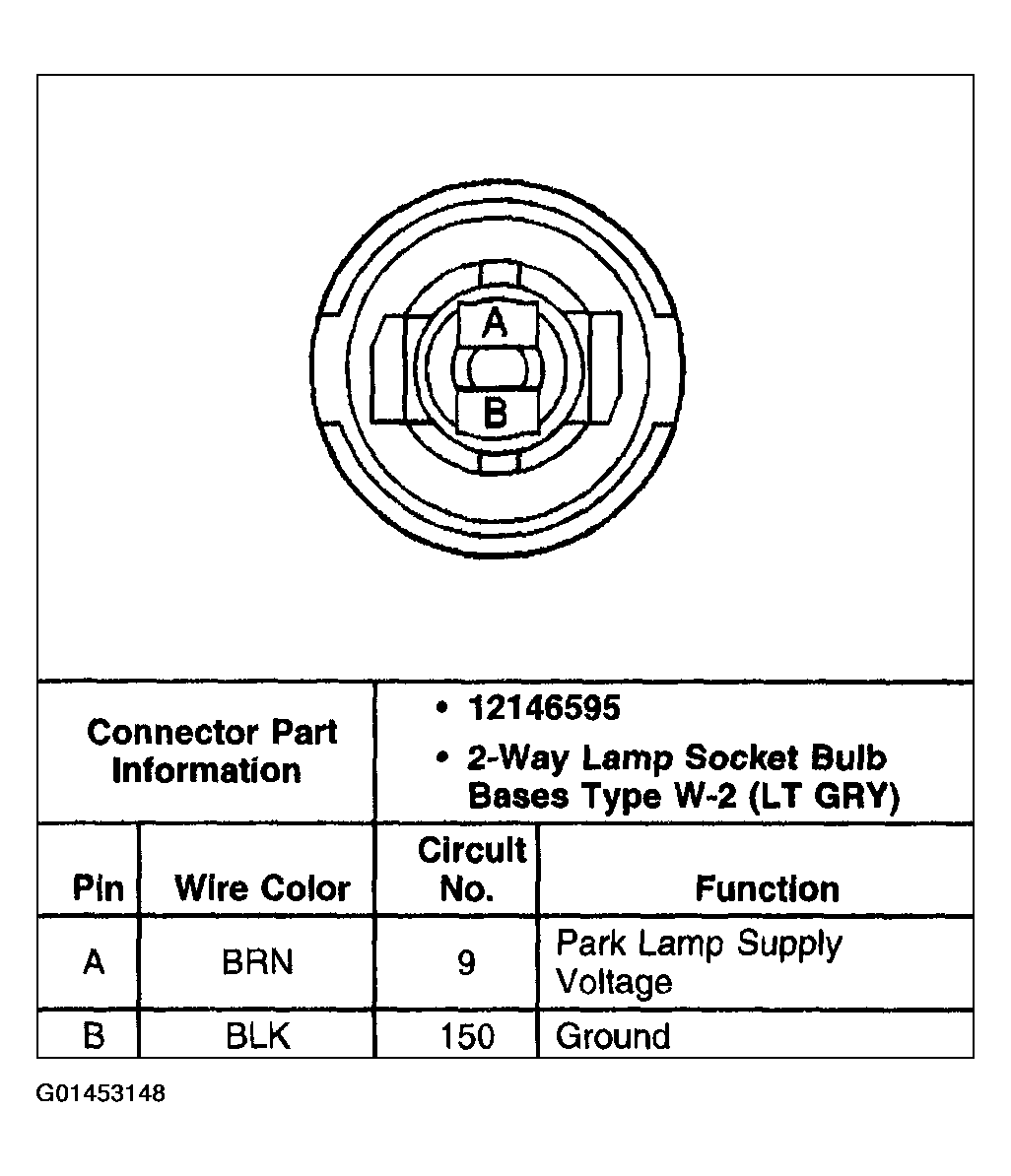

Fig 31: Park Lamp-RF (Export)

G01453148

Courtesy of GENERAL MOTORS CORP.

Fig 32: Park/Turn Signal Lamp-LF (Domestic)

G01453149

Courtesy of GENERAL MOTORS CORP.

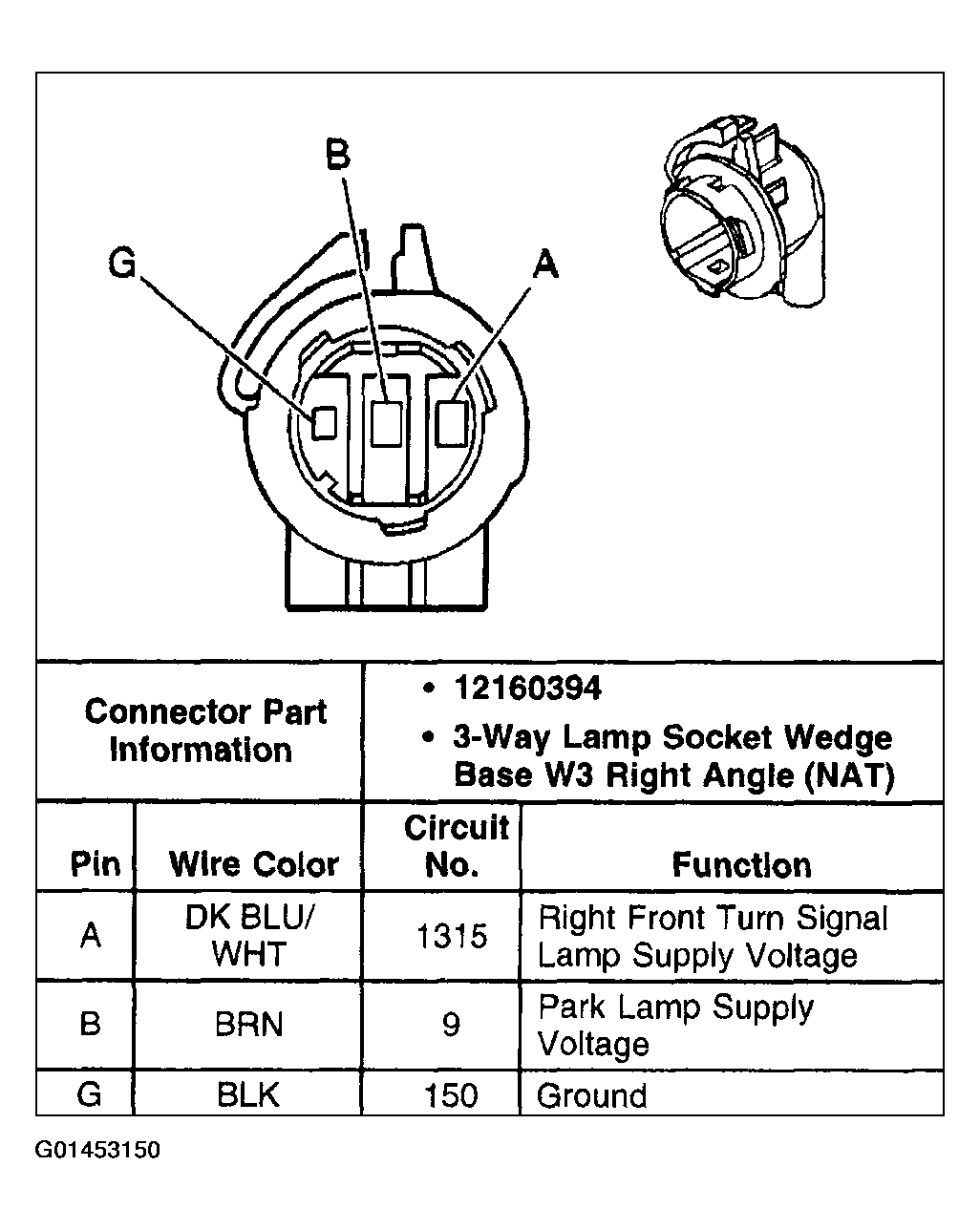

Fig 33: Park/Turn Signal Lamp-RF (Domestic)

G01453150

Courtesy of GENERAL MOTORS CORP.

Fig 34: Repeater Lamp-Left (Export)

G01453151

Courtesy of GENERAL MOTORS CORP.

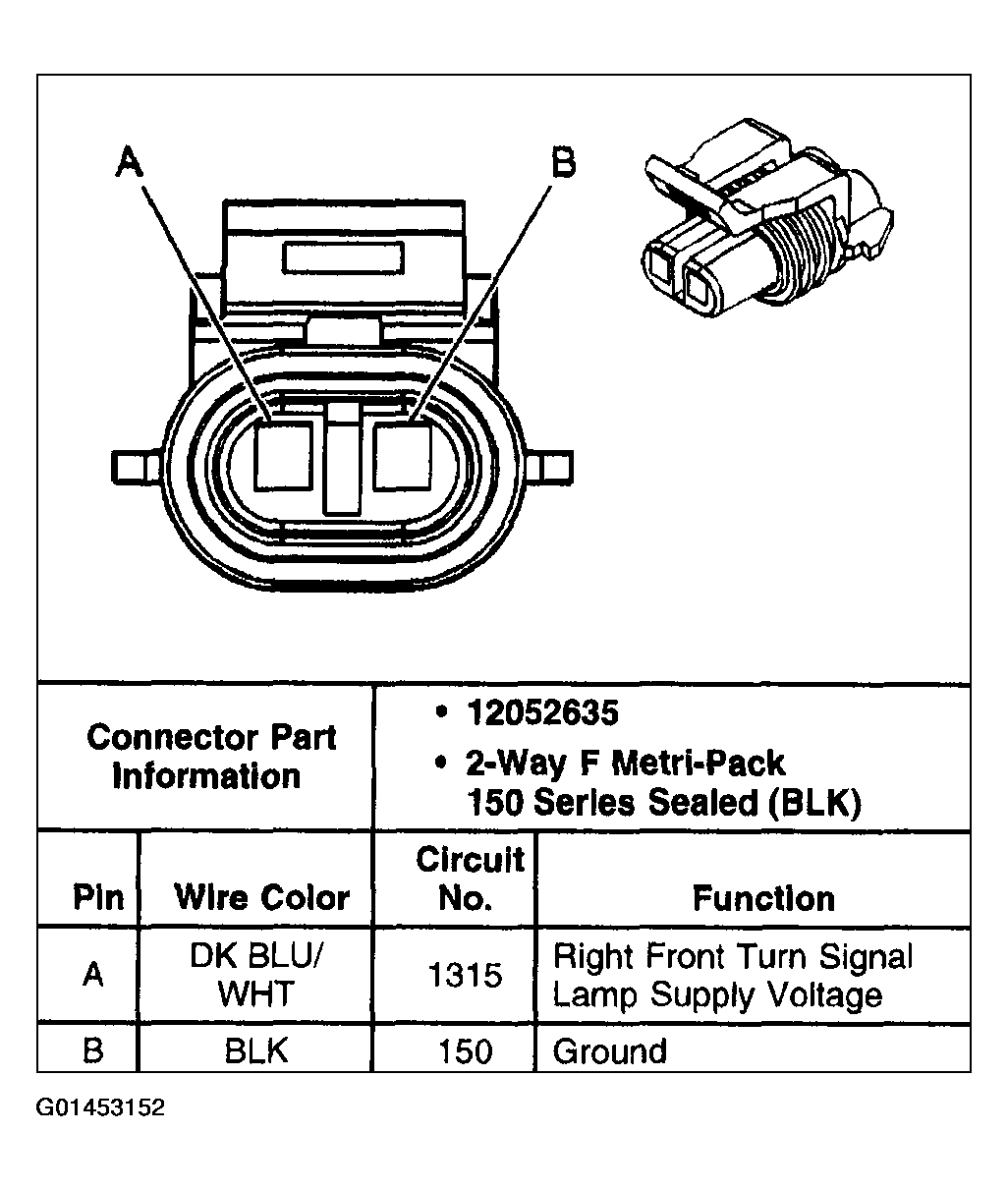

Fig 35: Repeater Lamp-Right (Export)

G01453152

Courtesy of GENERAL MOTORS CORP.

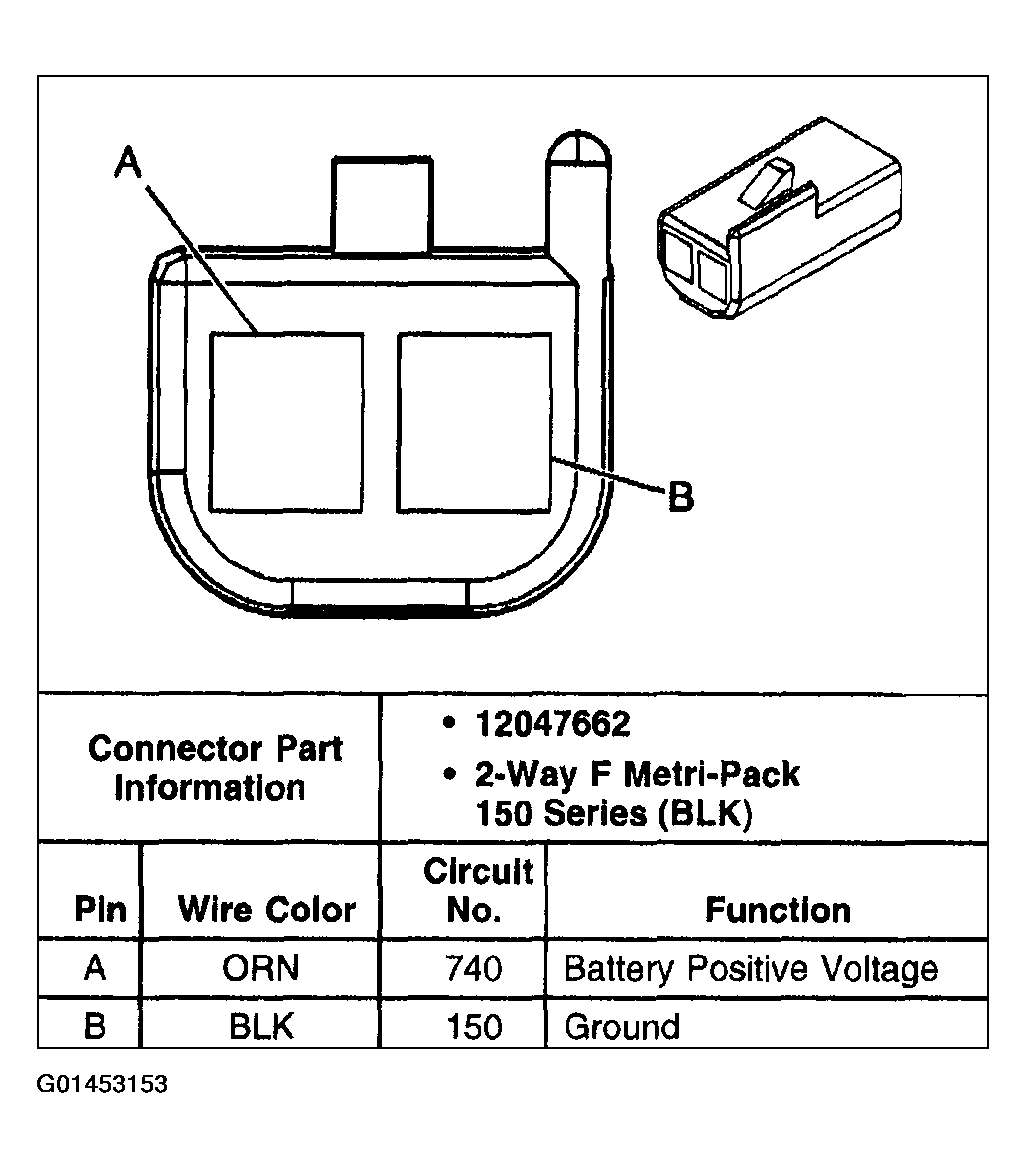

Fig 36: Rear Compartment Courtesy Lamp - Left

G01453153

Courtesy of GENERAL MOTORS CORP.

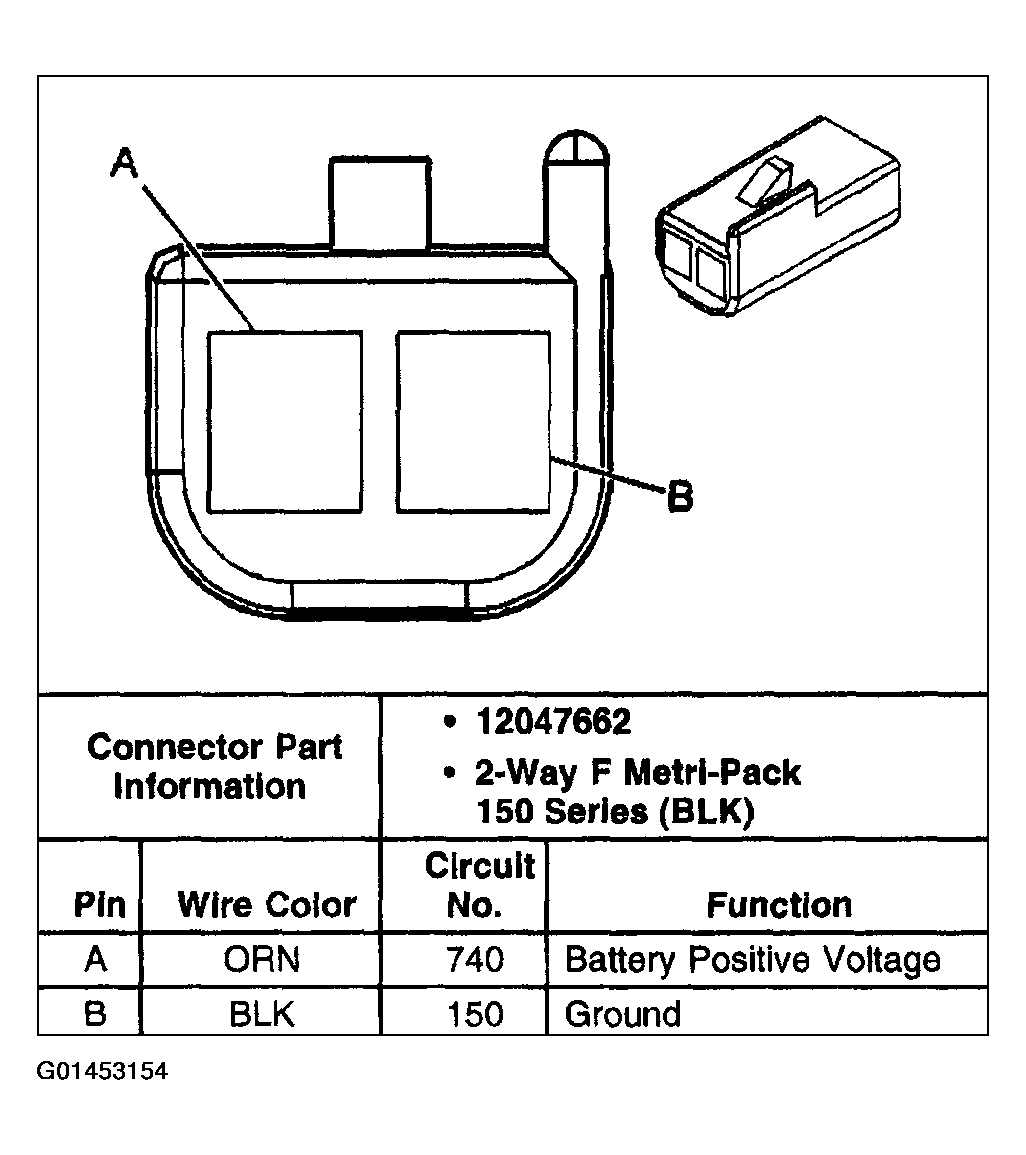

Fig 37: Rear Compartment Courtesy Lamp - Right

G01453154

Courtesy of GENERAL MOTORS CORP.

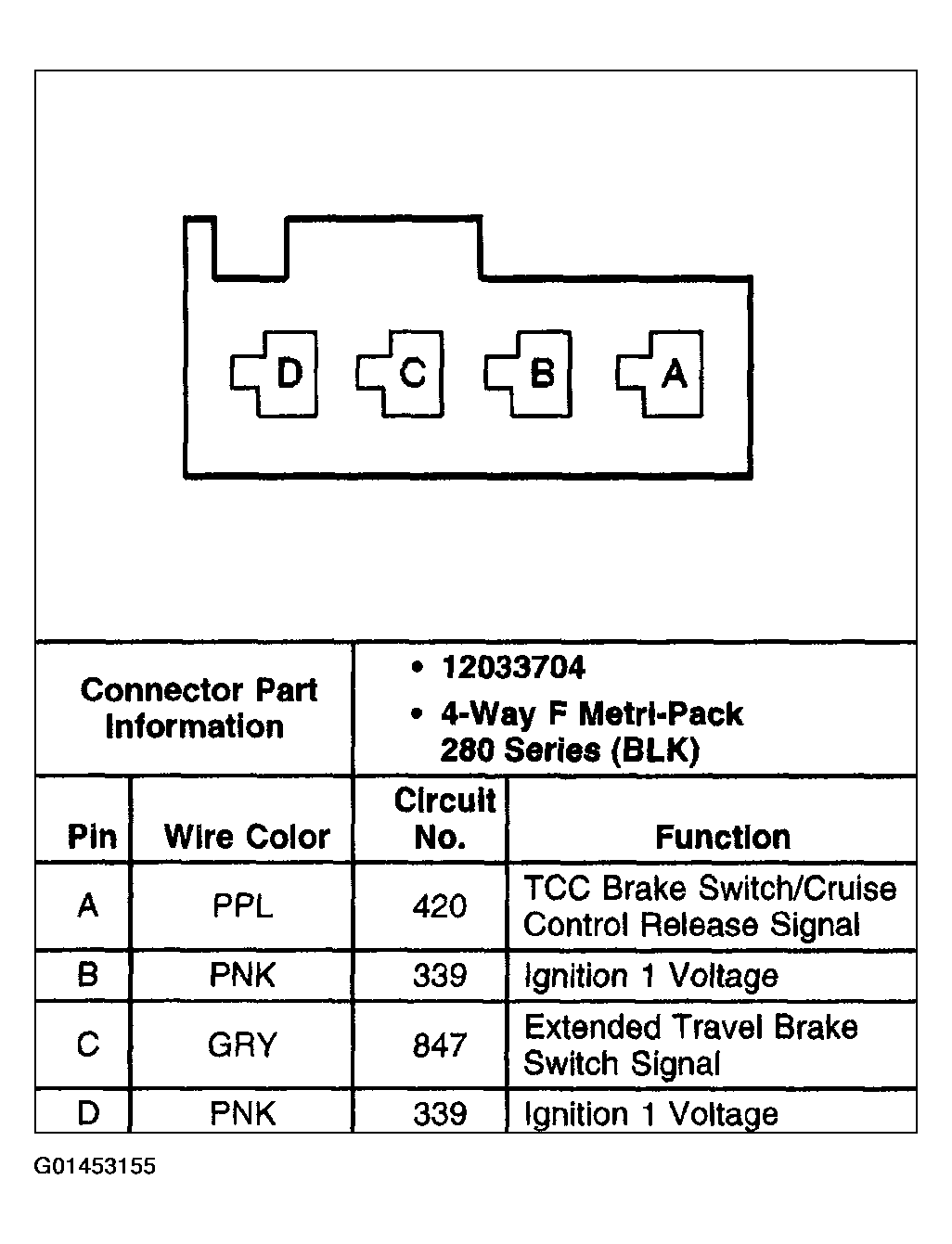

Fig 38: Stop Lamp Switch C1

G01453155

Courtesy of GENERAL MOTORS CORP.

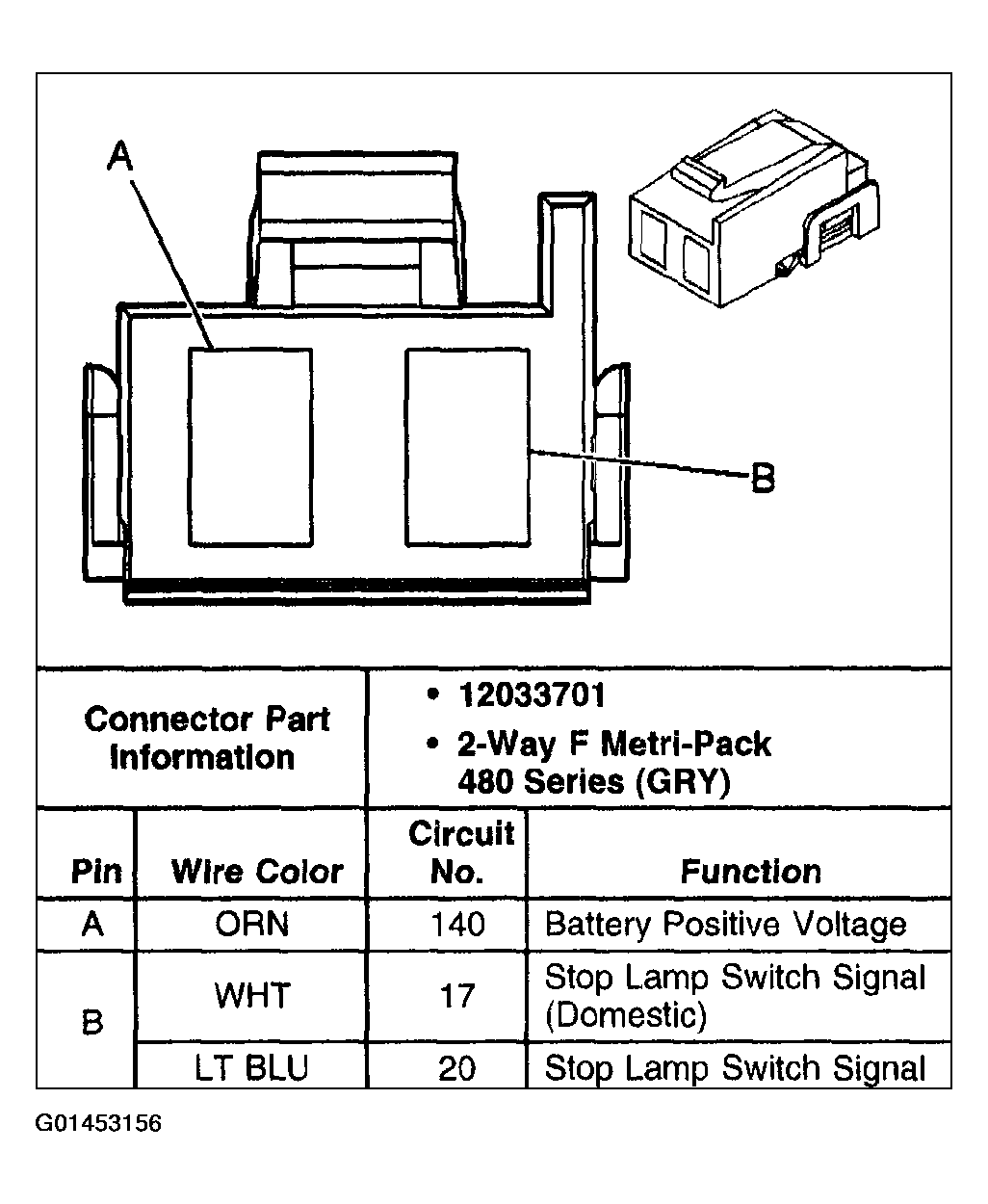

Fig 39: Stop Lamp Switch C2

G01453156

Courtesy of GENERAL MOTORS CORP.

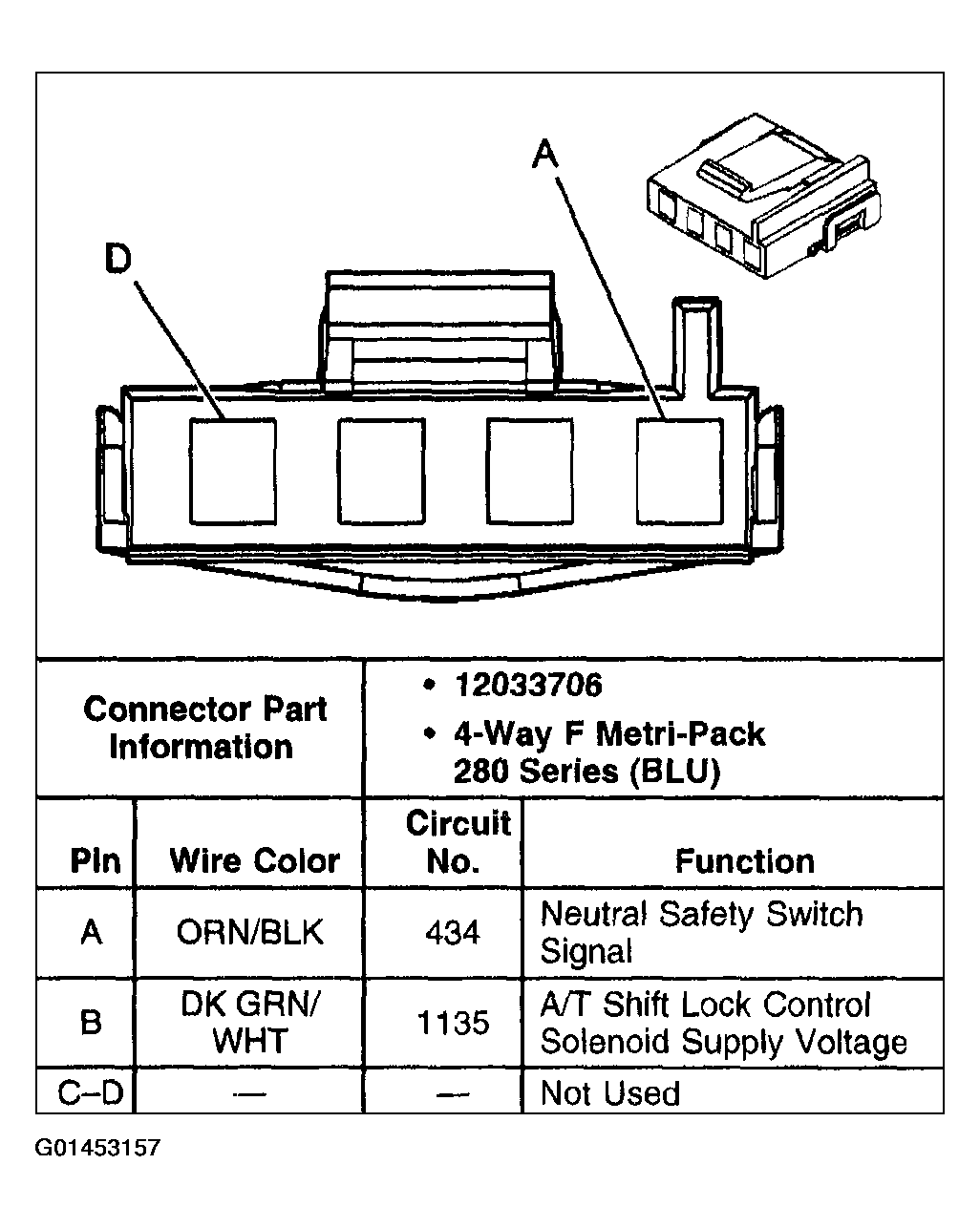

Fig 40: Stop Lamp Switch C3

G01453157

Courtesy of GENERAL MOTORS CORP.

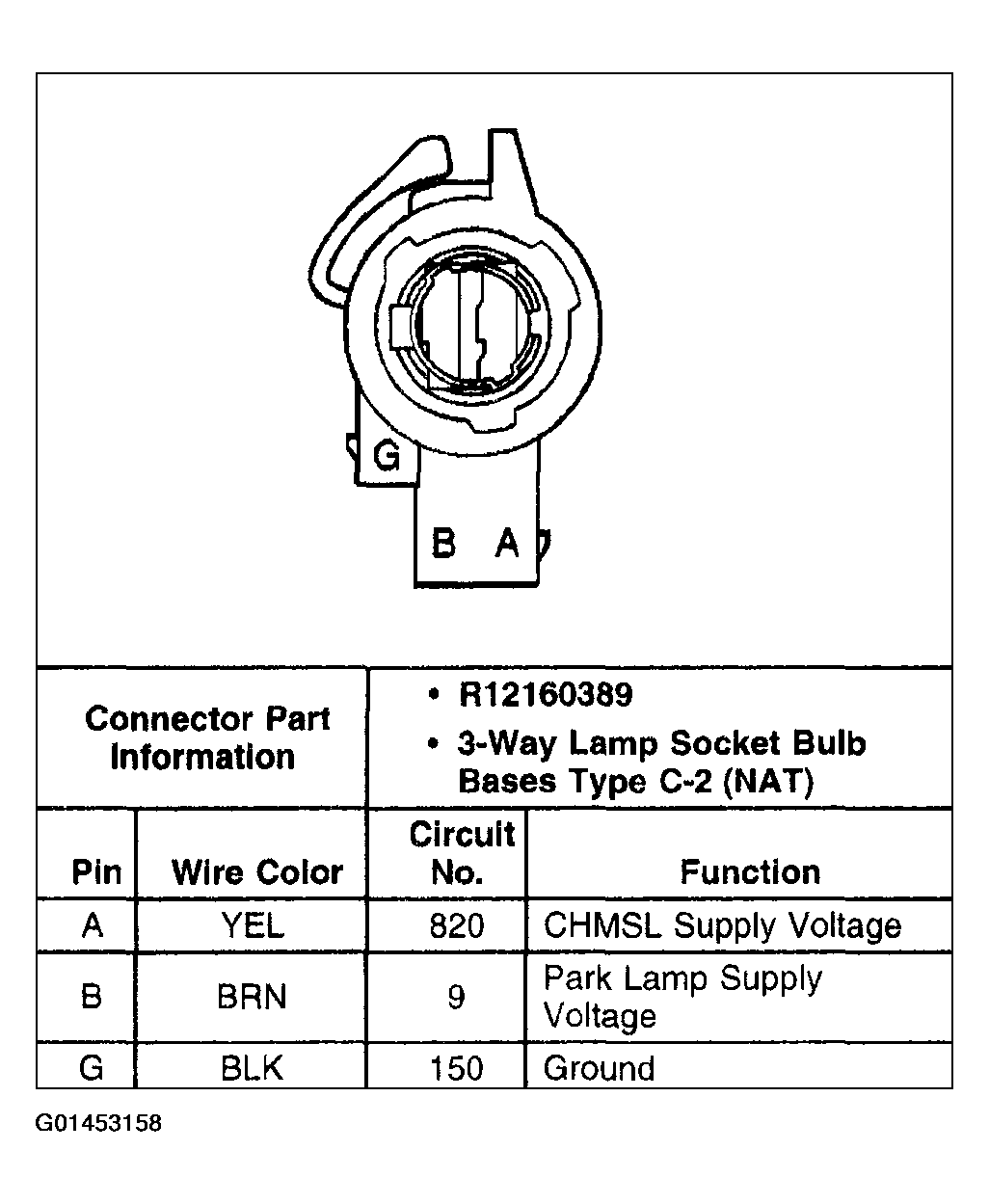

Fig 41: Tail/Stop Lamp-Left (Export)

G01453158

Courtesy of GENERAL MOTORS CORP.

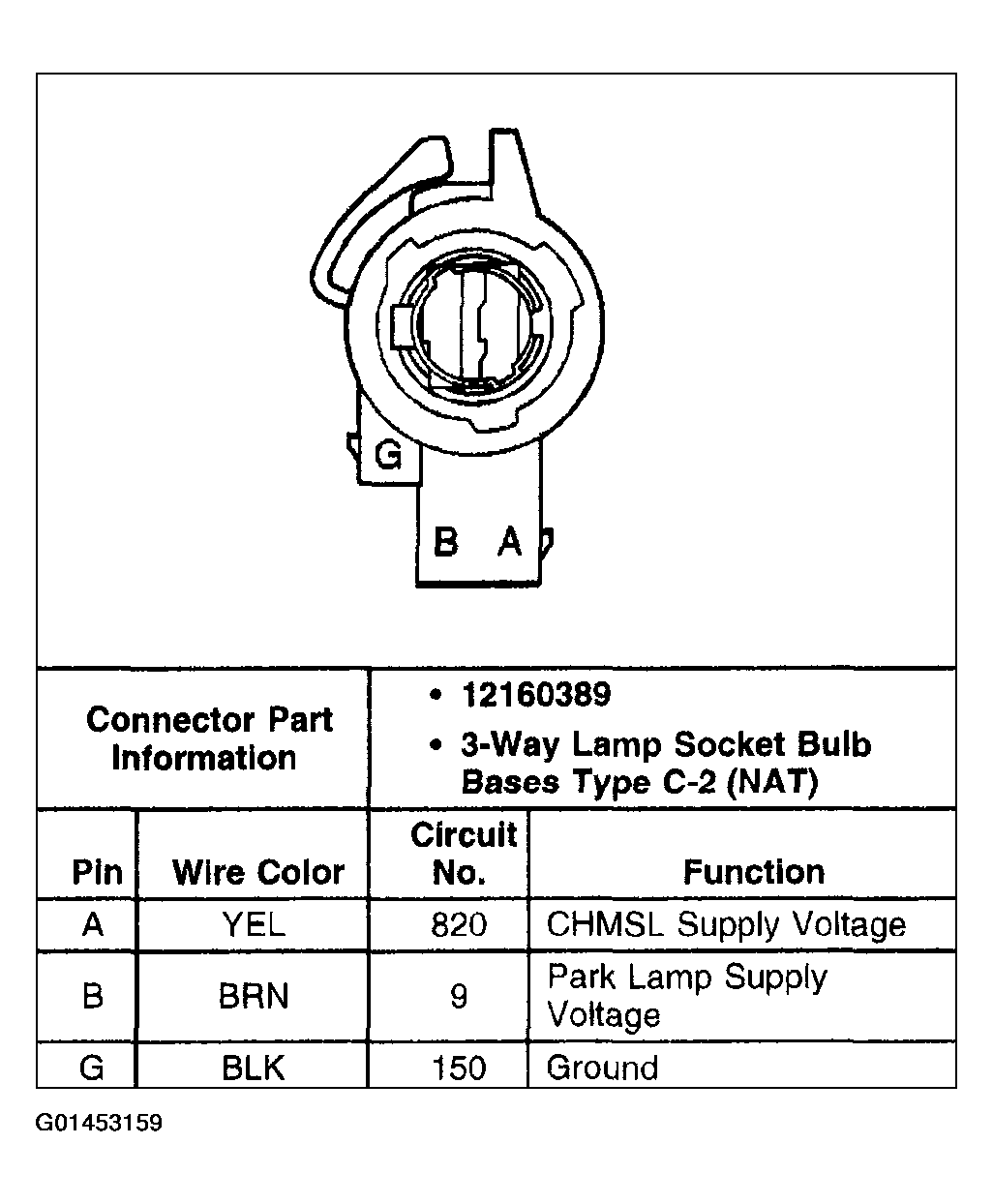

Fig 42: Tail/Stop Lamp-Right (Export)

G01453159

Courtesy of GENERAL MOTORS CORP.

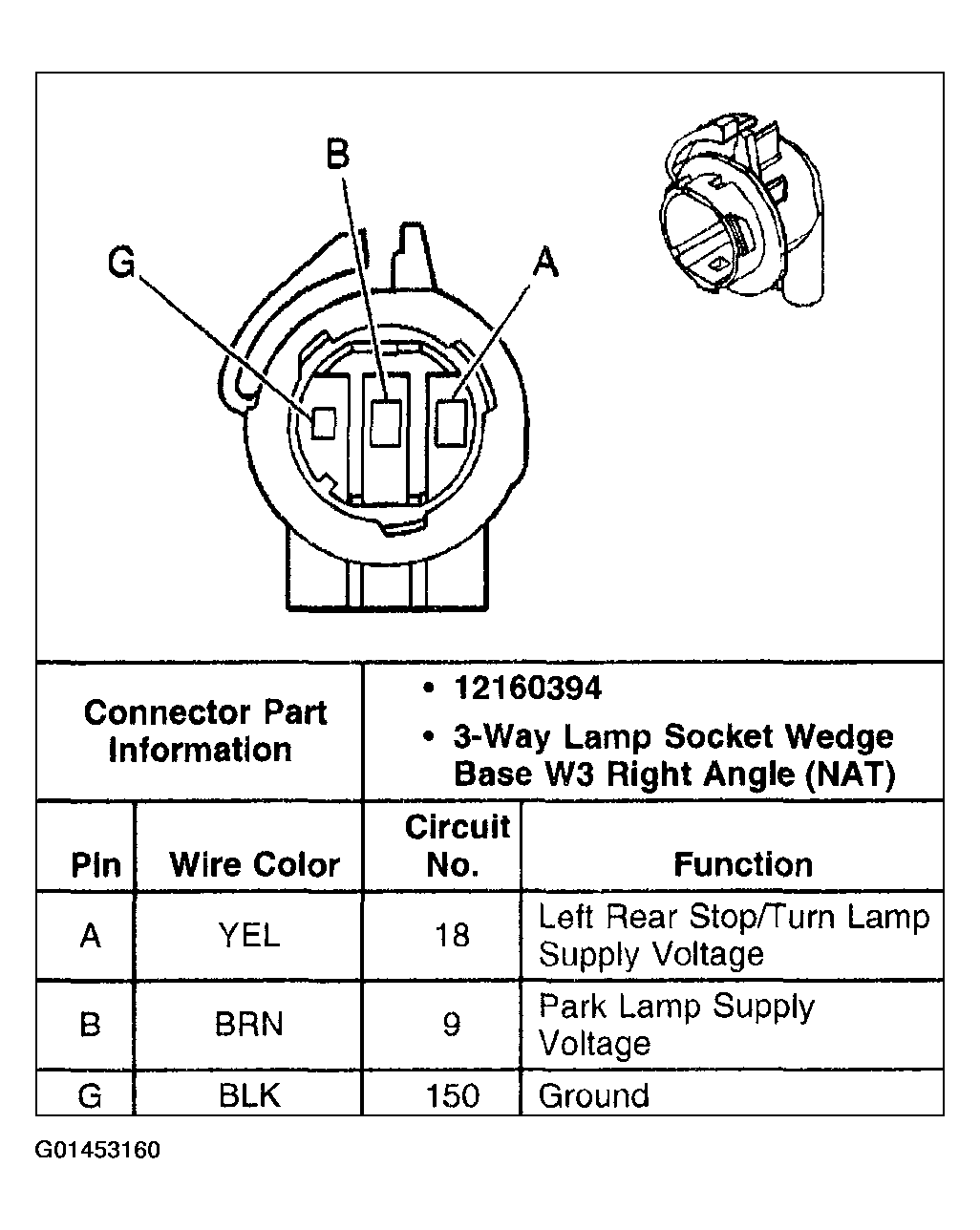

Fig 43: Tail/Stop & Turn Signal Lamp-Left (Domestic)

G01453160

Courtesy of GENERAL MOTORS CORP.

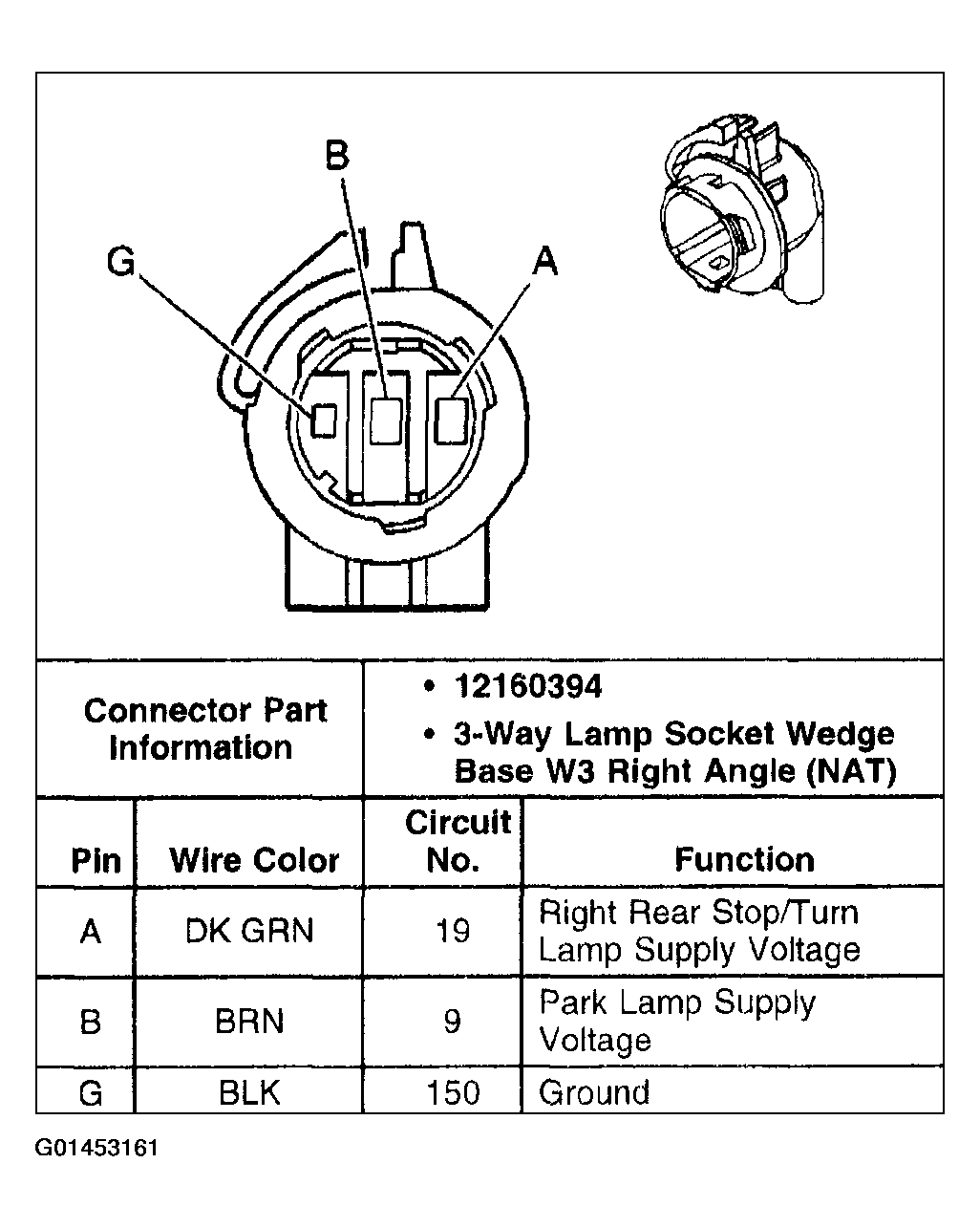

Fig 44: Tail/Stop & Turn Signal Lamp-Right (Domestic)

G01453161

Courtesy of GENERAL MOTORS CORP.

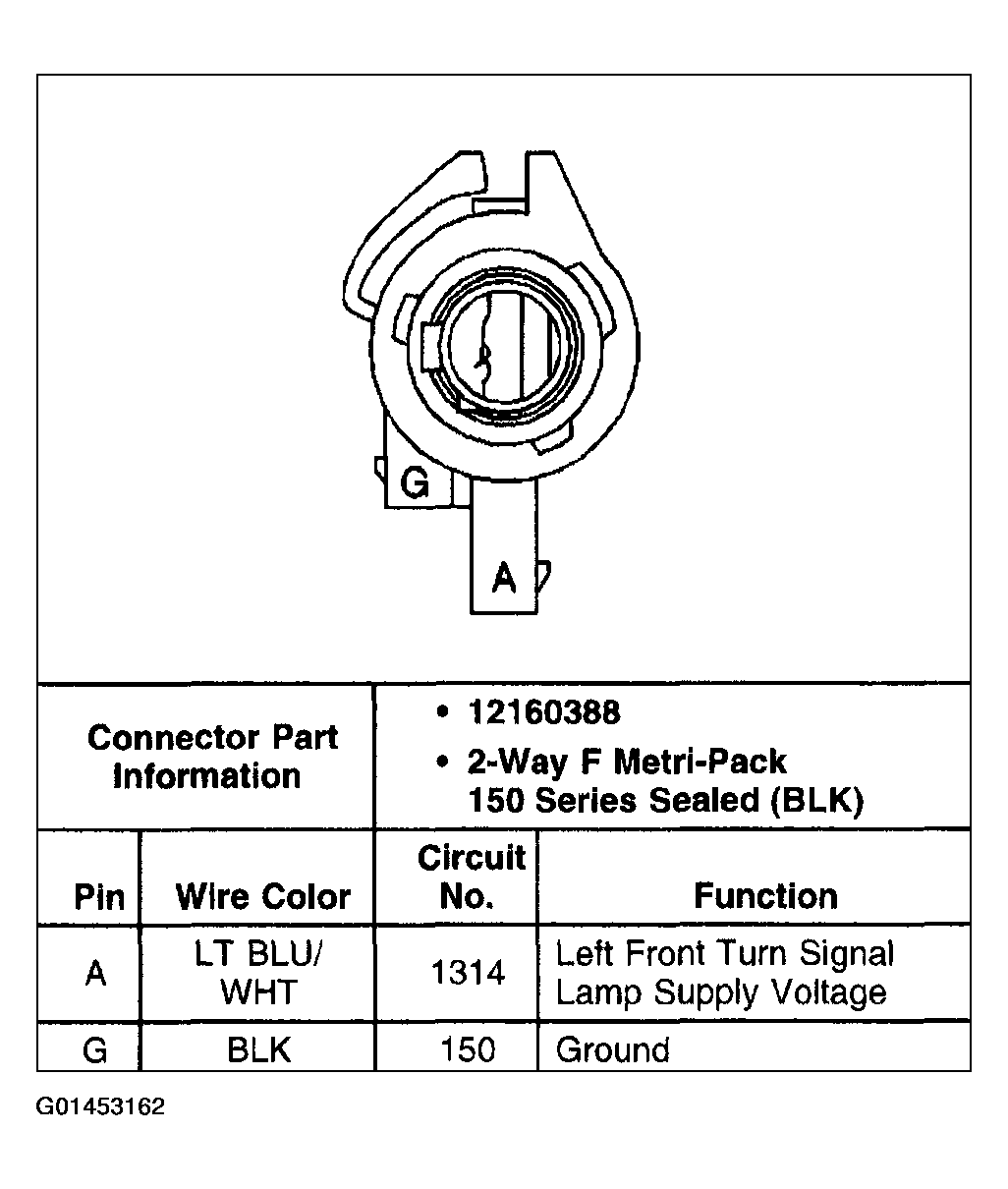

Fig 45: Turn Signal Lamp-LF (Export)

G01453162

Courtesy of GENERAL MOTORS CORP.

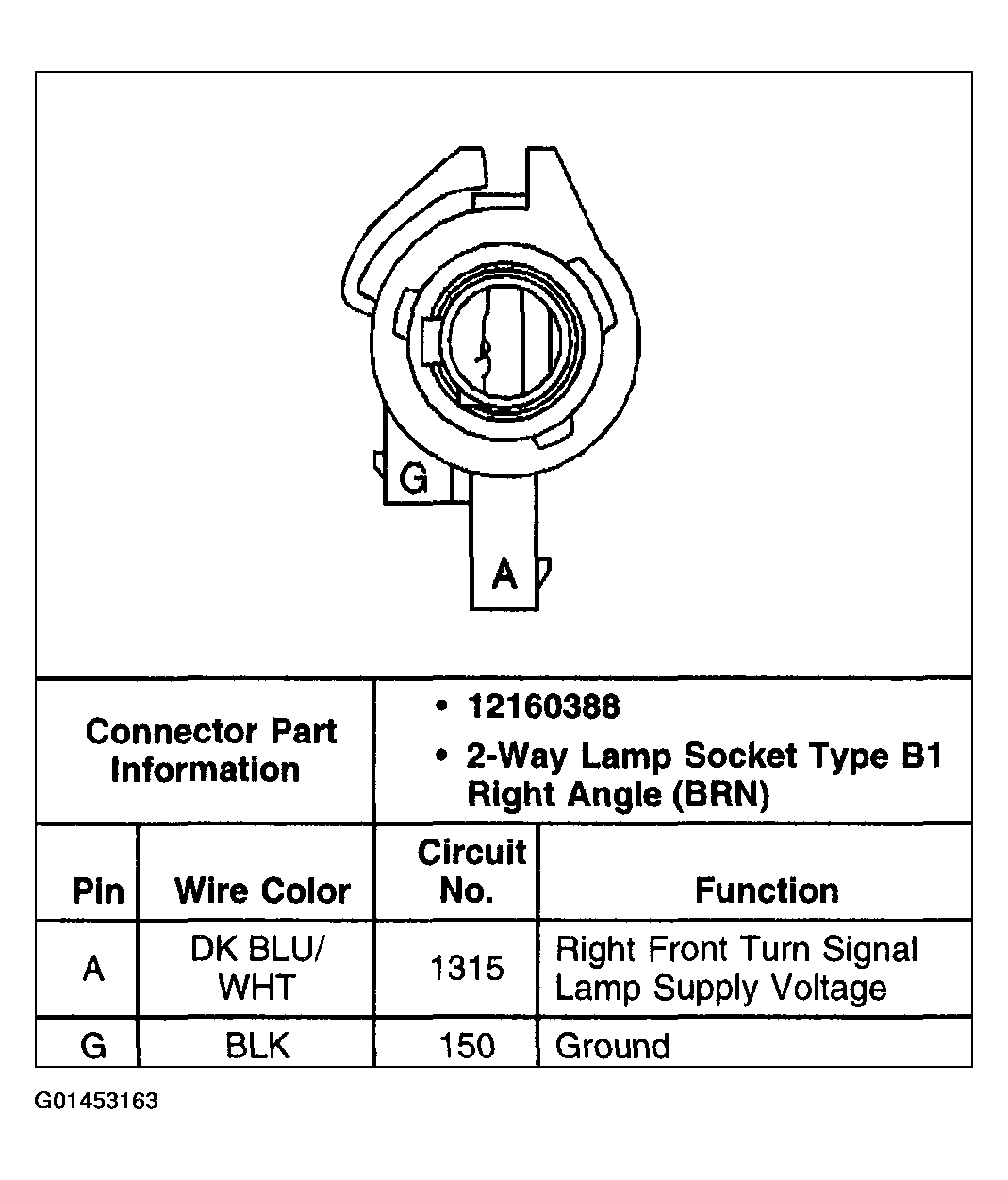

Fig 46: Turn Signal Lamp-RF (Export)

G01453163

Courtesy of GENERAL MOTORS CORP.

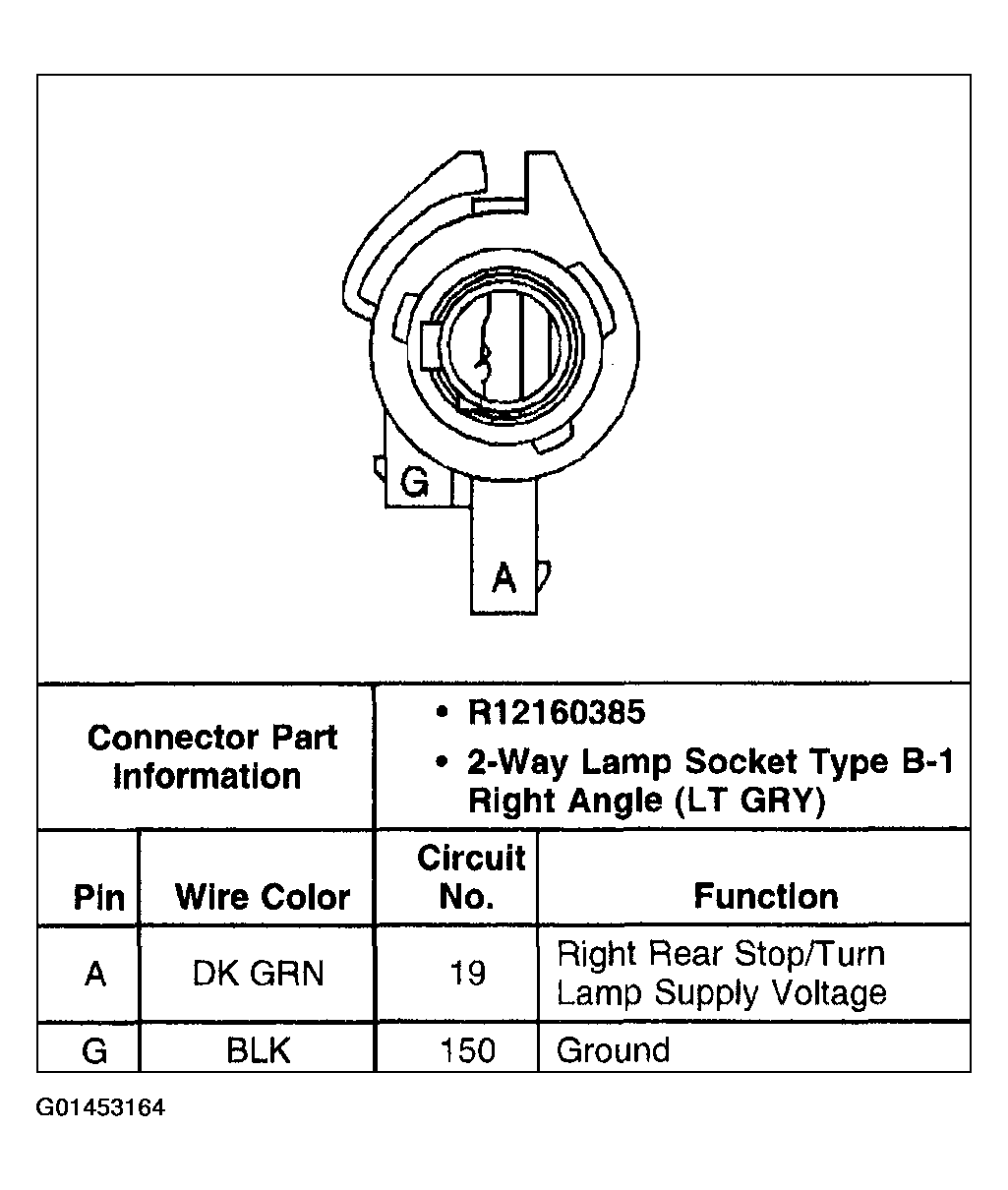

Fig 47: Turn Signal Lamp-RR (Export)

G01453164

Courtesy of GENERAL MOTORS CORP.

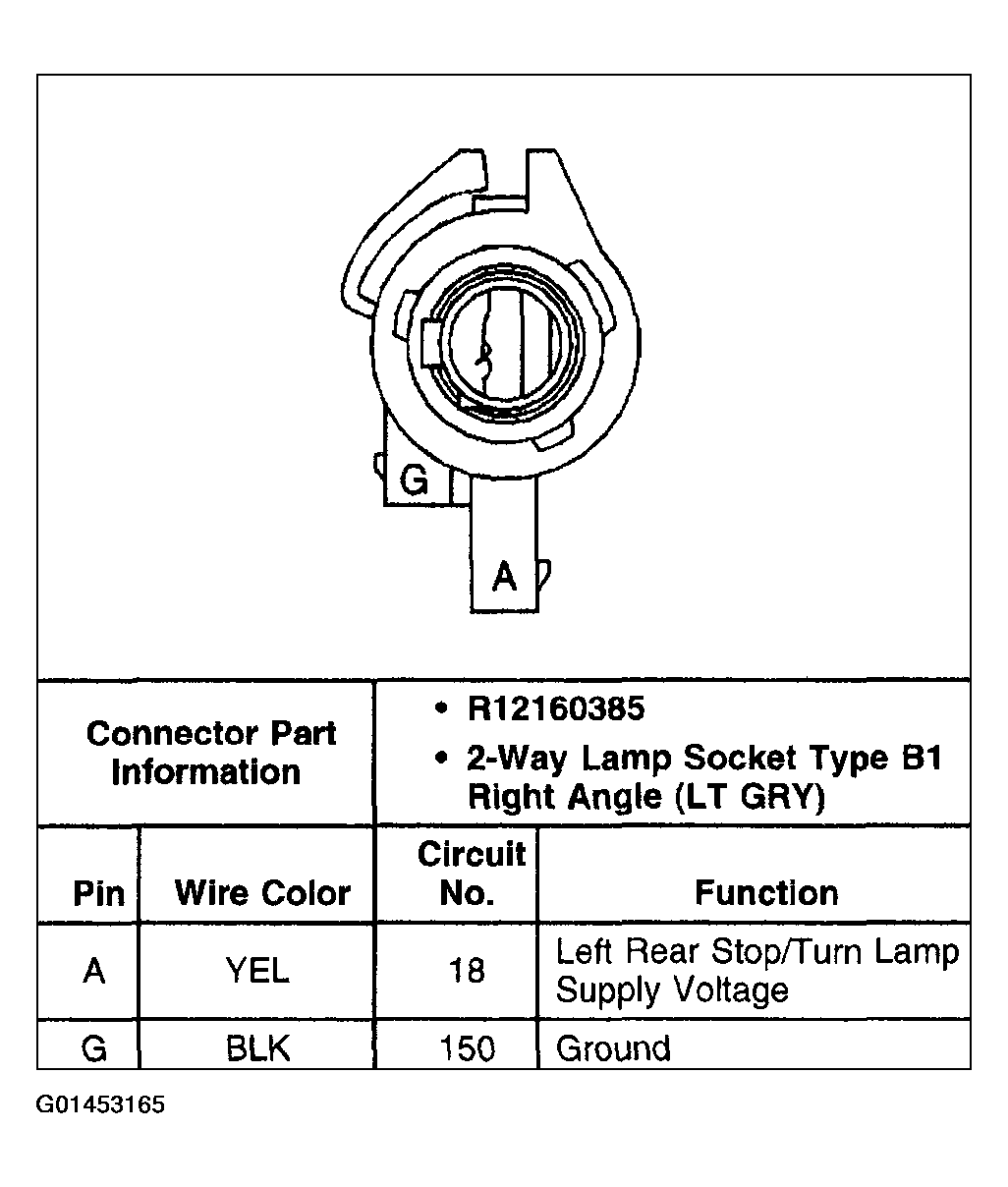

Fig 48: Turn Signal Lamp-LR (Export)

G01453165

Courtesy of GENERAL MOTORS CORP.

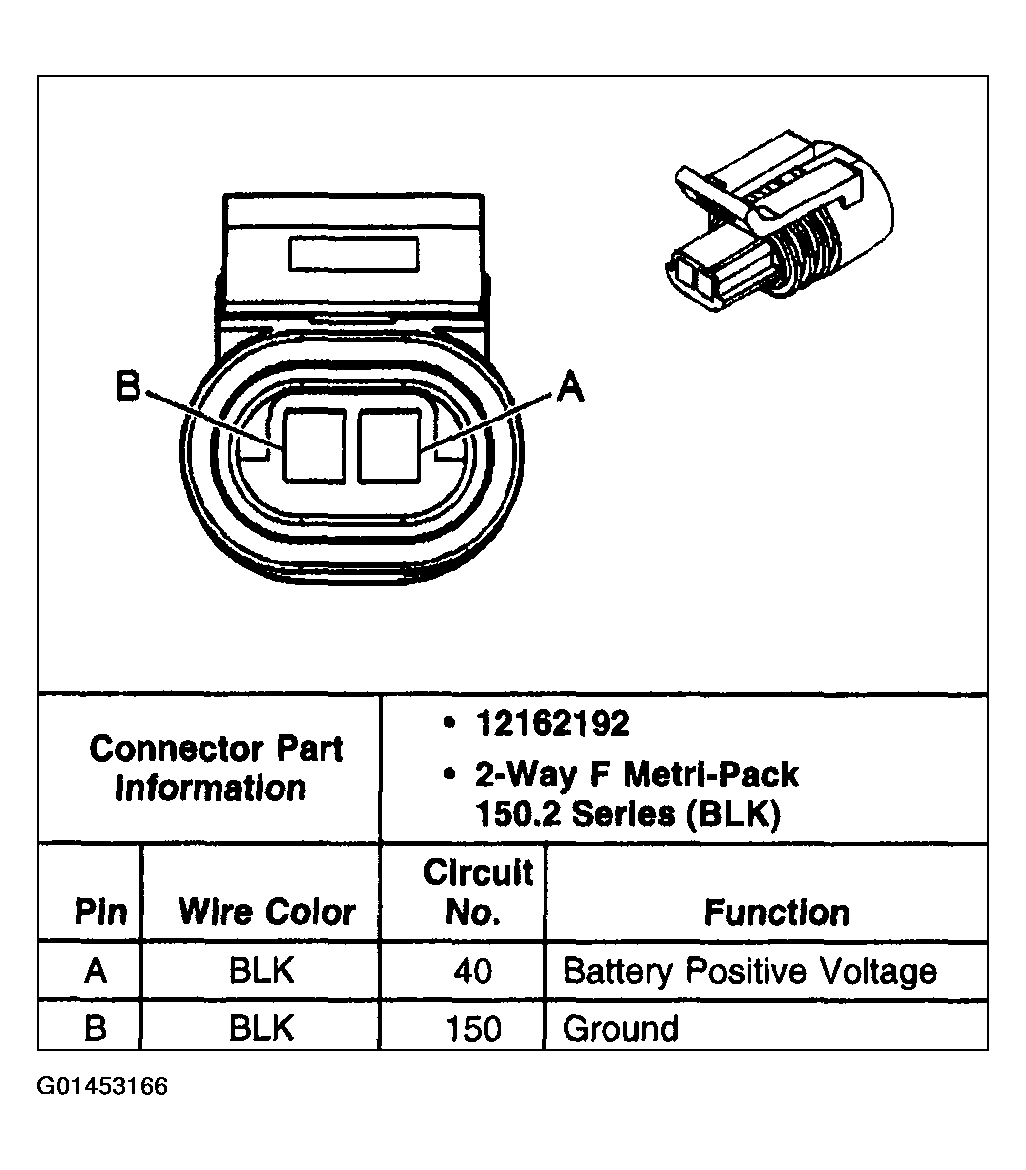

Fig 49: Underhood Lamp

G01453166

Courtesy of GENERAL MOTORS CORP.

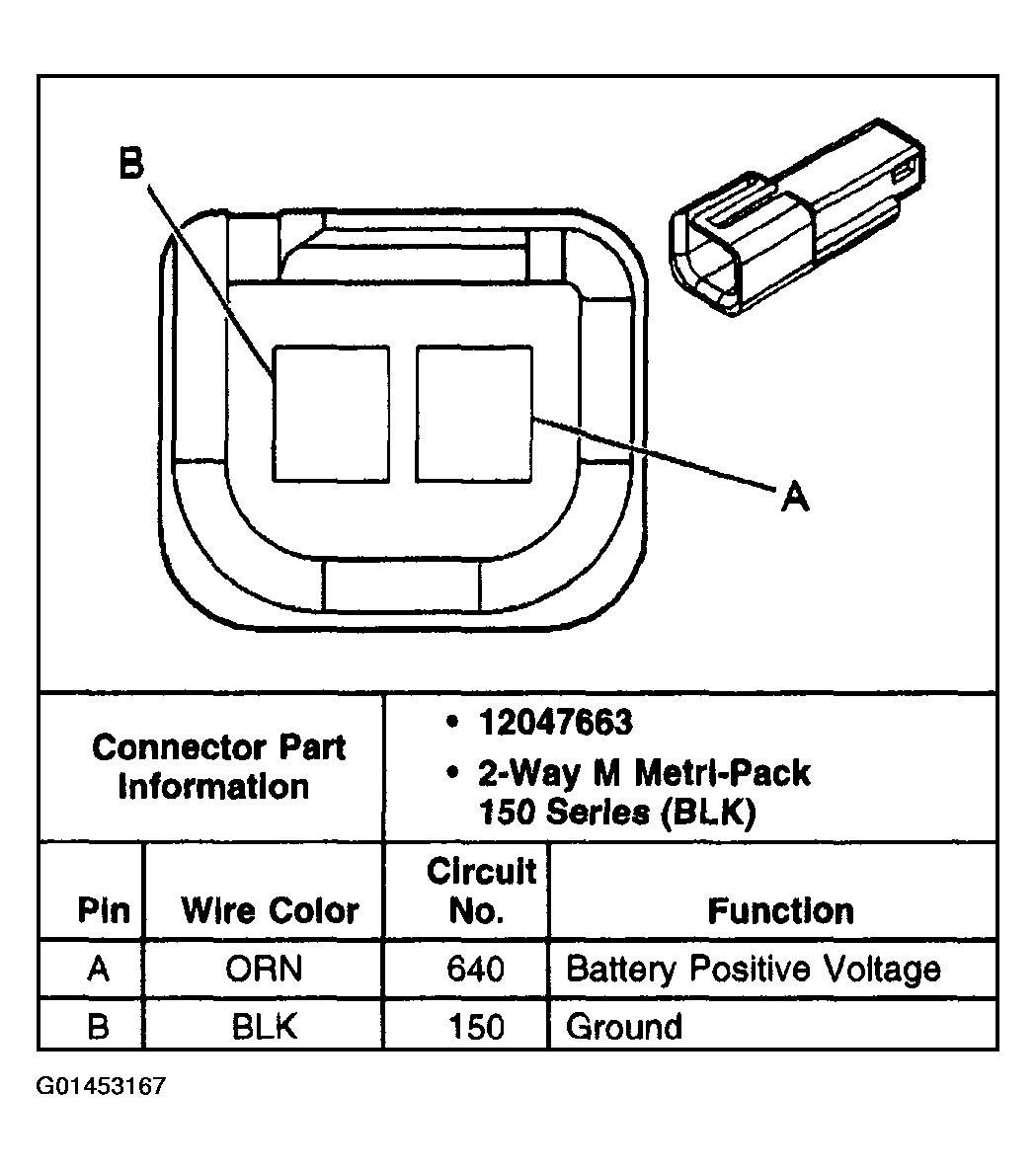

Fig 50: Vanity Mirror Lamp-Left

G01453167

Courtesy of GENERAL MOTORS CORP.

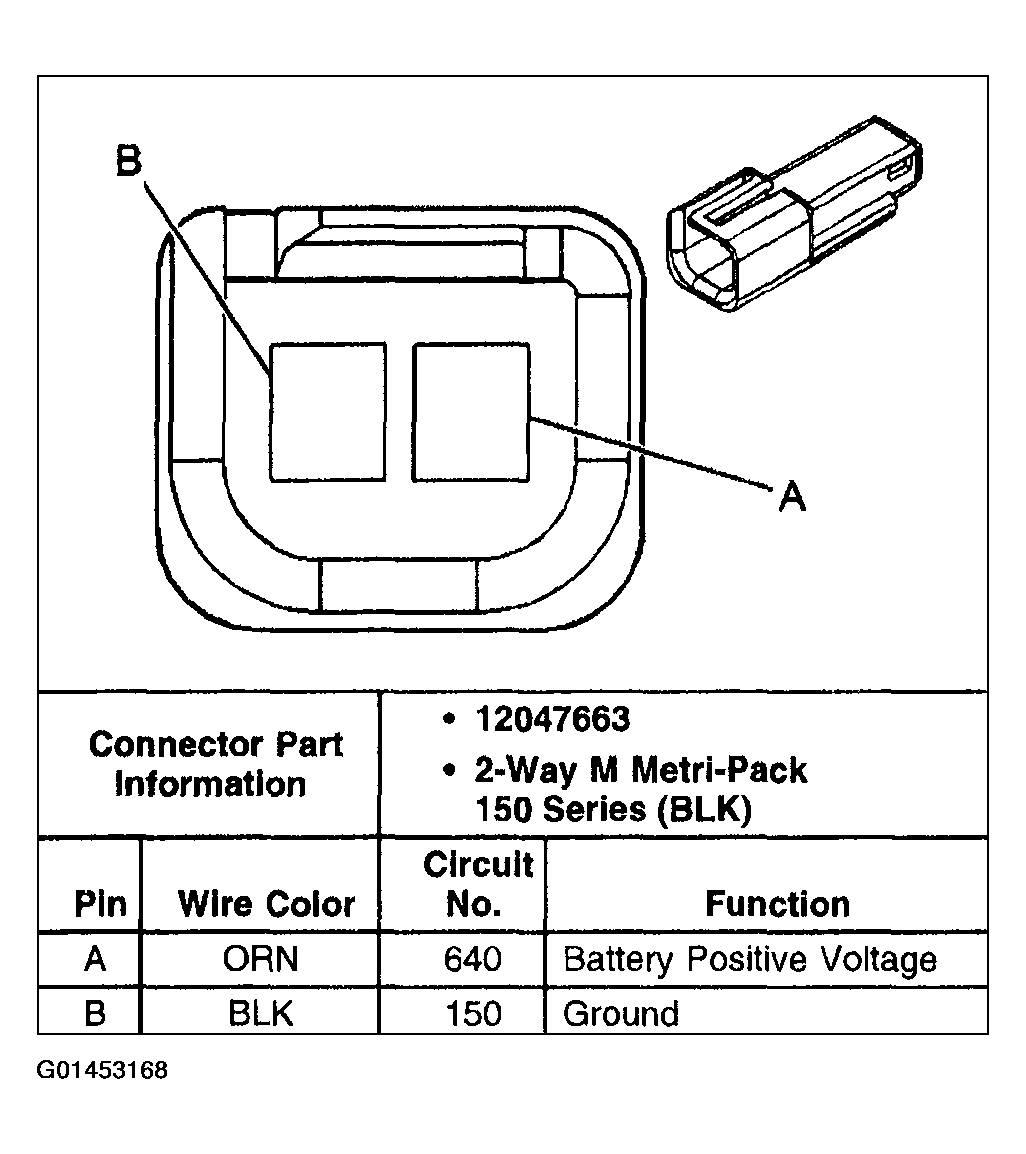

Fig 51: Vanity Mirror Lamp-Right

G01453168

Courtesy of GENERAL MOTORS CORP.
