Power Door Systems Connector End Views
WARNING:
This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

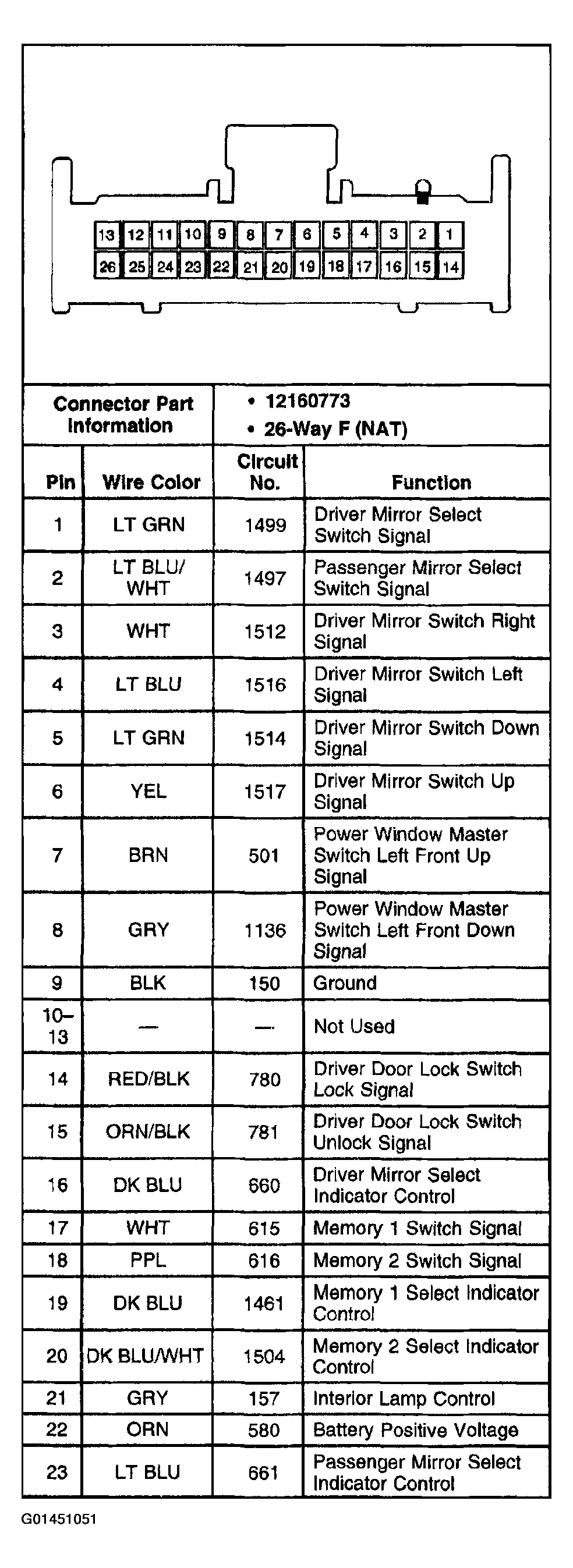

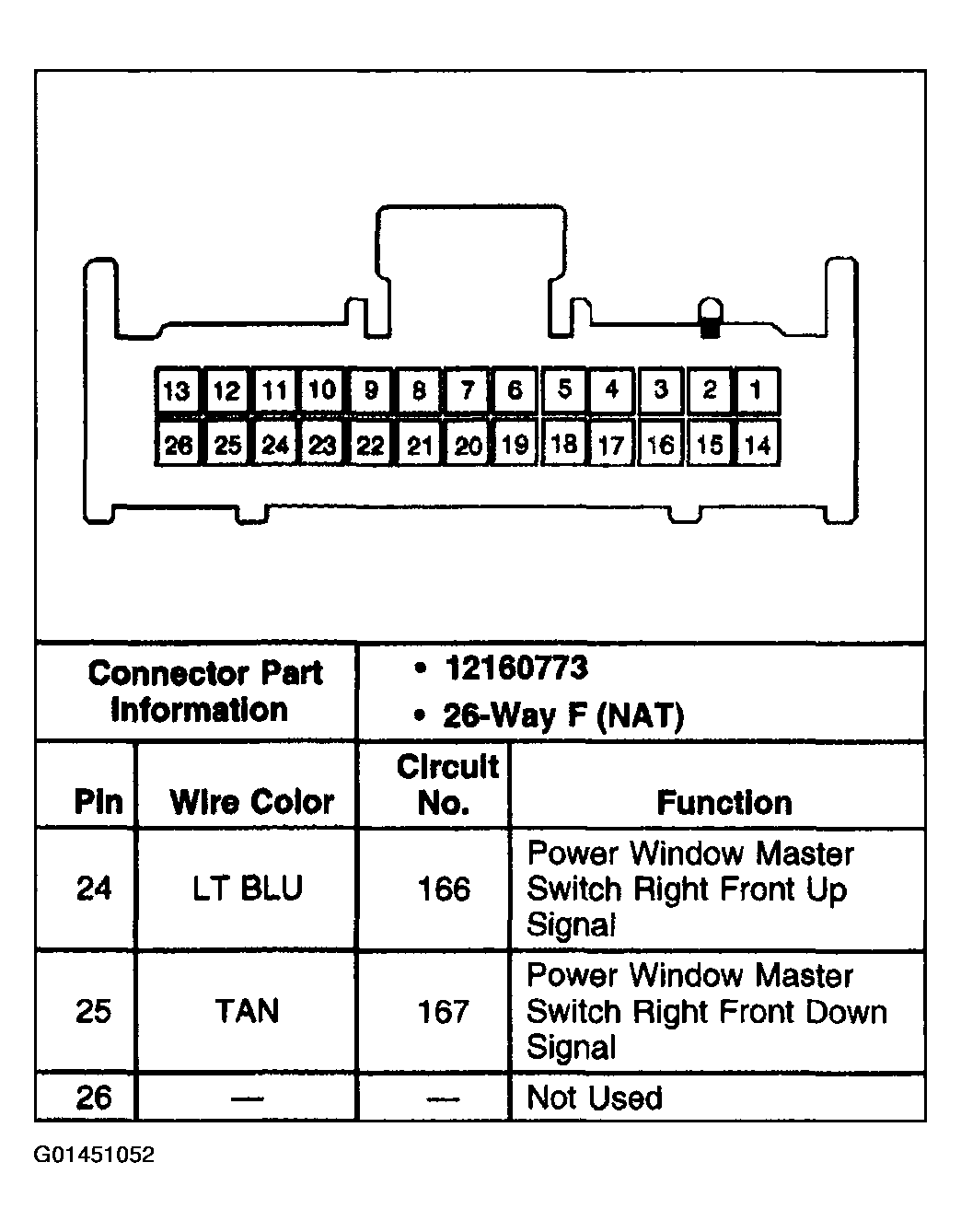

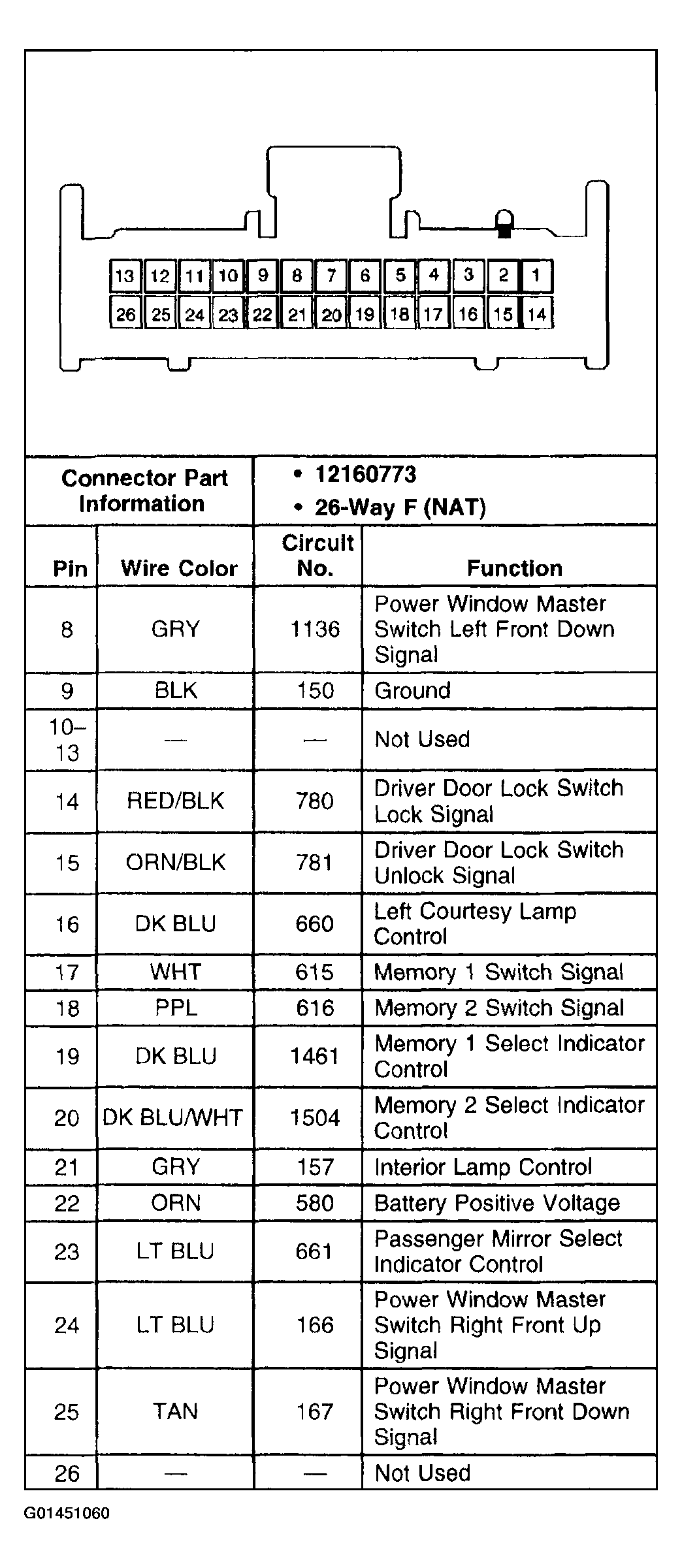

Fig 1: Driver Door Module (DDM) - C1
Courtesy of GENERAL MOTORS CORP.

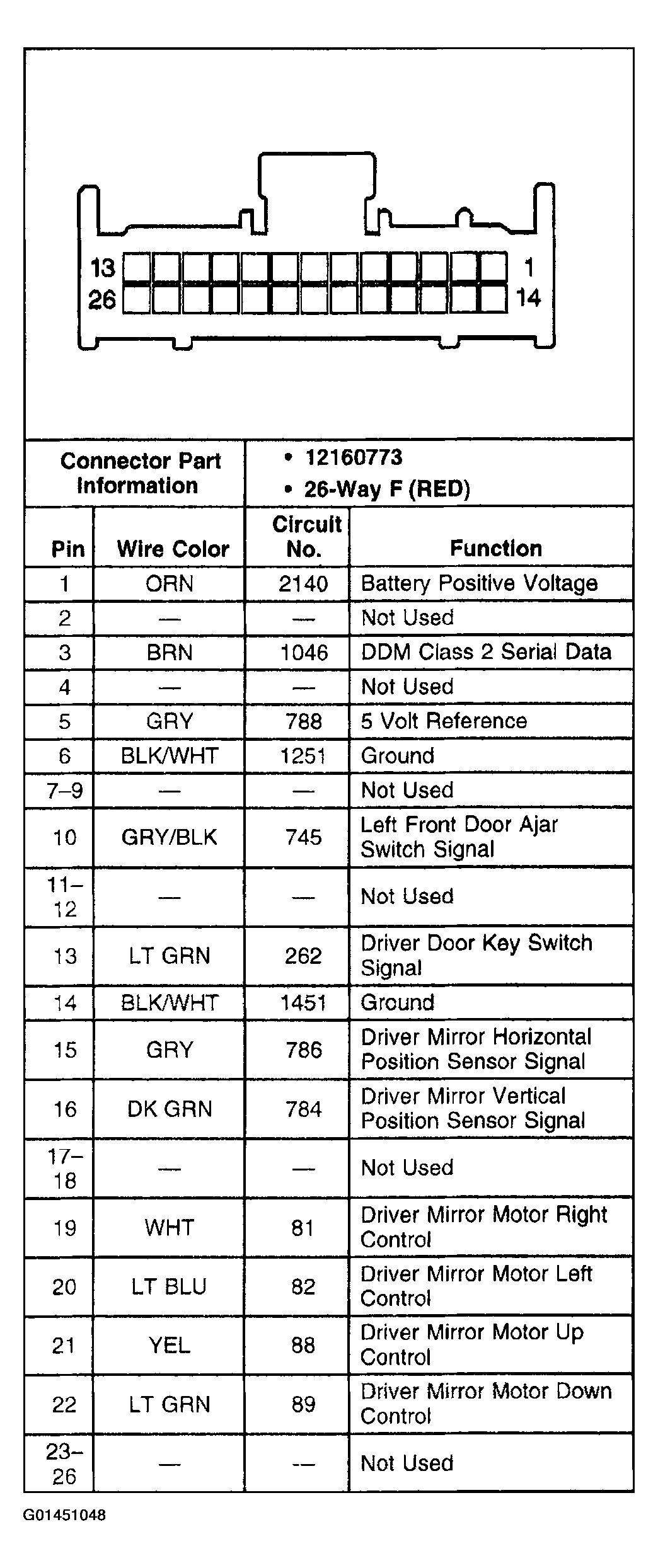

Fig 2: Driver Door Module (DDM) - C2
Courtesy of GENERAL MOTORS CORP.

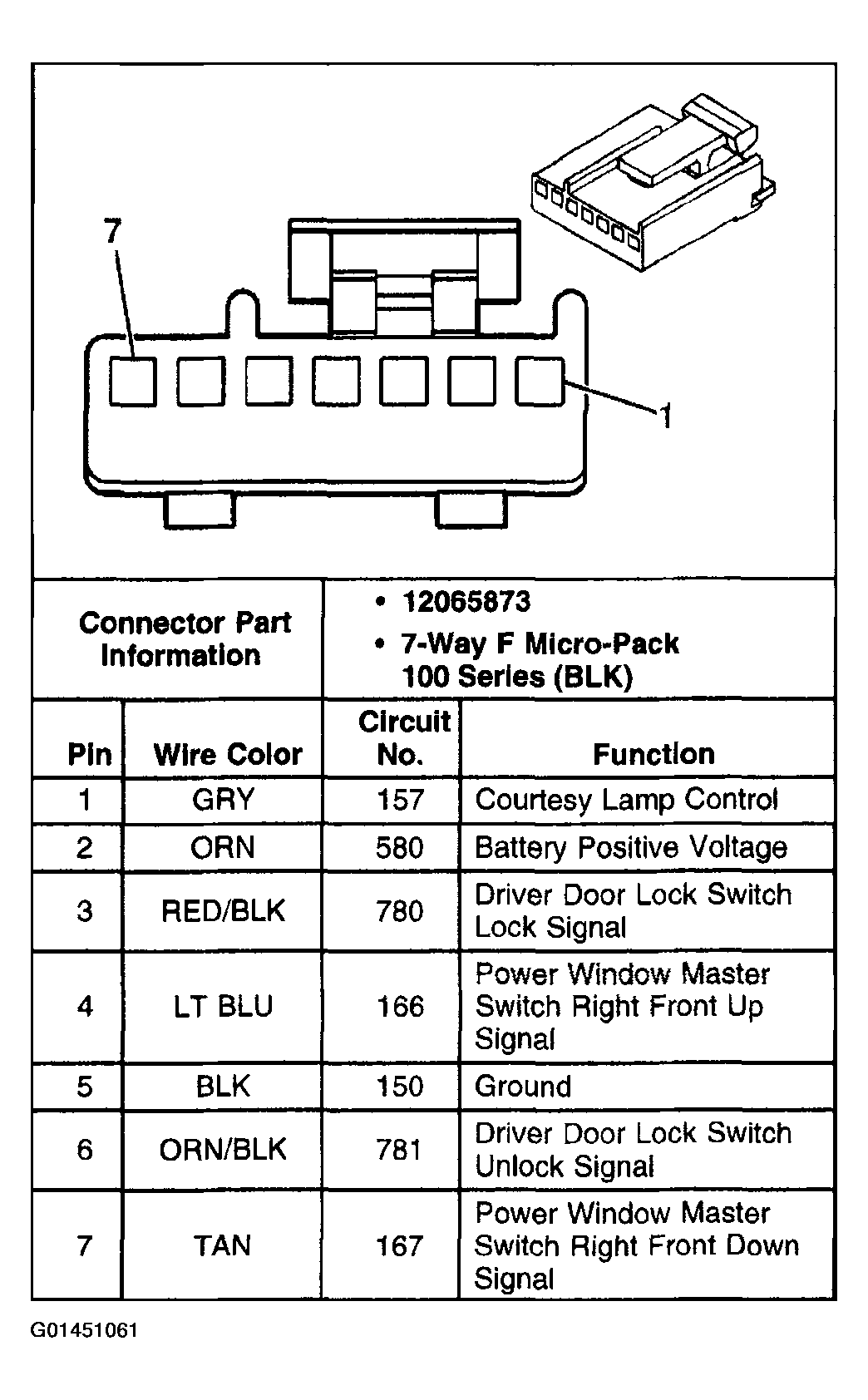

Fig 3: Driver Door Module (DDM) - C3
Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver Door Module (DDM) - C4 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Driver Door Module (DDM) - C4 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

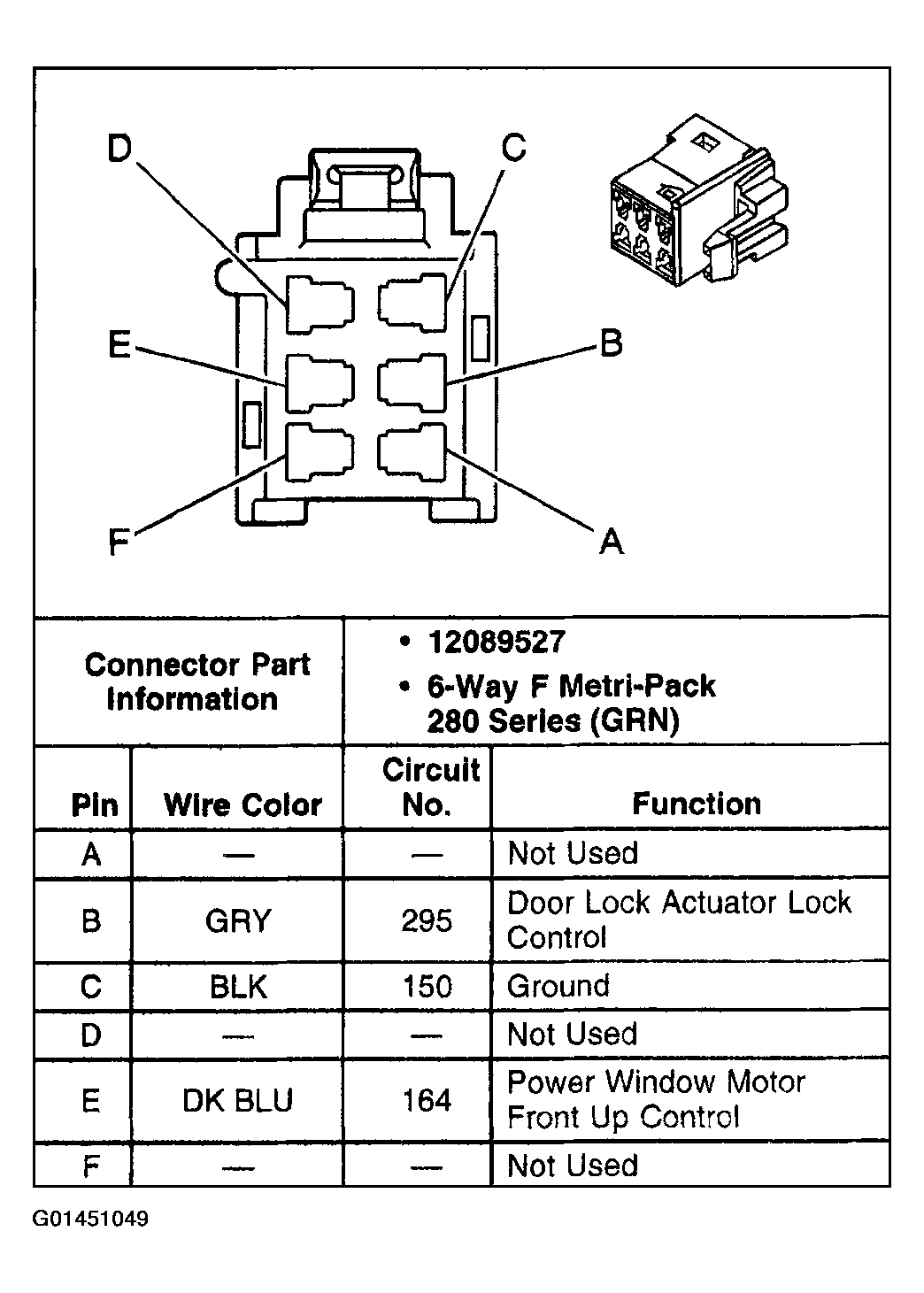

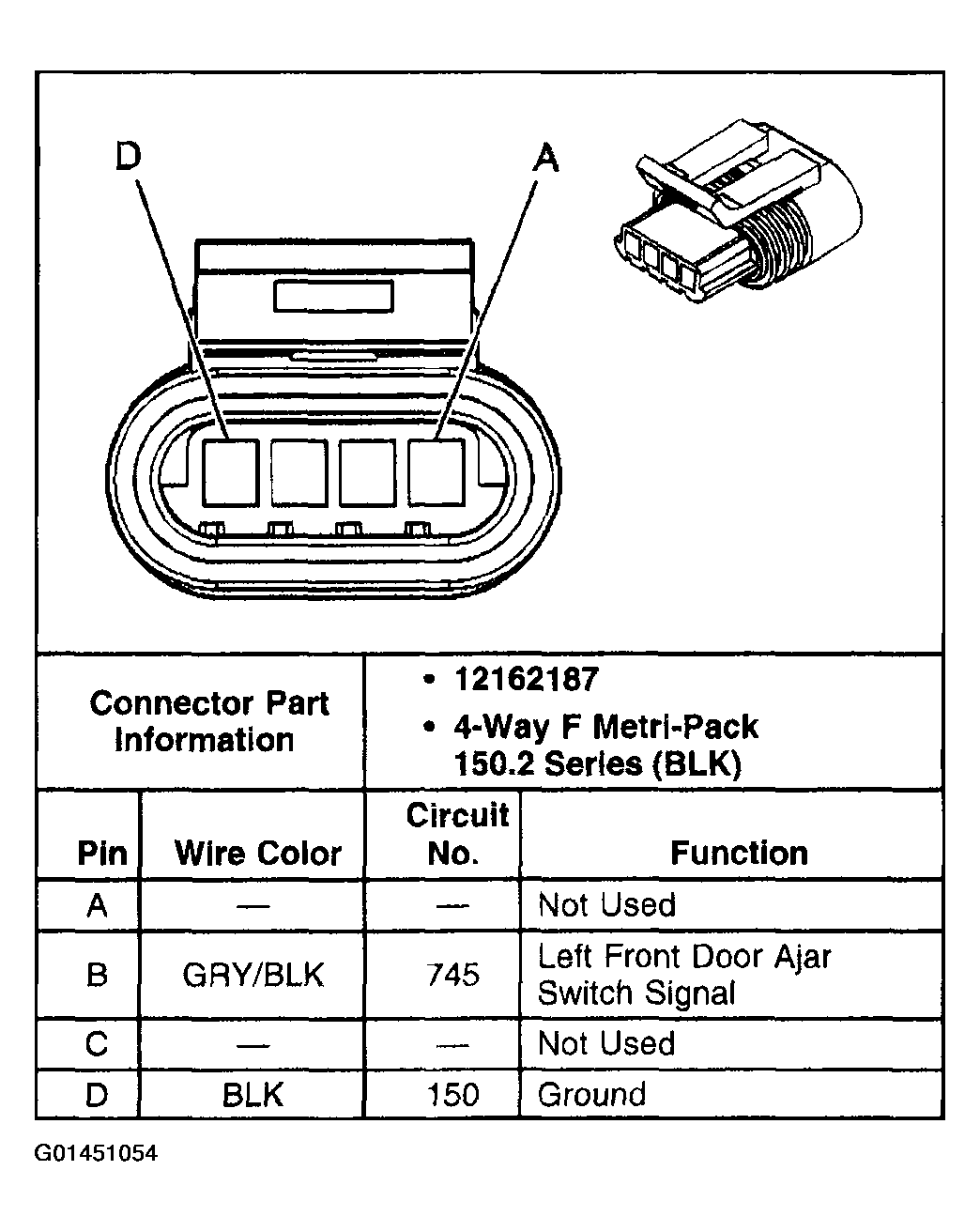

Fig 6: Door Latch - Driver C1
Courtesy of GENERAL MOTORS CORP.

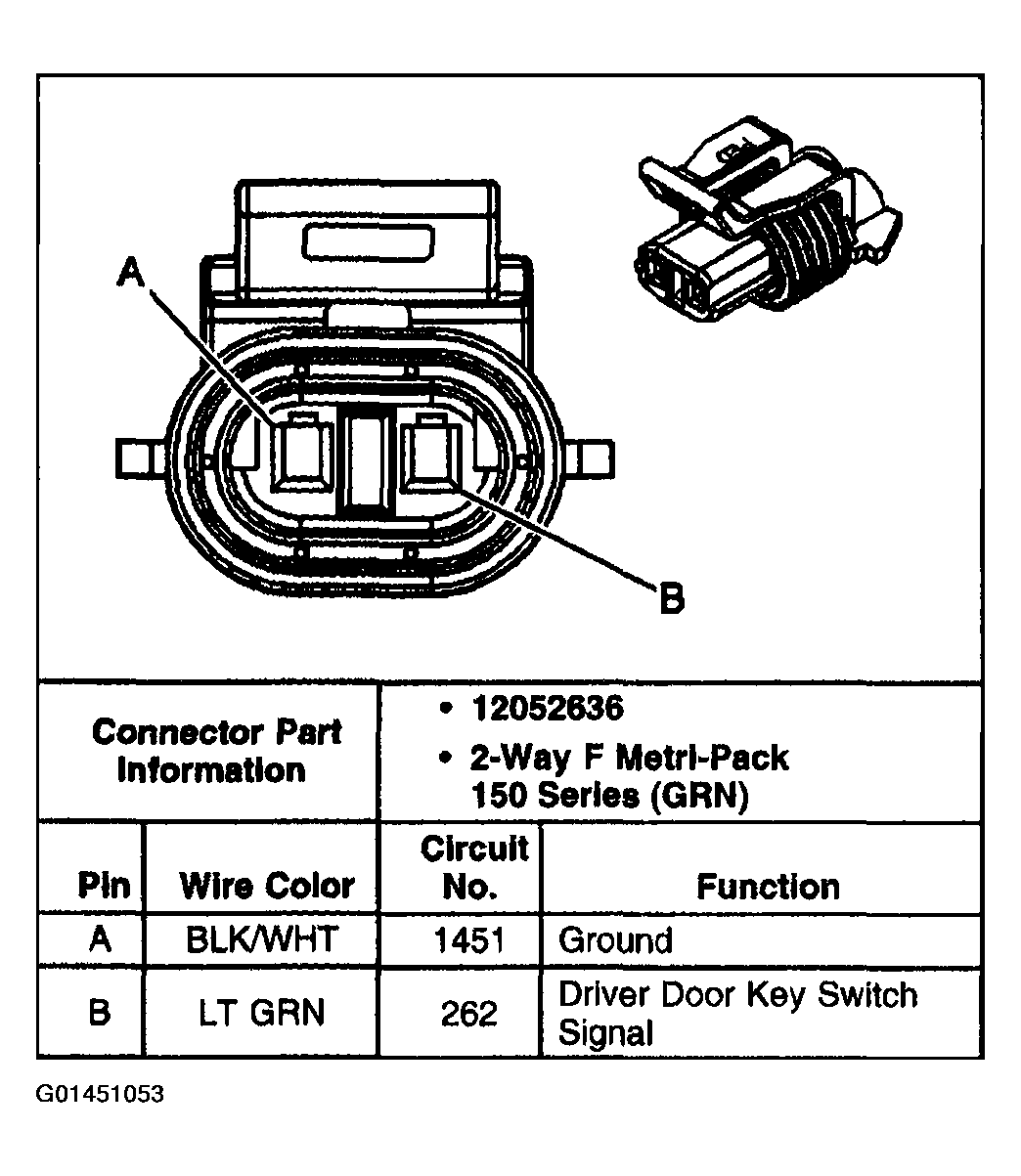

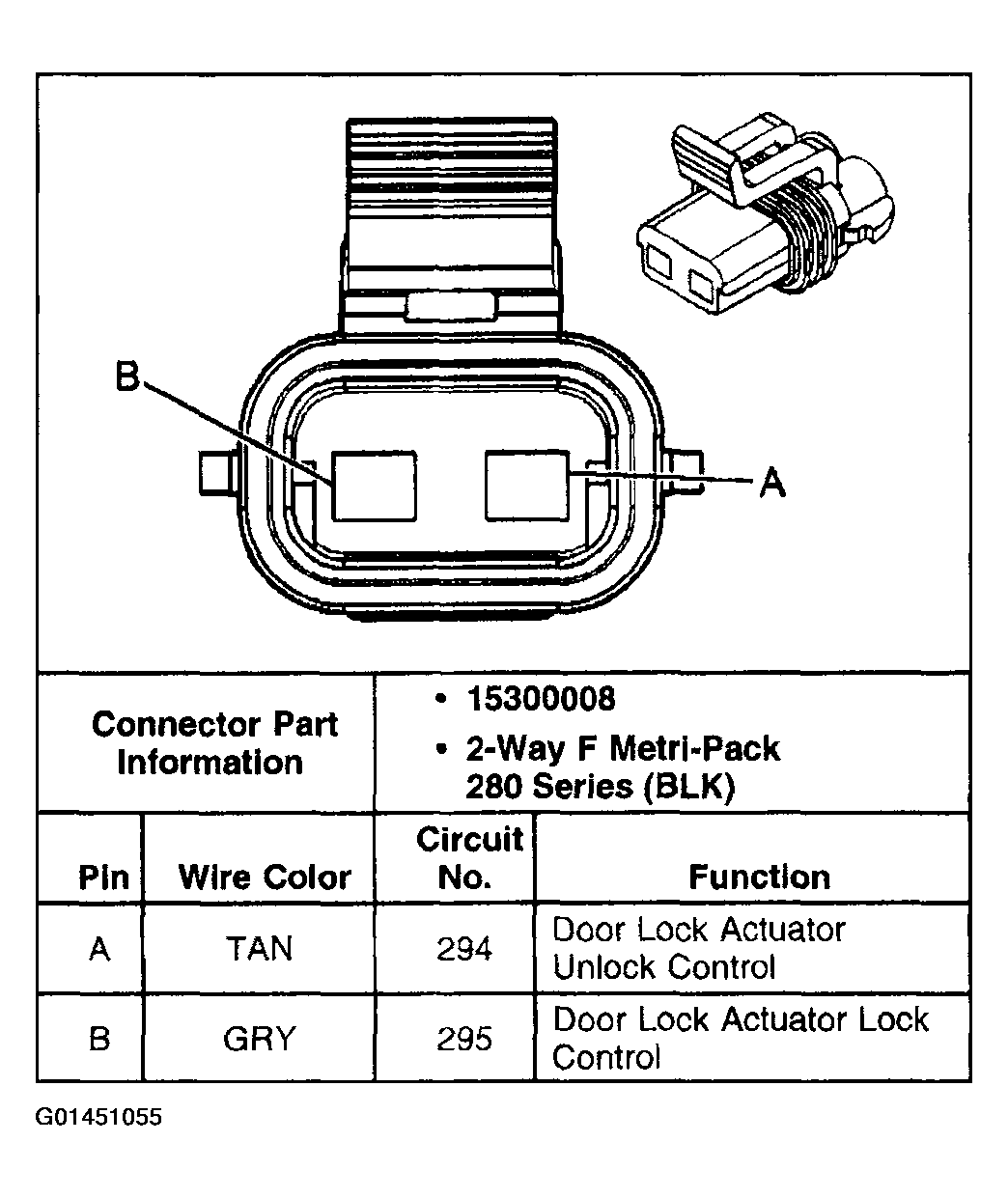

Fig 7: Door Latch - Driver C2
Courtesy of GENERAL MOTORS CORP.
Fig 8: Door Latch - Driver C3
Courtesy of GENERAL MOTORS CORP.
Fig 9: Door Latch - Passenger C1 (Japan)
Courtesy of GENERAL MOTORS CORP.

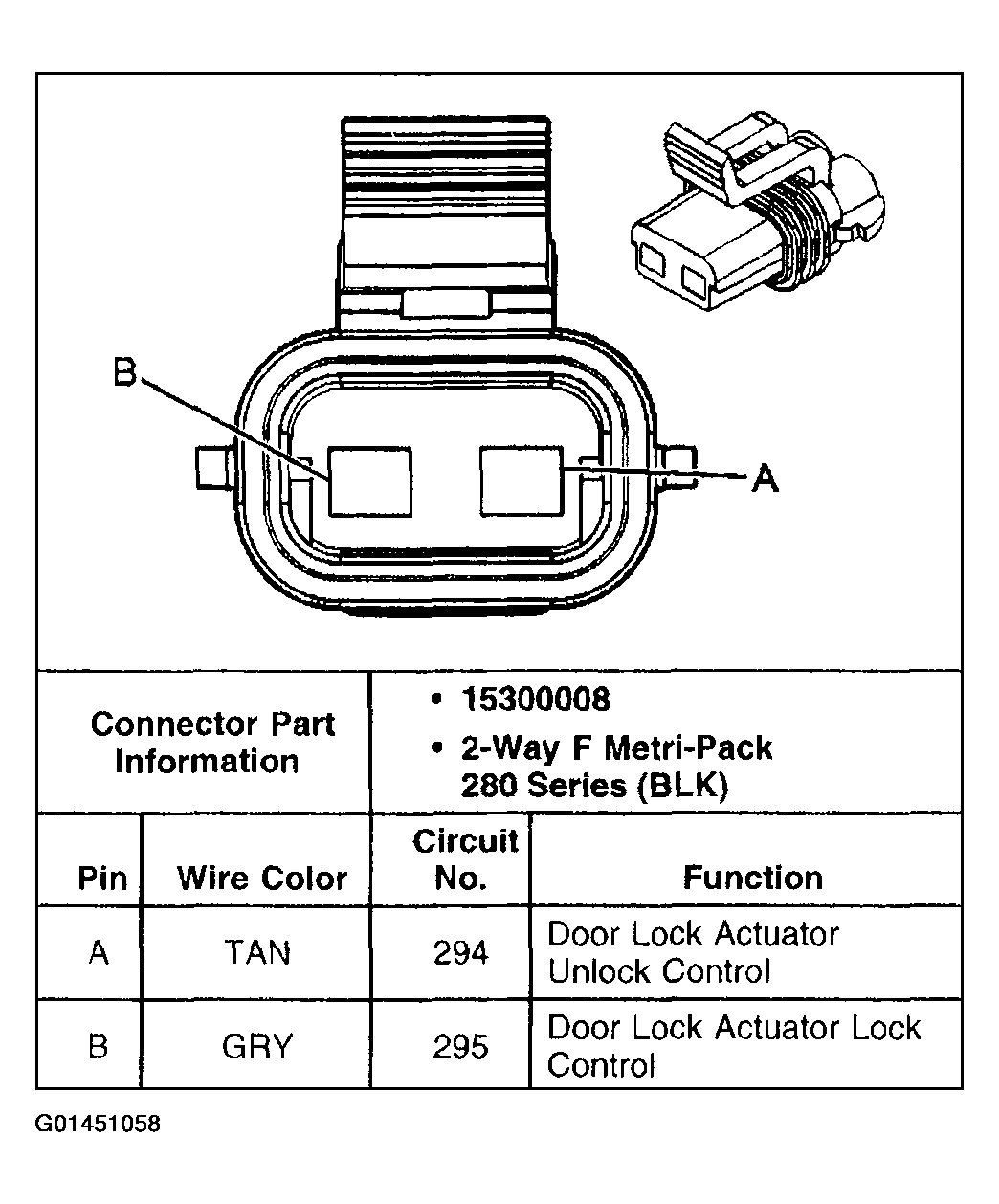

Fig 10: Door Latch - Passenger C2
Courtesy of GENERAL MOTORS CORP.
Fig 11: Door Latch - Passenger C3
Courtesy of GENERAL MOTORS CORP.

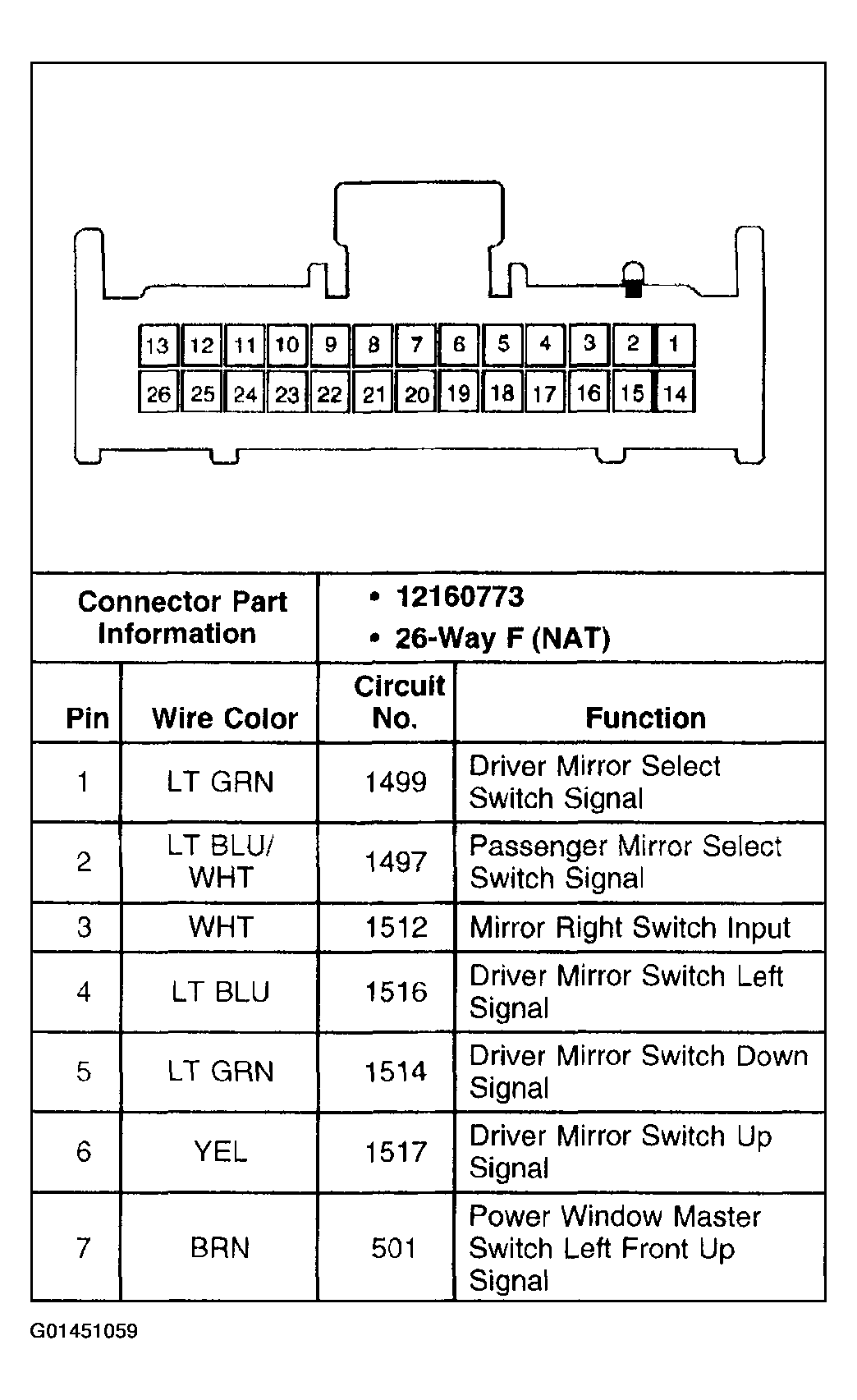

Fig 12: Door Switch - Driver (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Door Switch - Driver (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

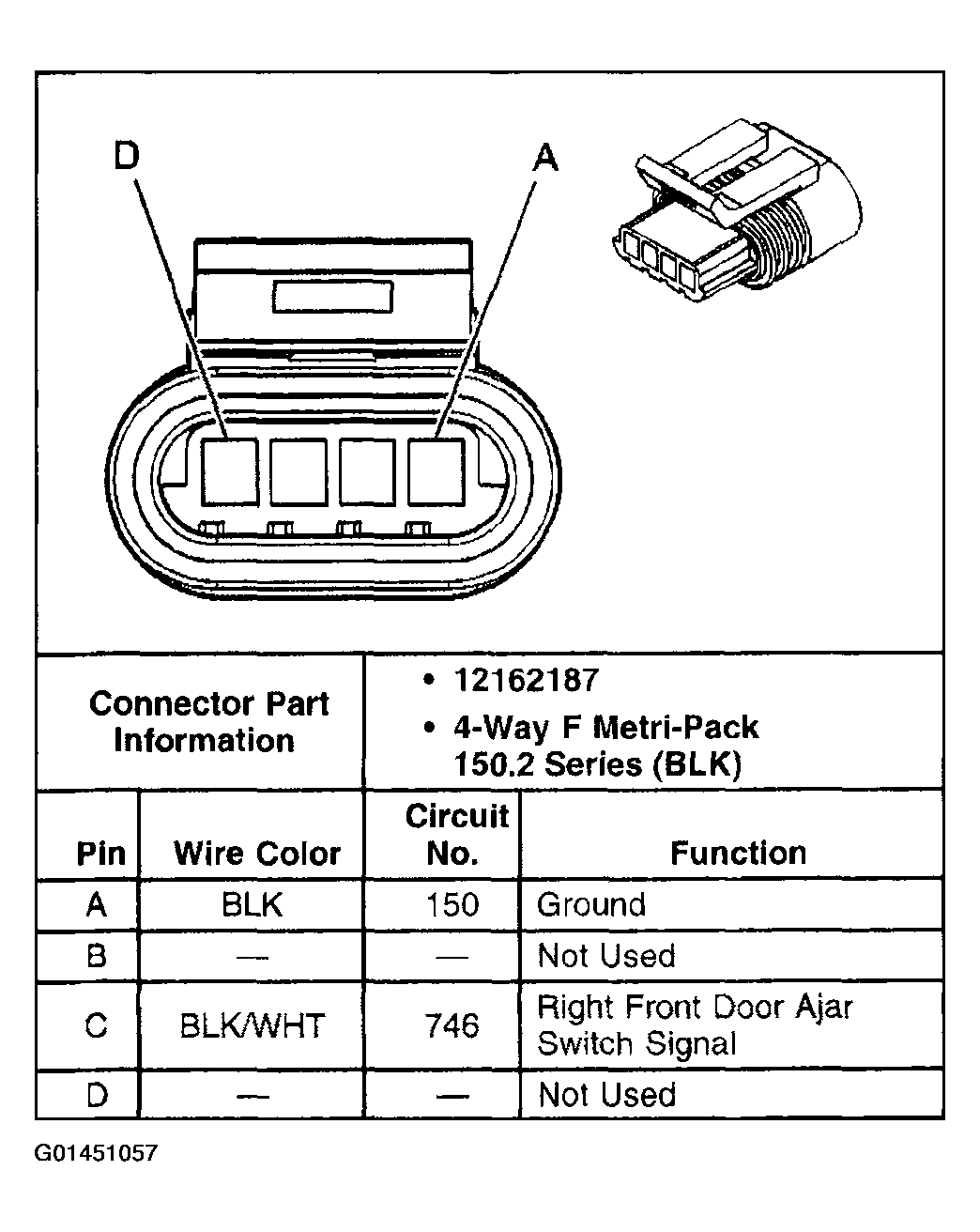

Fig 14: Door Switch - Front Passenger
Courtesy of GENERAL MOTORS CORP.

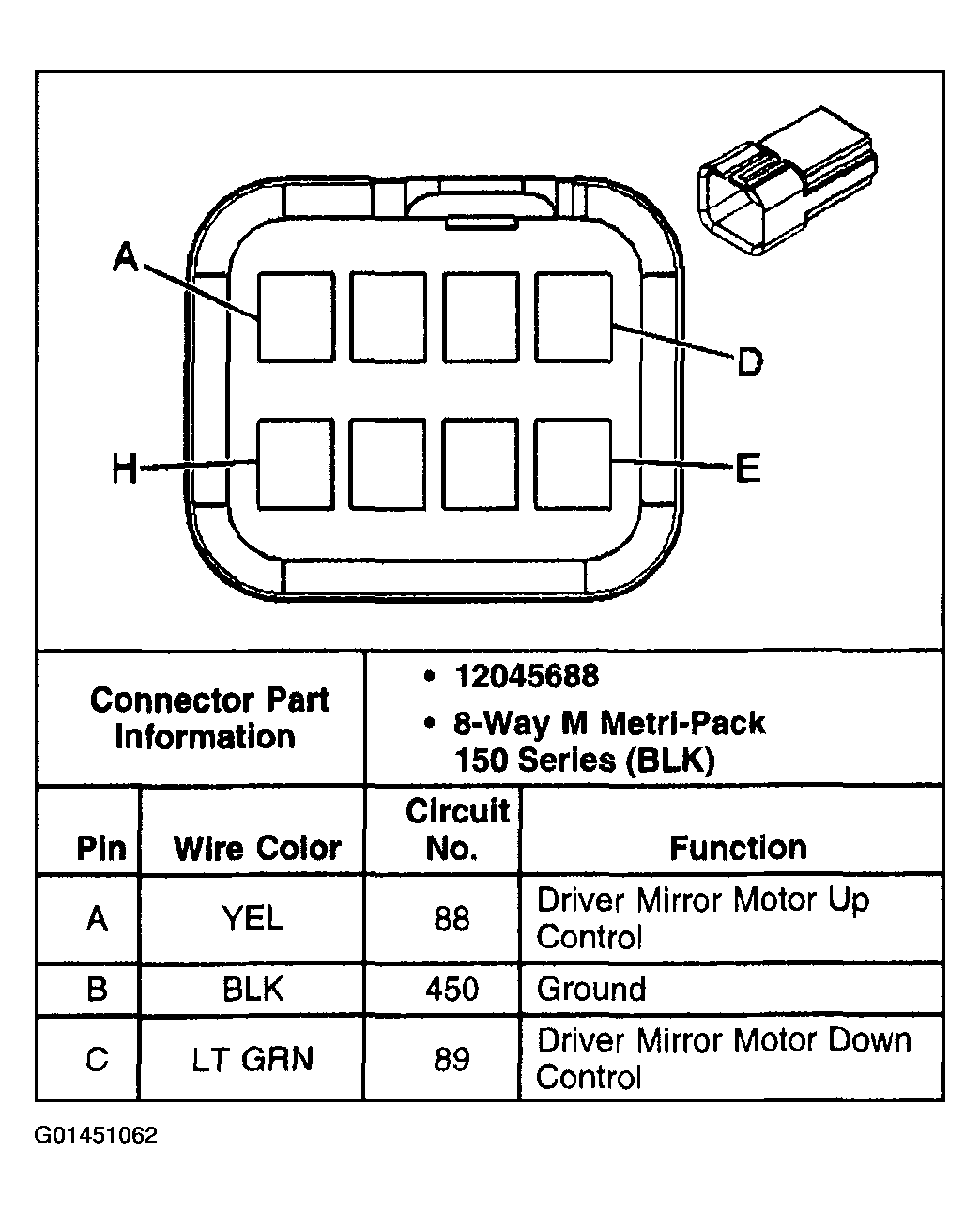

Fig 15: Outside Rearview Mirror - Driver C1 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

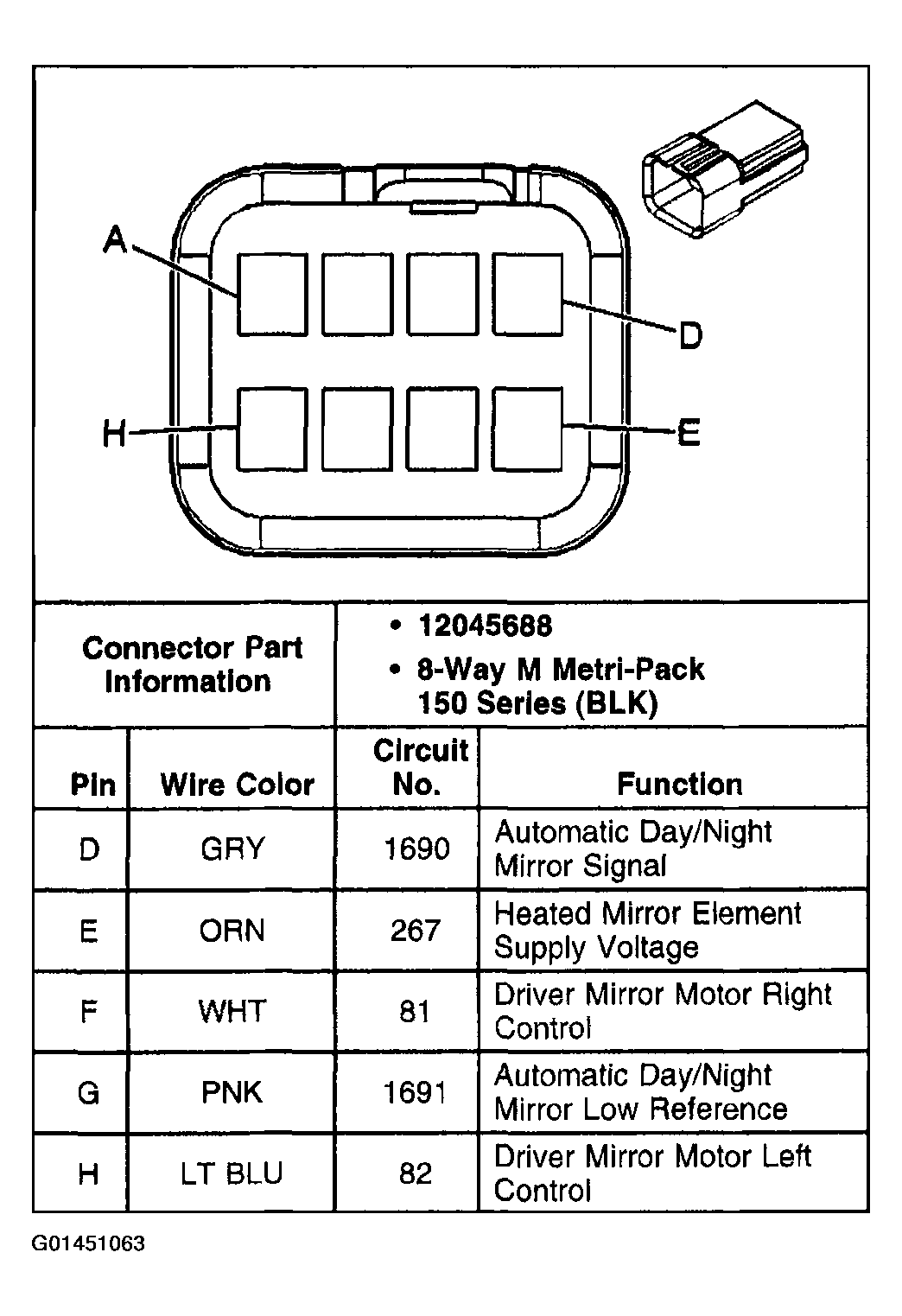

Fig 16: Outside Rearview Mirror - Driver C1 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

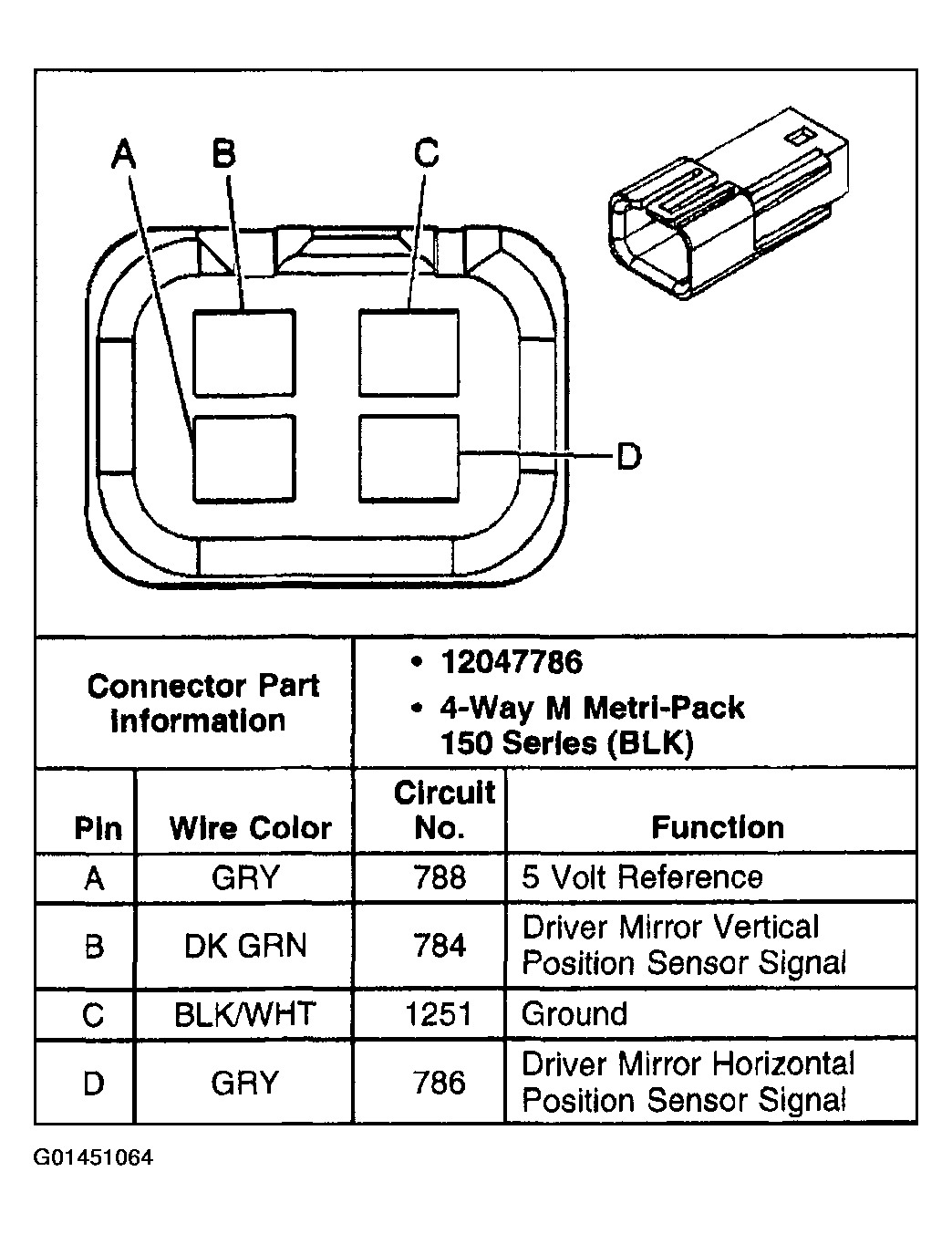

Fig 17: Outside Rearview Mirror - Driver C2
Courtesy of GENERAL MOTORS CORP.

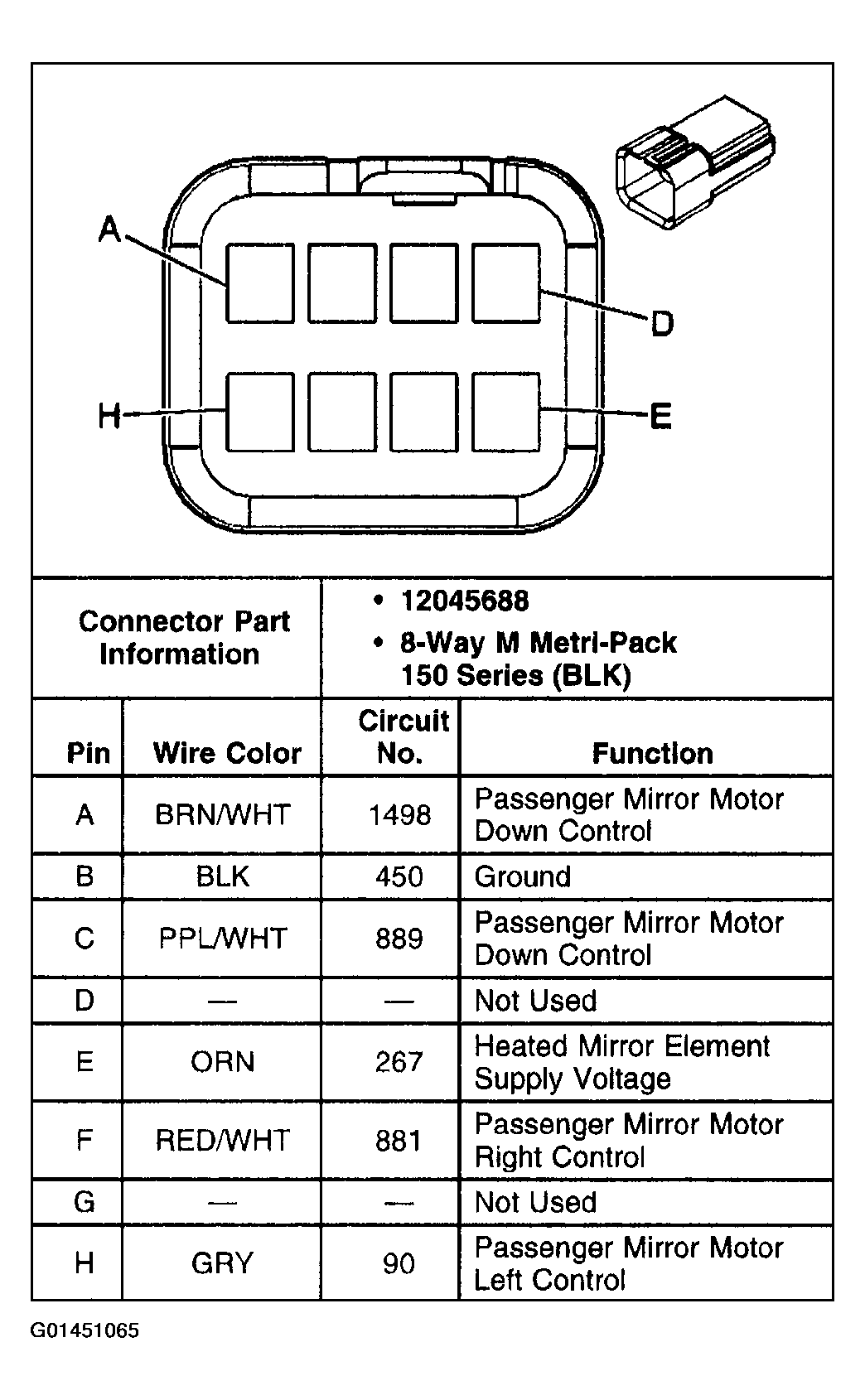

Fig 18: Outside Rearview Mirror - Passenger C1
Courtesy of GENERAL MOTORS CORP.

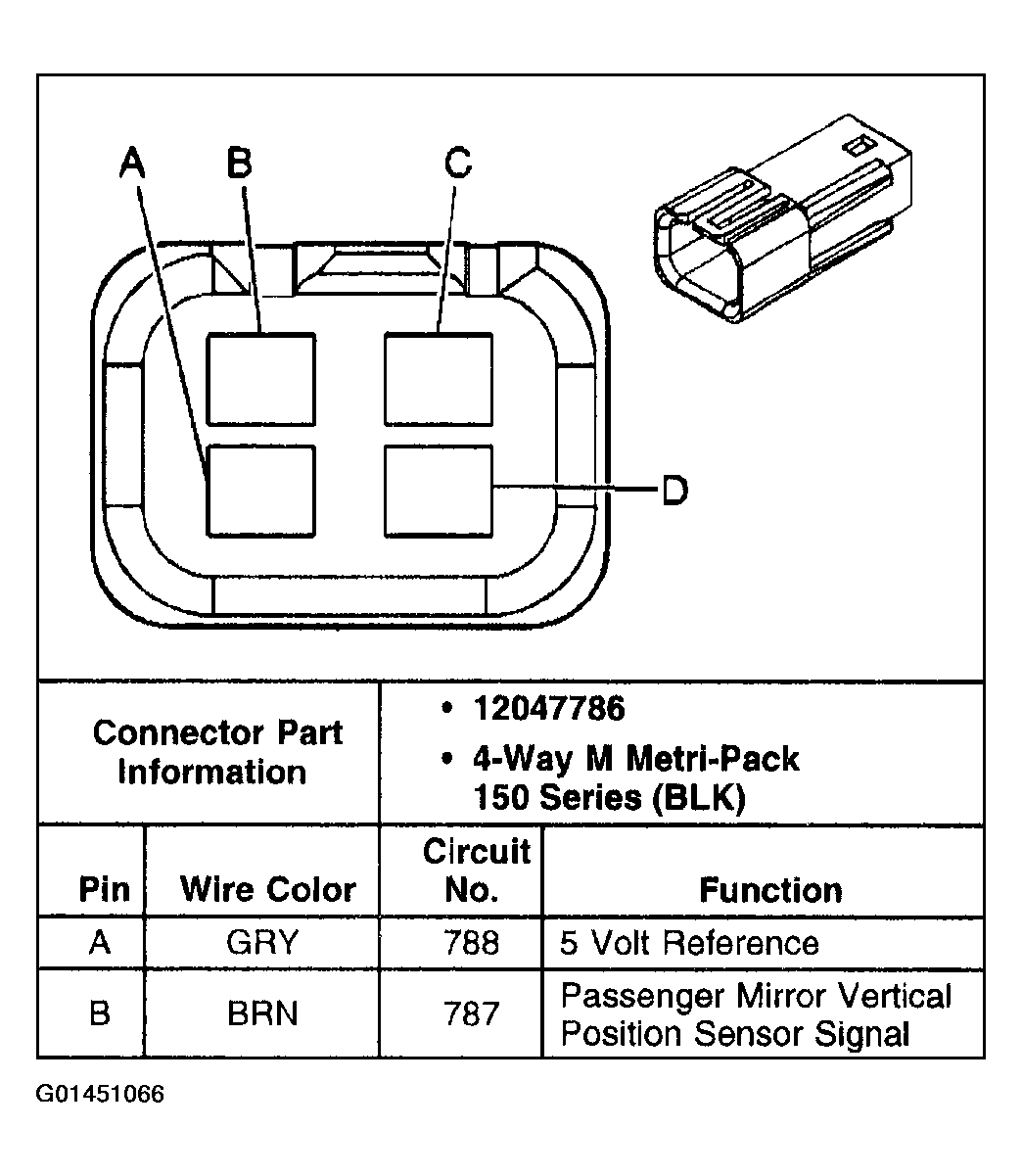

Fig 19: Outside Rearview Mirror - Passenger C2 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

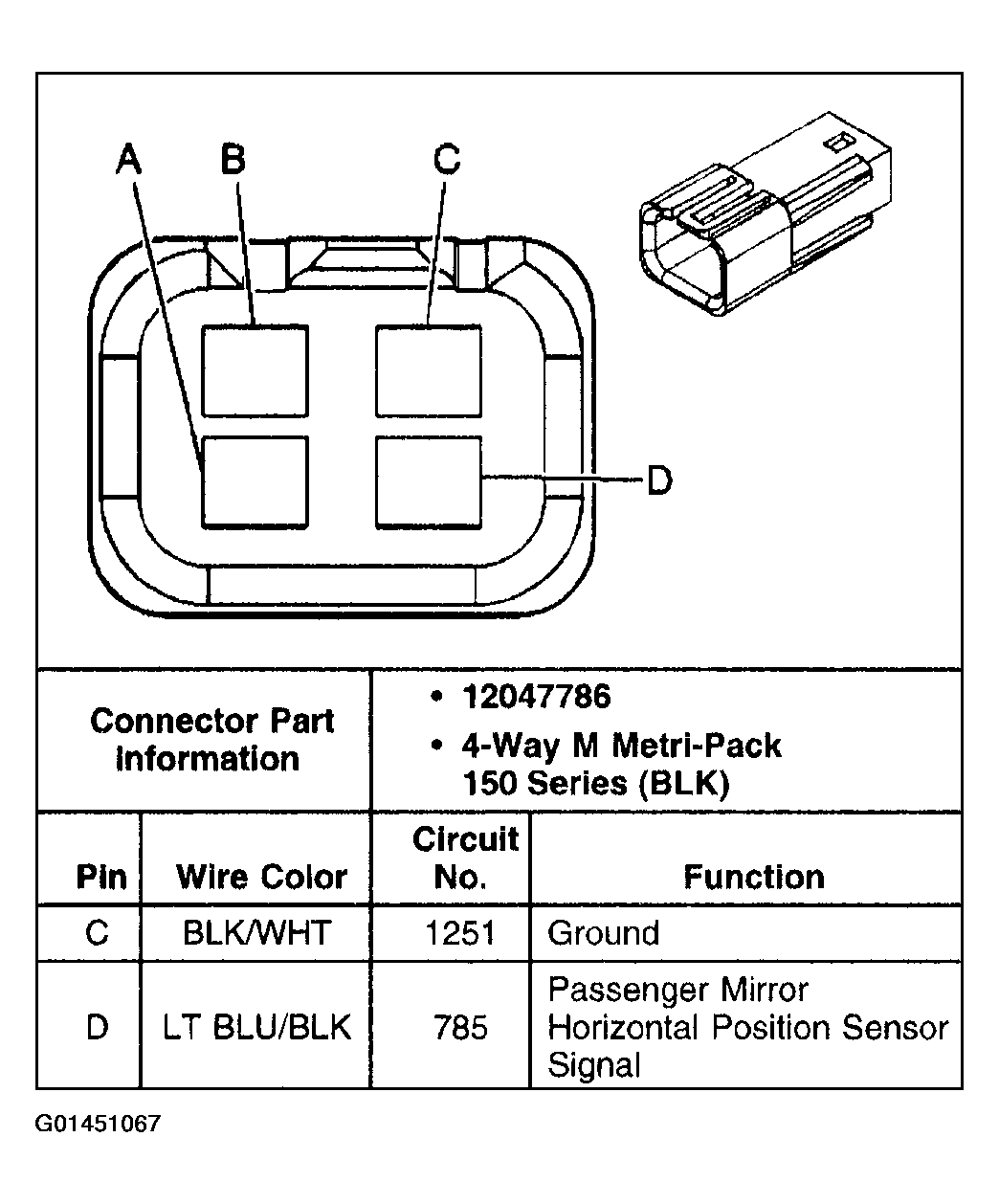

Fig 20: Outside Rearview Mirror - Passenger C2 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

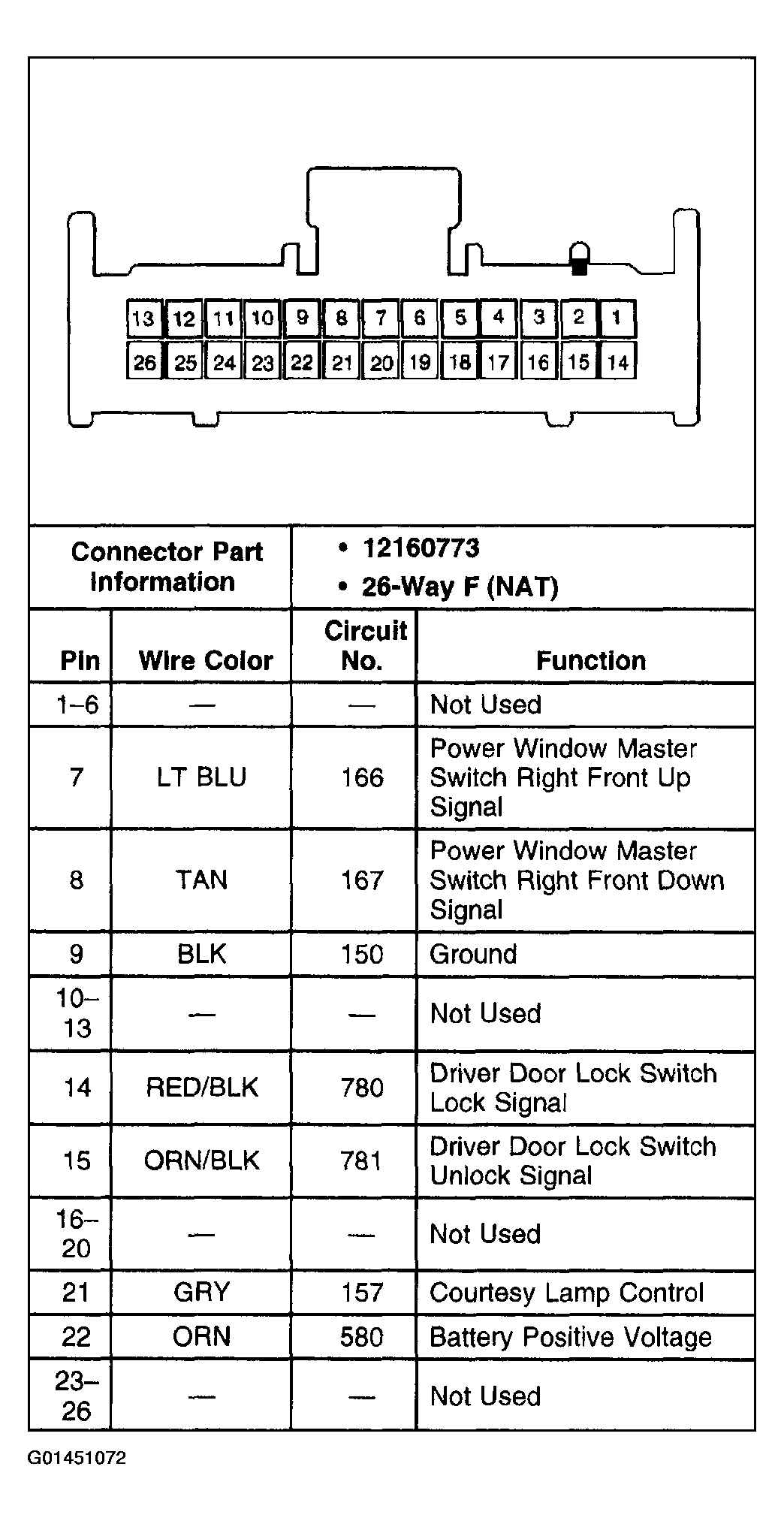

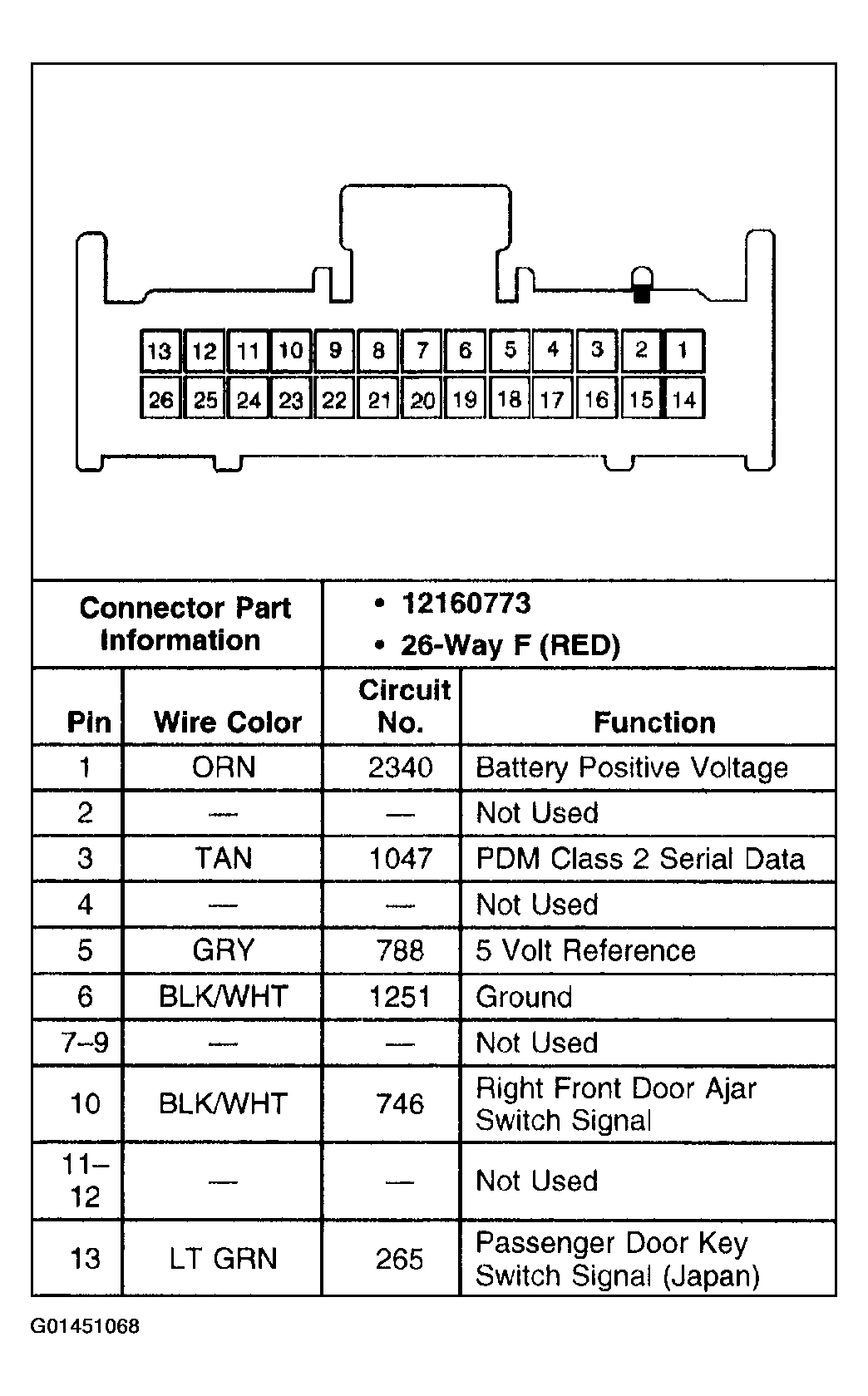

Fig 21: Passenger Door Module (PDM) - C1 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

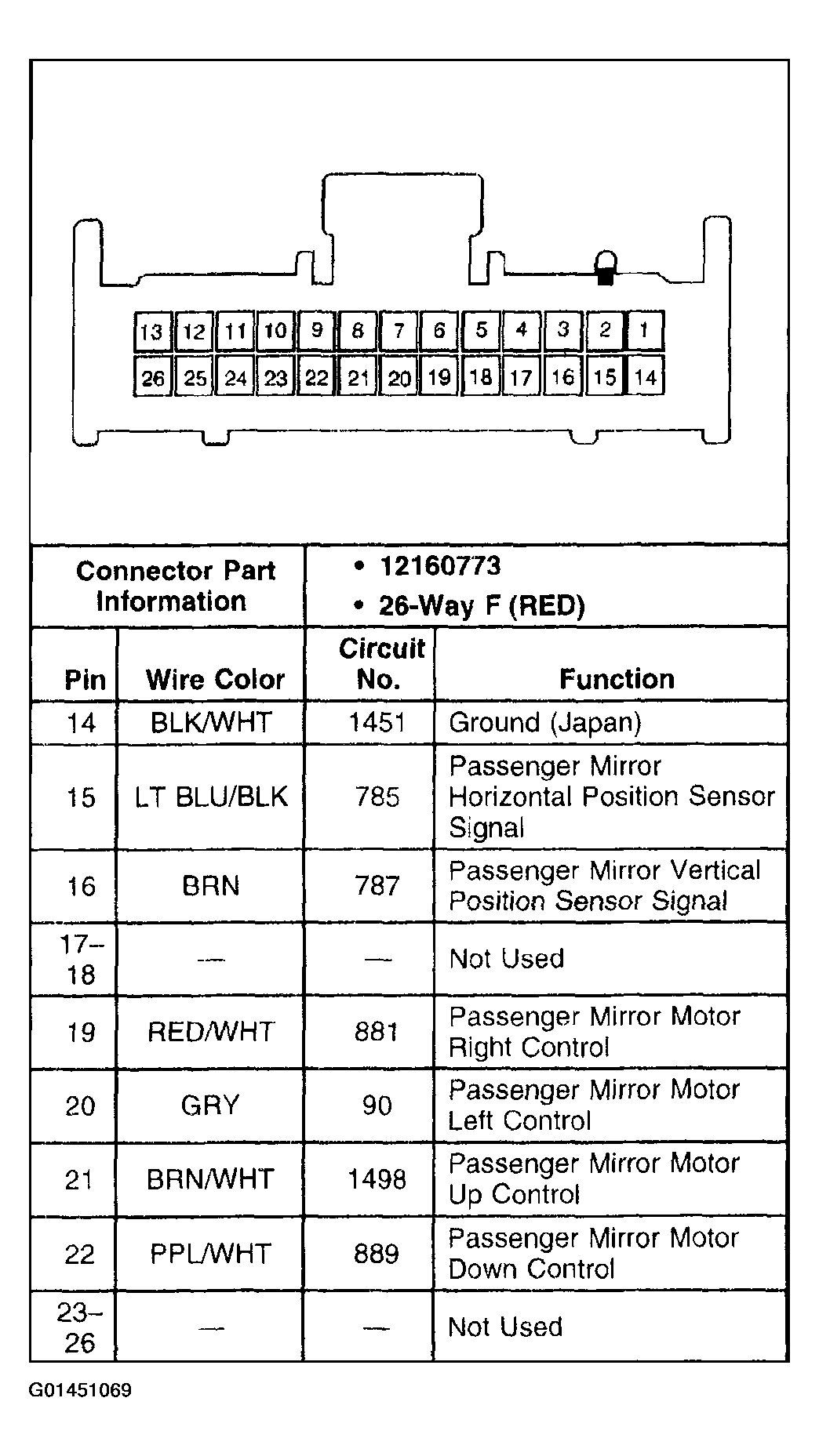

Fig 22: Passenger Door Module (PDM) - C1 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Passenger Door Module (PDM) - C2
Courtesy of GENERAL MOTORS CORP.

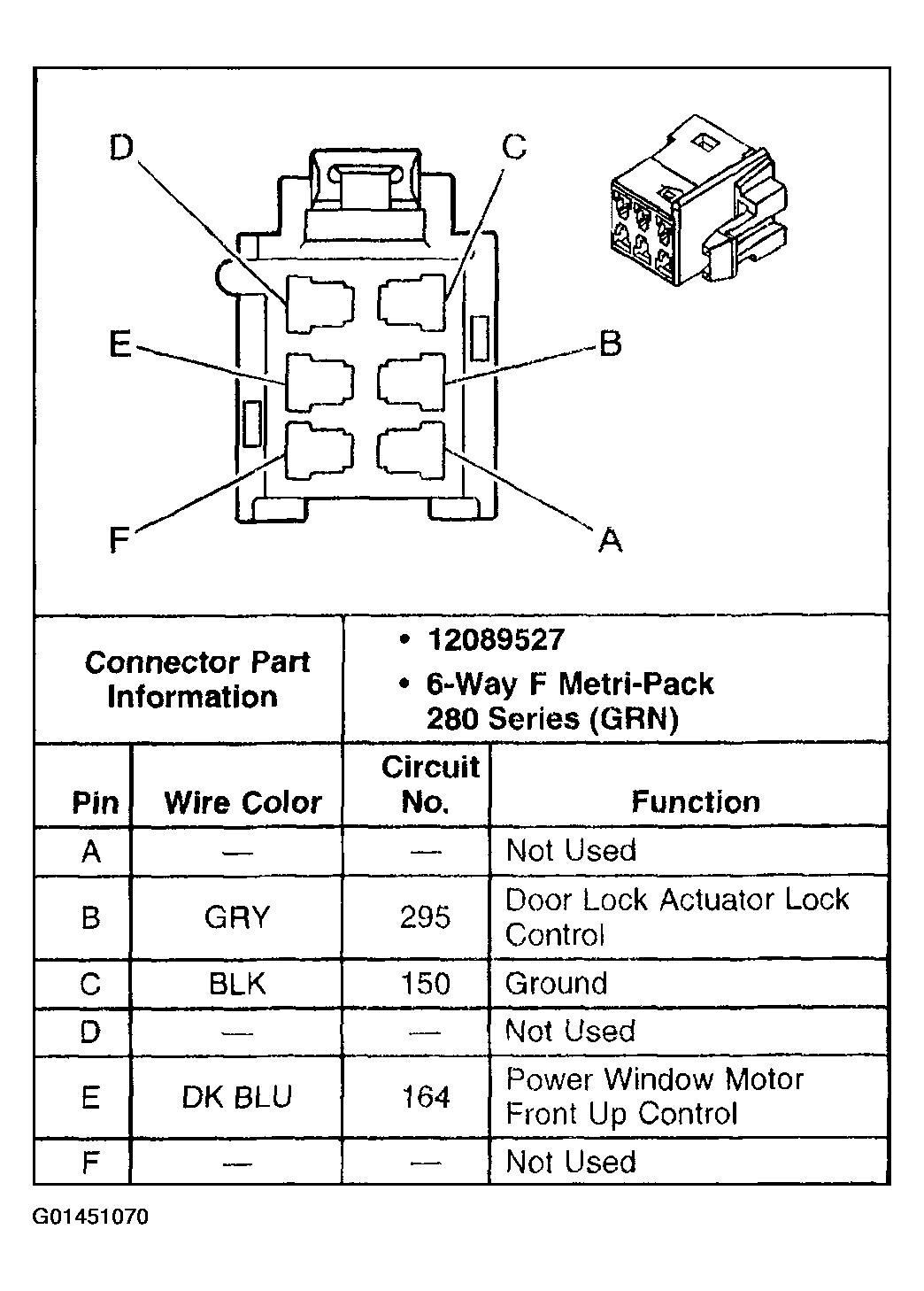

Fig 24: Passenger Door Module (PDM) - C3
Courtesy of GENERAL MOTORS CORP.

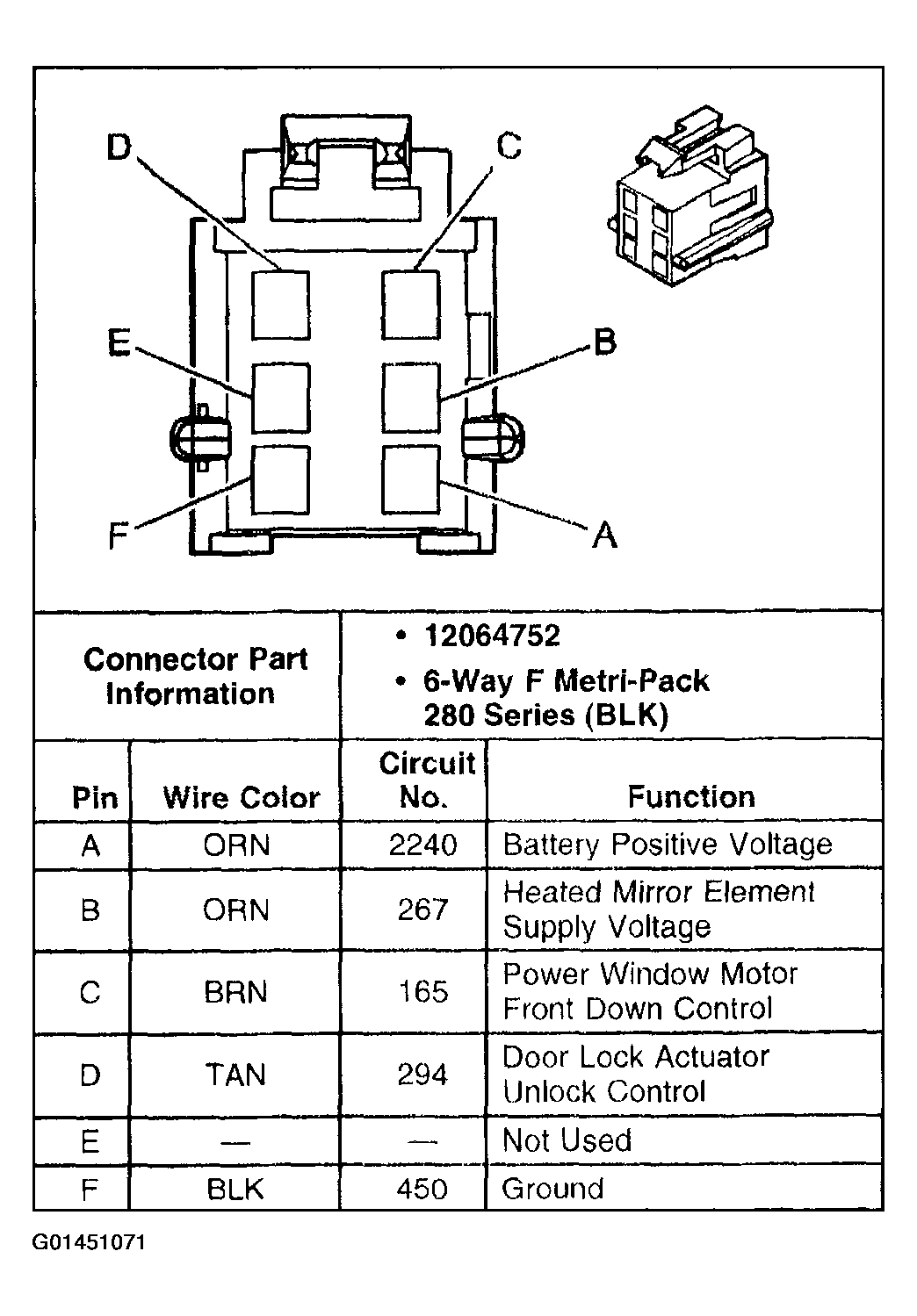

Fig 25: Passenger Door Module (PDM) - C4
Courtesy of GENERAL MOTORS CORP.

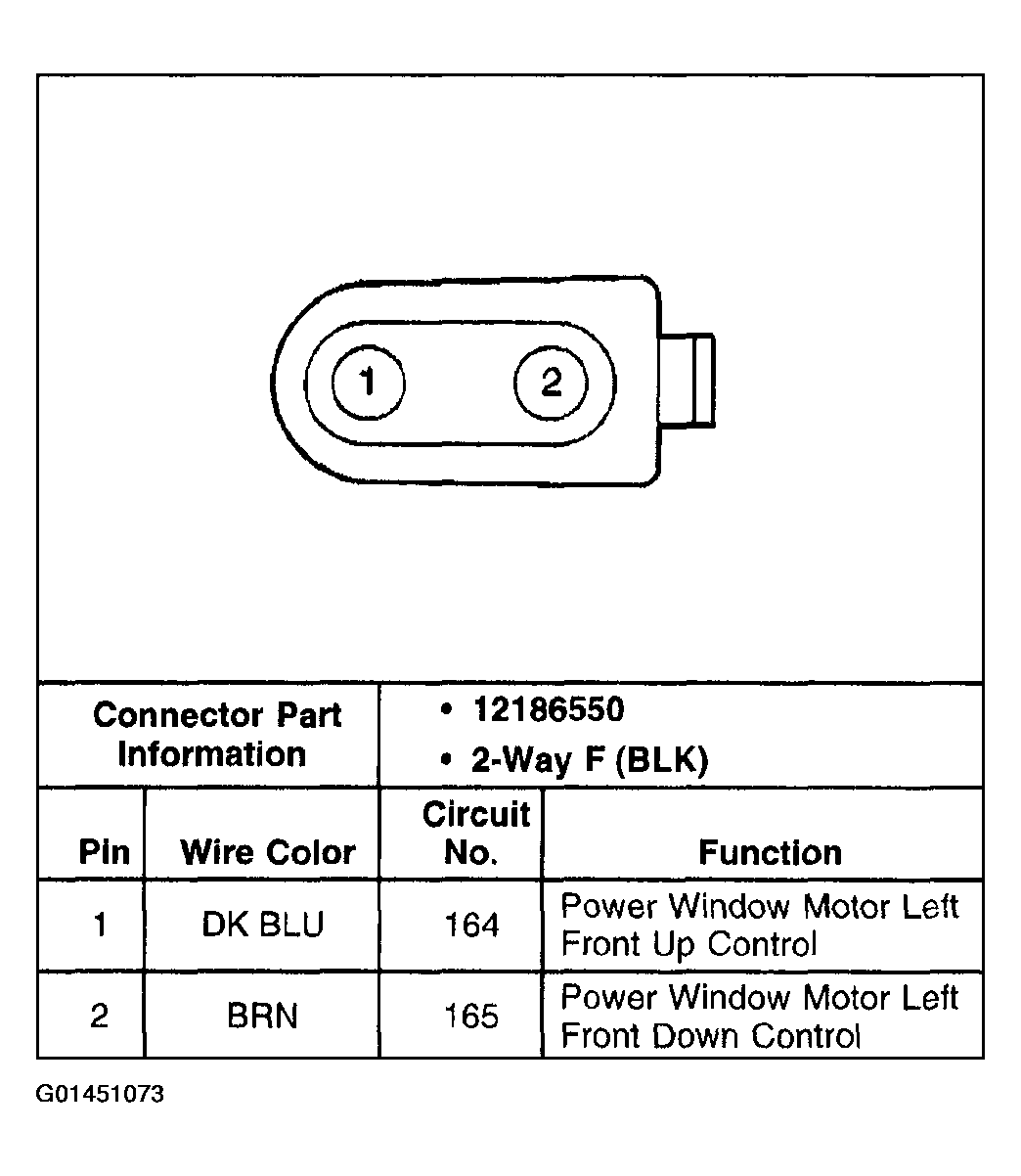

Fig 26: Window Motor - Driver
Courtesy of GENERAL MOTORS CORP.

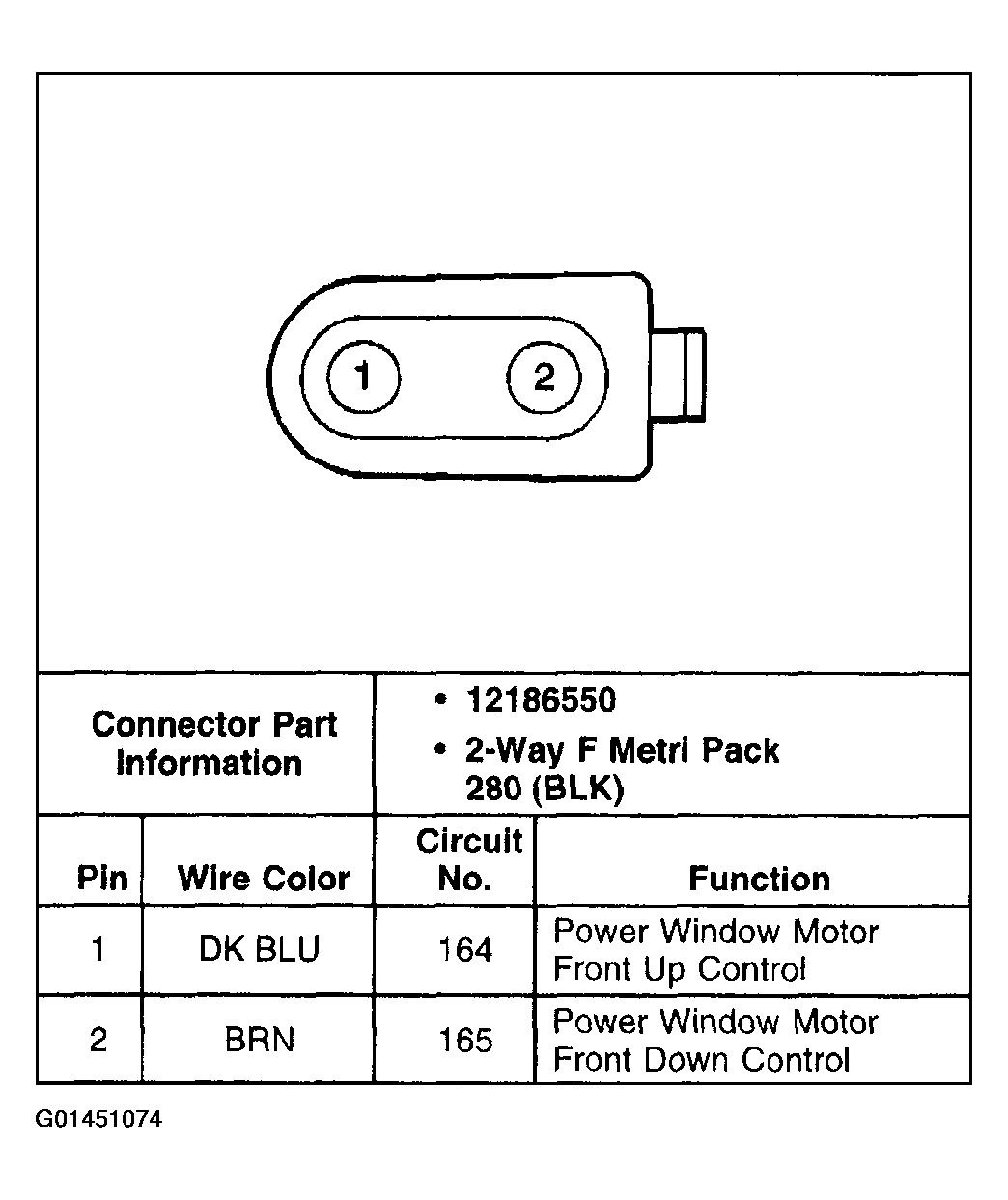

Fig 27: Window Motor - Passenger
Courtesy of GENERAL MOTORS CORP.
