Test Description
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

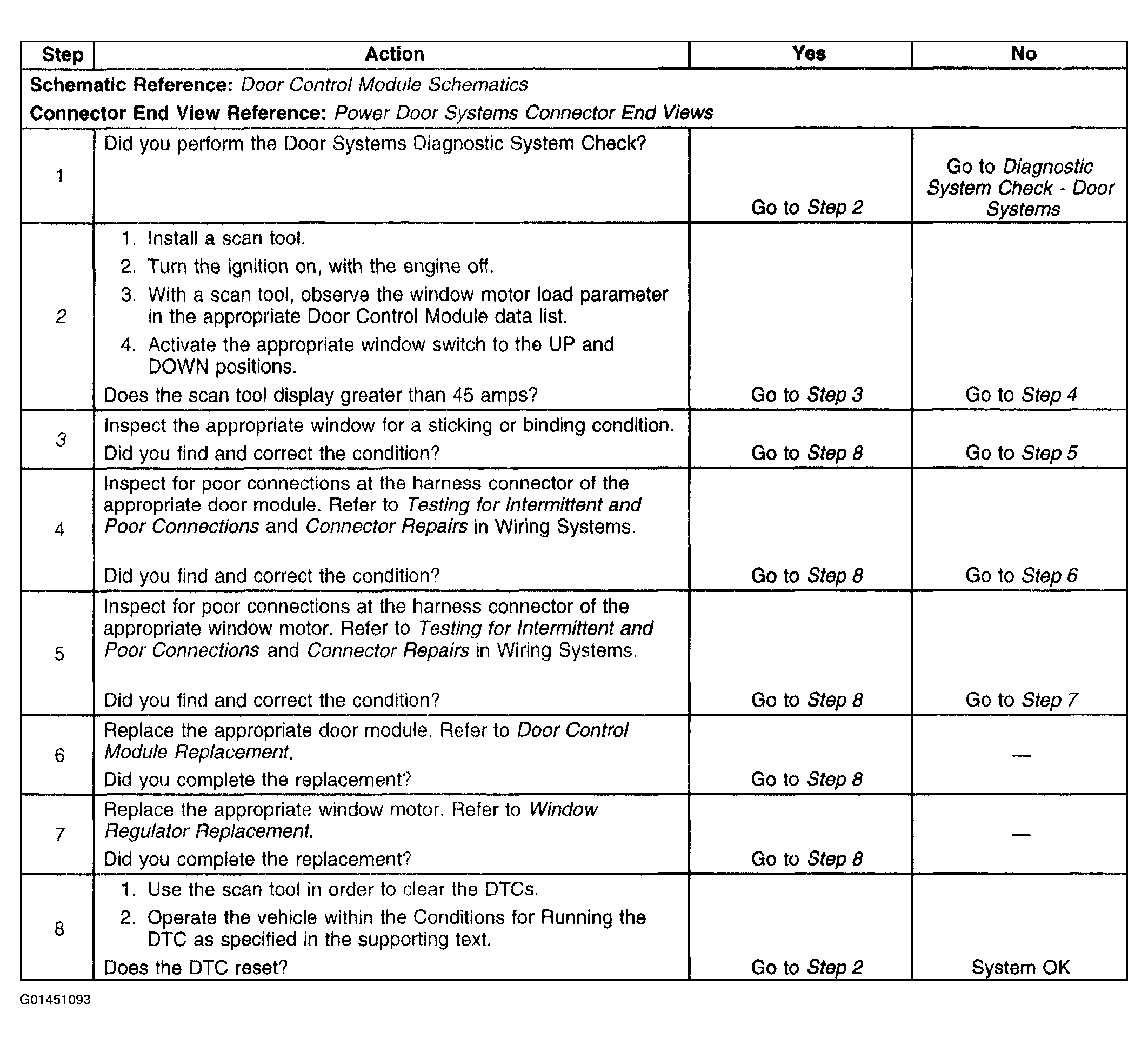

The numbers below refer to the step numbers on the diagnostic table.
- Tests the window motor current draw.
- Tests a window for proper operation. If a window sticks or binds, this condition must be repaired first.
Courtesy of GENERAL MOTORS CORP.
