Scan Tool Data List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

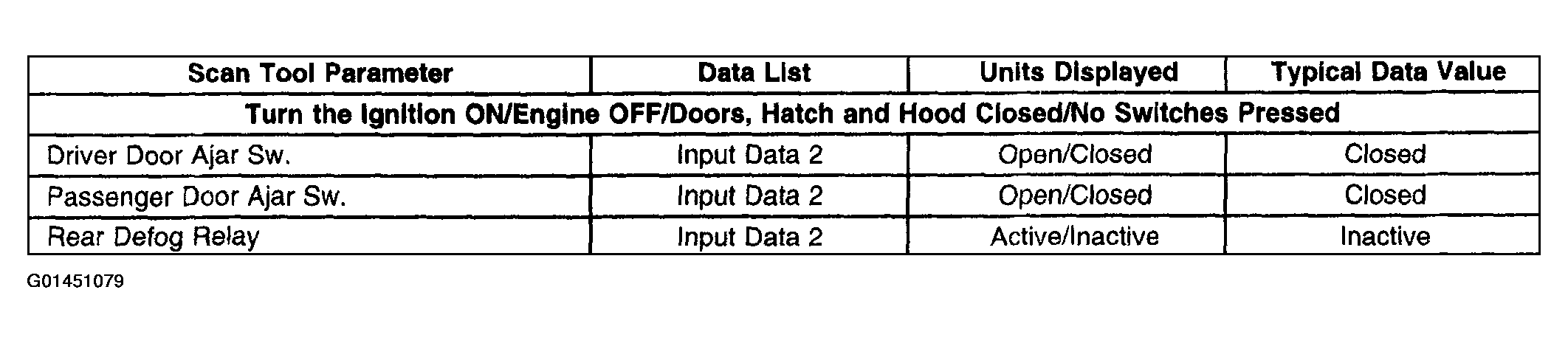

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS CORP.

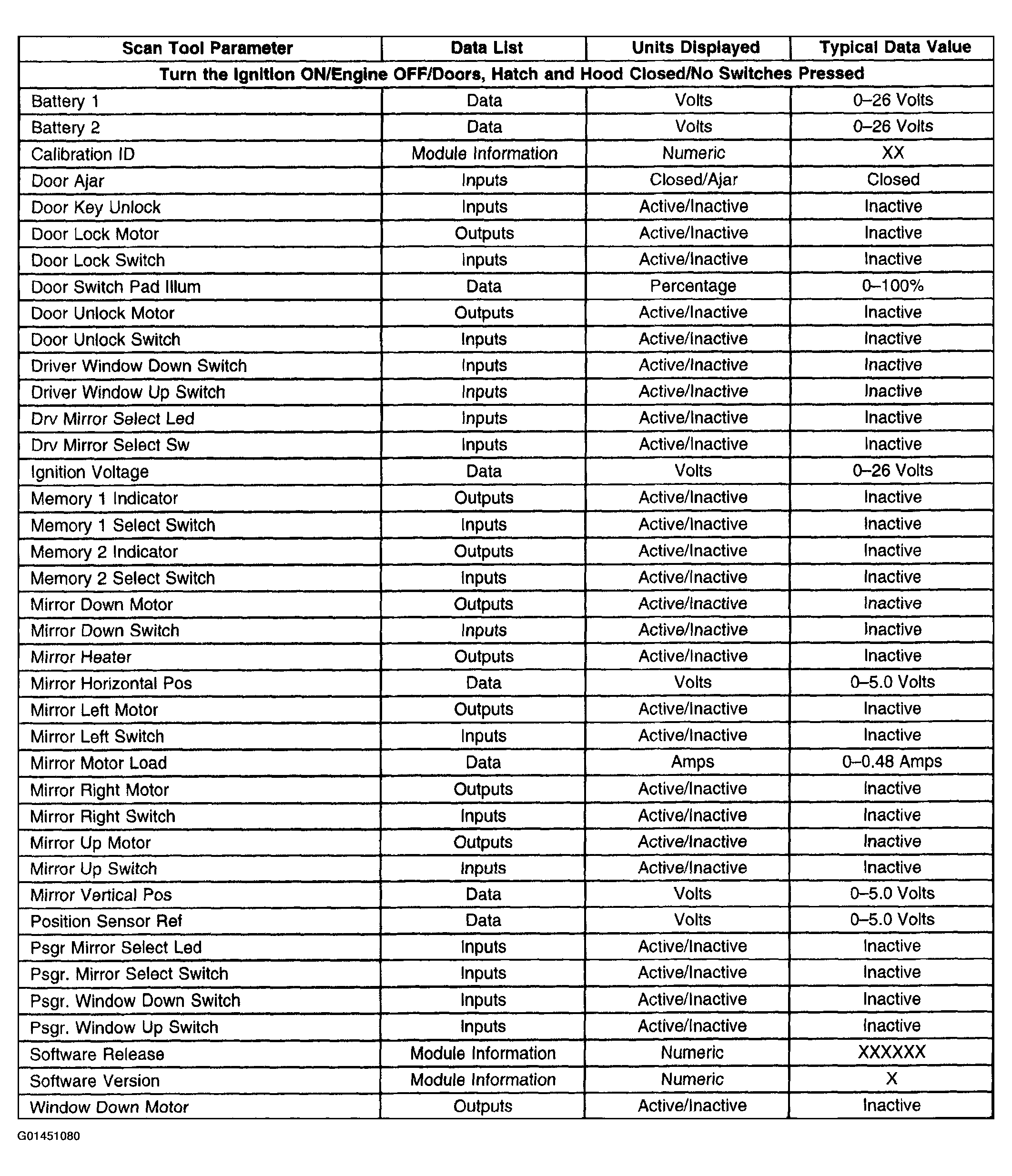

Fig 2: Driver Door Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

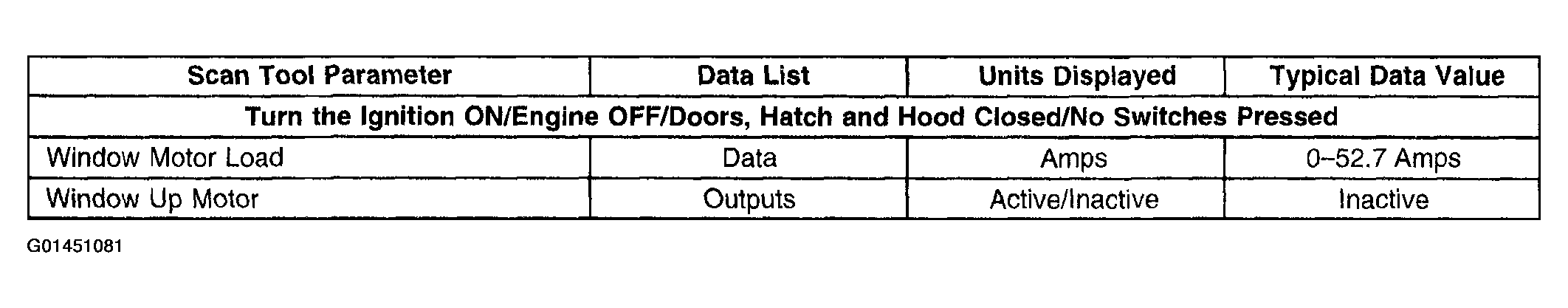

Fig 3: Driver Door Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

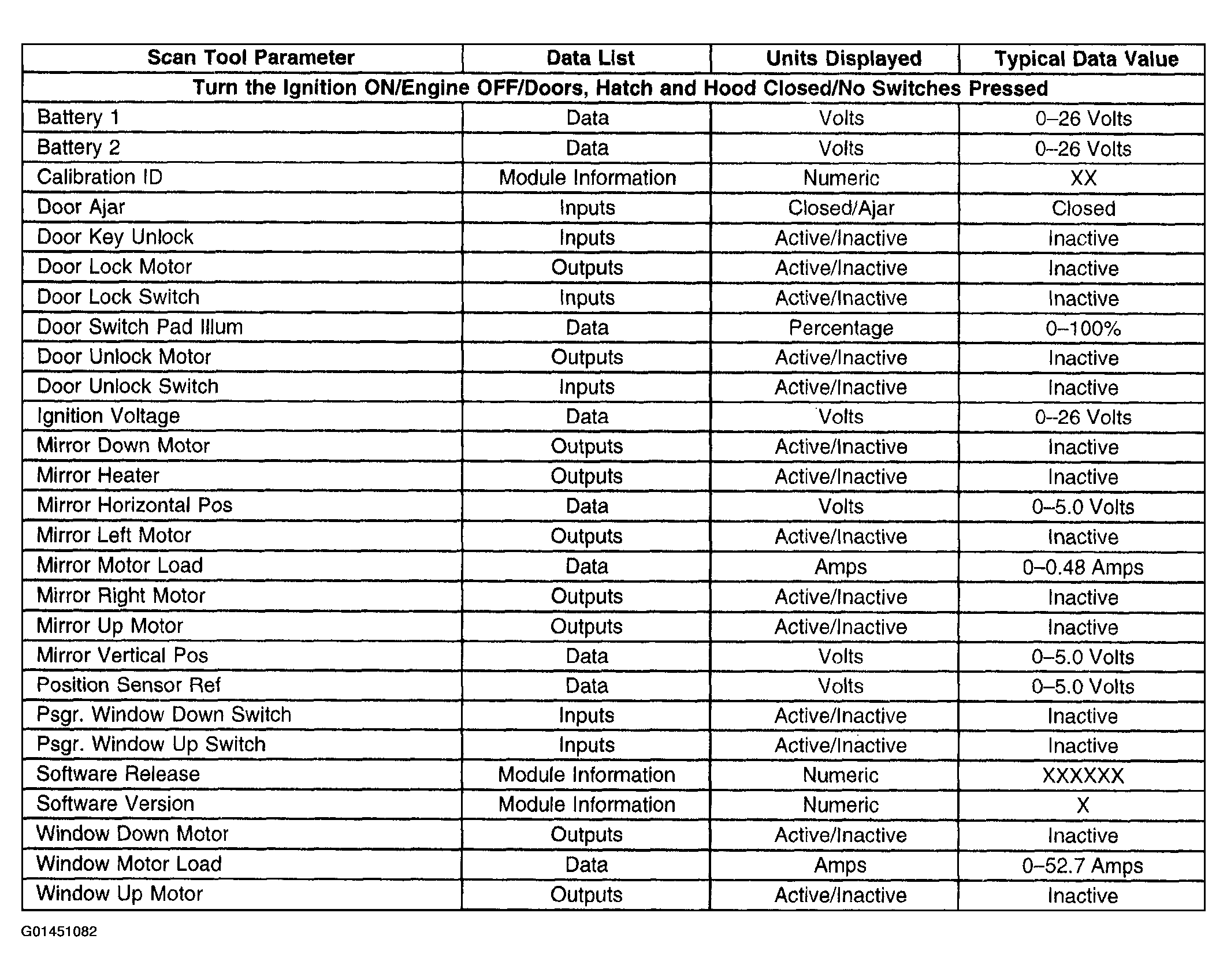

Fig 4: Passenger Door Module

Courtesy of GENERAL MOTORS CORP.
