Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

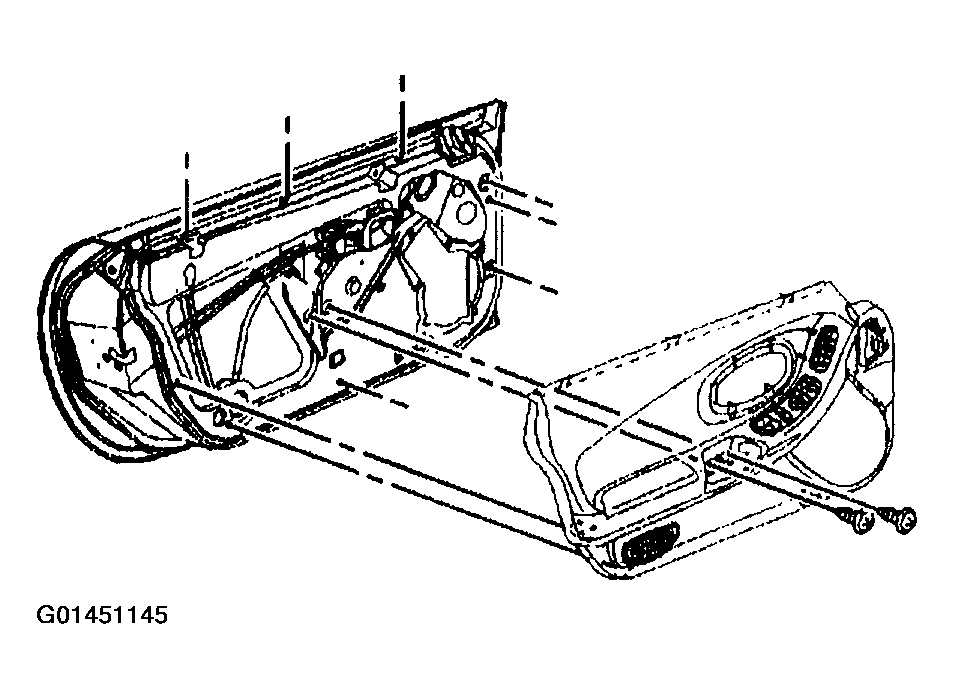

Fig 1: Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
Remove the screws attaching the door control module.
Disconnect the electrical connectors.

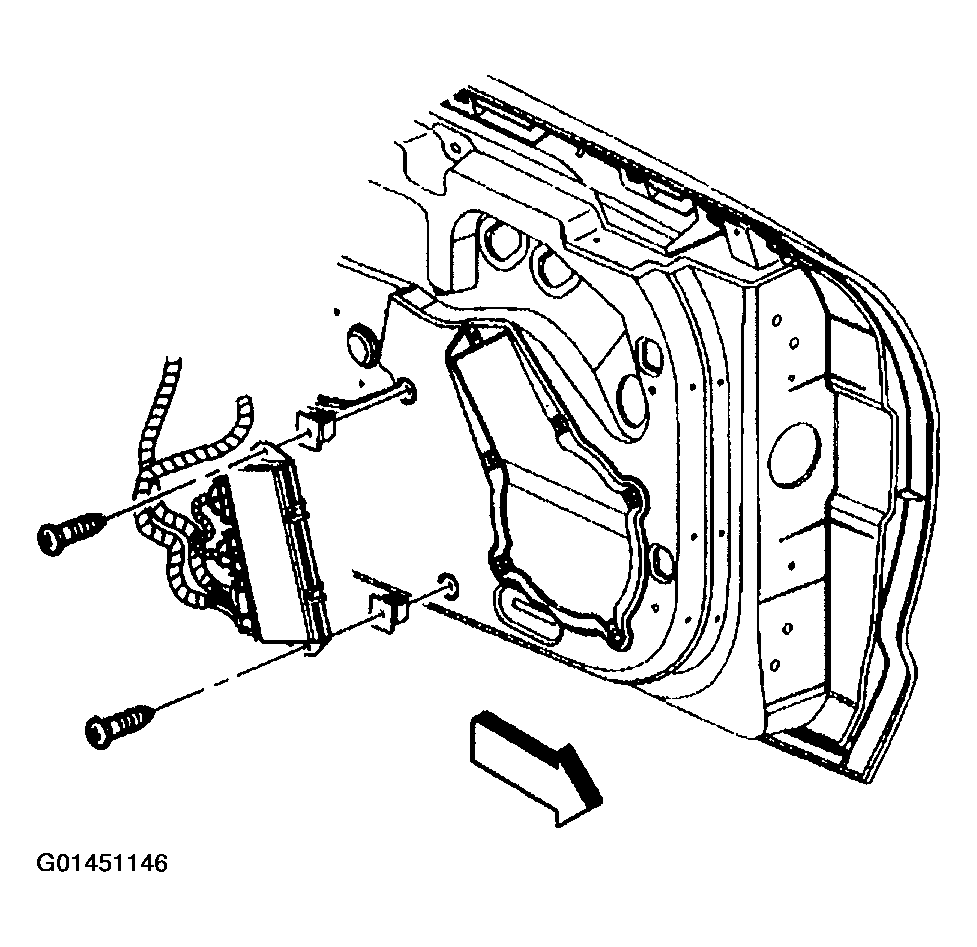

Fig 2: Removing Screws Attaching Door Control Module
Courtesy of GENERAL MOTORS CORP.
