Power Seat Systems Connector End Views
WARNING:
This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

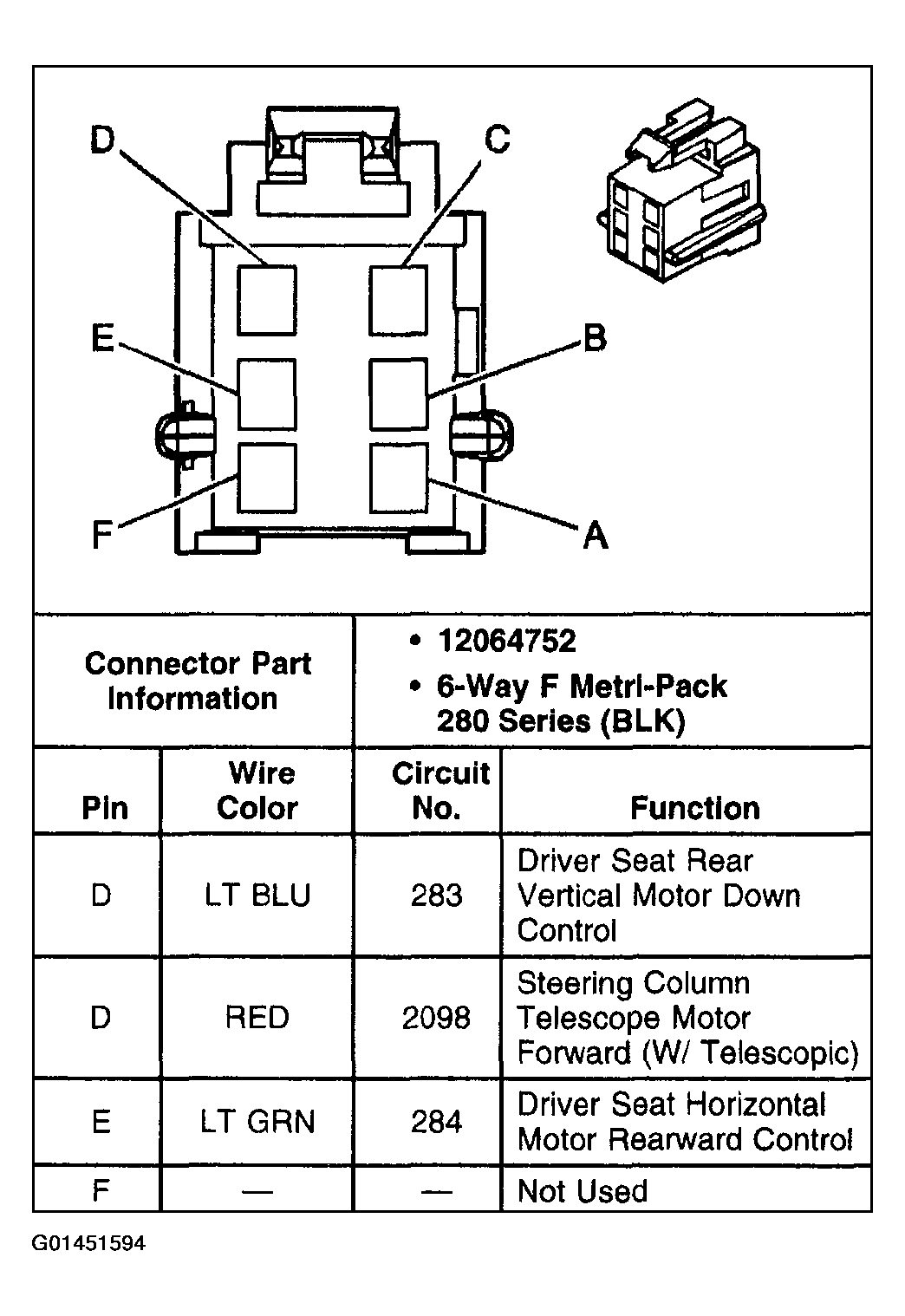

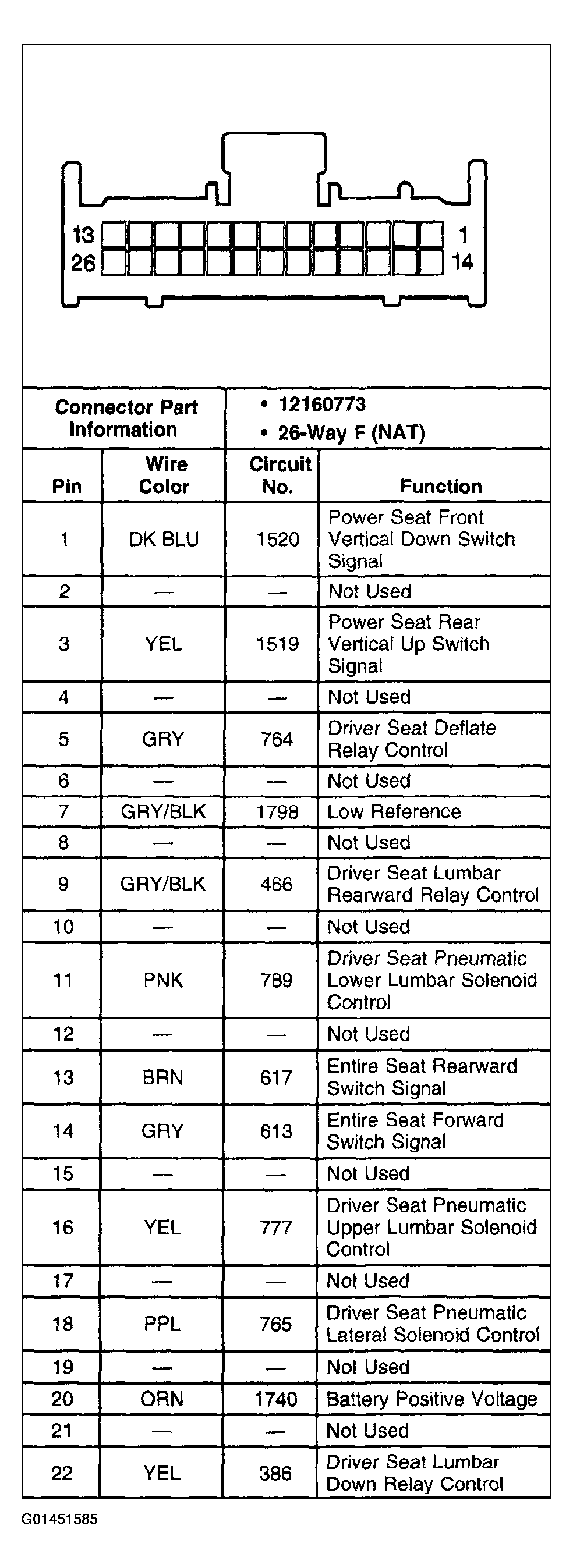

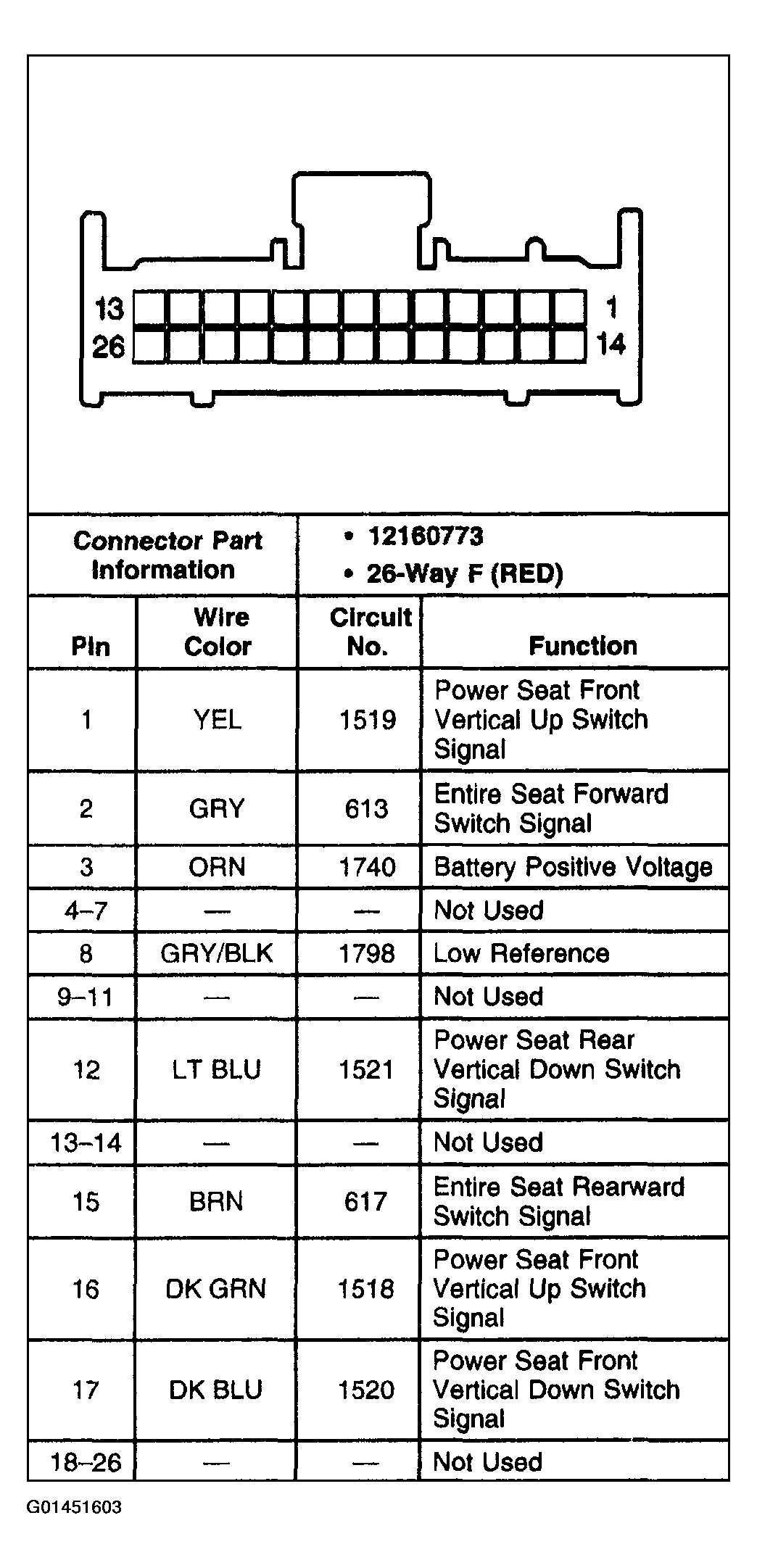

Fig 1: Seat Adjuster Switch - Driver Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

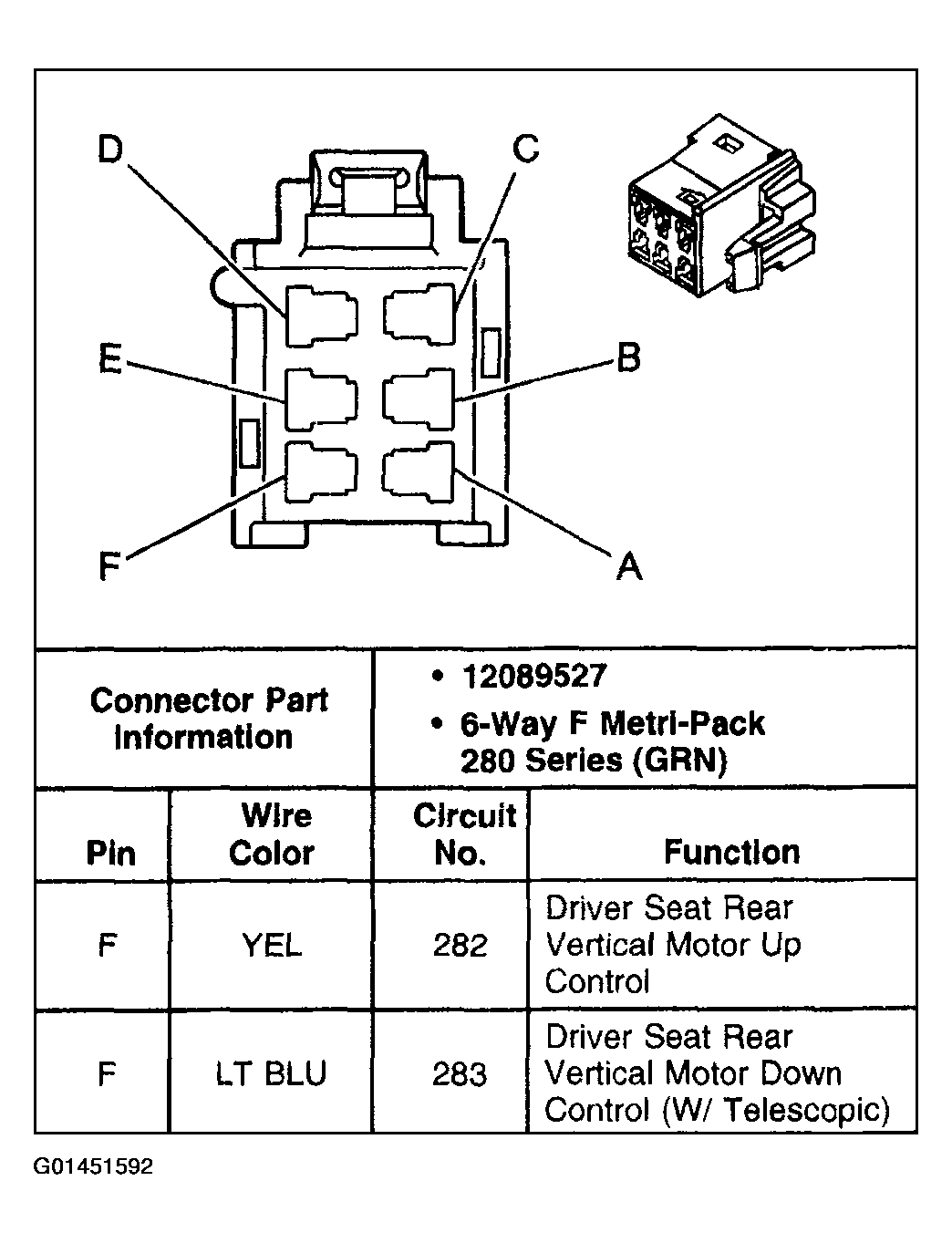

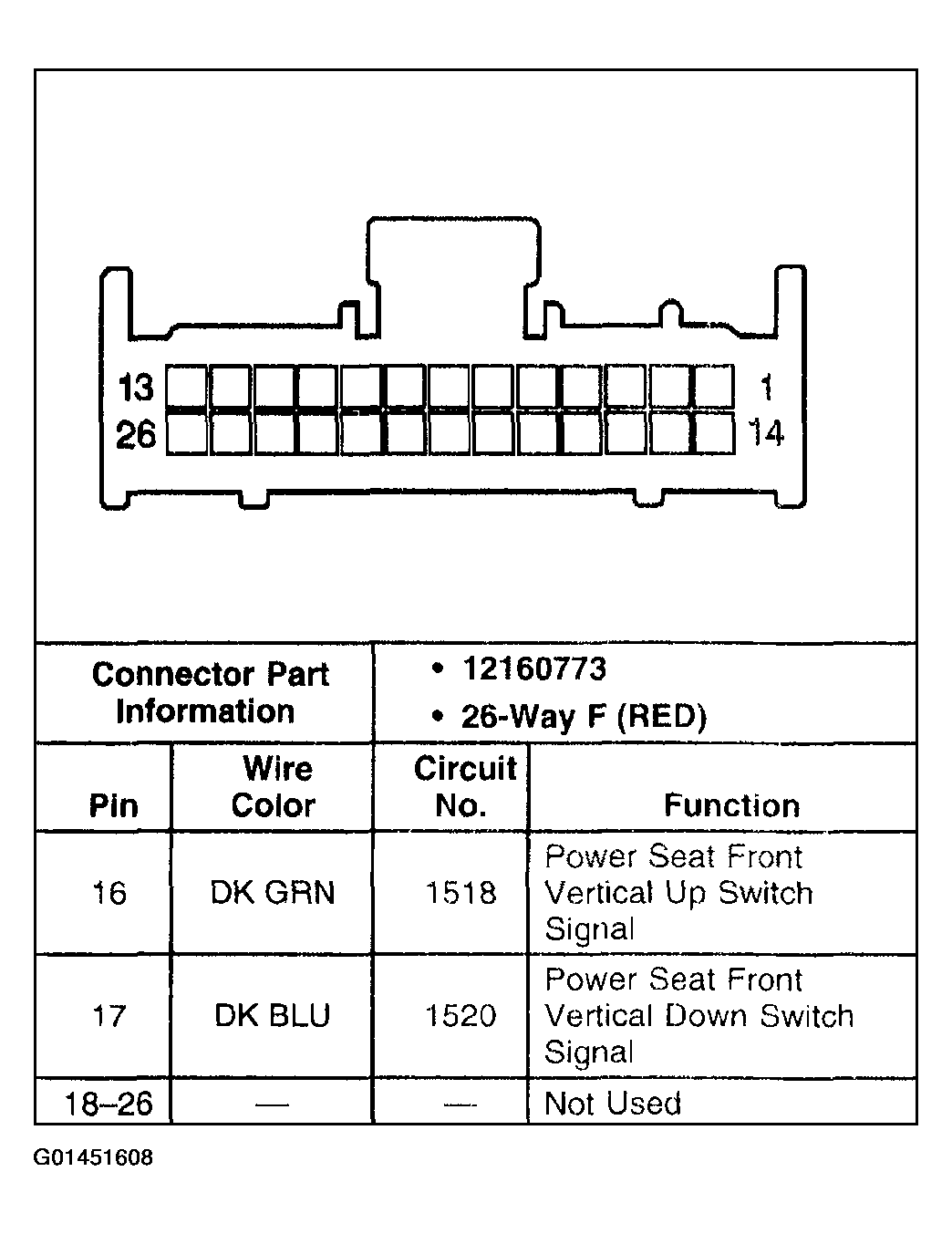

Fig 2: Seat Adjuster Switch - Driver Connector (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

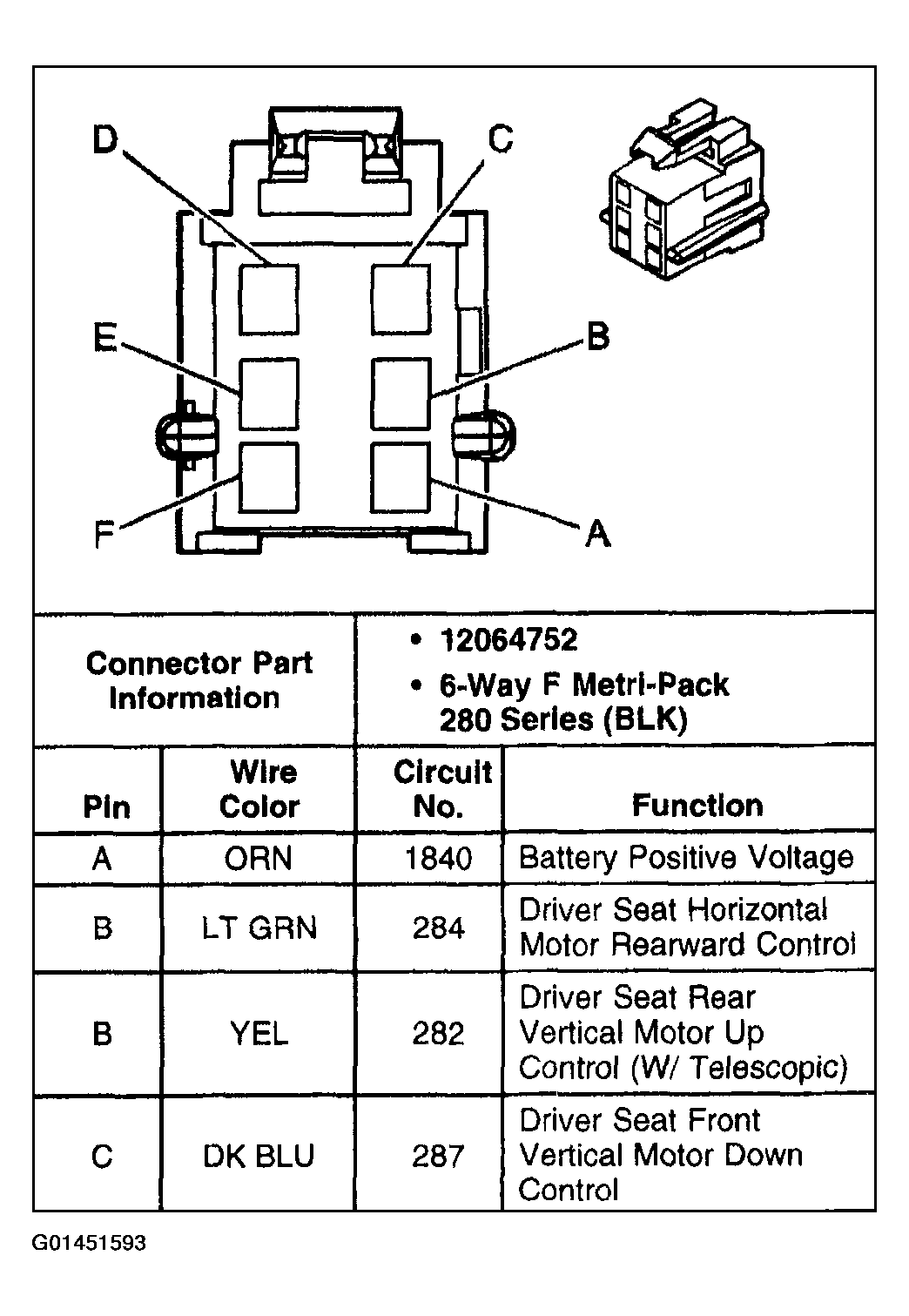

Fig 3: Seat Adjuster Switch - Front Passenger (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

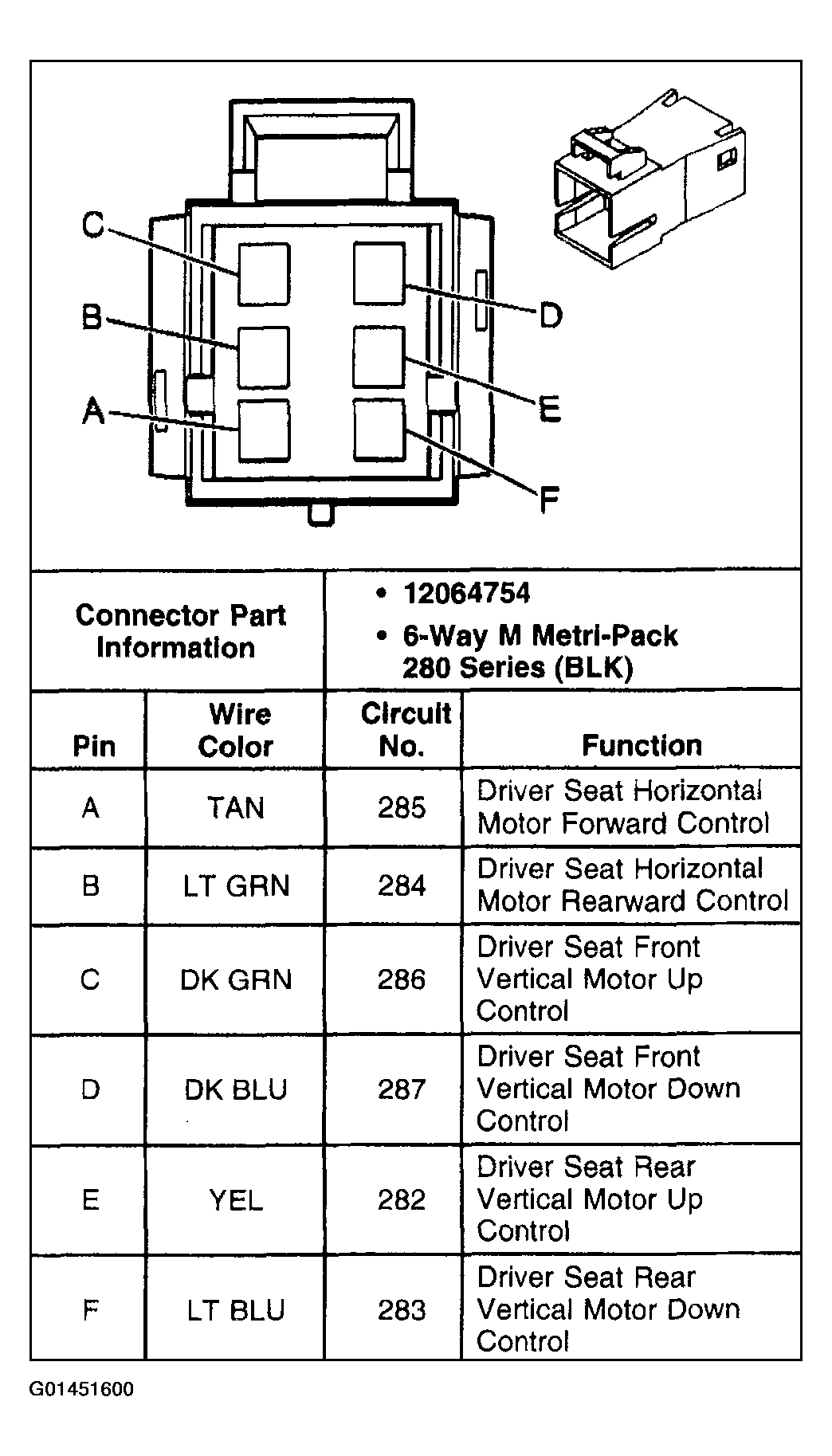

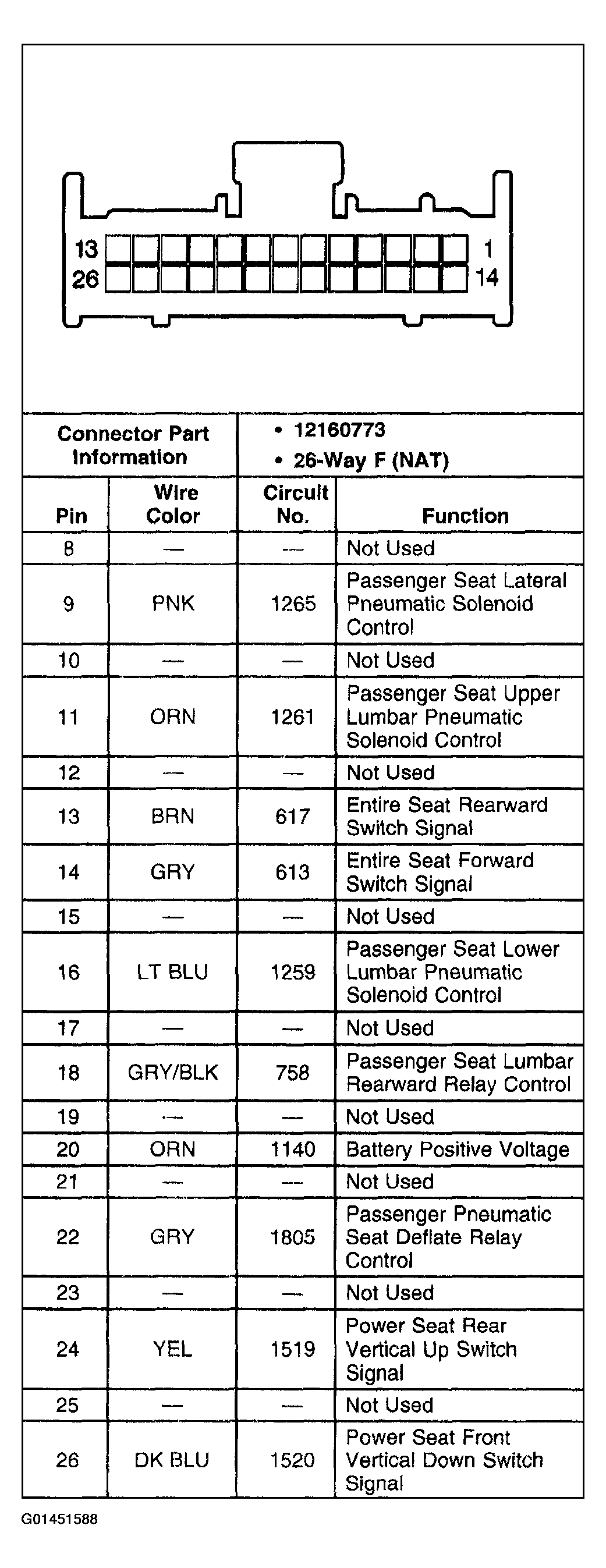

Fig 4: Seat Adjuster Switch - Front Passenger (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

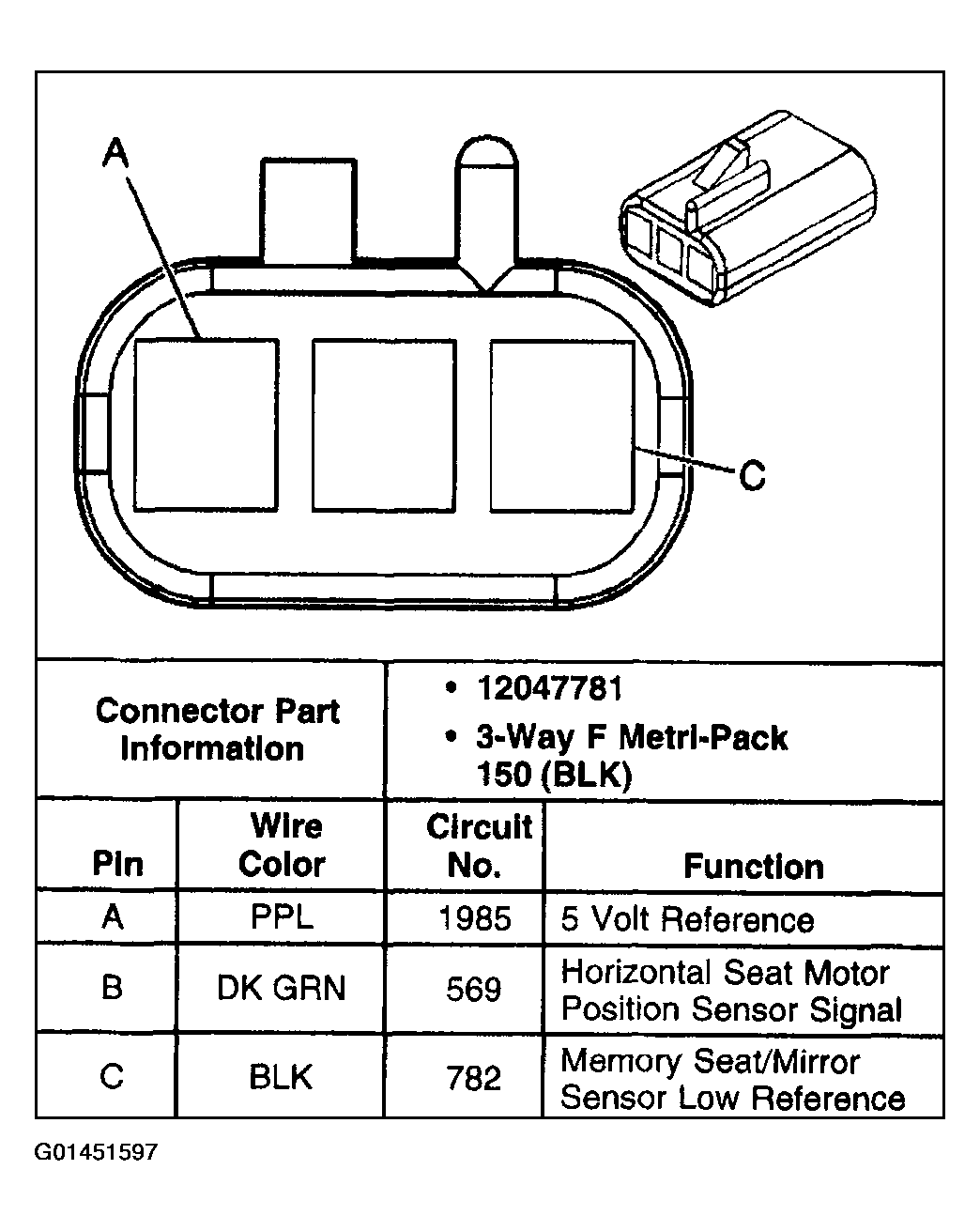

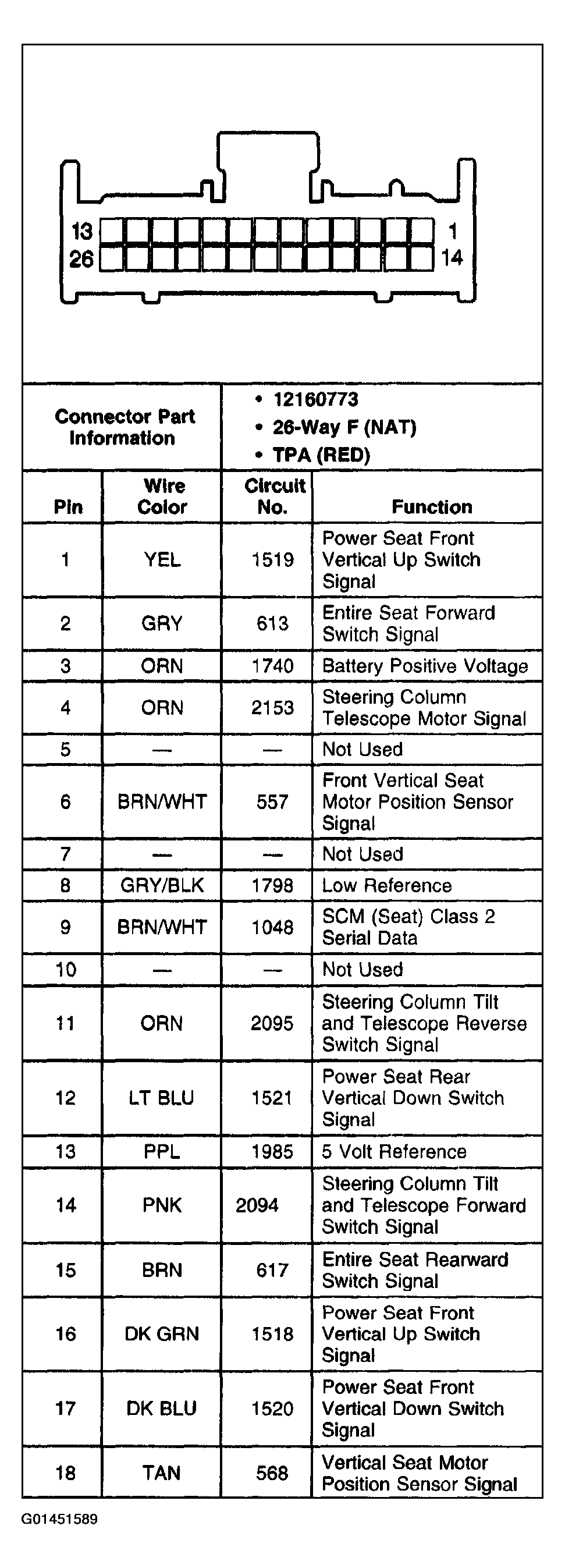

Fig 5: Seat Control Module (SCM) - Driver C1 (Telescopic & Memory) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

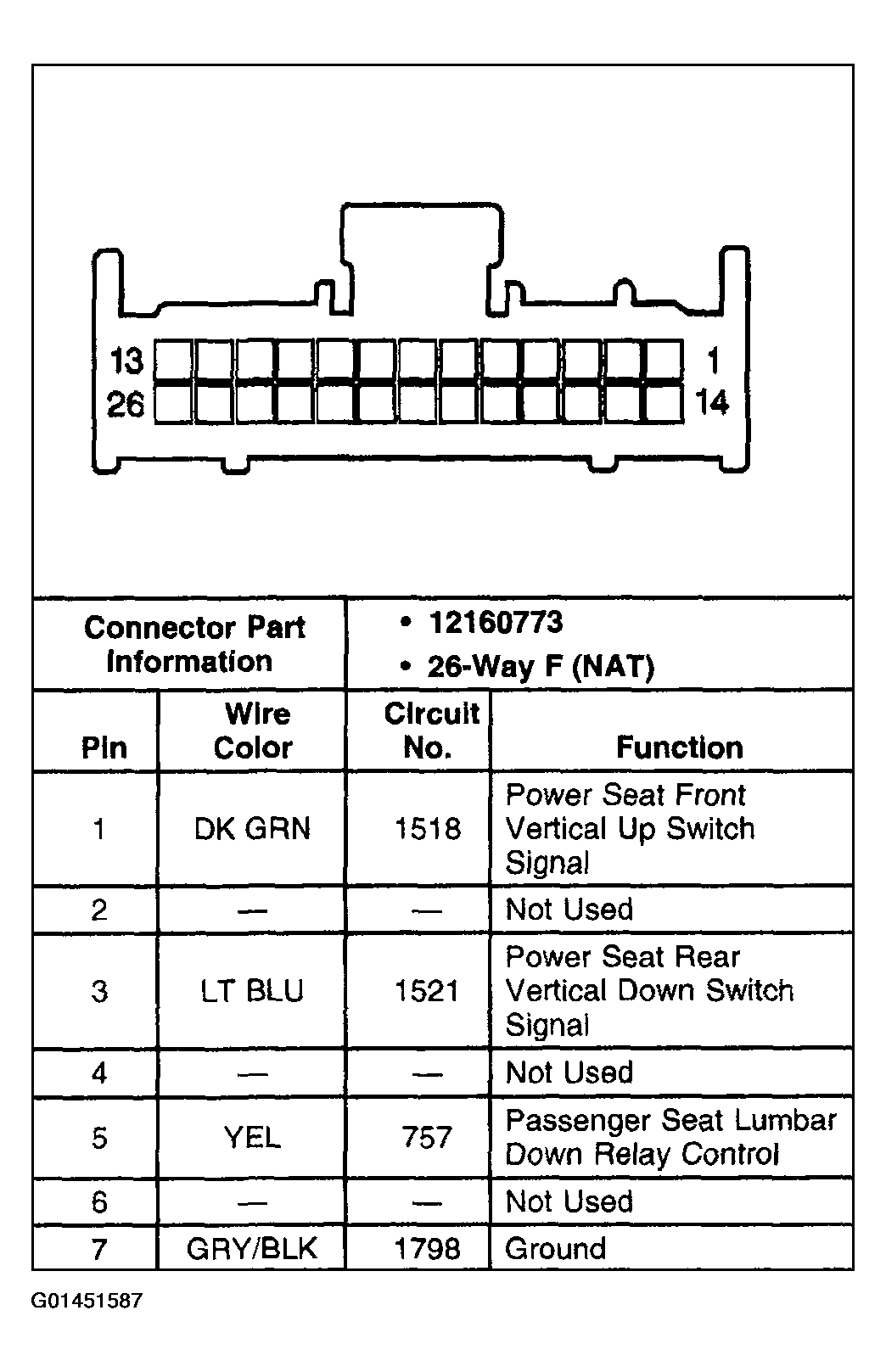

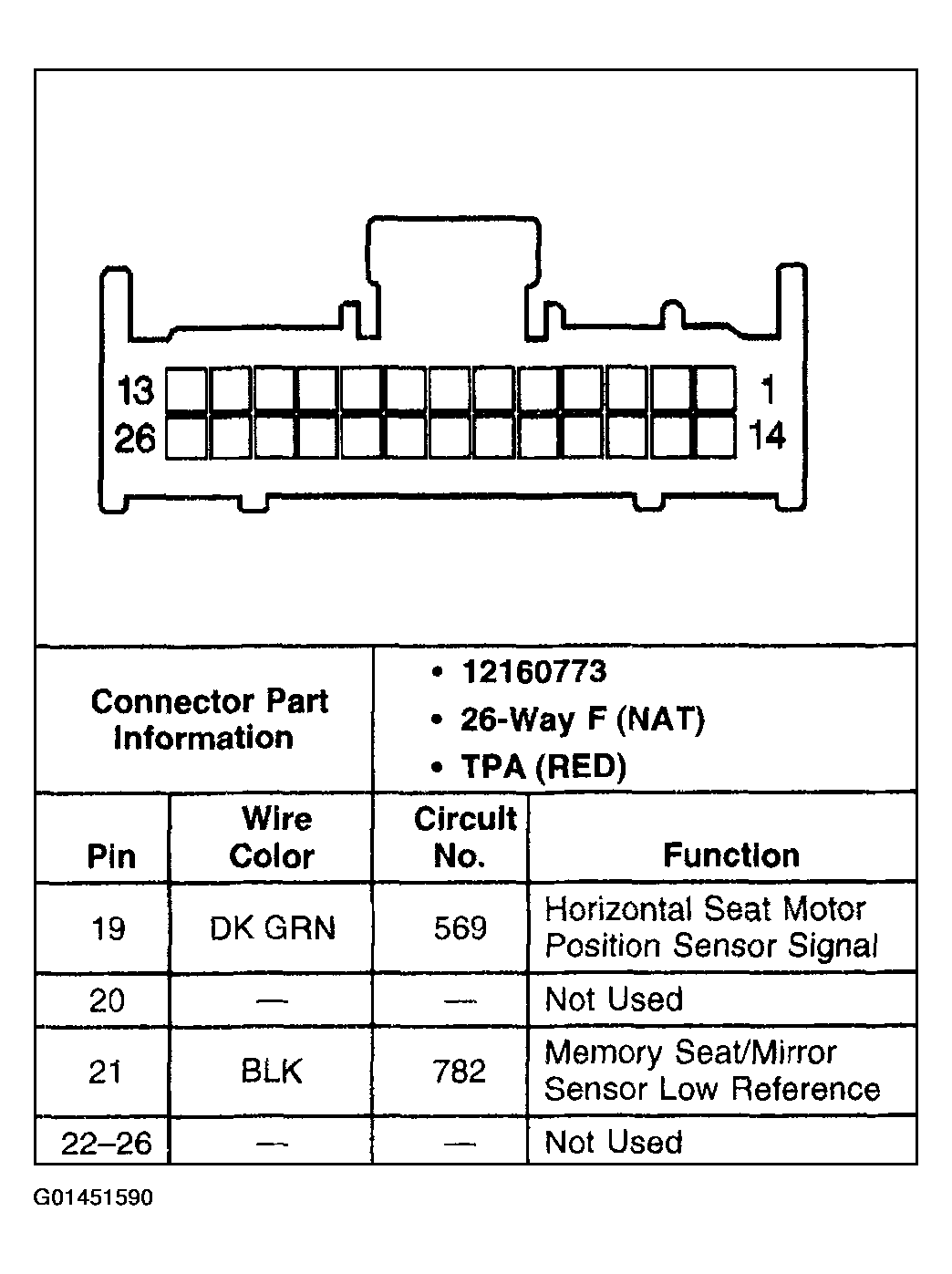

Fig 6: Seat Control Module (SCM) - Driver C1 (Telescopic & Memory) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

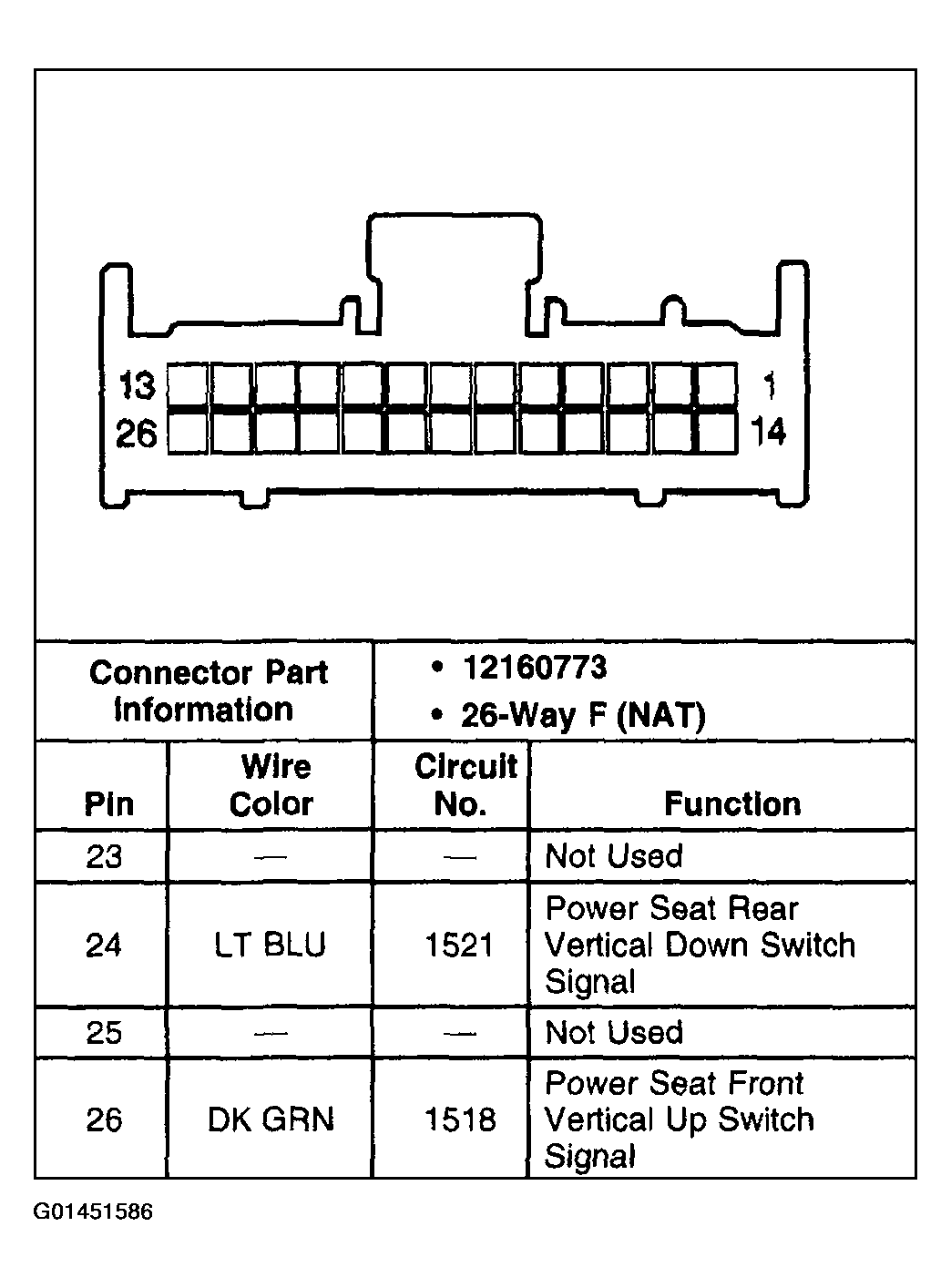

Fig 7: Seat Control Module (SCM) - Driver C2 (Telescopic & Memory) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

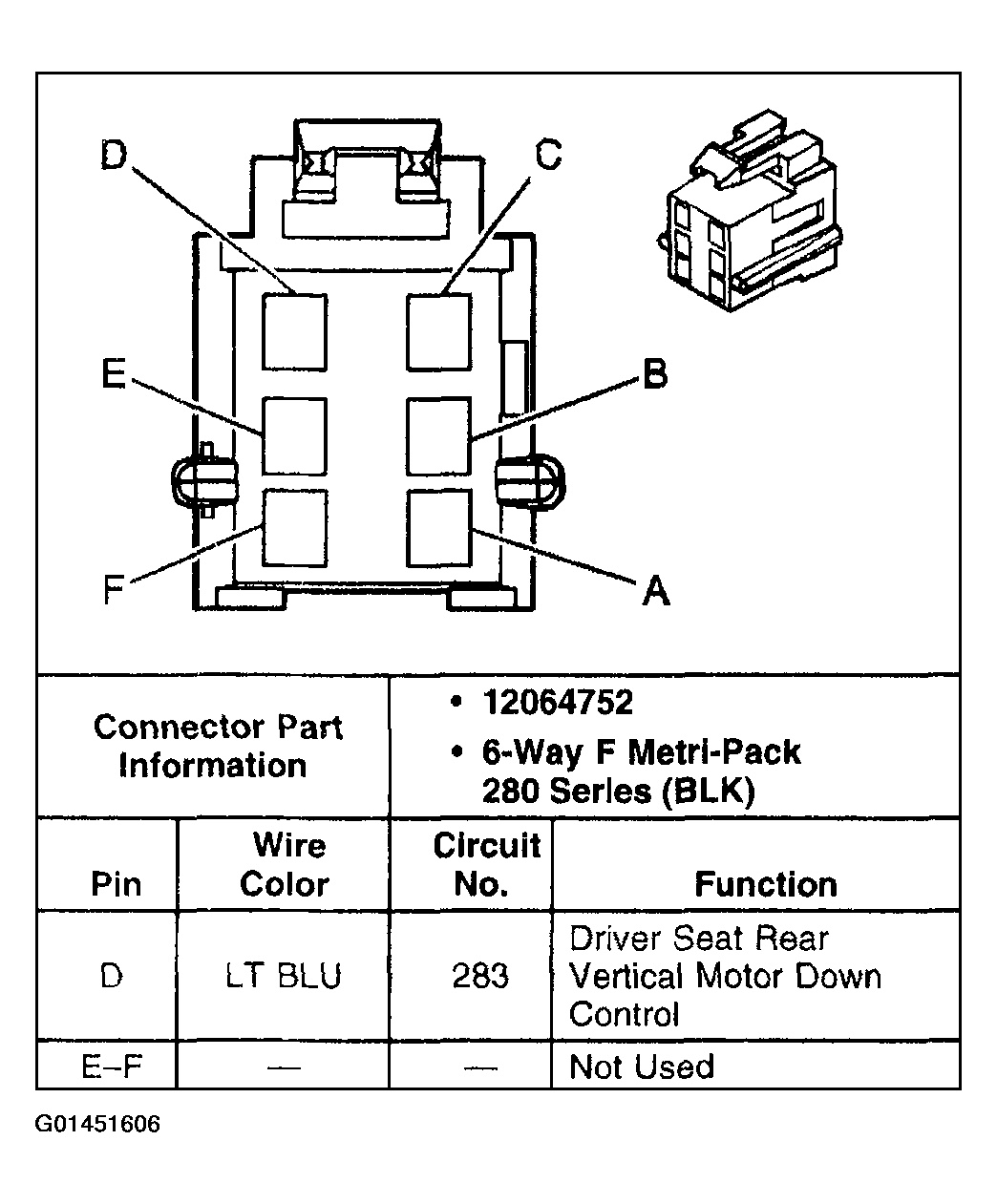

Fig 8: Seat Control Module (SCM) - Driver C2 (Telescopic & Memory) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

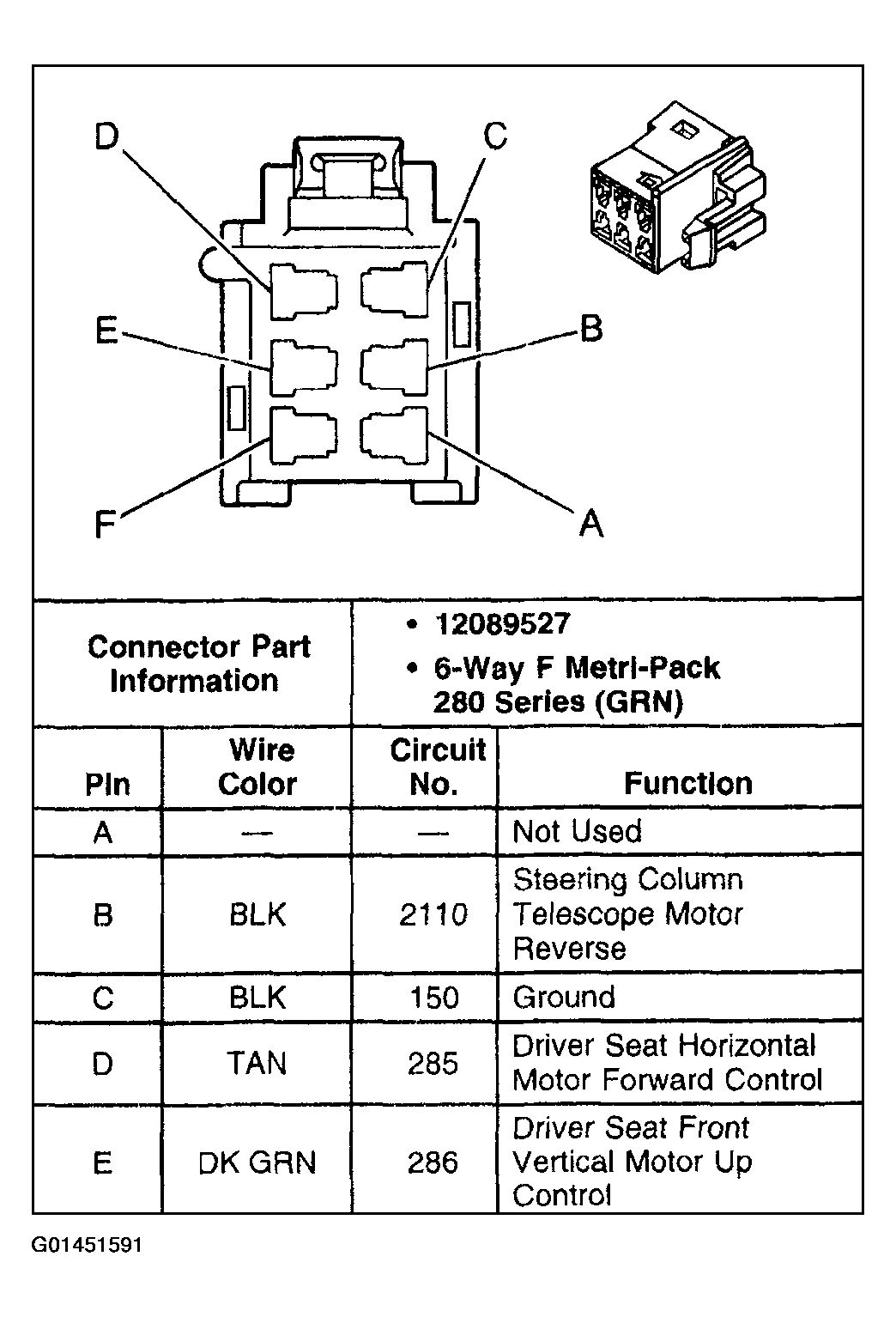

Fig 9: Seat Control Module (SCM) - Driver C3 (Telescopic & Memory) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Seat Control Module (SCM) - Driver C3 (Telescopic & Memory) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

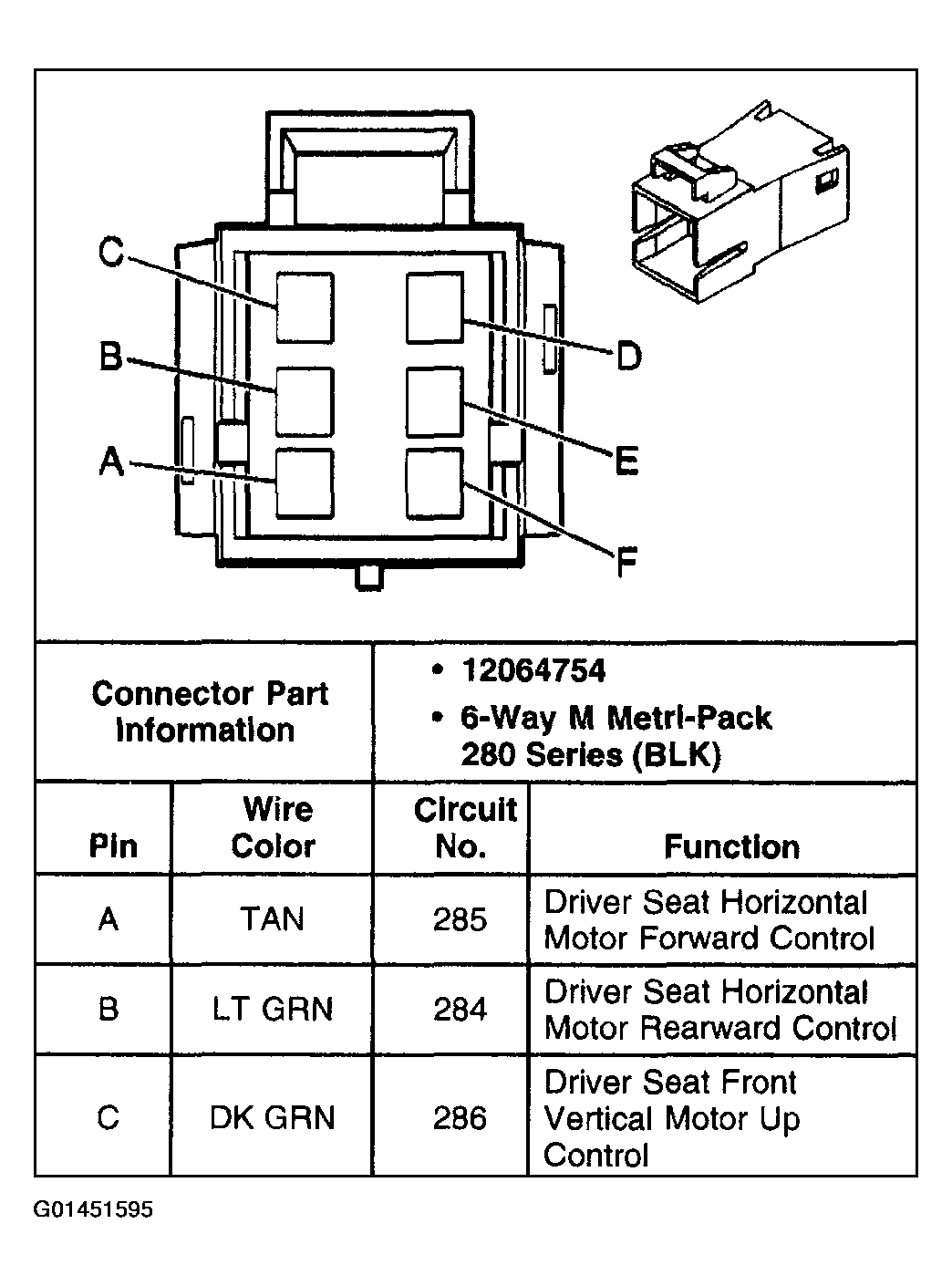

Fig 11: Seat Lower Motor - Driver C1 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

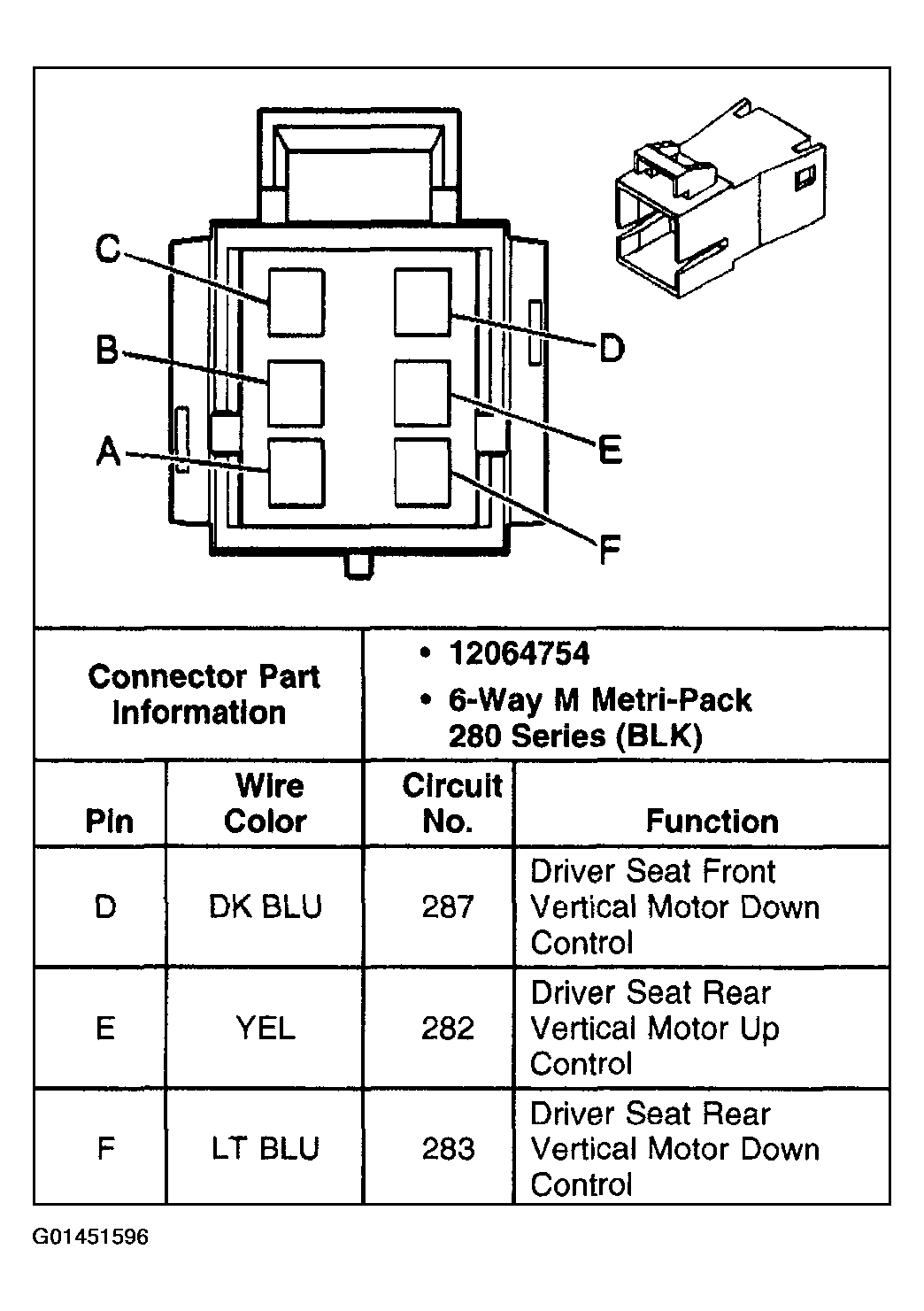

Fig 12: Seat Lower Motor - Driver C1 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

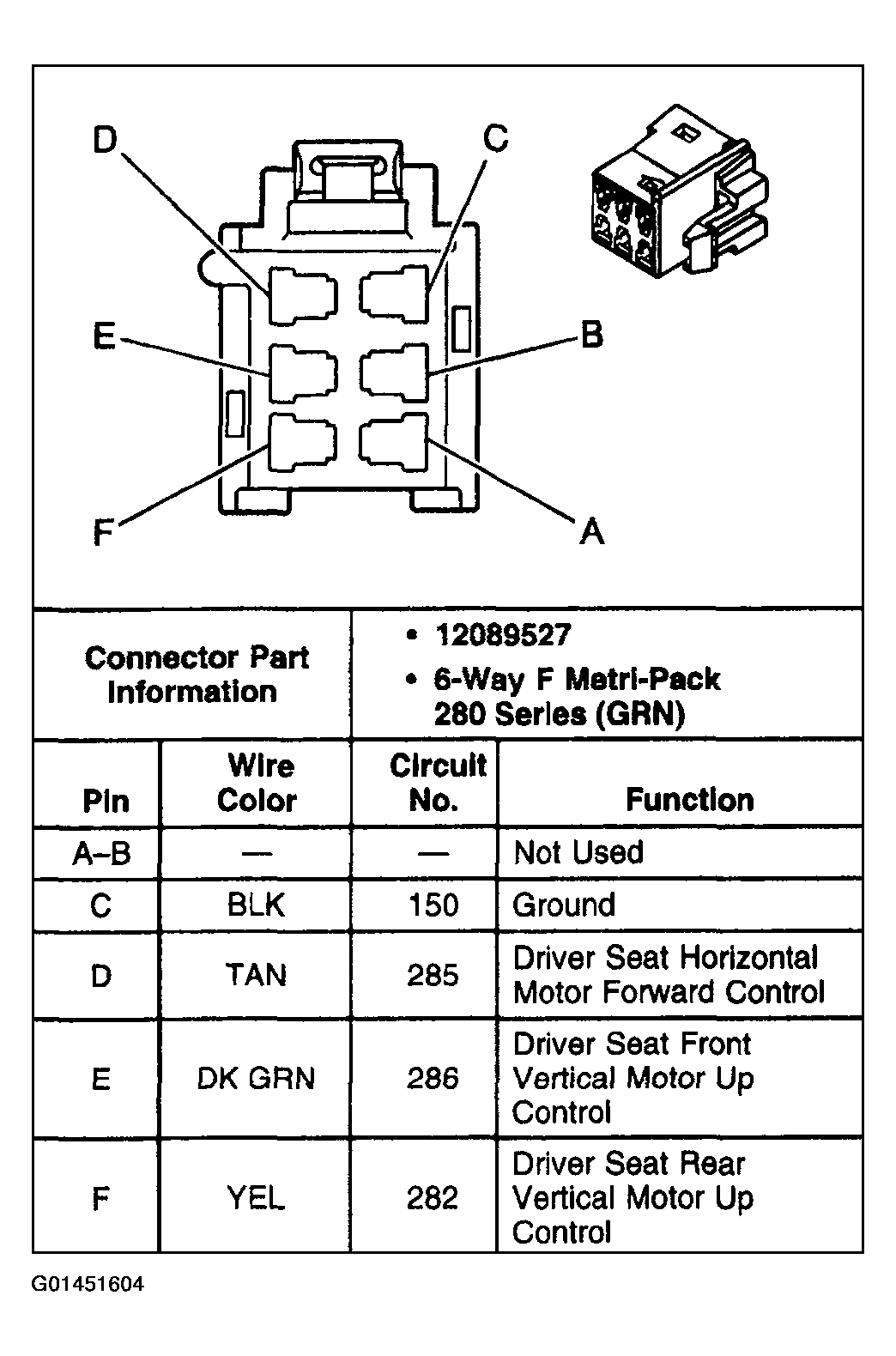

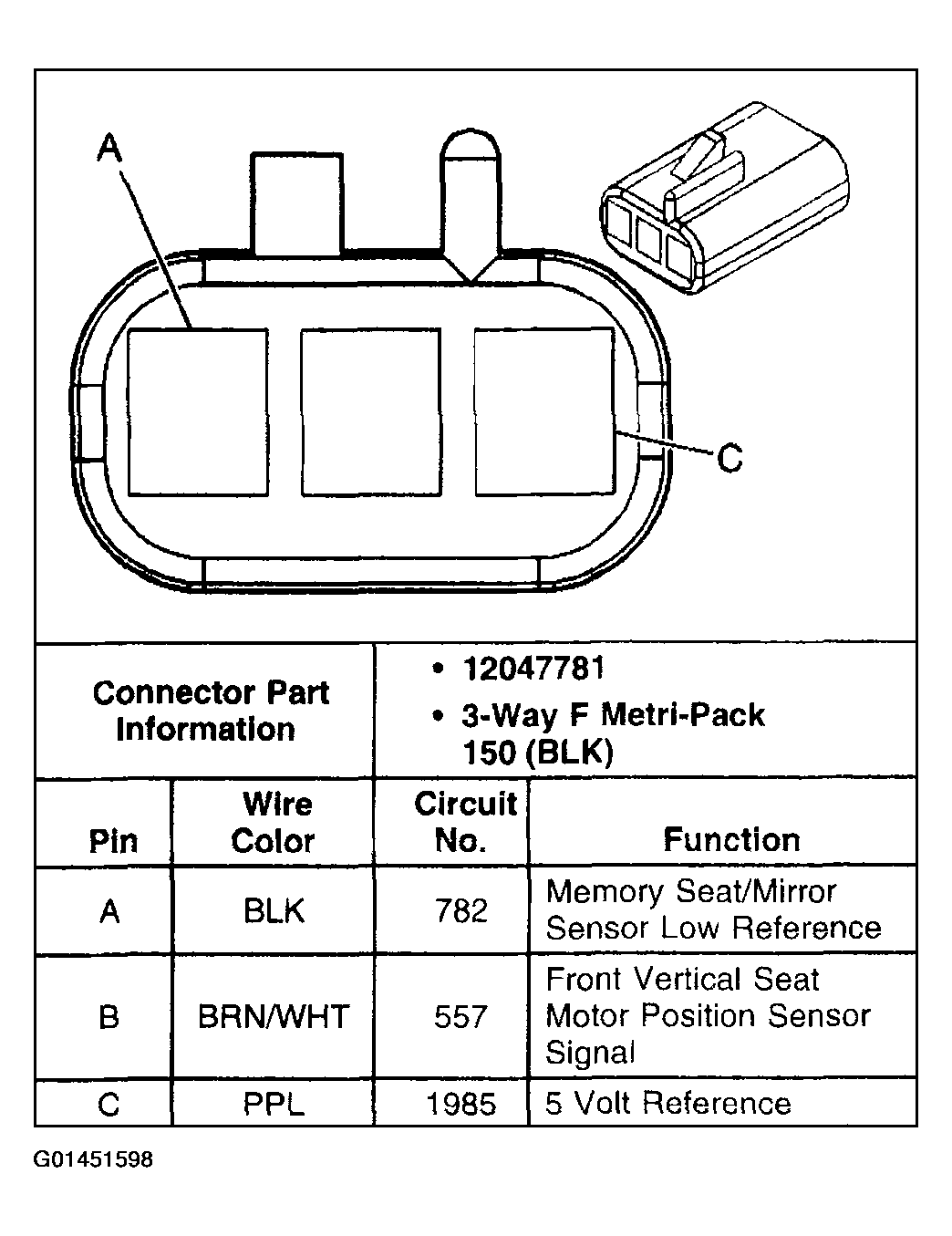

Fig 13: Seat Lower Motor - Driver C2 (Memory & Telescopic)
Courtesy of GENERAL MOTORS CORP.

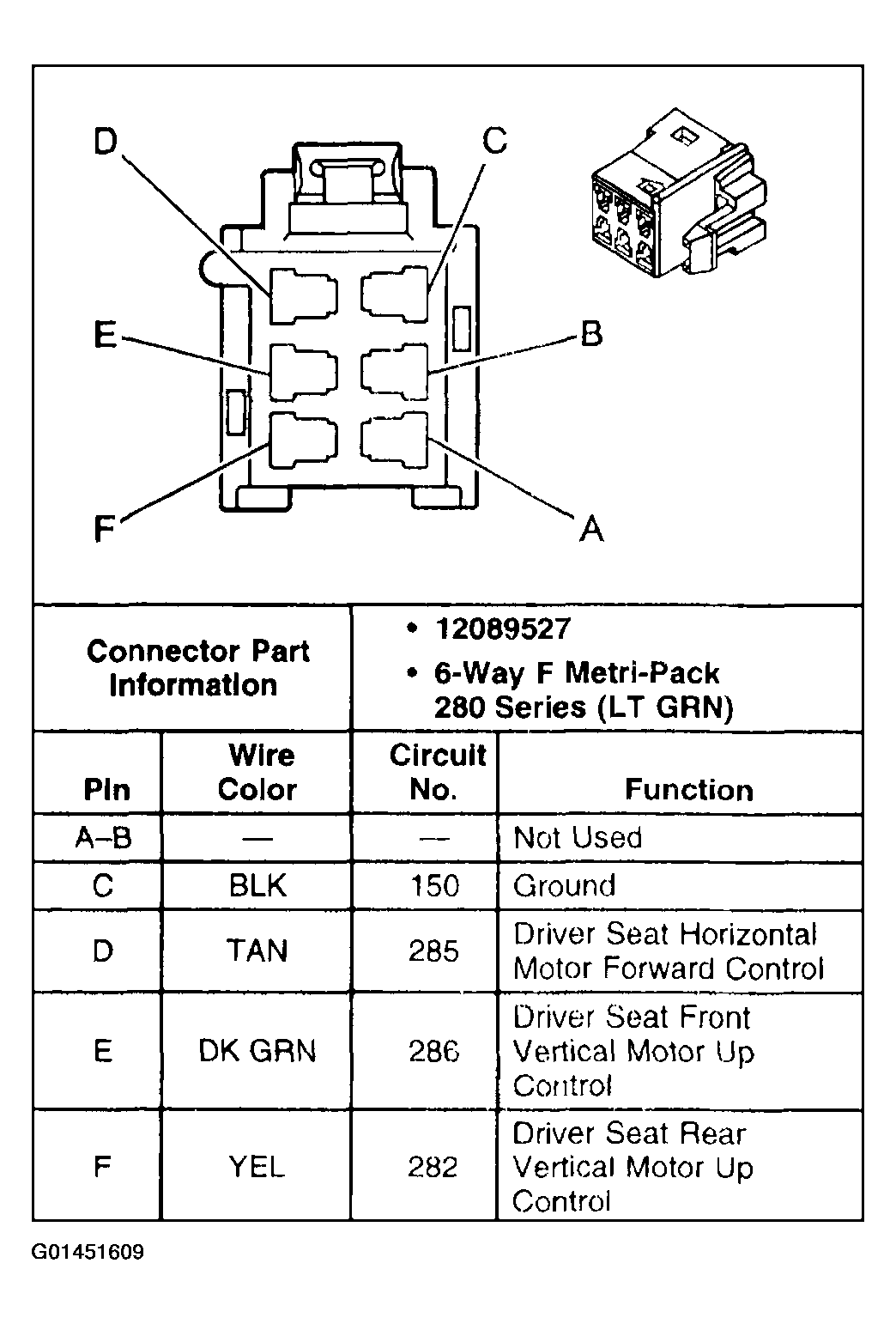

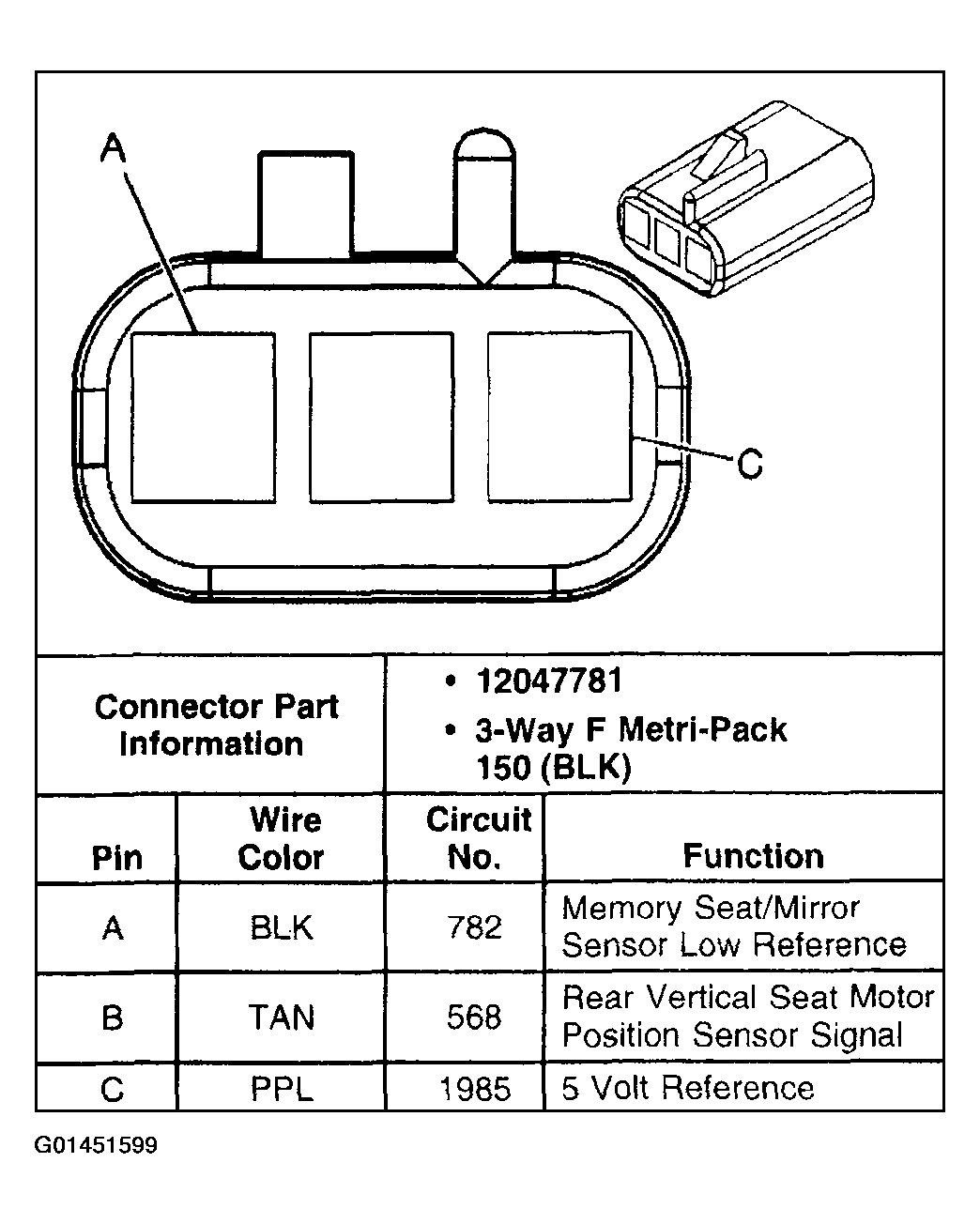

Fig 14: Seat Lower Motor - Driver C3 (Memory & Telescopic)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Seat Lower Motor - Driver C4 (Memory & Telescopic)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Seat Lower Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.
Fig 17: Seat Pump - Driver
Courtesy of GENERAL MOTORS CORP.
Fig 18: Seat Pump - Front Passenger
Courtesy of GENERAL MOTORS CORP.

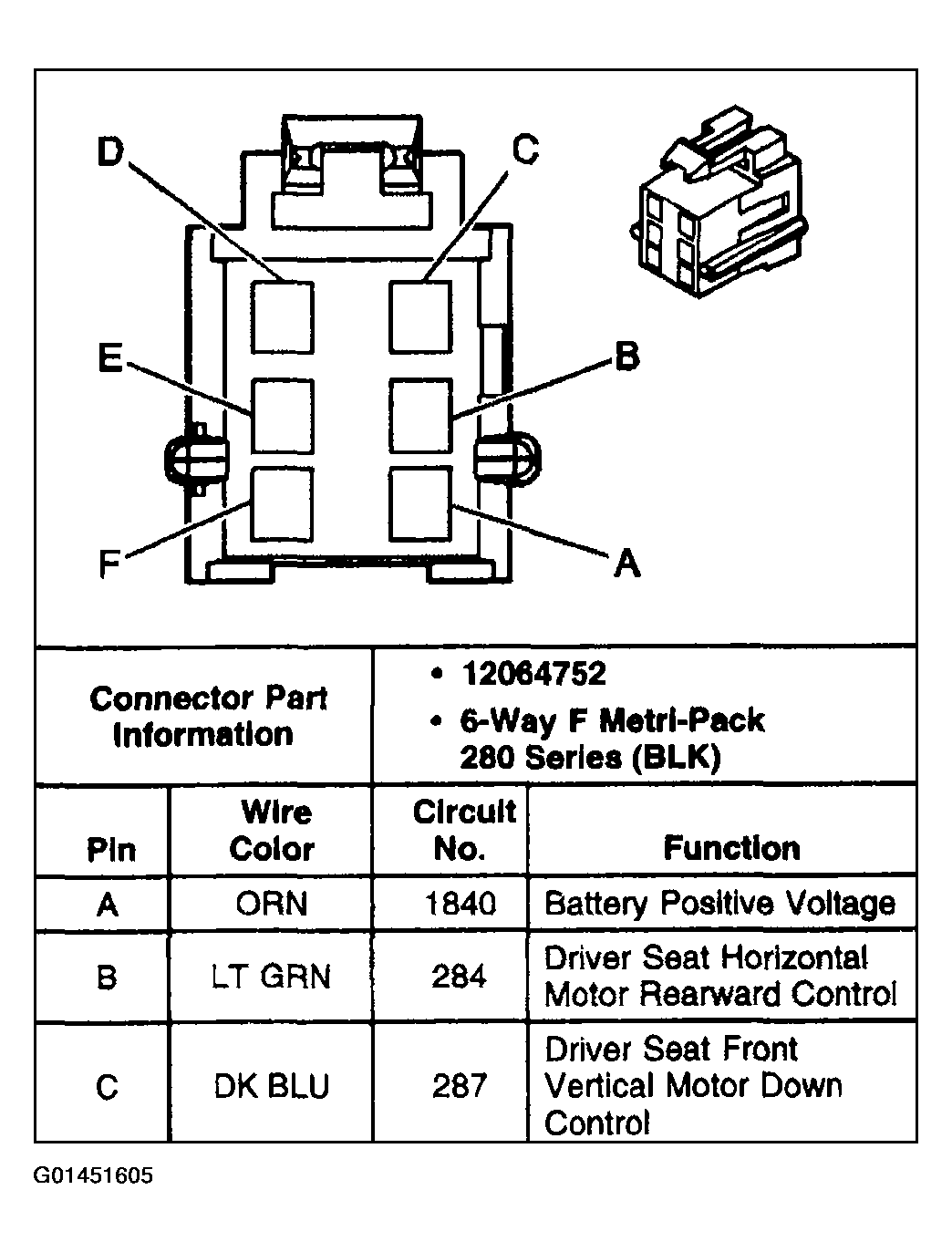

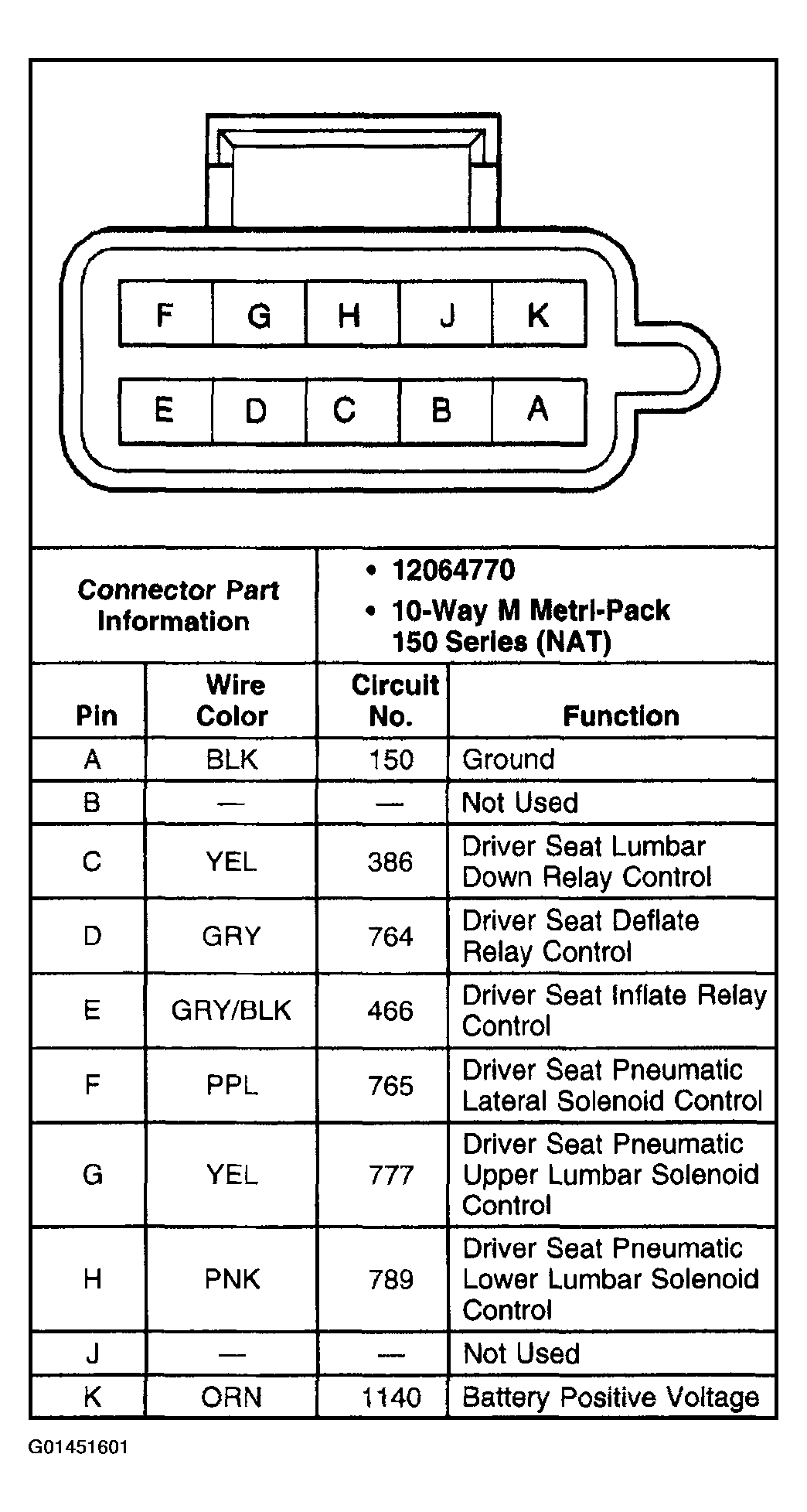

Fig 19: Seat Relay Center - Driver C1
Courtesy of GENERAL MOTORS CORP.

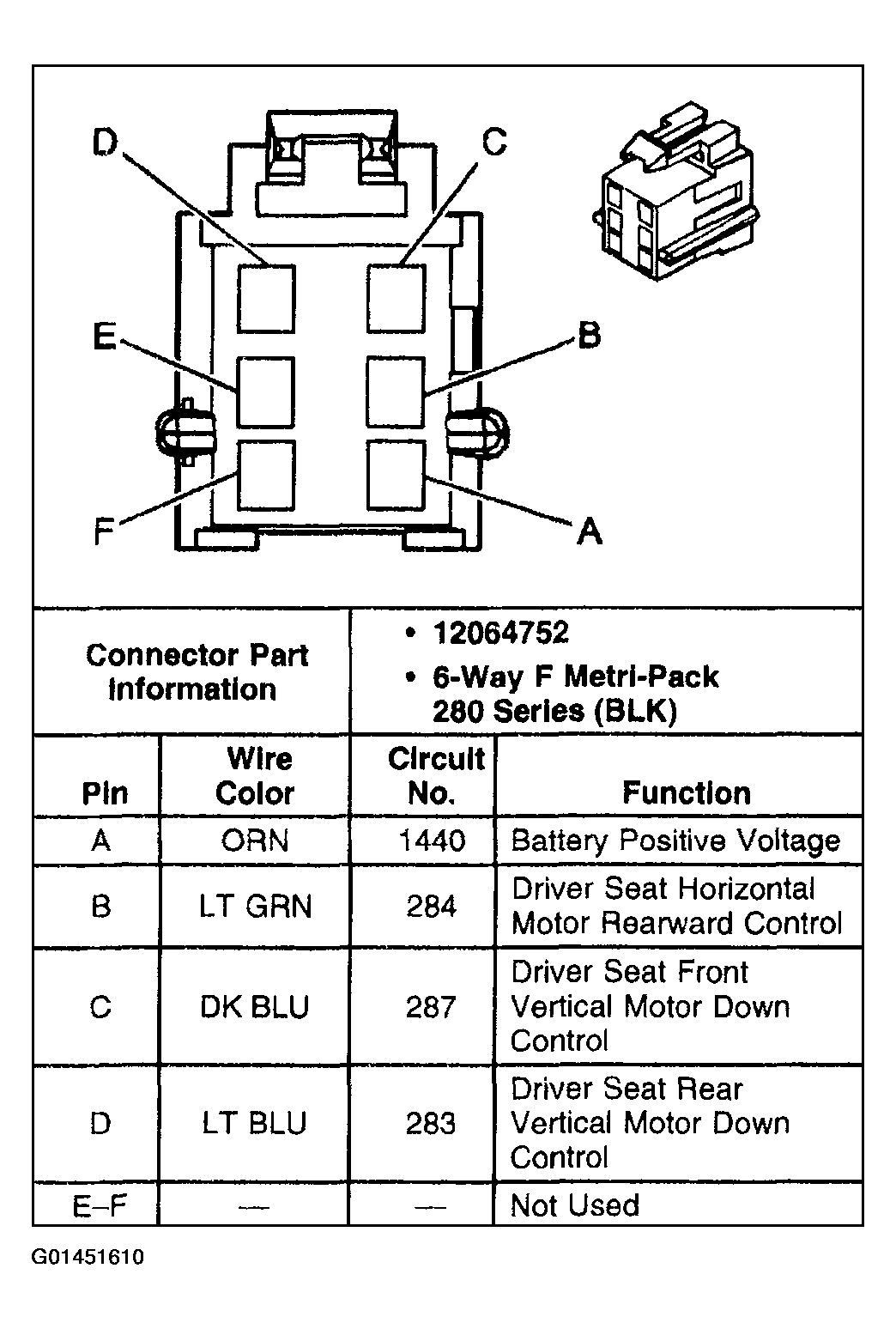

Fig 20: Seat Relay Center - Driver C2
Courtesy of GENERAL MOTORS CORP.
Fig 21: Seat Relay Center - Driver C3 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Seat Relay Center - Driver C3 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Seat Relay Center - Front Passenger C1 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Seat Relay Center - Front Passenger C1 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

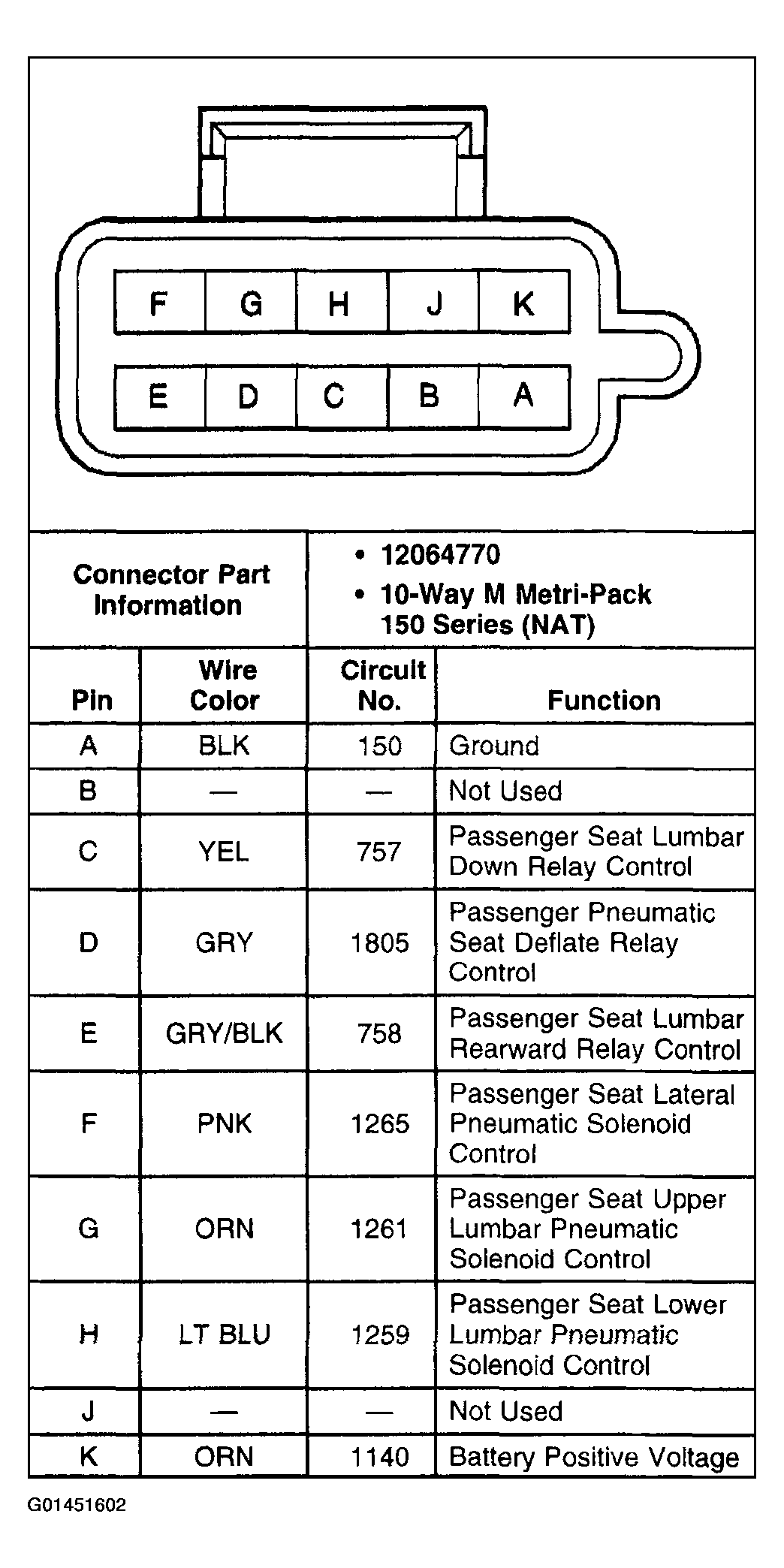

Fig 25: Seat Relay Center - Front Passenger C2
Courtesy of GENERAL MOTORS CORP.
Fig 26: Seat Relay Center - Front Passenger C3
Courtesy of GENERAL MOTORS CORP.
