Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

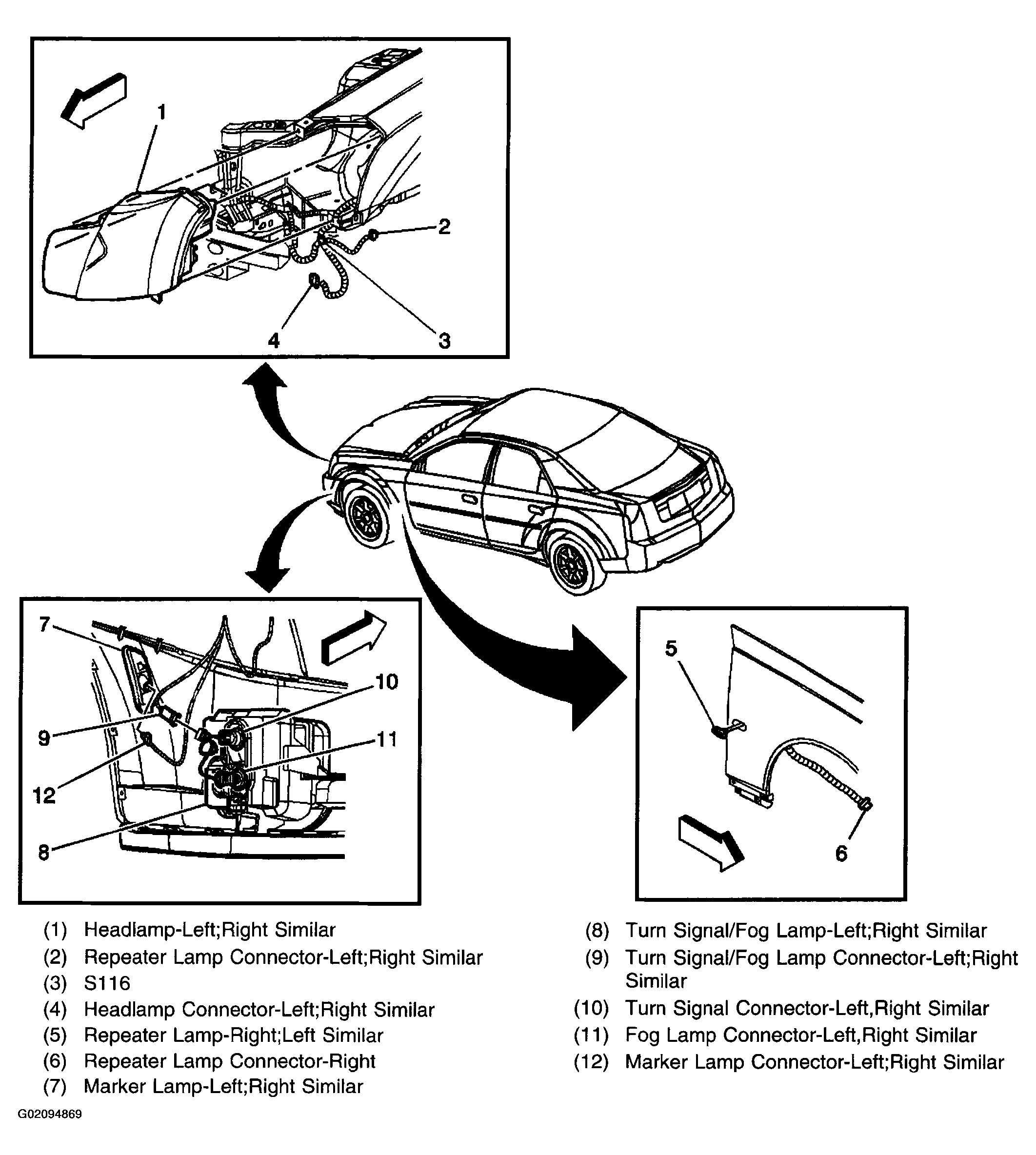

Fig 1: Front Exterior Lamps Component View

Courtesy of GENERAL MOTORS CORP.

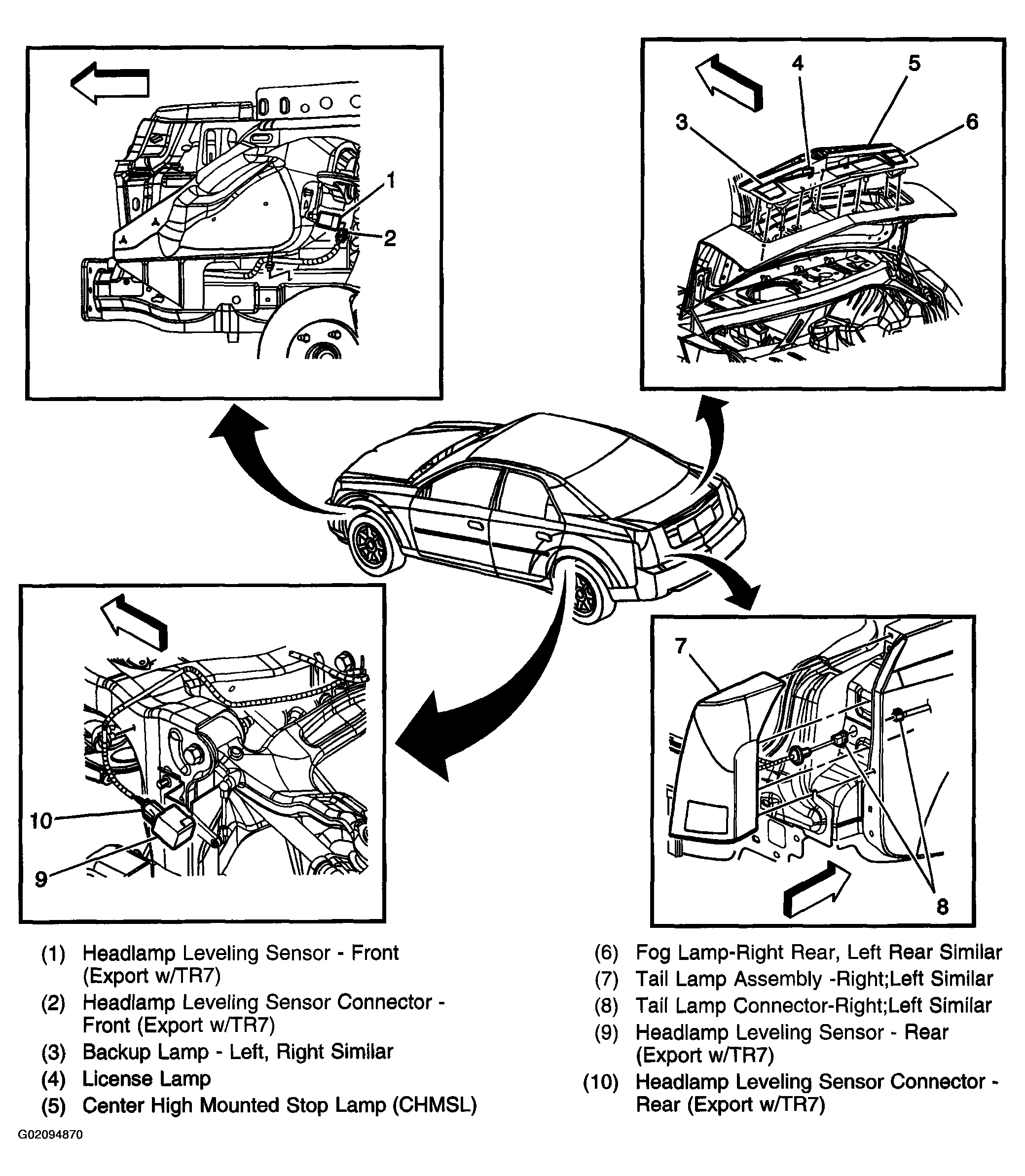

Fig 2: Rear Exterior Lamps & Headlamp Leveling Sensors Component View

Courtesy of GENERAL MOTORS CORP.

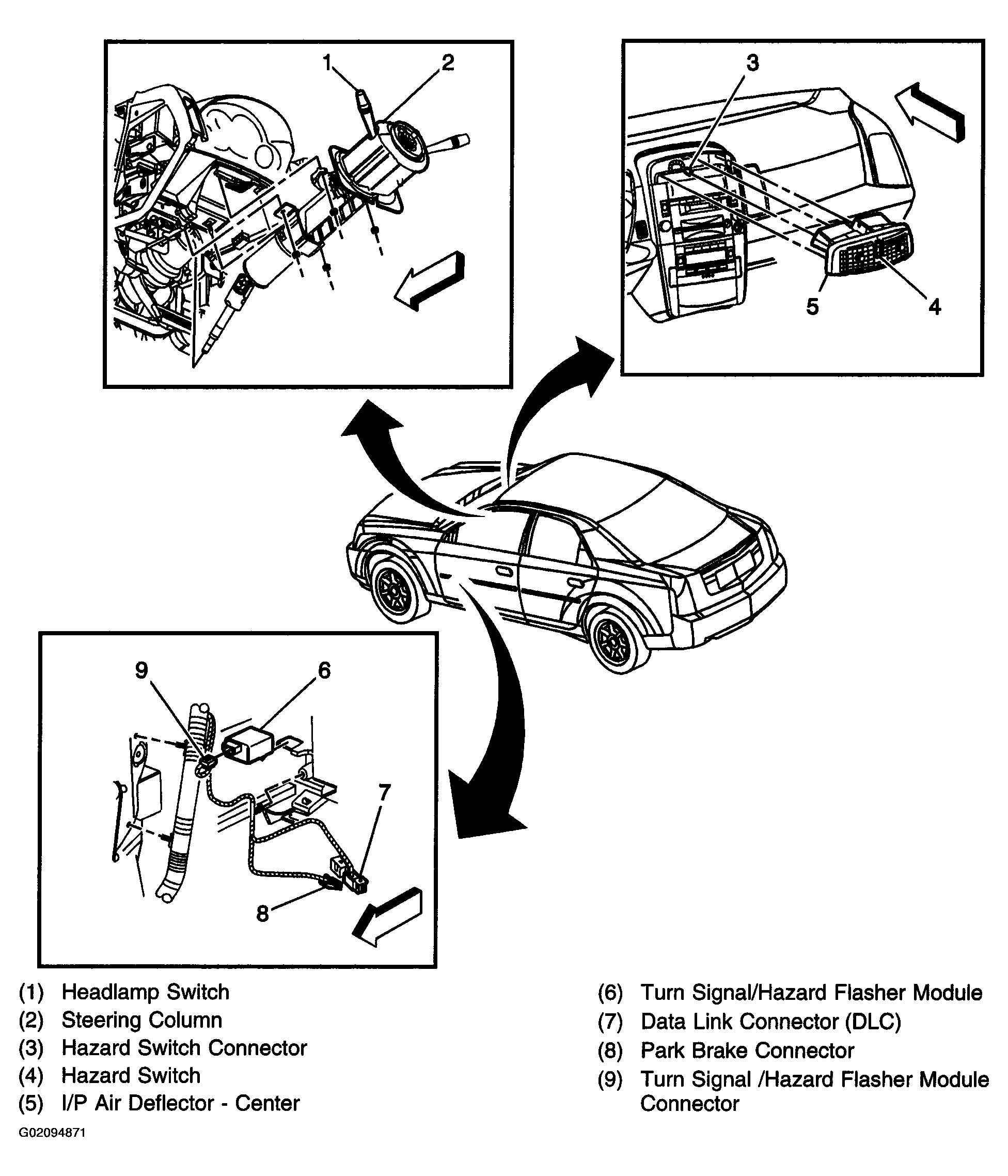

Fig 3: Lighting Switches & Modules Component View

Courtesy of GENERAL MOTORS CORP.

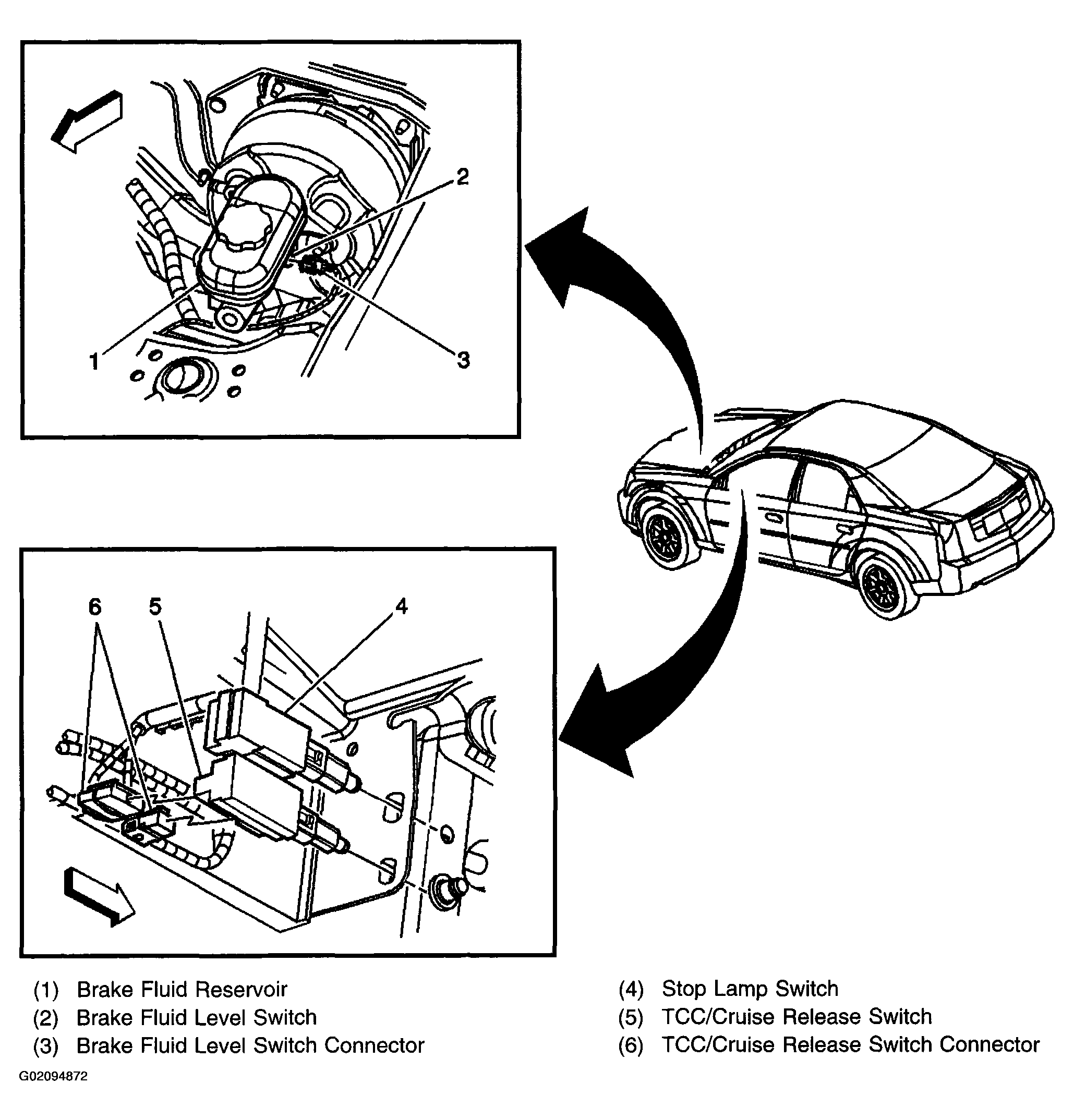

Fig 4: Brake & Brake Fluid Level Switches Component View

Courtesy of GENERAL MOTORS CORP.

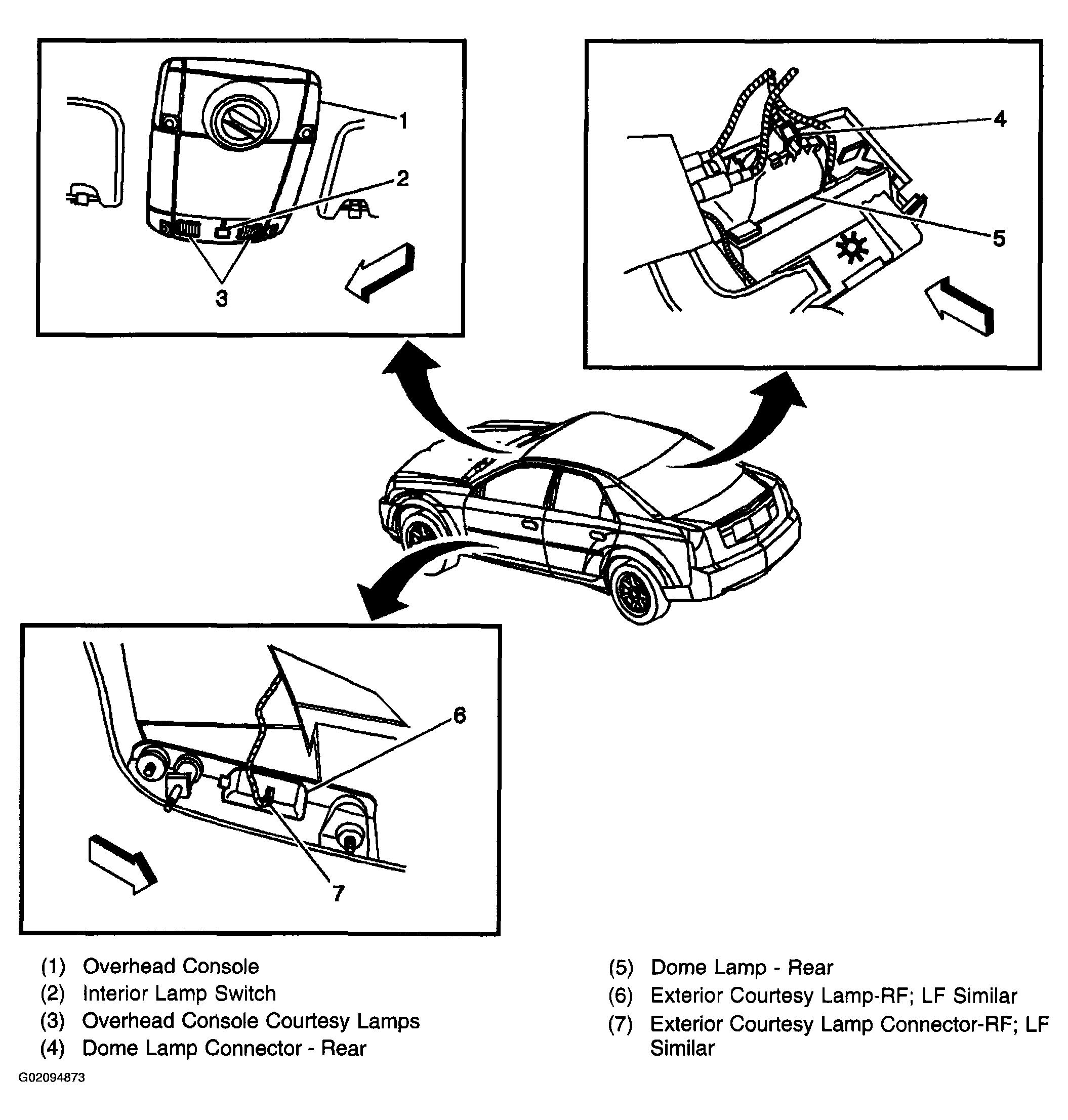

Fig 5: Passenger Compartment Interior Lamps Component View

Courtesy of GENERAL MOTORS CORP.

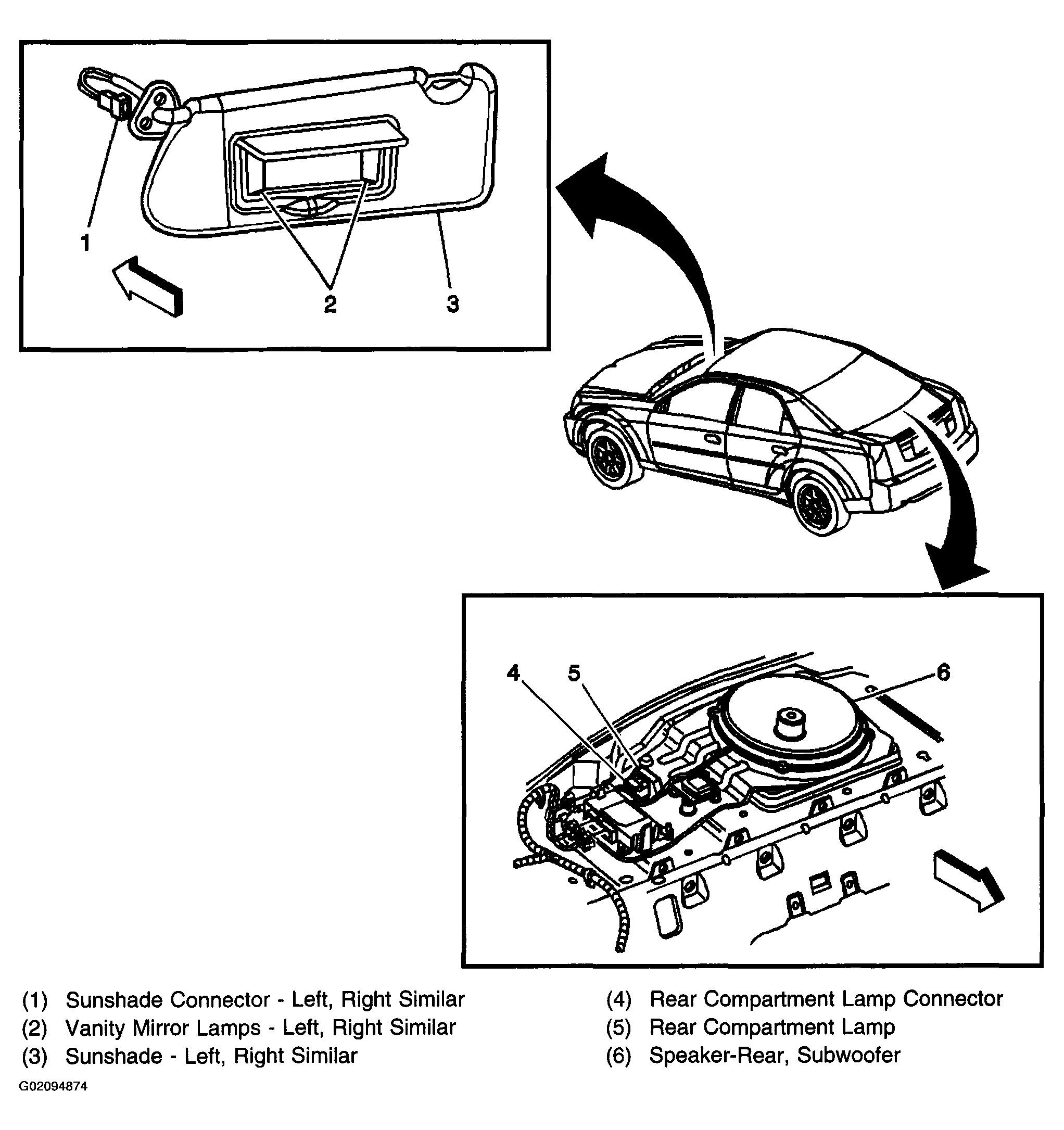

Fig 6: Rear Compartment & Sunshade Lamps Component View

Courtesy of GENERAL MOTORS CORP.
