Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

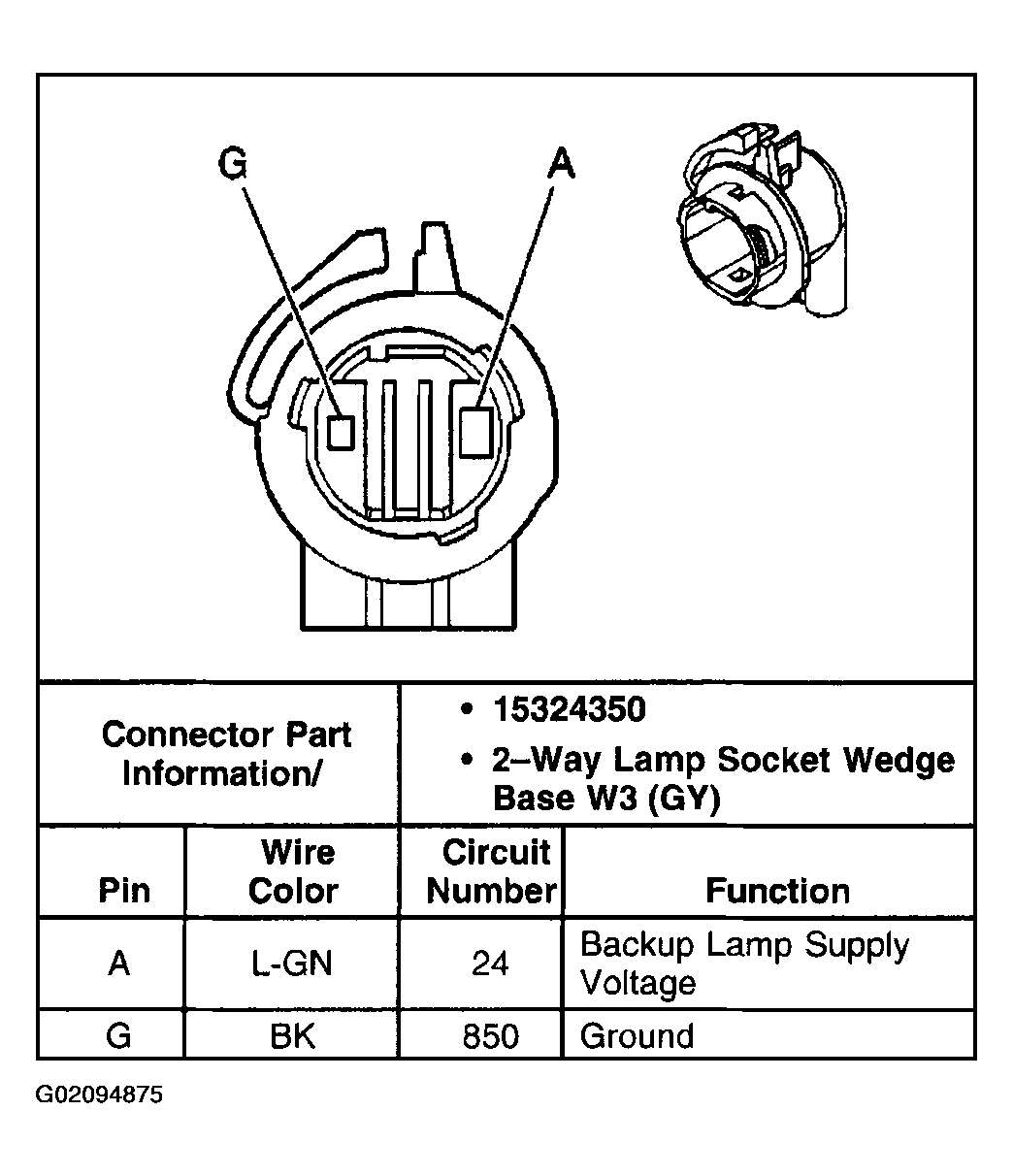

Fig 1: Backup Lamps Connector End View
G02094875Courtesy of GENERAL MOTORS CORP.

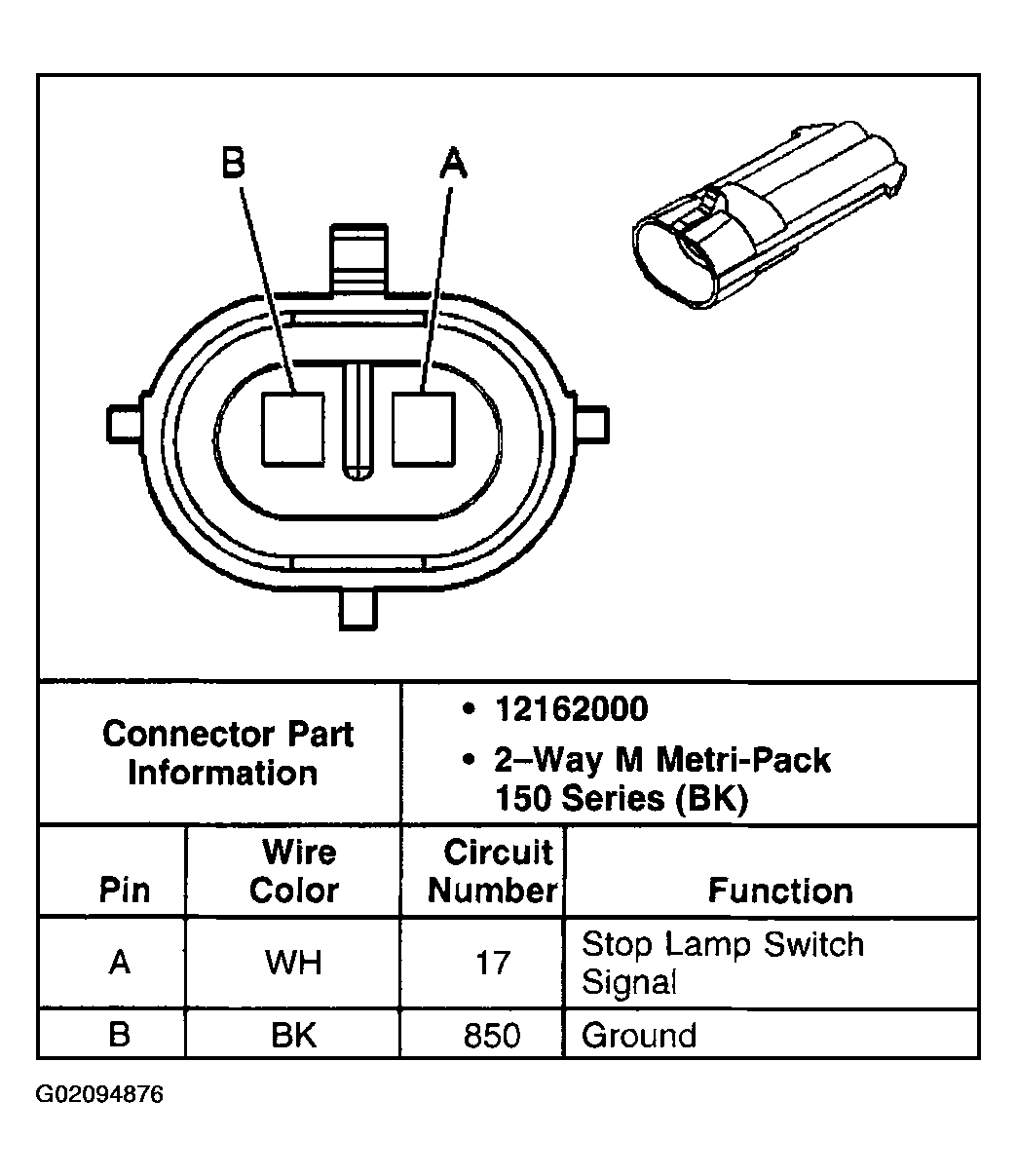

Fig 2: Center High Mounted Stop Lamp Connector End View
G02094876Courtesy of GENERAL MOTORS CORP.

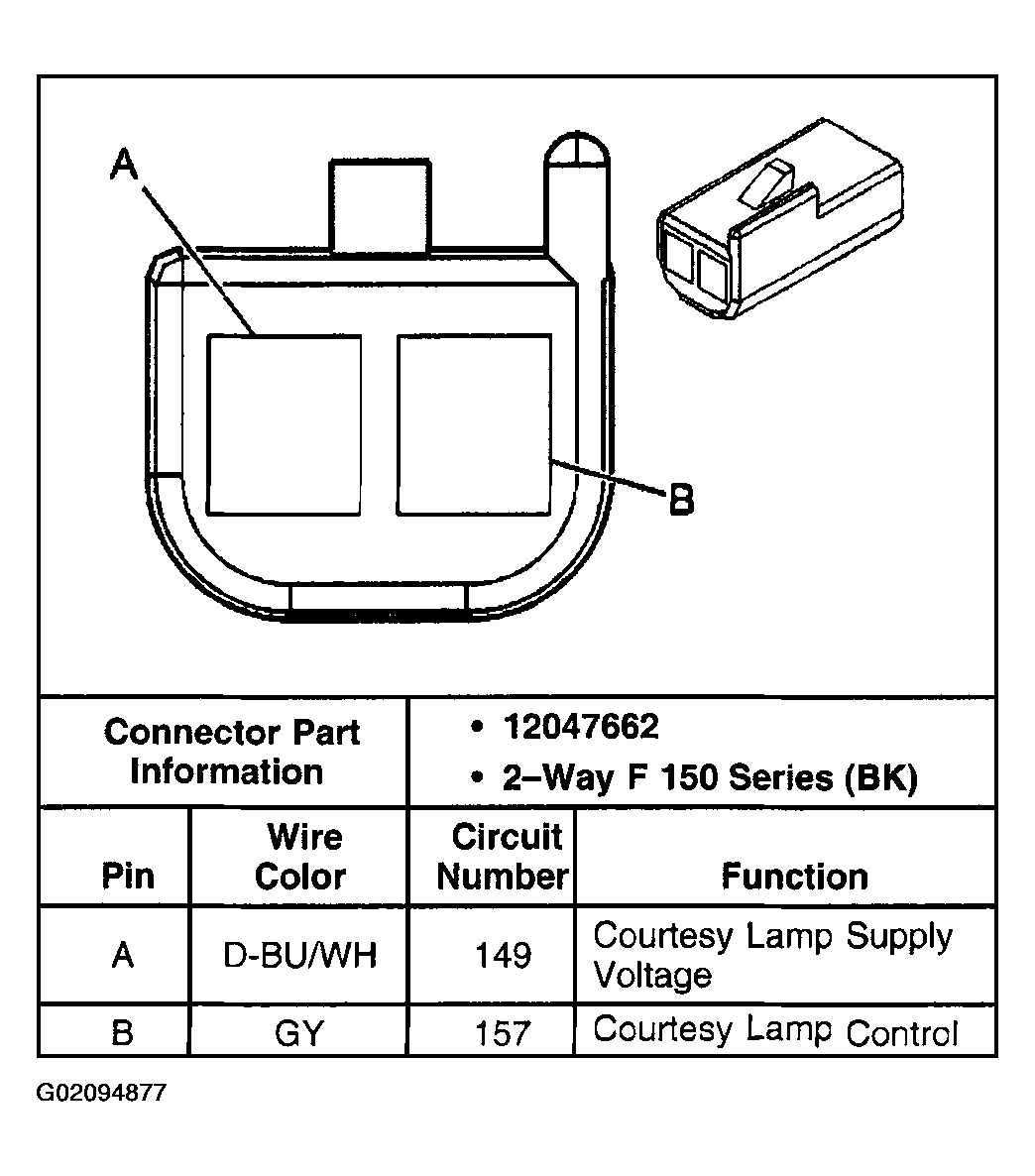

Fig 3: Dome Lamp Connector End View - Rear
G02094877Courtesy of GENERAL MOTORS CORP.

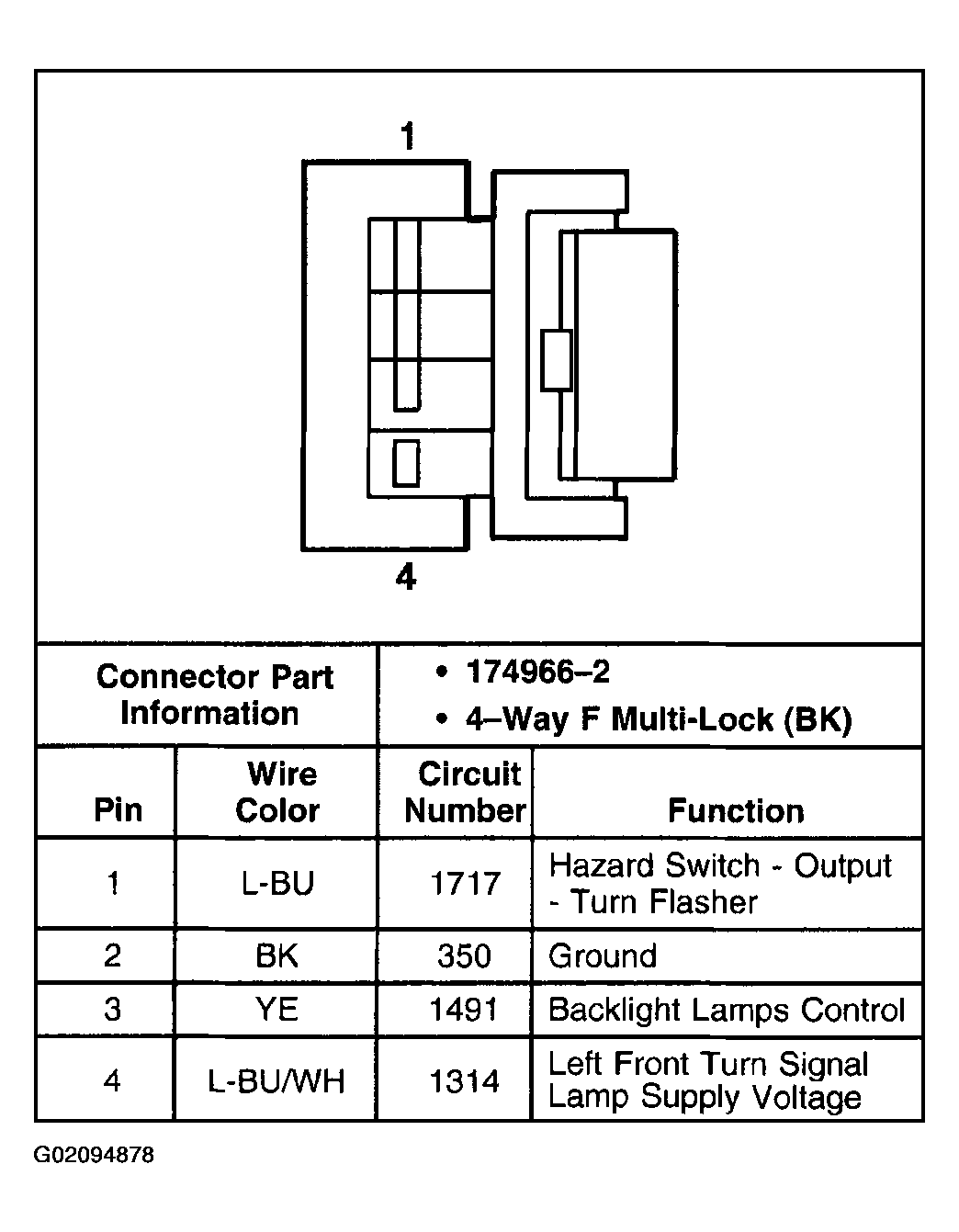

Fig 4: Hazard Switch Connector End View
G02094878Courtesy of GENERAL MOTORS CORP.
Fig 5: Headlamp Assembly Connector End View - Left (W/O HID)
G02094879Courtesy of GENERAL MOTORS CORP.

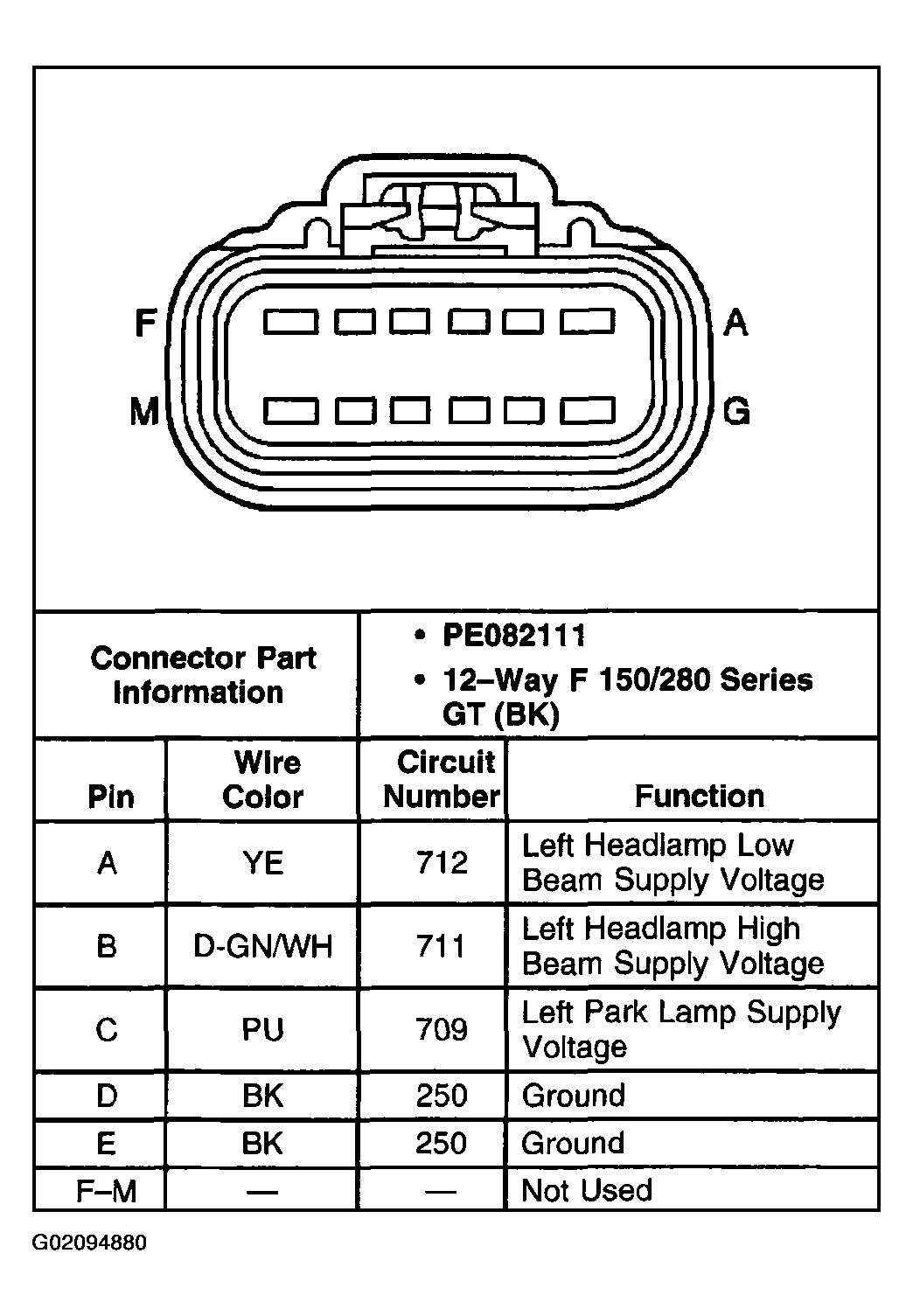

Fig 6: Headlamp Assembly Connector End View - Left (W/HID)
G02094880Courtesy of GENERAL MOTORS CORP.

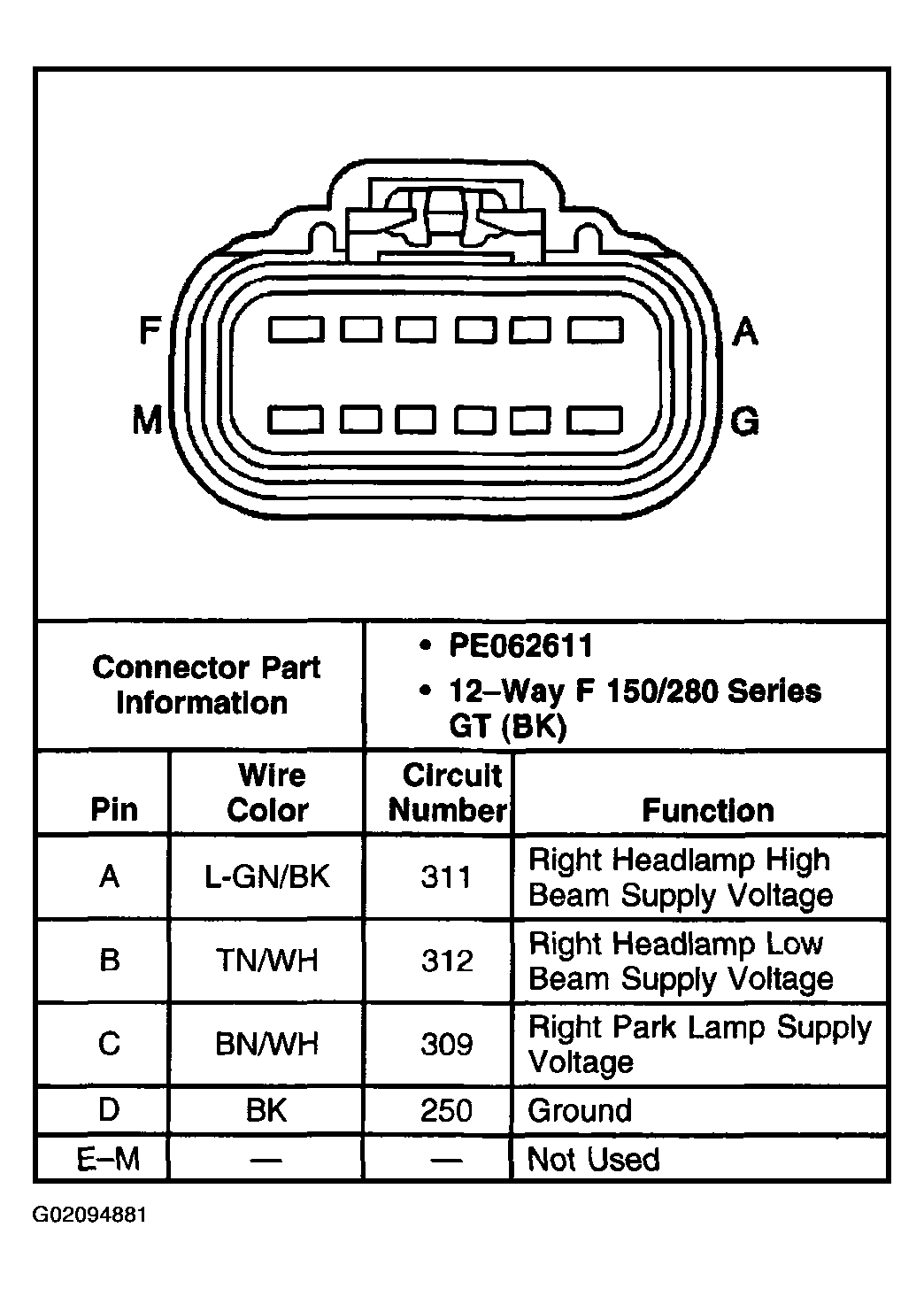

Fig 7: Headlamp Assembly Connector End View - Right (W/O HID)
G02094881Courtesy of GENERAL MOTORS CORP.

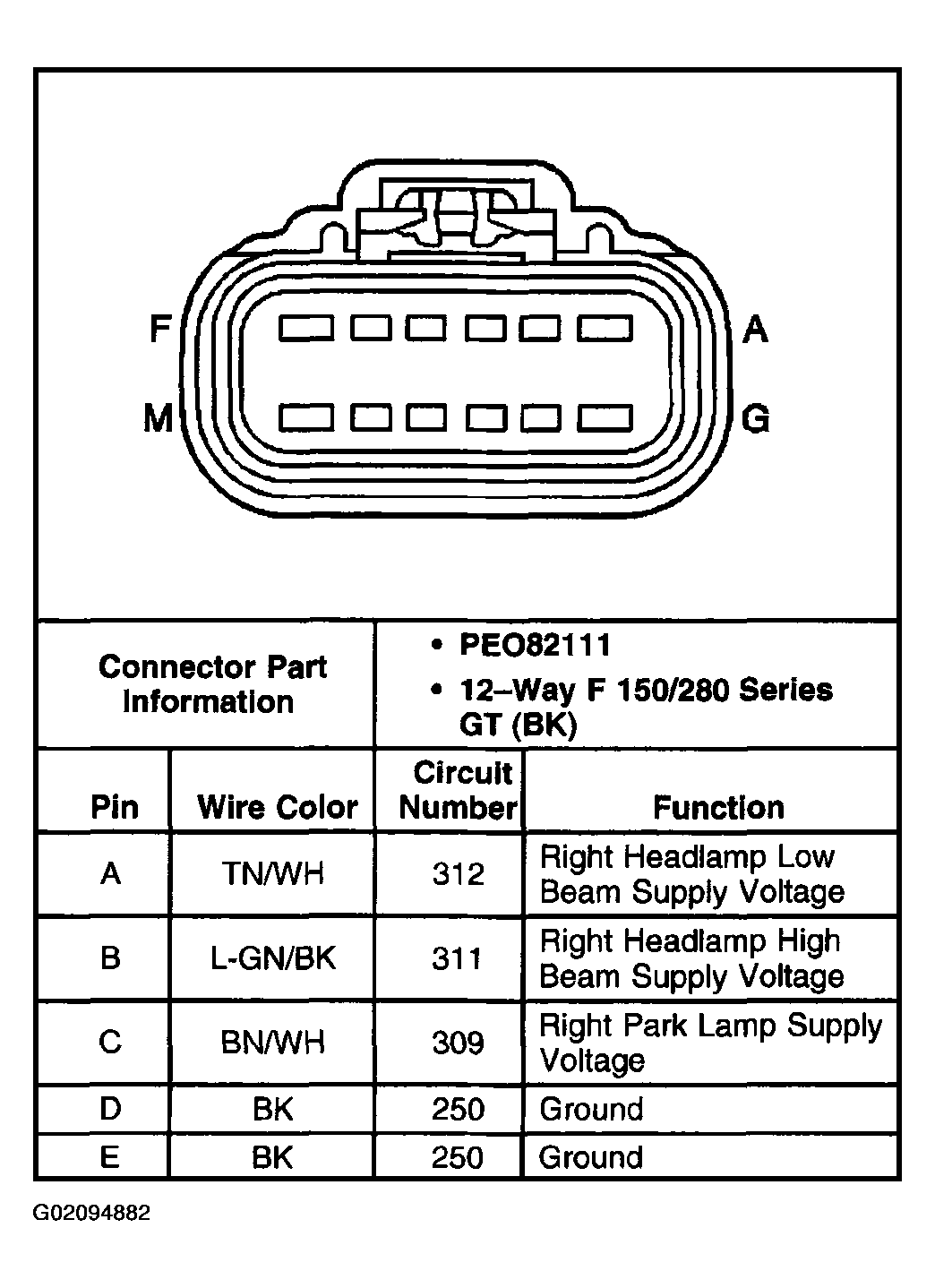

Fig 8: Headlamp Assembly Connector End View - Right (W/HID)
G02094882Courtesy of GENERAL MOTORS CORP.

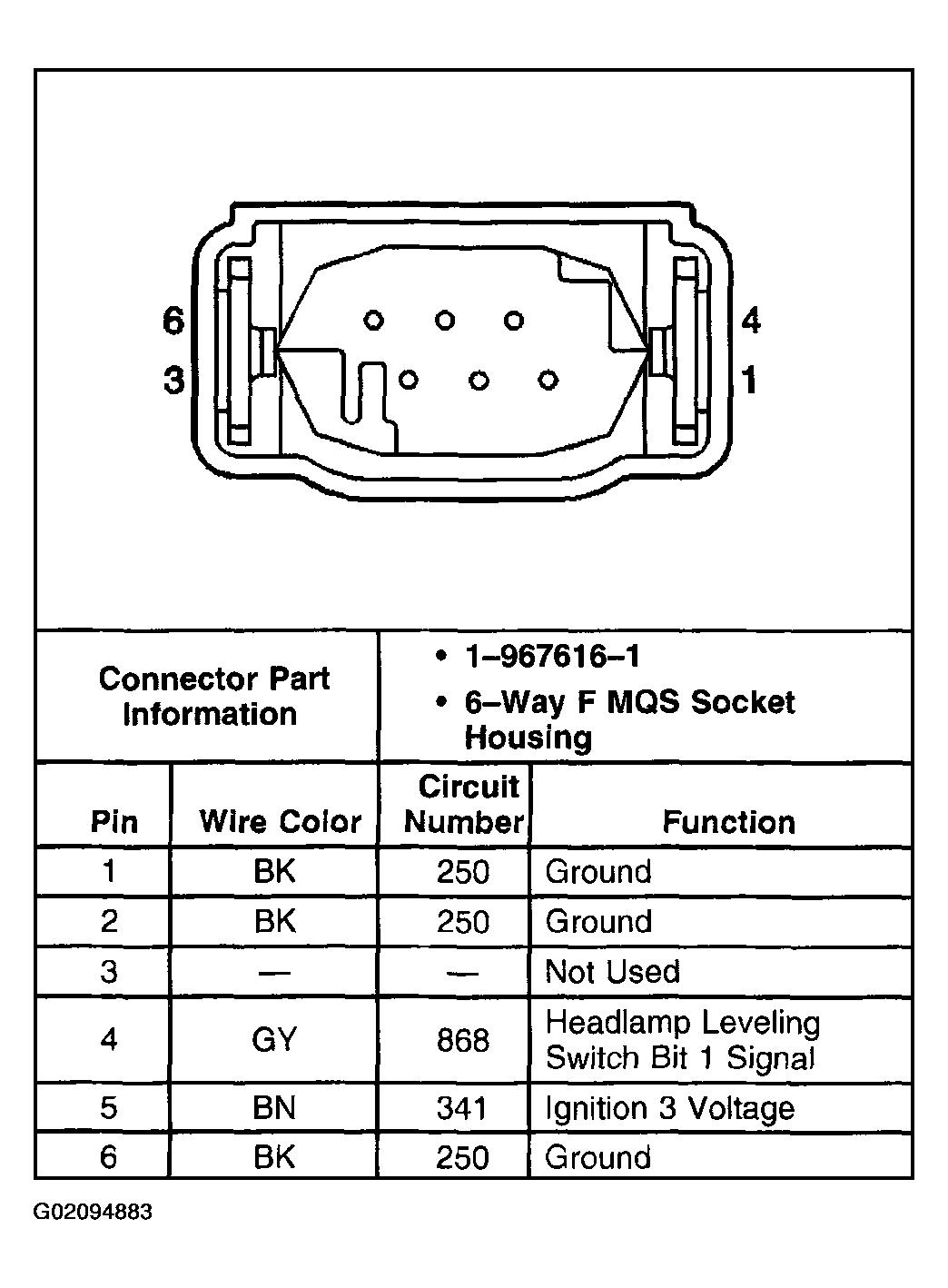

Fig 9: Headlamp Leveling Sensor Connector End View - Front (Export W/TR7)
G02094883Courtesy of GENERAL MOTORS CORP.

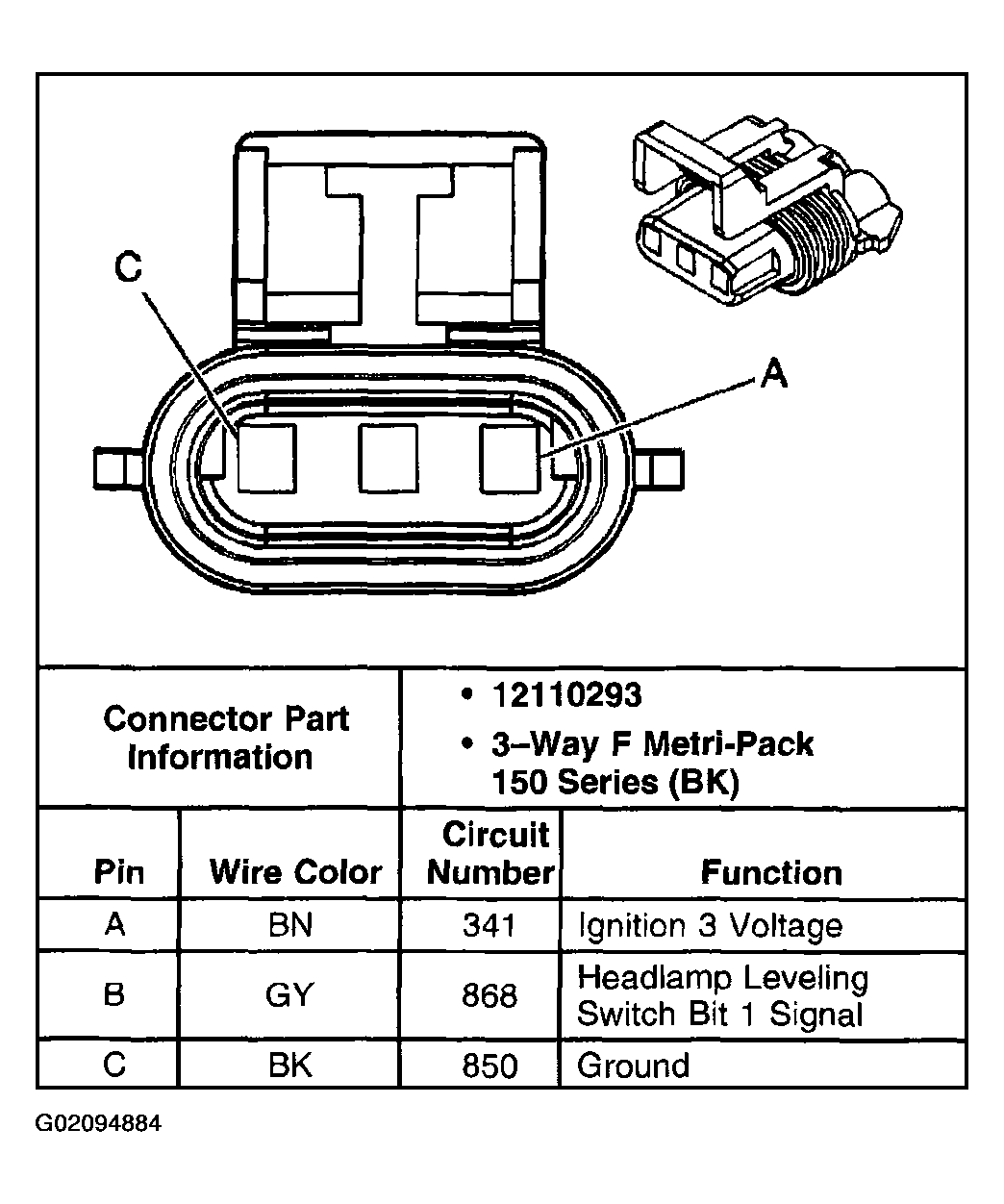

Fig 10: Headlamp Leveling Sensor Connector End View - Rear (Export W/TR7)
G02094884Courtesy of GENERAL MOTORS CORP.

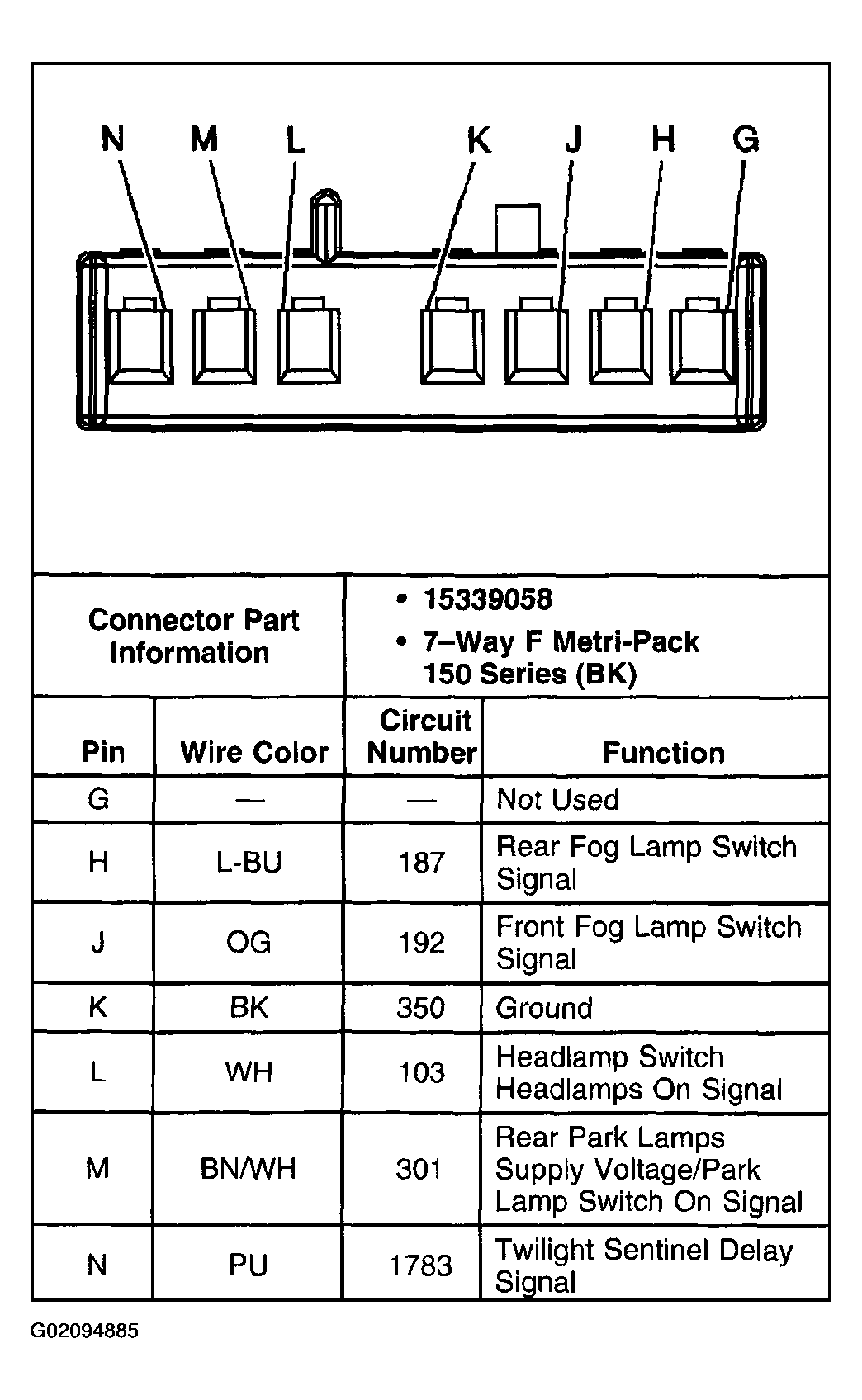

Fig 11: Headlamp Switch C1 Connector End View
G02094885Courtesy of GENERAL MOTORS CORP.

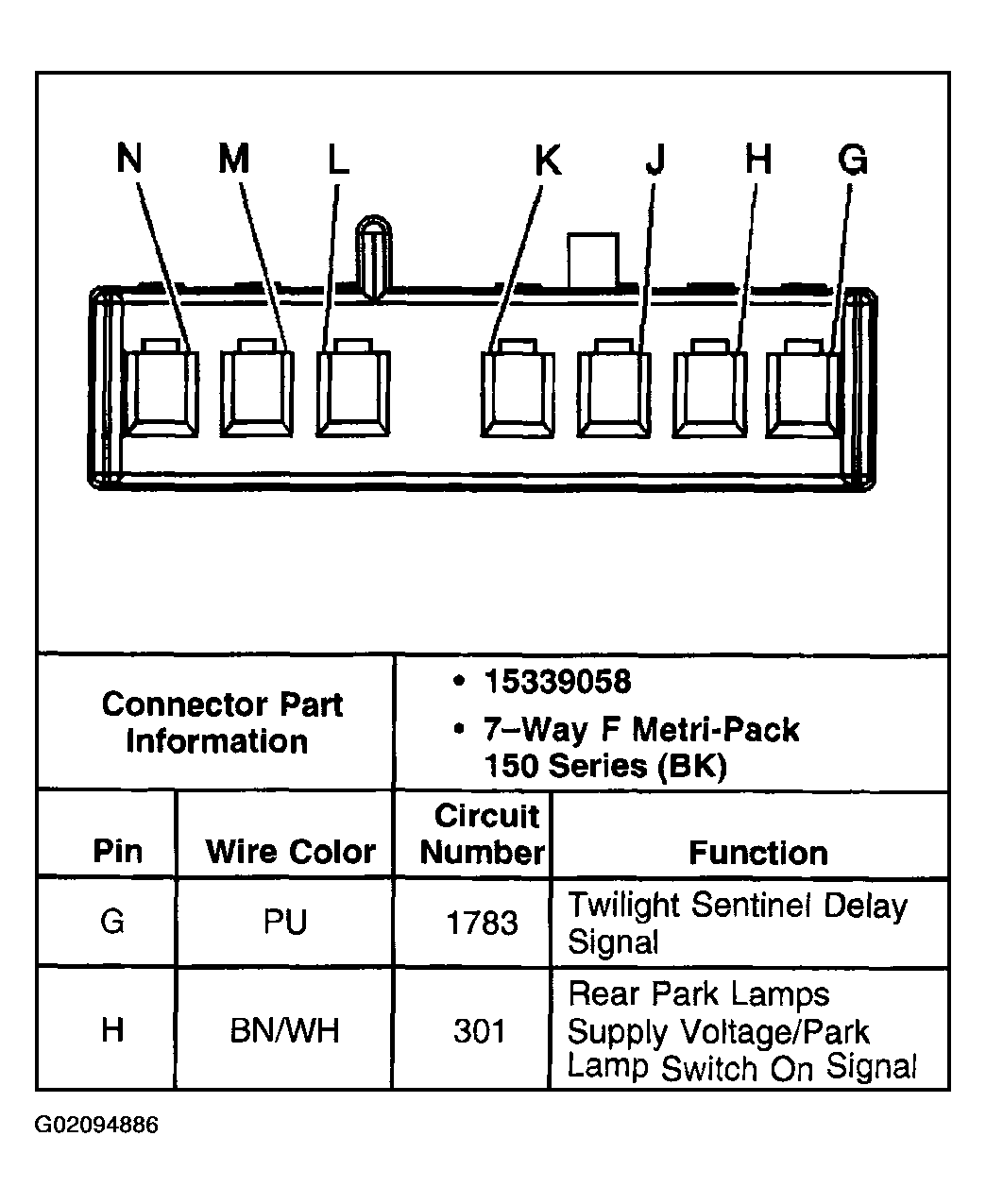

Fig 12: Headlamp Switch C1 (RHD) Connector End View (1 Of 2)
G02094886Courtesy of GENERAL MOTORS CORP.

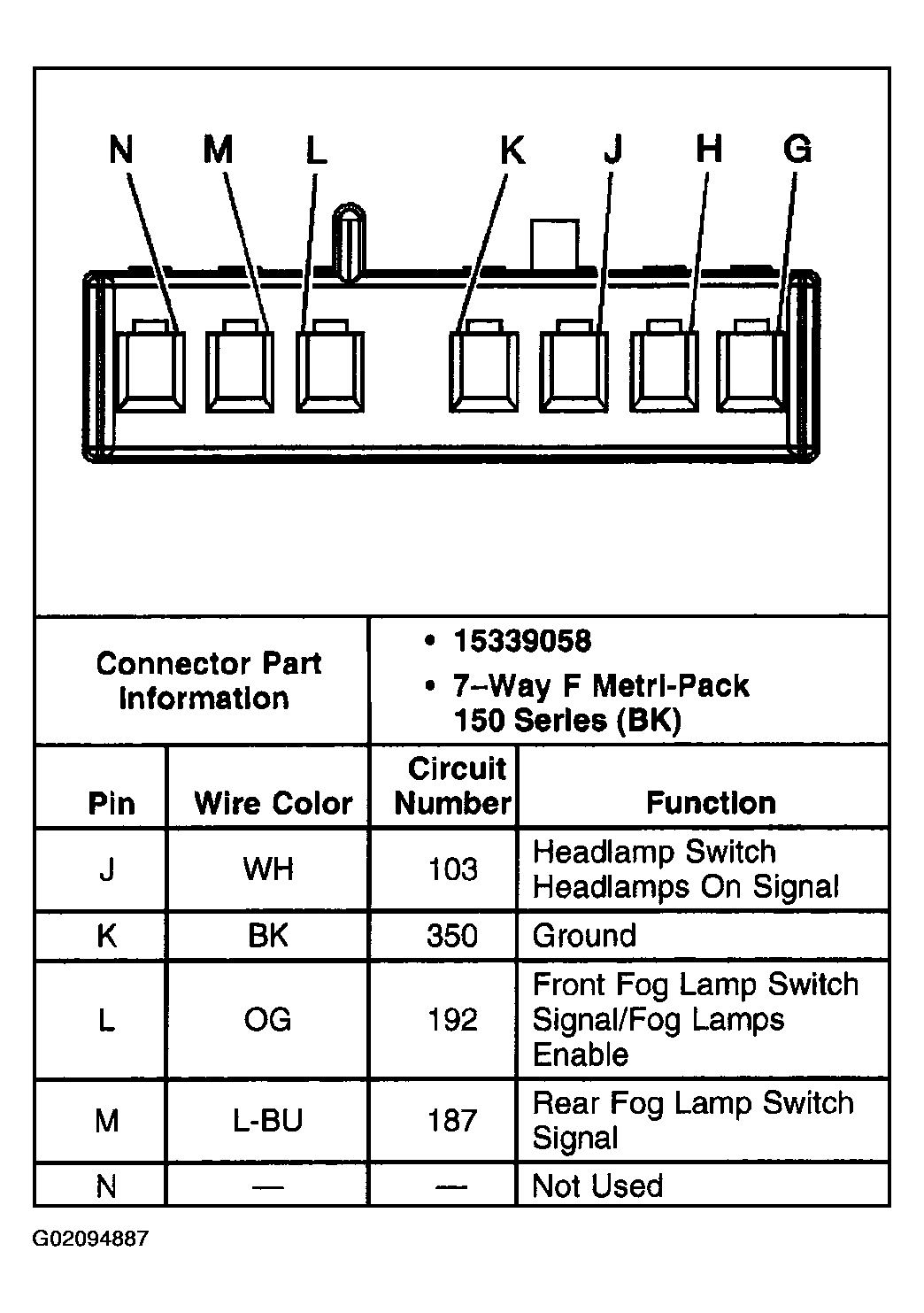

Fig 13: Headlamp Switch C1 (RHD) Connector End View (2 Of 2)
G02094887Courtesy of GENERAL MOTORS CORP.

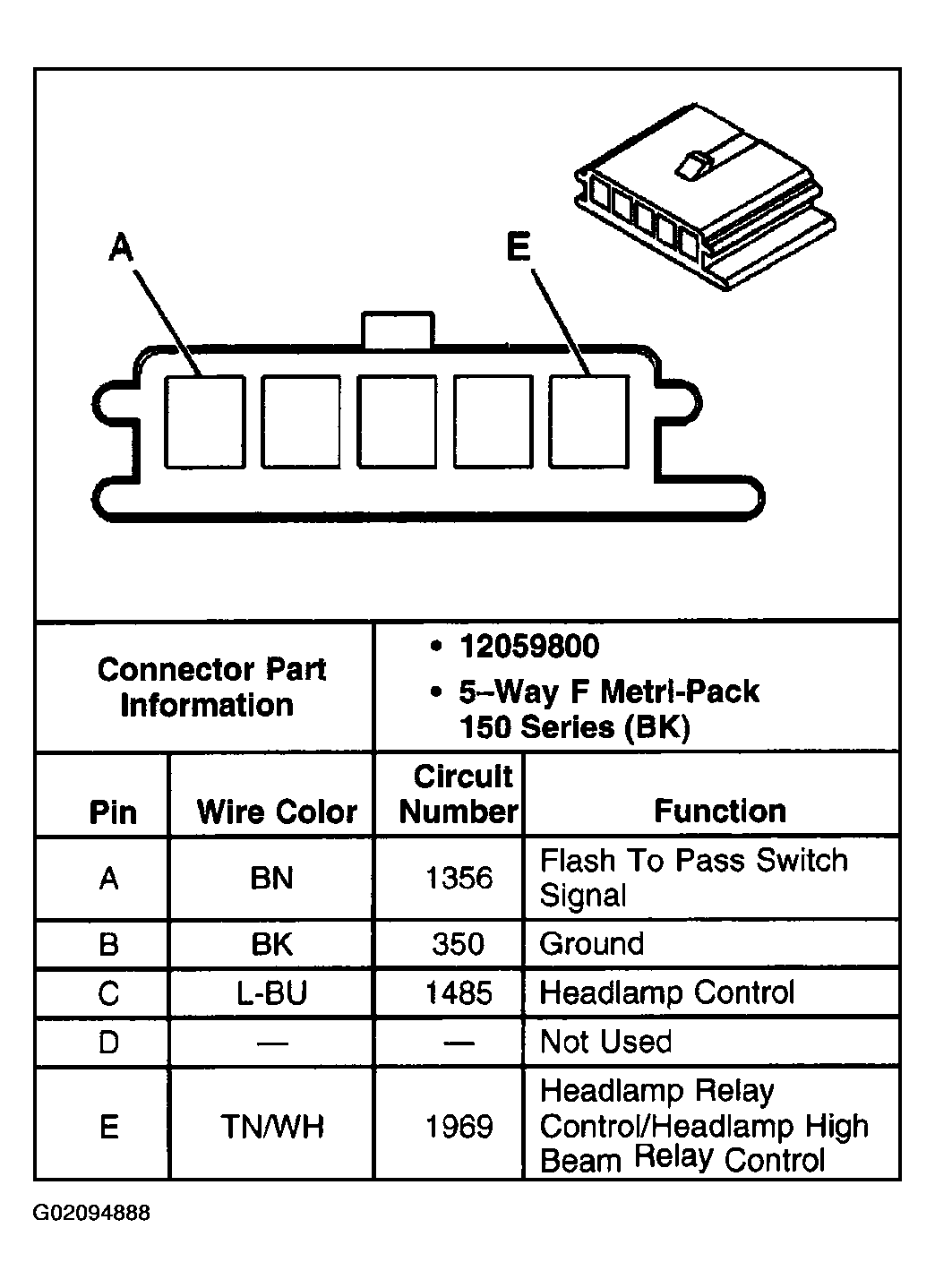

Fig 14: Headlamp Switch C2 Connector End View
G02094888Courtesy of GENERAL MOTORS CORP.

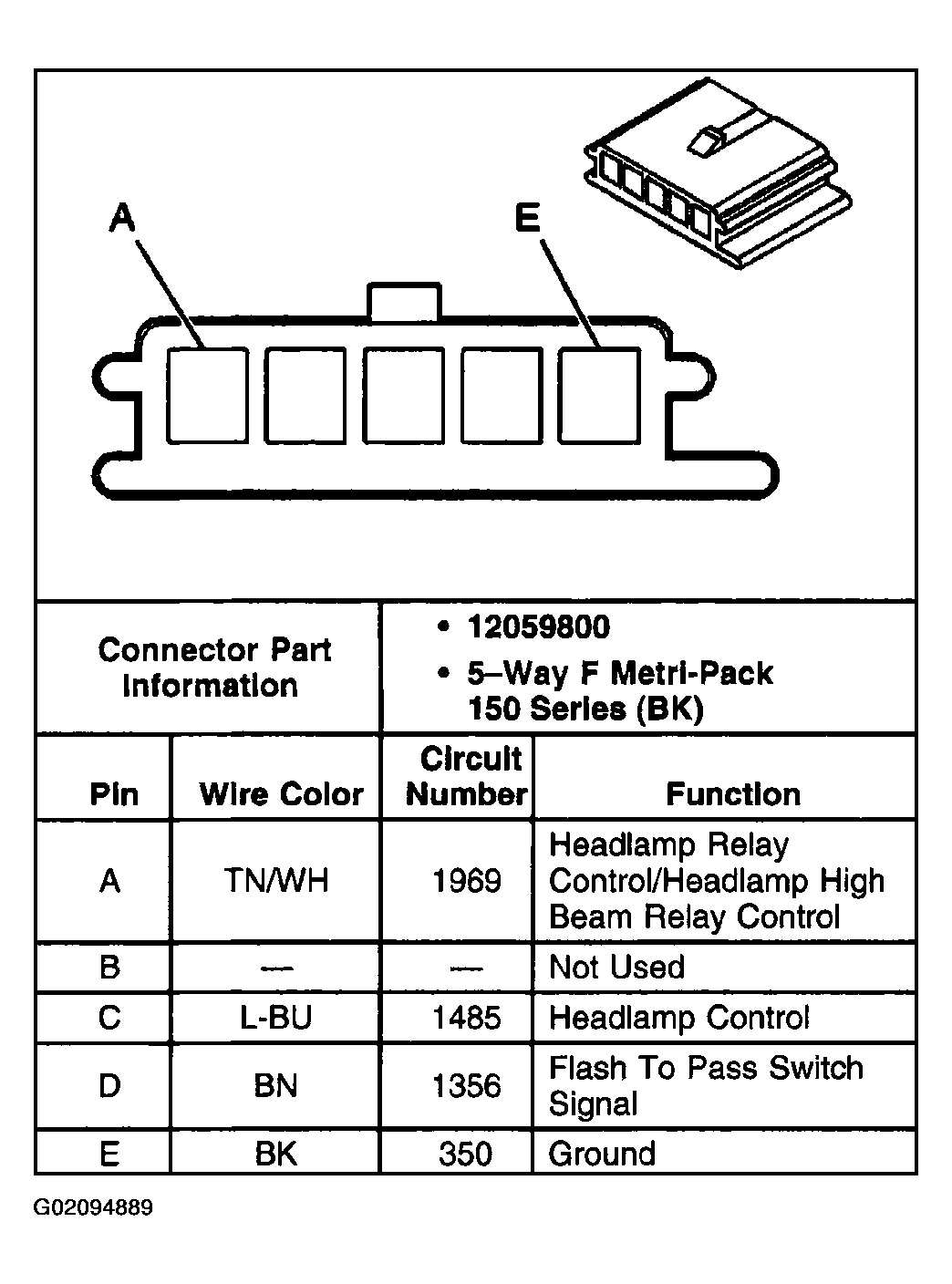

Fig 15: Headlamp Switch C2 (RHD) Connector End View
G02094889Courtesy of GENERAL MOTORS CORP.

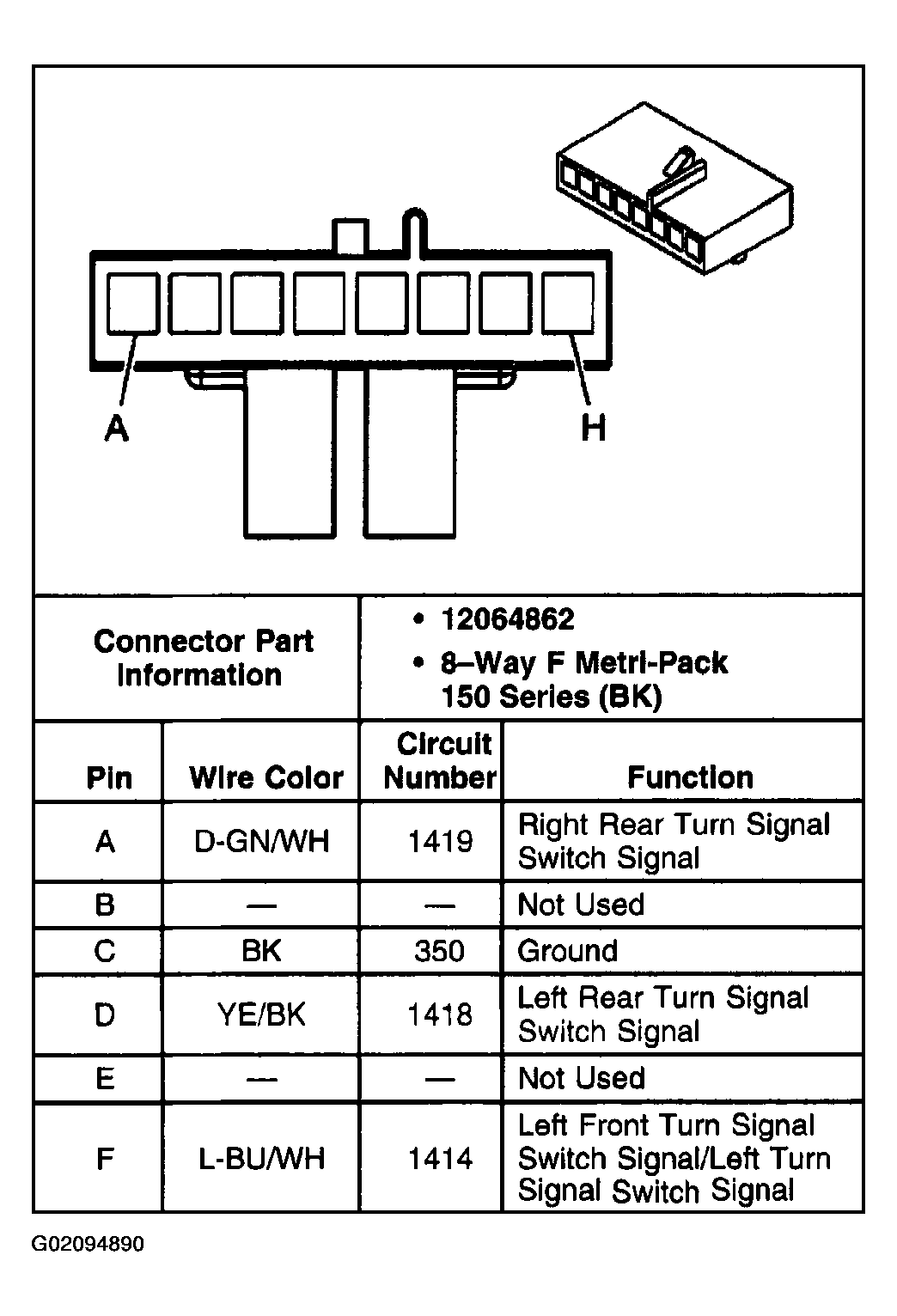

Fig 16: Headlamp Switch C3 Connector End View (1 Of 2)
G02094890Courtesy of GENERAL MOTORS CORP.

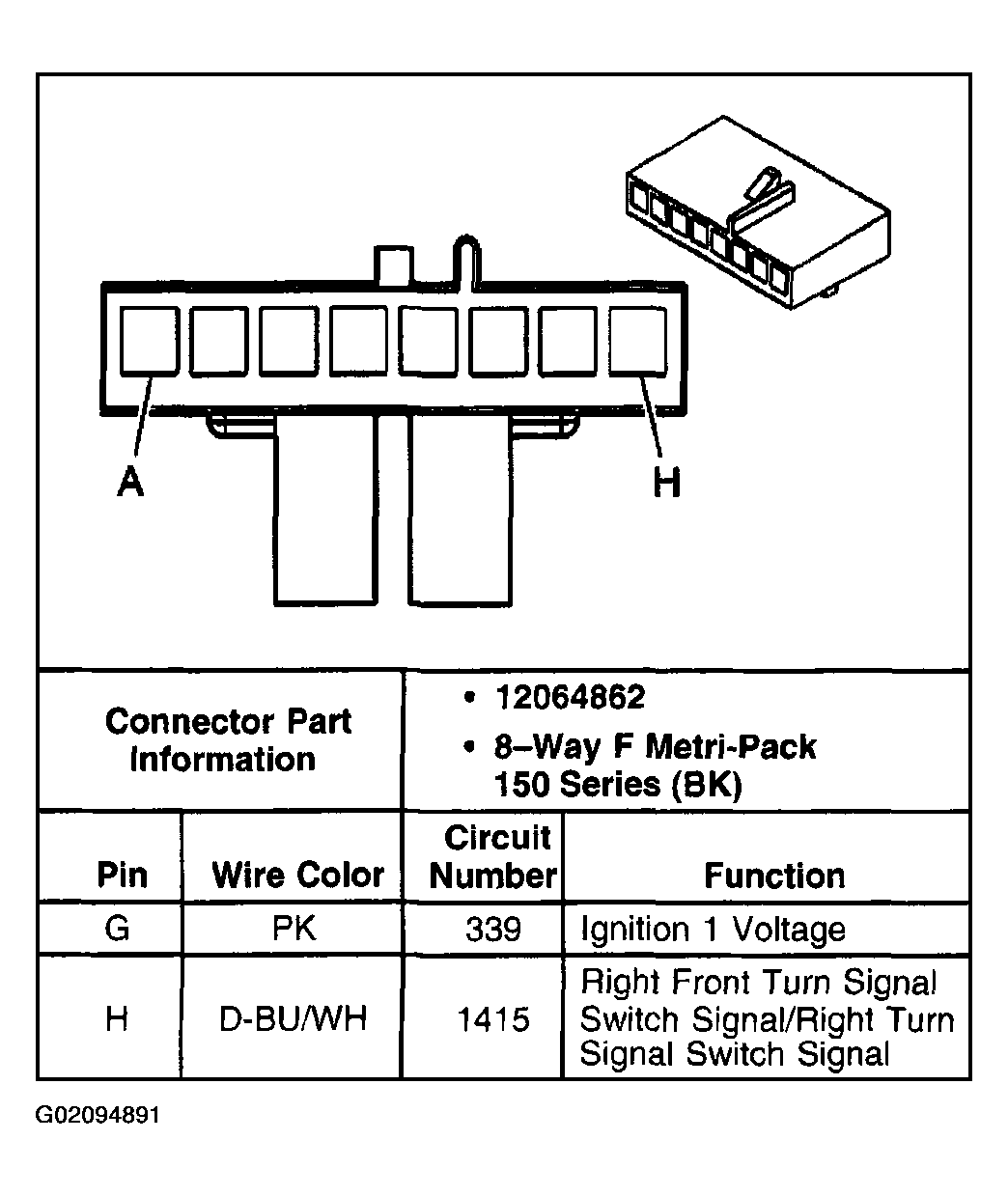

Fig 17: Headlamp Switch C3 Connector End View (2 Of 2)
G02094891Courtesy of GENERAL MOTORS CORP.

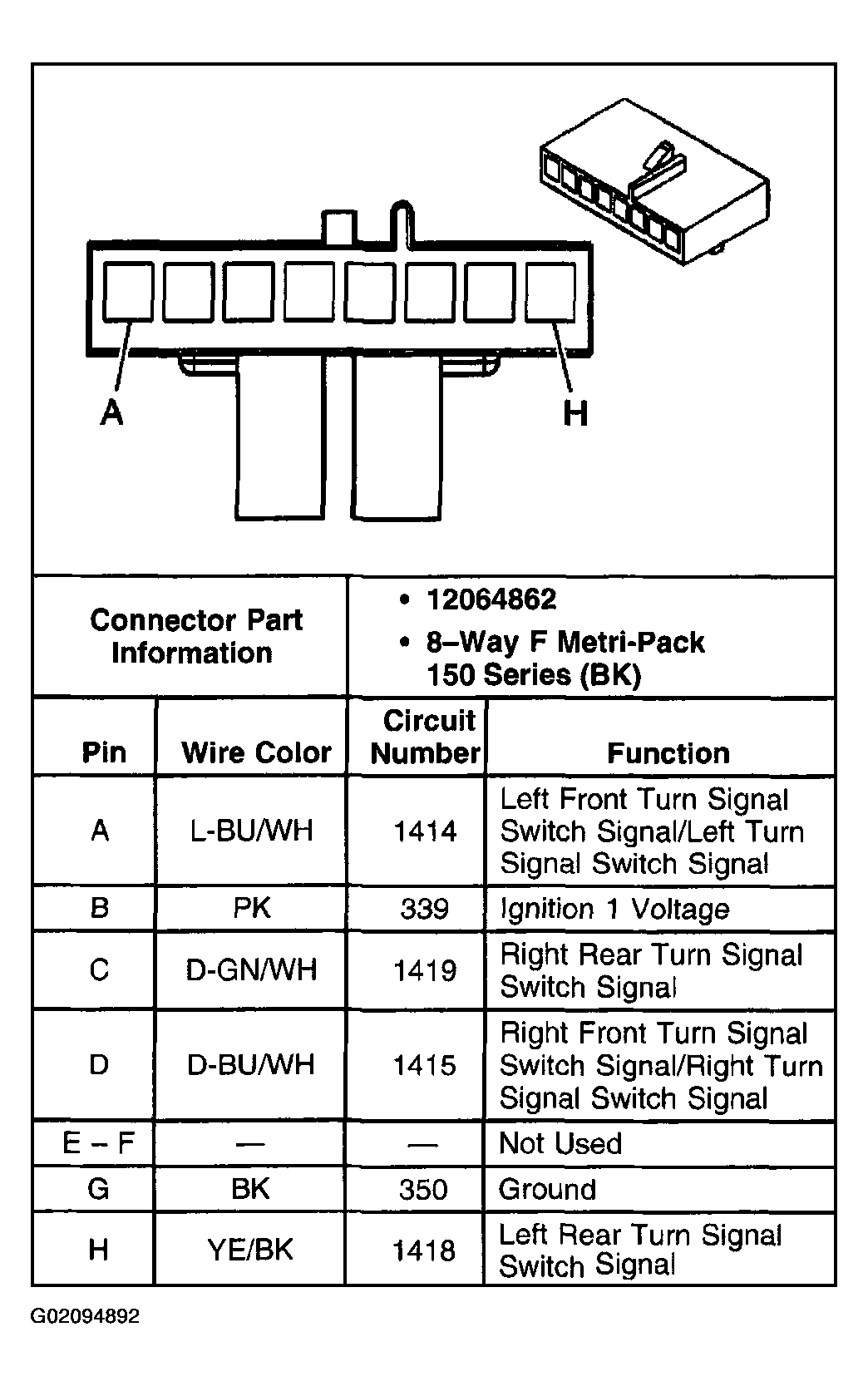

Fig 18: Headlamp Switch C3 (RHD) Connector End View
G02094892Courtesy of GENERAL MOTORS CORP.

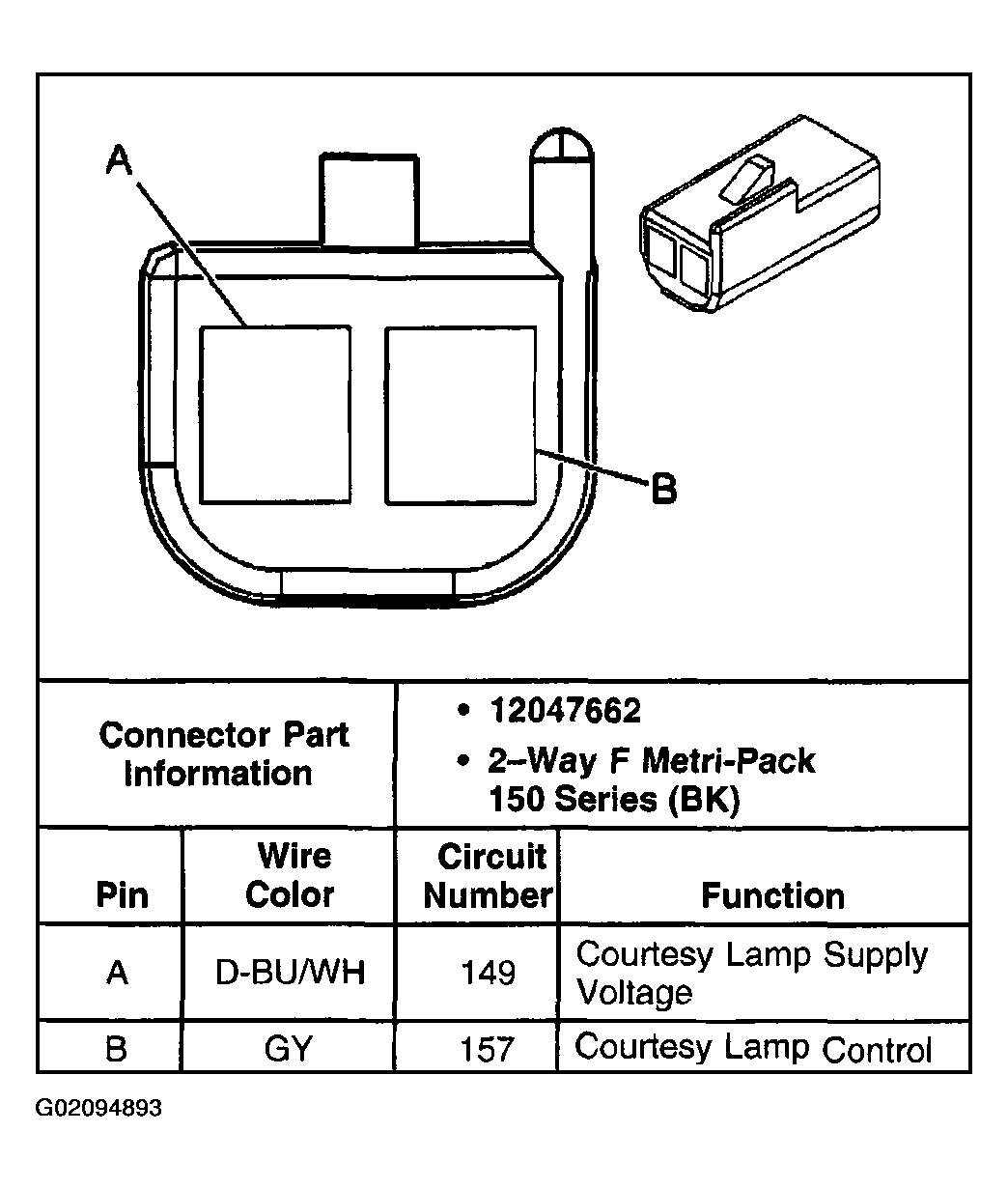

Fig 19: Exterior Courtesy Lamp Connector End View - LF
G02094893Courtesy of GENERAL MOTORS CORP.

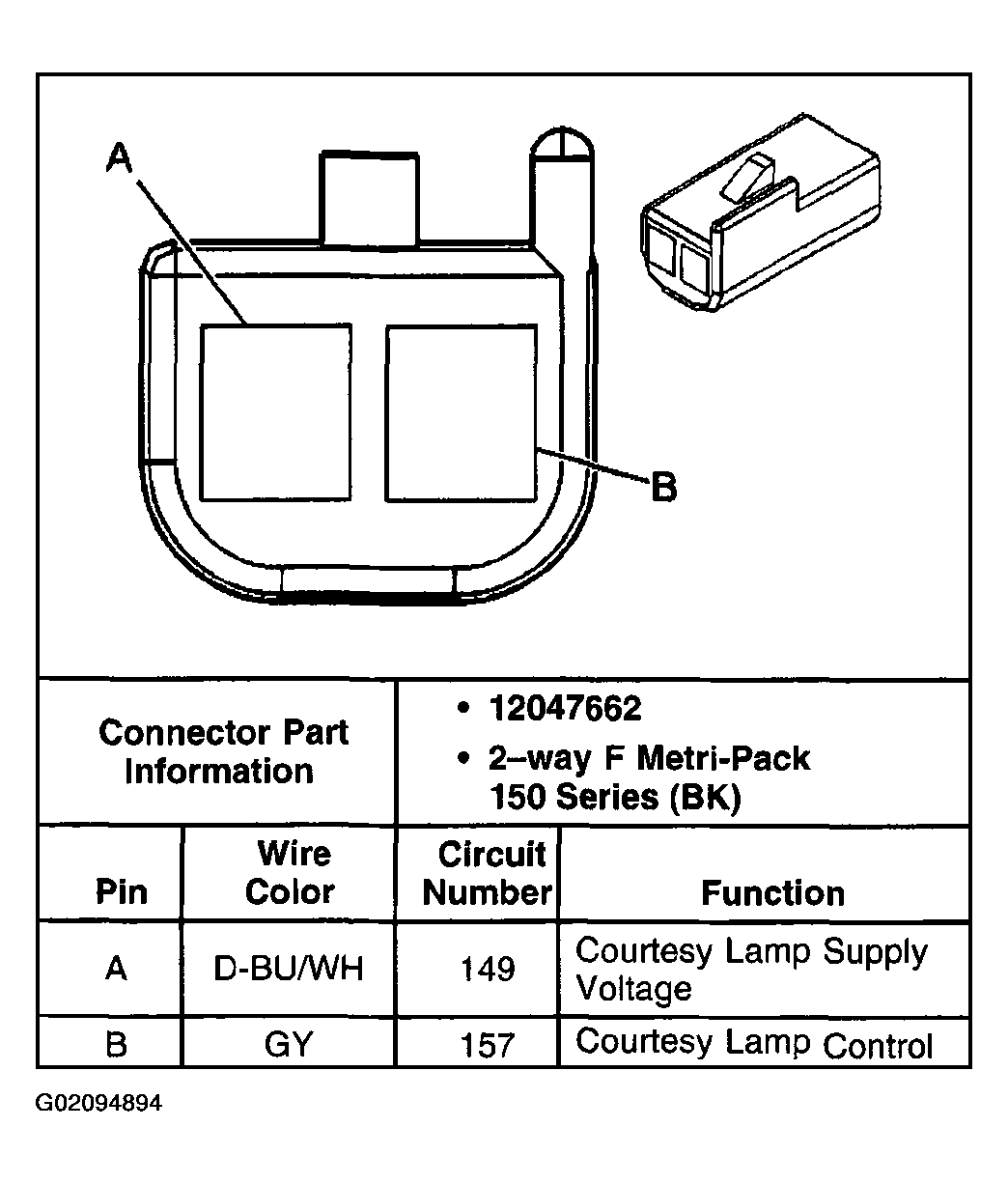

Fig 20: Exterior Courtesy Lamp Connector End View - RF
G02094894Courtesy of GENERAL MOTORS CORP.

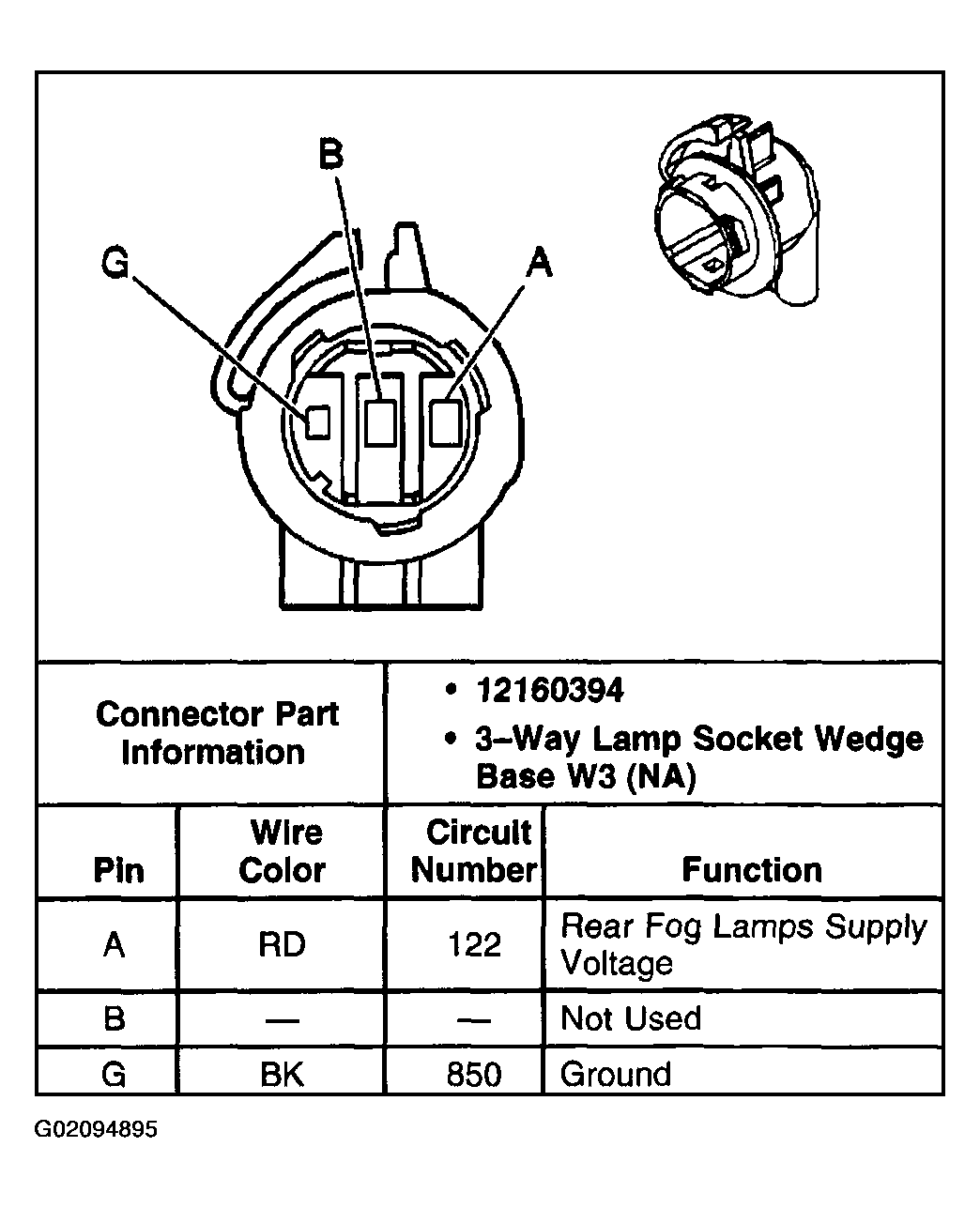

Fig 21: Fog Lamps Connector End View - Rear
G02094895Courtesy of GENERAL MOTORS CORP.

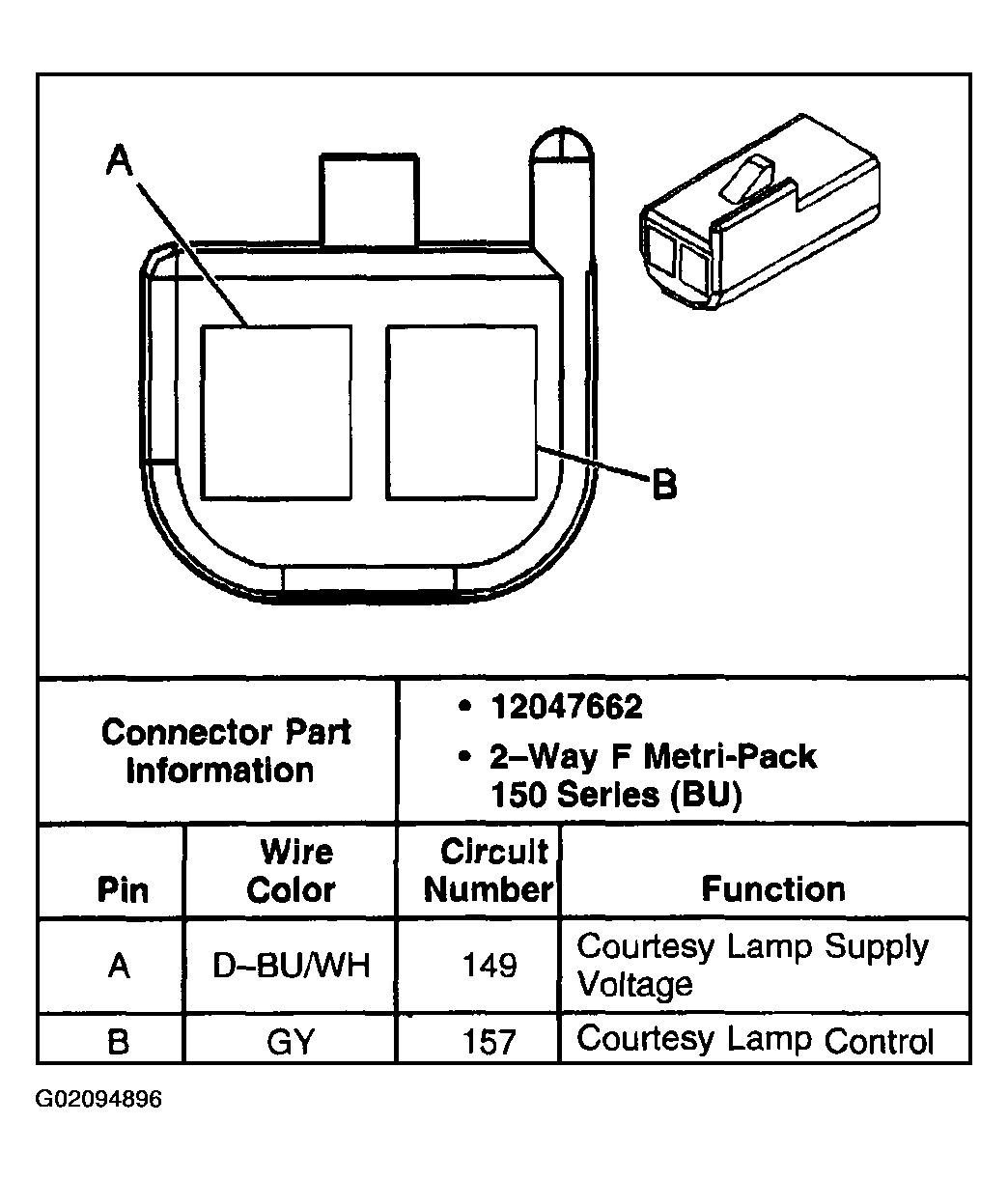

Fig 22: Foot Well Courtesy Lamp Connector End View - Left
G02094896Courtesy of GENERAL MOTORS CORP.

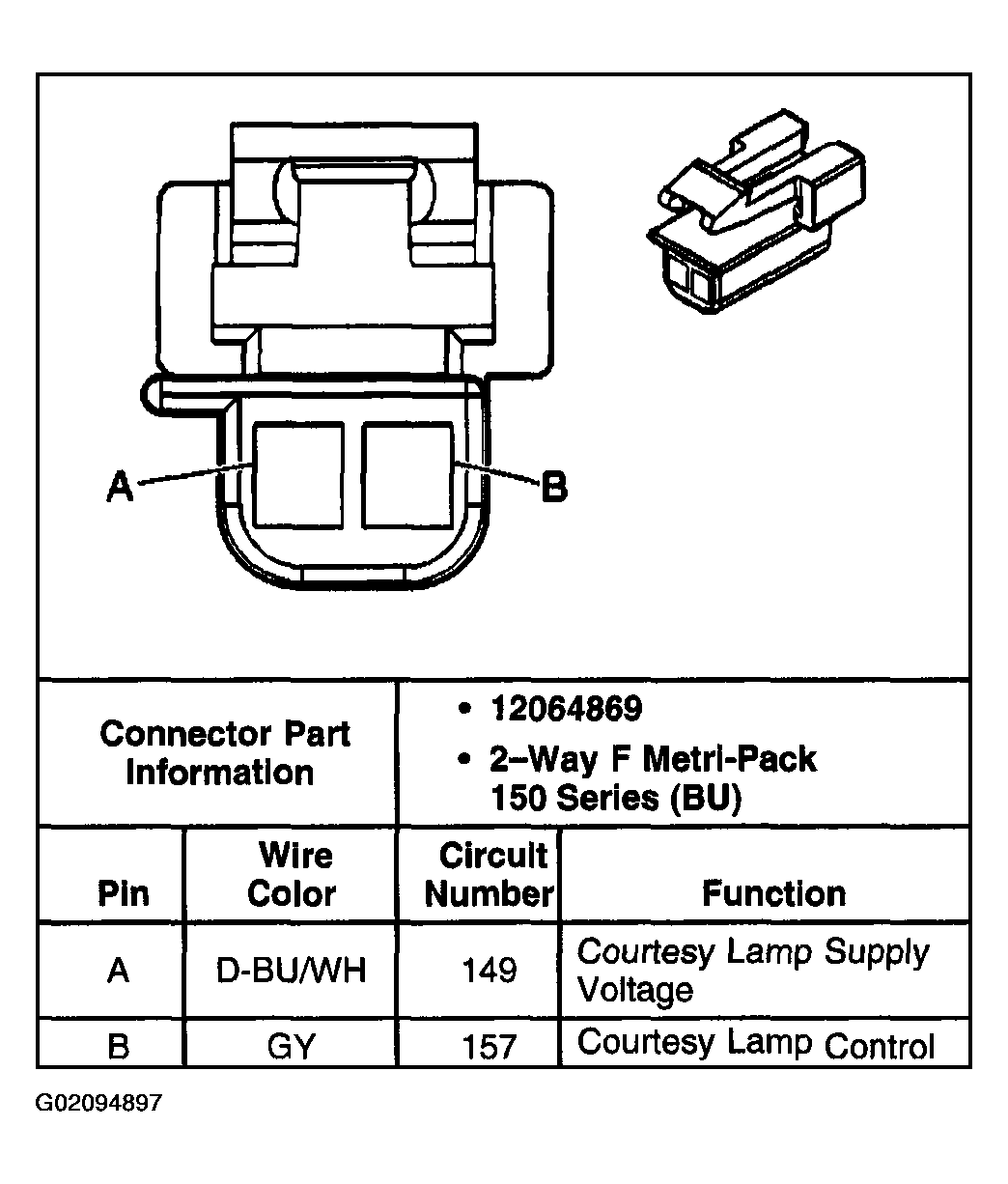

Fig 23: Foot Well Courtesy Lamp Connector End View - Right
G02094897Courtesy of GENERAL MOTORS CORP.

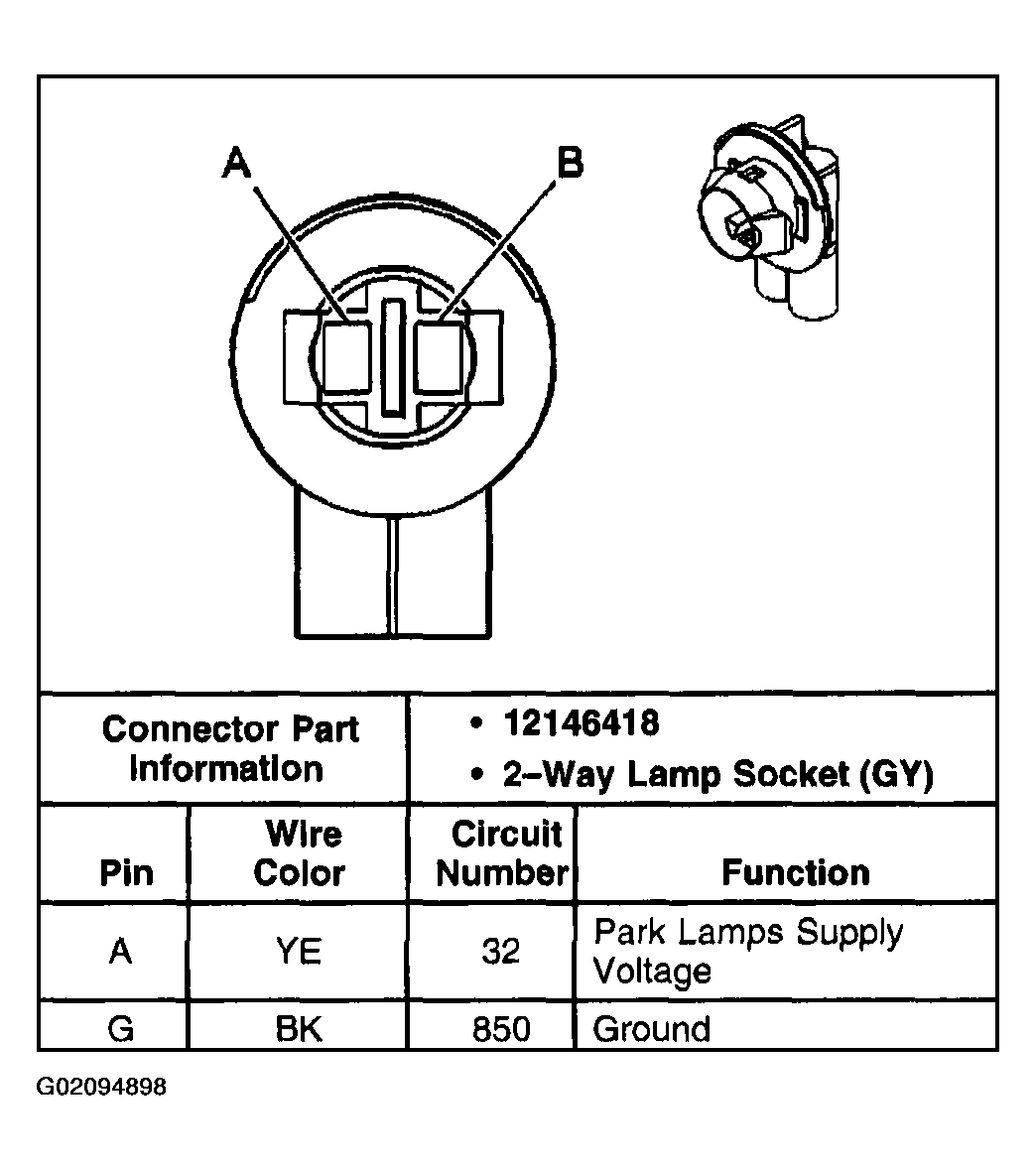

Fig 24: License Lamps Connector End View
G02094898Courtesy of GENERAL MOTORS CORP.

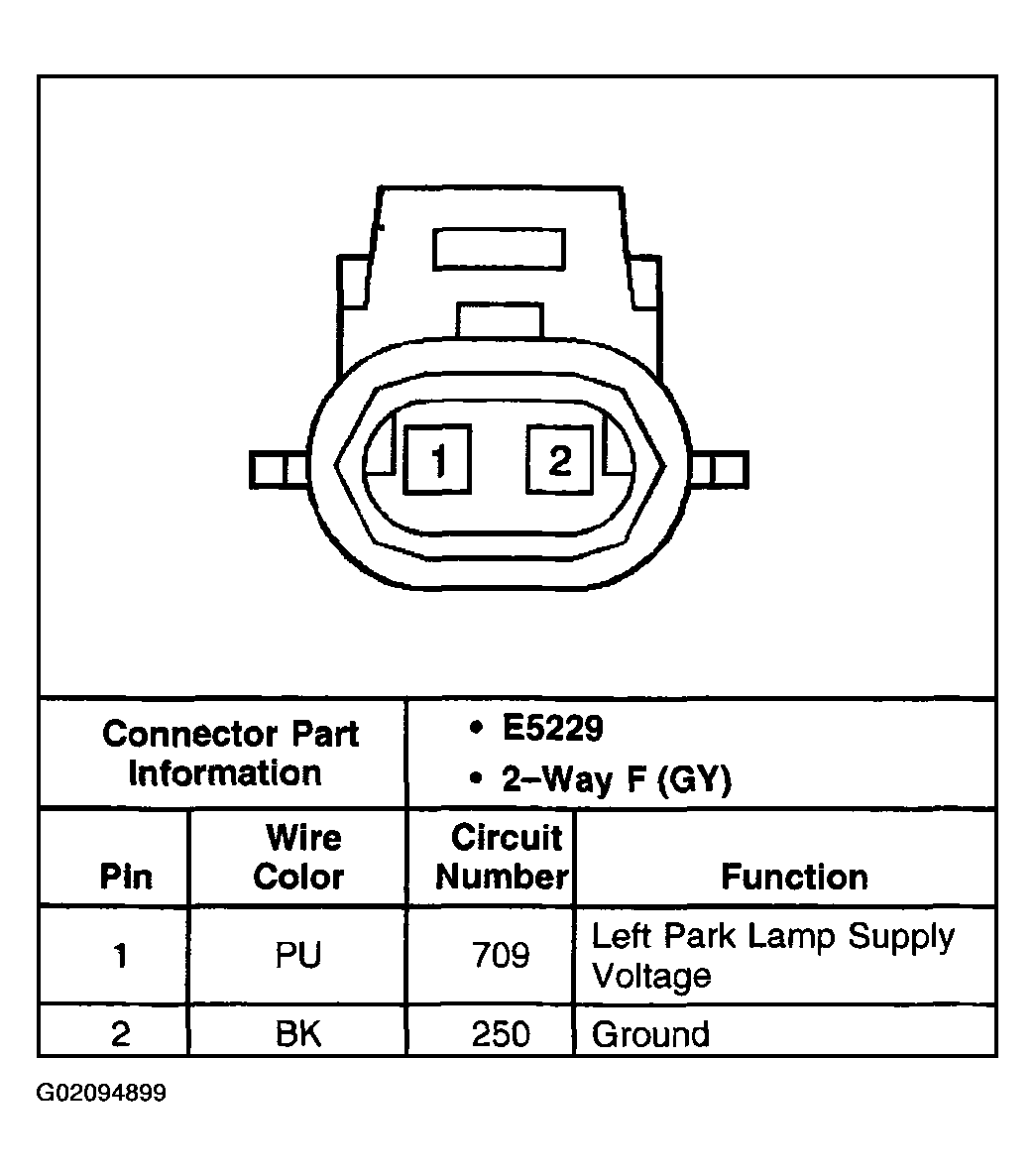

Fig 25: Marker Lamp Connector End View - LF
G02094899Courtesy of GENERAL MOTORS CORP.

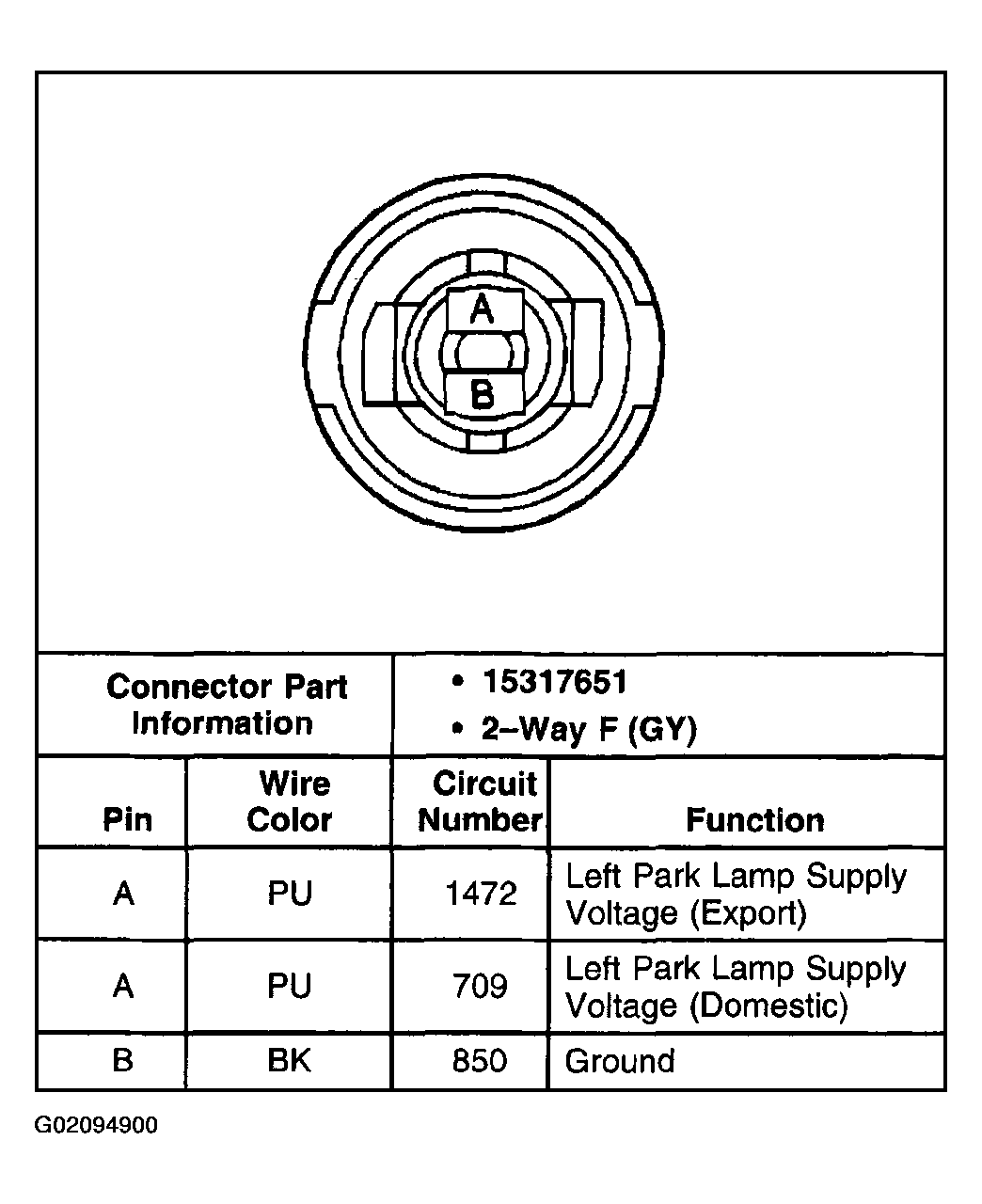

Fig 26: Marker Lamp Connector End View - LR
G02094900Courtesy of GENERAL MOTORS CORP.

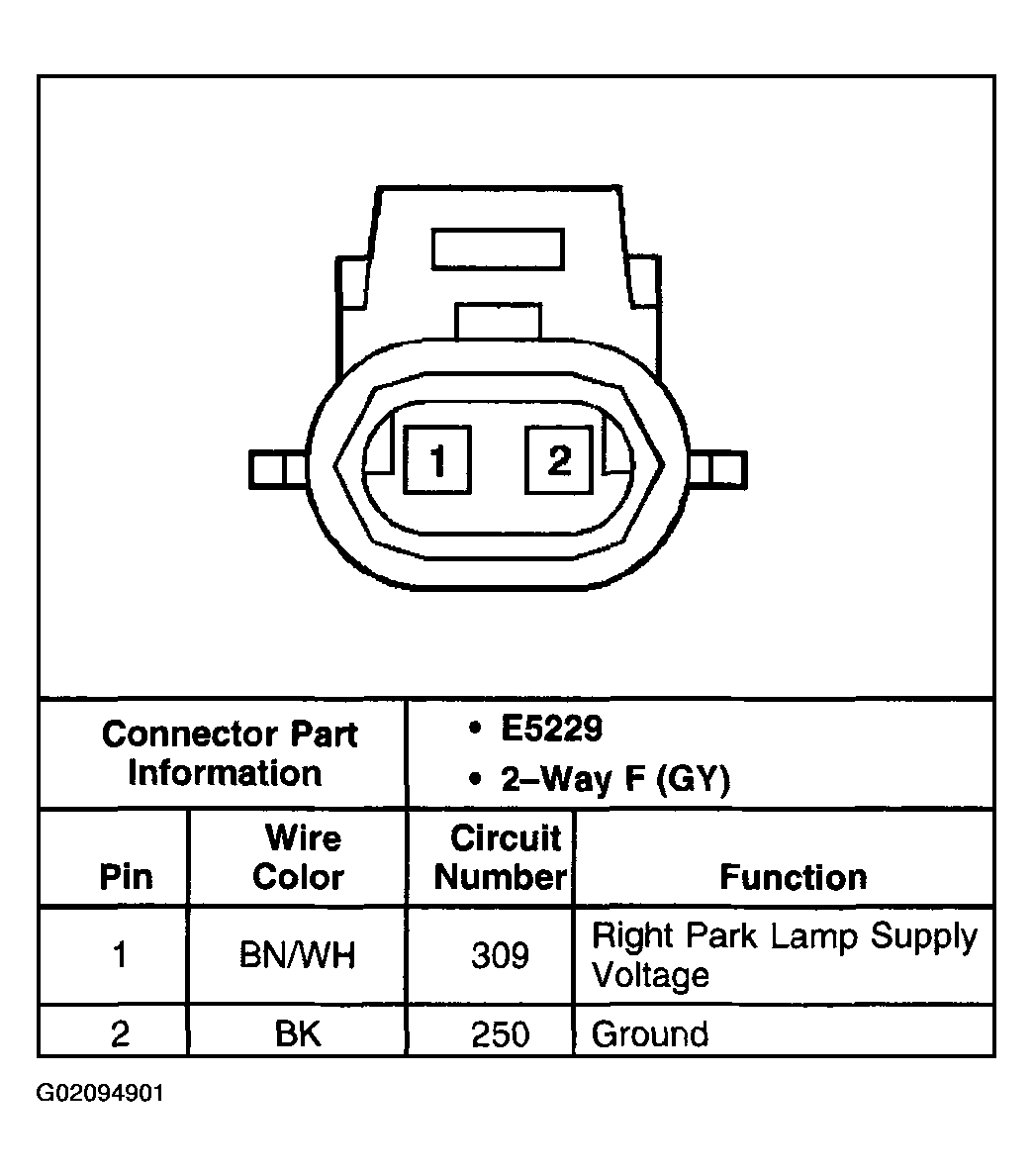

Fig 27: Marker Lamp Connector End View - RF
G02094901Courtesy of GENERAL MOTORS CORP.

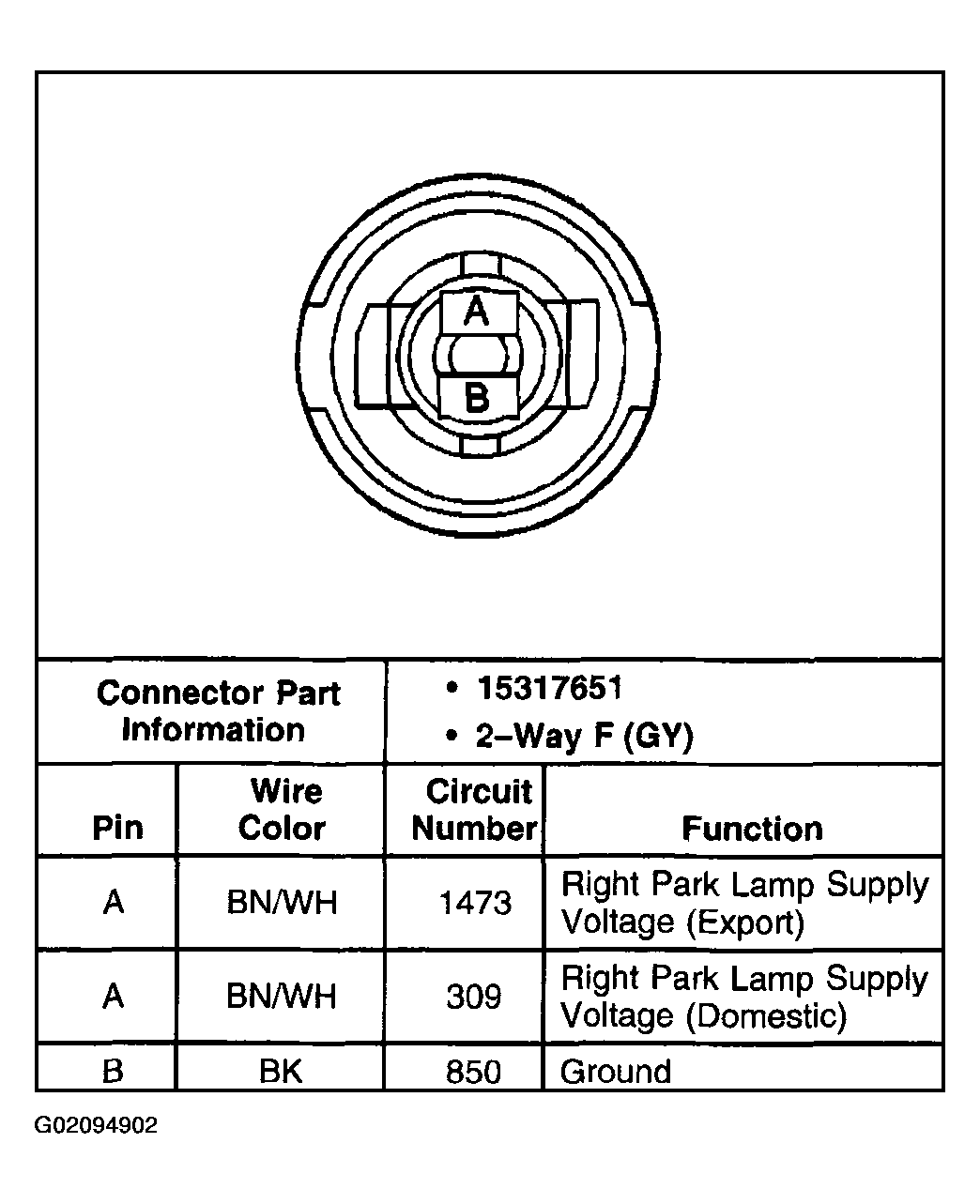

Fig 28: Marker Lamp Connector End View - RR
G02094902Courtesy of GENERAL MOTORS CORP.

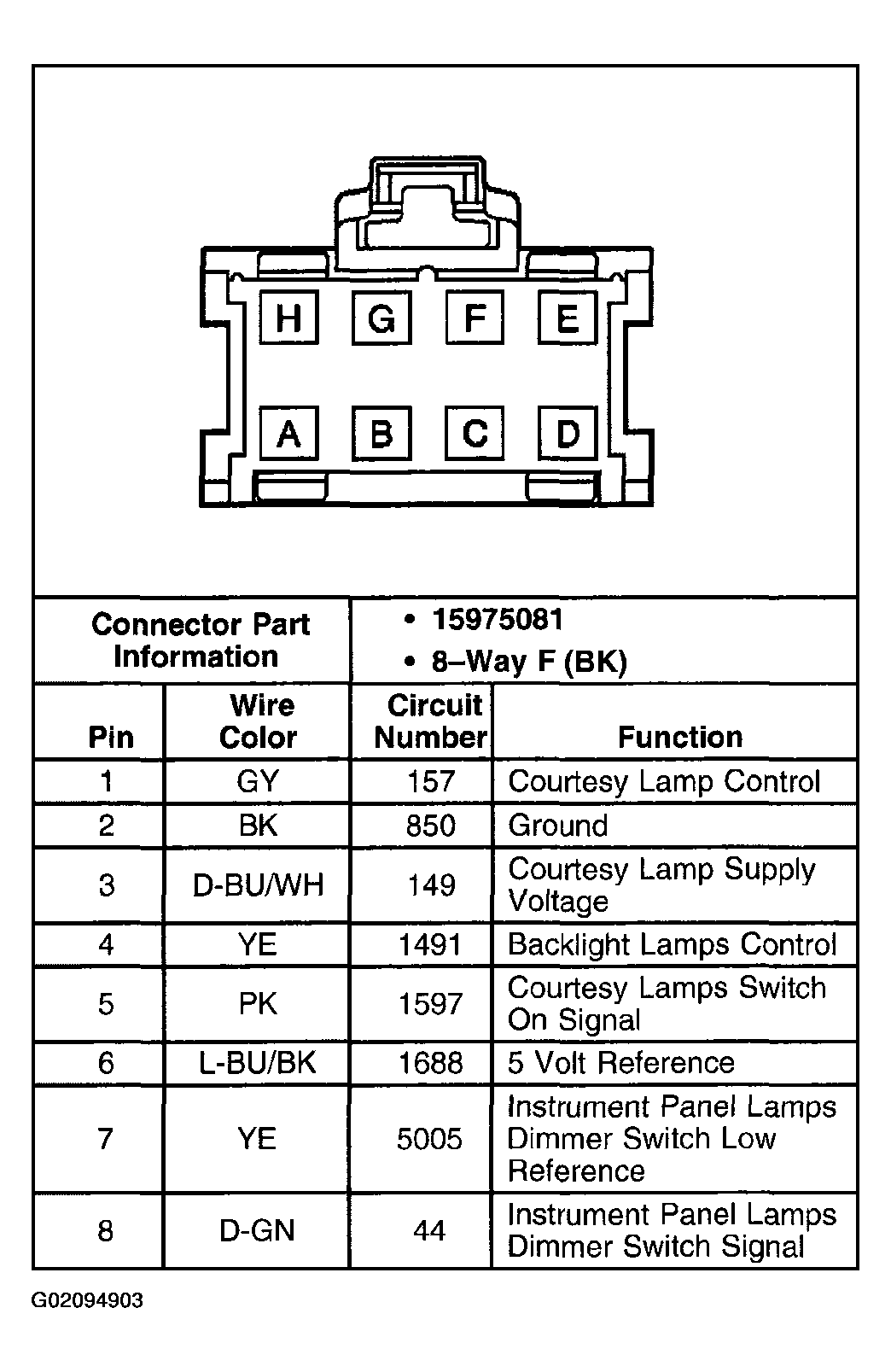

Fig 29: Overhead Console Courtesy Lamp Connector End View
G02094903Courtesy of GENERAL MOTORS CORP.

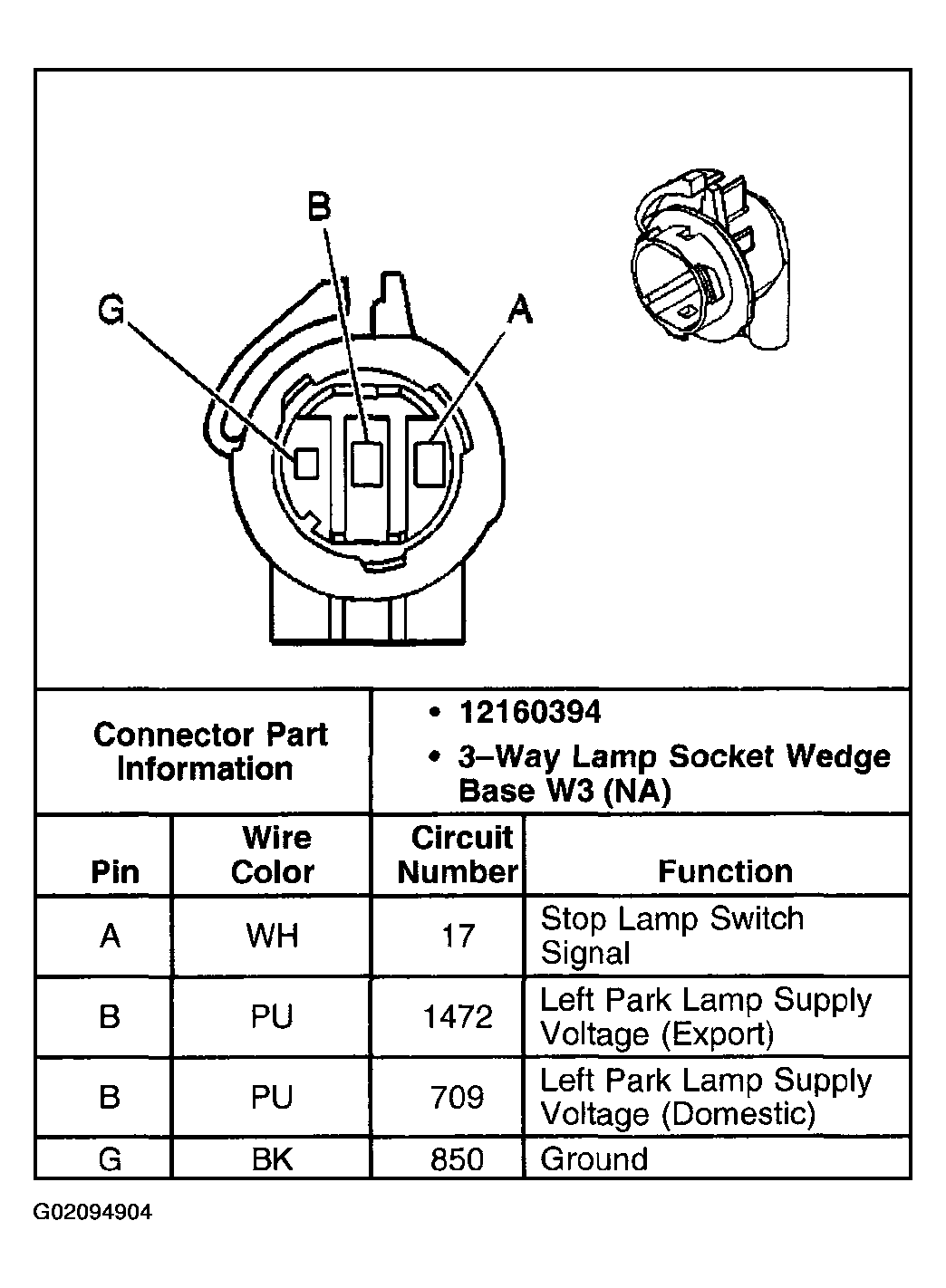

Fig 30: Park/Stop Lamp Connector End View - Left Rear
G02094904Courtesy of GENERAL MOTORS CORP.

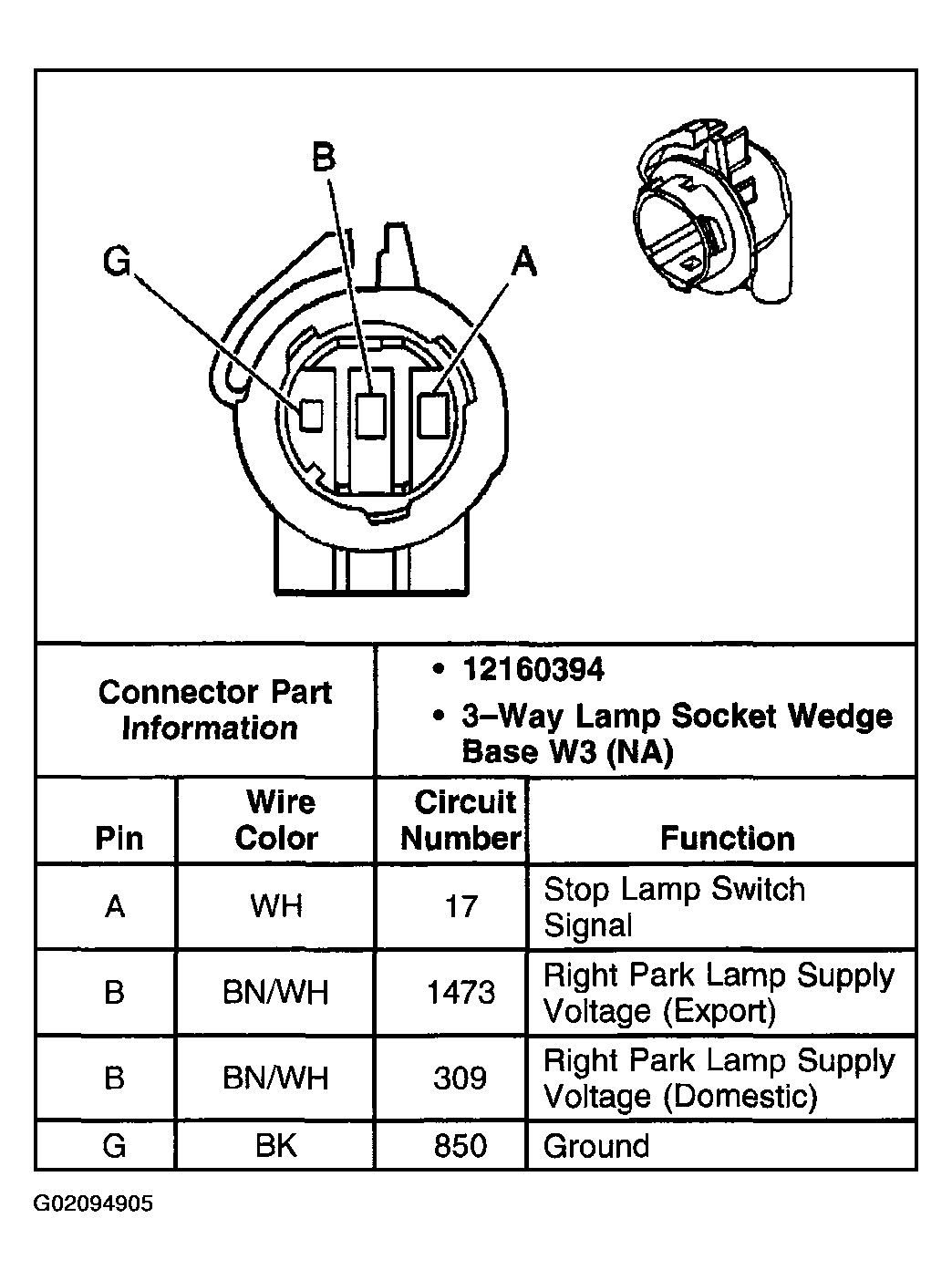

Fig 31: Park/Stop Lamp Connector End View - Right Rear
G02094905Courtesy of GENERAL MOTORS CORP.
Fig 32: Rear Compartment Lamp Connector End View
G02094906Courtesy of GENERAL MOTORS CORP.

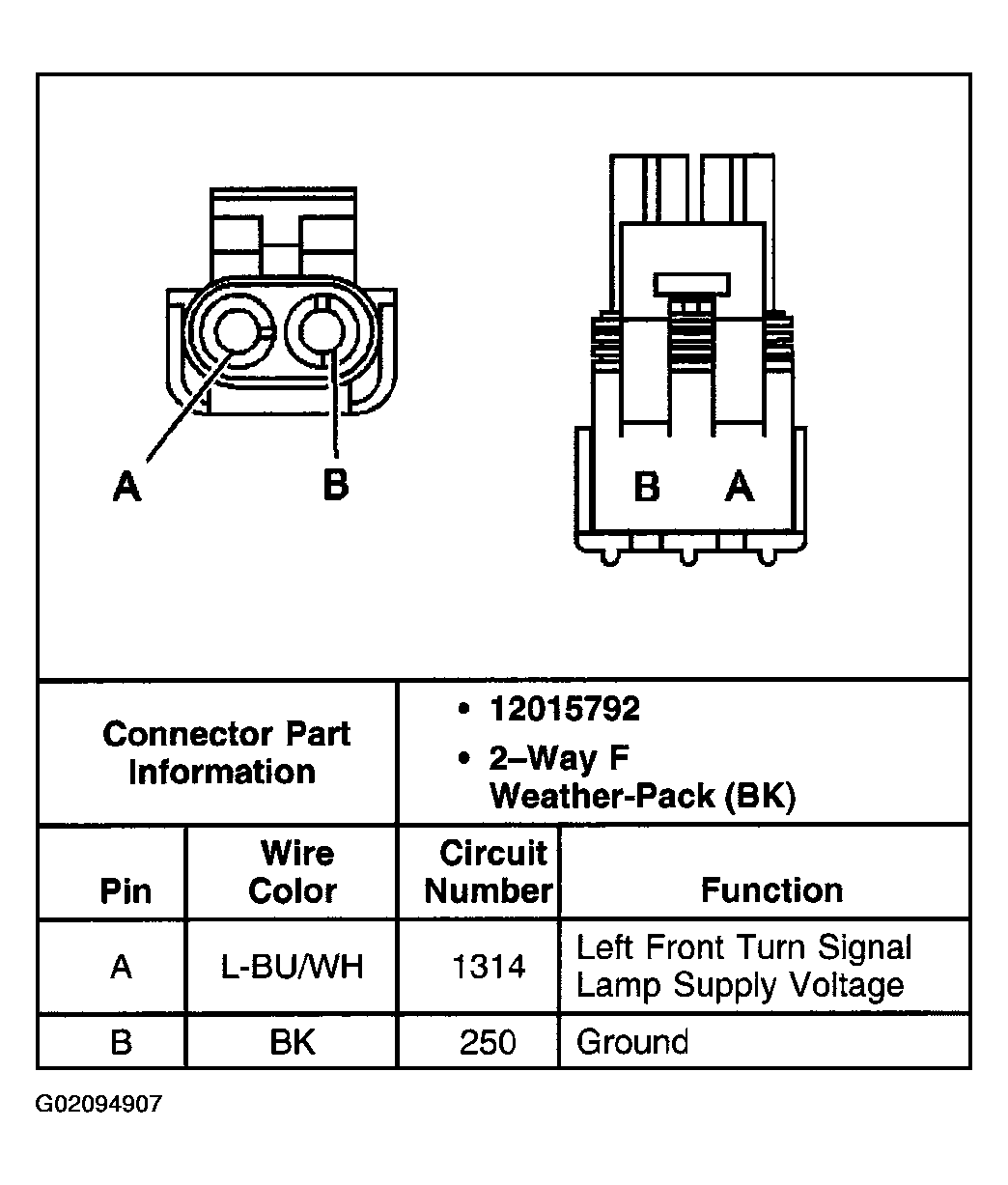

Fig 33: Repeater Lamp Connector End View - Left (Export)
G02094907Courtesy of GENERAL MOTORS CORP.

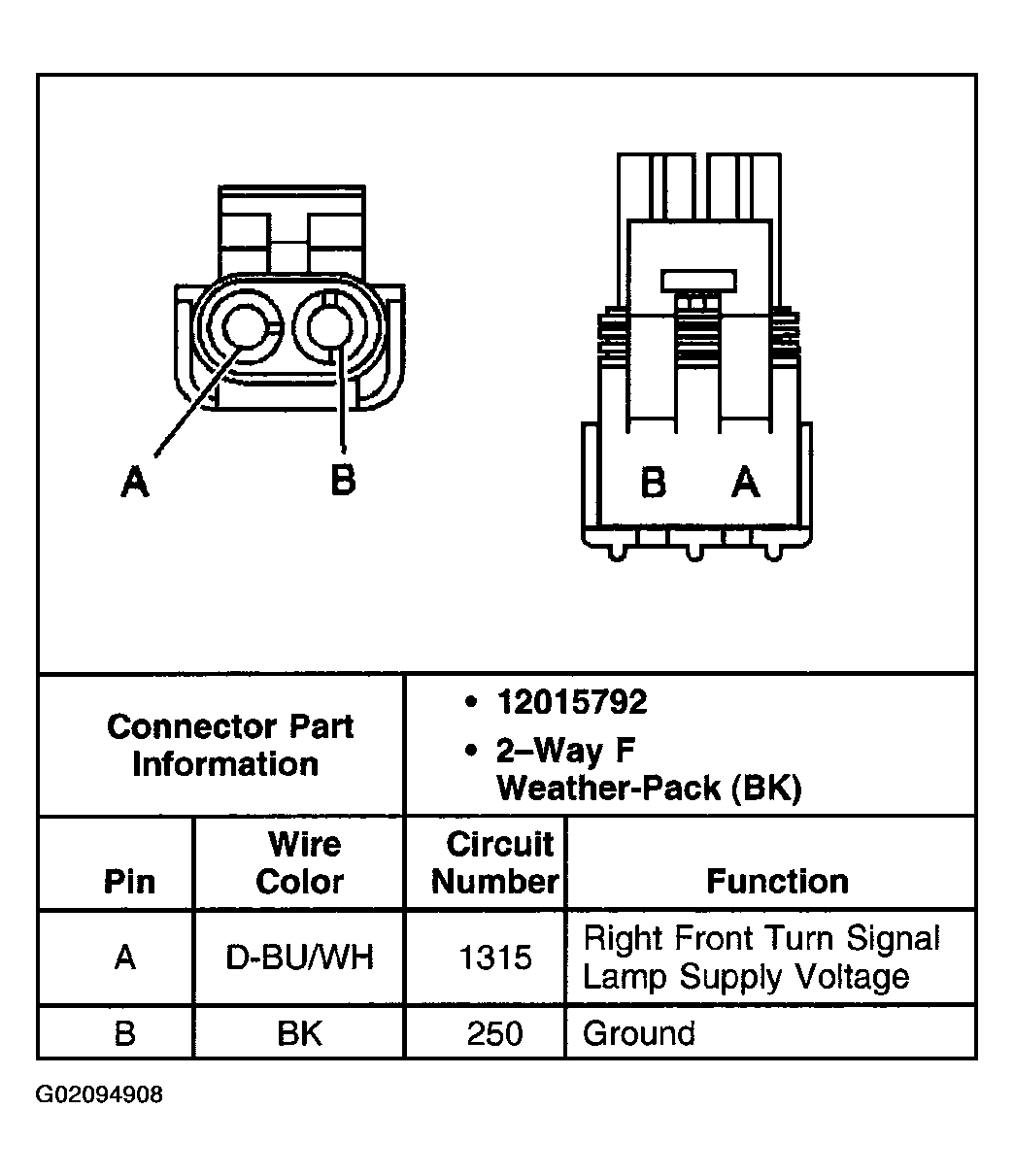

Fig 34: Repeater Lamp Connector End View - Right (Export)
G02094908Courtesy of GENERAL MOTORS CORP.

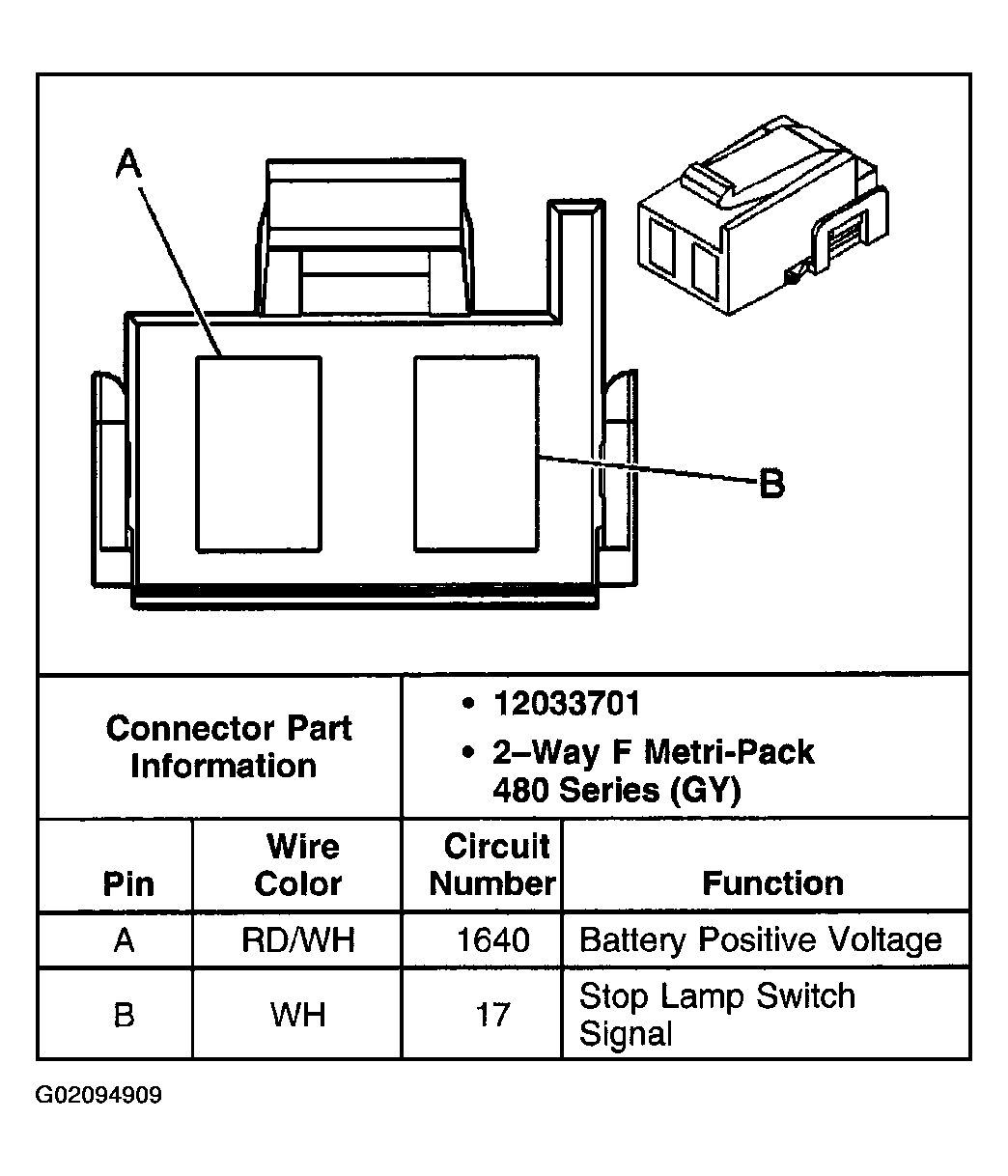

Fig 35: Stoplamp Switch Connector End View
G02094909Courtesy of GENERAL MOTORS CORP.

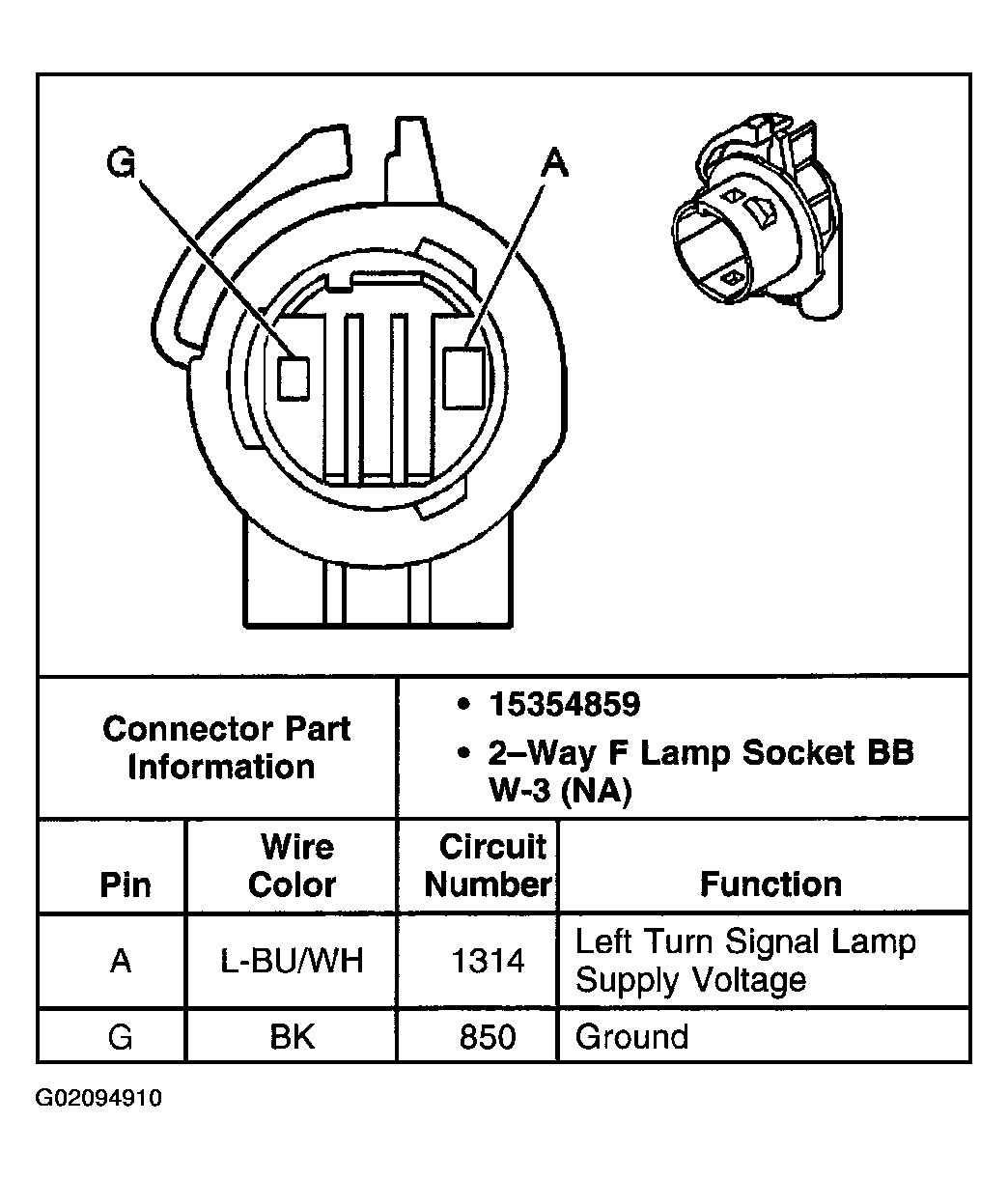

Fig 36: Turn Signal Lamp Connector End View - LR
G02094910Courtesy of GENERAL MOTORS CORP.

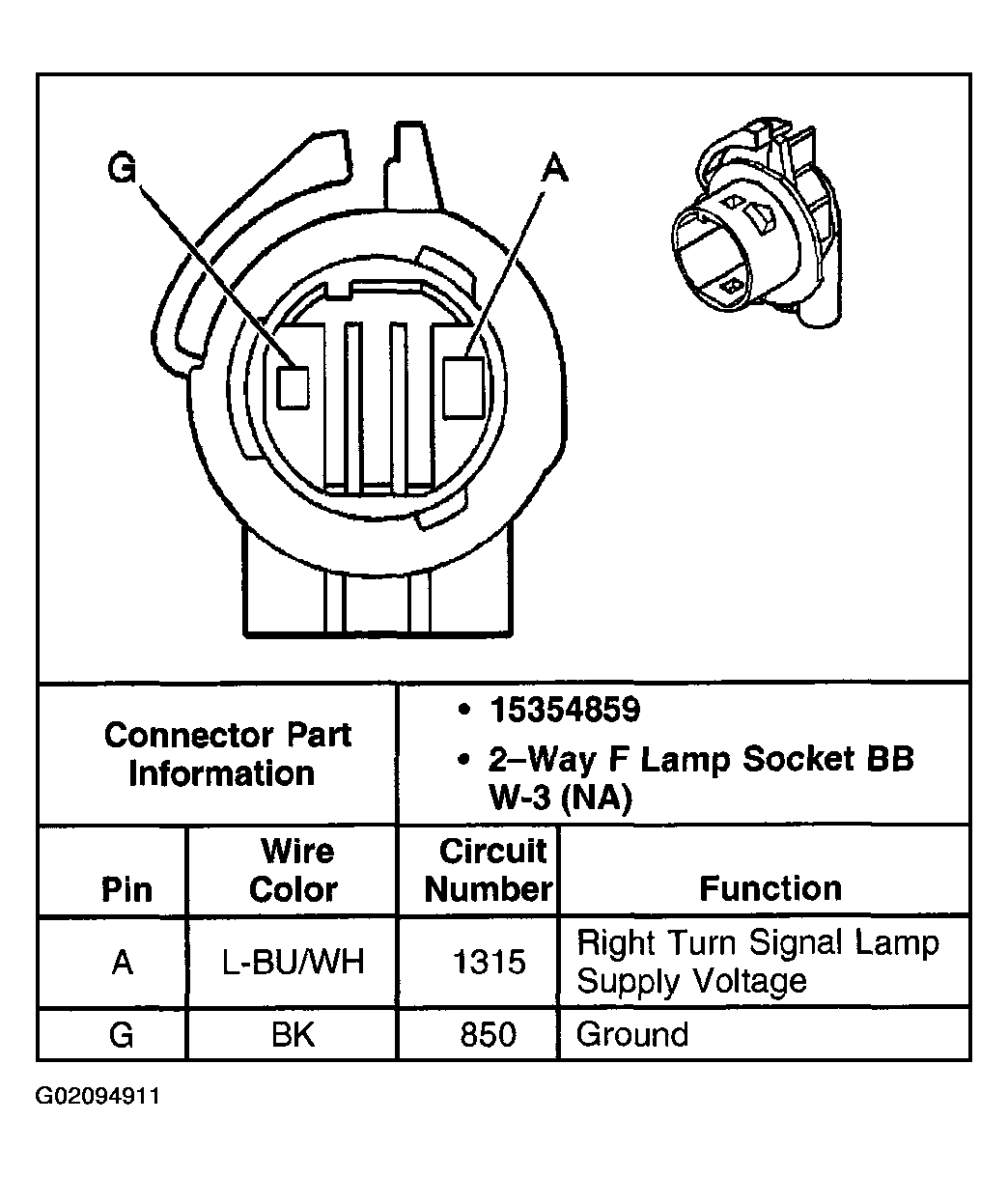

Fig 37: Turn Signal Lamp Connector End View - RR
G02094911Courtesy of GENERAL MOTORS CORP.

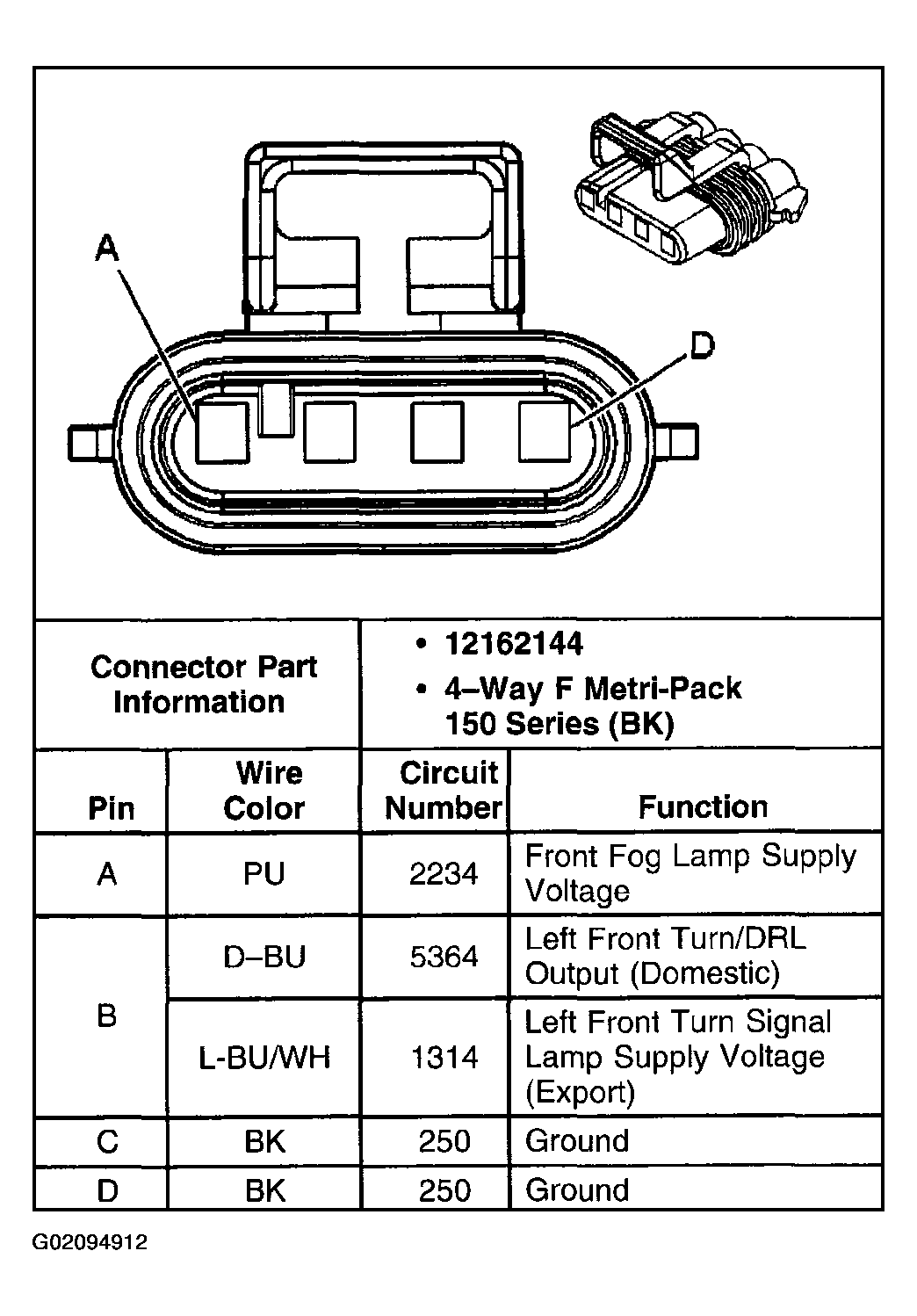

Fig 38: Turn Signal/Fog Lamp Connector End View - LF
G02094912Courtesy of GENERAL MOTORS CORP.

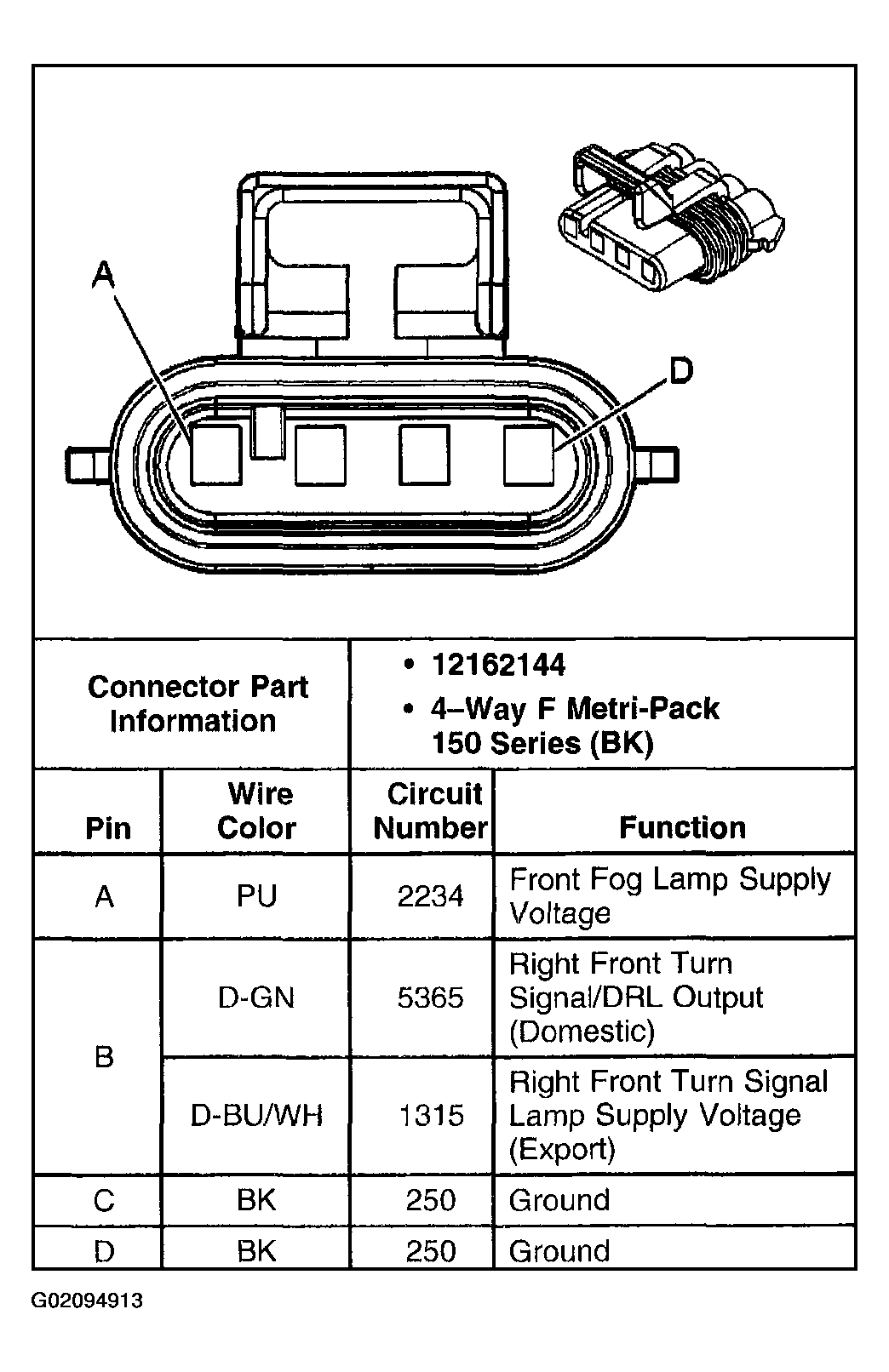

Fig 39: Turn Signal/Fog Lamp - RF
G02094913Courtesy of GENERAL MOTORS CORP.

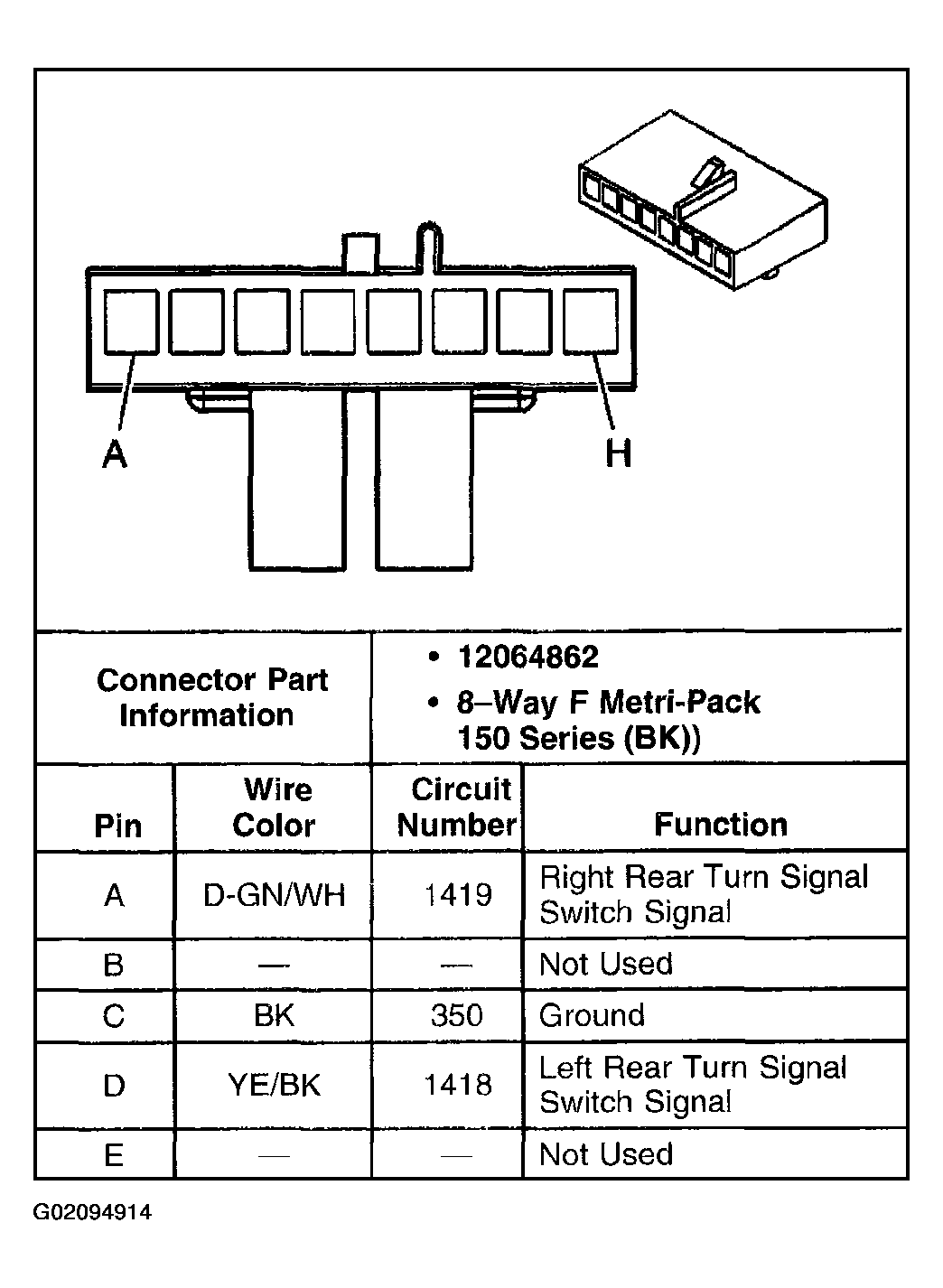

Fig 40: Turn Signal Switch Connector End View (1 Of 2)
G02094914Courtesy of GENERAL MOTORS CORP.

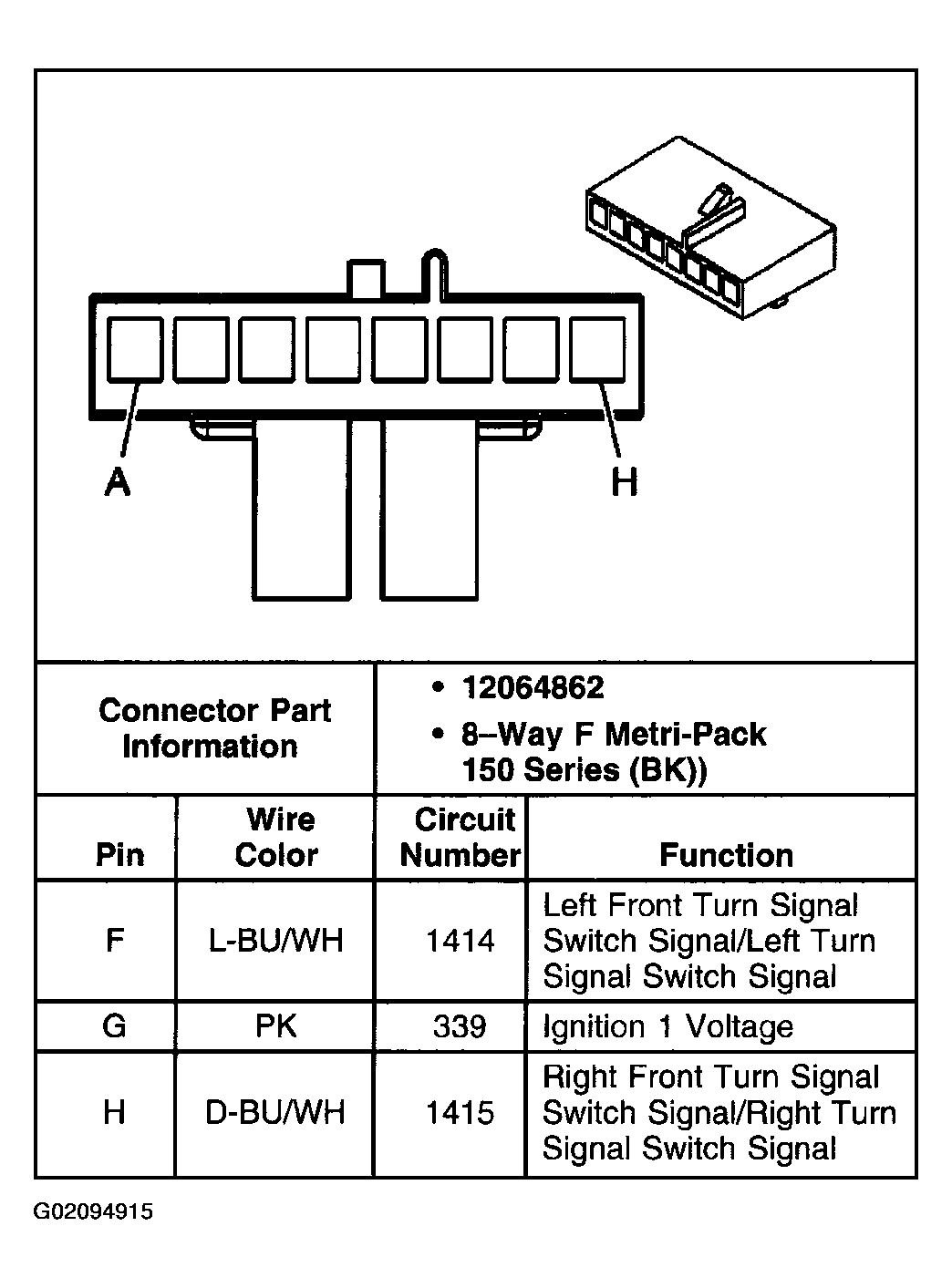

Fig 41: Turn Signal Switch Connector End View (2 Of 2)
G02094915Courtesy of GENERAL MOTORS CORP.

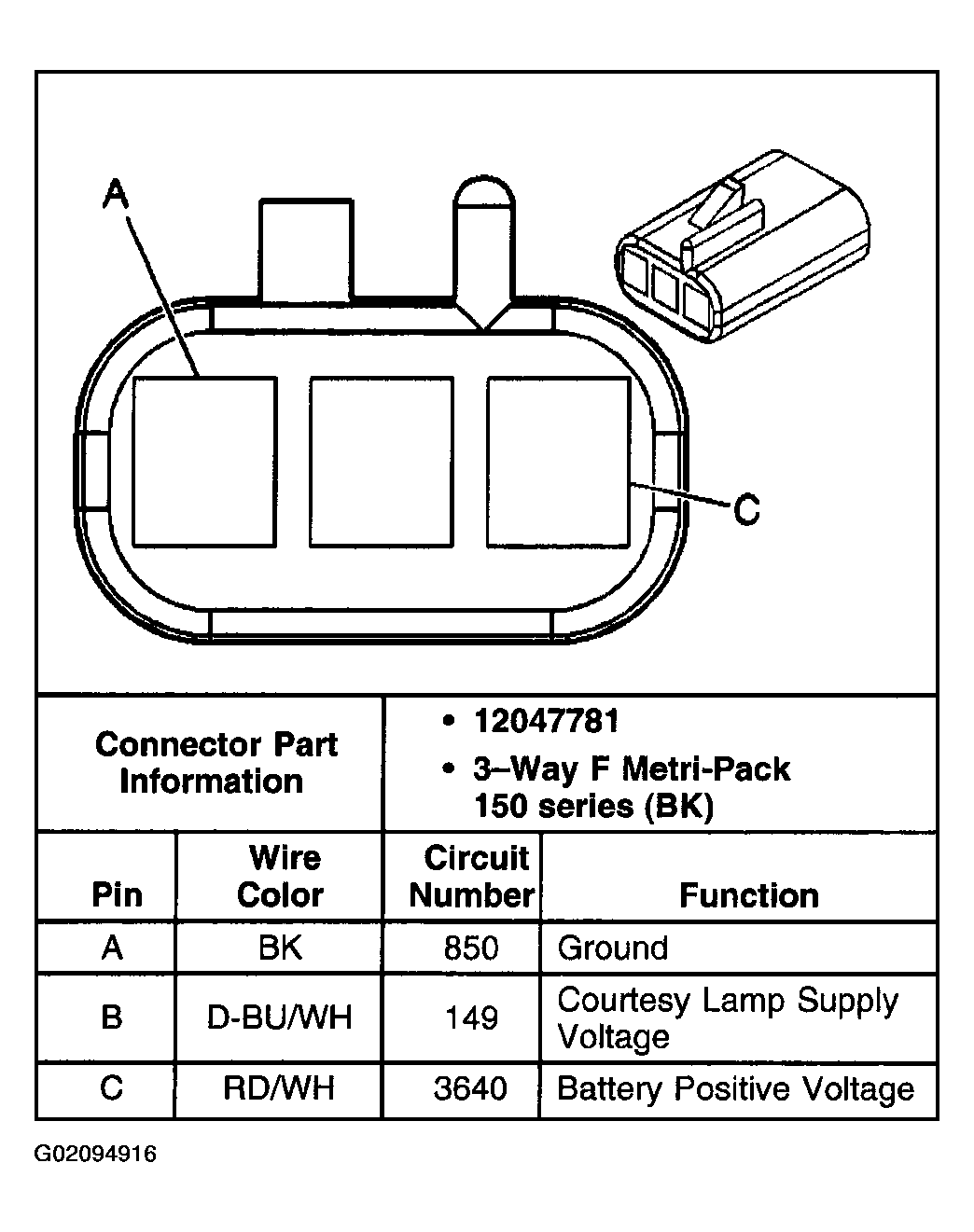

Fig 42: Vanity Lamp Connector End View - Left
G02094916Courtesy of GENERAL MOTORS CORP.

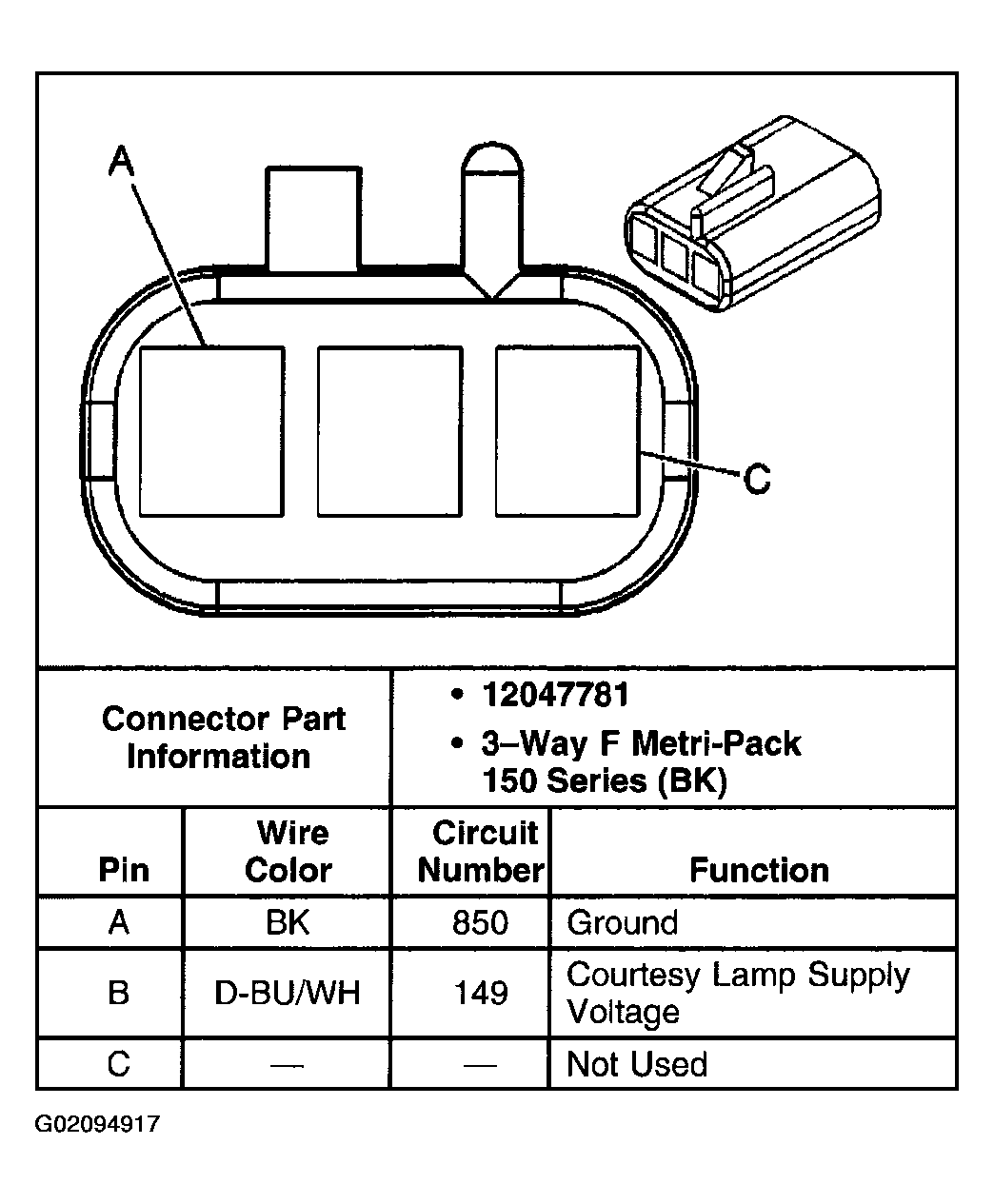

Fig 43: Vanity Lamp Connector End View - Right
G02094917Courtesy of GENERAL MOTORS CORP.
