Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

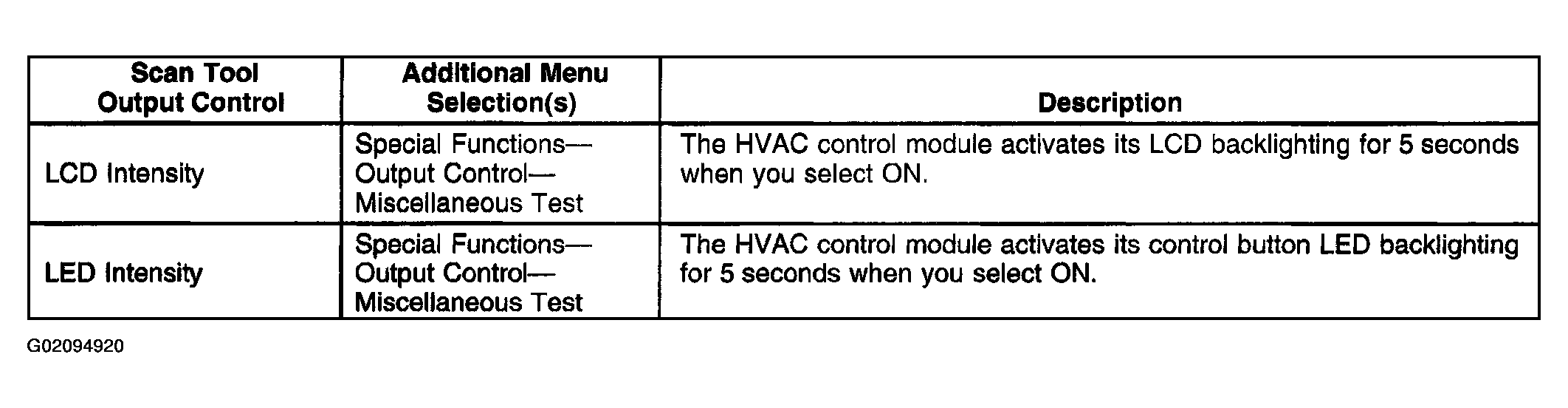

Fig 1: Climate Control Panel

Courtesy of GENERAL MOTORS CORP.

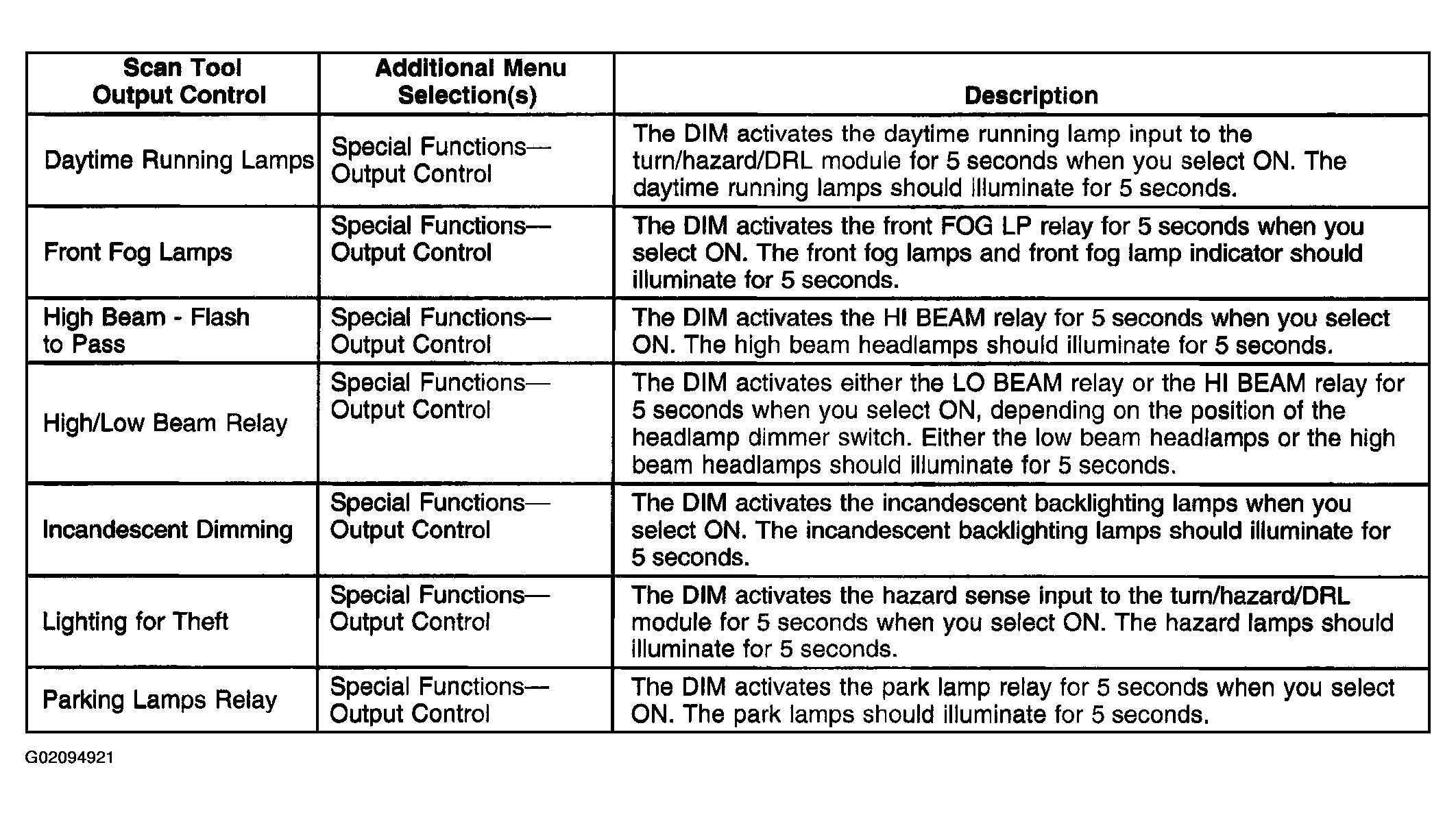

Fig 2: Dash Integration Module

Courtesy of GENERAL MOTORS CORP.

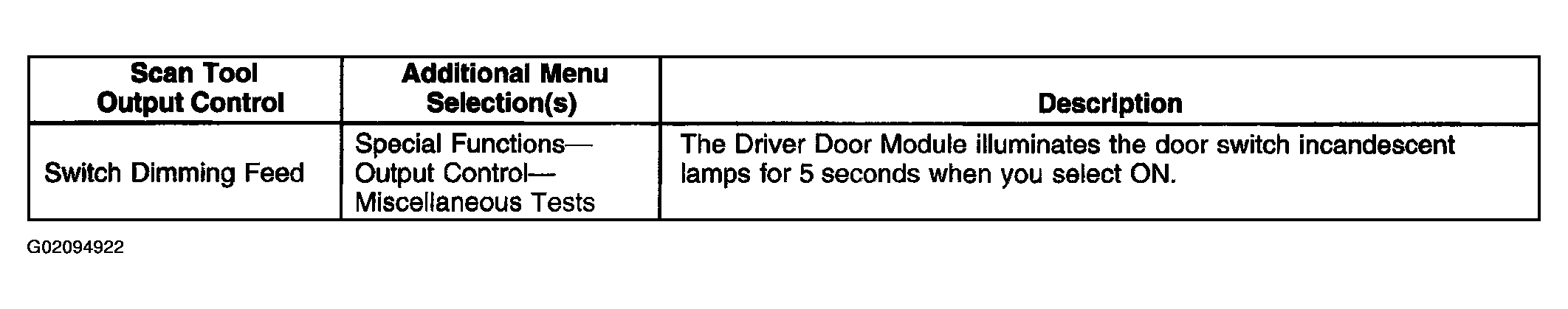

Fig 3: Drive Door Module

Courtesy of GENERAL MOTORS CORP.

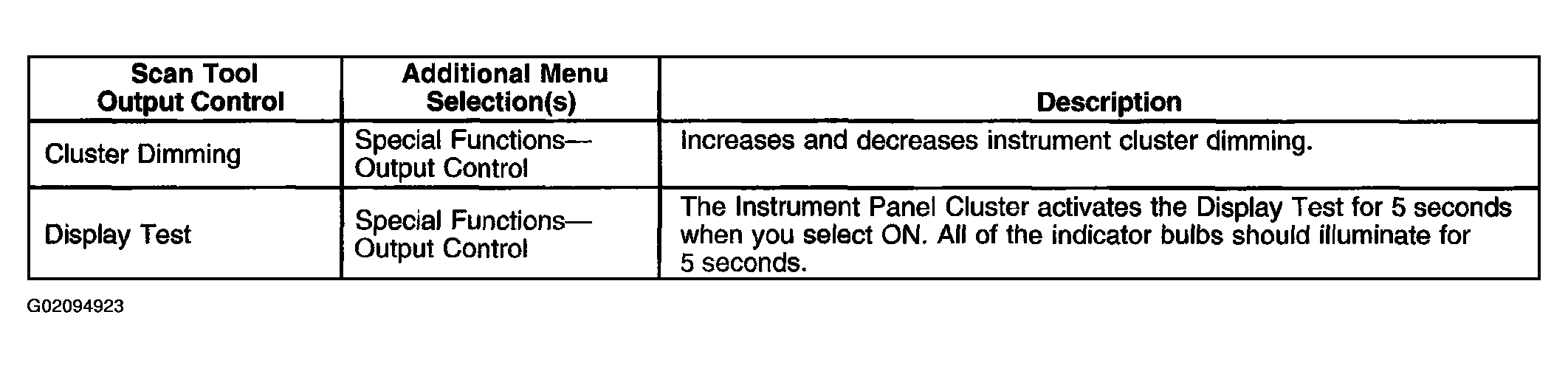

Fig 4: Instrument Panel Cluster

Courtesy of GENERAL MOTORS CORP.

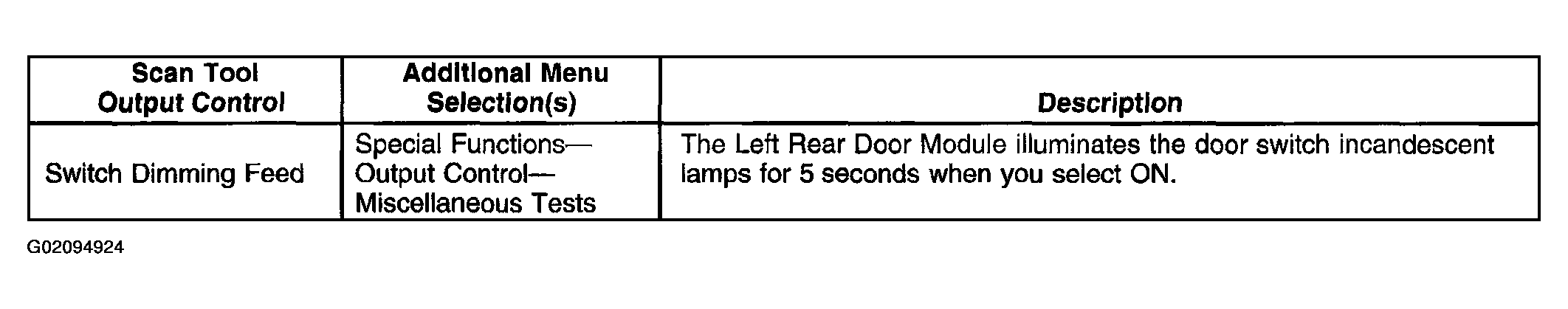

Fig 5: Left Rear Door Module

Courtesy of GENERAL MOTORS CORP.

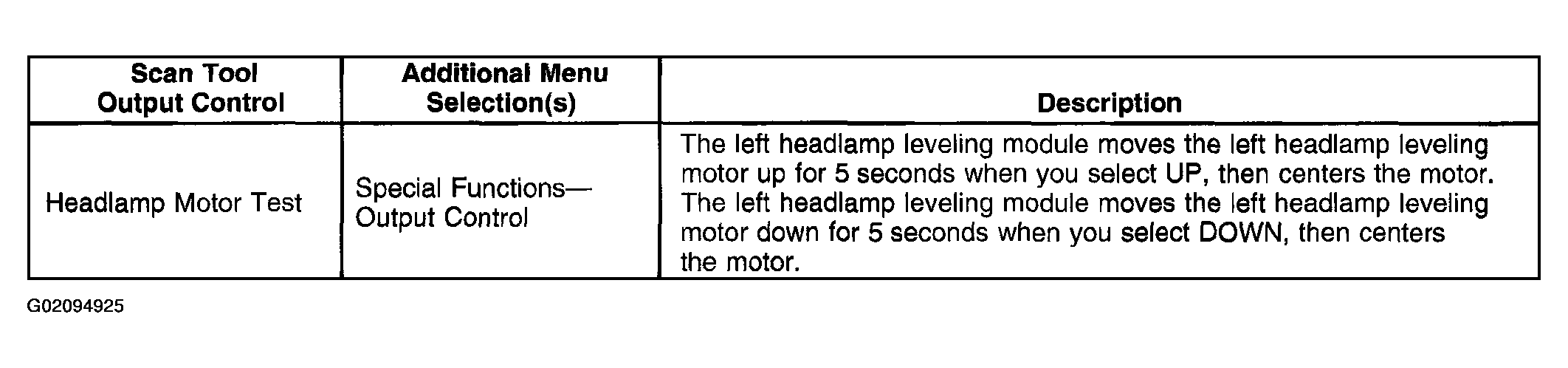

Fig 6: Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

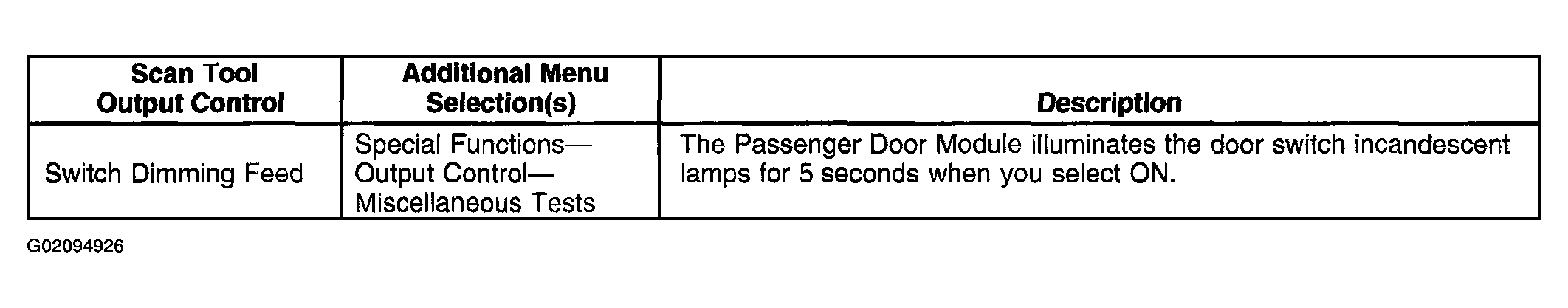

Fig 7: Passenger Door Module

Courtesy of GENERAL MOTORS CORP.

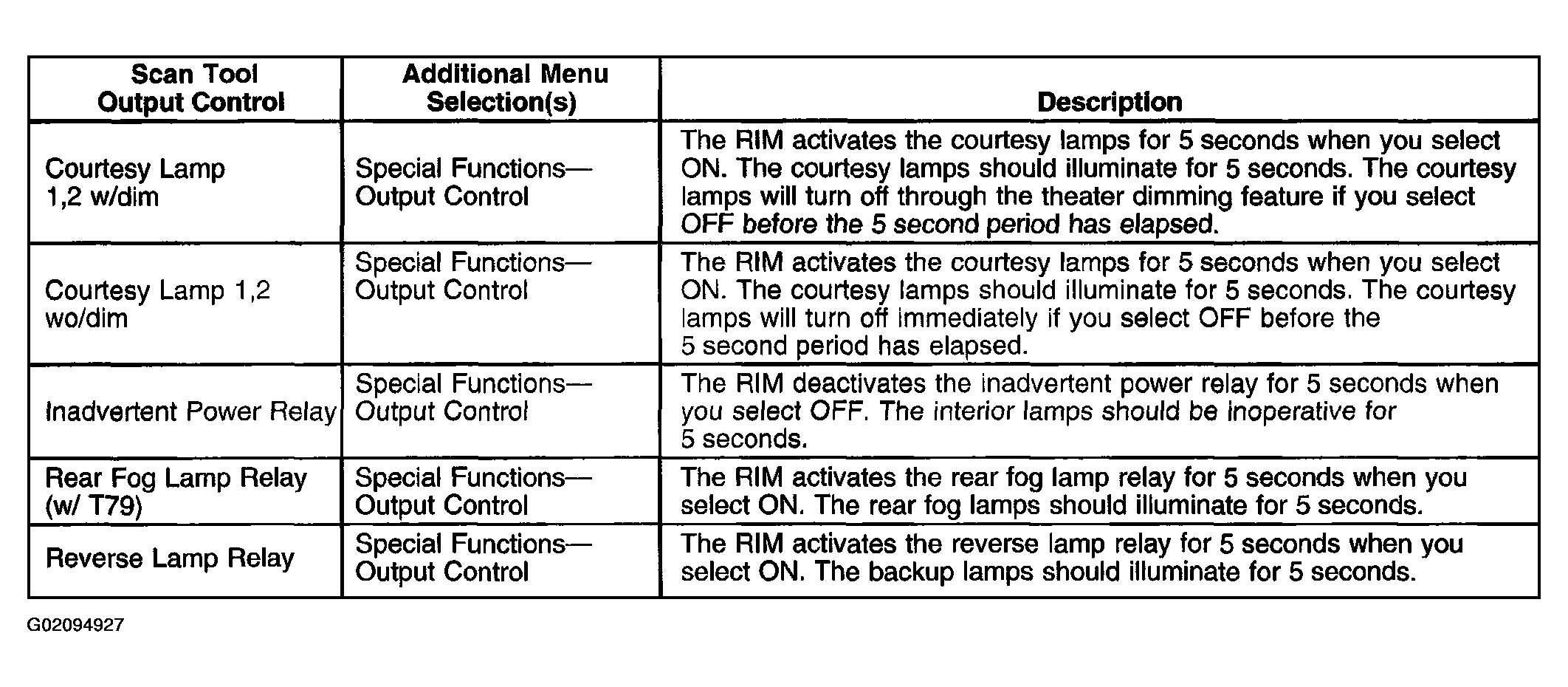

Fig 8: Rear Integration Module

Courtesy of GENERAL MOTORS CORP.

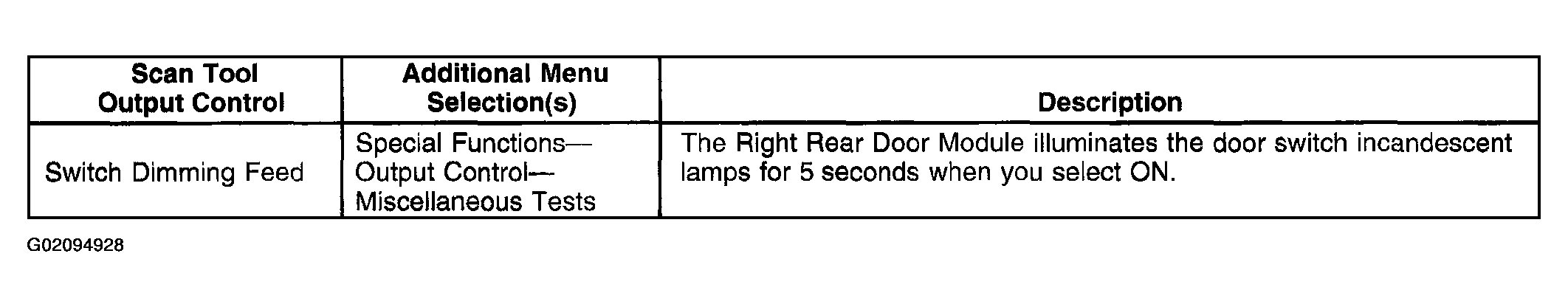

Fig 9: Right Rear Door Module

Courtesy of GENERAL MOTORS CORP.

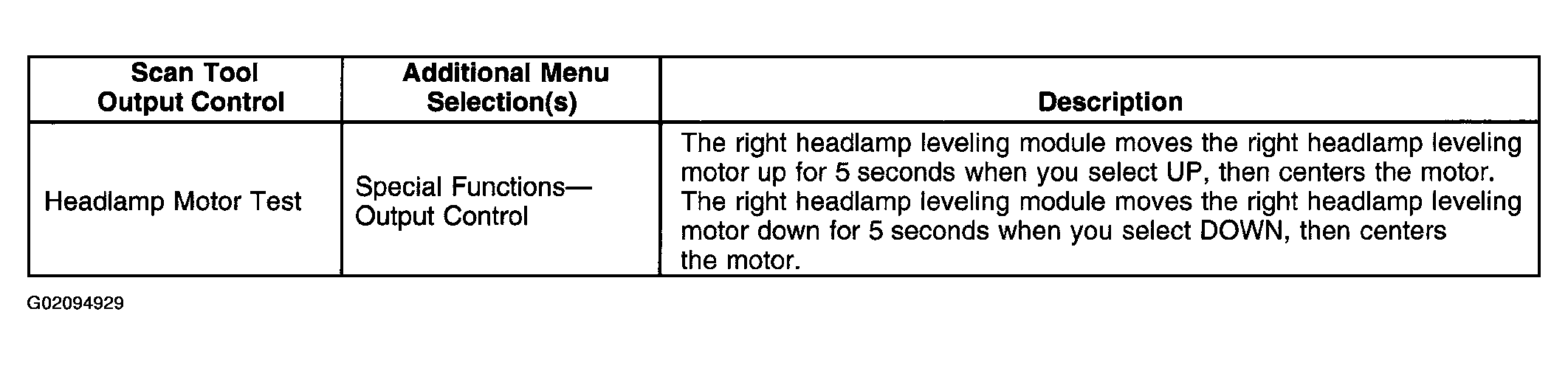

Fig 10: Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.
