Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the sensor to the vehicle.

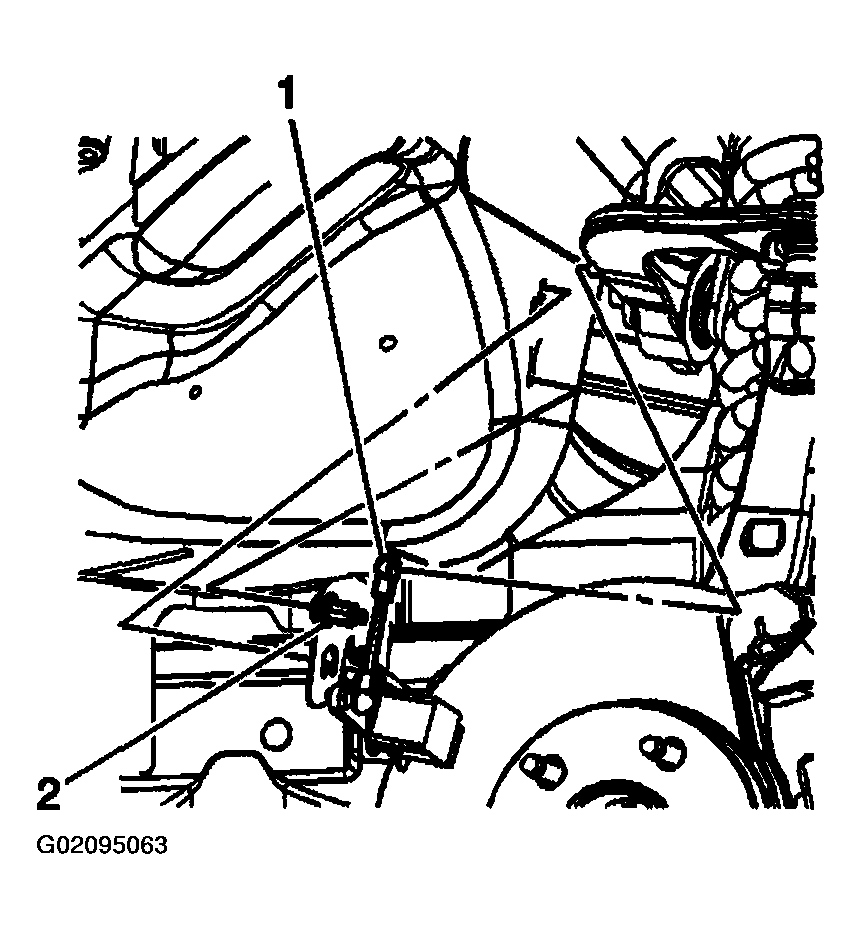

Fig 1: Installing Headlamp Leveling Sensor
Courtesy of GENERAL MOTORS CORP.
Install the bolt (2) to secure the sensor to the vehicle.
Install ball and socket (1) to sensor.

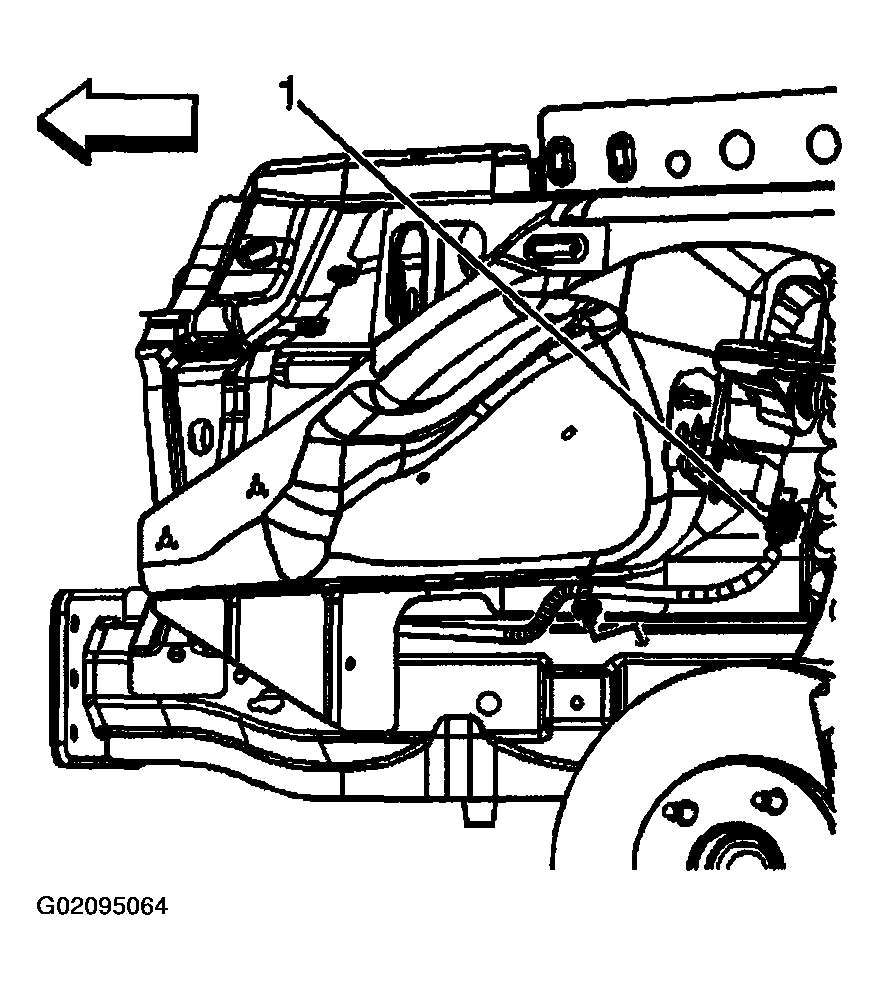

Fig 2: Installing Ball & Socket To Sensor
Courtesy of GENERAL MOTORS CORP.
Reconnect electrical connector (1) to the sensor.

Fig 3: Connecting Electrical Connector To Headlamp Leveling Sensor
Courtesy of GENERAL MOTORS CORP.
Install tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
