Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the right front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove electrical connector (1).

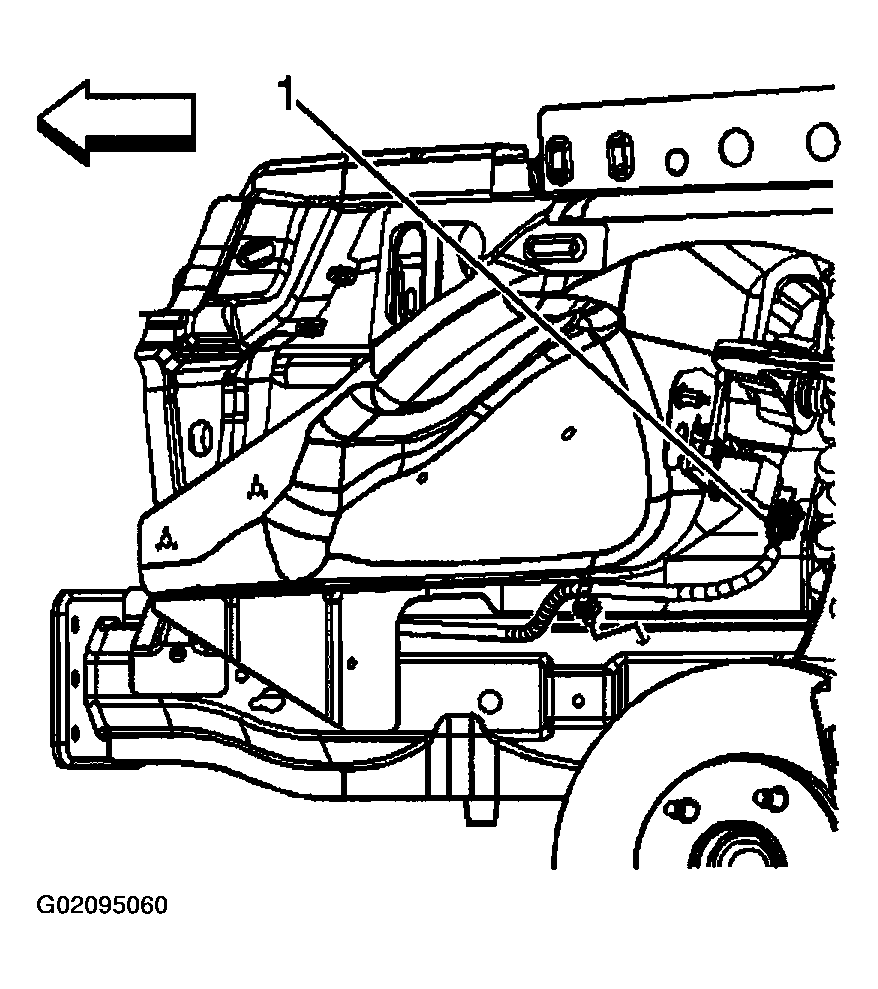

    Fig 1: Removing Headlamp Leveling Sensor Electrical Connector
    G02095060Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the ball and socket (1) from vehicle.
  5. Remove the bolt (2) from the sensor.
  6. Remove the sensor from the vehicle.

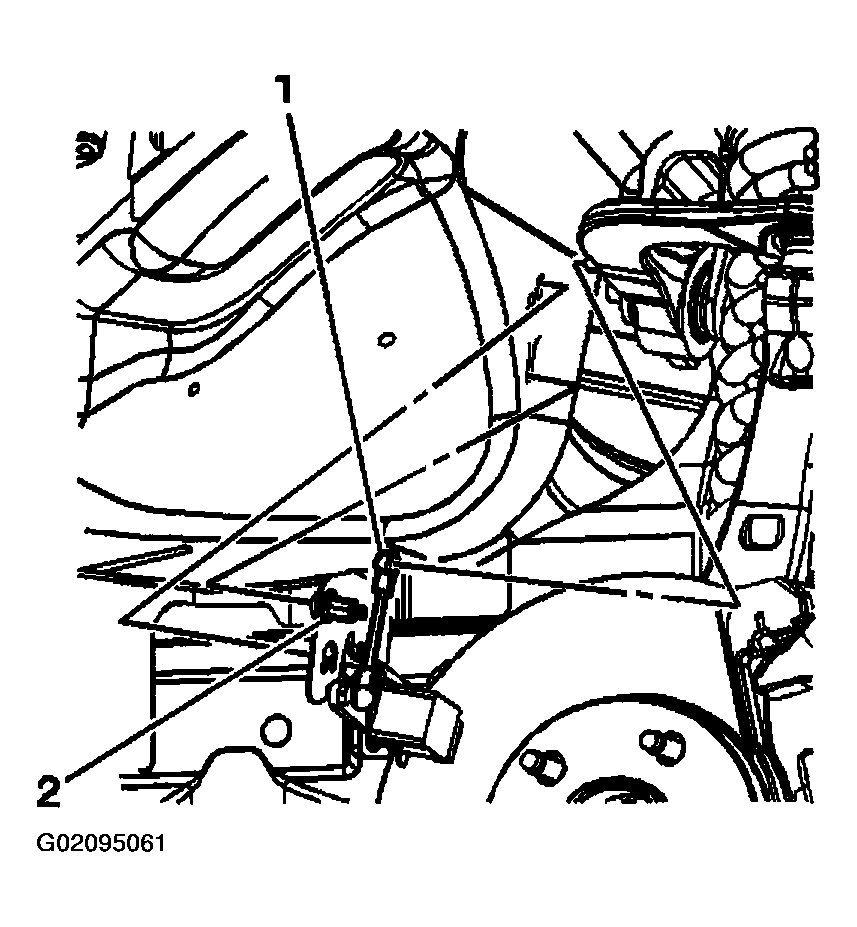

    Fig 2: Removing Headlamp Leveling Sensor
    G02095061Courtesy of GENERAL MOTORS CORP.
