Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission indicator from the console in order to remove the bulb (1).

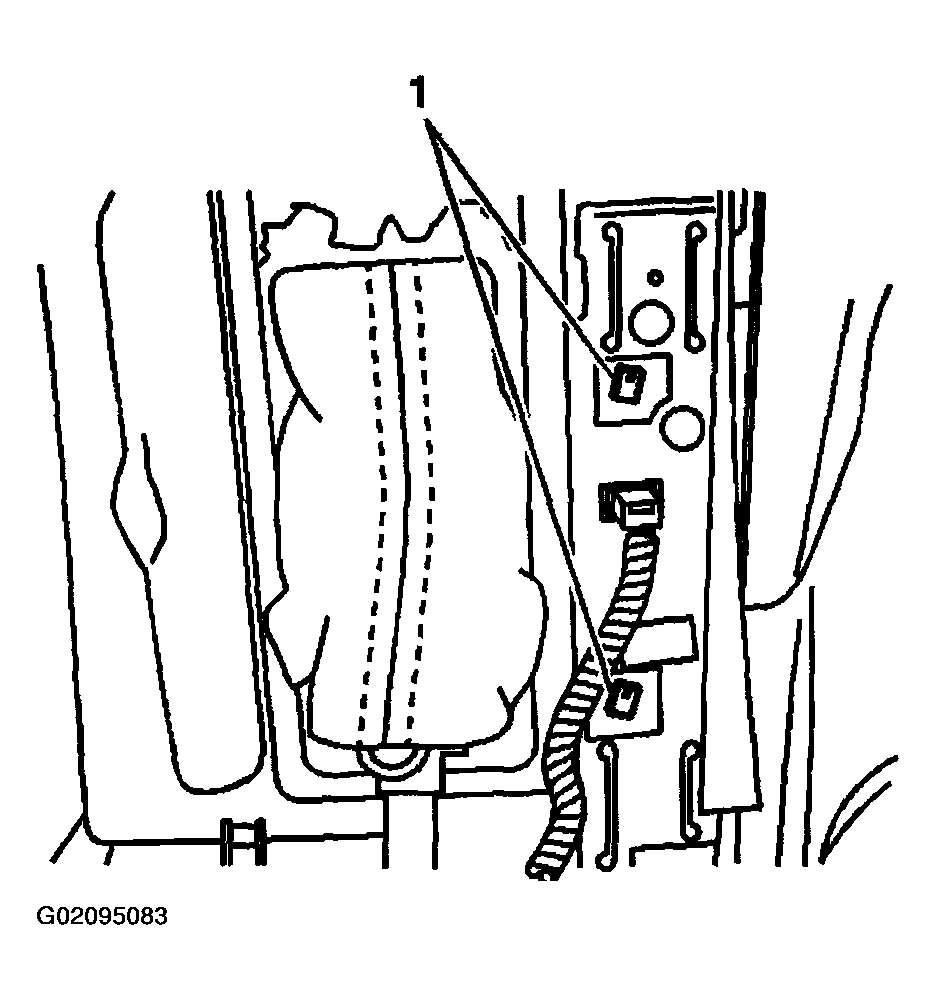

Fig 1: Locating Transmission Indicator In Console
Courtesy of GENERAL MOTORS CORP.
Twist the bulb (1) in order to remove the bulb.

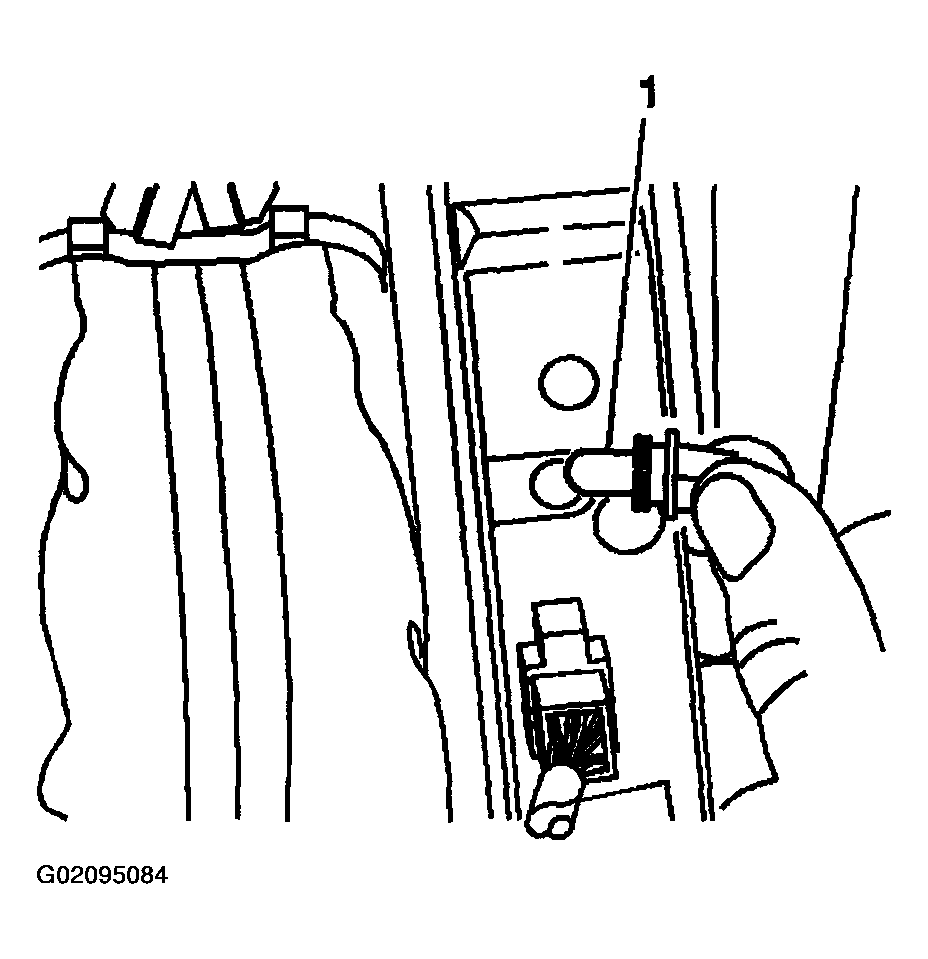

Fig 2: Removing Bulb From Transmission Indicator Console
Courtesy of GENERAL MOTORS CORP.
