Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new washer solvent level sensor switch grommet (3) into the container.
  2. Install the washer solvent level sensor switch (1) into the washer solvent container.

    Important:  The square side (2) of the level sensor switch must point upward upon installation.

  3. Apply equal inward pressure in order to seat the level sensor switch to the grommet.

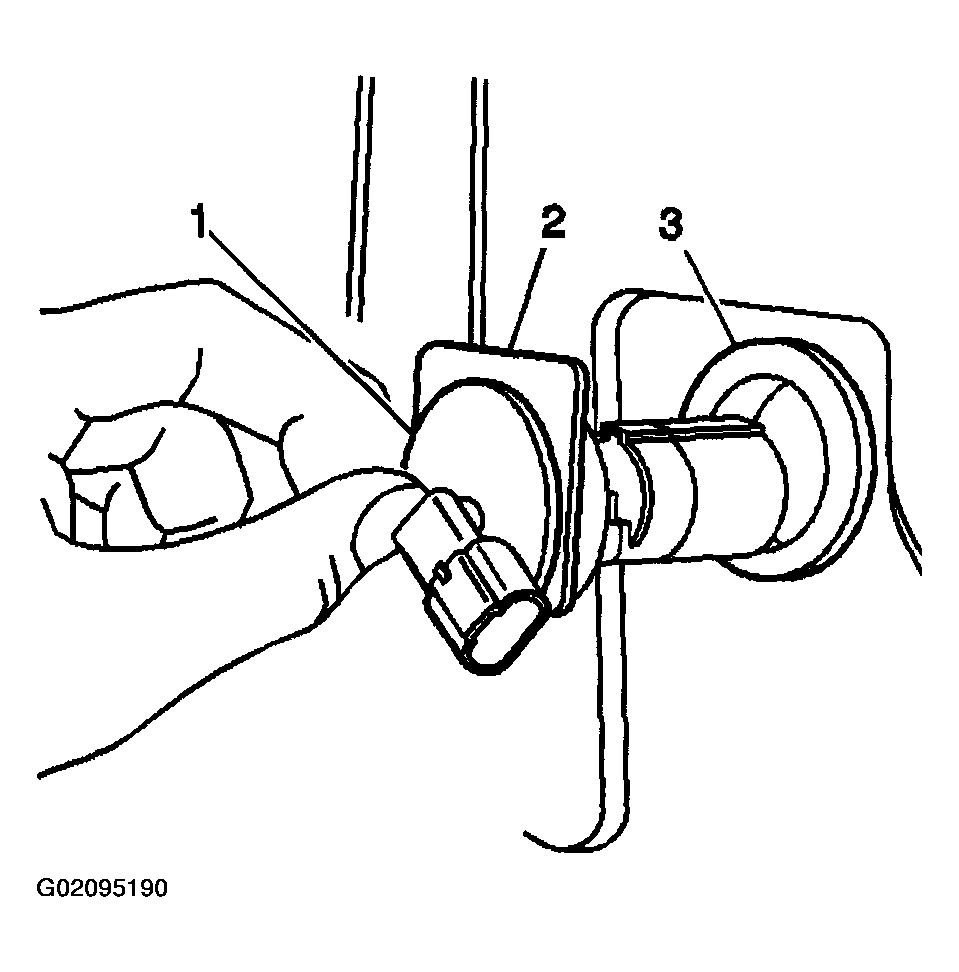

    Fig 1: Installing Washer Solvent Container Level Sensor Switch Into Washer Solvent Container
    G02095190Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (4) to the washer solvent level sensor switch.
  5. Install the lower air deflector. Refer to BODY FRONT END in Body Front End.
  6. Fill the washer solvent container with washer solvent.

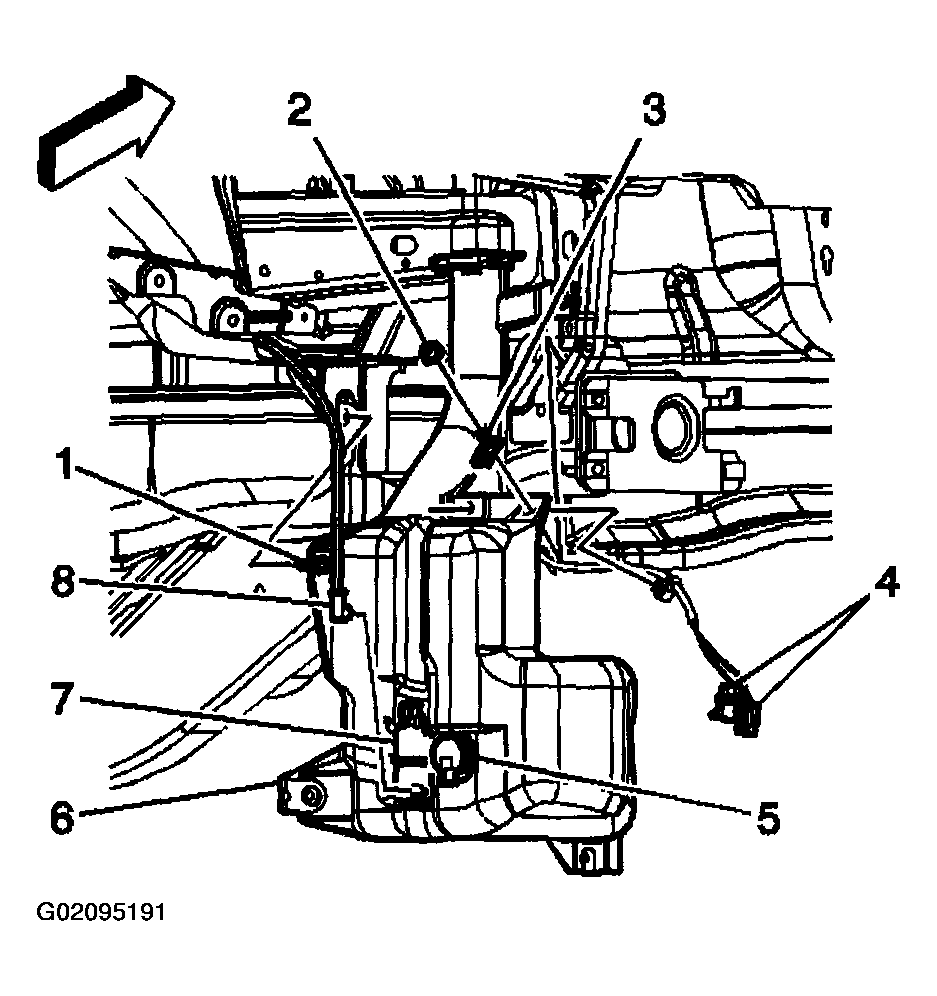

    Fig 2: Connecting Electrical Connector To Washer Solvent Level Sensor Switch
    G02095191Courtesy of GENERAL MOTORS CORP.
