Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the wiper motor module into the vehicle.
  2. Connect the wiper motor module electrical connector (4).
  3. Align the wiper module locator hole (7) to the pin located inside rail of the driver side fender.
  4. Align the locator hole (6) to the hole in the pillar flange.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the outer bolt (5).

    Tighten

    Tighten the outer bolt to 10 N.m (89 lb in).

  6. Install the center bolt (3).

    Tighten

    Tighten the center bolt to 10 N.m (89 lb in).

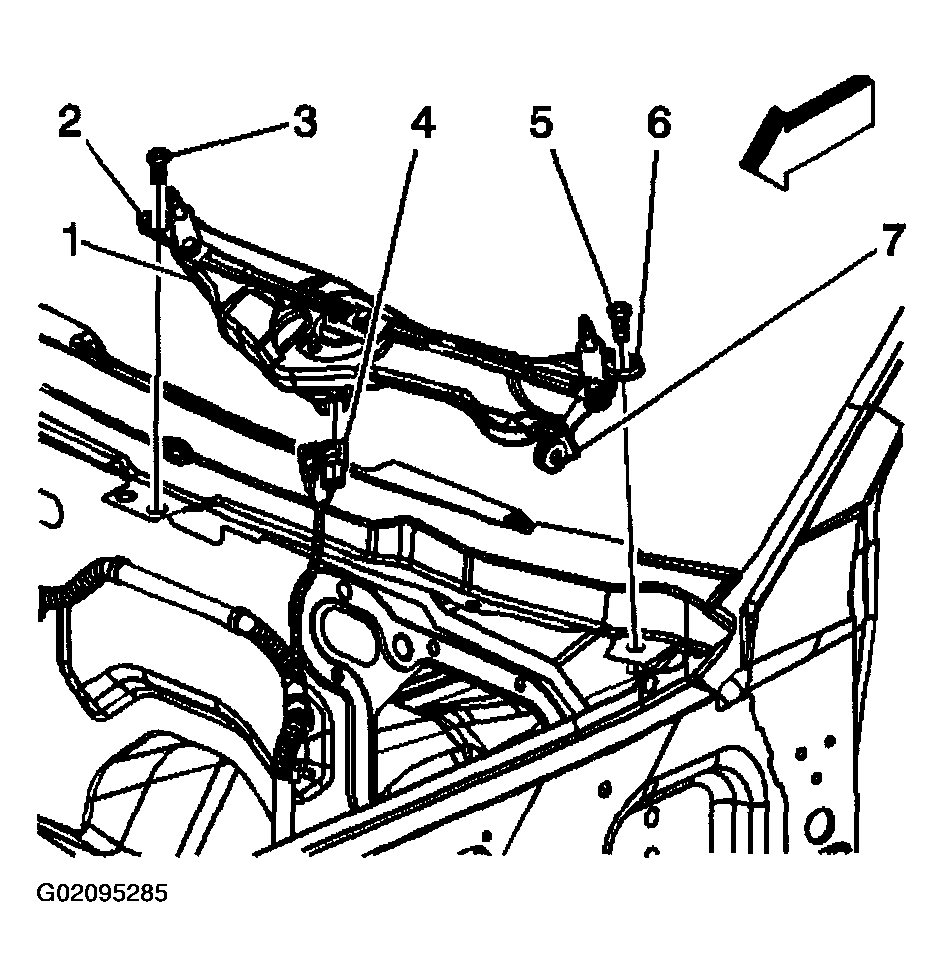

    Fig 1: Placing Wiper Motor Module In Vehicle
    G02095285Courtesy of GENERAL MOTORS CORP.
  7. Install the air inlet grille (1,3). Refer to AIR INLET GRILLE PANEL REPLACEMENT (LHD) or AIR INLET GRILLE PANEL REPLACEMENT (RHD) in Body Front End.
  8. Install the wiper arm assemblies. Refer to WIPER ARM REPLACEMENT (LHD)  or WIPER ARM REPLACEMENT (RHD)  .
  9. Install the wiper motor fuses to the underhood fuse block.

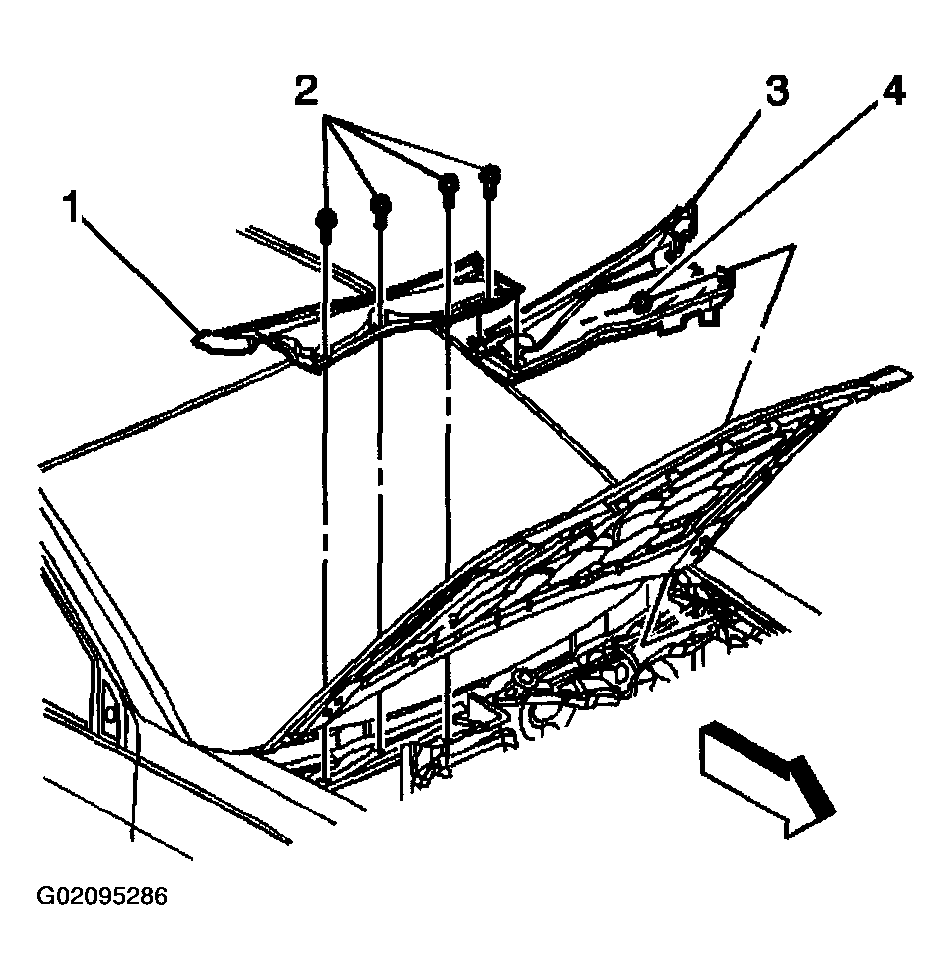

    Fig 2: Installing Air Inlet Grille
    G02095286Courtesy of GENERAL MOTORS CORP.
