Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

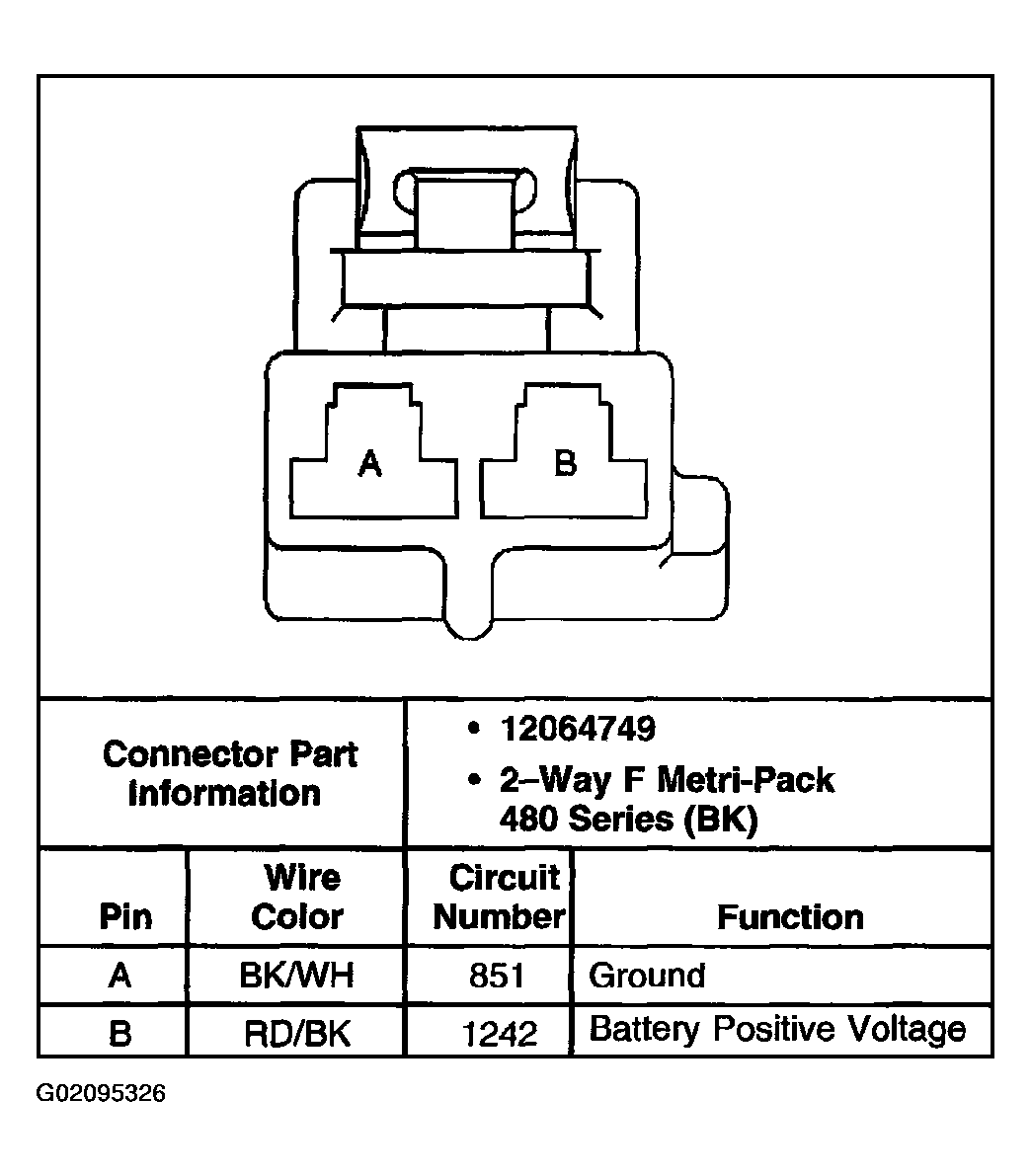

Fig 1: Audio Amplifier C1 (W/U66) Connector End View
G02095326Courtesy of GENERAL MOTORS CORP.

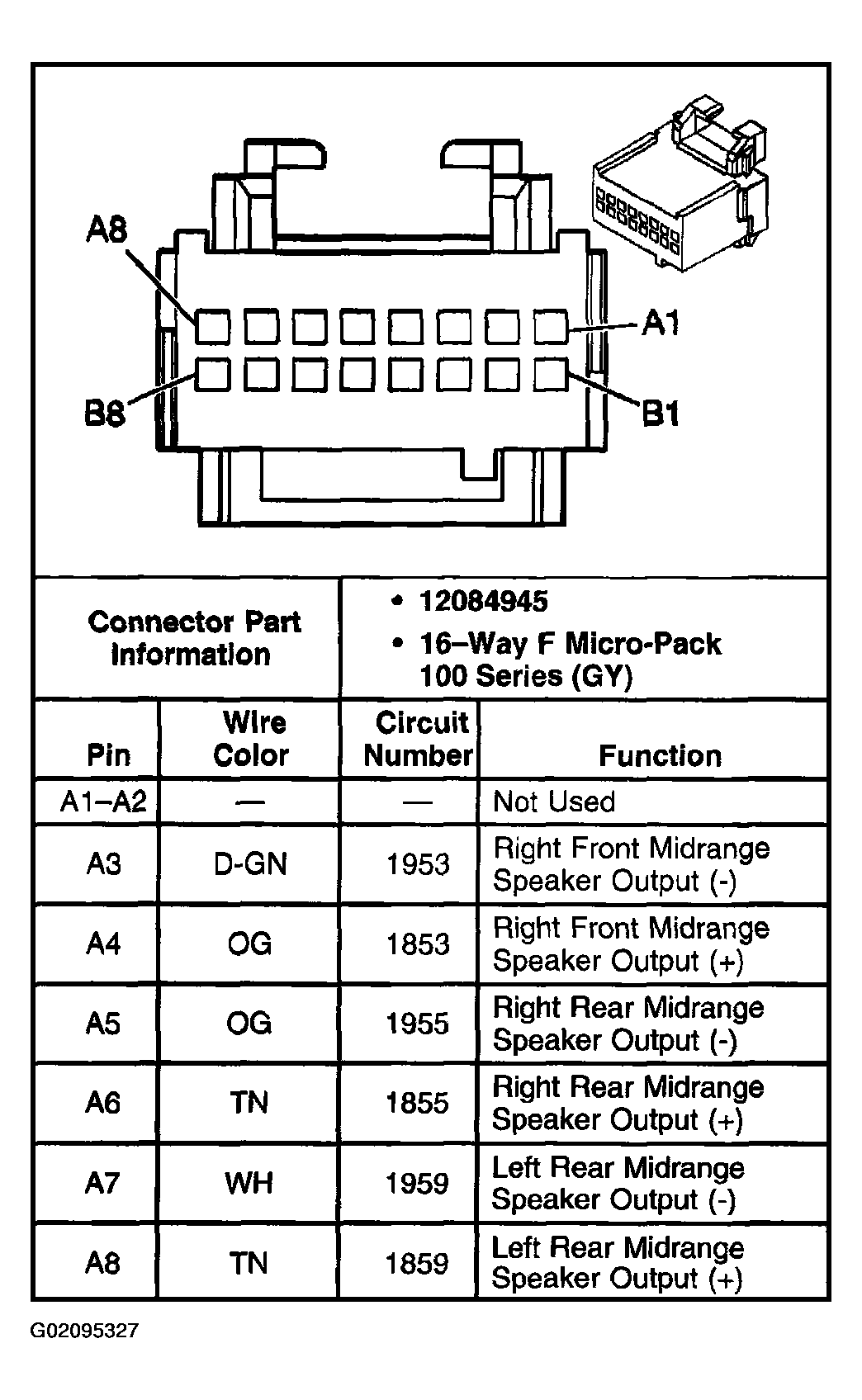

Fig 2: Audio Amplifier C2 (W/U66) Connector End View (1 Of 2)
G02095327Courtesy of GENERAL MOTORS CORP.

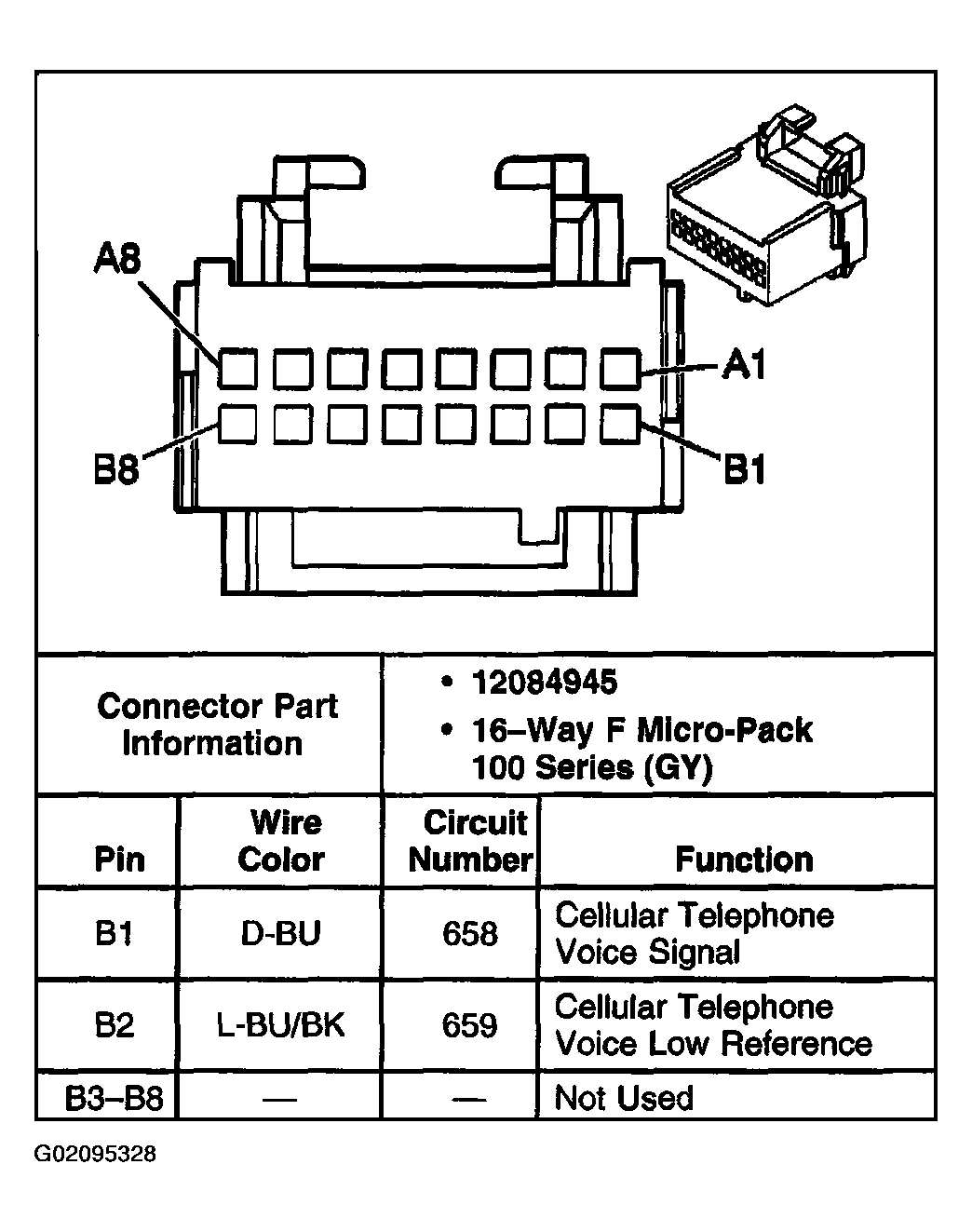

Fig 3: Audio Amplifier C2 (W/U66) Connector End View (2 Of 2)
G02095328Courtesy of GENERAL MOTORS CORP.

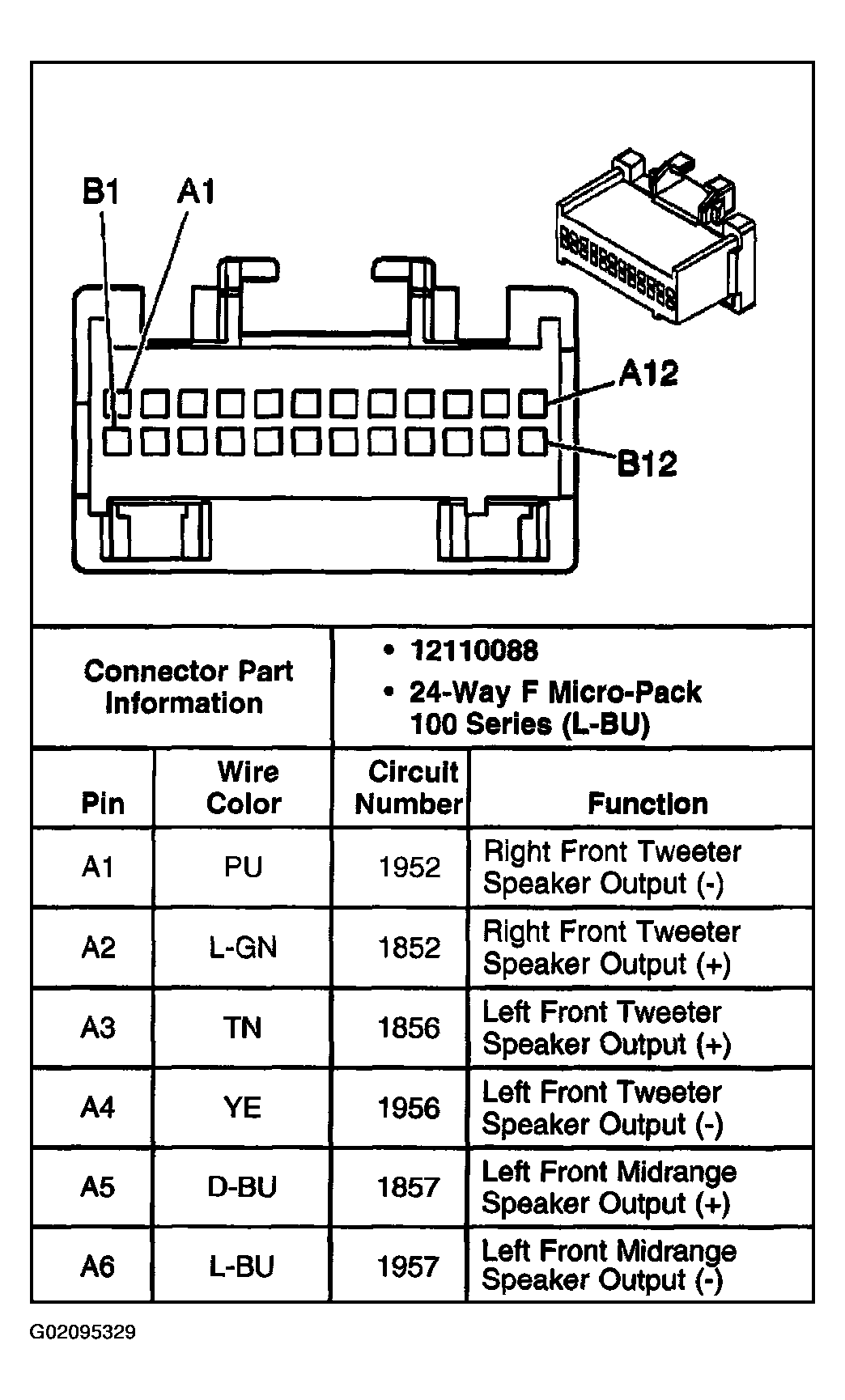

Fig 4: Audio Amplifier C3 (W/U66) Connector End View (1 Of 2)
G02095329Courtesy of GENERAL MOTORS CORP.

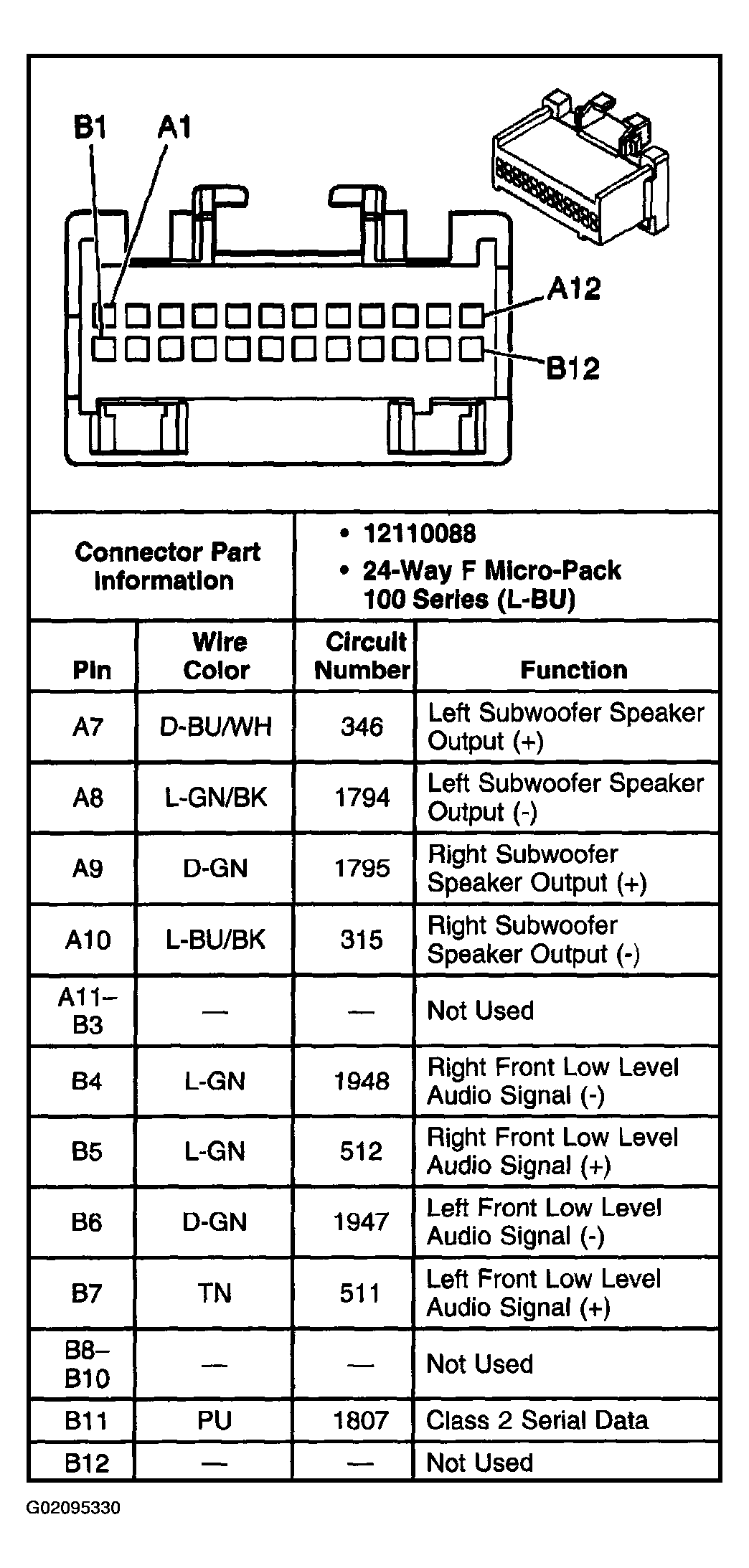

Fig 5: Audio Amplifier C3 (W/U66) Connector End View (2 Of 2)
G02095330Courtesy of GENERAL MOTORS CORP.

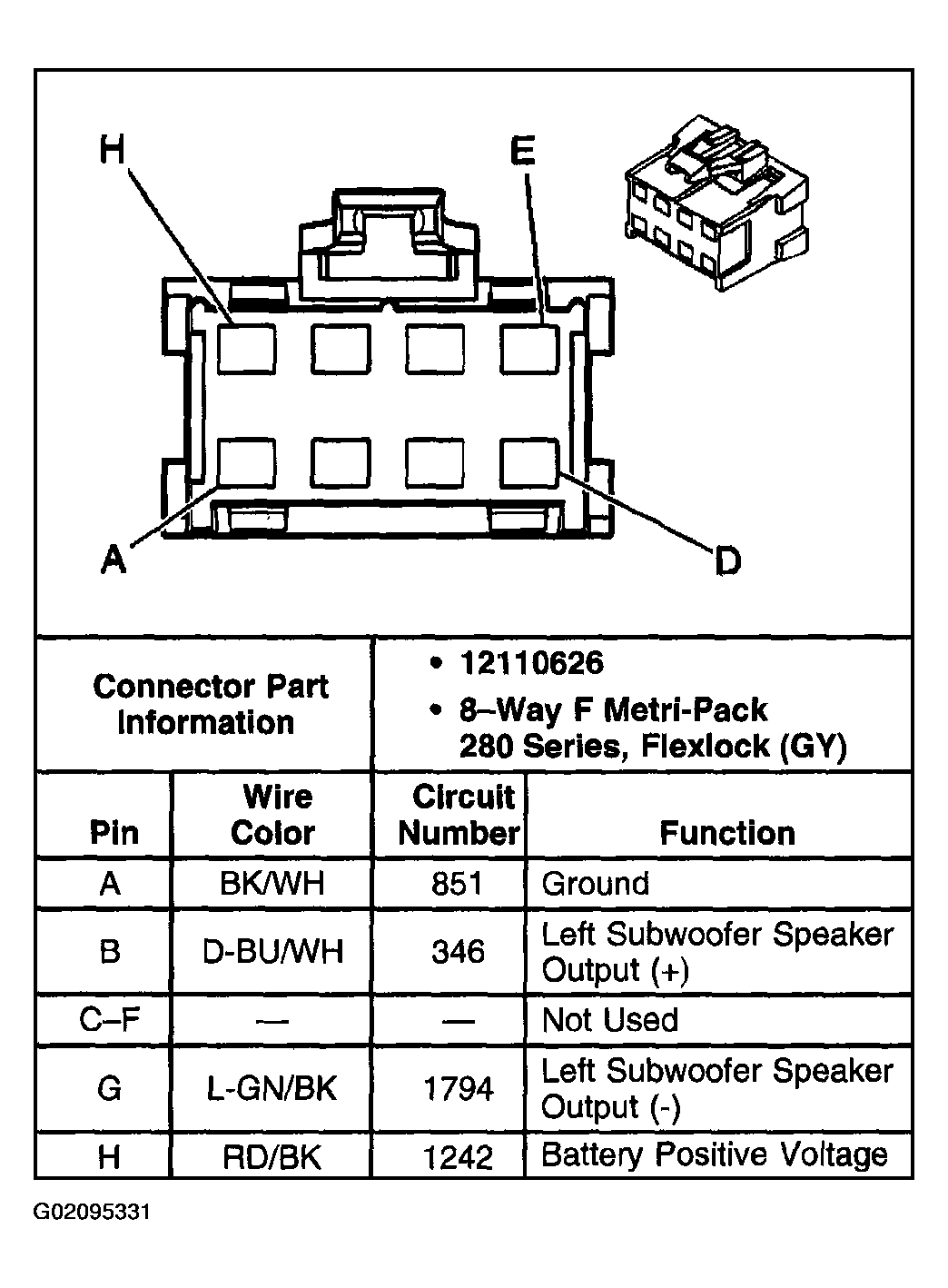

Fig 6: Audio Amplifier C1 (W/U57) Connector End View
G02095331Courtesy of GENERAL MOTORS CORP.

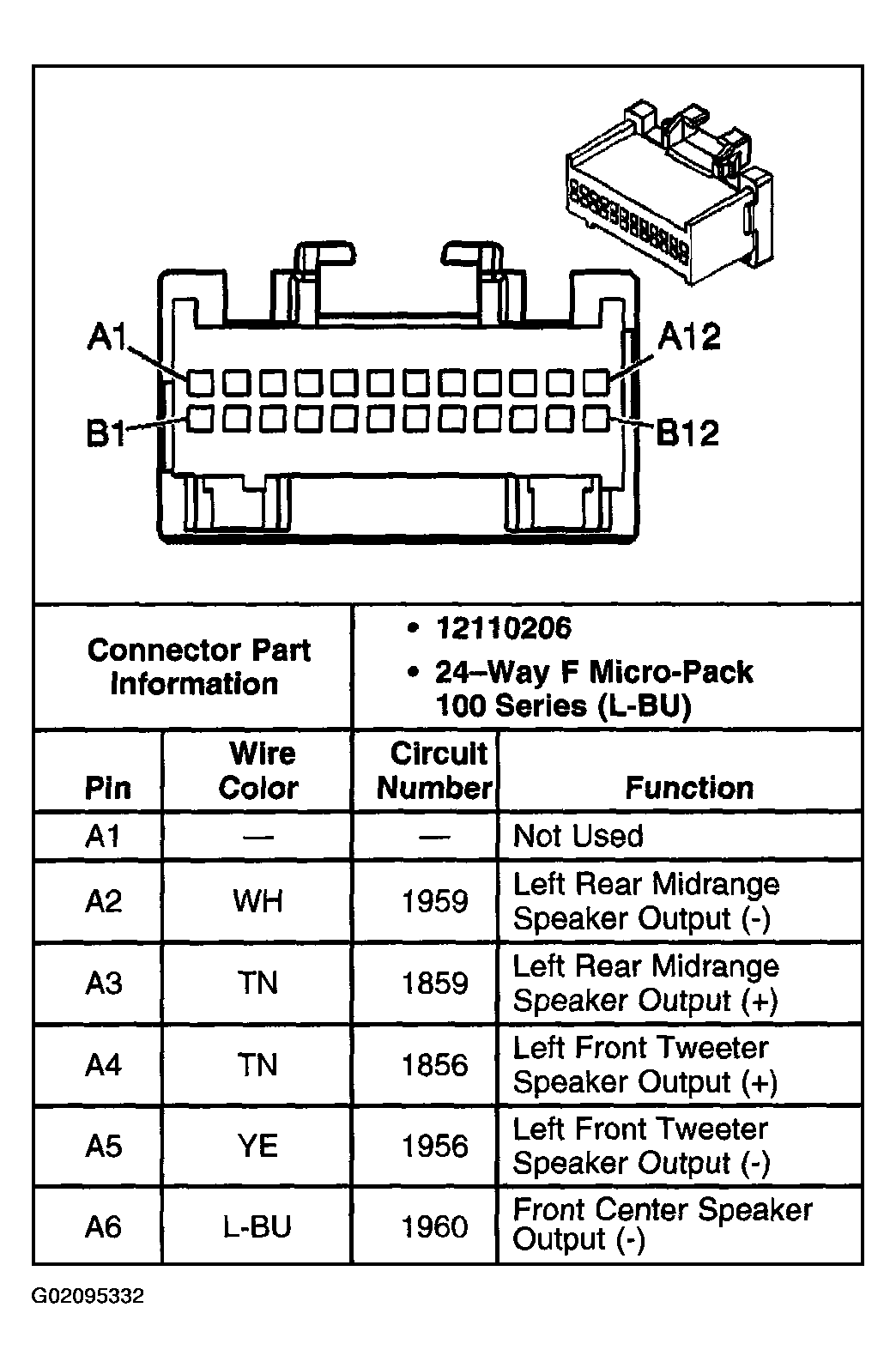

Fig 7: Audio Amplifier C2 (W/U57) Connector End View (1 Of 2)
G02095332Courtesy of GENERAL MOTORS CORP.

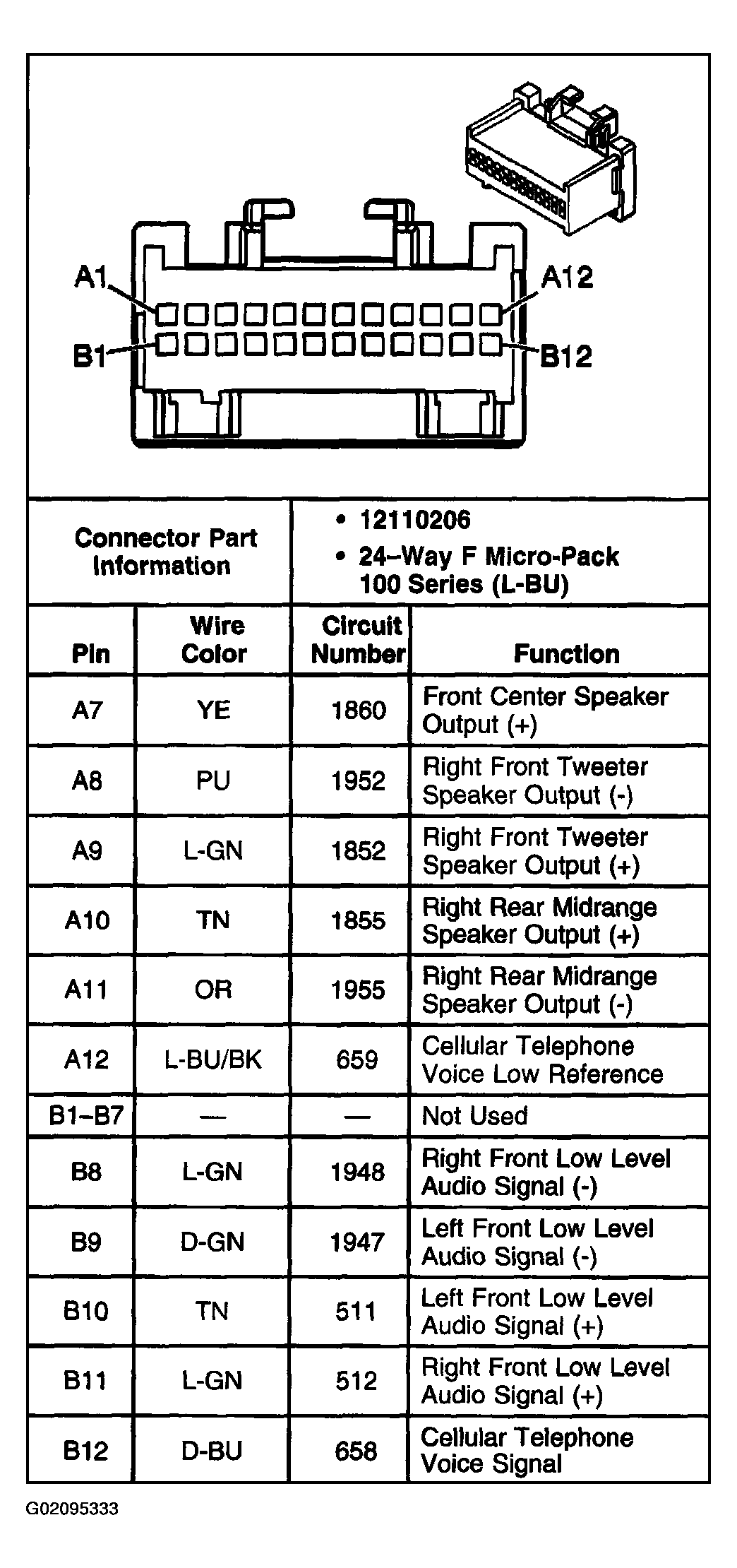

Fig 8: Audio Amplifier C2 (W/U57) Connector End View (2 Of 2)
G02095333Courtesy of GENERAL MOTORS CORP.

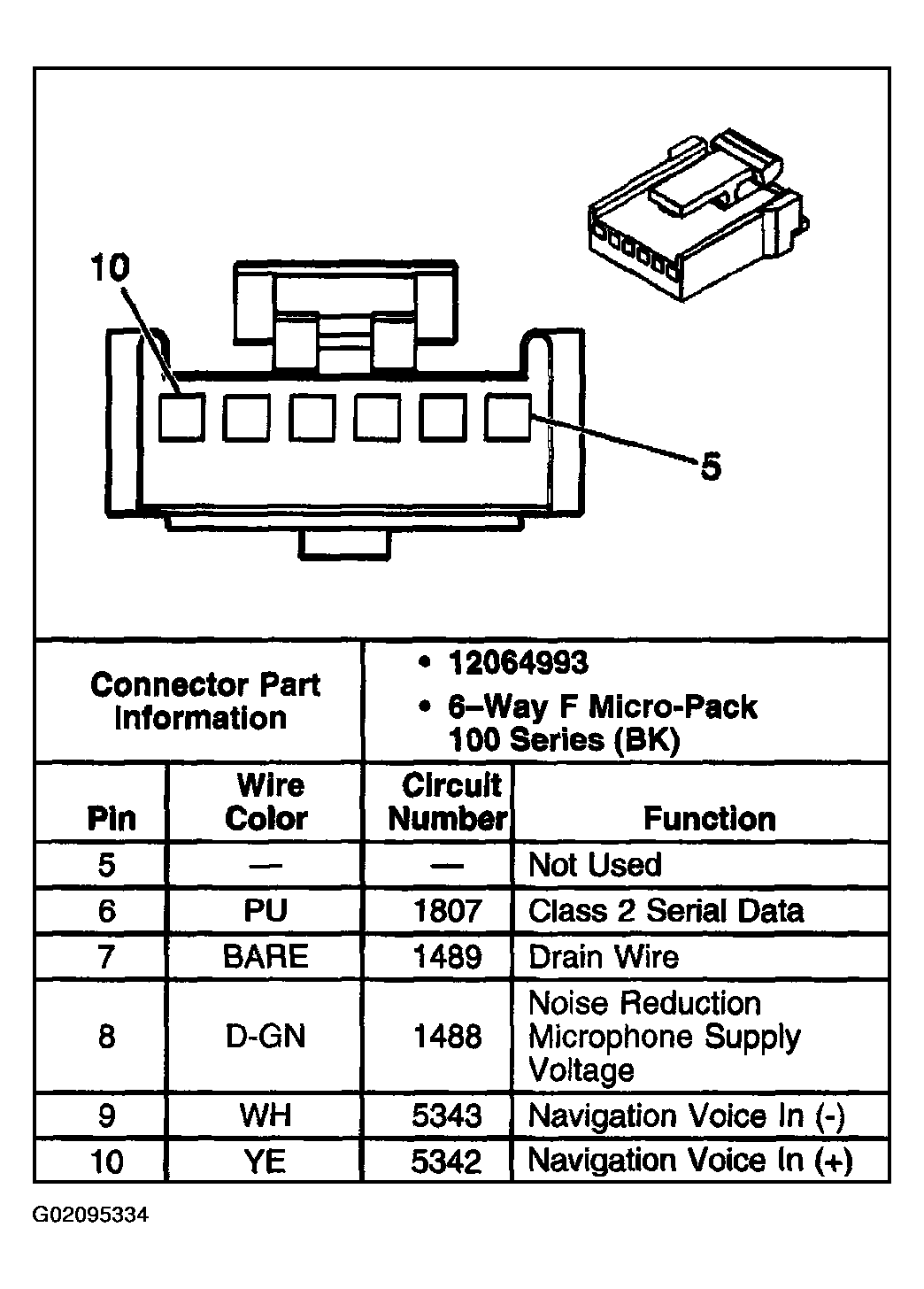

Fig 9: Audio Amplifier C3 (w/U57) Connector End View
G02095334Courtesy of GENERAL MOTORS CORP.

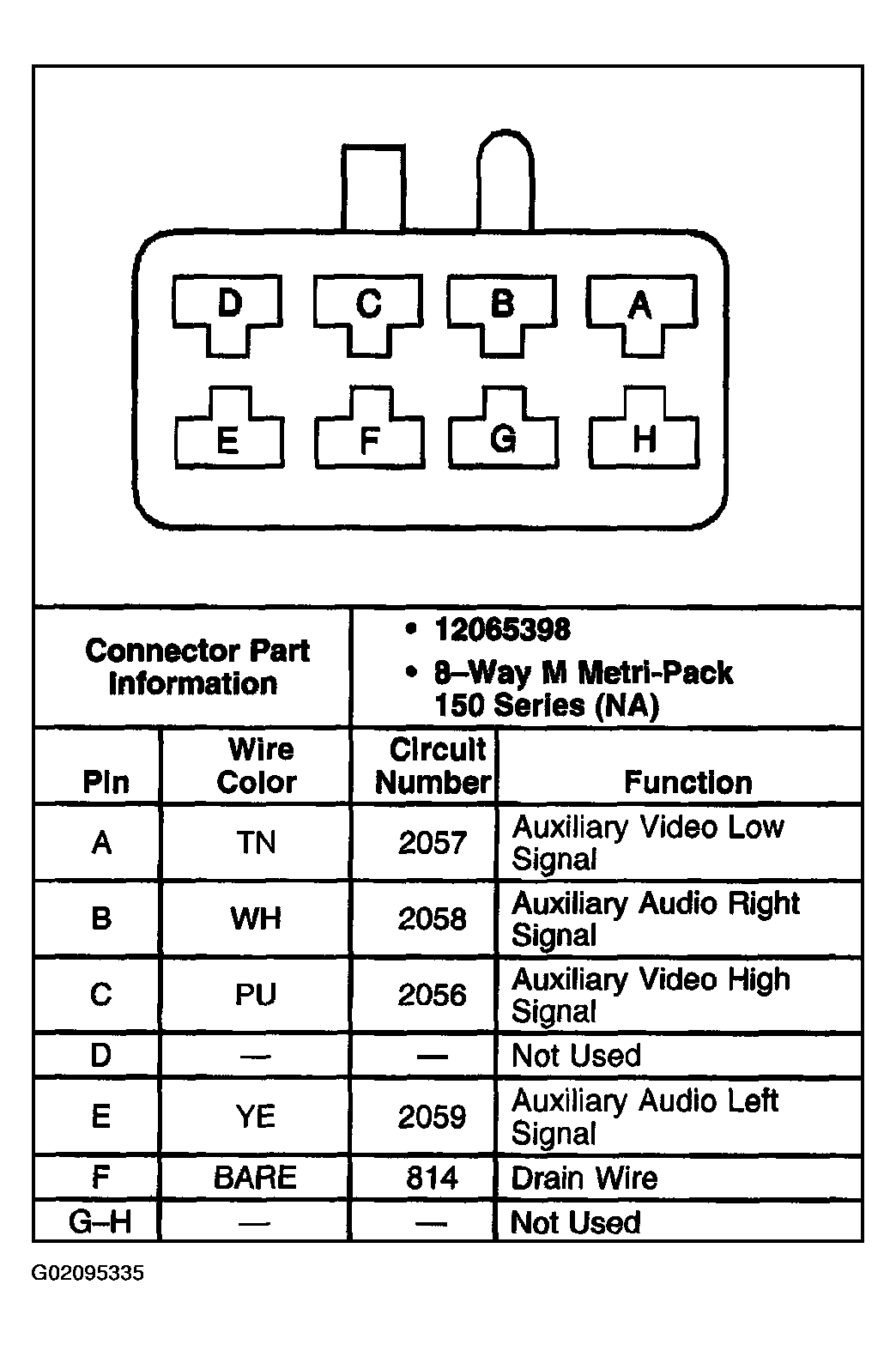

Fig 10: Auxiliary RCA Video Jacks Connector End View
G02095335Courtesy of GENERAL MOTORS CORP.

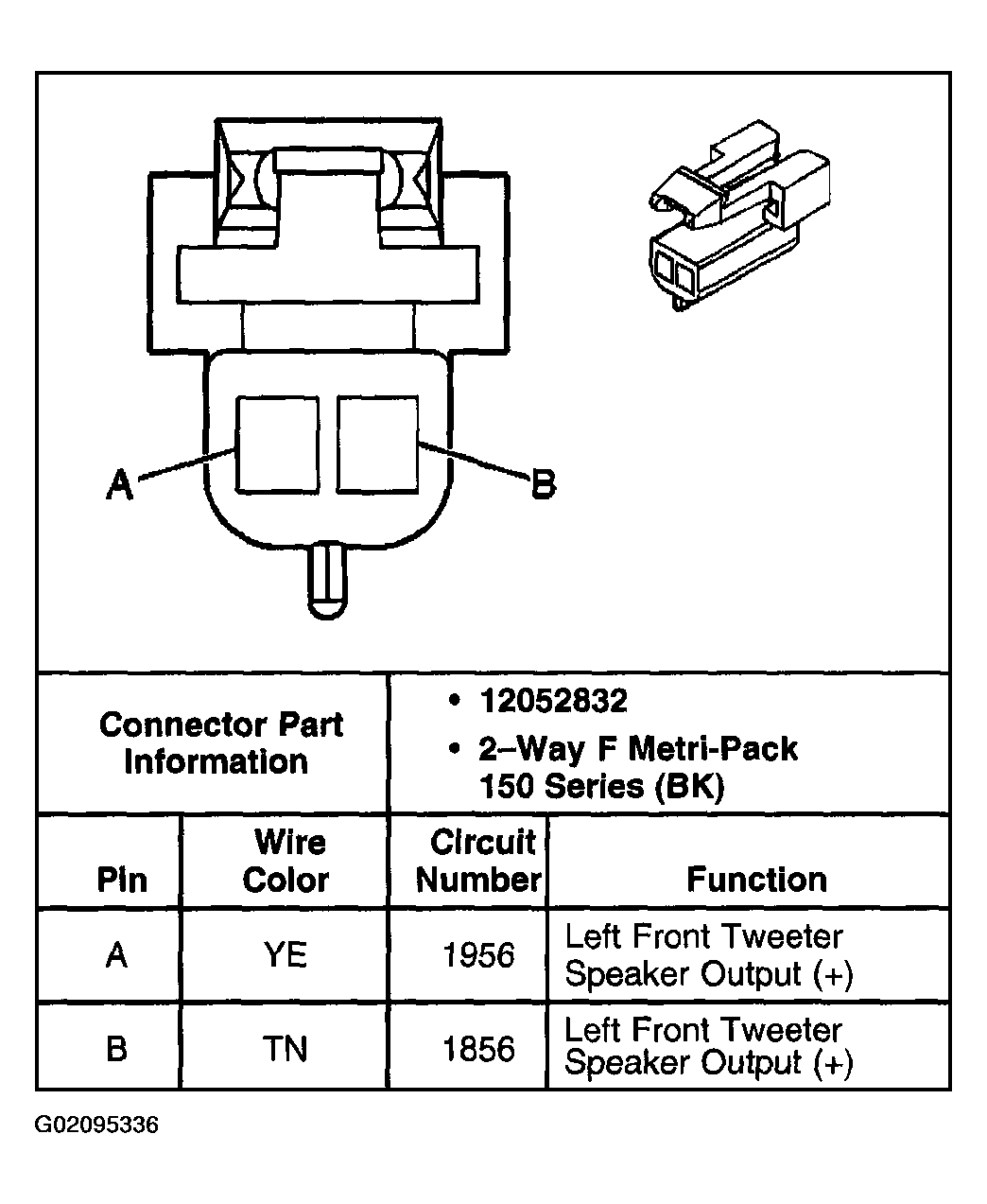

Fig 11: Door Speaker Connector End View - LF (Tweeter) (W/U57)
G02095336Courtesy of GENERAL MOTORS CORP.
Fig 12: Door Speaker Connector End View - RF (Tweeter) (W/U57)
G02095337Courtesy of GENERAL MOTORS CORP.

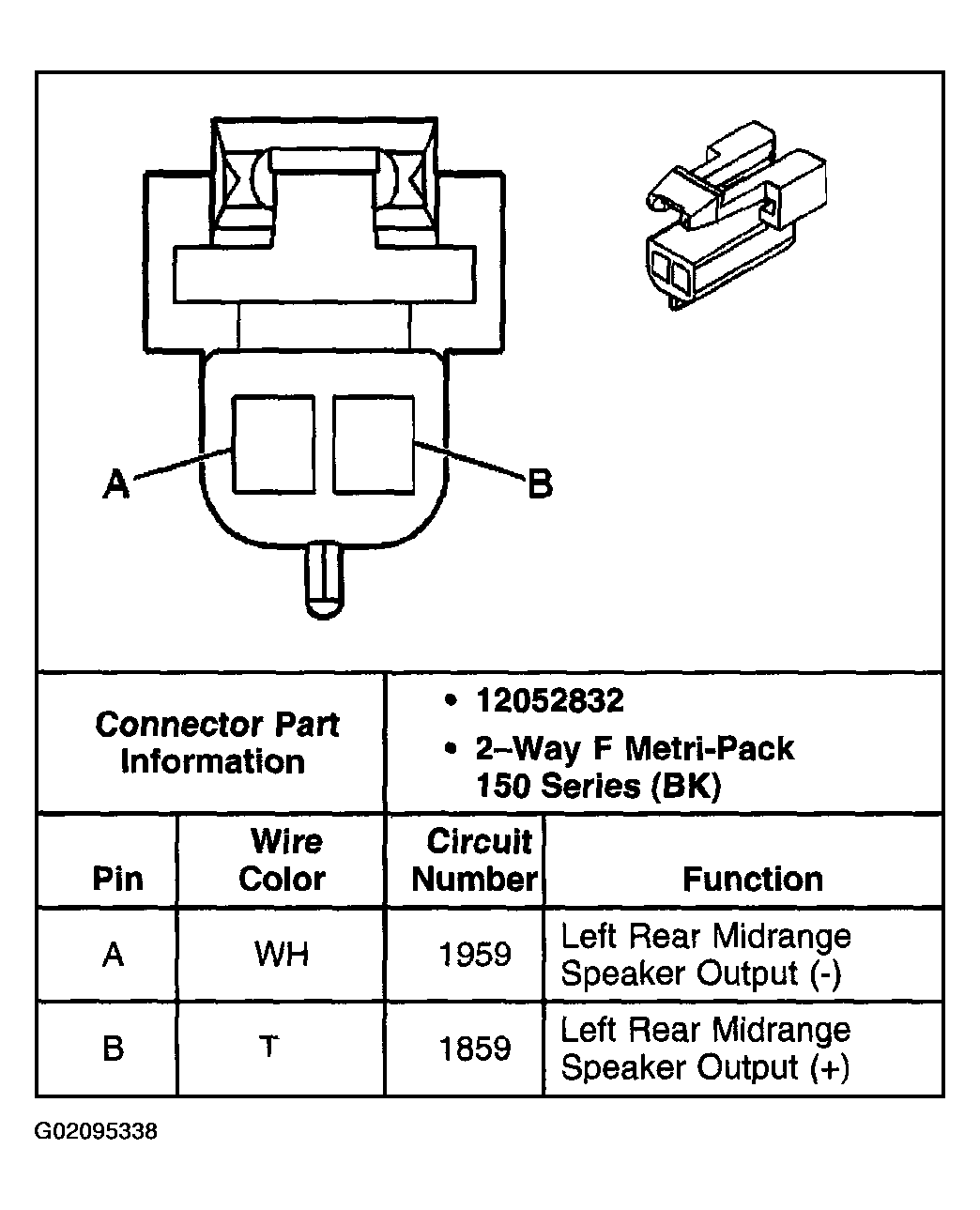

Fig 13: Door Speaker Connector End View - LR (Midrange)
G02095338Courtesy of GENERAL MOTORS CORP.
Fig 14: Door Speaker Connector End View - RR (Midrange) (U57)
G02095339Courtesy of GENERAL MOTORS CORP.

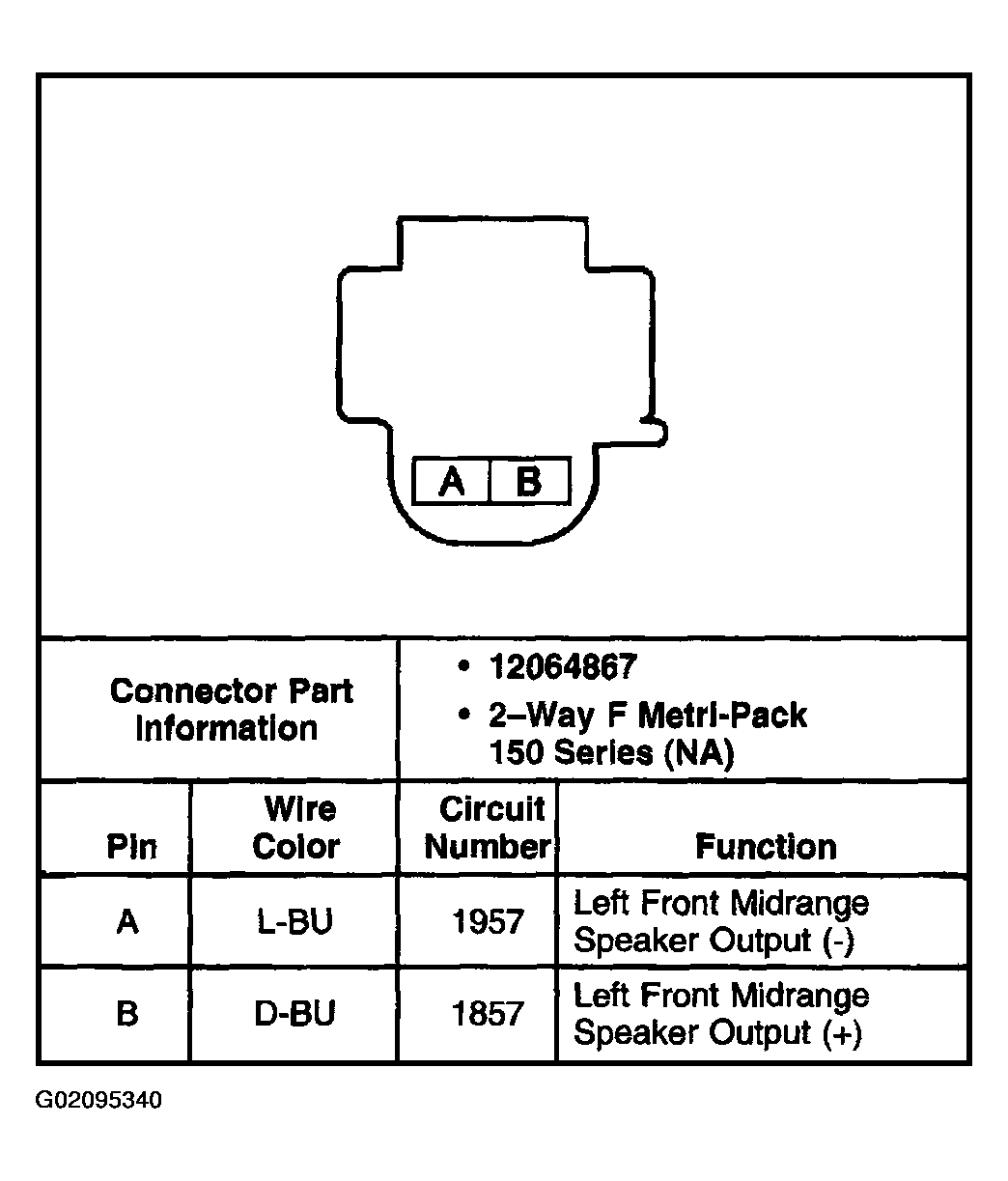

Fig 15: Door Speaker Connector End View - LF (Midrange) (W/U66)
G02095340Courtesy of GENERAL MOTORS CORP.

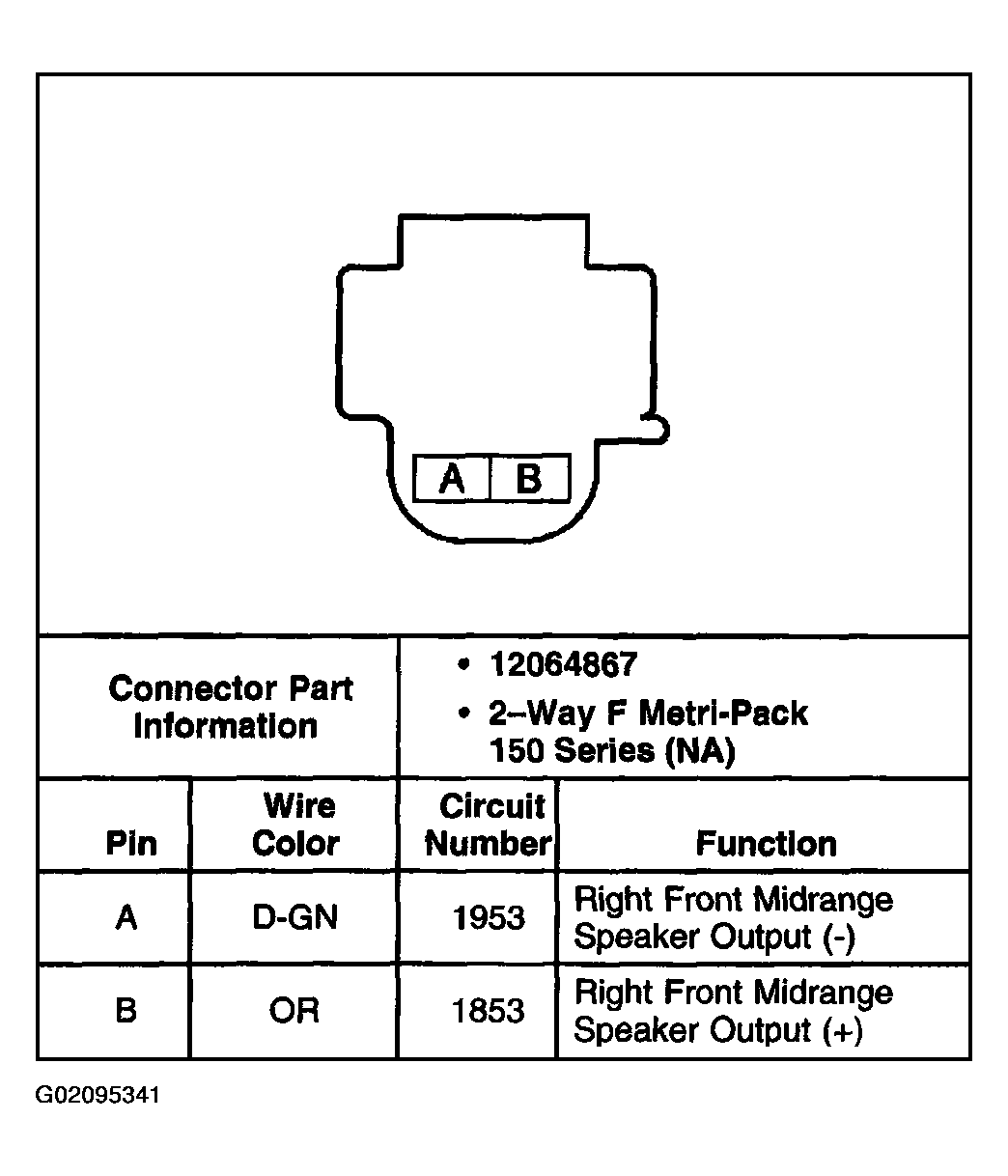

Fig 16: Door Speaker Connector End View - RF (Midrange) (W/U66)
G02095341Courtesy of GENERAL MOTORS CORP.

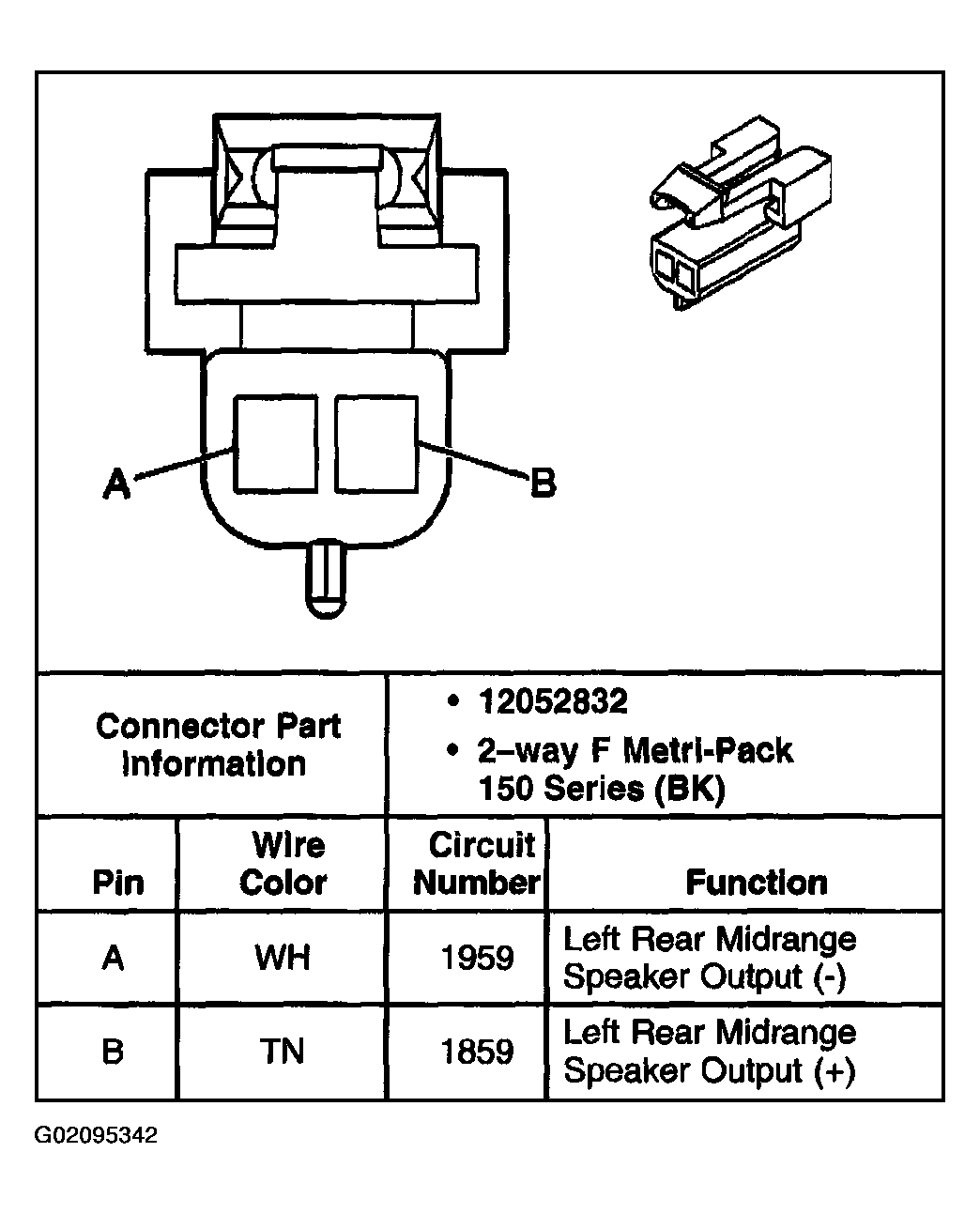

Fig 17: Door Speaker Connector End View - LR (Midrange) (W/U66)
G02095342Courtesy of GENERAL MOTORS CORP.

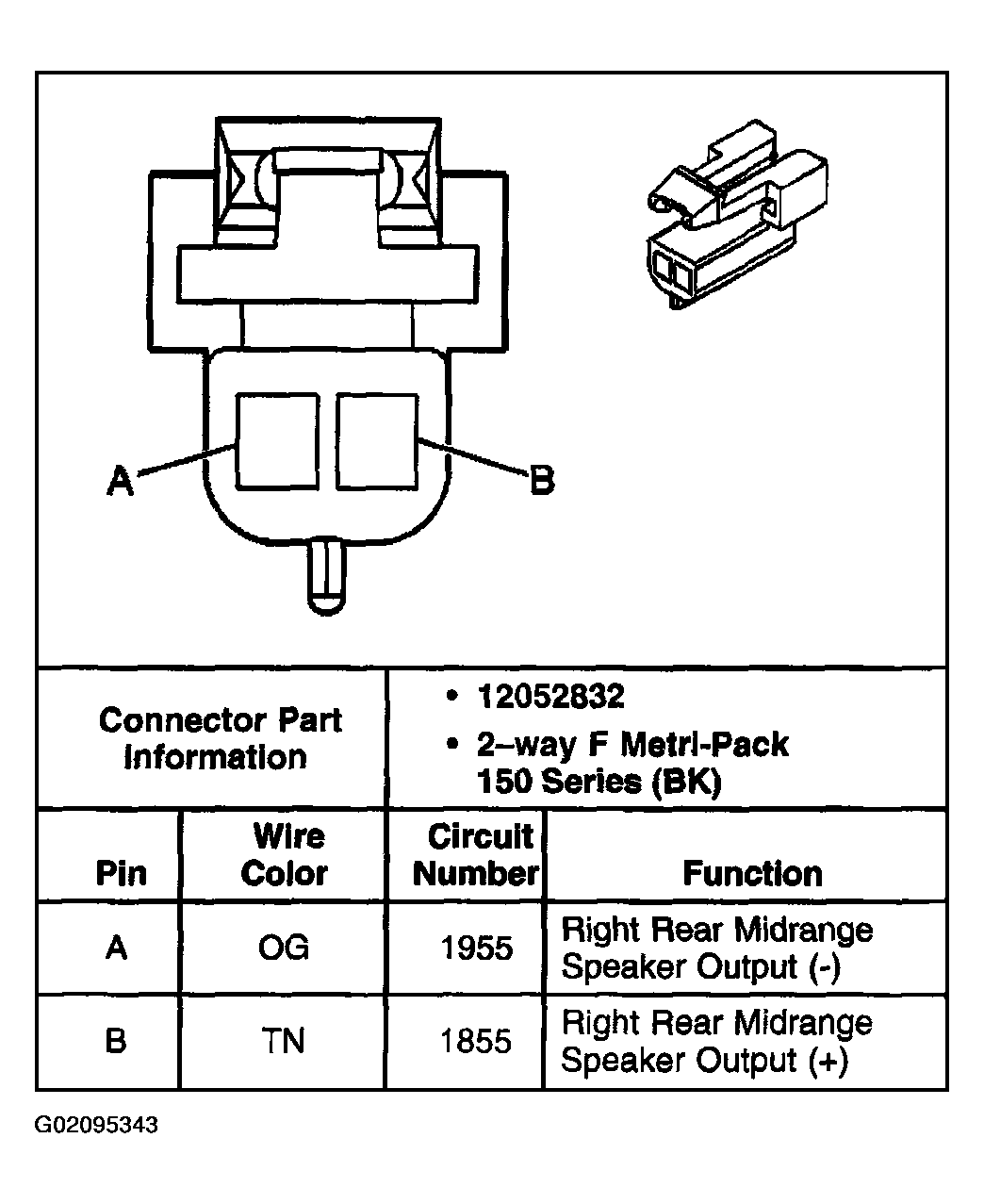

Fig 18: Door Speaker Connector End View - RR (Midrange) (W/U66)
G02095343Courtesy of GENERAL MOTORS CORP.

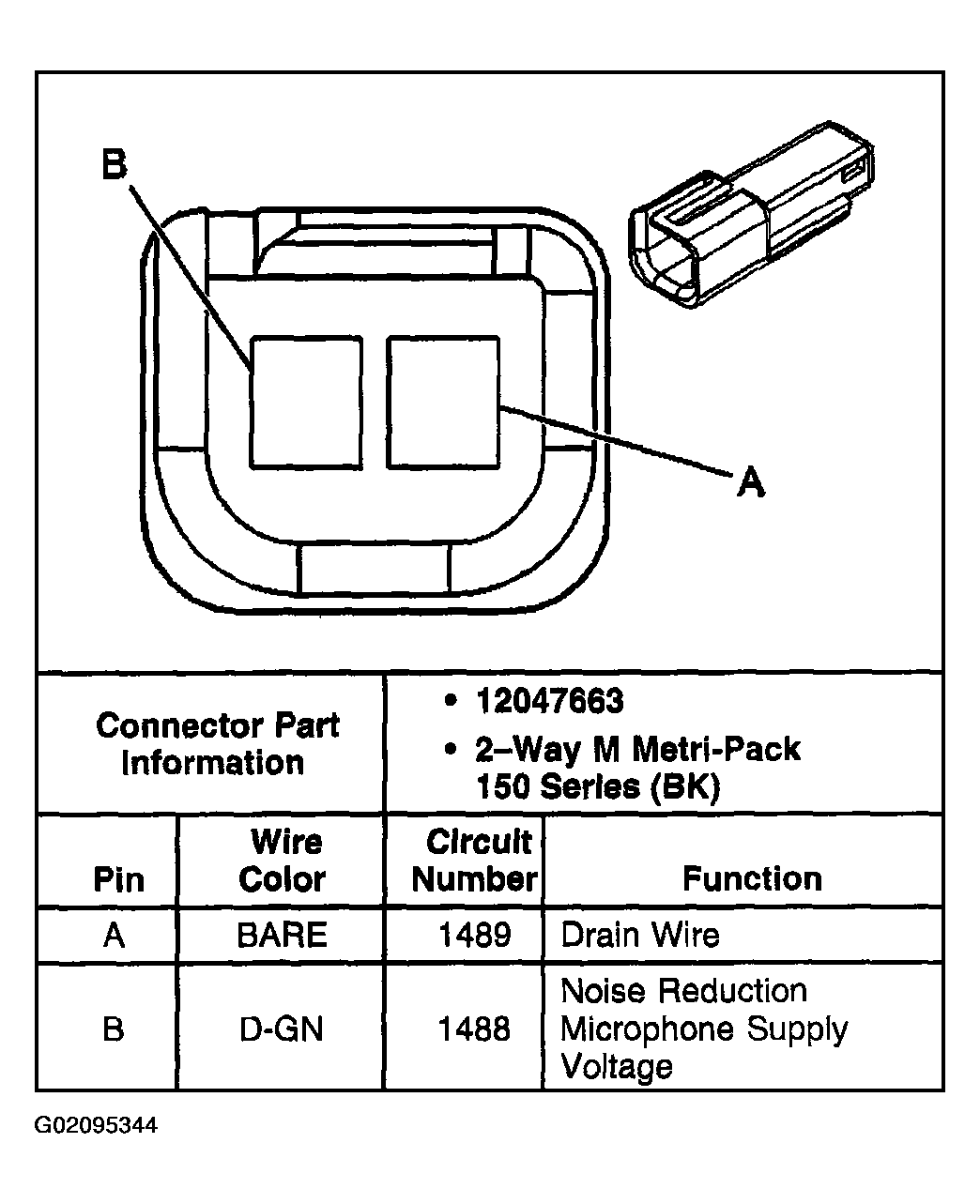

Fig 19: Noise Compensation Microphone Connector End View
G02095344Courtesy of GENERAL MOTORS CORP.

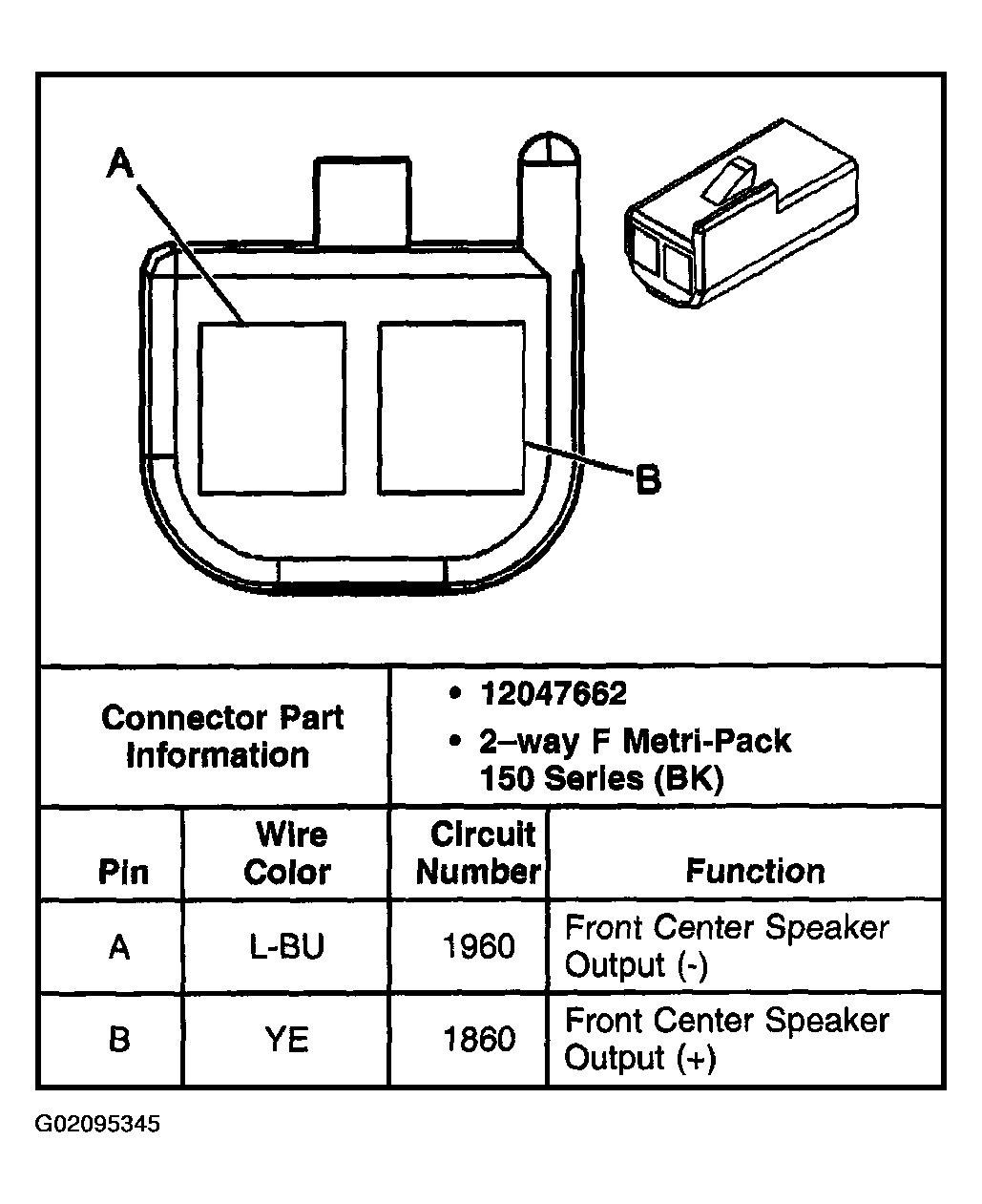

Fig 20: Speaker Connector End View - Front (Midrange) (W/U57)
G02095345Courtesy of GENERAL MOTORS CORP.

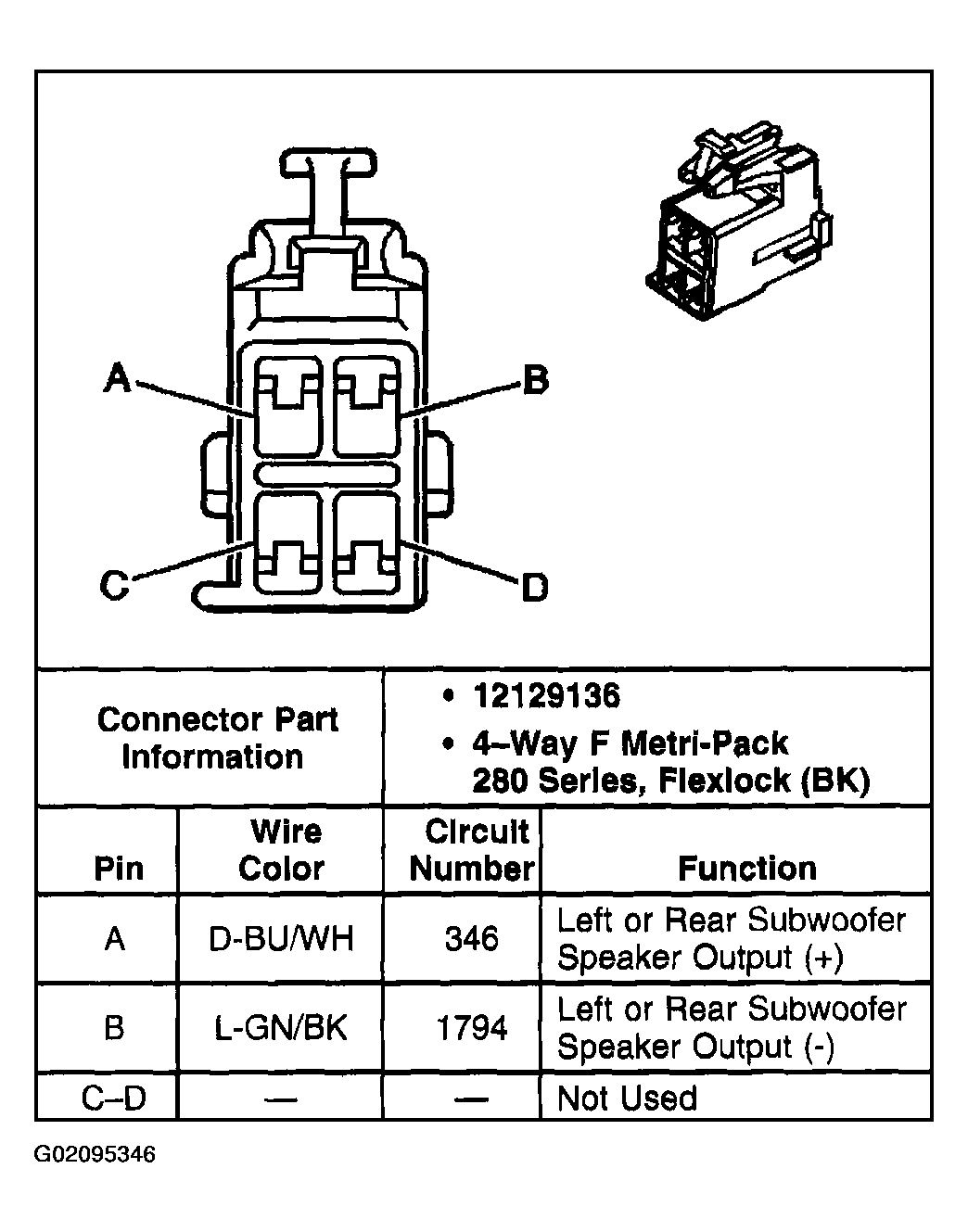

Fig 21: Speaker Connector End View - Rear (Subwoofer) (W/U57)
G02095346Courtesy of GENERAL MOTORS CORP.

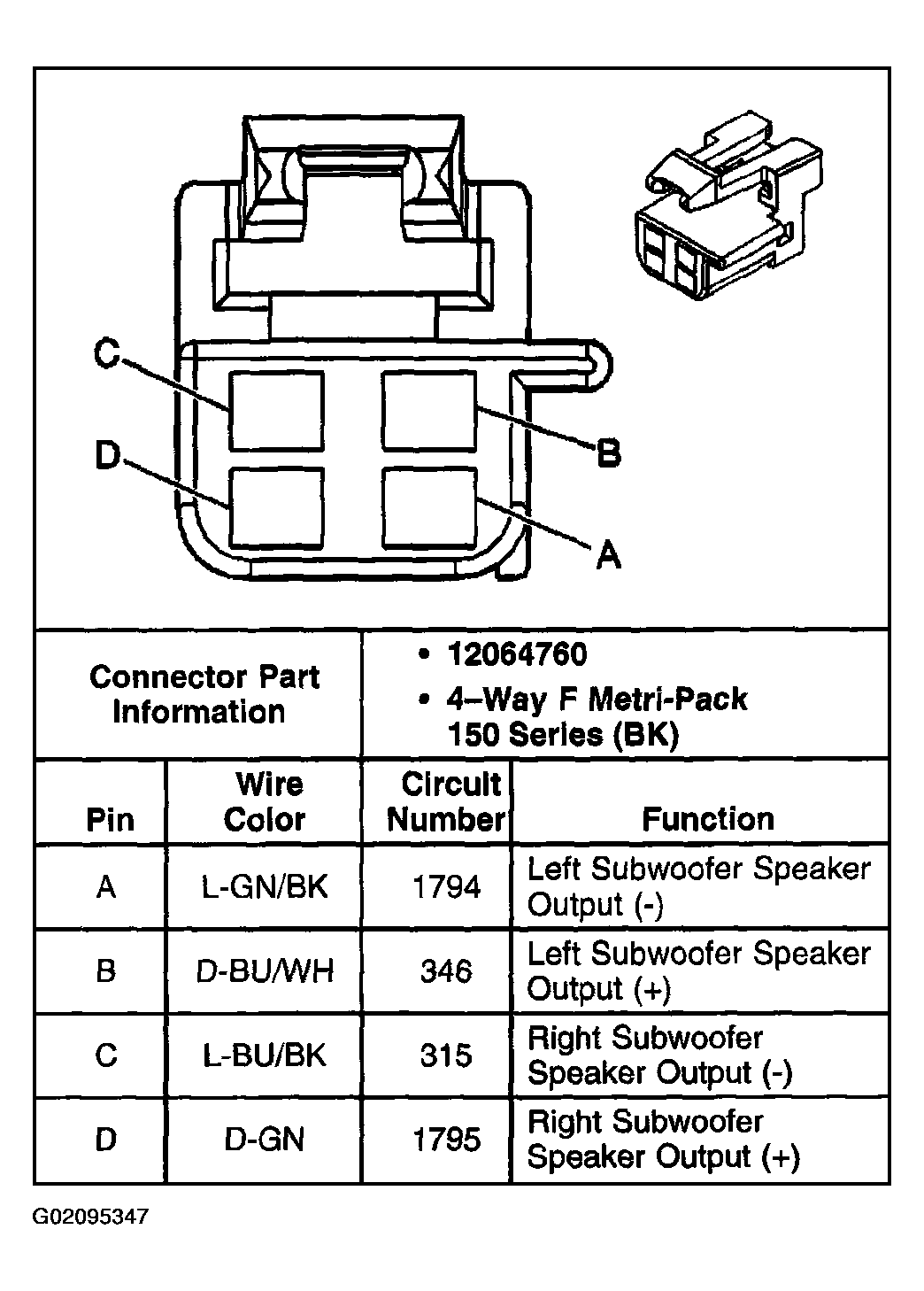

Fig 22: Speaker Connector End View - Rear (Subwoofer) (W/U66)
G02095347Courtesy of GENERAL MOTORS CORP.

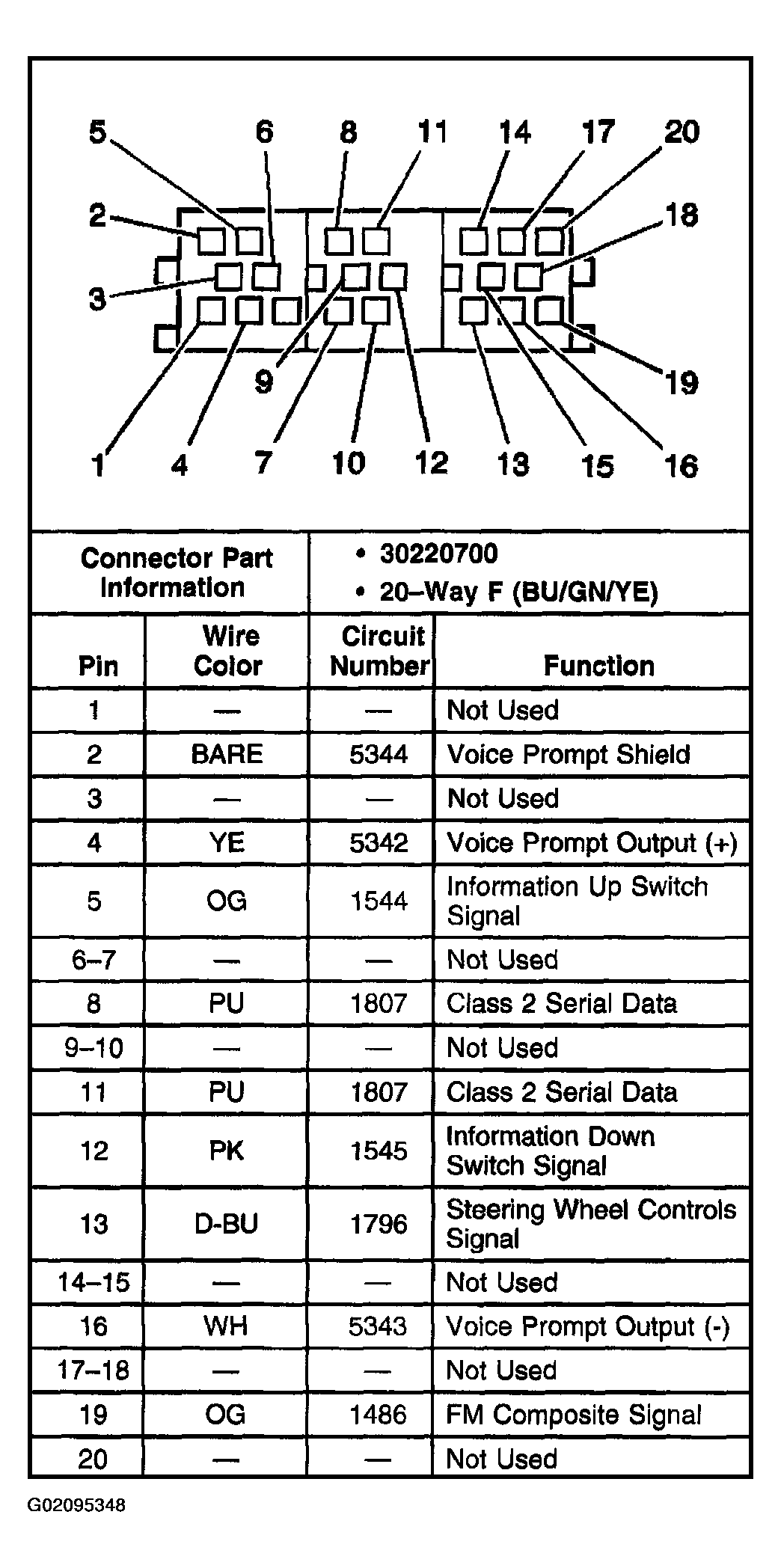

Fig 23: Radio C1 (W/U2R & U2S & U2V) Connector End View
G02095348Courtesy of GENERAL MOTORS CORP.

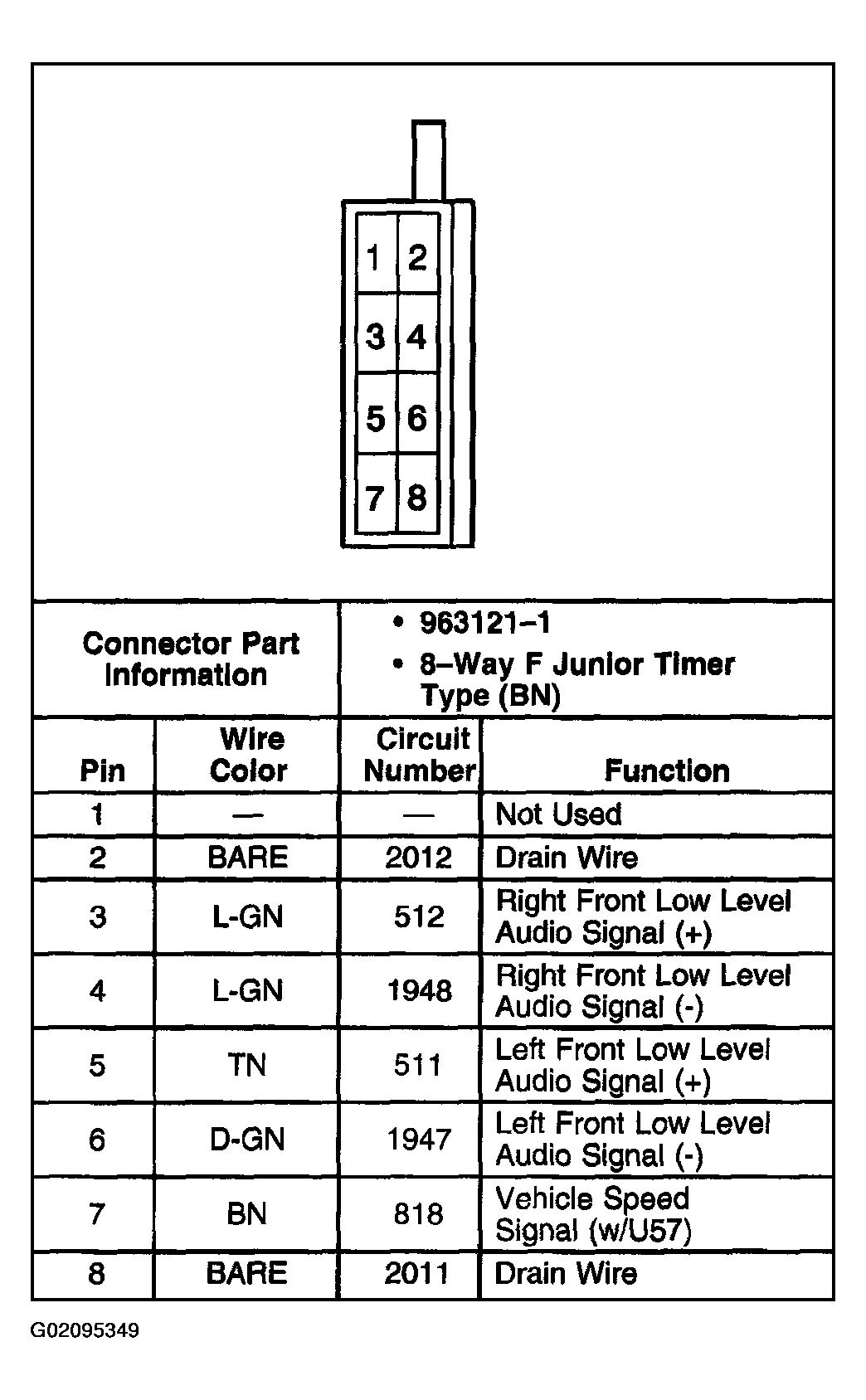

Fig 24: Radio C2 (W/U2R & U2S & U2V) Connector End View
G02095349Courtesy of GENERAL MOTORS CORP.

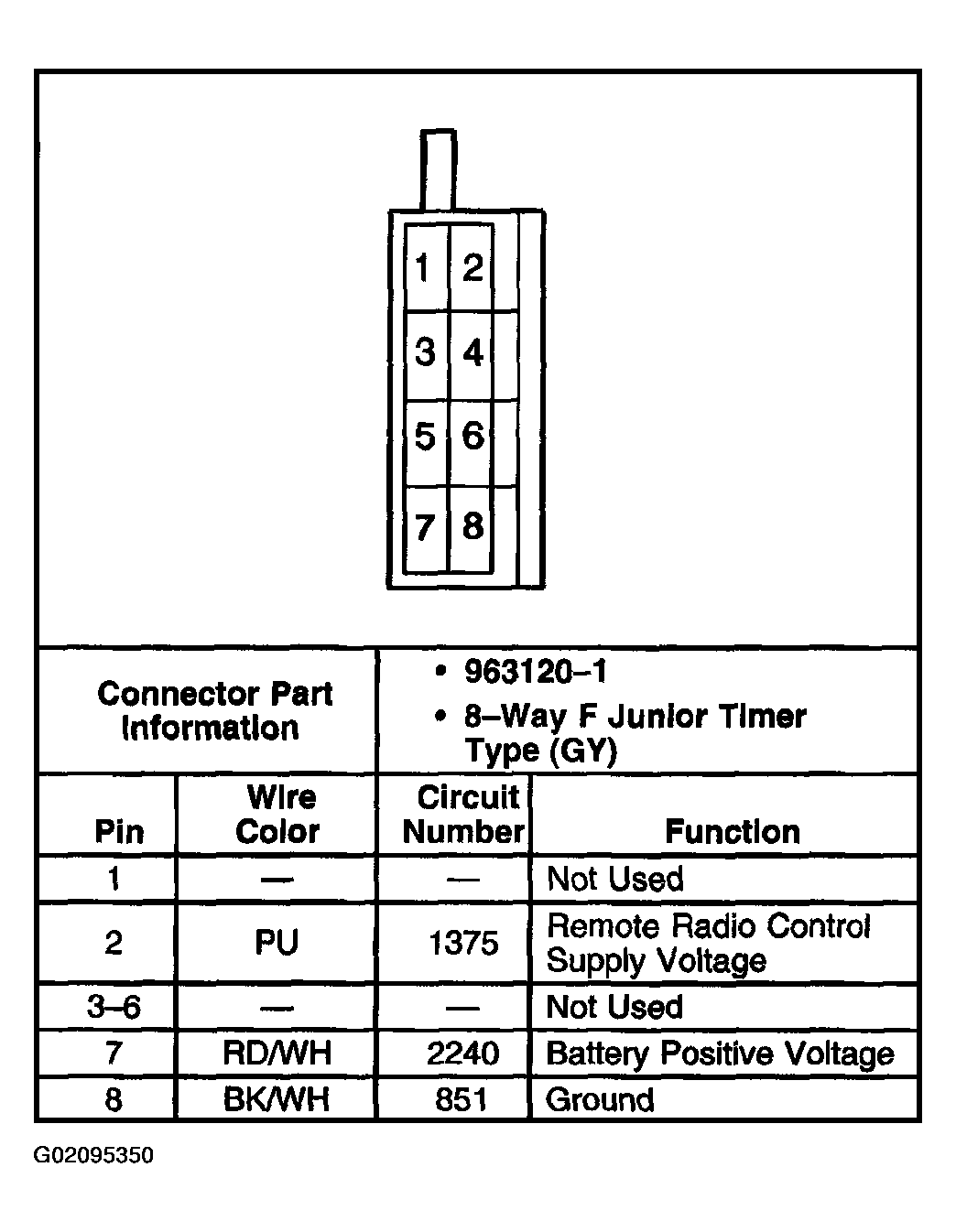

Fig 25: Radio C3 (W/U2R & U2S & U2V) Connector End View
G02095350Courtesy of GENERAL MOTORS CORP.

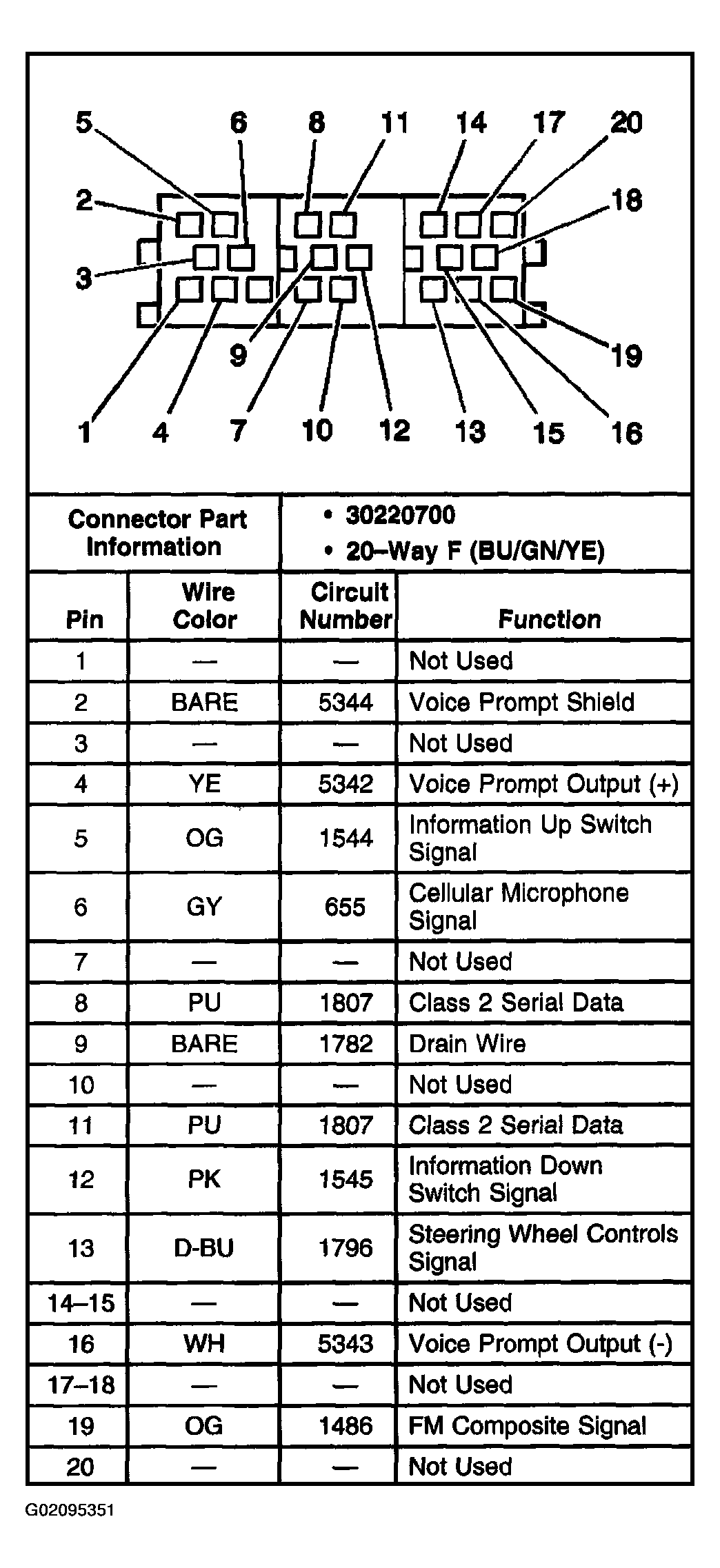

Fig 26: Radio C1 (W/U2X & U2V) Connector End View
G02095351Courtesy of GENERAL MOTORS CORP.

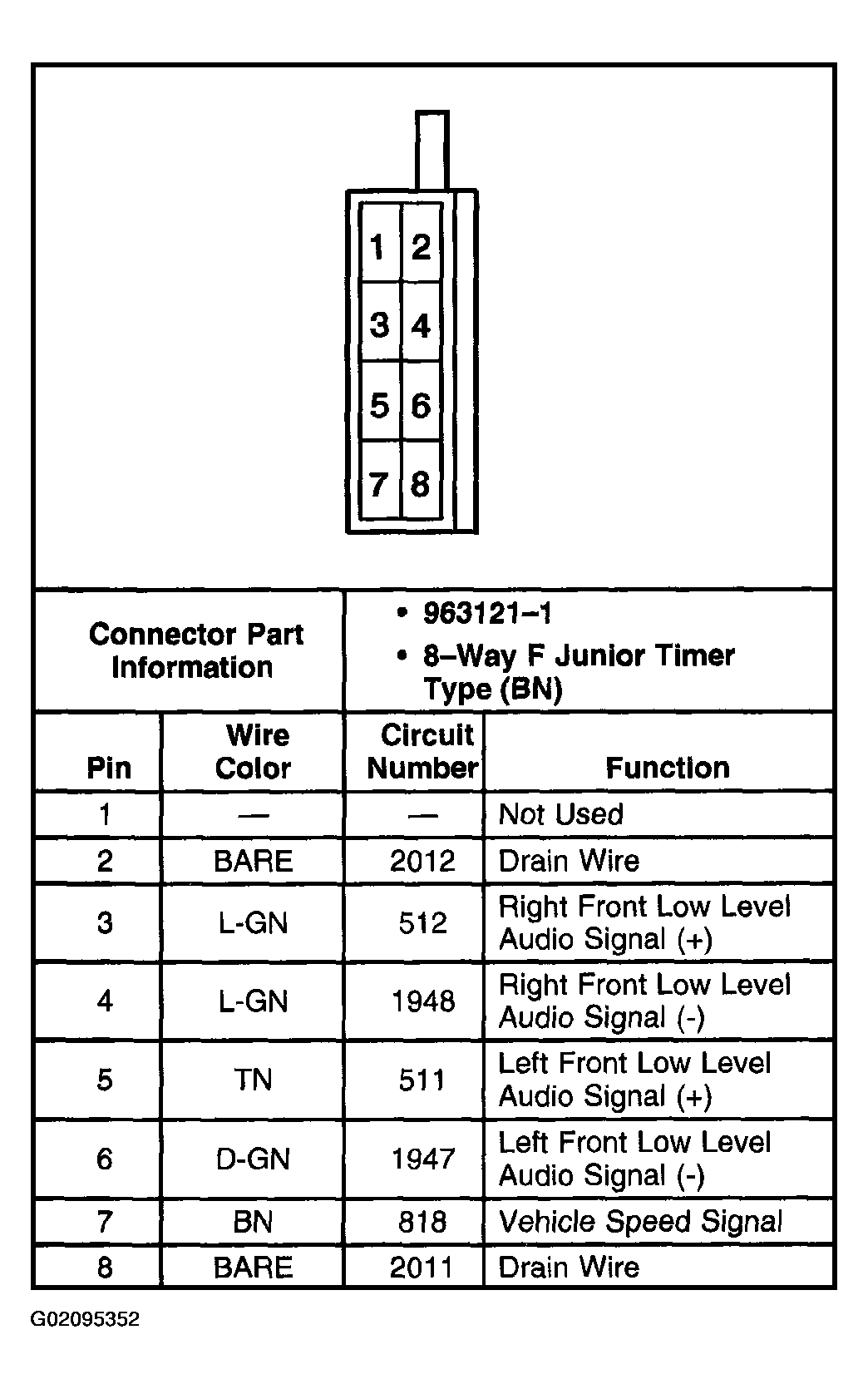

Fig 27: Radio C2 (W/U2X & U2V) Connector End View
G02095352Courtesy of GENERAL MOTORS CORP.

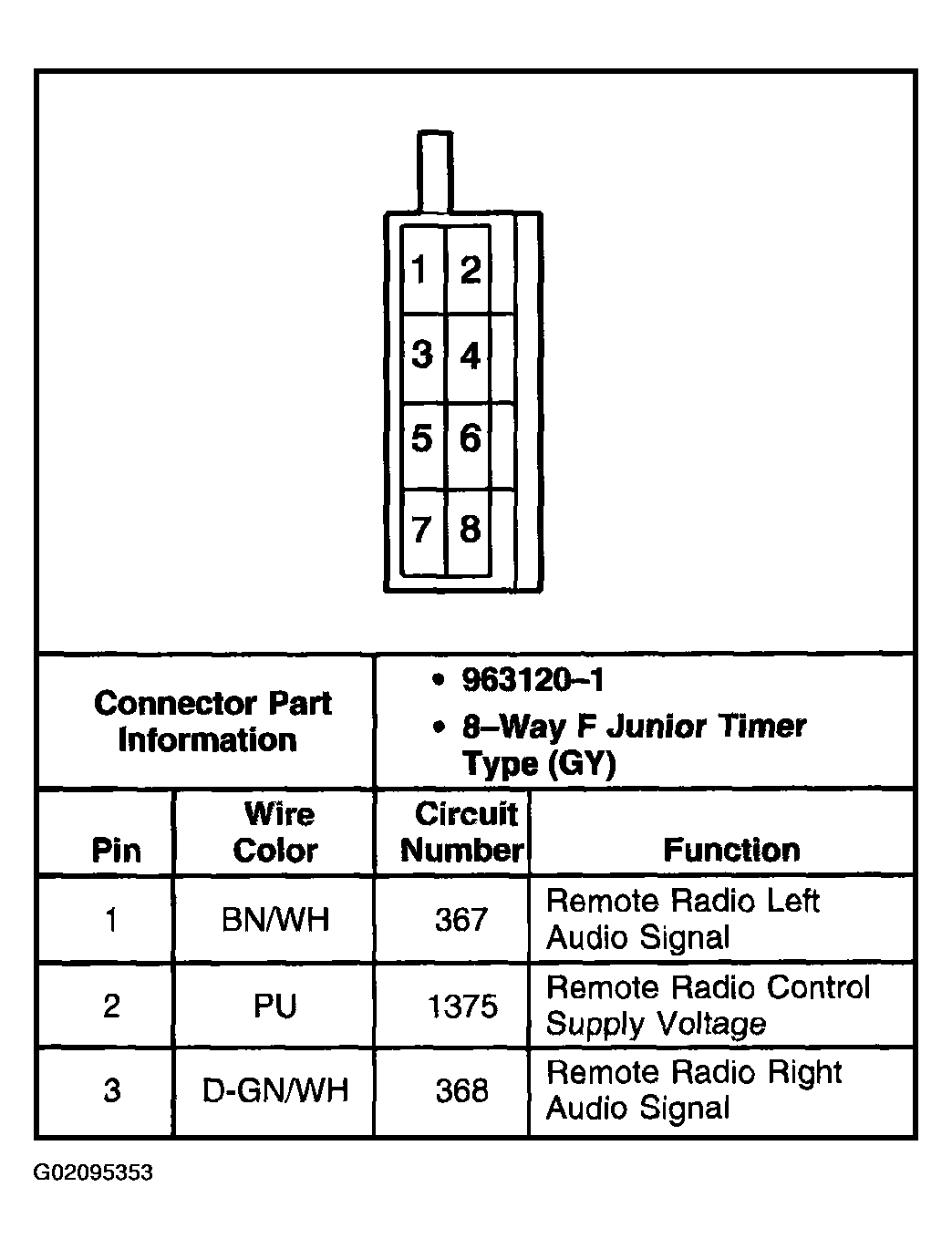

Fig 28: Radio C3 (W/U2X & U2V) Connector End View (1 Of 2)
G02095353Courtesy of GENERAL MOTORS CORP.

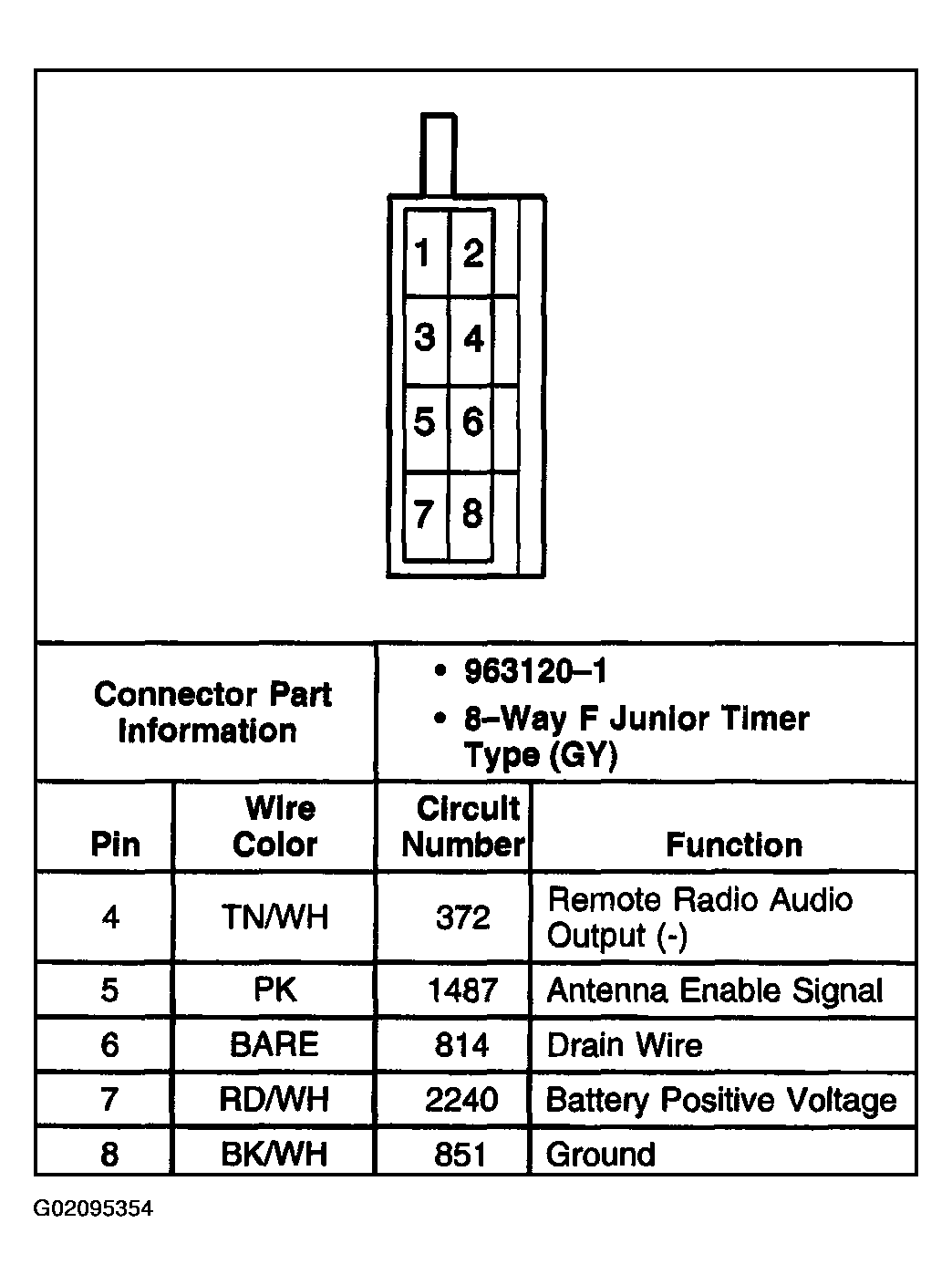

Fig 29: Radio C3 (W/U2X & U2V) Connector End View (2 Of 2)
G02095354Courtesy of GENERAL MOTORS CORP.

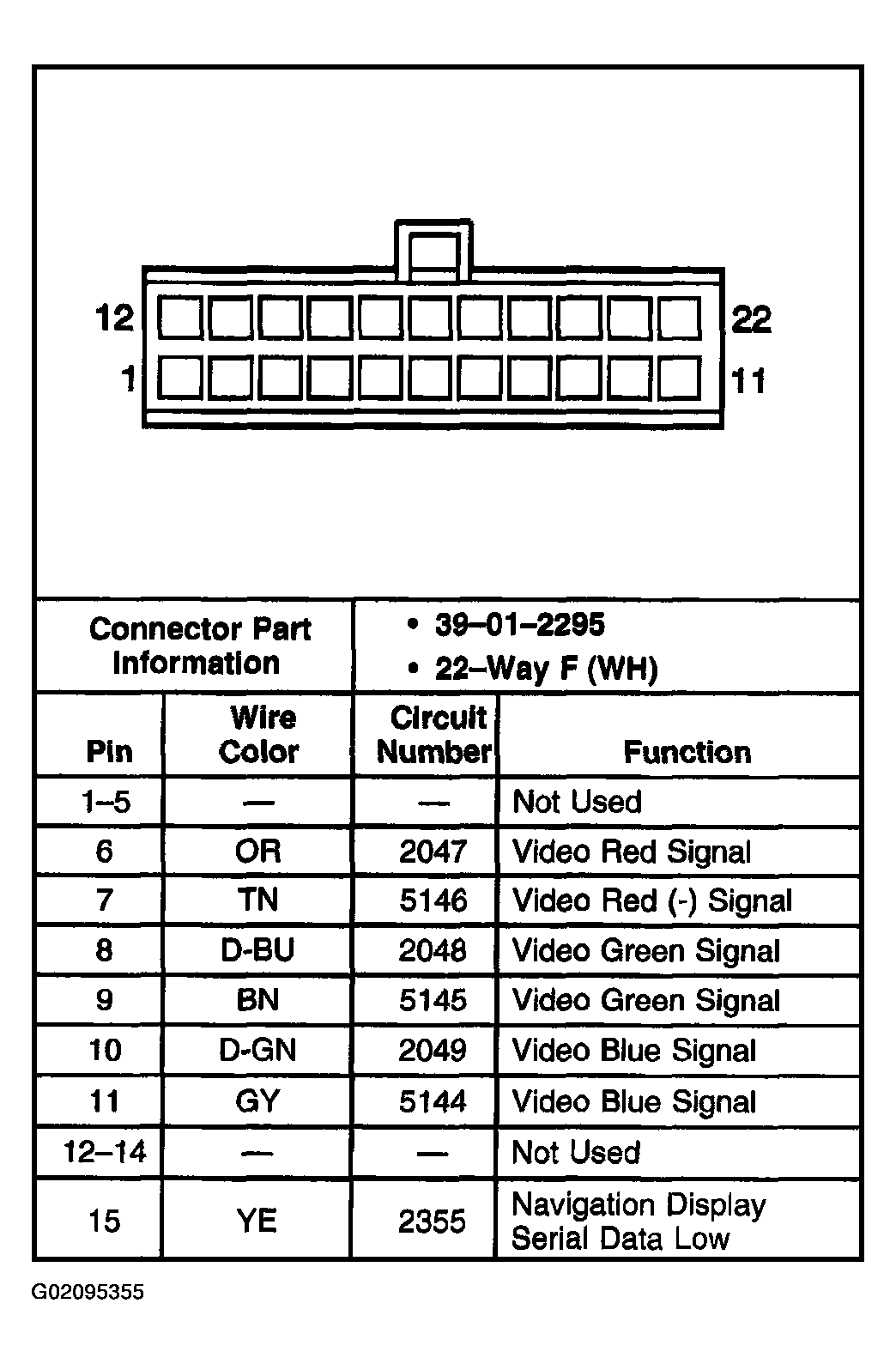

Fig 30: Radio C4 (W/U2X & U2V) Connector End View (1 Of 2)
G02095355Courtesy of GENERAL MOTORS CORP.

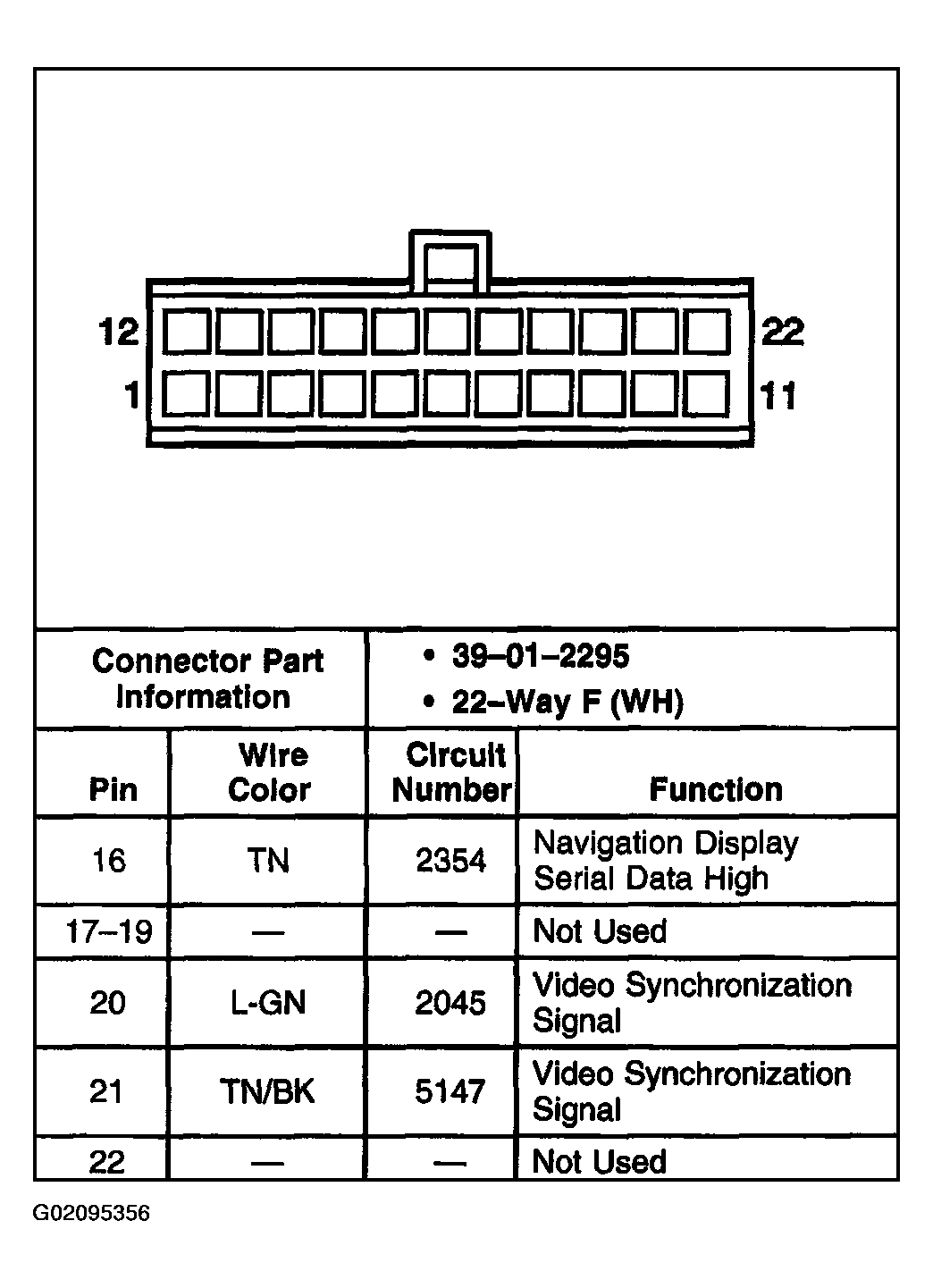

Fig 31: Radio C4 (W/U2X & U2V) Connector End View (2 Of 2)
G02095356Courtesy of GENERAL MOTORS CORP.

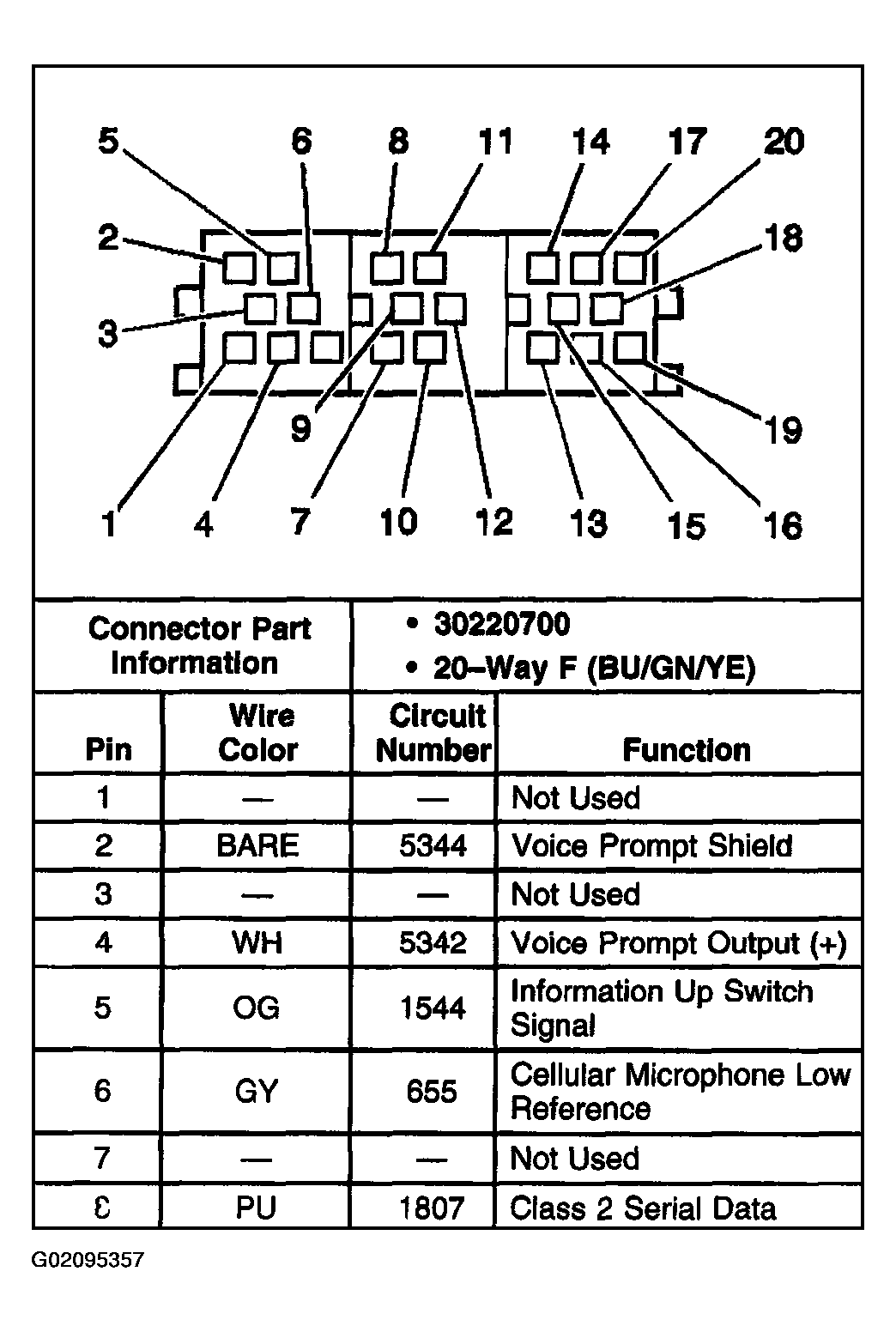

Fig 32: Radio C1 (W/U2Y & U2X) Connector End View (1 Of 2)
G02095357Courtesy of GENERAL MOTORS CORP.

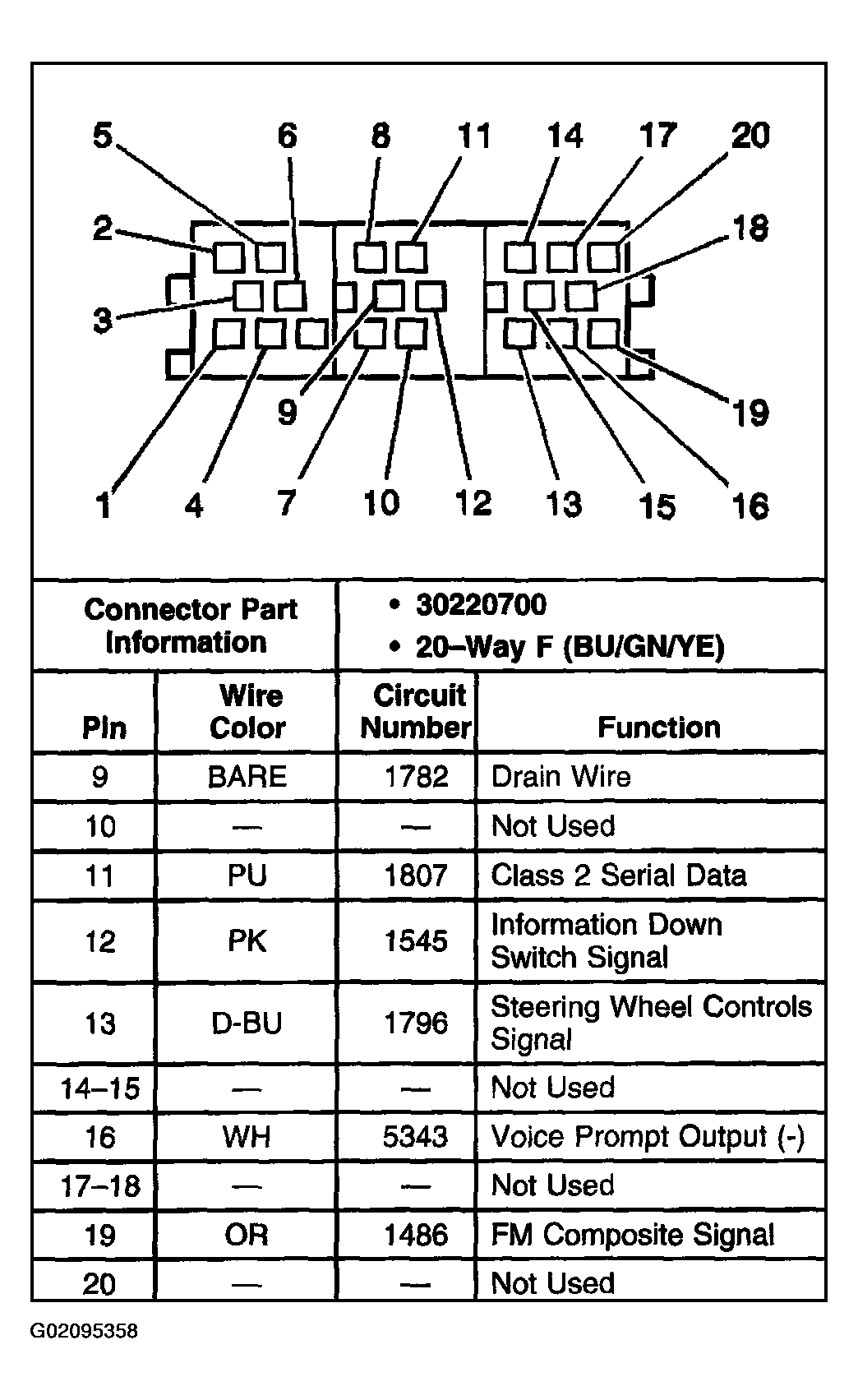

Fig 33: Radio C1 (W/U2Y & U2X) Connector End View (2 Of 2)
G02095358Courtesy of GENERAL MOTORS CORP.

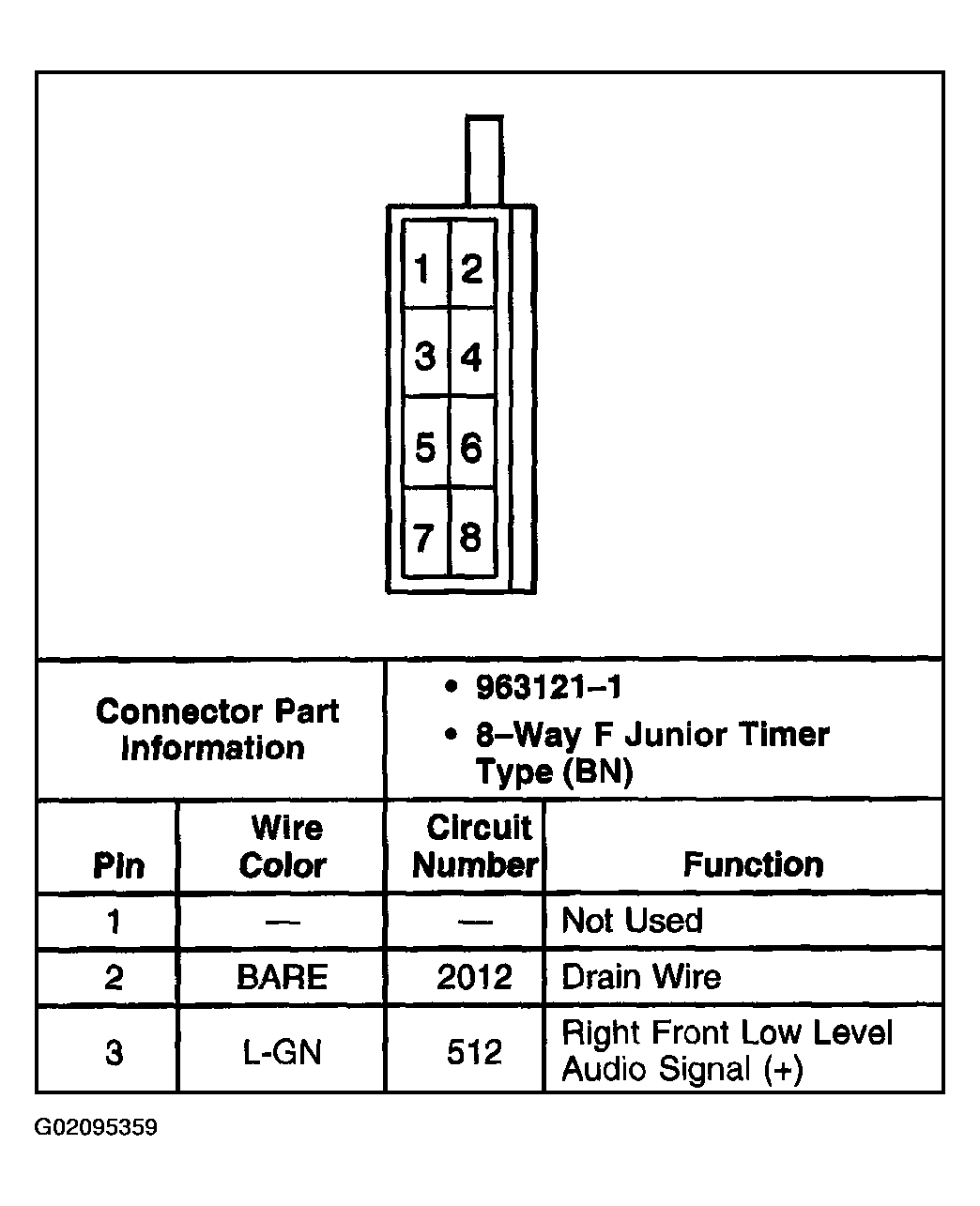

Fig 34: Radio C2 (W/U2Y & U2X) Connector End View (1 Of 2)
G02095359Courtesy of GENERAL MOTORS CORP.
Fig 35: Radio C2 (W/U2Y & U2X) Connector End View (2 Of 2)
G02095360Courtesy of GENERAL MOTORS CORP.

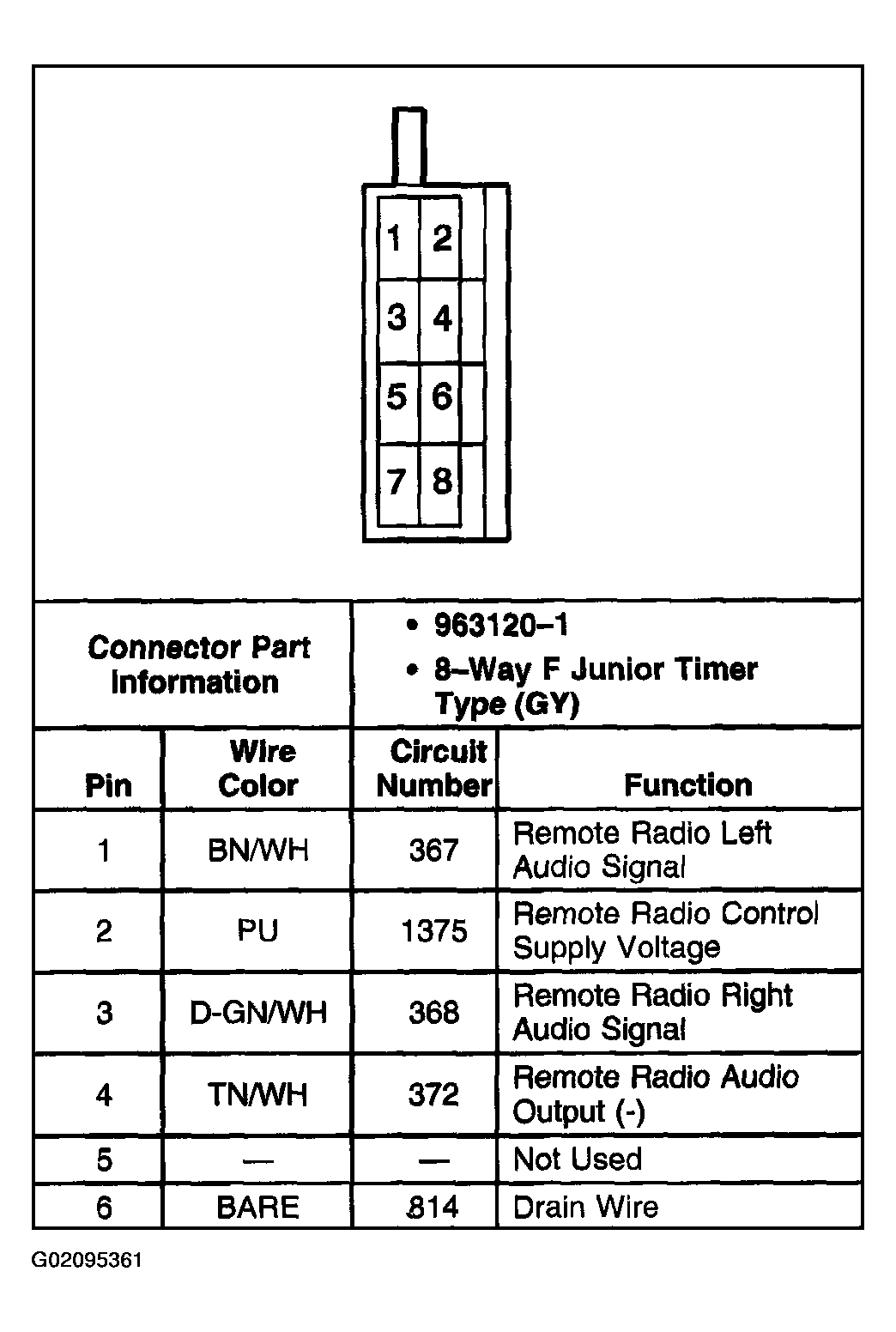

Fig 36: Radio C3 (W/U2Y & U2X) Connector End View (1 Of 2)
G02095361Courtesy of GENERAL MOTORS CORP.

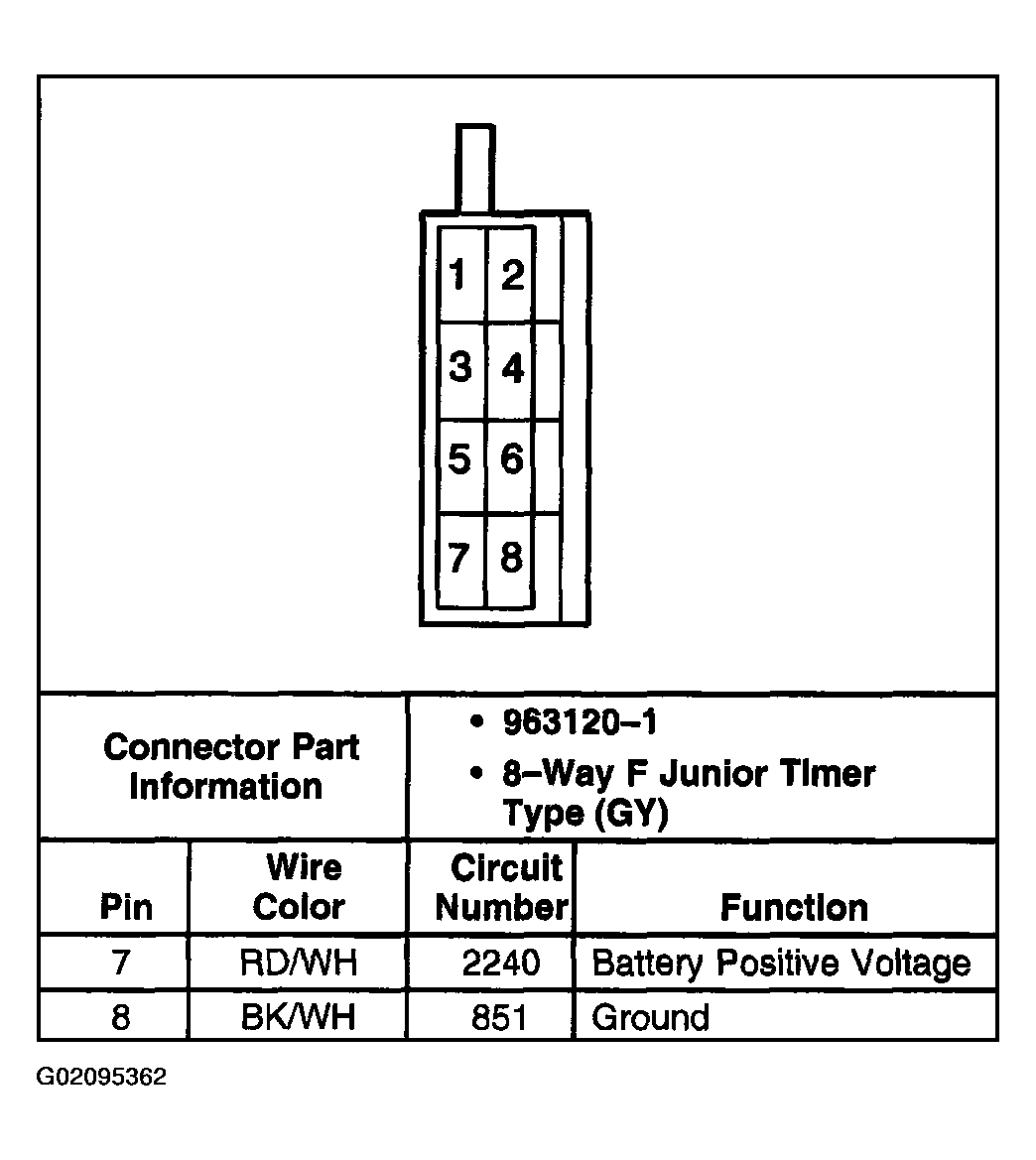

Fig 37: Radio C3 (W/U2Y & U2X) Connector End View (2 Of 2)
G02095362Courtesy of GENERAL MOTORS CORP.

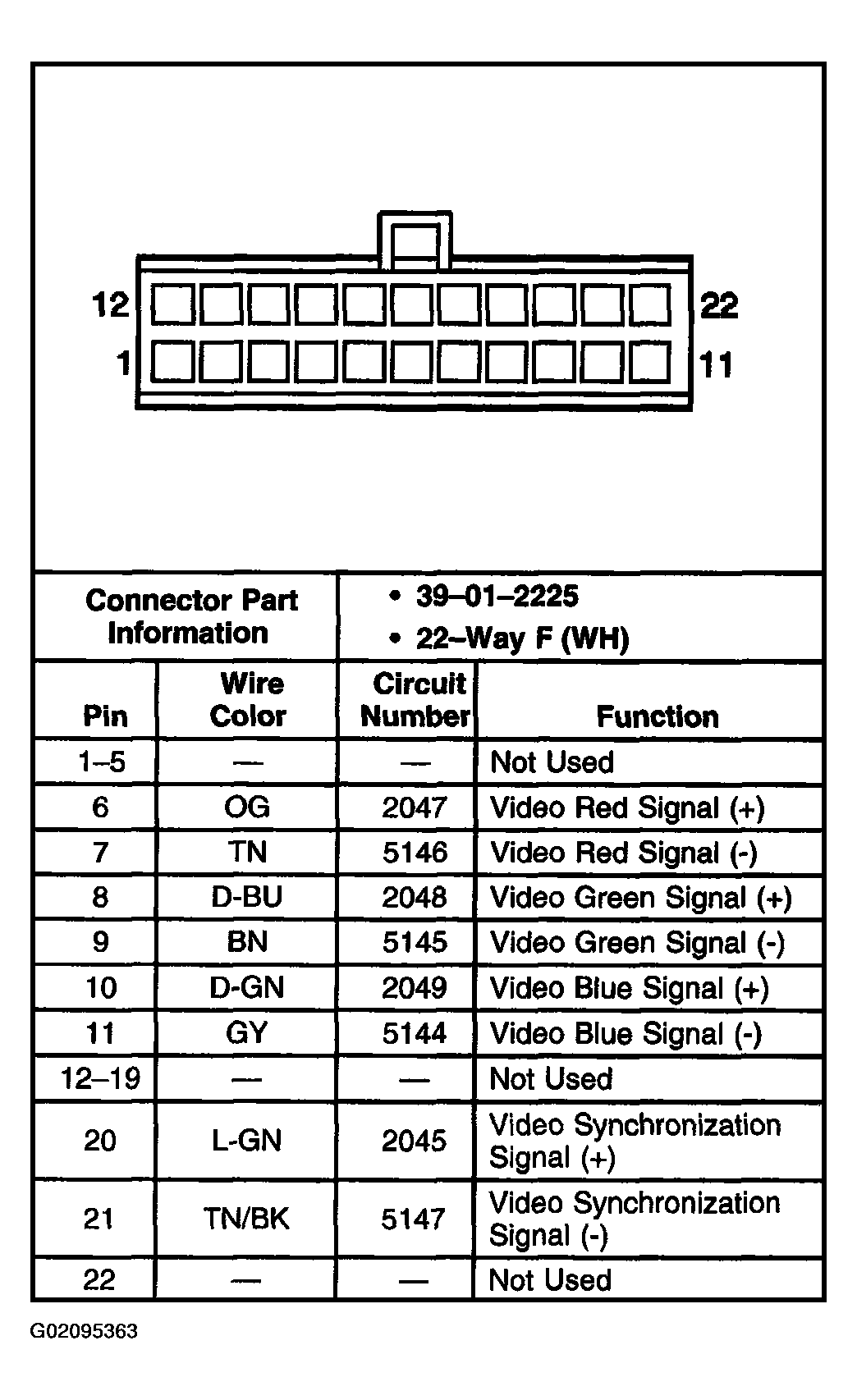

Fig 38: Radio C4 (W/U2Y & U2X) Connector End View
G02095363Courtesy of GENERAL MOTORS CORP.

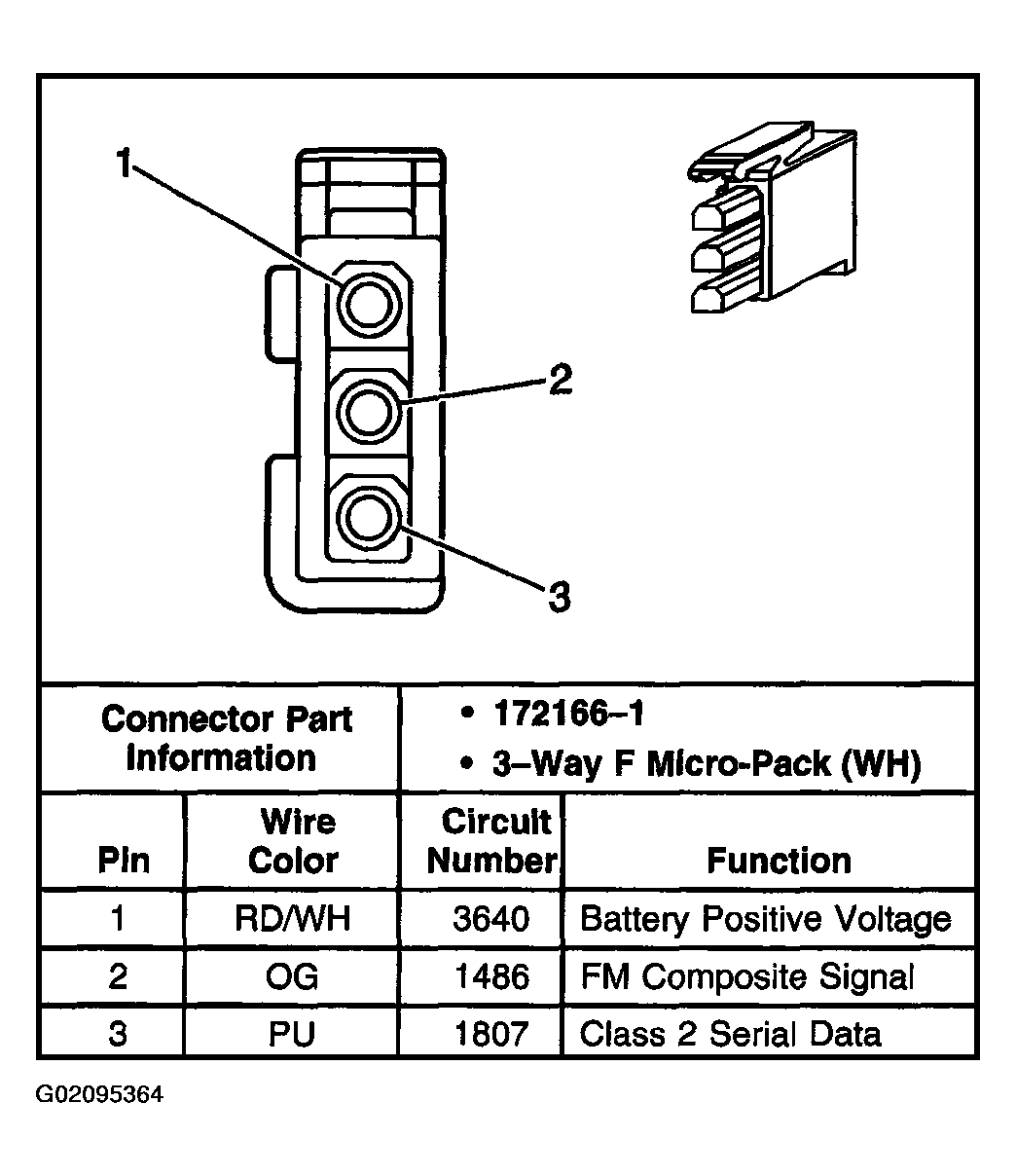

Fig 39: Radio Antenna Module C1 Connector End View
G02095364Courtesy of GENERAL MOTORS CORP.

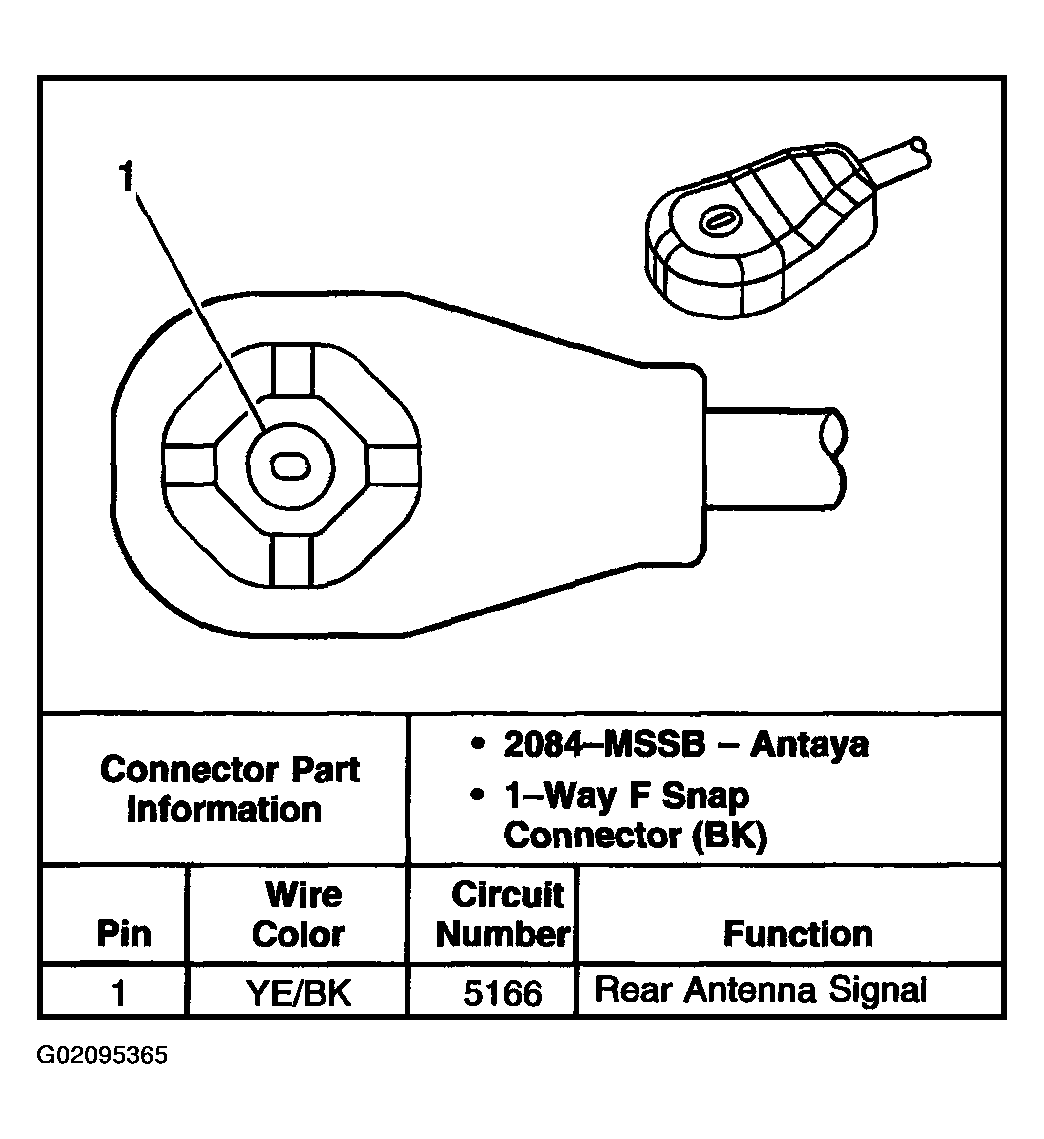

Fig 40: Radio Antenna Module C2 Connector End View
G02095365Courtesy of GENERAL MOTORS CORP.

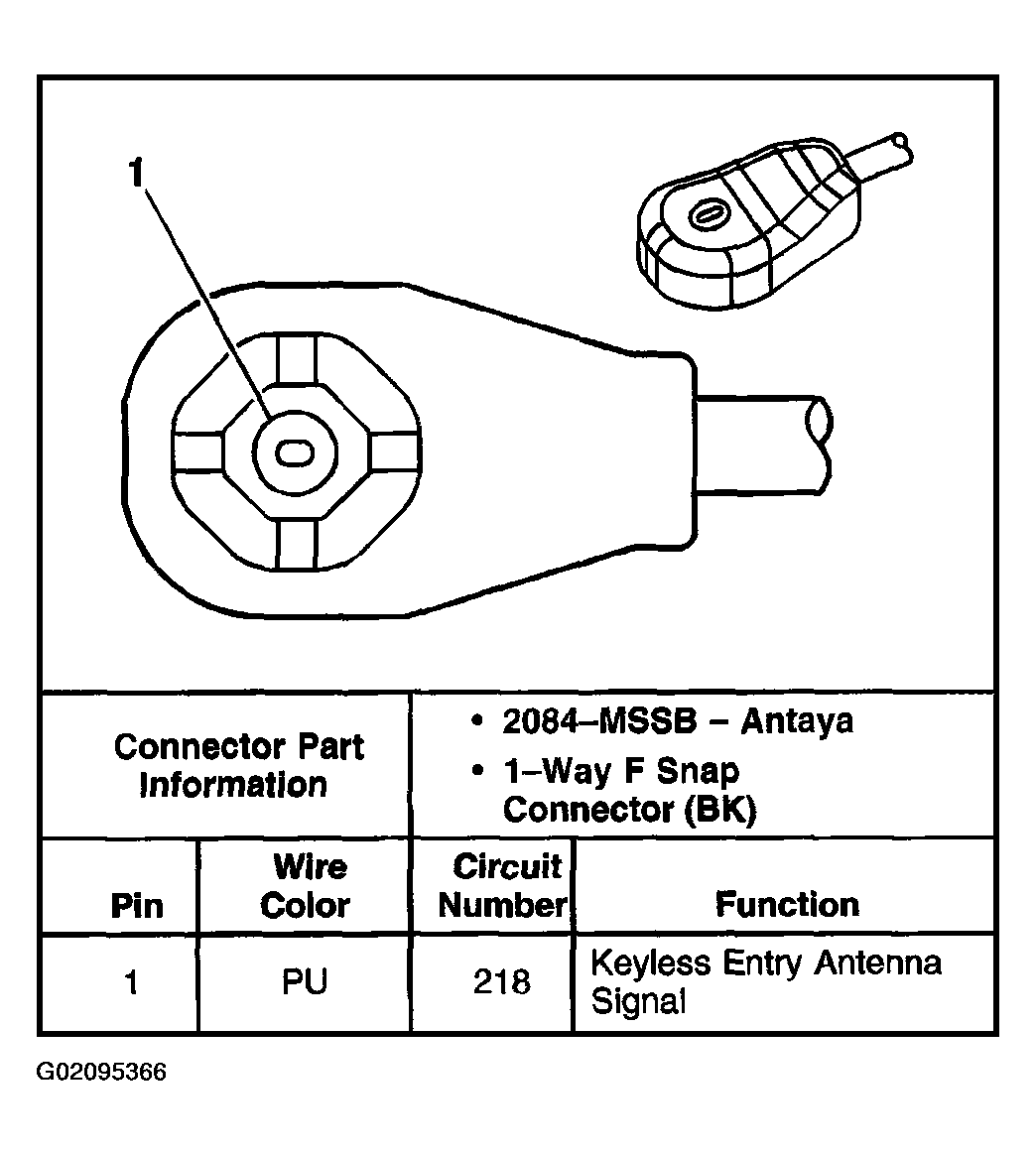

Fig 41: Radio Antenna Module C3 Connector End View
G02095366Courtesy of GENERAL MOTORS CORP.

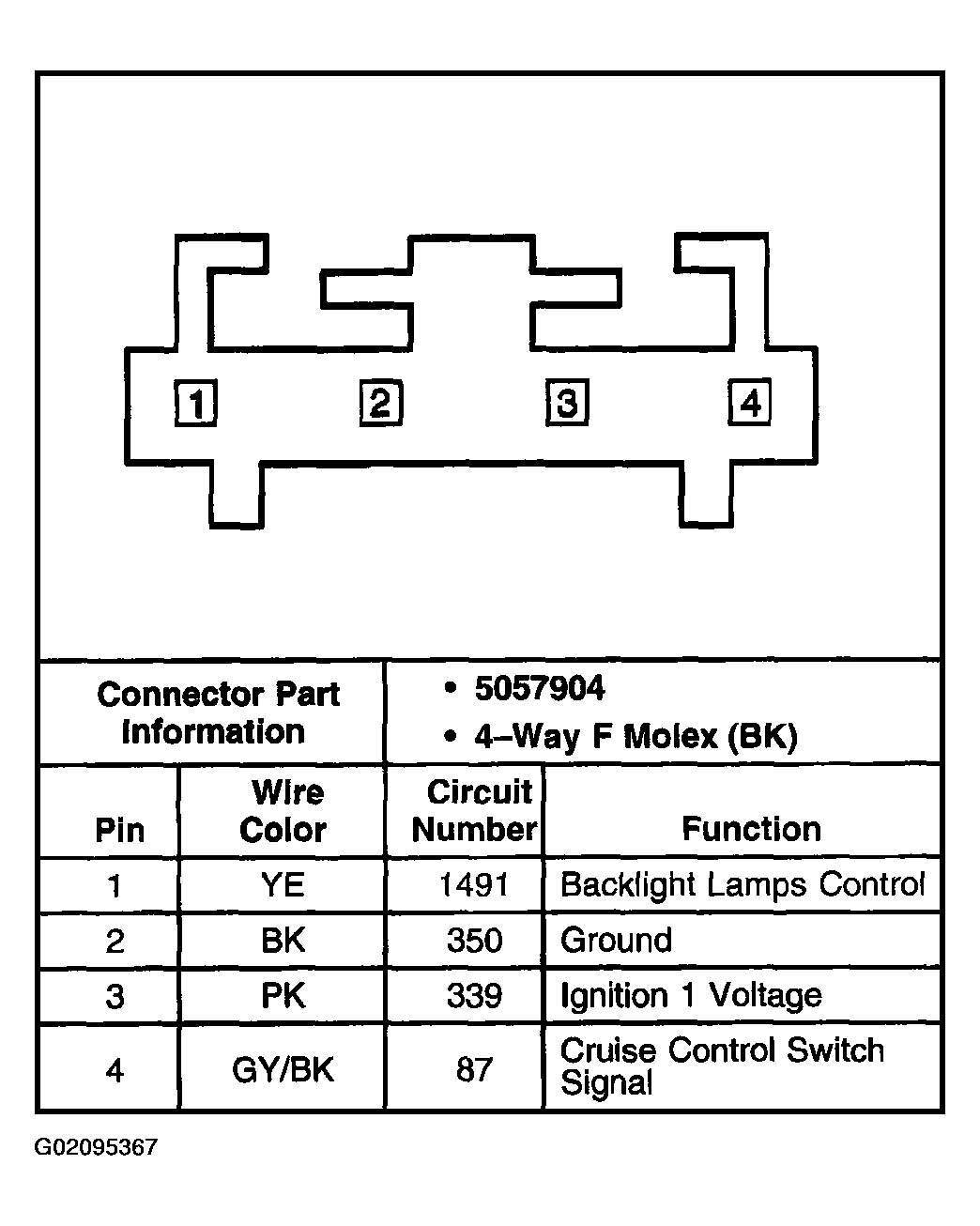

Fig 42: Steering Wheel Control Switch Connector End View (Center)
G02095367Courtesy of GENERAL MOTORS CORP.

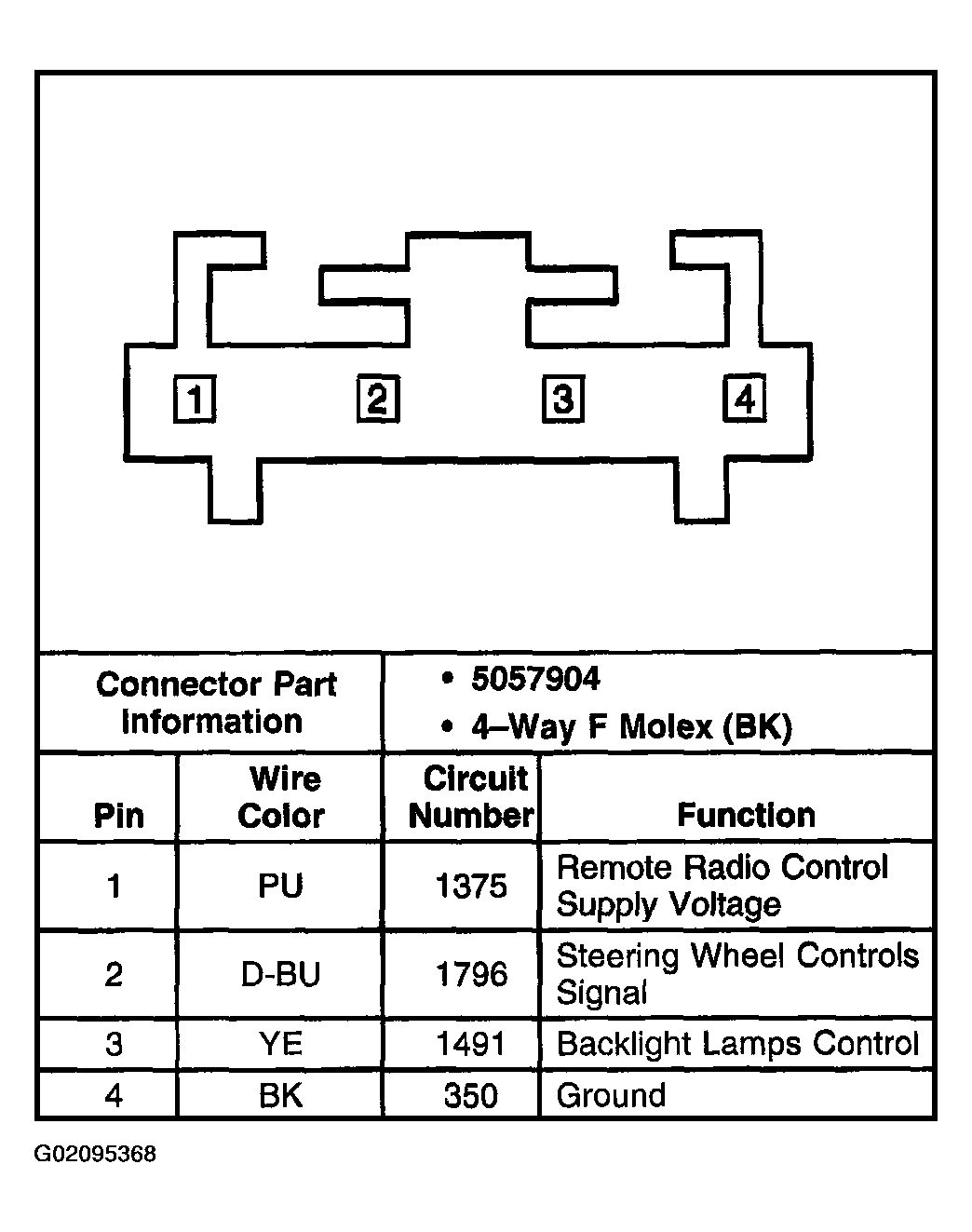

Fig 43: Steering Wheel Control Switch Connector End View (Left)
G02095368Courtesy of GENERAL MOTORS CORP.

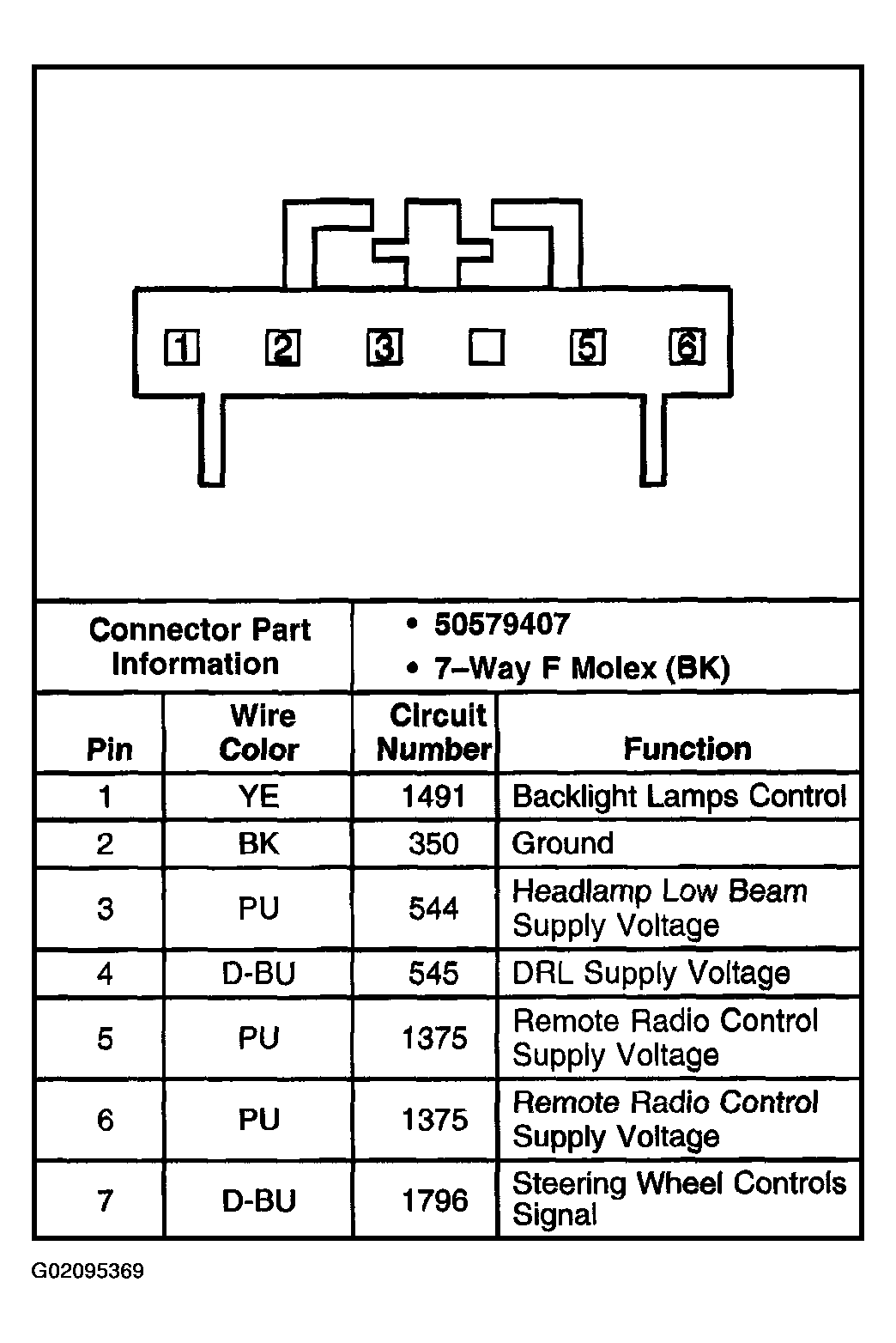

Fig 44: Steering Wheel Control Switch Connector End View (Right)
G02095369Courtesy of GENERAL MOTORS CORP.

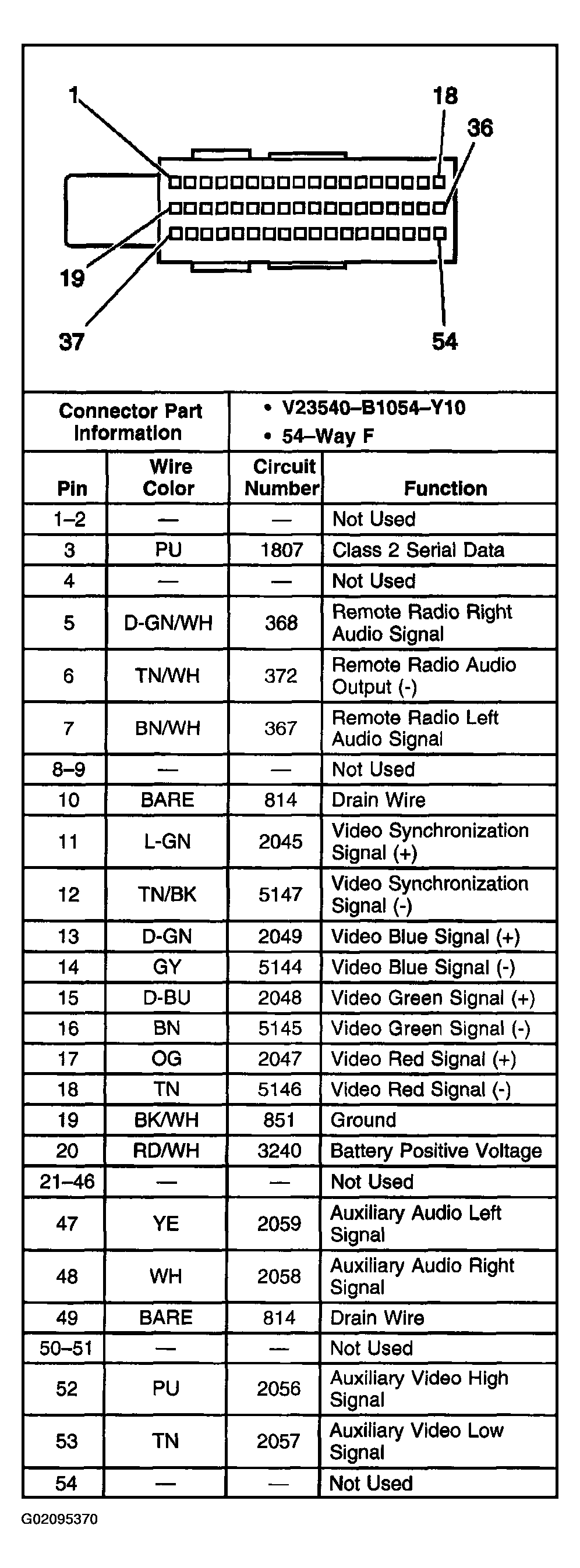

Fig 45: TV Antenna Module Connector End View
G02095370Courtesy of GENERAL MOTORS CORP.

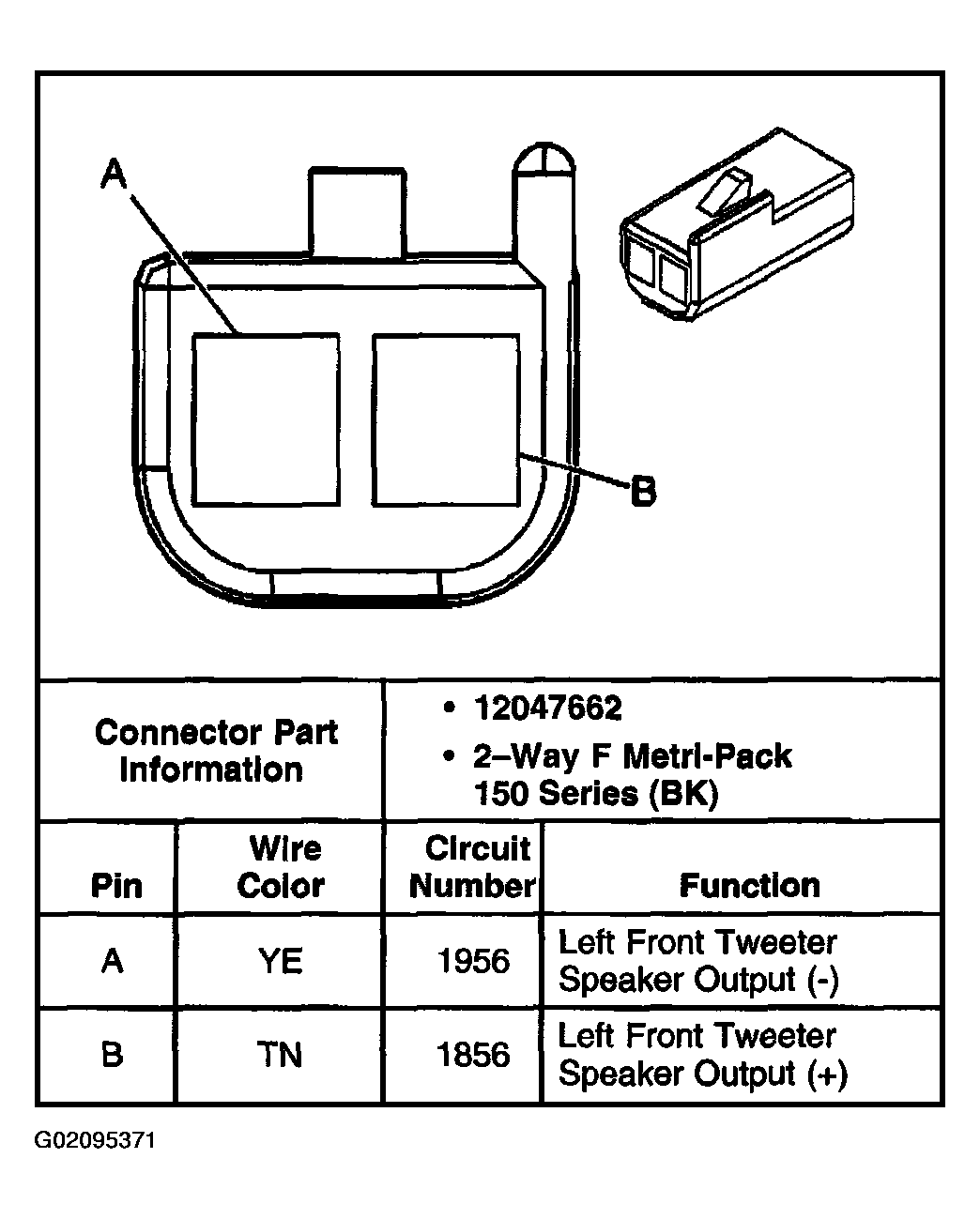

Fig 46: Upper Speaker Connector End View - LF (Tweeter) (W/U57)
G02095371Courtesy of GENERAL MOTORS CORP.

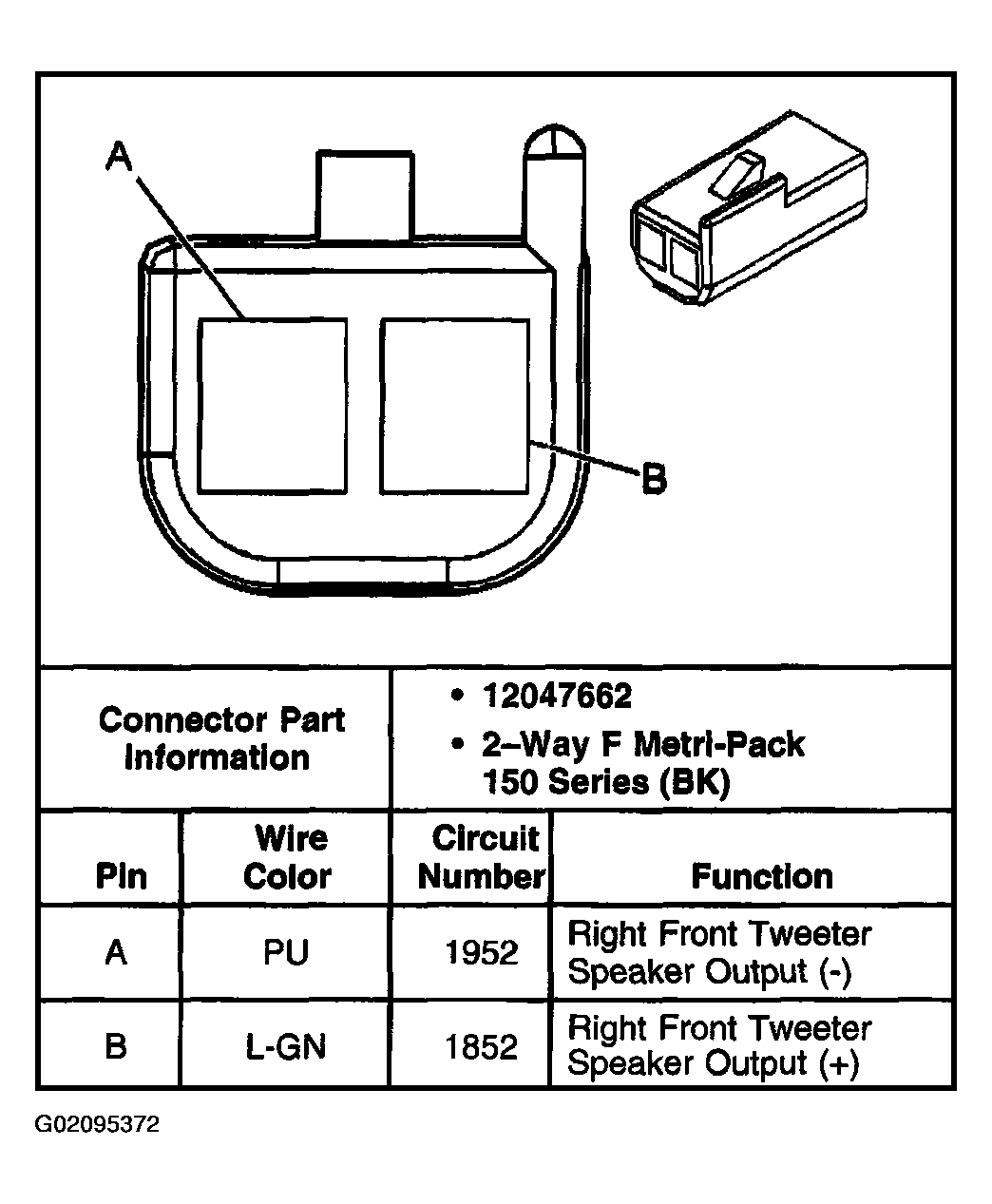

Fig 47: Upper Speaker Connector End View - RF (Tweeter) (W/U57)
G02095372Courtesy of GENERAL MOTORS CORP.

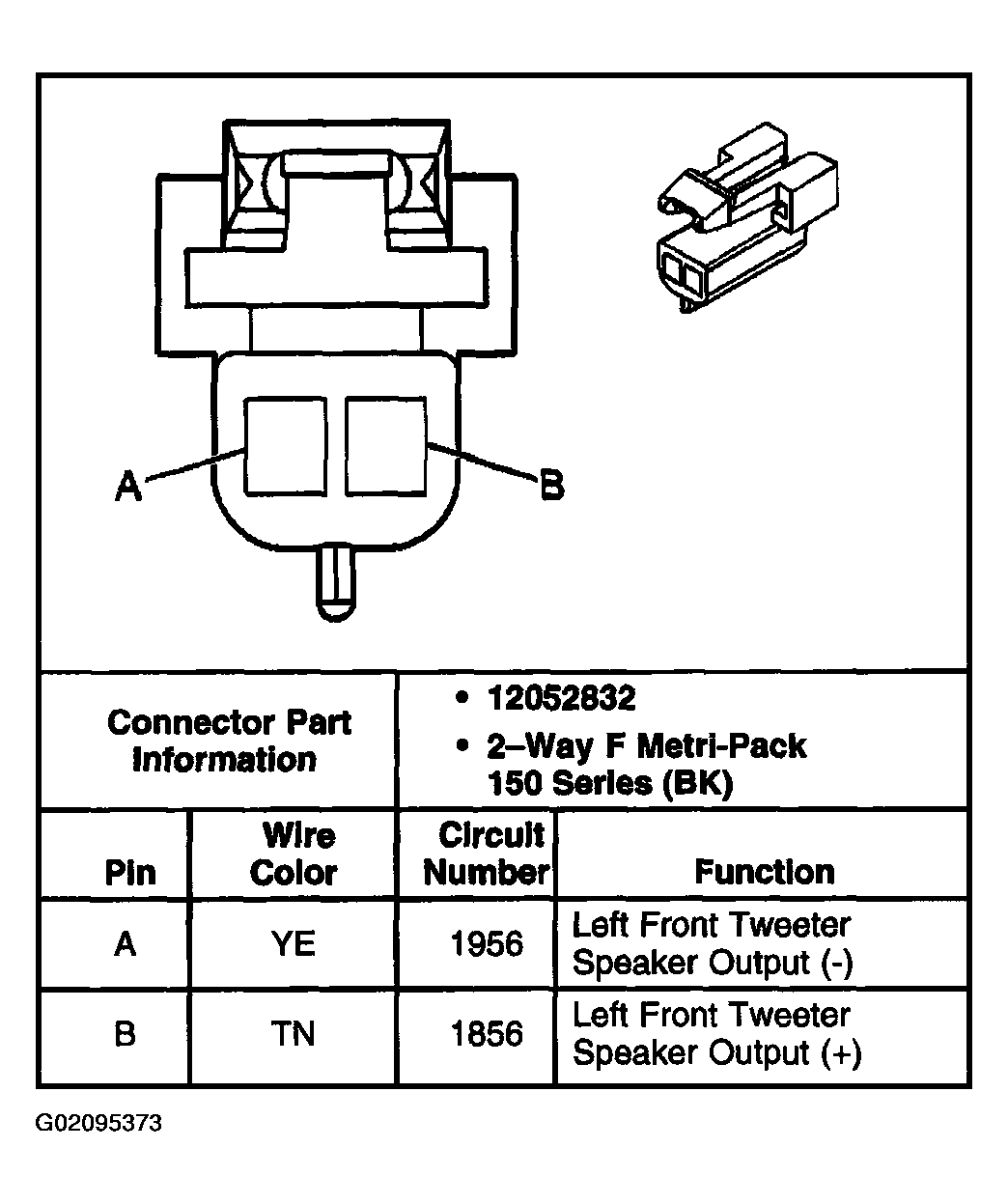

Fig 48: Upper Speaker Connector End View - LF (Tweeter) (W/U66)
G02095373Courtesy of GENERAL MOTORS CORP.

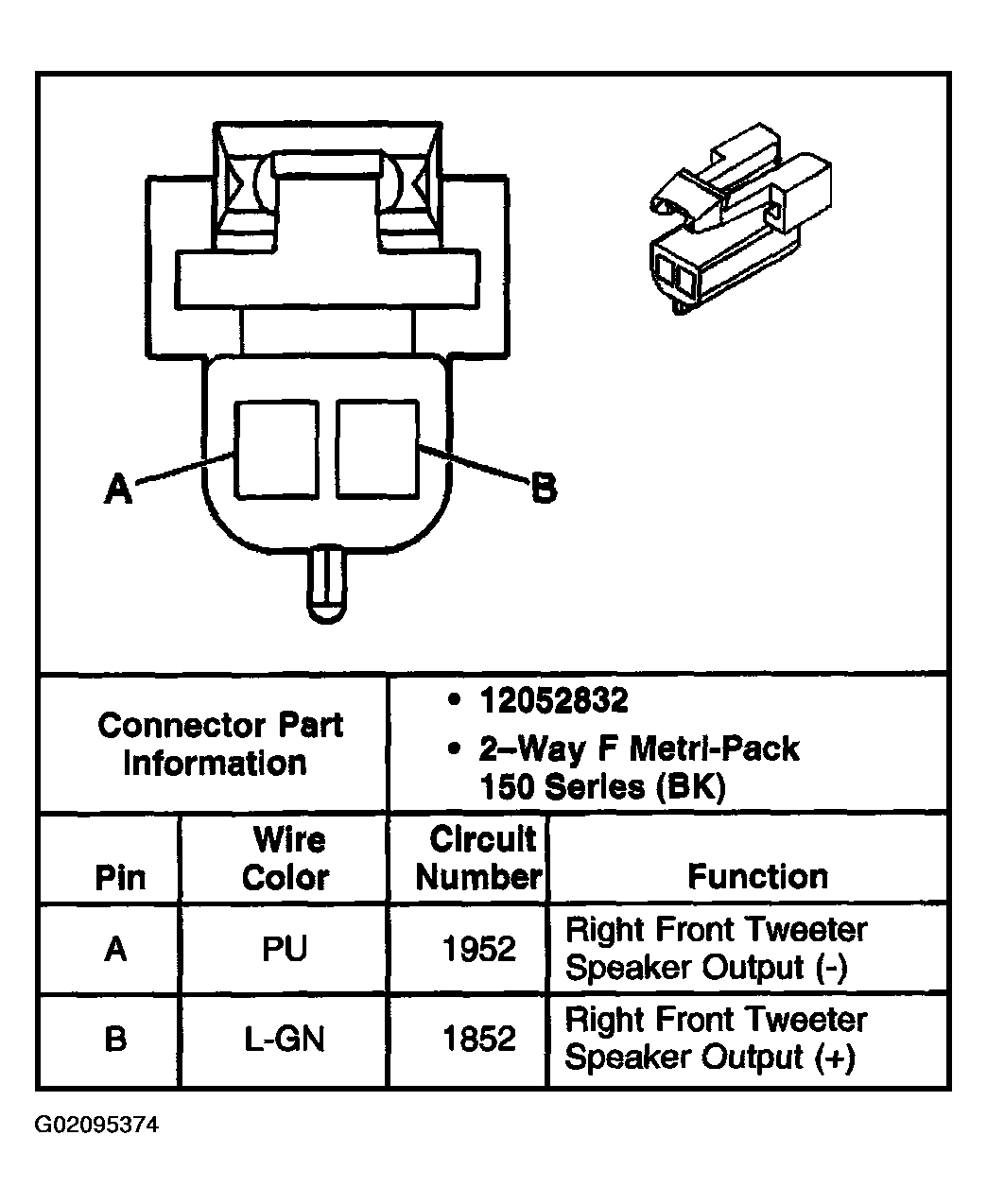

Fig 49: Upper Speaker Connector End View - RF (Tweeter) (W/U66)
G02095374Courtesy of GENERAL MOTORS CORP.
