Radio/Audio System Description and Operation: Notes
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
The Entertainment System on this vehicle is configured with either a base or an uplevel system. Both the base and uplevel systems contain a radio, antenna, speakers, and an audio amplifier.
The following list shows the radios available for this vehicle:
- Base Radio (U2R) - AM/FM, Cassette, CD, RDS, and Delco Amplifier
- Uplevel Radio (U2S) - AM/FM, Cassette, CD, RDS, and BOSE® Amplifier
- Uplevel Radio (U2V) - AM/FM, Cassette, ICDX, RDS, Navigation, and BOSE® Amplifier (U.S. and Canada)
- Uplevel Radio (U2Y) - AM/FM, Cassette, ICDX, RDS, Navigation, and BOSE® Amplifier (Europe)
- Uplevel Radio (U2X) - AM/FM, Cassette, ICDX, RDS, Navigation, and BOSE® Amplifier (Japan)
Each item in the list below represents topics covered in detail below.
- AM/FM Reception
- Diversity Antenna System
- Audio Amplifier
- Theft Deterrent
- Radio Personalization w/Home and Away Feature
- Radio Data System (RDS)

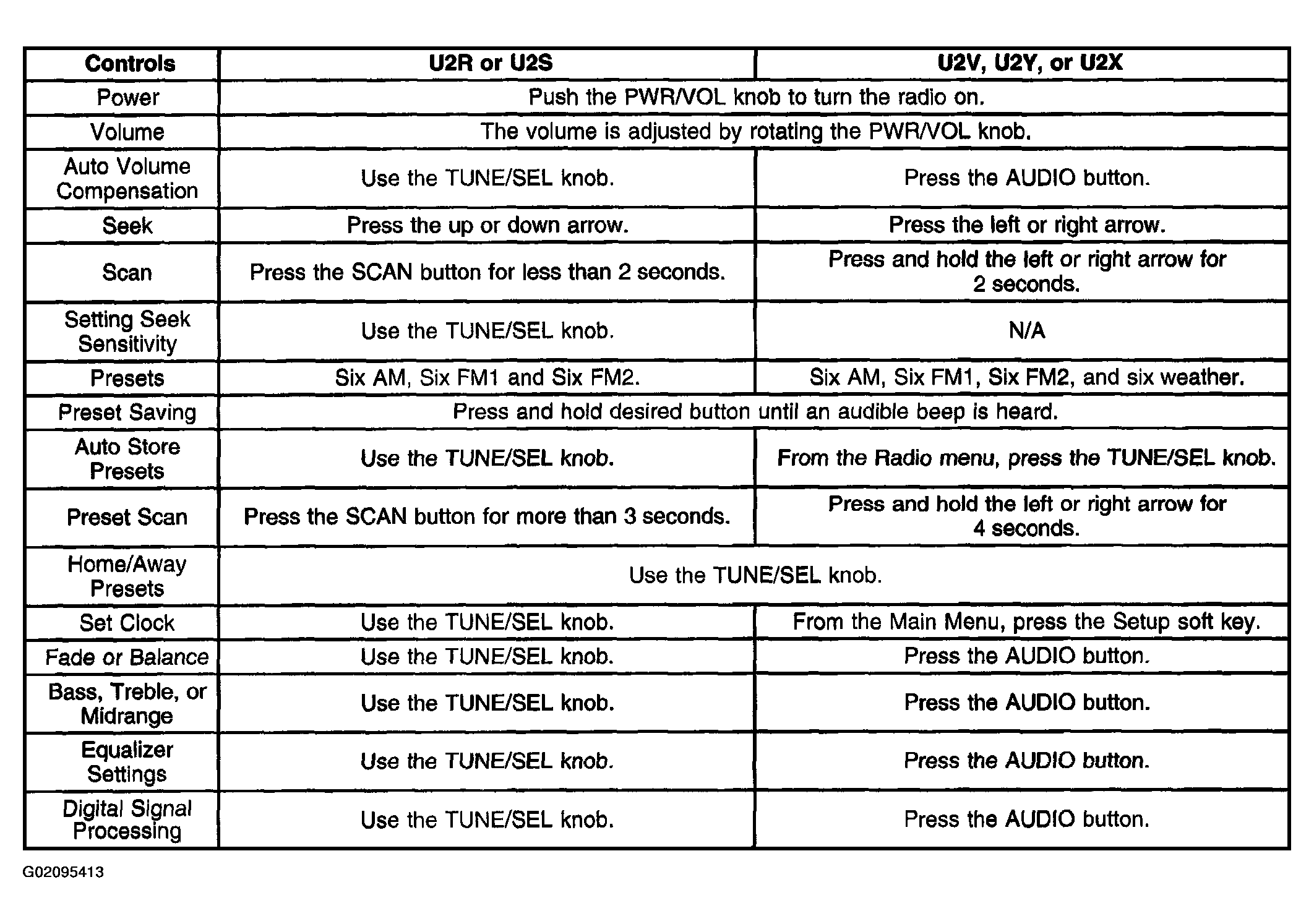

- Steering Wheel Controls
