Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Disconnect the coax cables (3,4)
  3. Disconnect the electrical connector (1).
  4. Slide the diversity antenna module (2) off the mounting bracket.

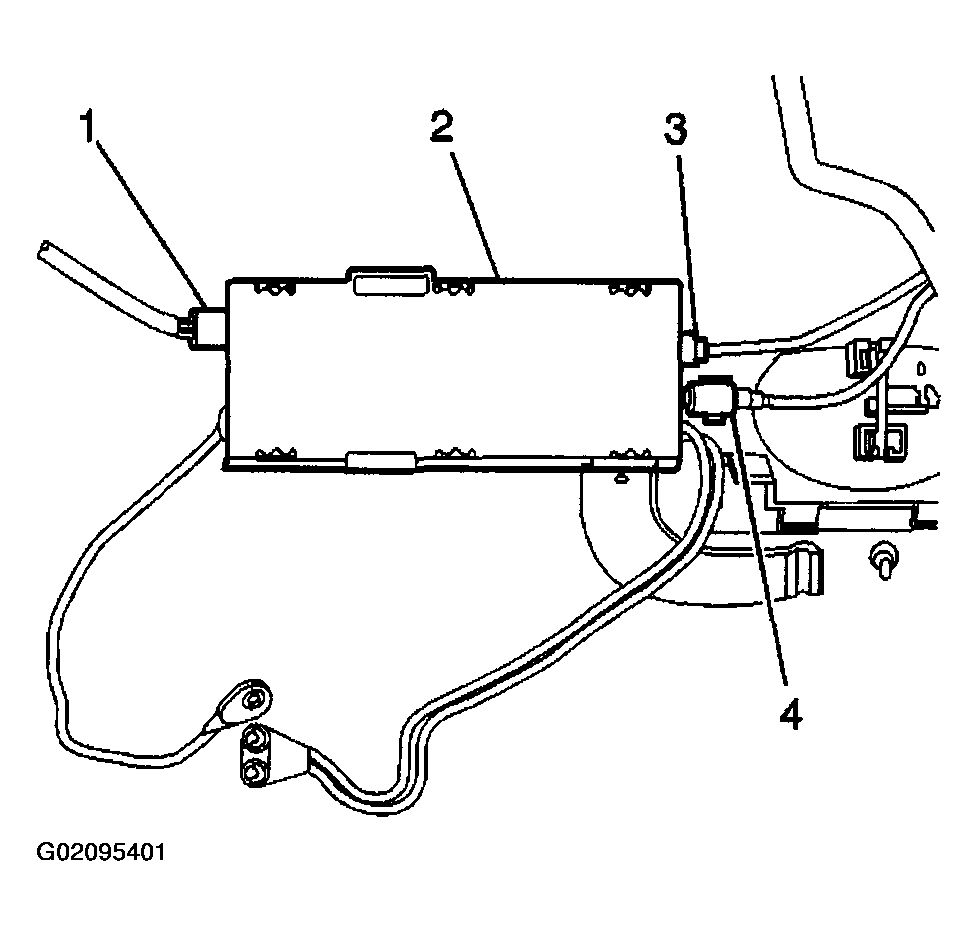

    Fig 1: Removing Antenna Module
    G02095401Courtesy of GENERAL MOTORS CORP.
