Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the speaker onto the door frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws securing the speaker to the door frame.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR in Doors.

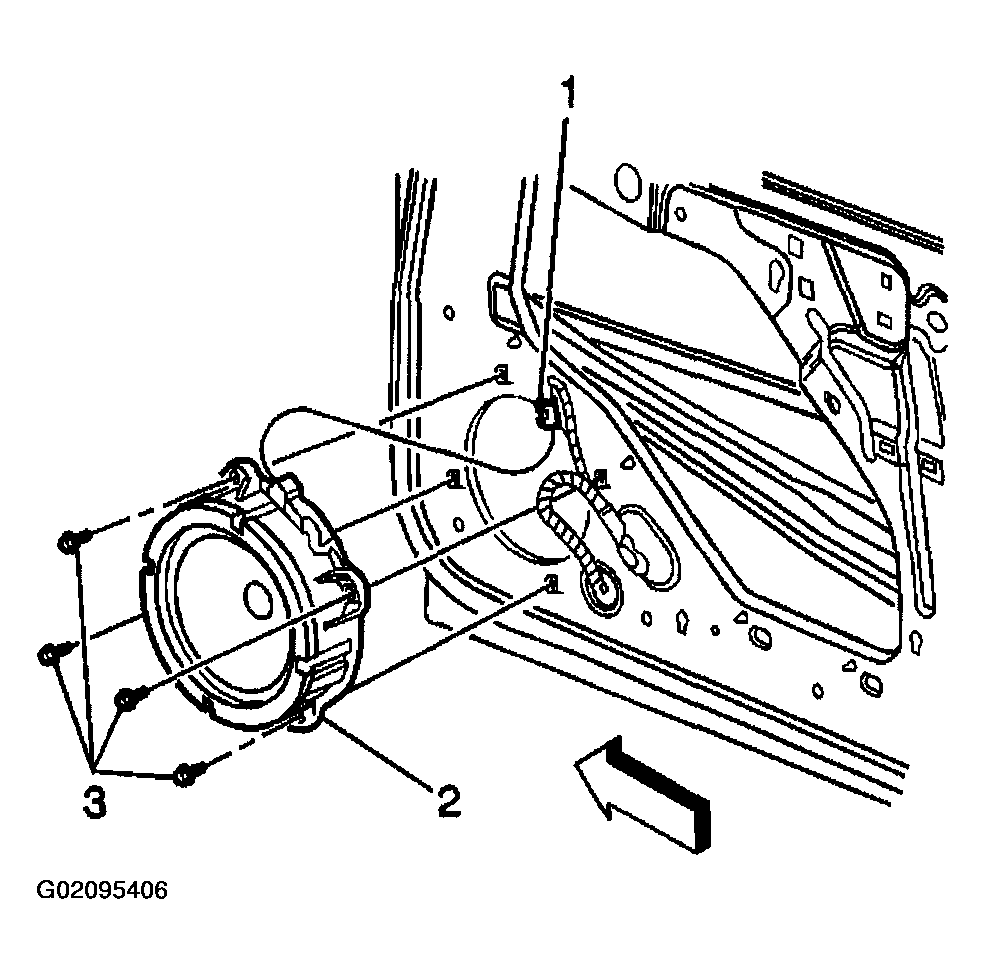

    Fig 1: Installing Front Lower Speaker
    G02095406Courtesy of GENERAL MOTORS CORP.
