Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the video jack.

Fig 1: Installing Video Jack
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
Install the rear panel assembly. Refer to CENTER CONSOLE END PANEL REPLACEMENT in Instrument Panel, Gages and Console.

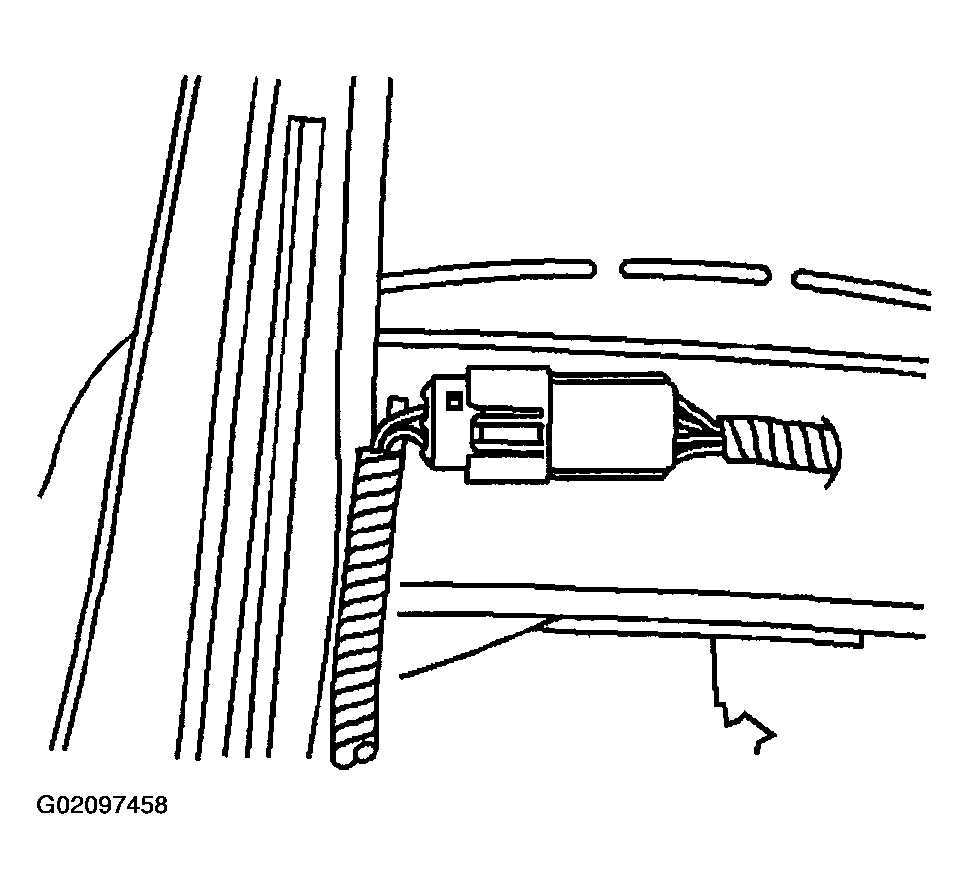

Fig 2: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
