Test Description

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This step tests for proper circuit operation to permit communications.
7. This step tests for battery voltage on the signal circuits that are not required.
8. This step tests for no battery voltage on the required signal circuits.
9. If any ignition switch parameters that should be inactive in the present ignition switch position are active, 2 ignition switch signal circuits may be shorted together.
10. This step eliminates open circuits as the cause of the malfunction.

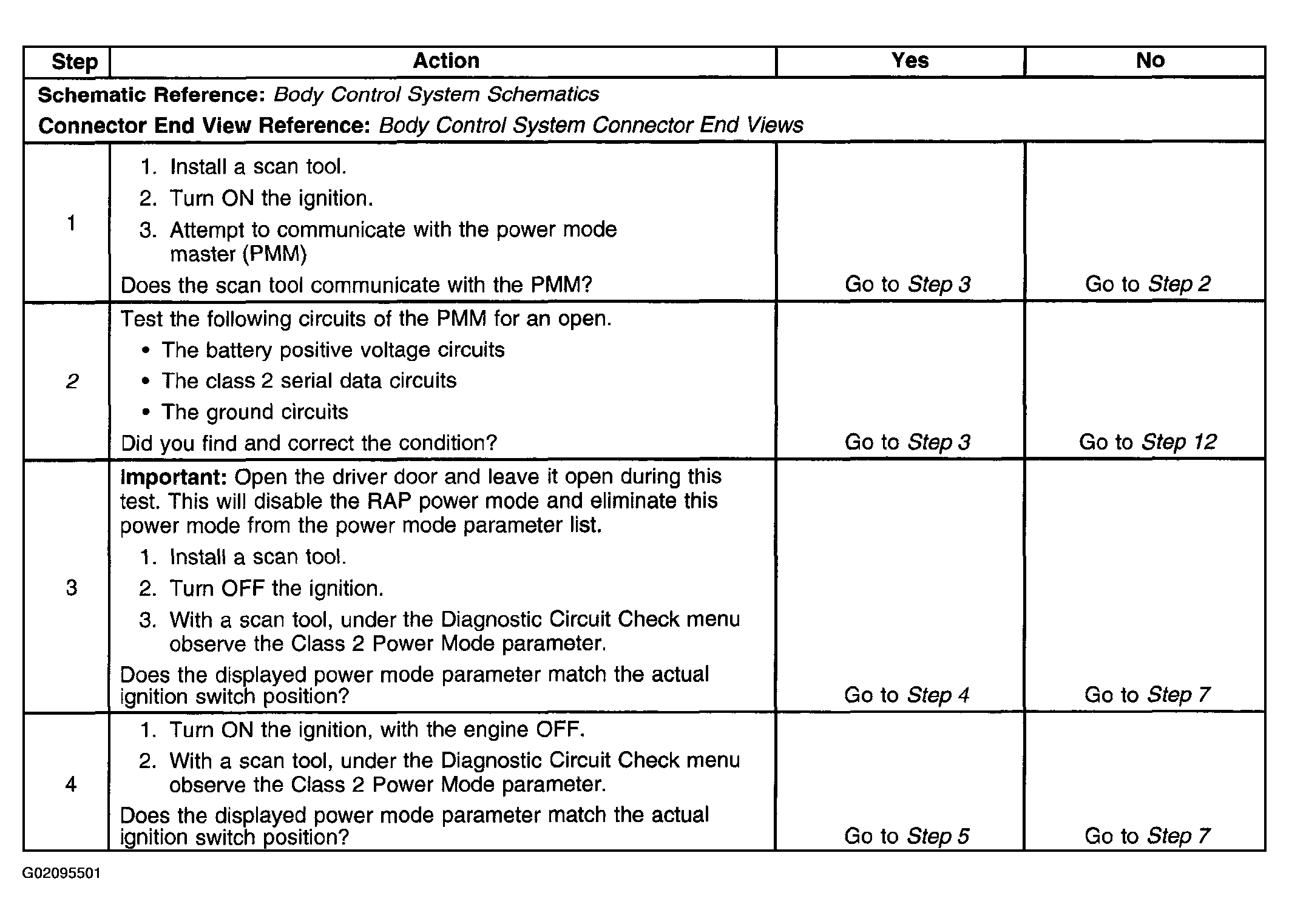

Fig 1: Power Mode Mismatch - Diagnostic Table (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

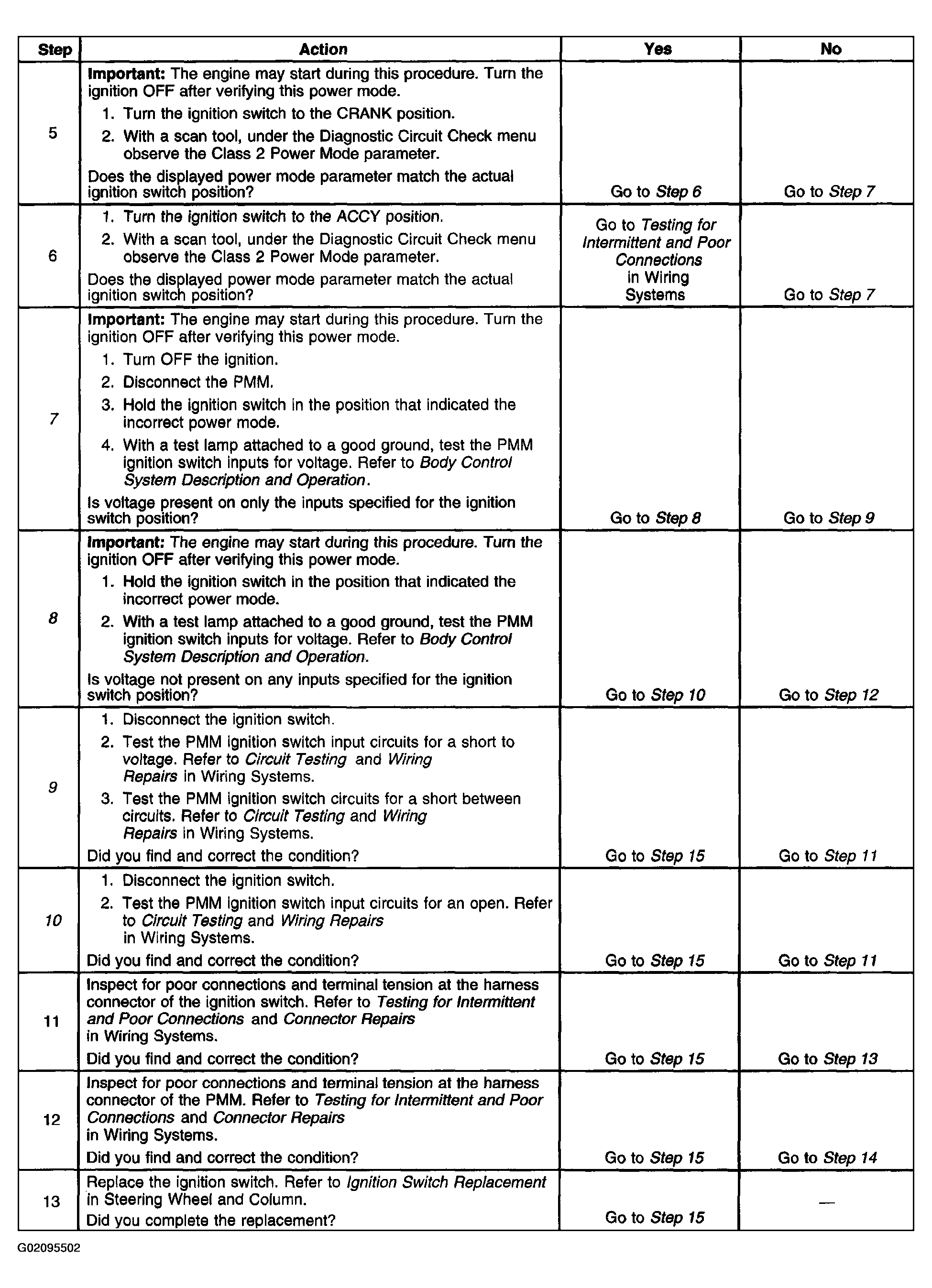

Fig 2: Power Mode Mismatch - Diagnostic Table (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

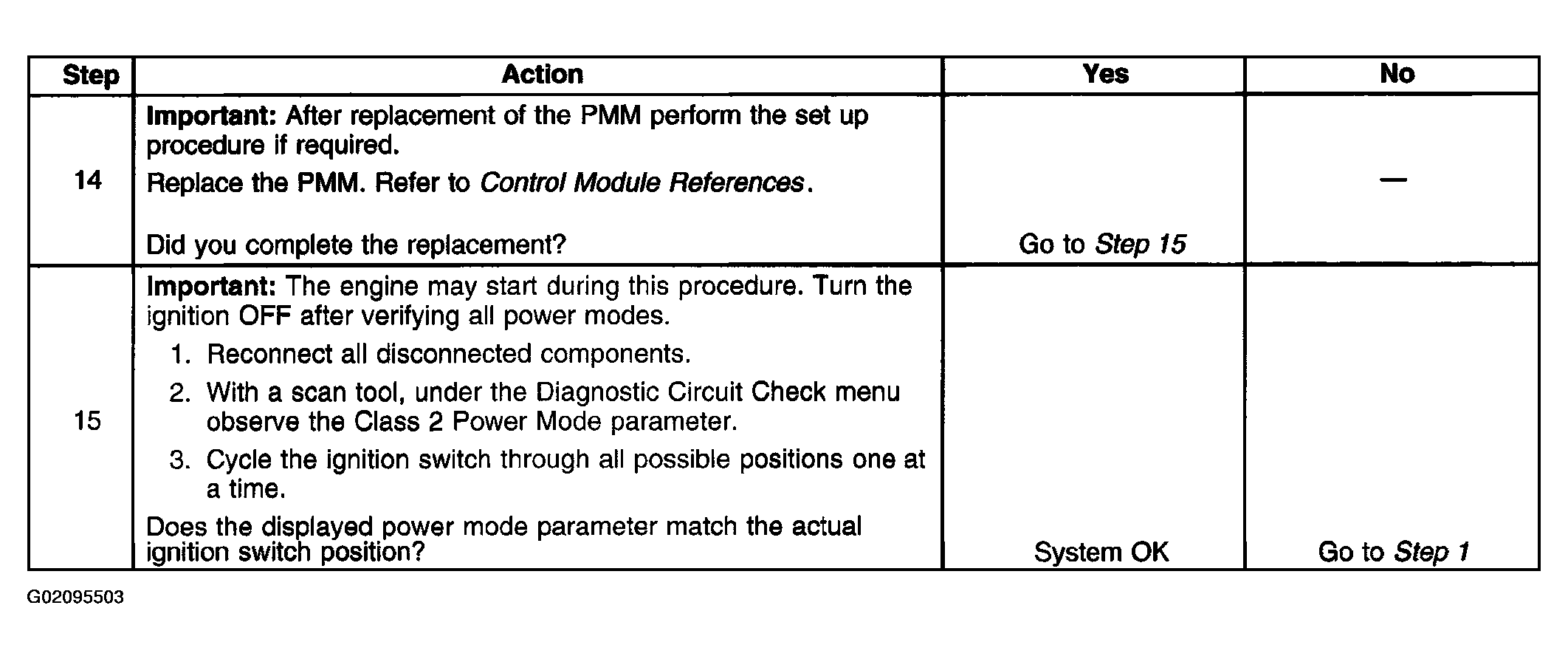

Fig 3: Power Mode Mismatch - Diagnostic Table (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

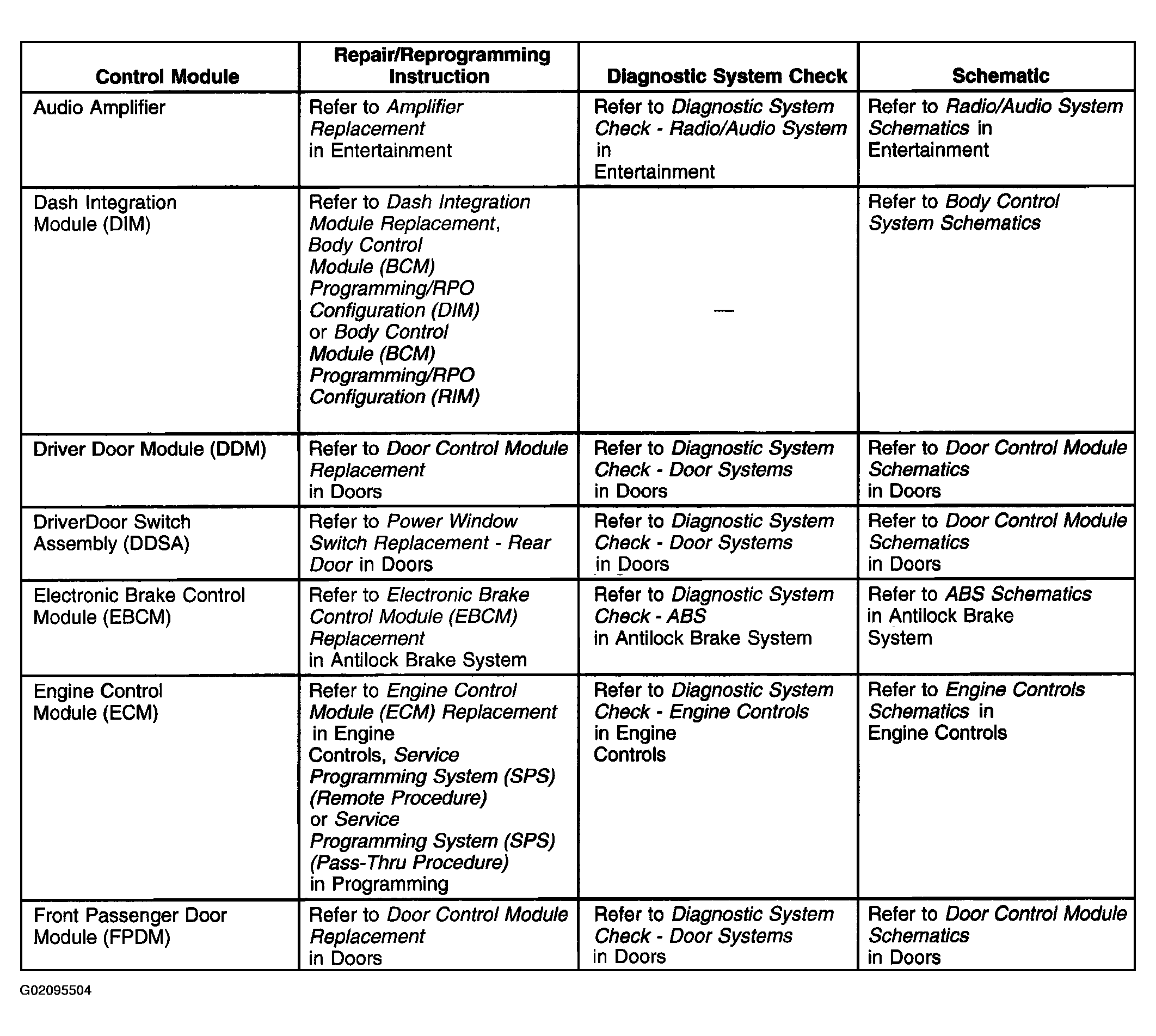

Fig 4: Control Module References Table (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

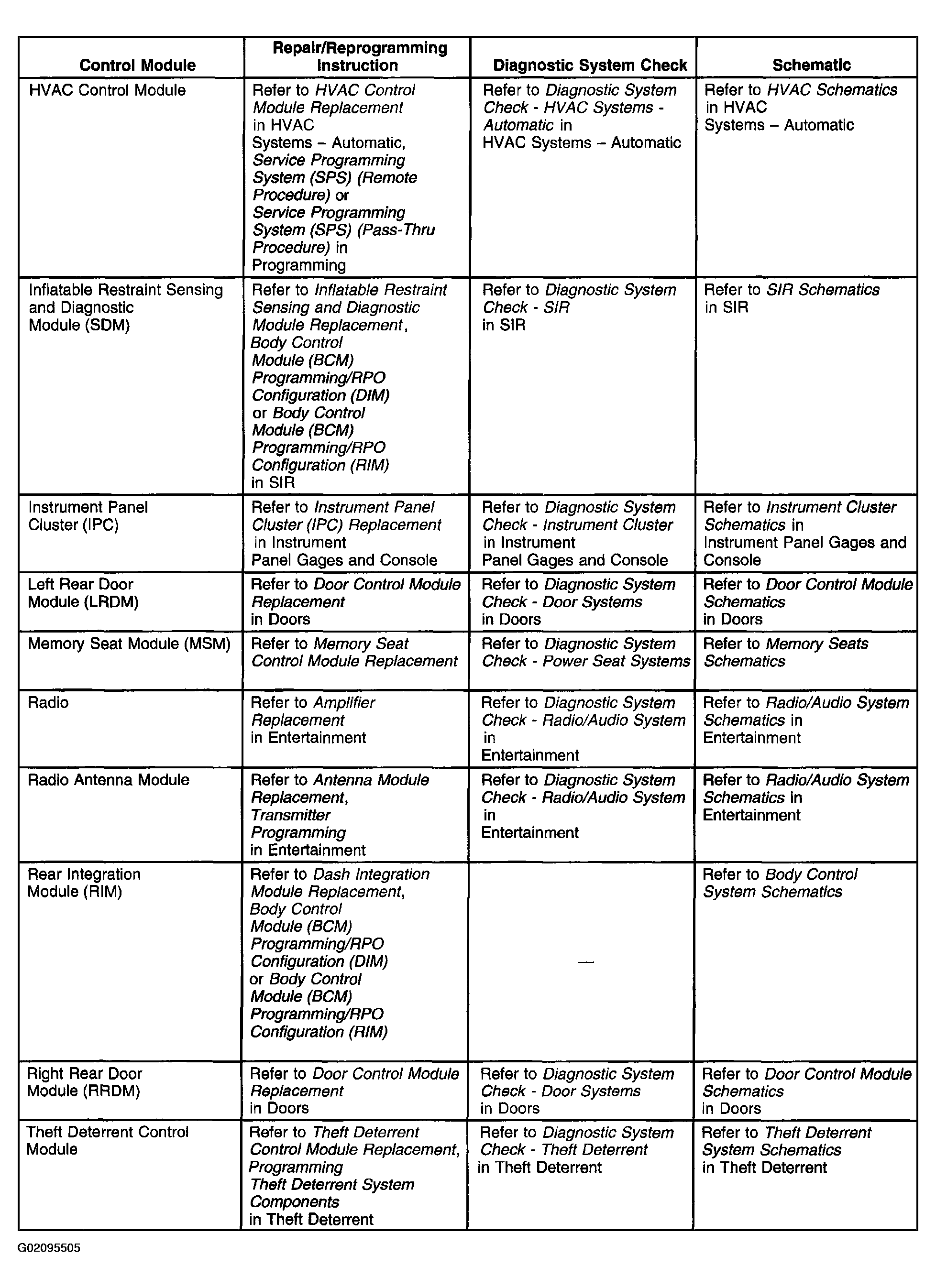

Fig 5: Control Module References Table (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

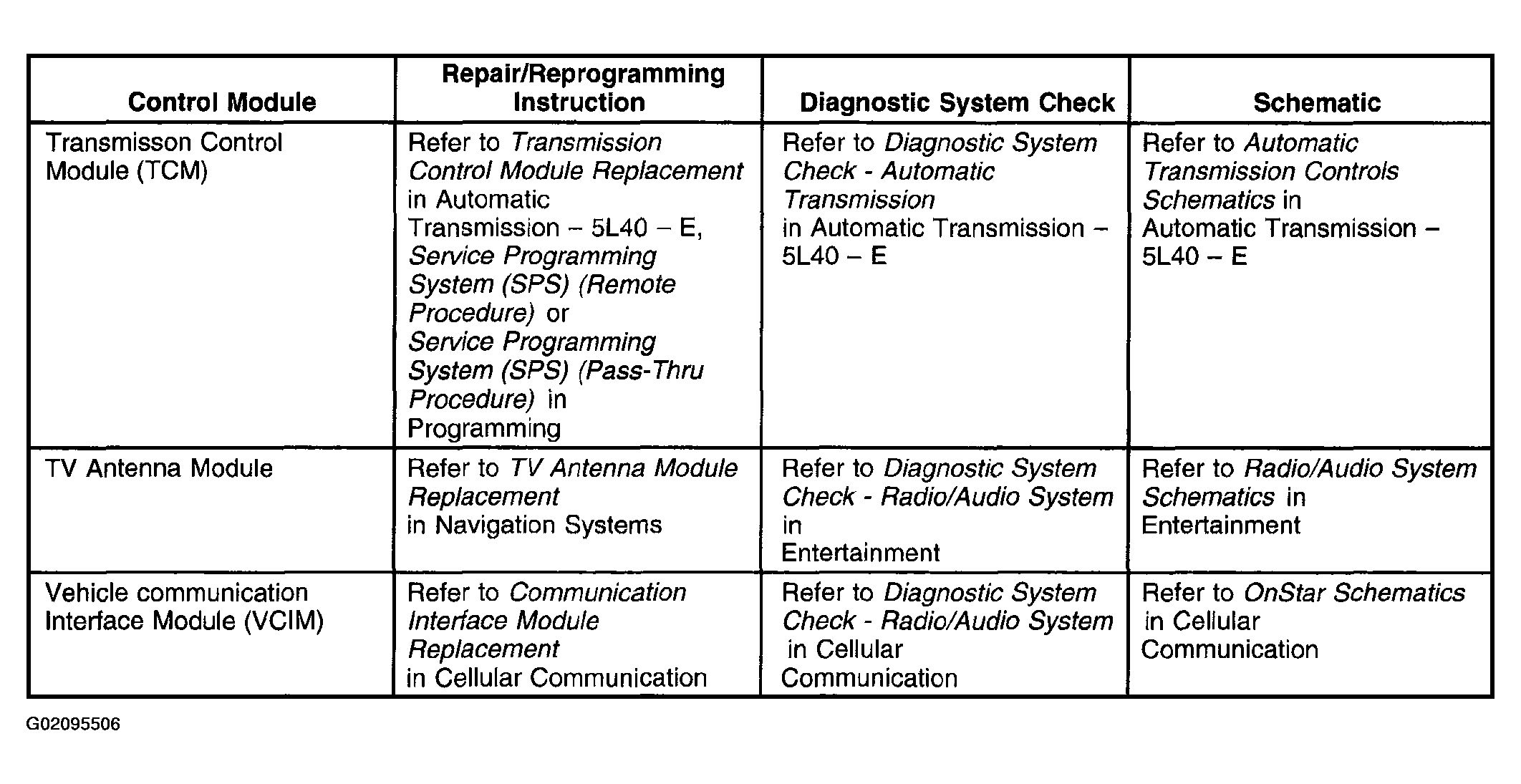

Fig 6: Control Module References Table (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
