Test Description

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

2. Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
3. The symptoms list in Symptoms will determine the correct diagnostic procedure to use.
4. The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed.

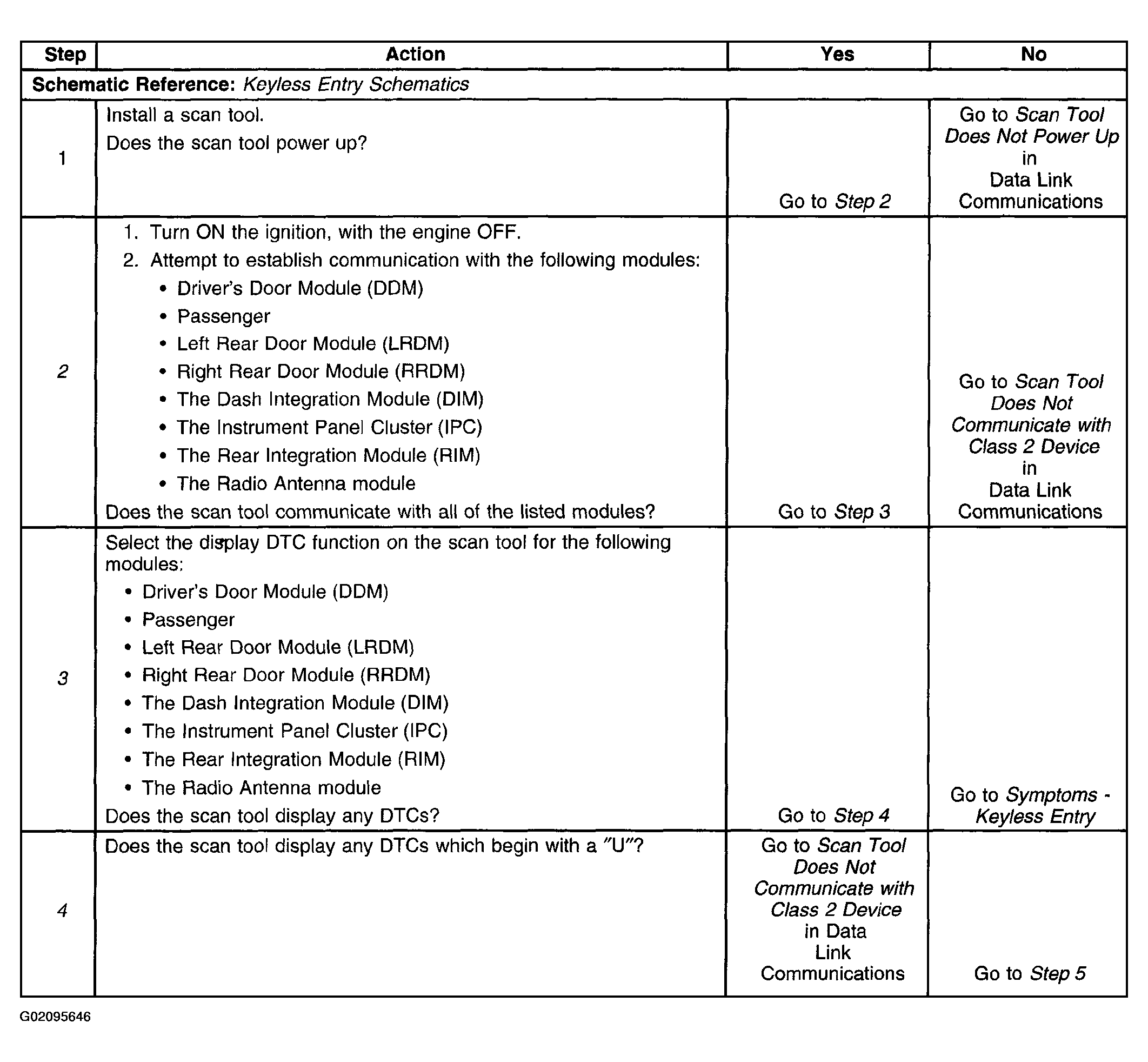

Fig 1: Diagnostic System Check - Remote Keyless Entry Specifications (Steps 1 - 4)
Courtesy of GENERAL MOTORS CORP.

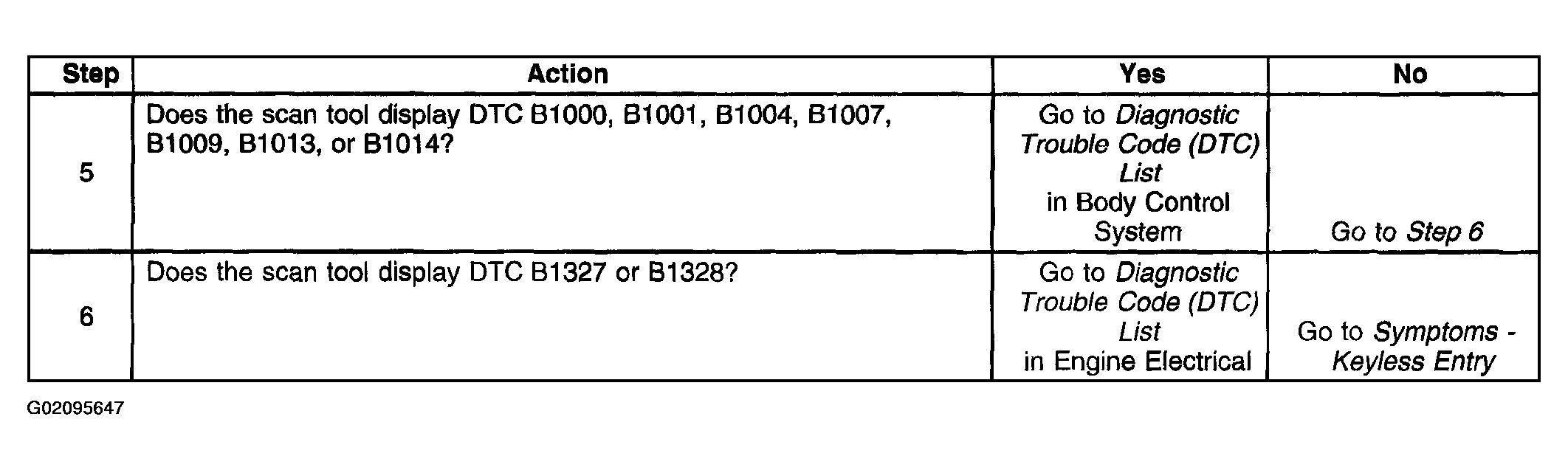

Fig 2: Diagnostic System Check - Remote Keyless Entry Specifications (Steps 5 - 6)
Courtesy of GENERAL MOTORS CORP.

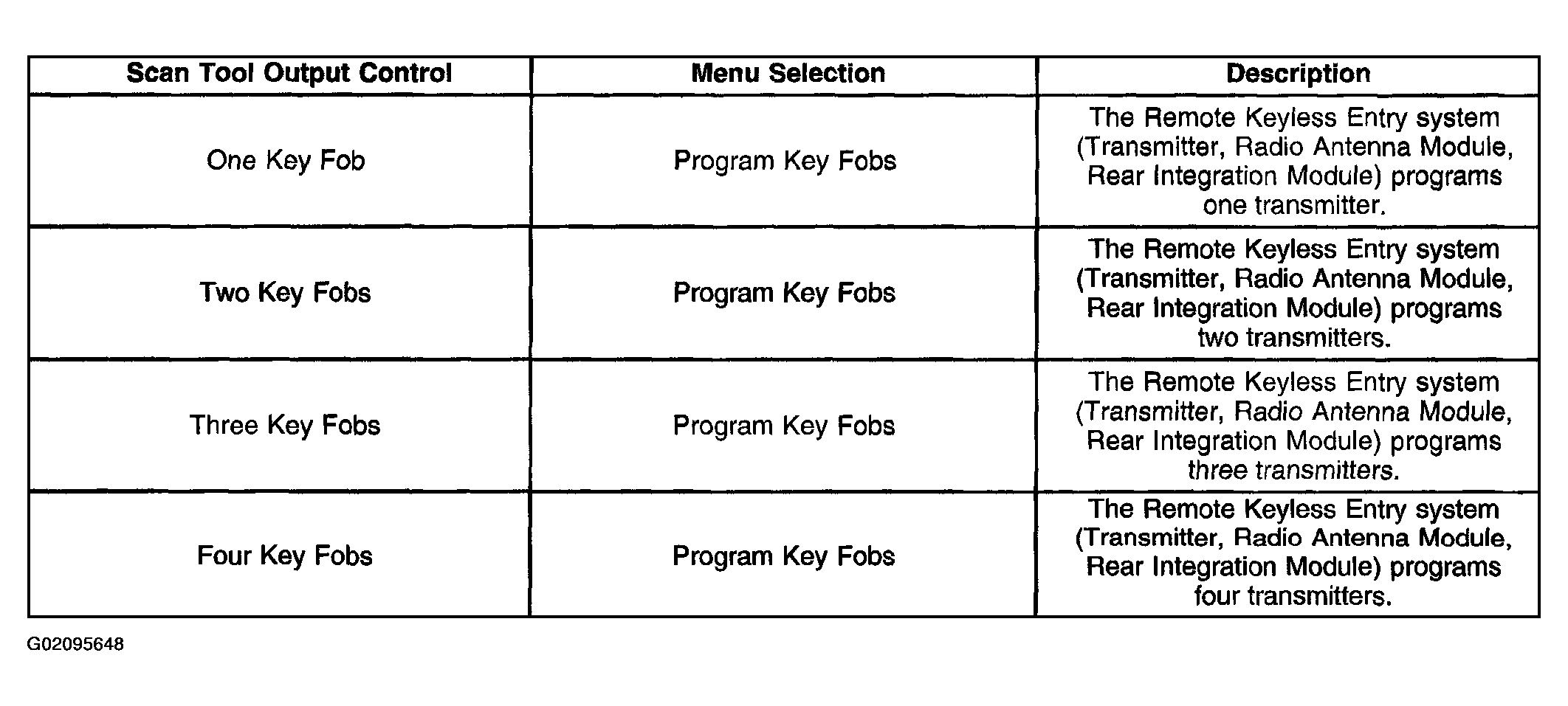

Fig 3: Scan Tool Output Controls Specifications
Courtesy of GENERAL MOTORS CORP.
