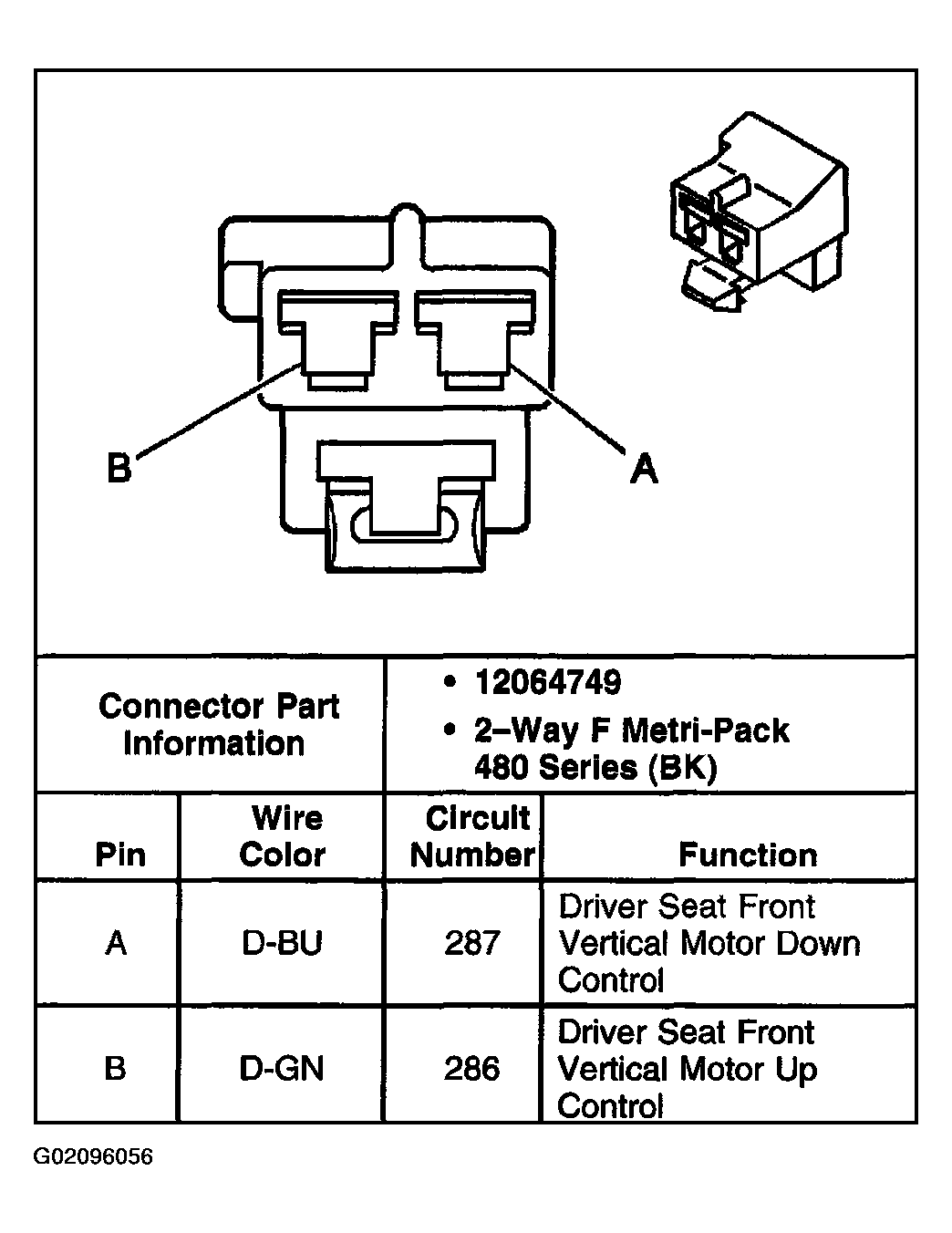

Fig 1: Identifying LH Seat Front Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

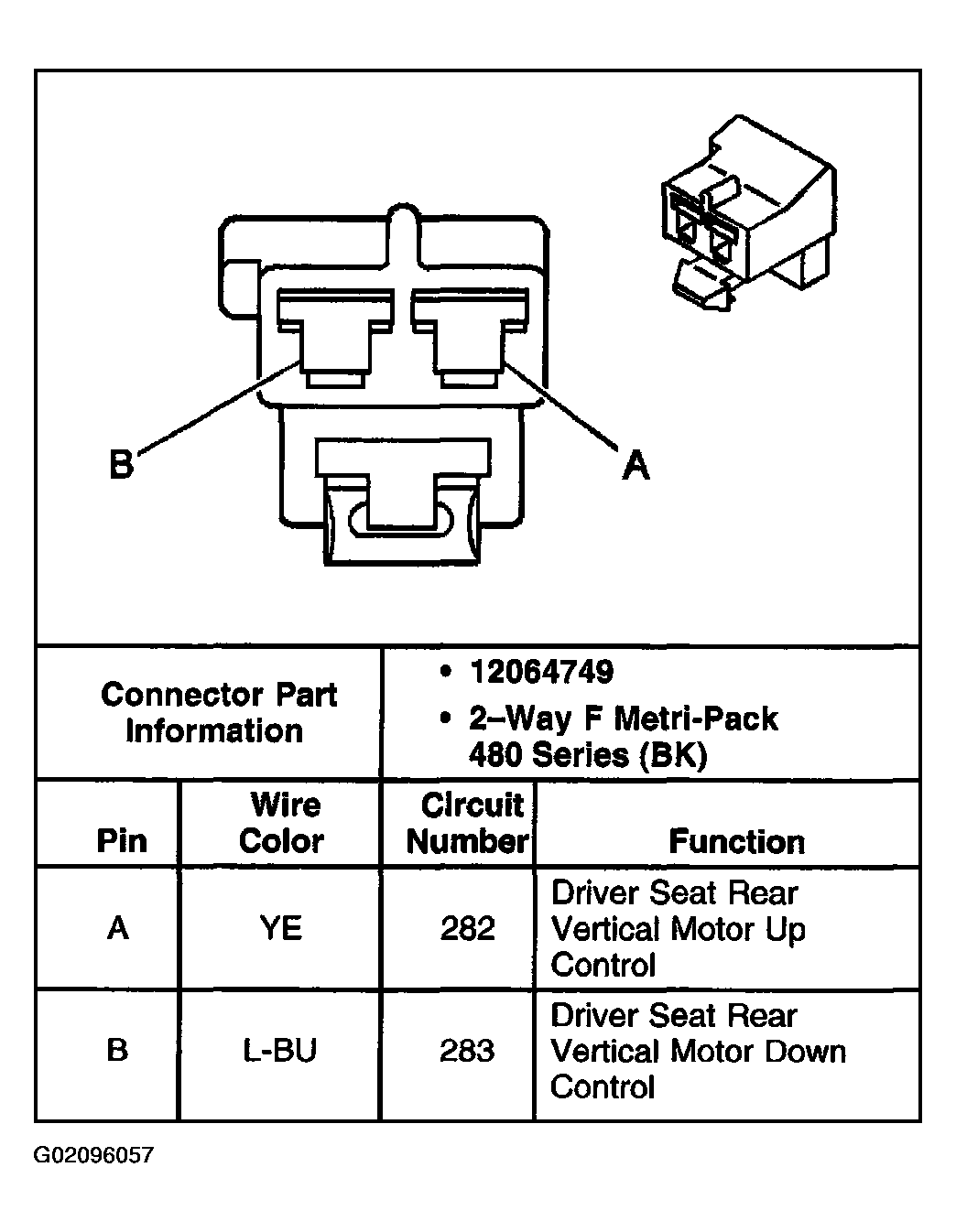

Fig 2: Identifying LH Seat Rear Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

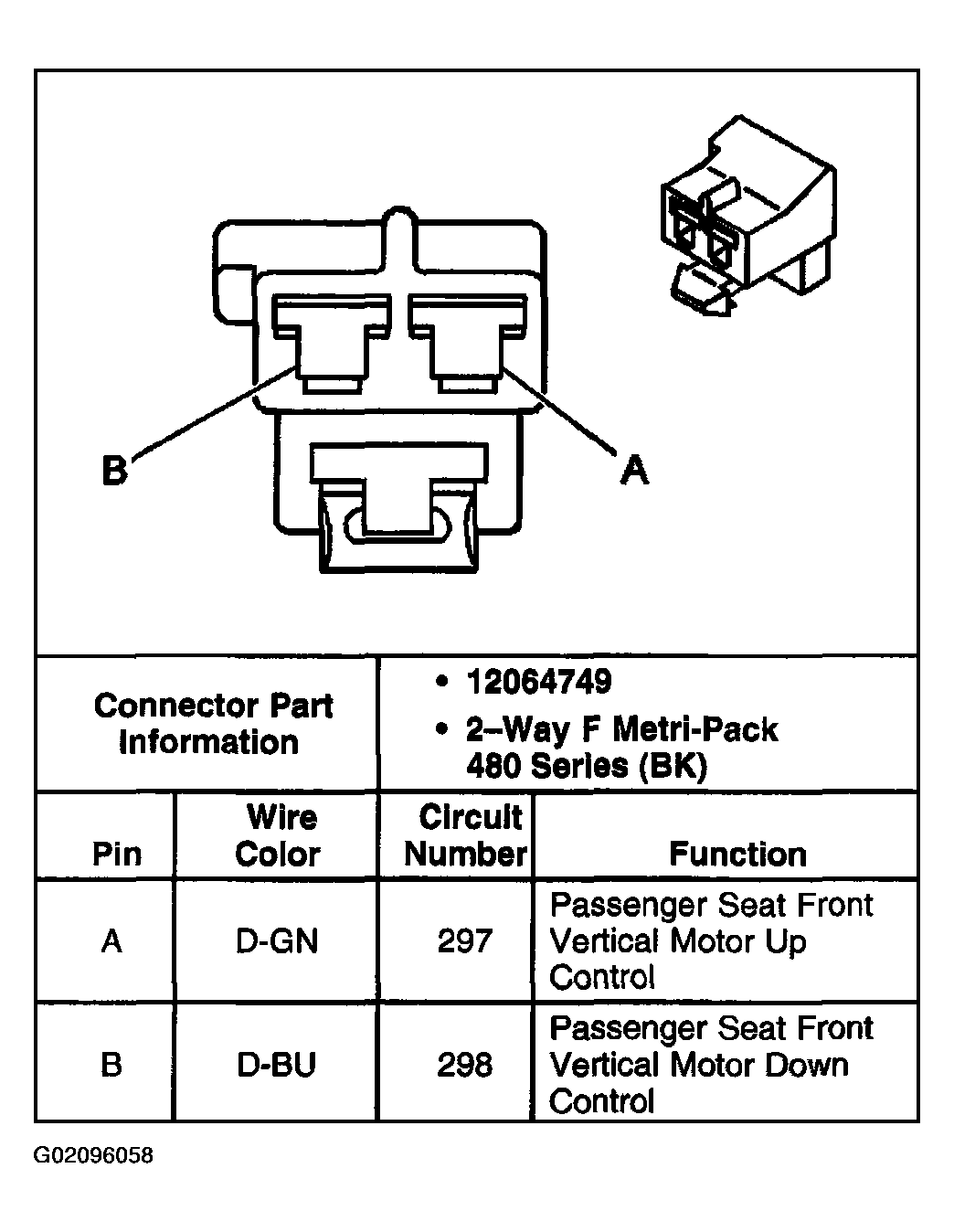

Fig 3: Identifying RH Seat Front Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

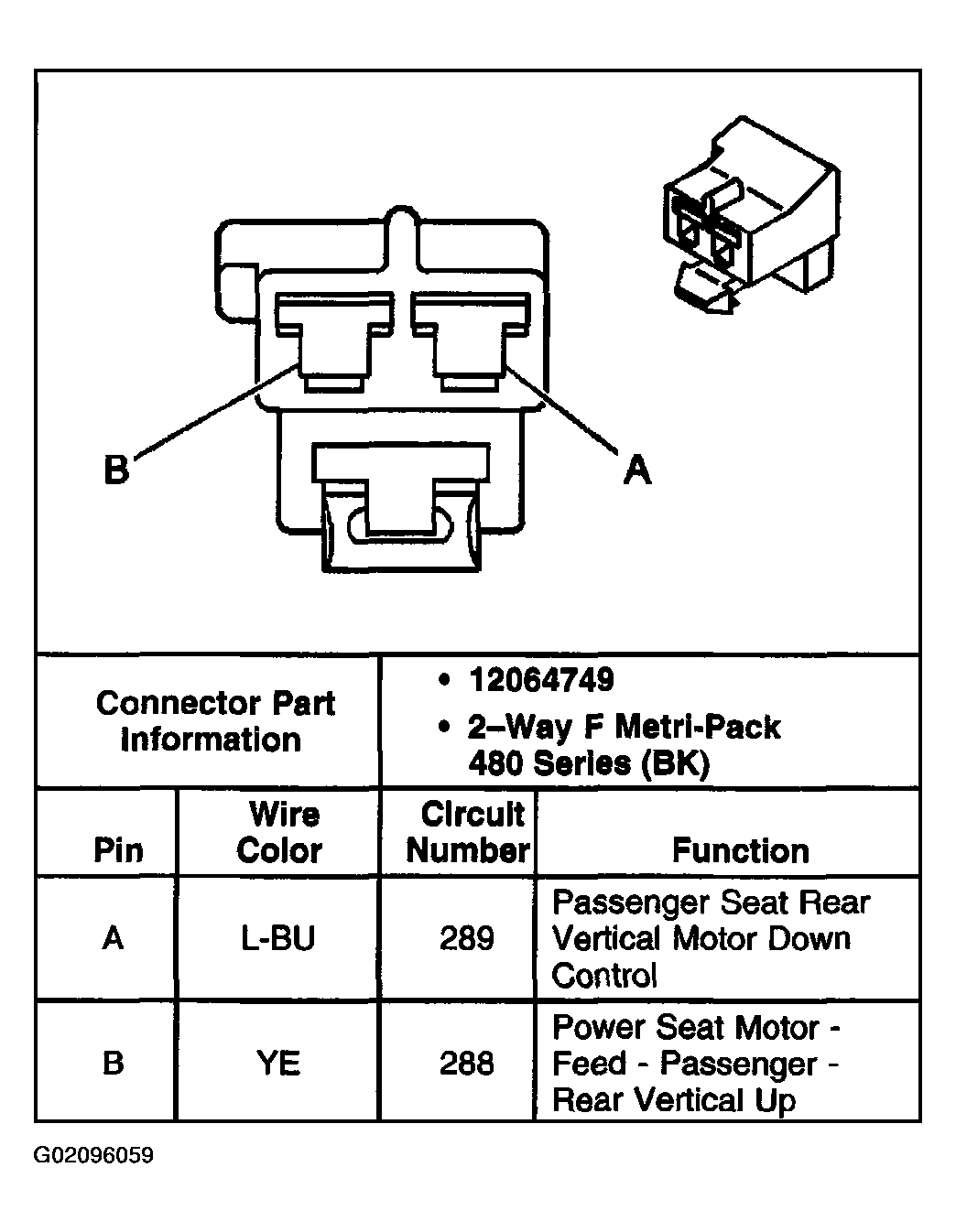

Fig 4: Identifying RH Seat Rear Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

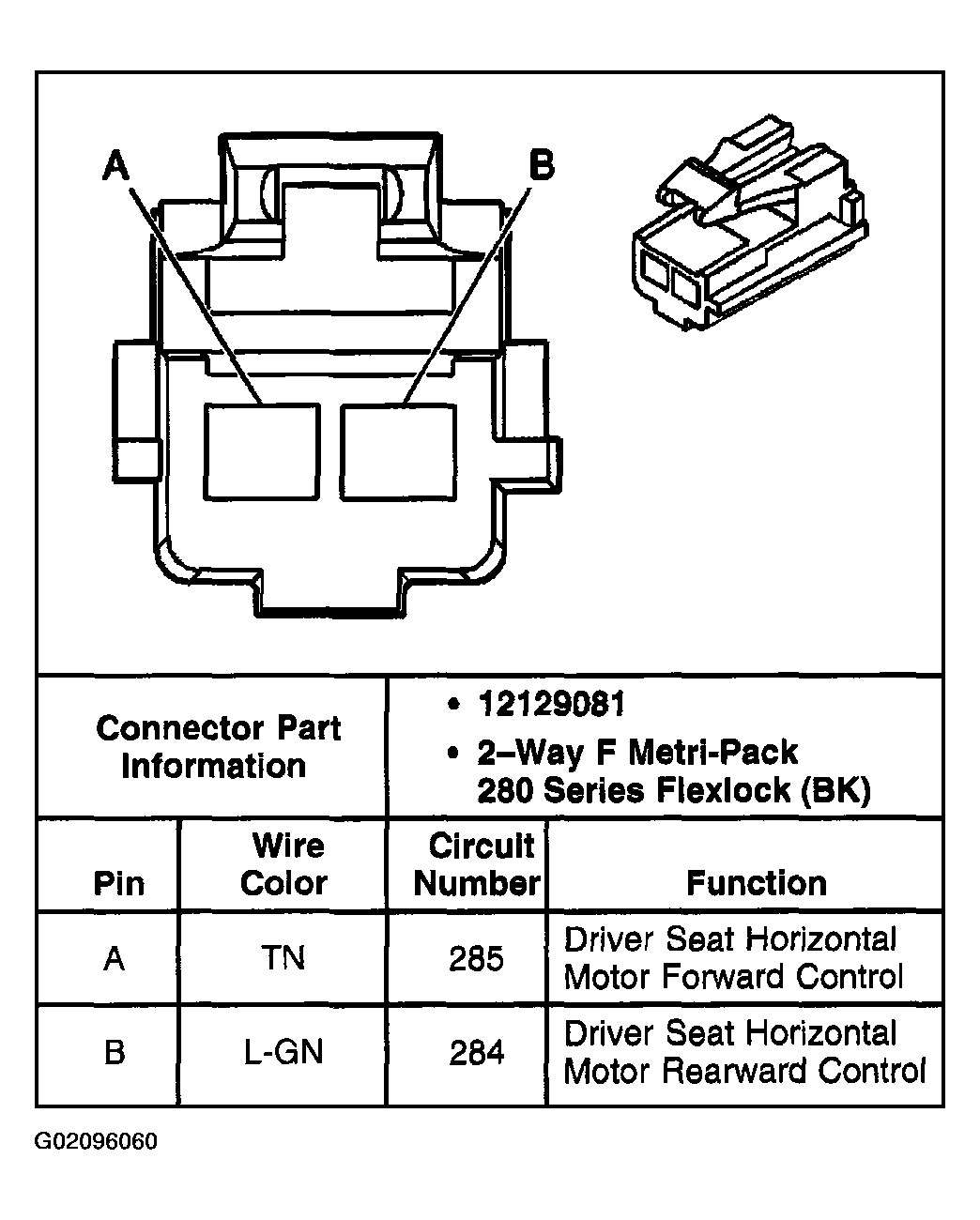

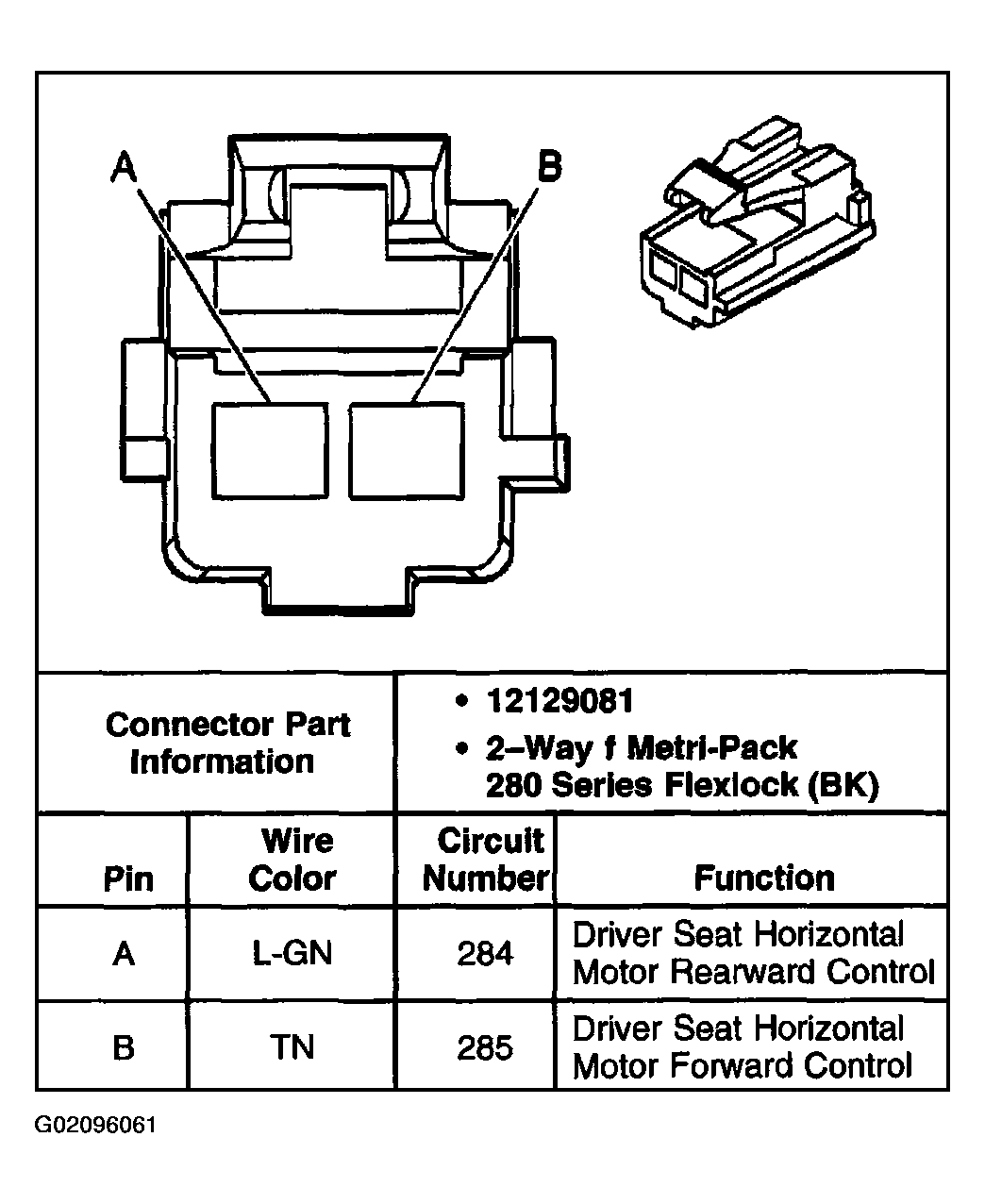

Fig 5: Identifying LH Seat Horizontal Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying RH Seat Horizontal Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying LH Power Seat Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying RH Power Seat Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying LH Heated Seat Module Connector End View
Courtesy of GENERAL MOTORS CORP.

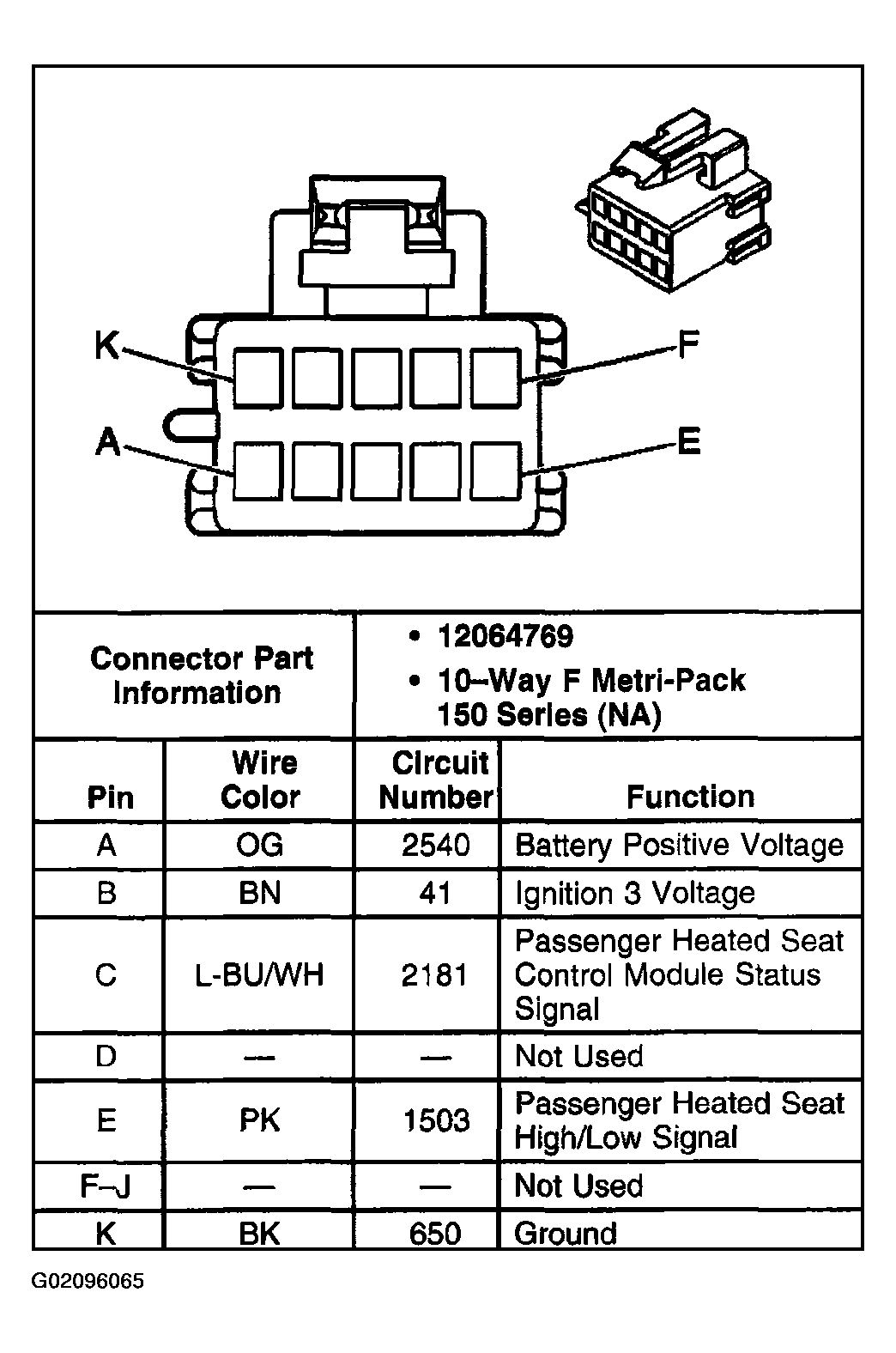

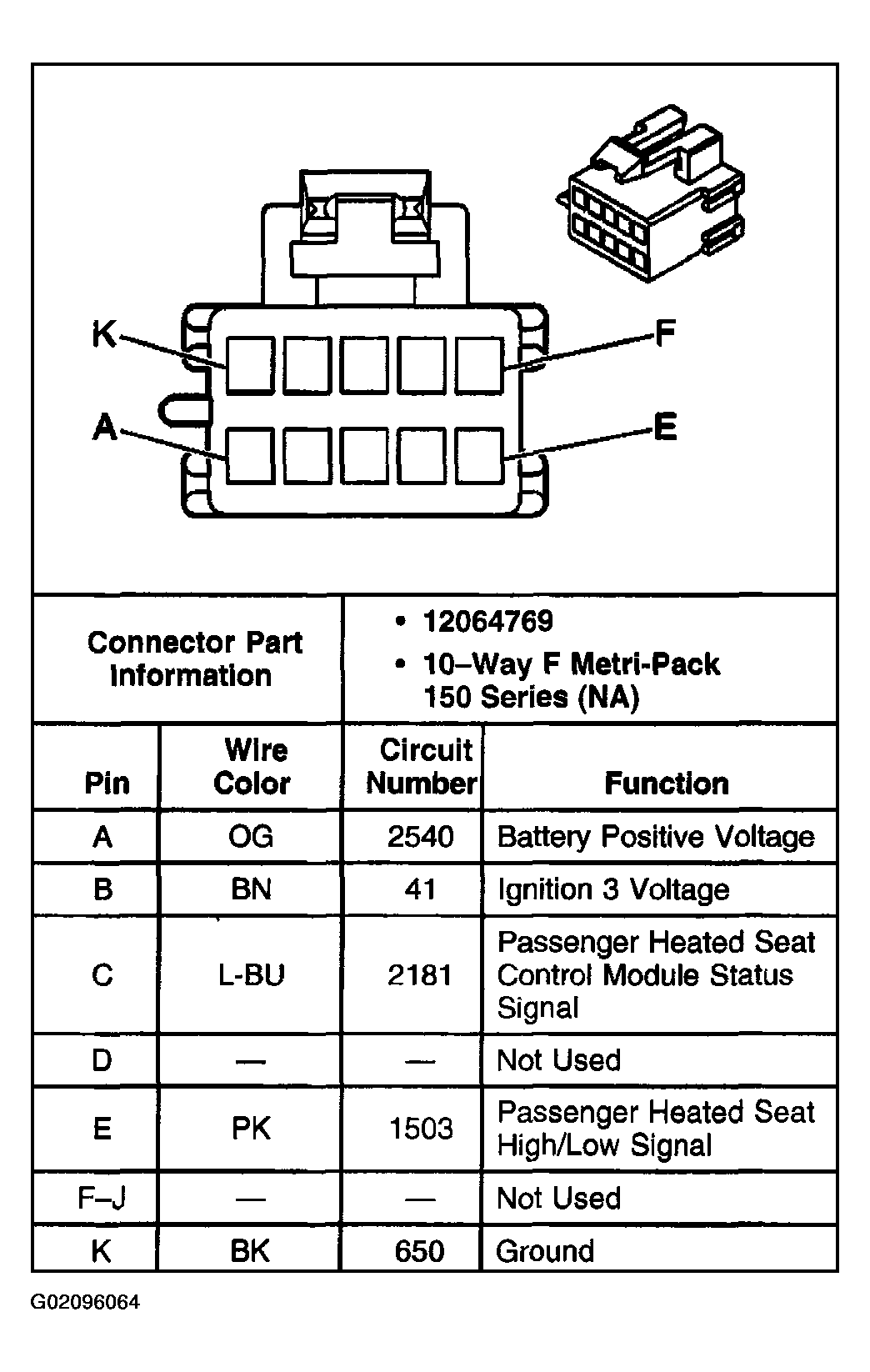

Fig 10: Identifying RH Heated Seat Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Memory Seat Module (MSM) Connector End View-C1
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Memory Seat Module (MSM) Connector End View-C2
Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Memory Seat Module (MSM) Connector End View-C3
Courtesy of GENERAL MOTORS CORP.

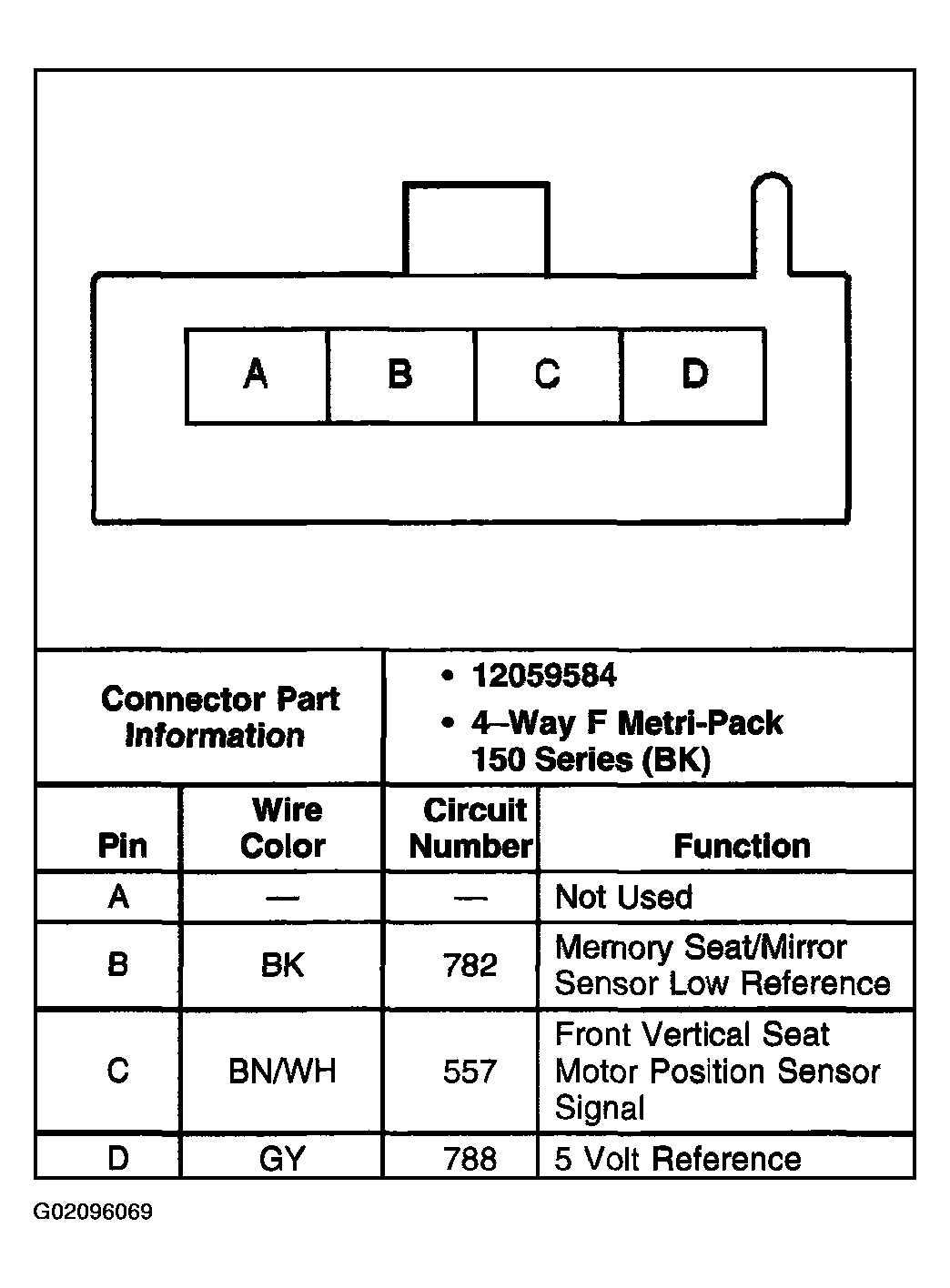

Fig 14: Identifying LH Seat Front Vertical Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying LH Seat Front Horizontal Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

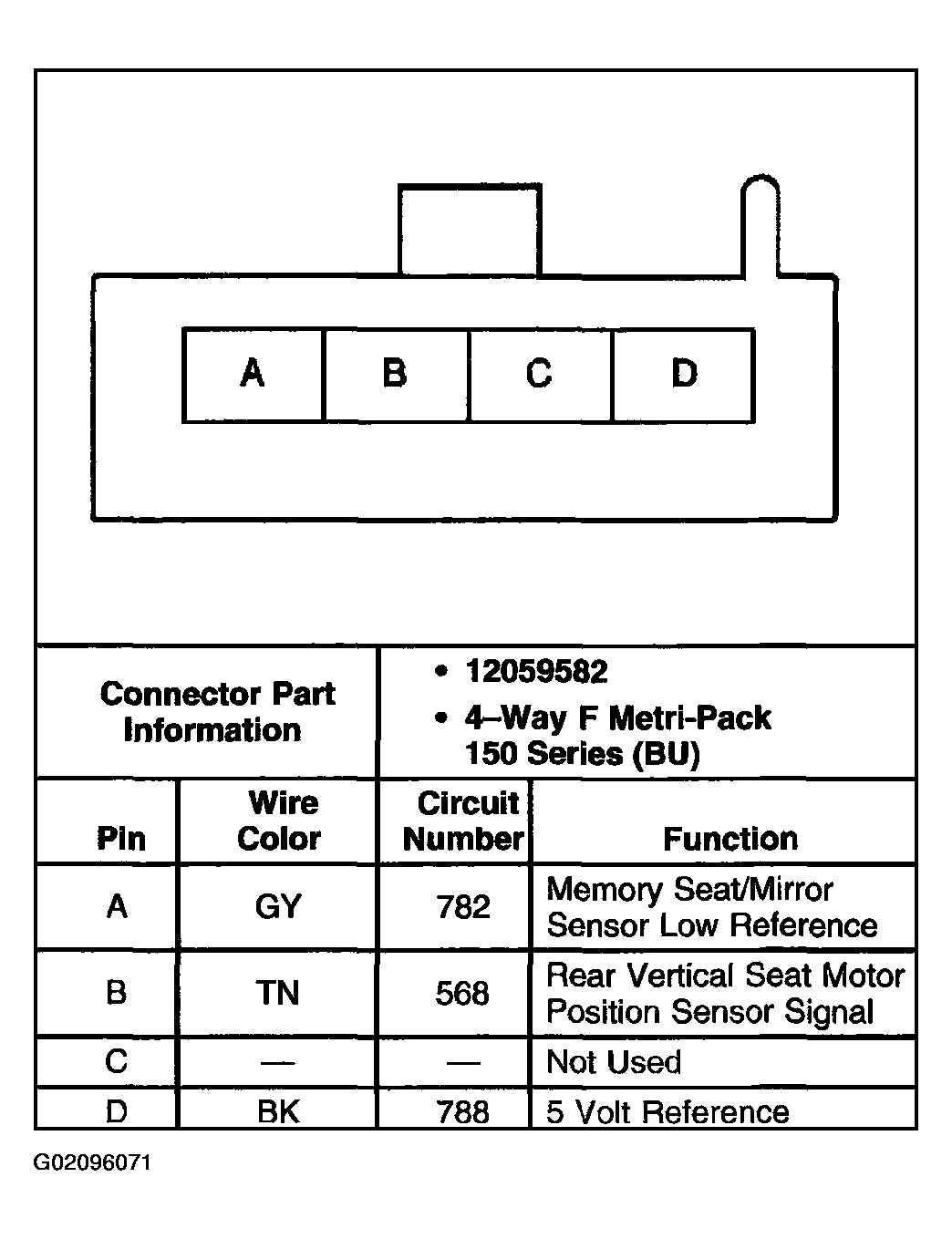

Fig 16: Identifying LH Seat Rear Vertical Position Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

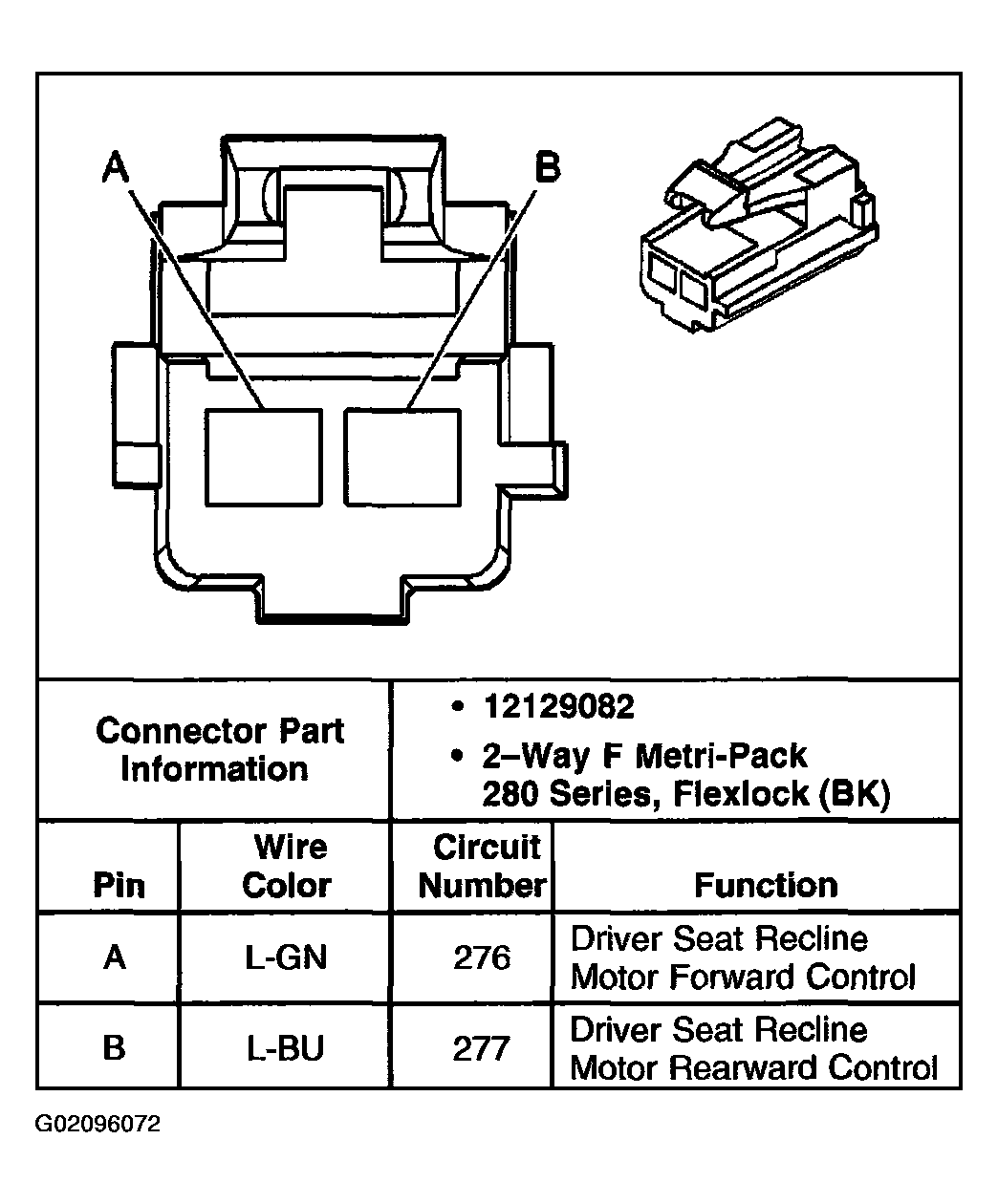

Fig 17: Identifying LH Seat Front Recline Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

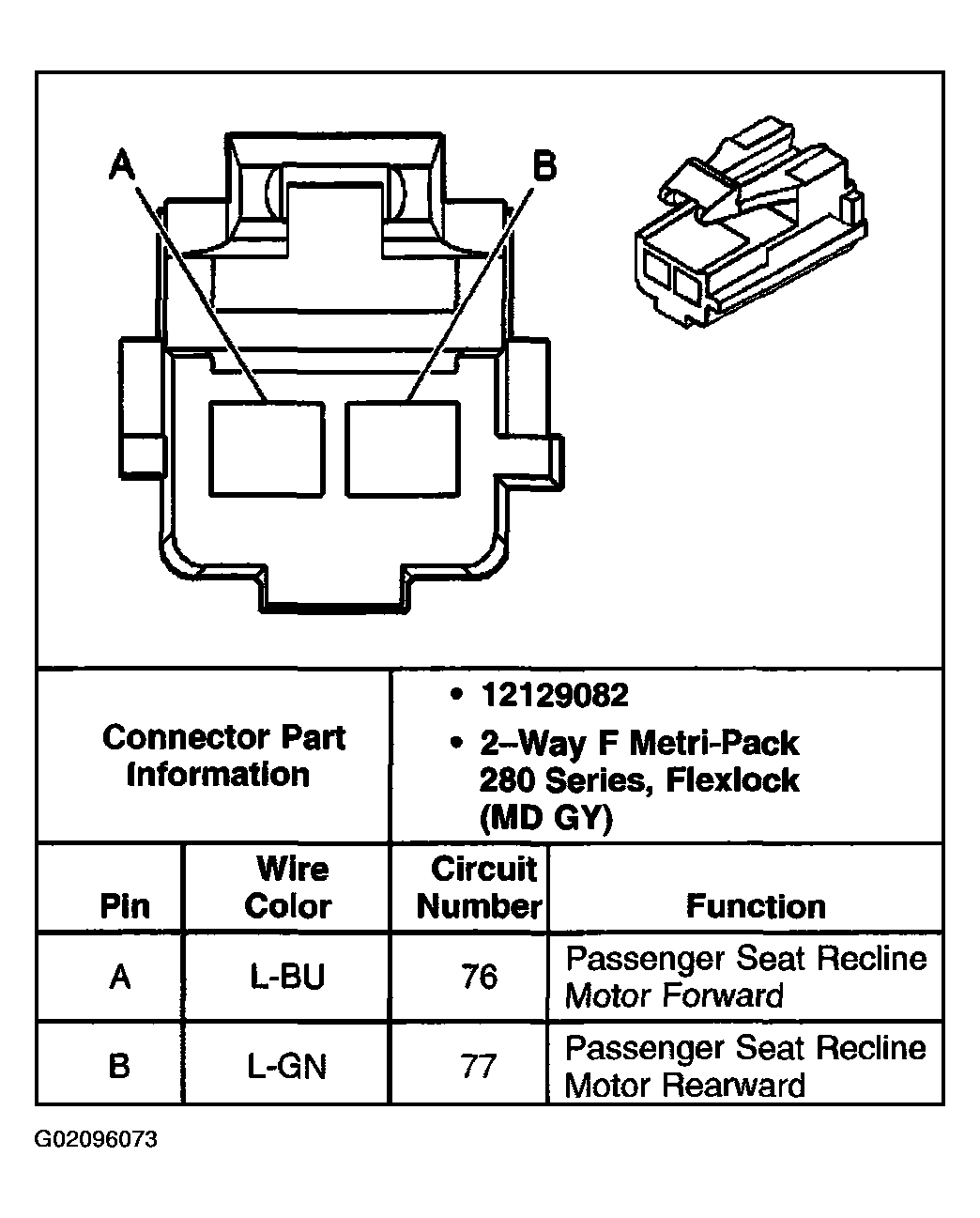

Fig 18: Identifying RH Seat Front Recline Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

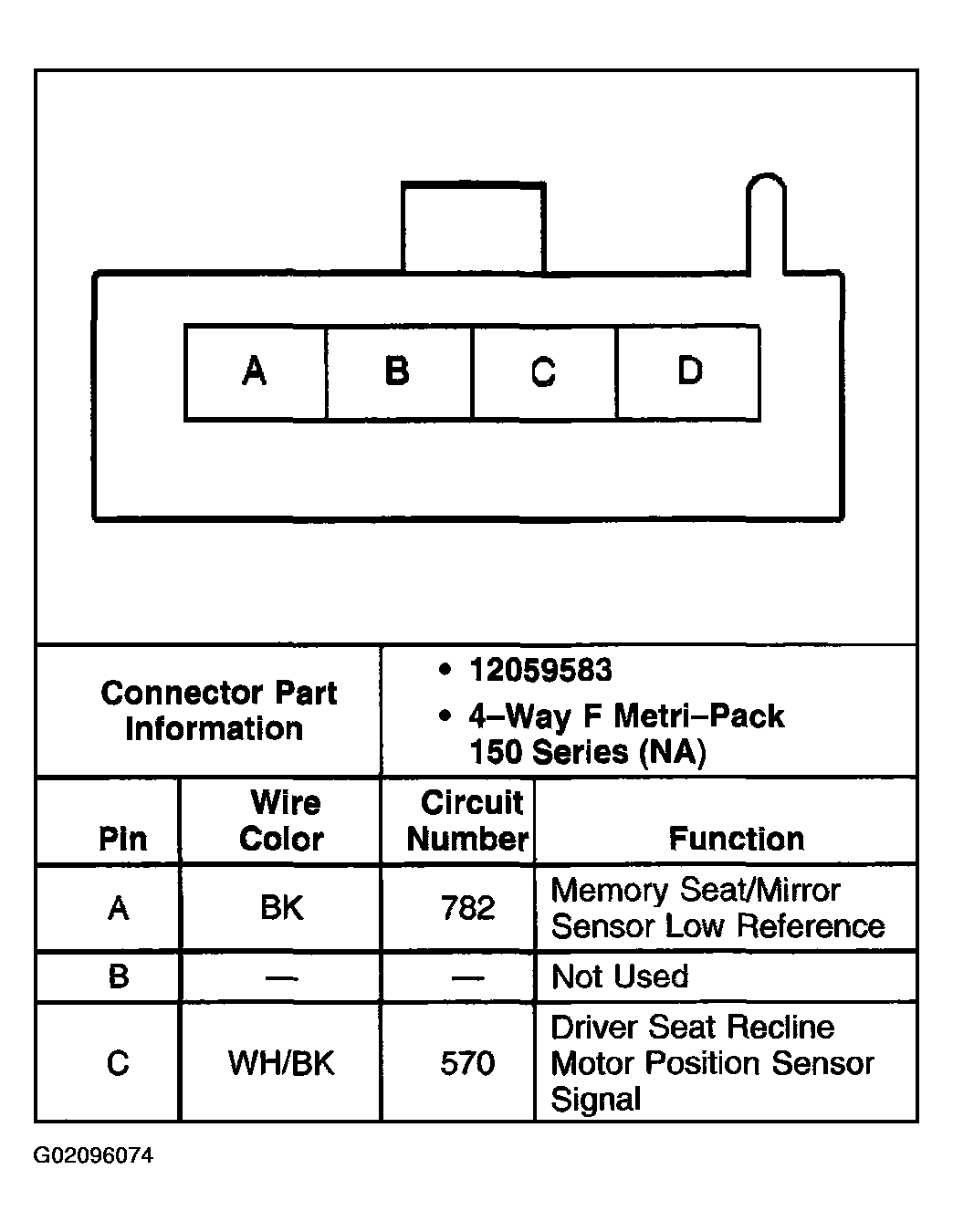

Fig 19: Identifying LH Seat Front Recline Position Sensor Connector End View
