Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the shock module from the vehicle. Refer to SHOCK MODULE REPLACEMENT .
  4. Install the shock module into the spring compressor.
  5. Mark the upper control arm assembly and insulator for proper installation.

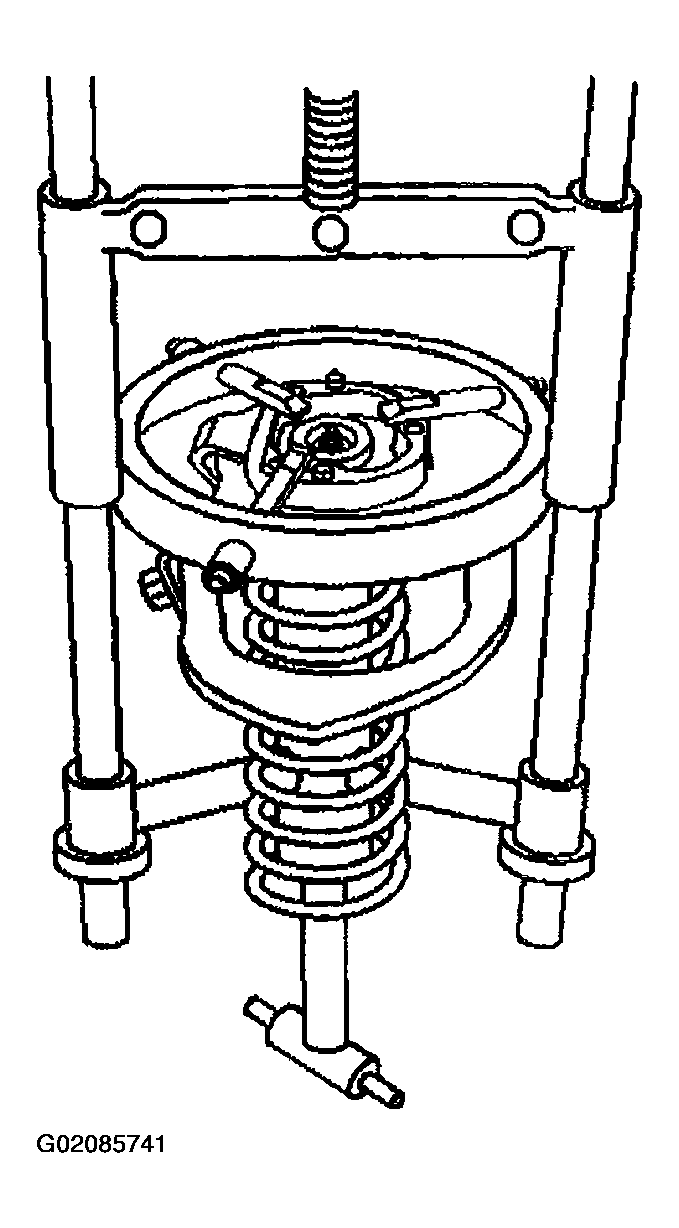

    Fig 1: Shock Module In Spring Compressor
    G02085741Courtesy of GENERAL MOTORS CORP.

    Important:  The spring is compressed when the shock absorber moves freely.

  6. Turn the spring compressor forcing screw (1) until the coil spring (2) is compressed.

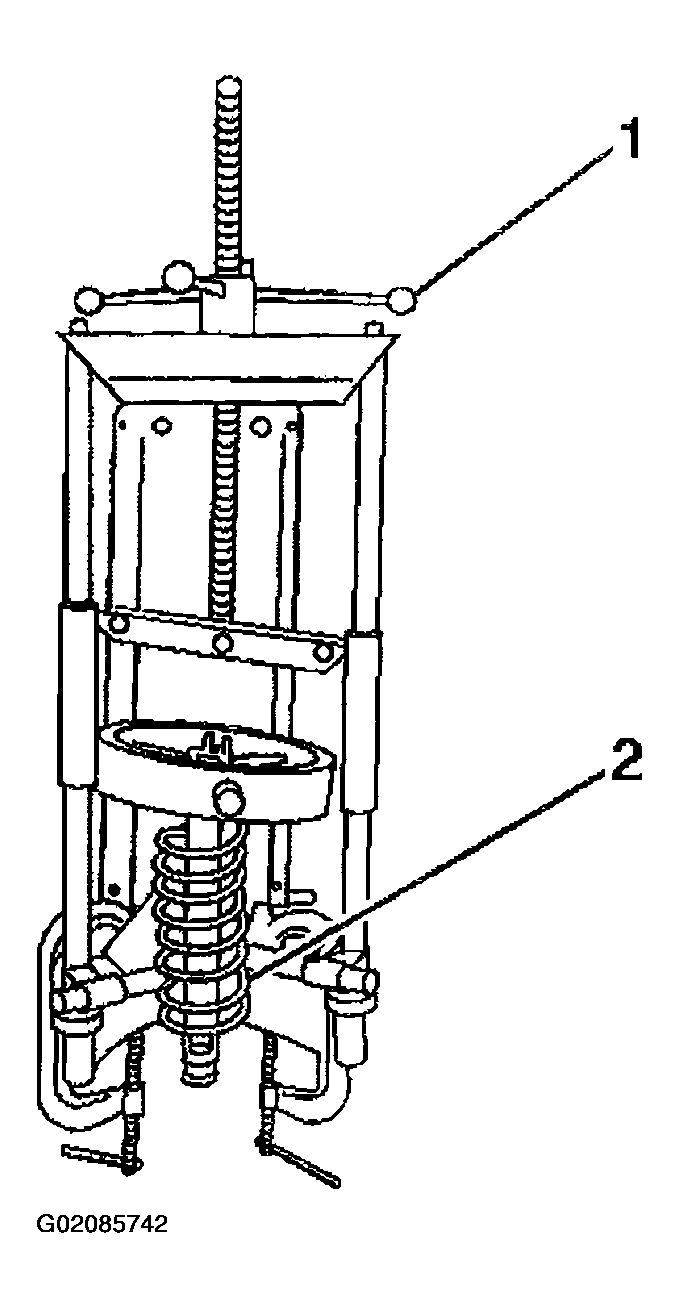

    Fig 2: Spring Compressor Forcing Screw
    G02085742Courtesy of GENERAL MOTORS CORP.
  7. Remove the shock absorber upper retaining nut.
  8. Remove the shock absorber from the shock module.
  9. Loosen the compressor forcing screw until the upper mounting plate and coil spring may be removed.
  10. Remove the upper control arm bracket assembly, insulator and coil spring from the spring compressor.

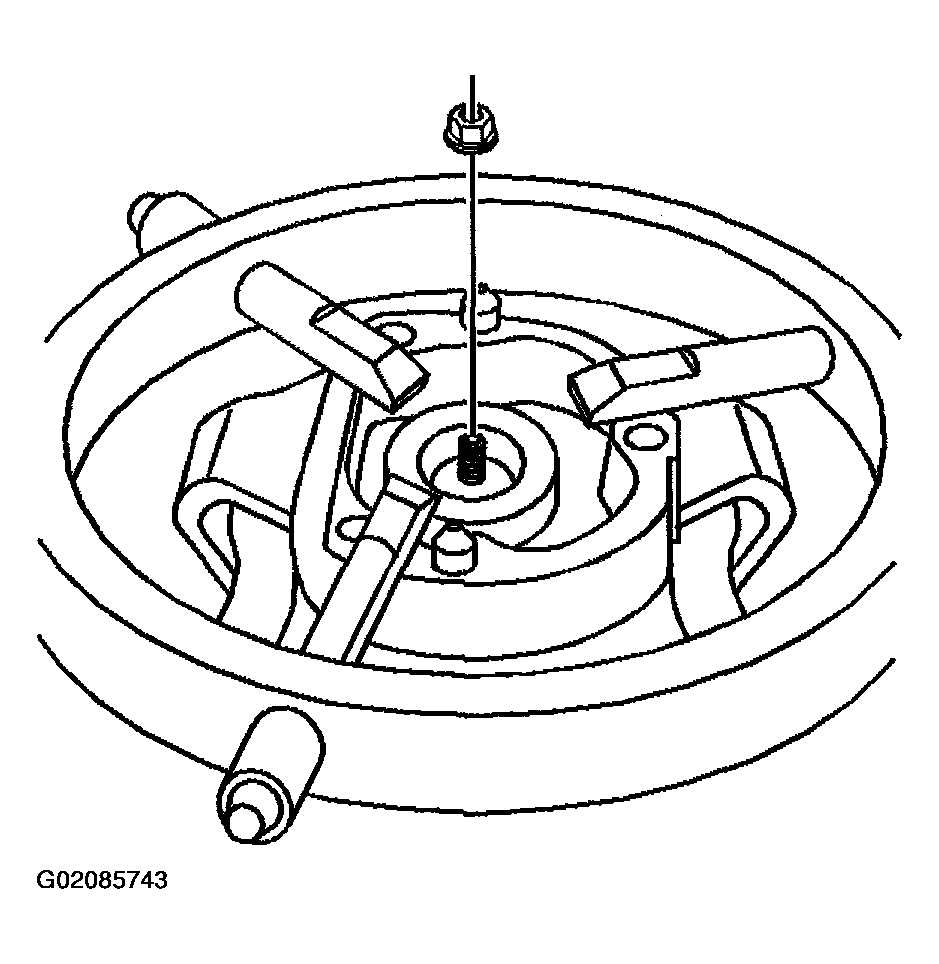

    Fig 3: Shock Absorber Retaining Nut
    G02085743Courtesy of GENERAL MOTORS CORP.
