ABS Connector End Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Brake Fluid Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 2: Electronic Brake Control Module (EBCM) C1

Courtesy of GENERAL MOTORS CORP.

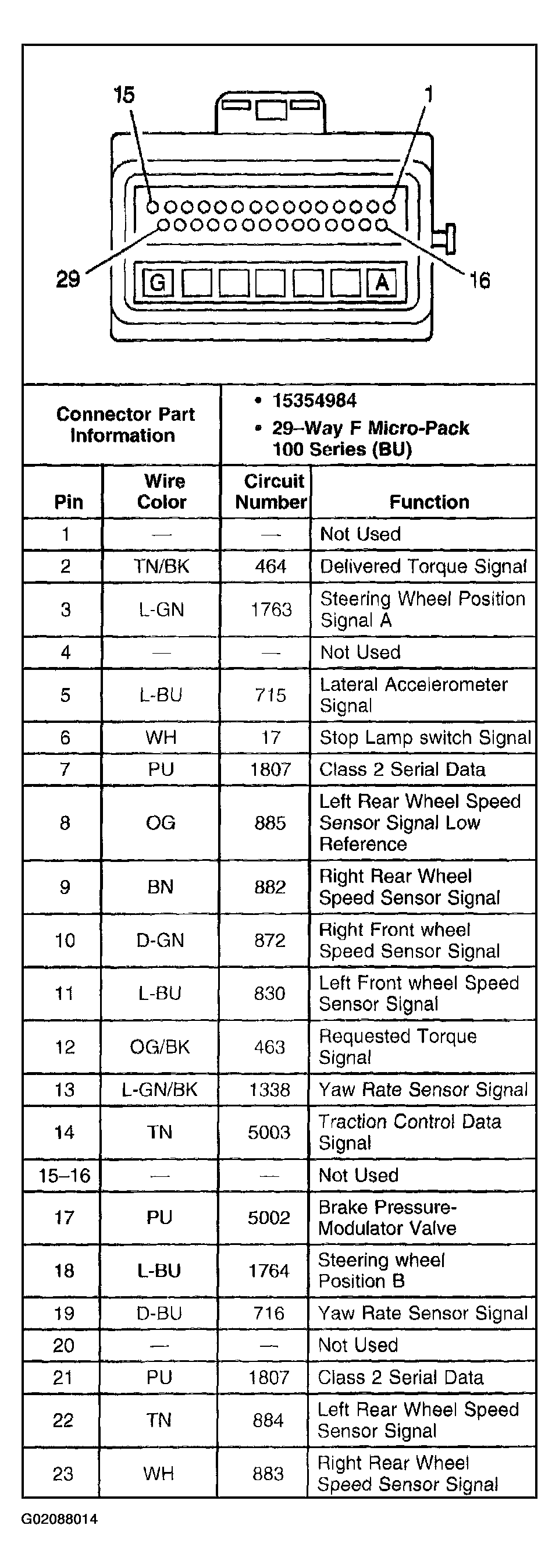

Fig 3: Electronic Brake Control Module (EBCM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

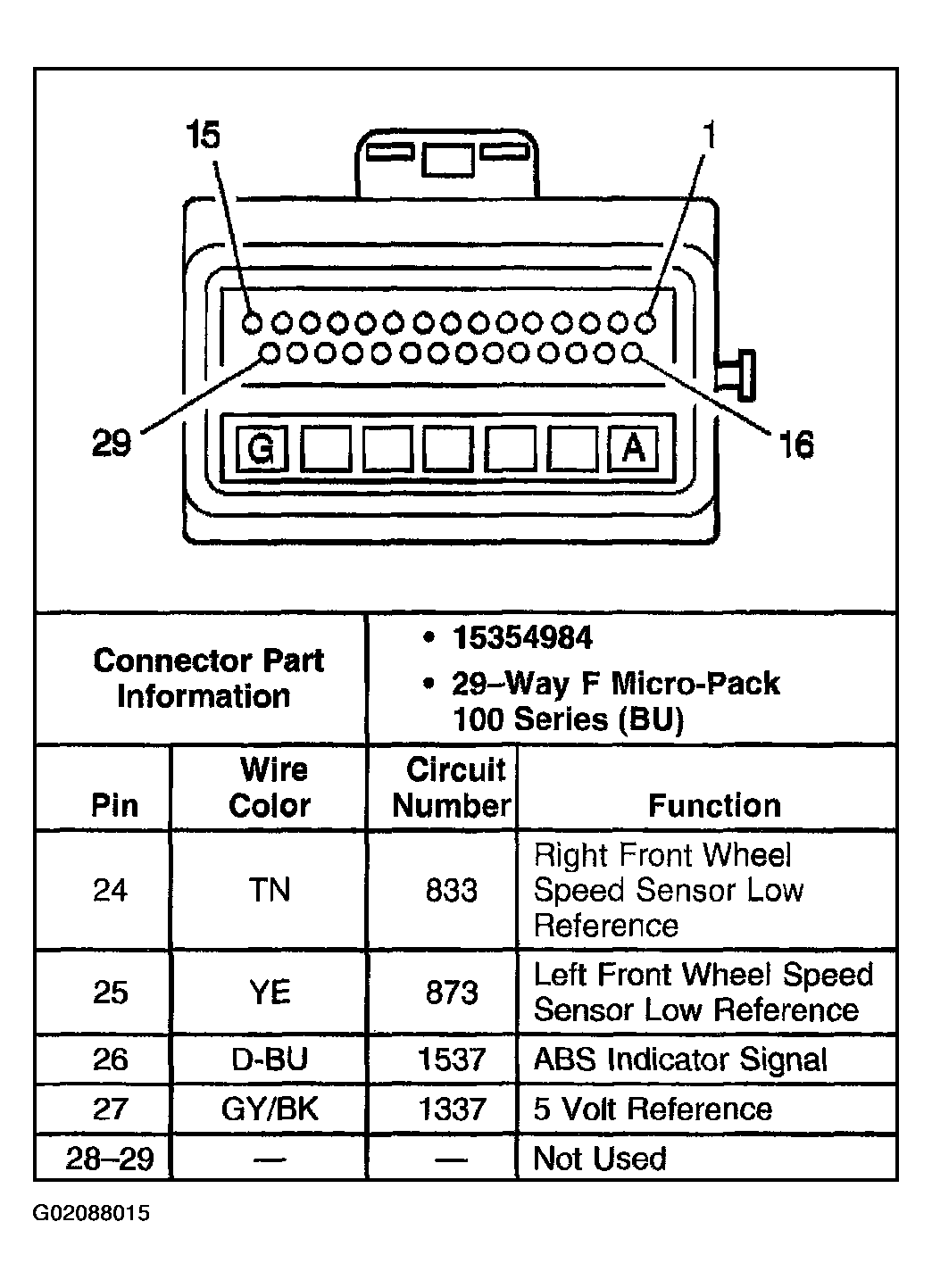

Fig 4: Electronic Brake Control Module (EBCM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Lateral Accelerometer

Courtesy of GENERAL MOTORS CORP.

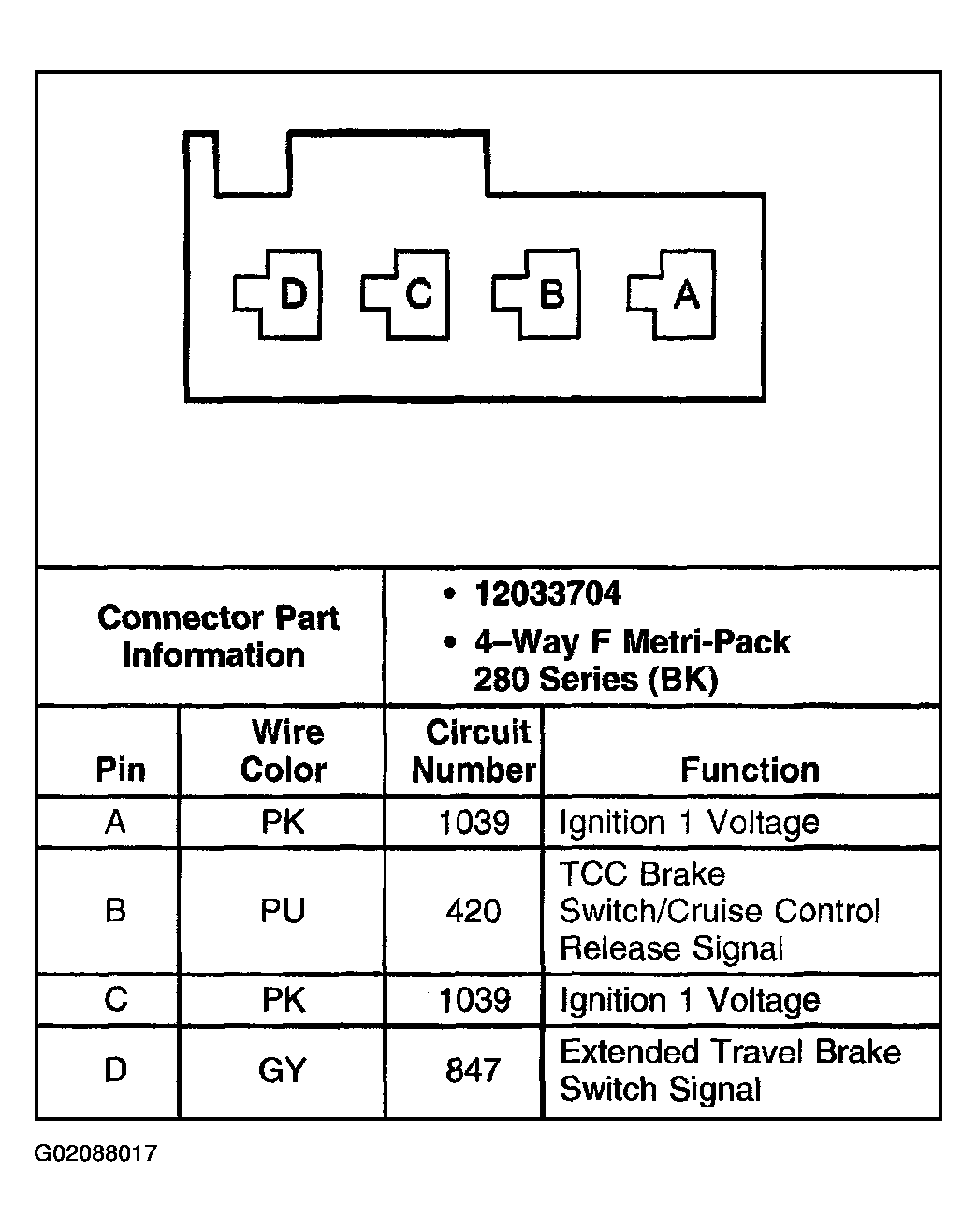

Fig 6: TCC/Cruise Release Switch

Courtesy of GENERAL MOTORS CORP.

Fig 7: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

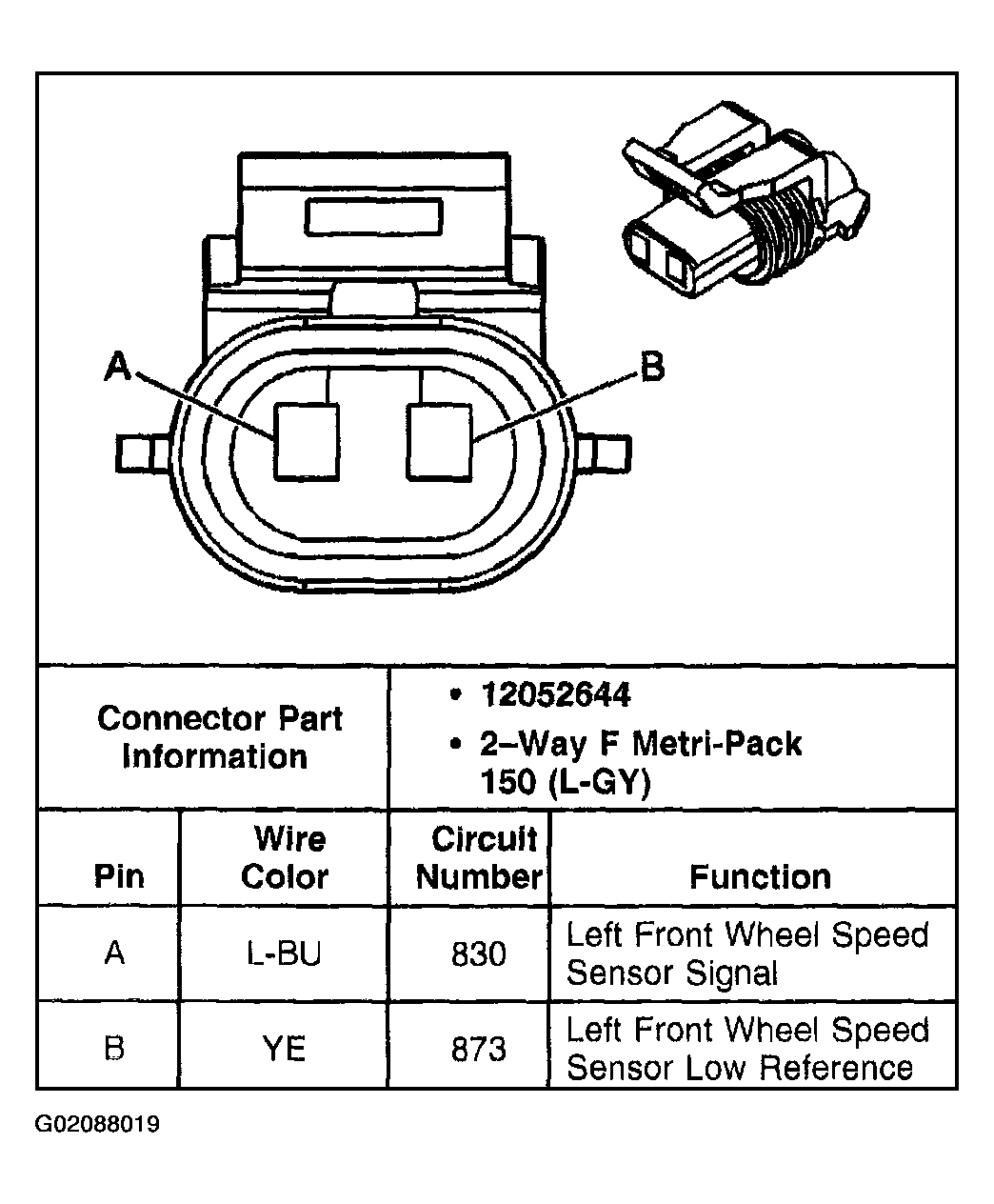

Fig 8: Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

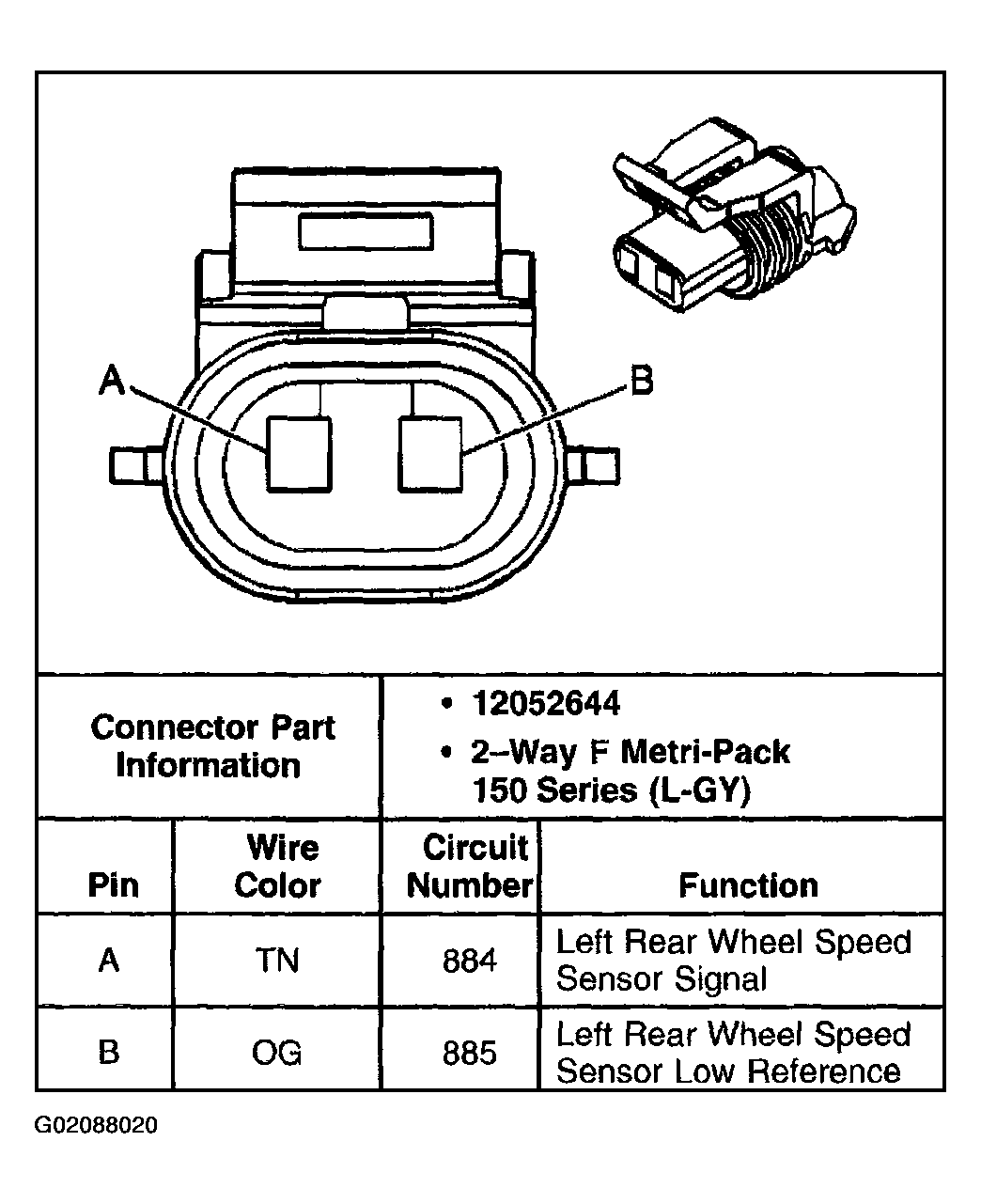

Fig 9: Wheel Speed Sensor (WSS) - LR

Courtesy of GENERAL MOTORS CORP.

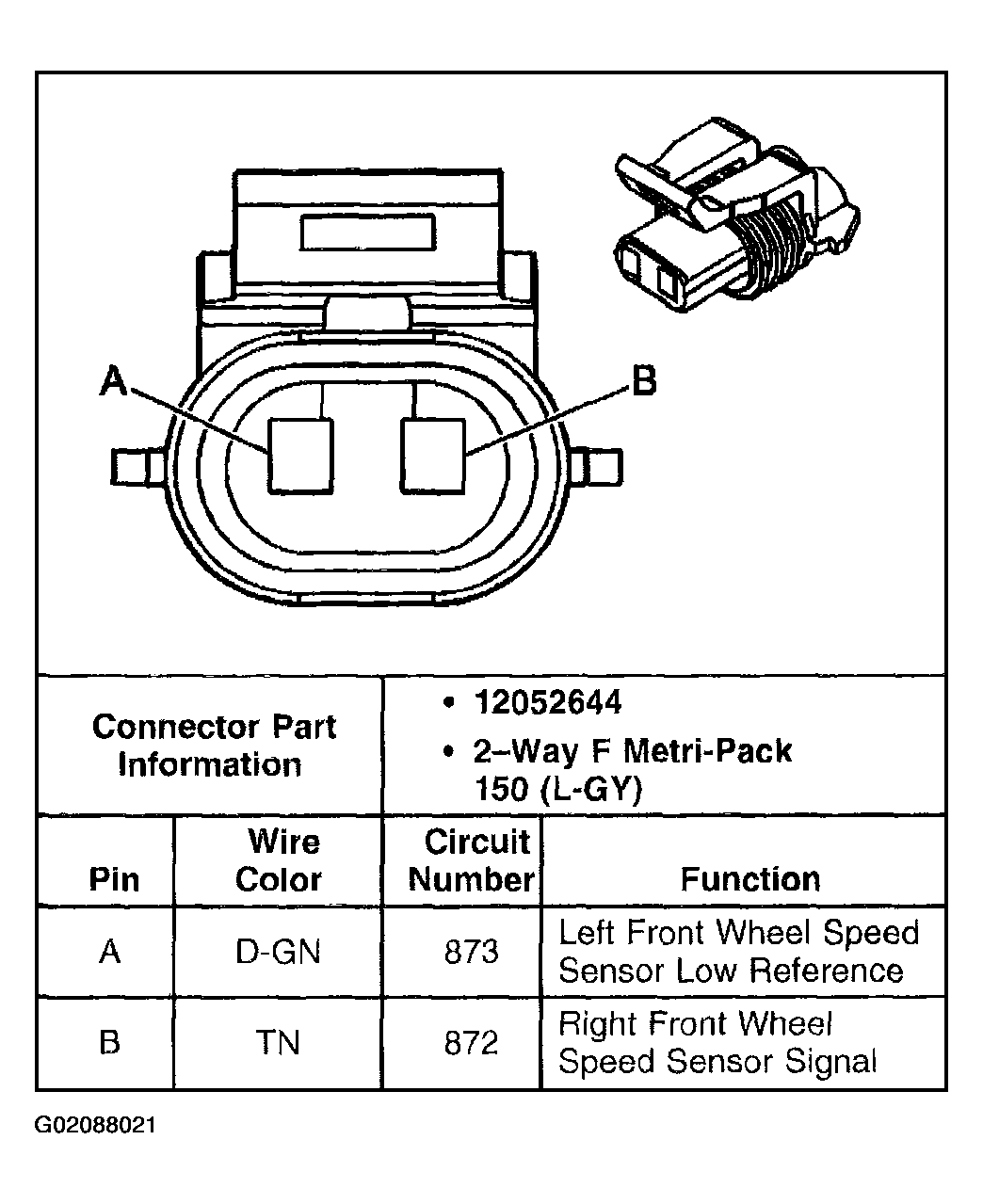

Fig 10: Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.

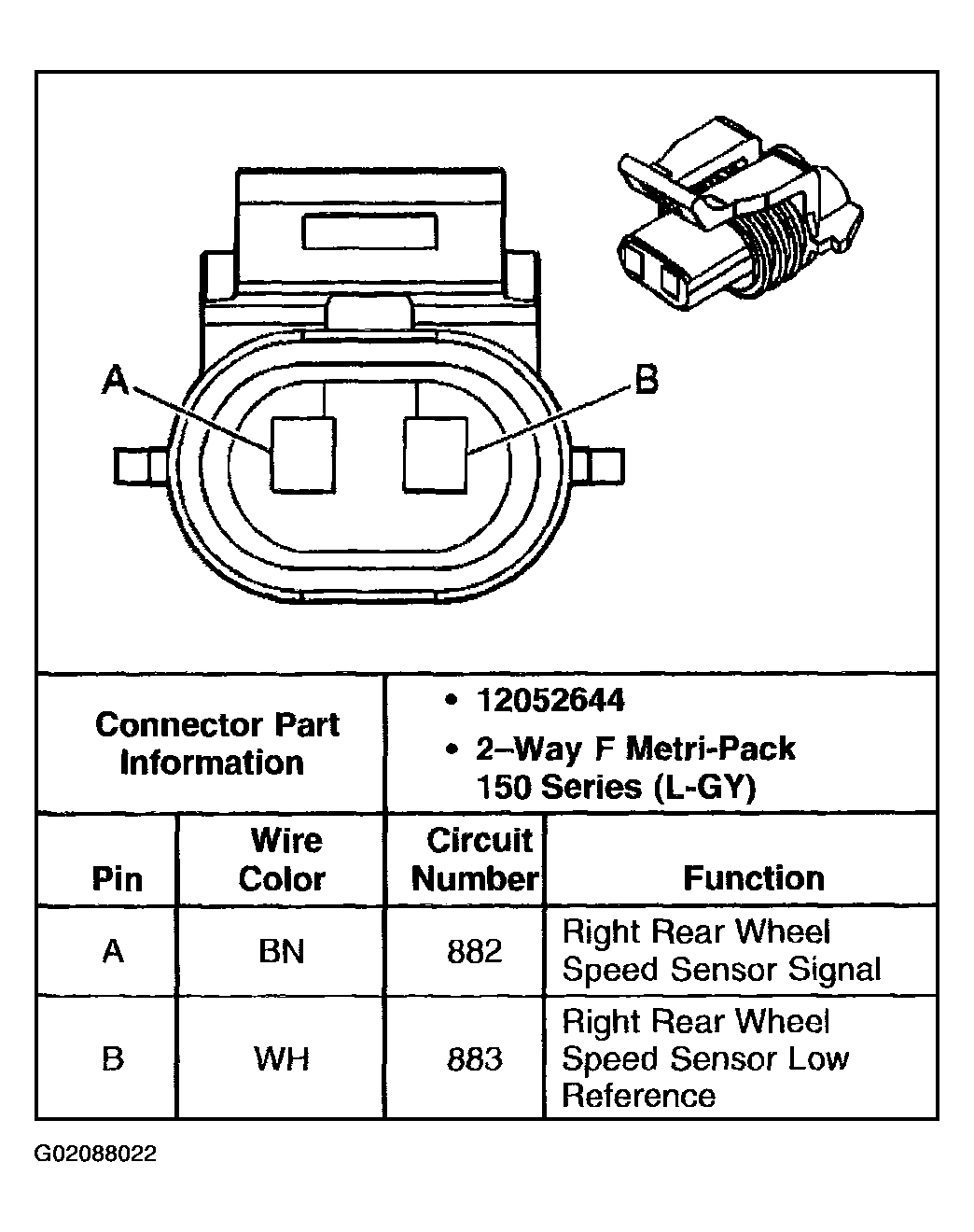

Fig 11: Wheel Speed Sensor (WSS) - RR

Courtesy of GENERAL MOTORS CORP.

Fig 12: Yaw Rate Sensor

Courtesy of GENERAL MOTORS CORP.
