Cooling Systems

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

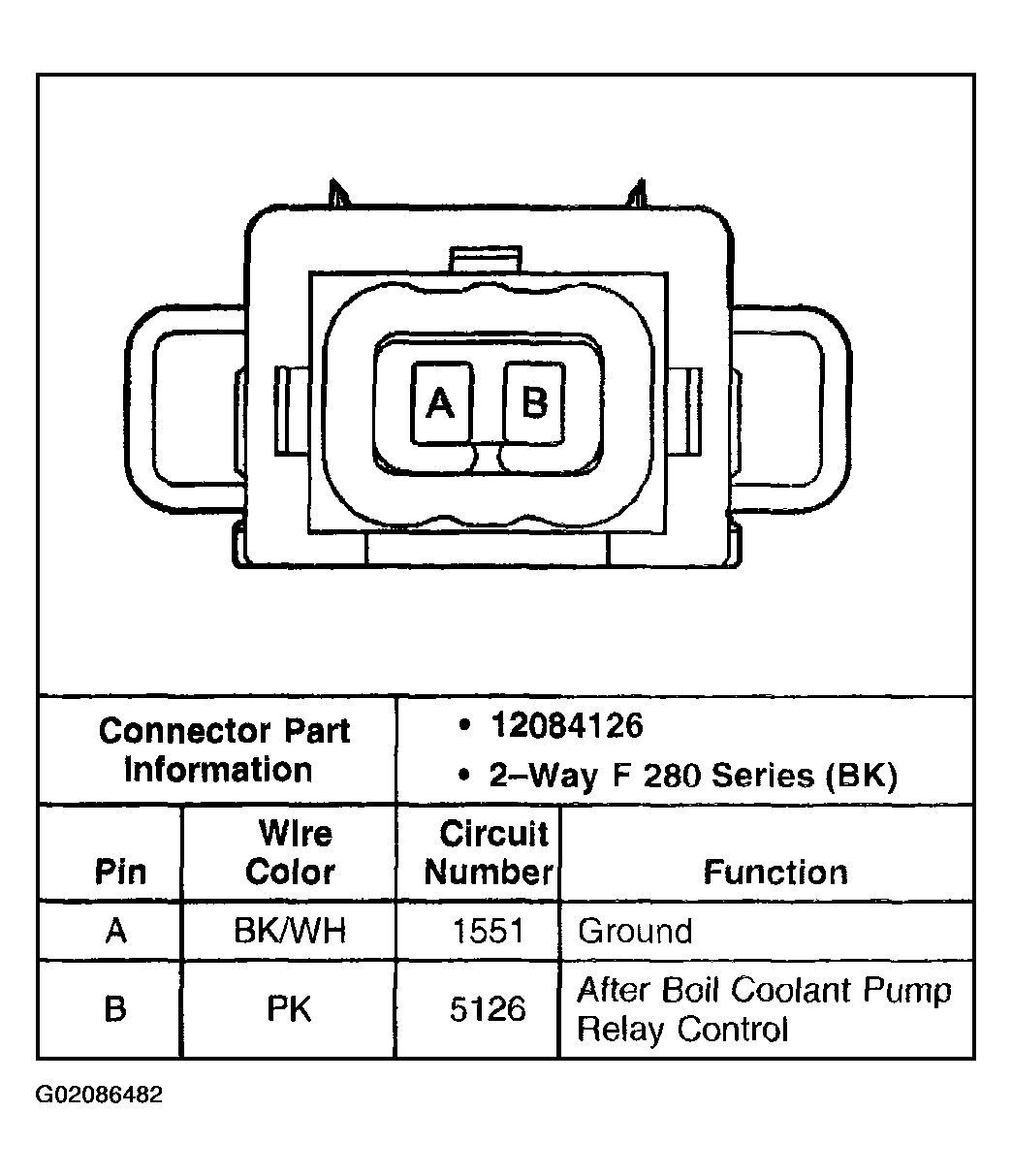

Fig 1: After Boil Coolant Pump Connector End View

Courtesy of GENERAL MOTORS CORP.

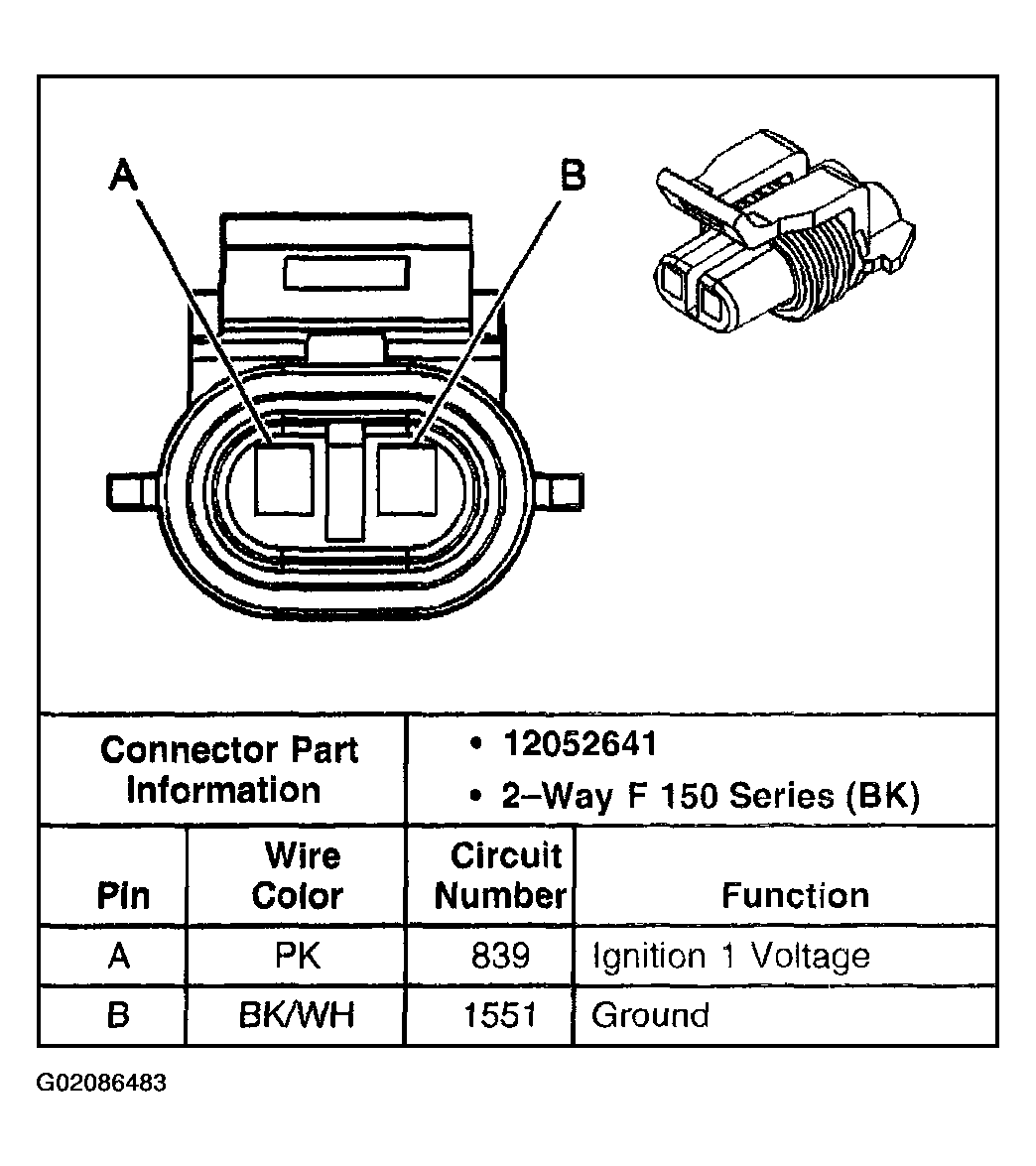

Fig 2: Coolant By-Pass Solenoid Connector End View

Courtesy of GENERAL MOTORS CORP.

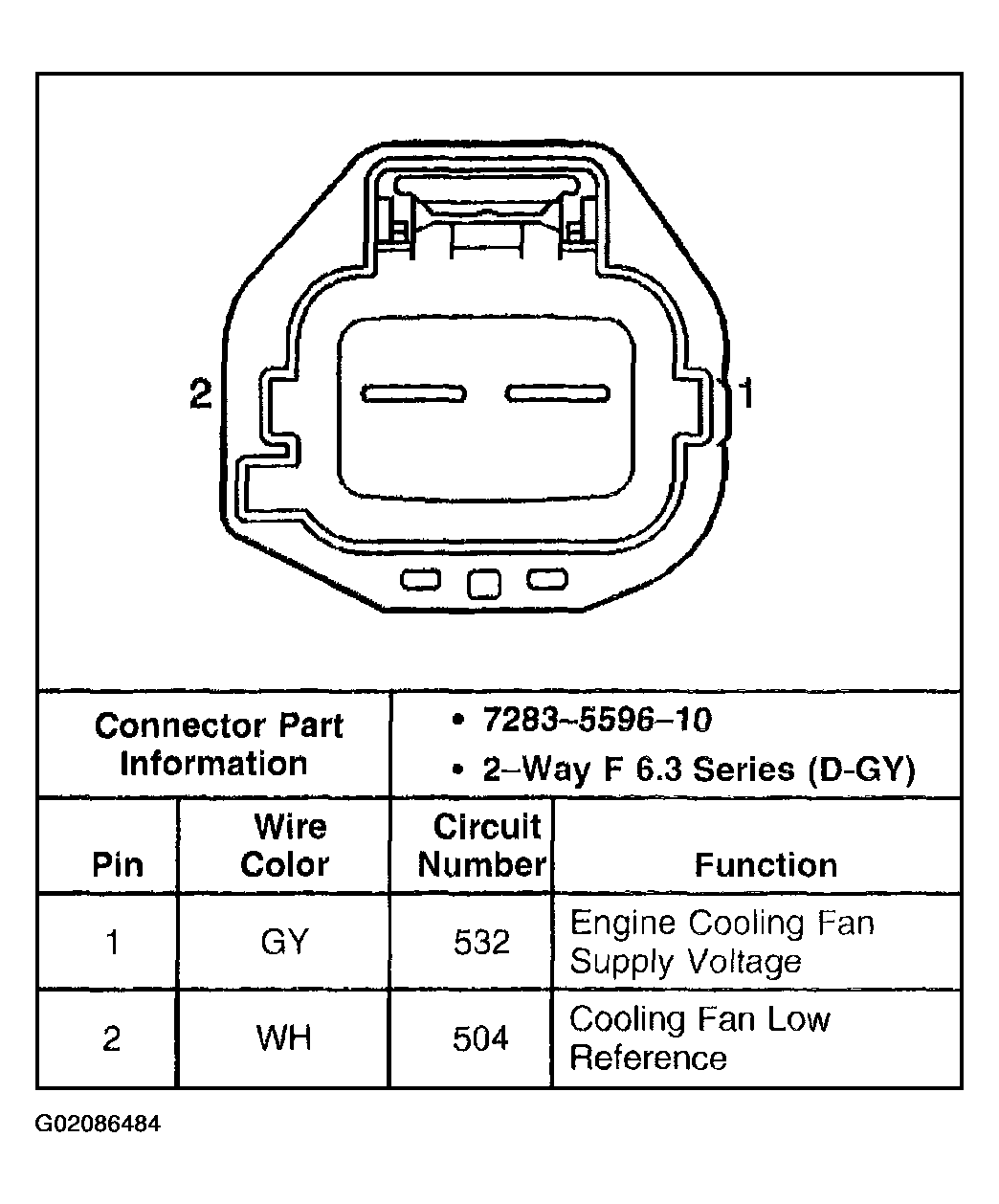

Fig 3: Cooling Fan - Right Connector End View

Courtesy of GENERAL MOTORS CORP.

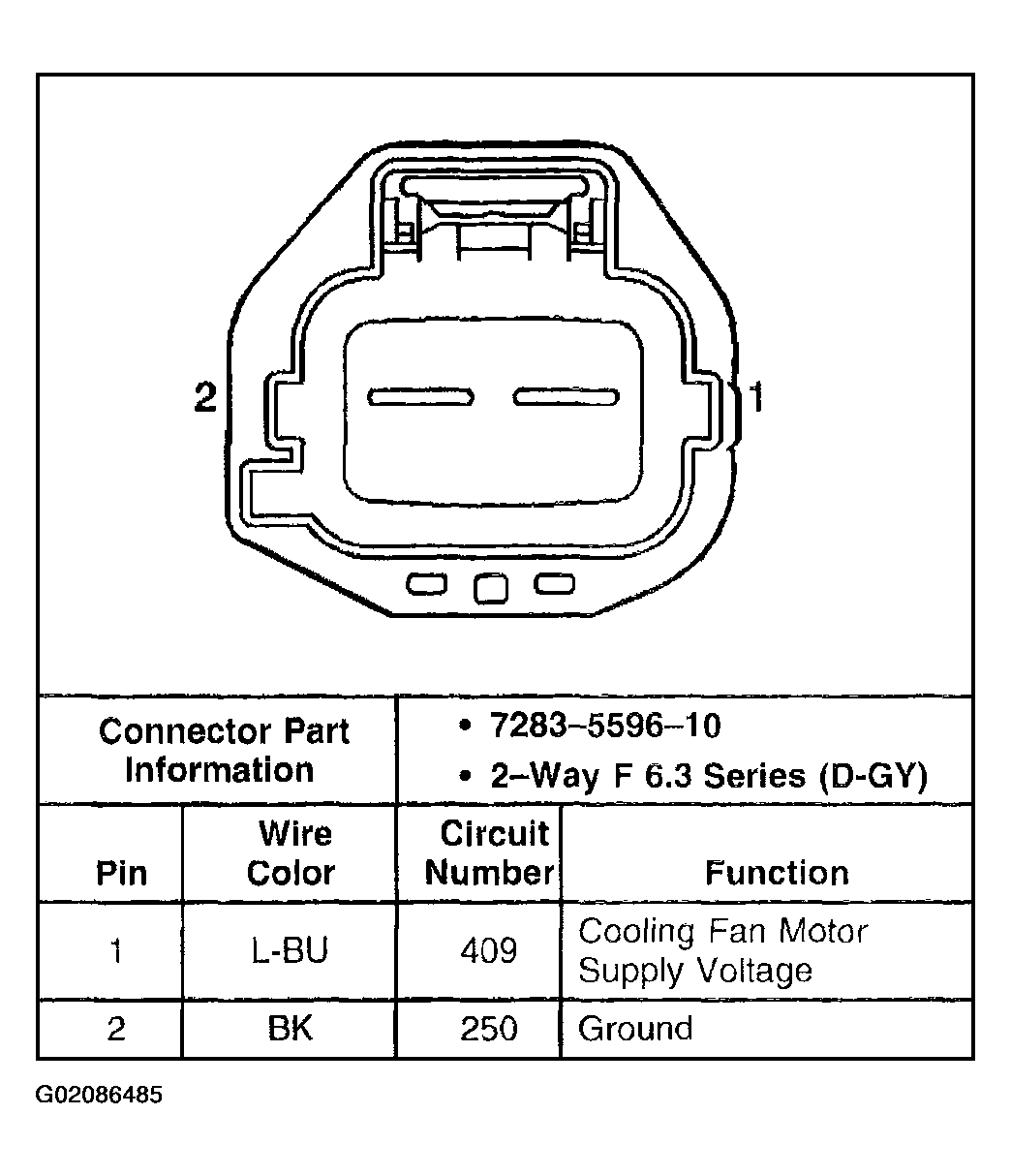

Fig 4: Cooling Fan - Left Connector End View

Courtesy of GENERAL MOTORS CORP.

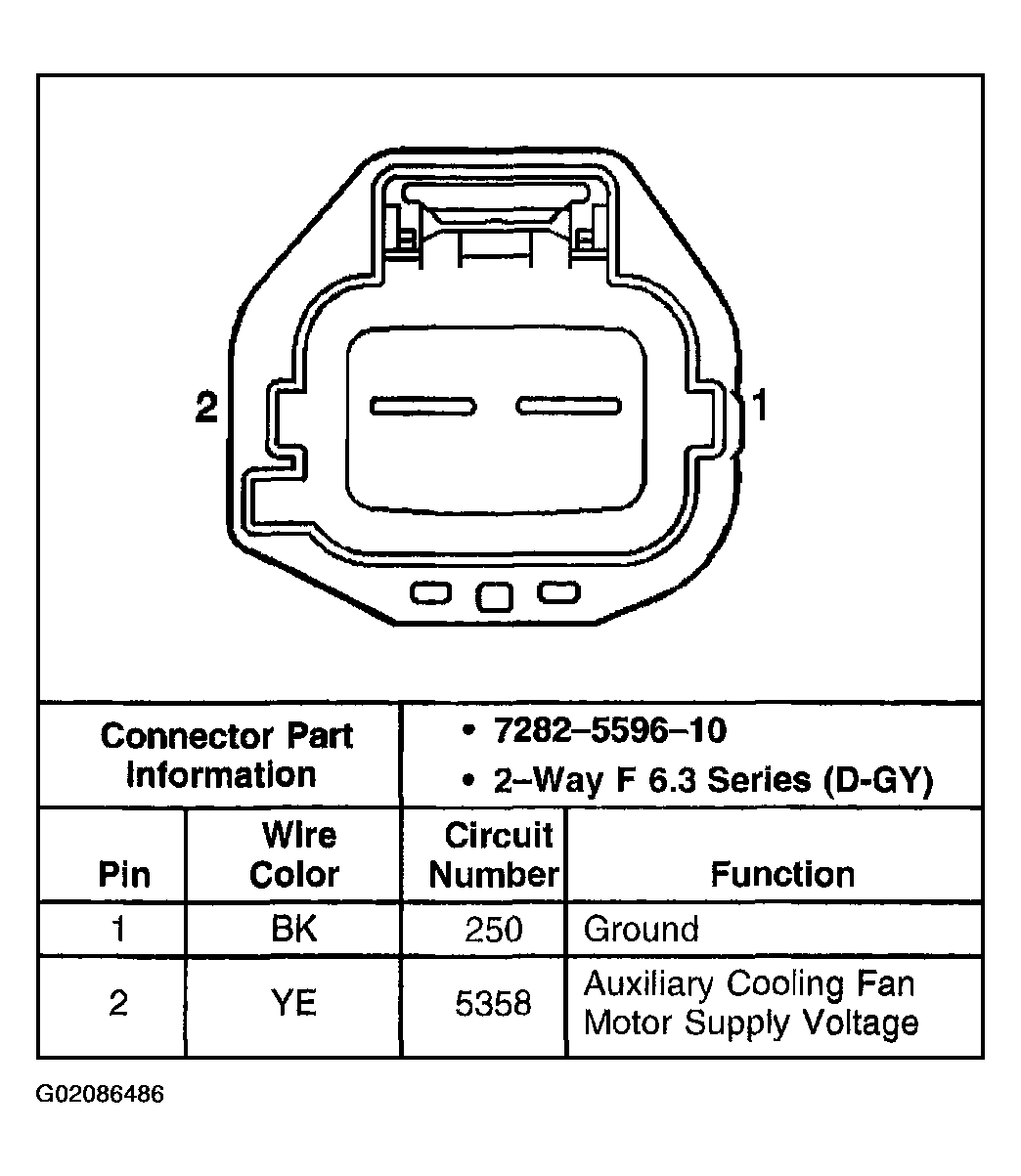

Fig 5: Cooling Fan - Auxiliary Connector End View

Courtesy of GENERAL MOTORS CORP.

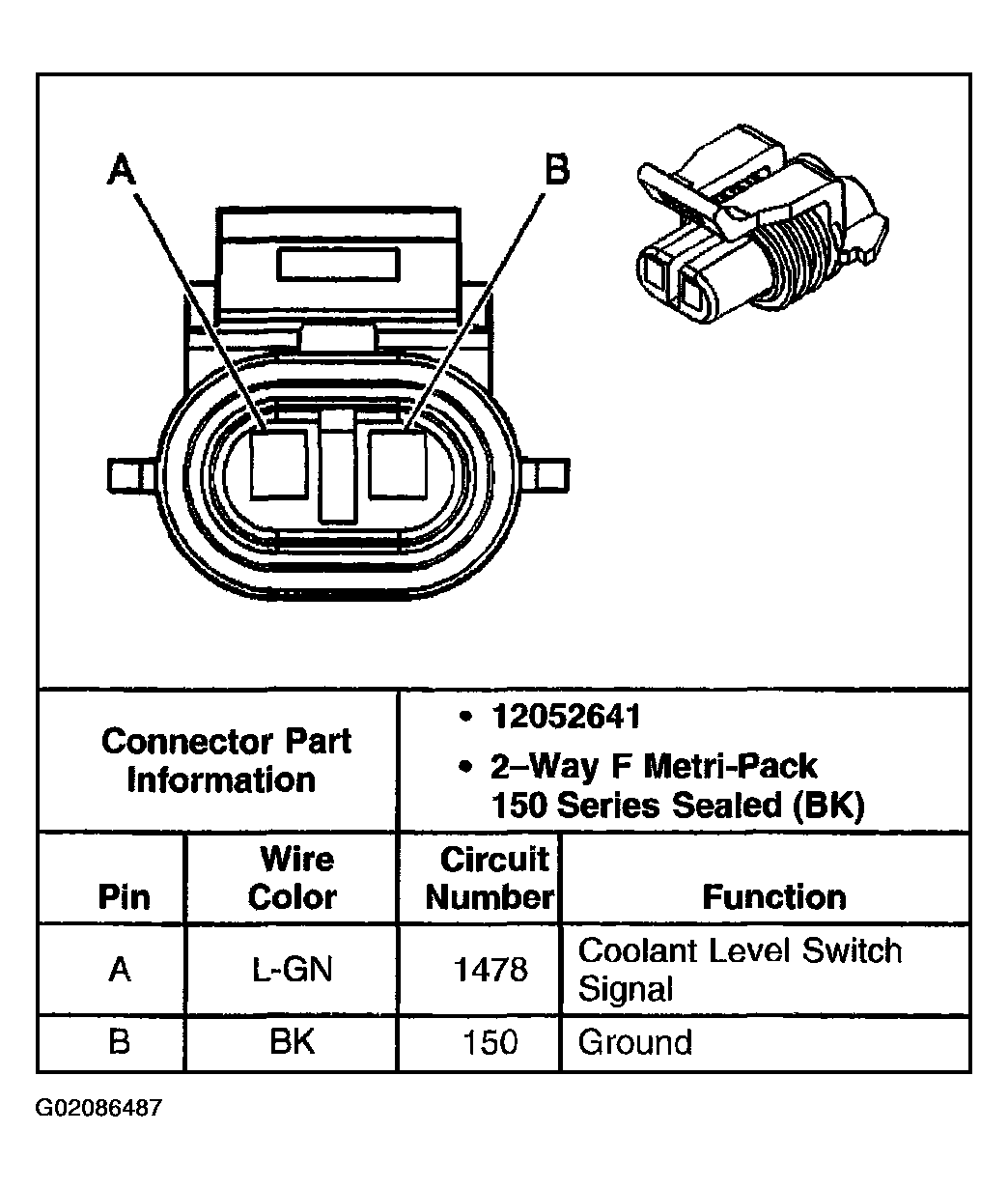

Fig 6: Coolant Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
