WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

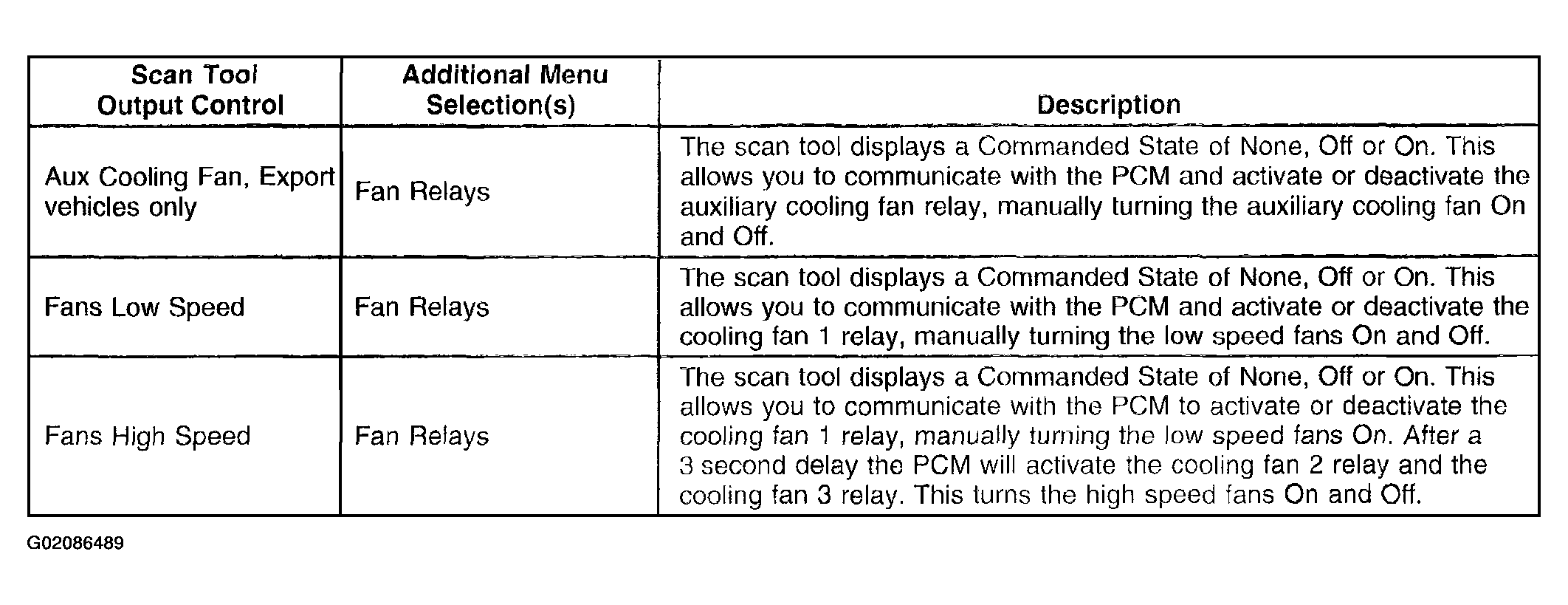

Fig 1: Engine Control Module (ECM) Scan Tool Output Controls
Courtesy of GENERAL MOTORS CORP.

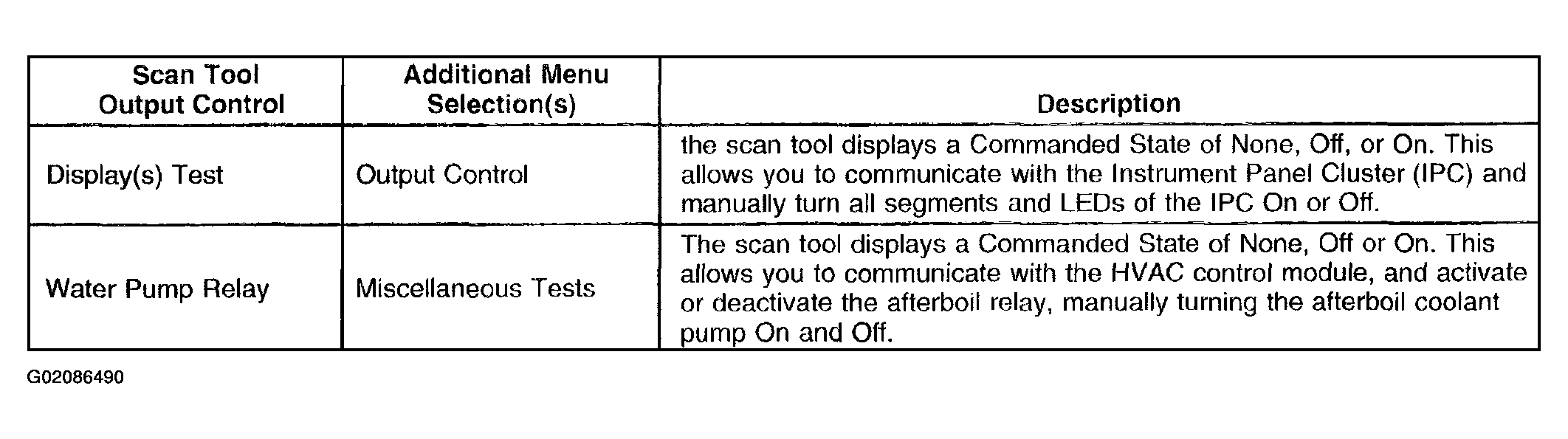

Fig 2: HVAC Control Module Scan Tool Output Controls
