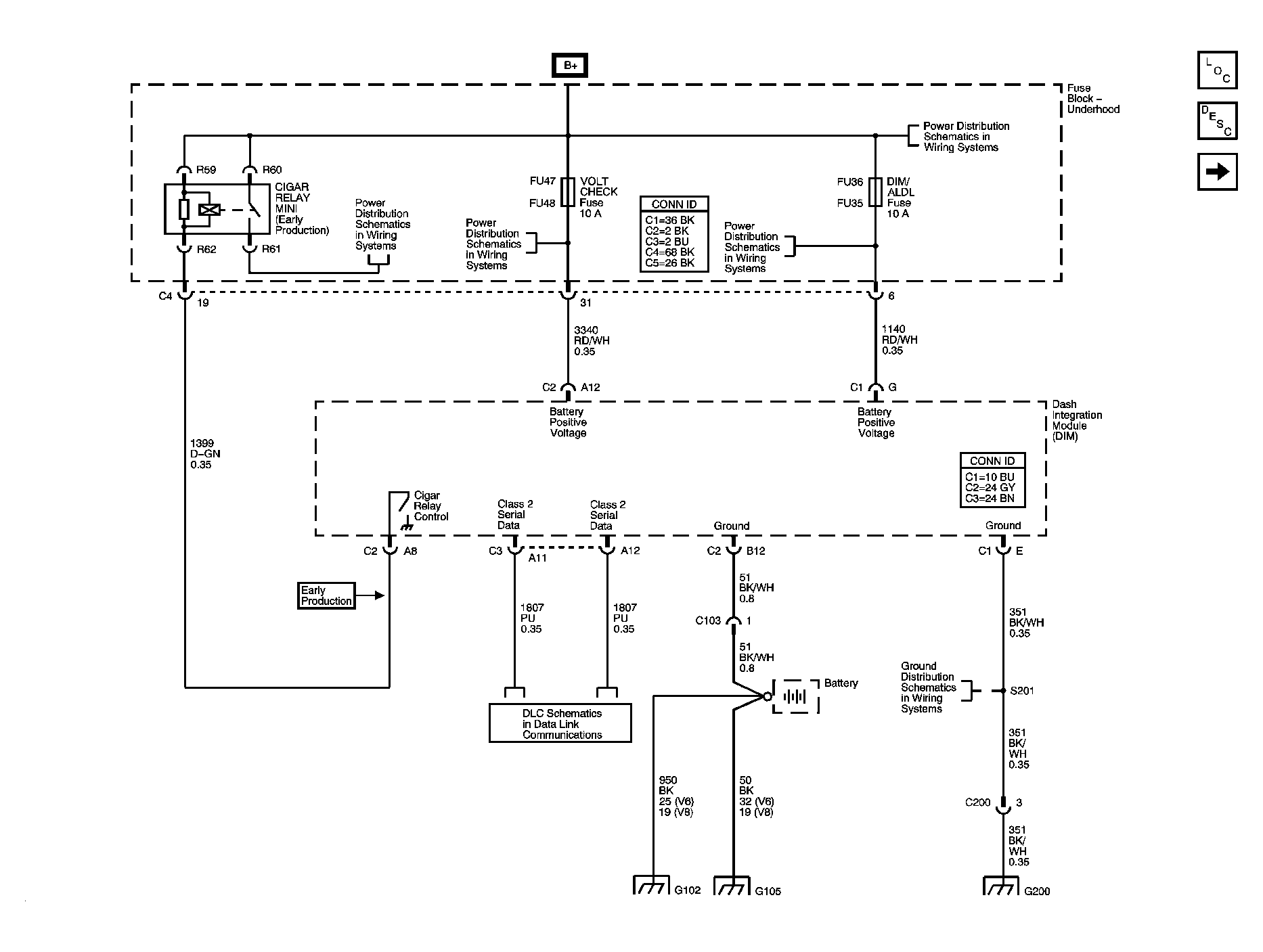

Fig 1: Dash Integration Module (DIM) Power, Ground And Serial Data
Courtesy of GENERAL MOTORS CORP.

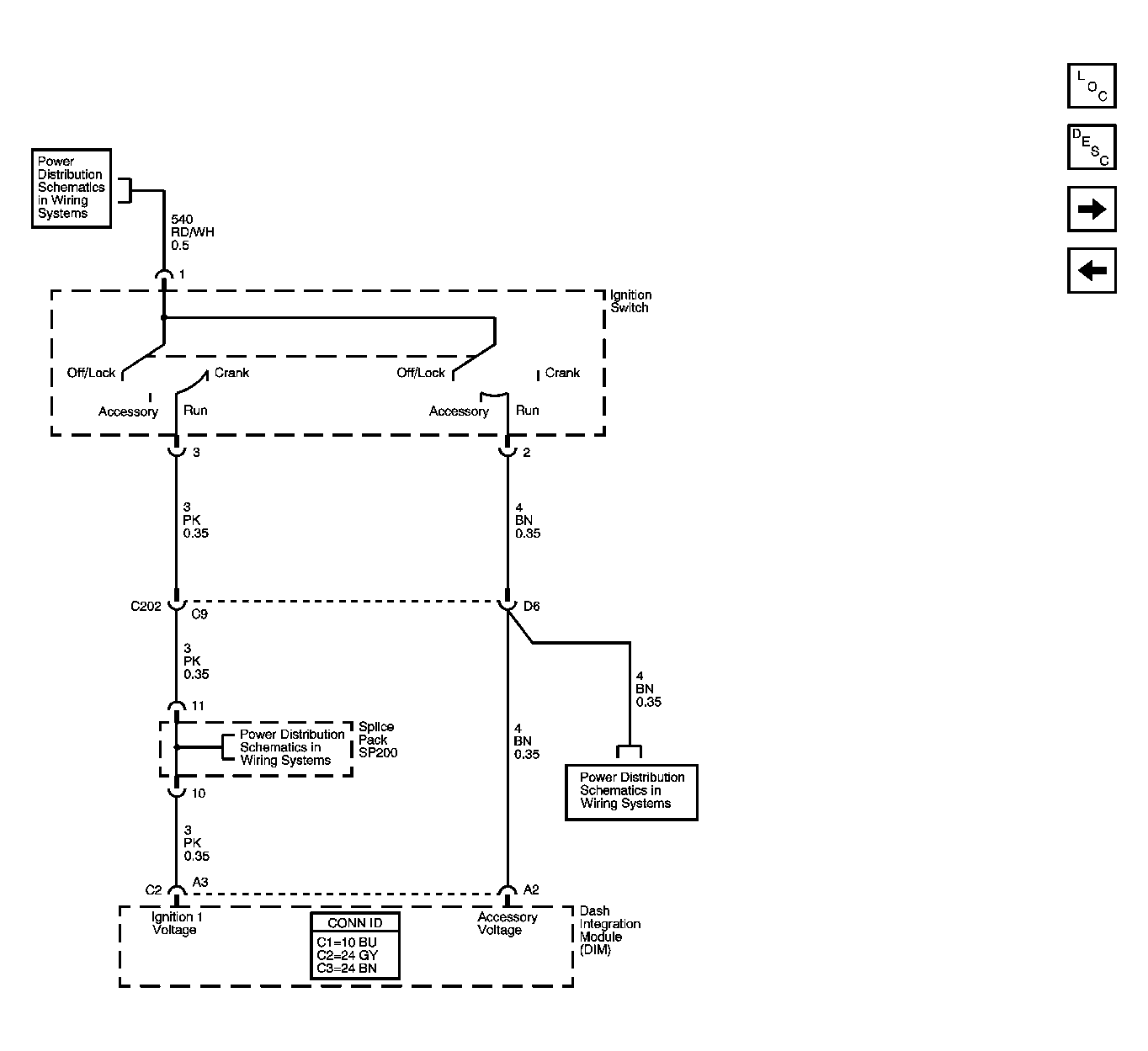

Fig 2: Ignition Switch
Courtesy of GENERAL MOTORS CORP.

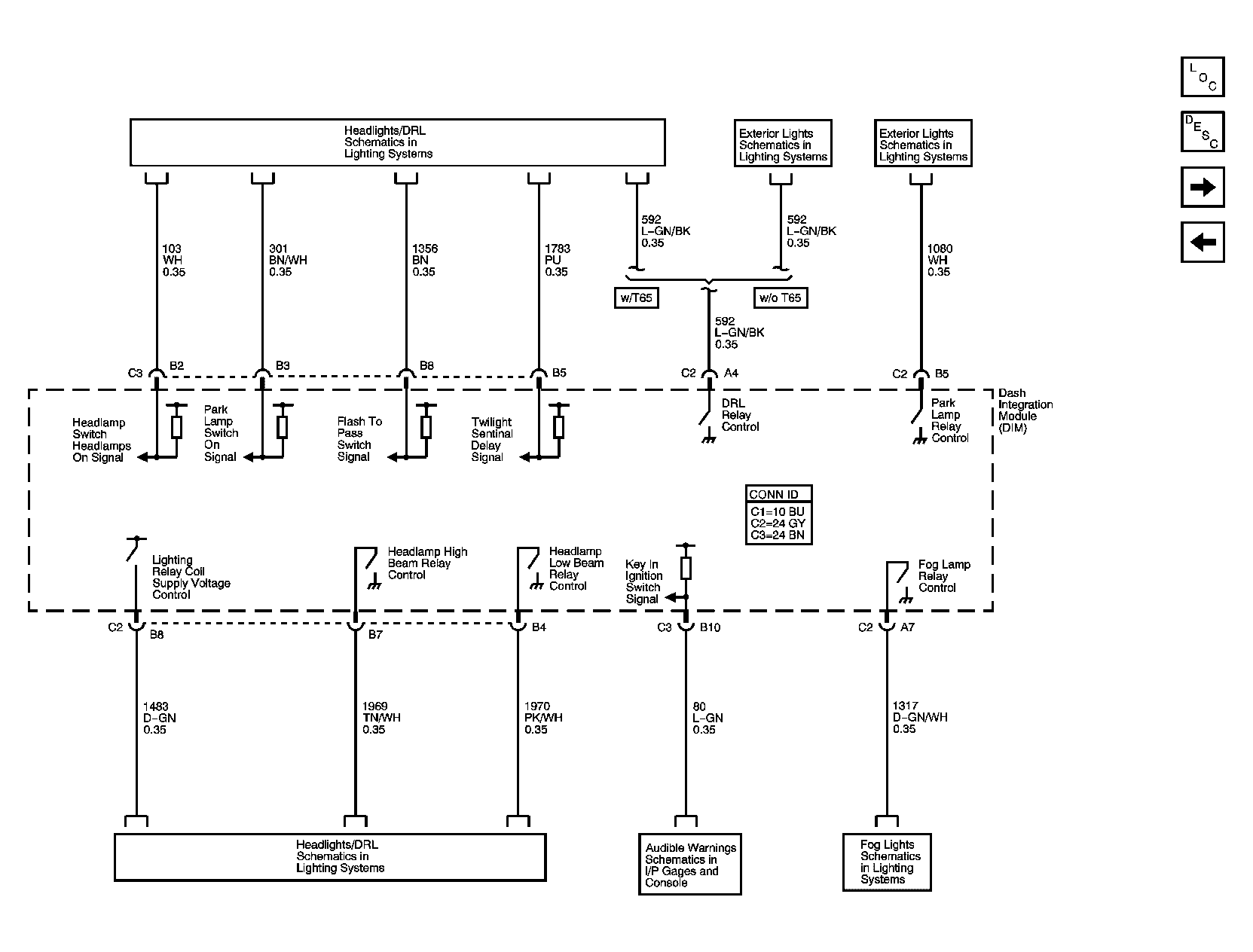

Fig 3: DIM Inputs And Outputs - 1 Of 3
Courtesy of GENERAL MOTORS CORP.

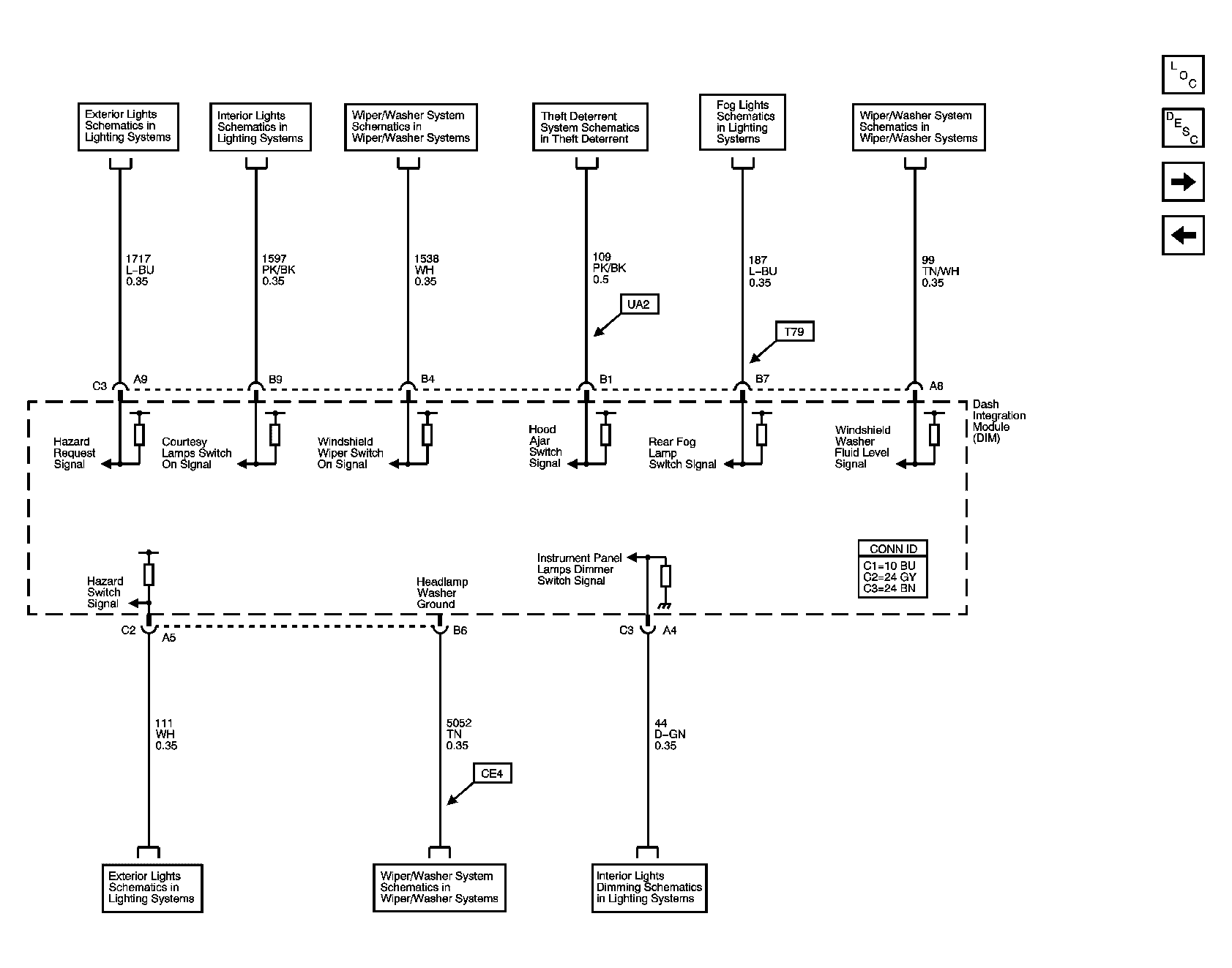

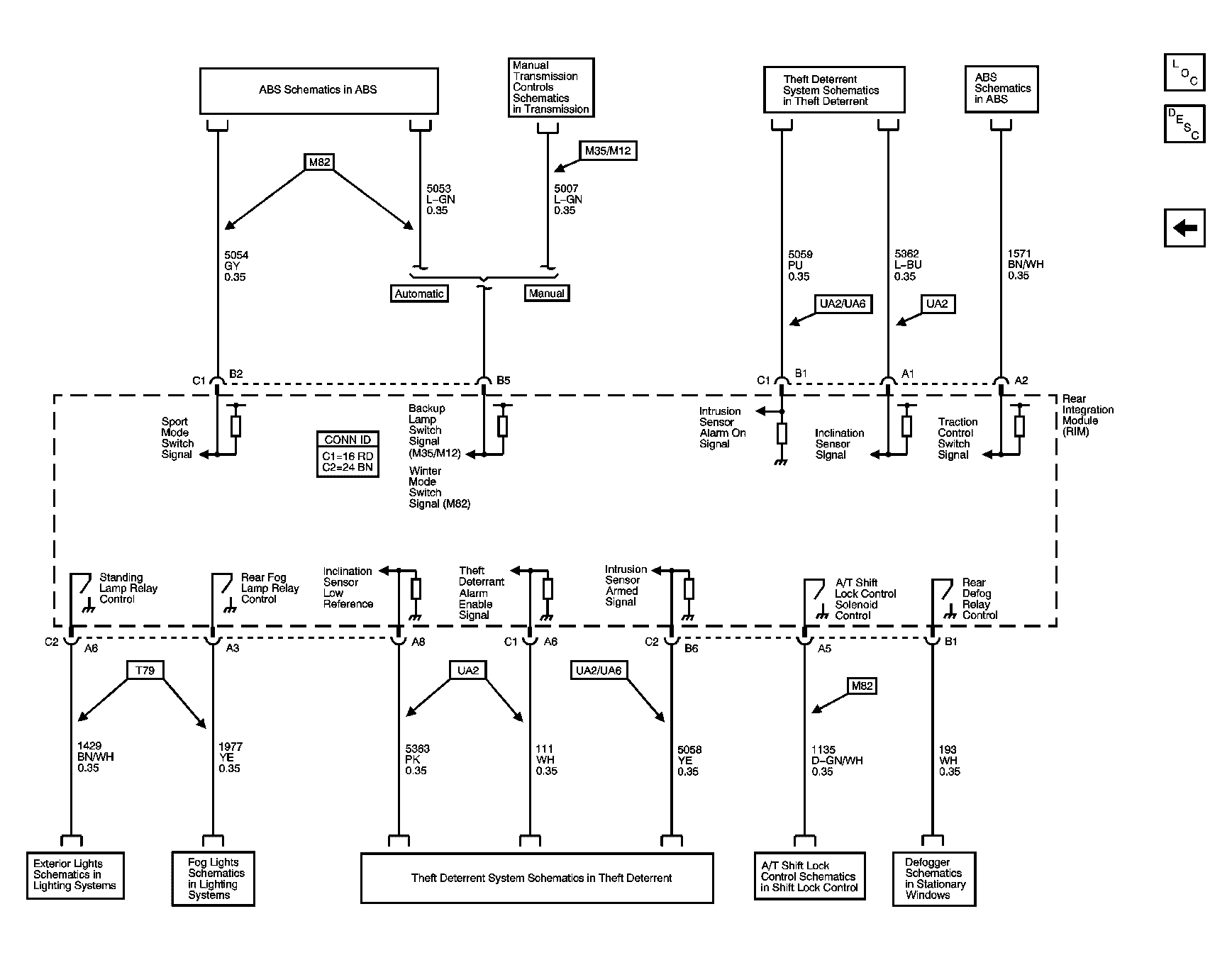

Fig 4: DIM Inputs And Outputs - 2 Of 3
Courtesy of GENERAL MOTORS CORP.

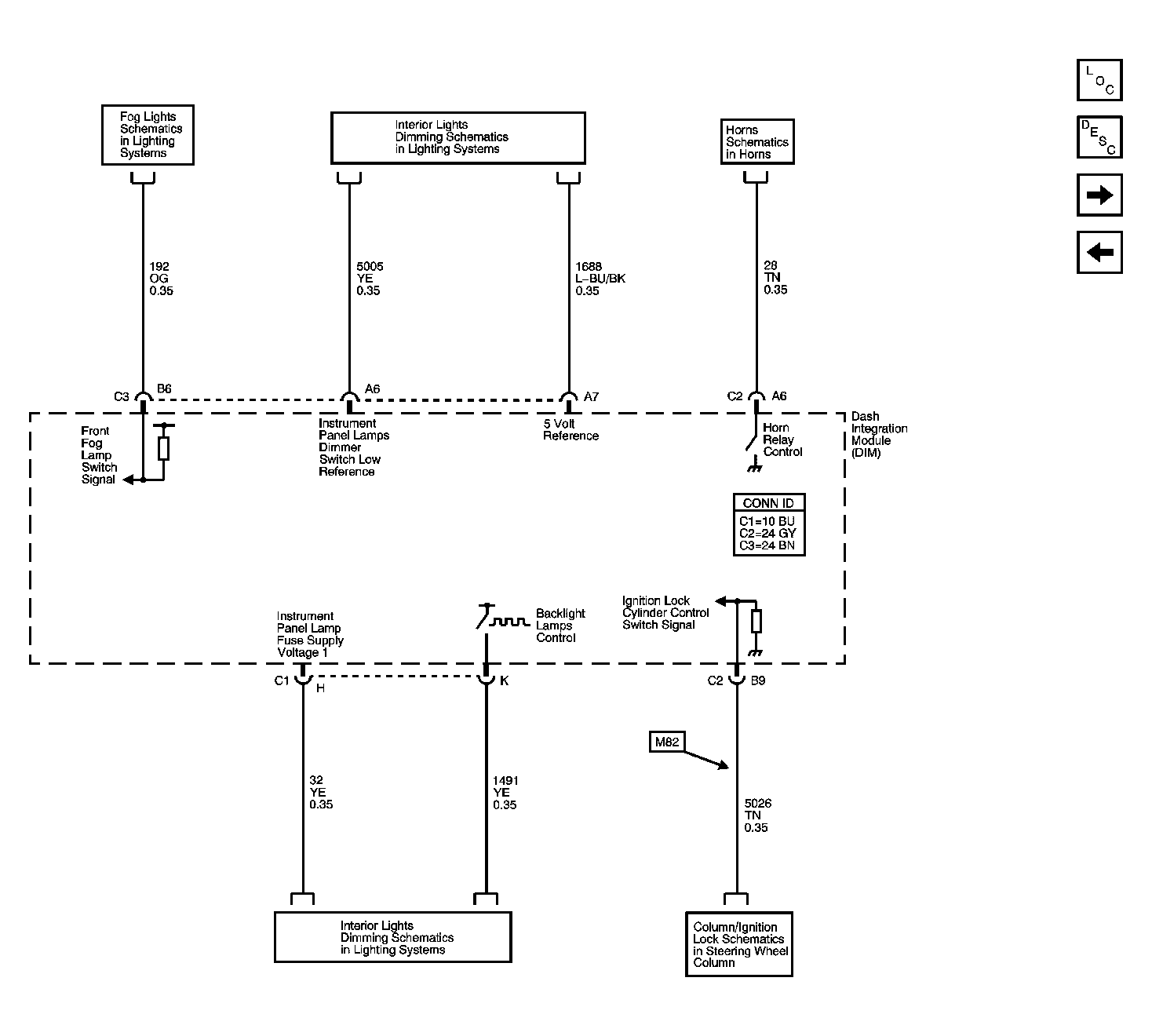

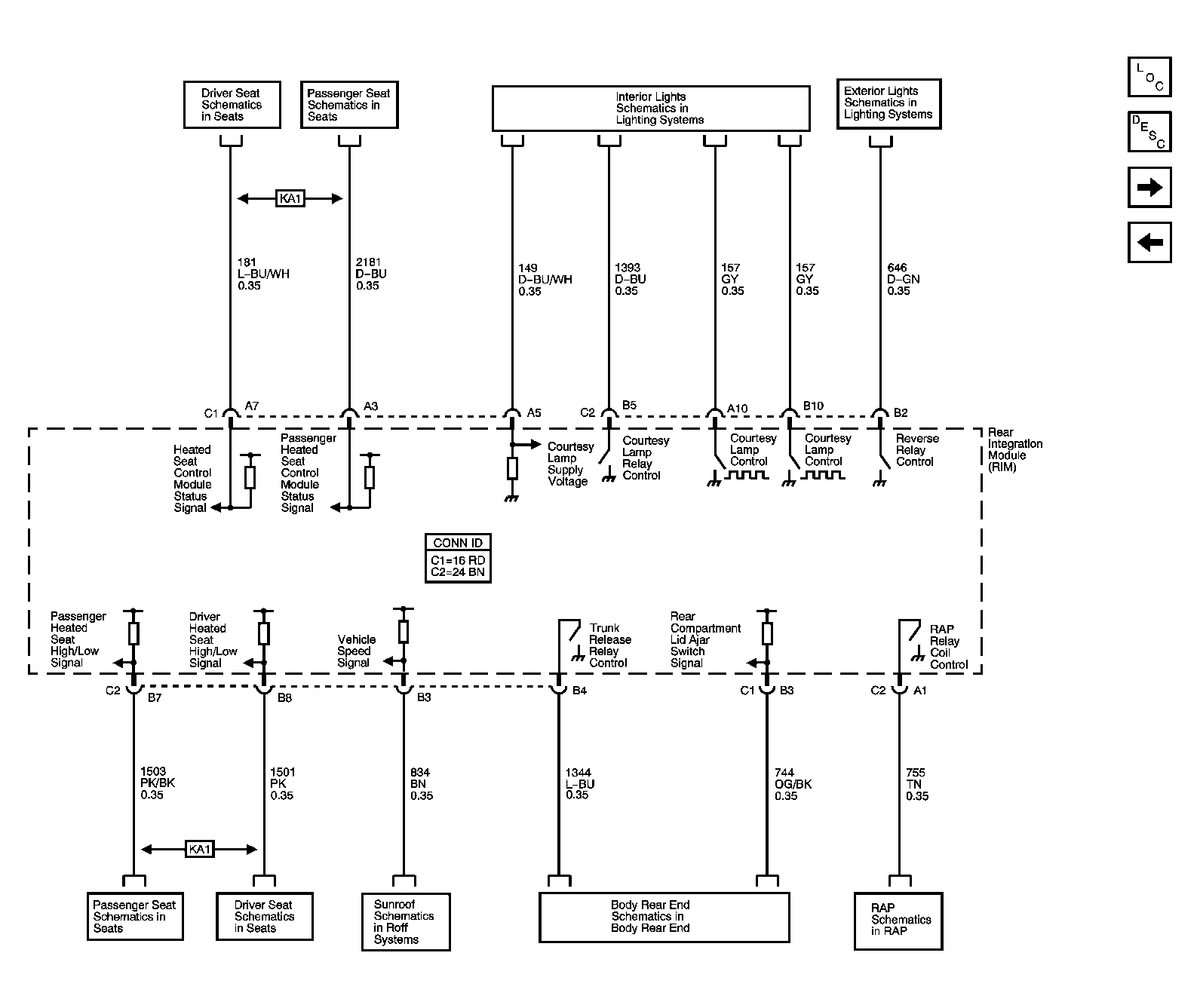

Fig 5: DIM Inputs And Outputs - 3 Of 3
Courtesy of GENERAL MOTORS CORP.

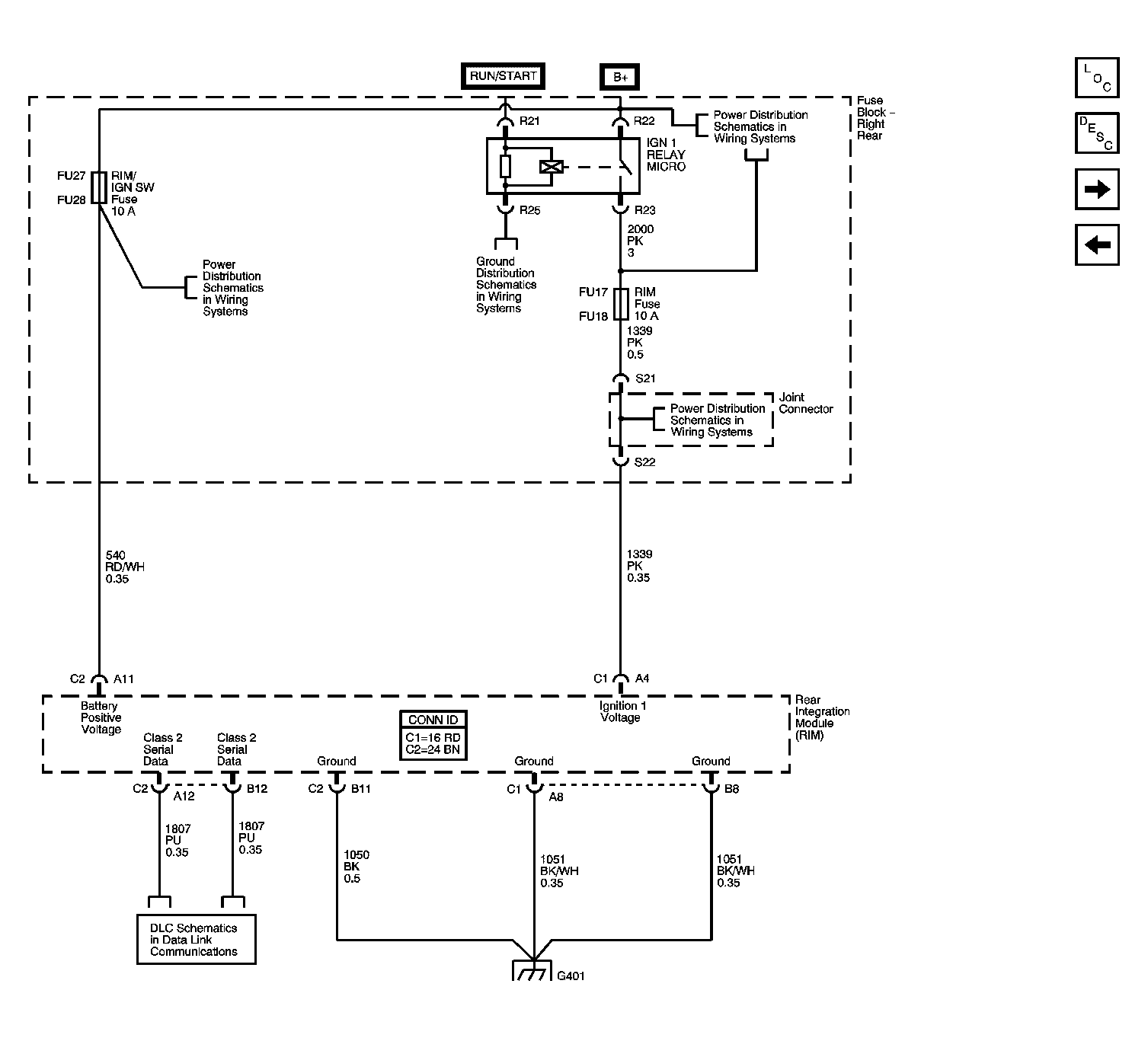

Fig 6: Rear Integration Module (RIM) Power, Ground And Serial Data
