Engine Electrical Component Views

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

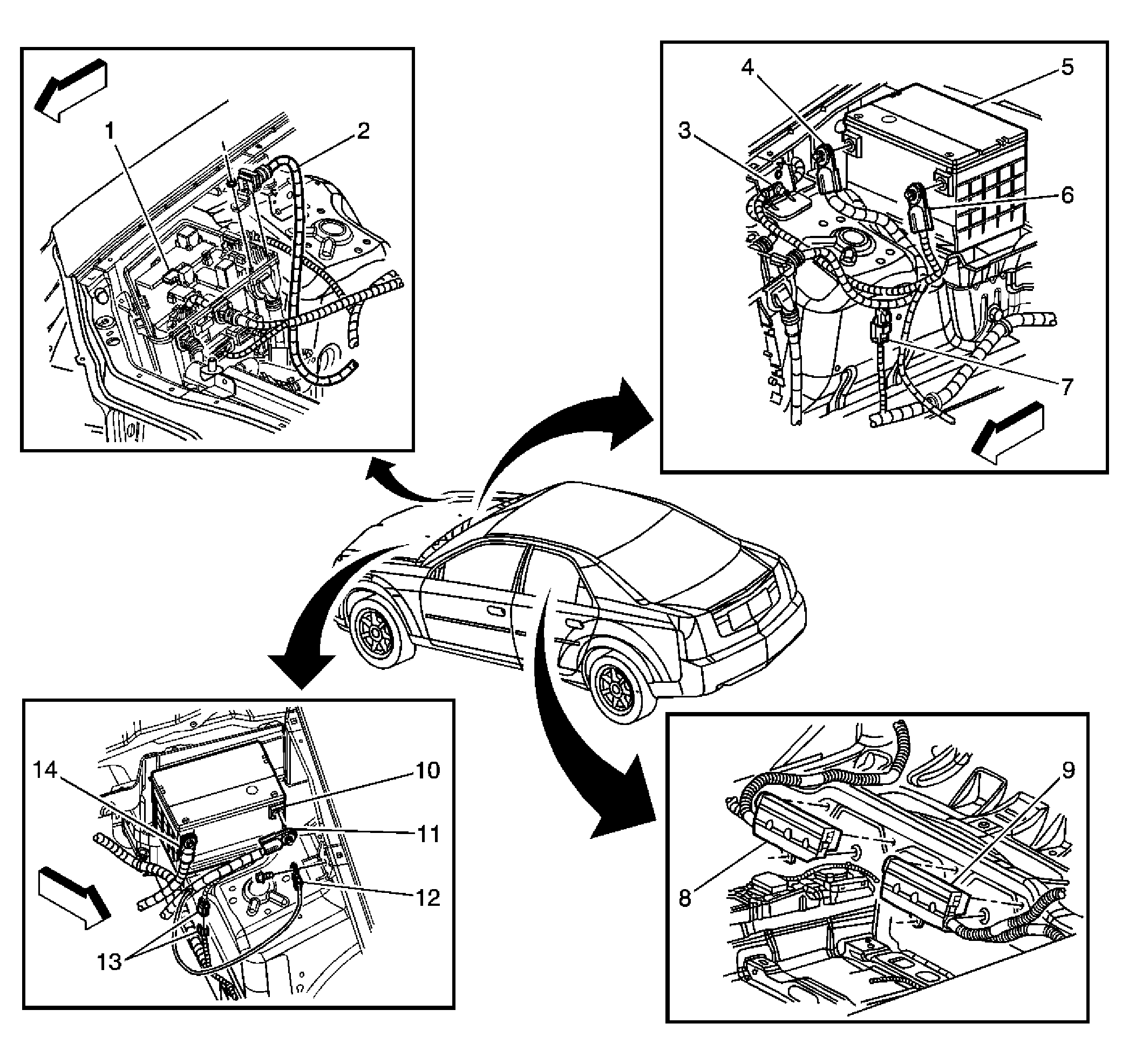

Fig 1: Battery and Fuse Blocks Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Battery Positive Cable Connection to Fuse Block - Underhood
3	Ground G105 (LHD)
4	Battery Positive Cable (LHD)
5	Battery (LHD)
6	Battery Negative Cable (LHD)
7	C103 (LHD)
8	Fuse Block - Right Rear
9	Fuse Block - Left Rear
10	Battery (RHD)
11	Battery Negative Cable (RHD)
12	Ground G105 (RHD)
13	C103 (RHD)
14	Battery Positive Cable (RHD)

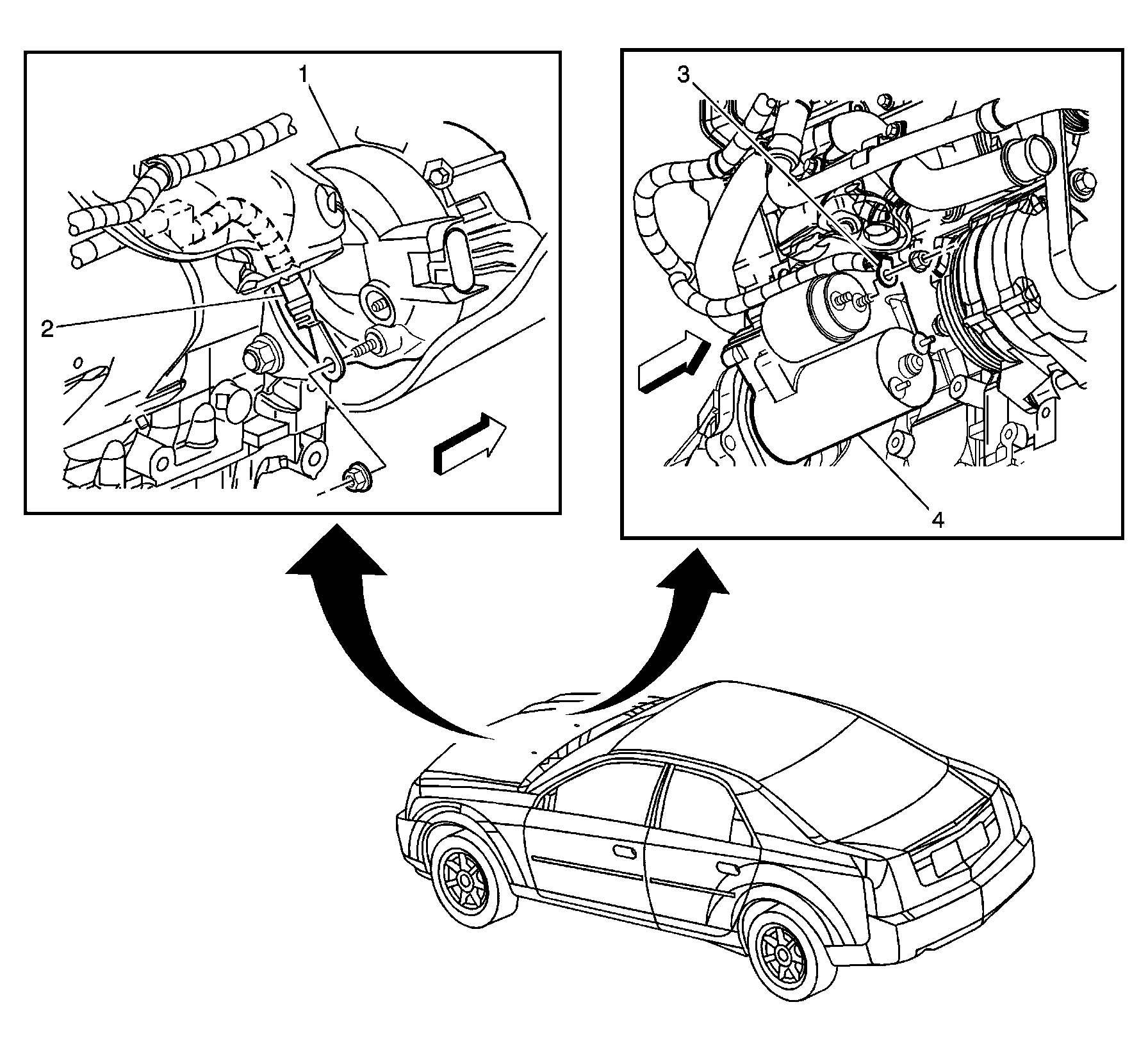

Fig 2: Battery Positive Cable Component View (LHD) - 2.6L/3.2L (LY9/LA3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Battery Positive Cable Connection to Generator
3	Battery Positive Cable Connection to Starter
4	Starter

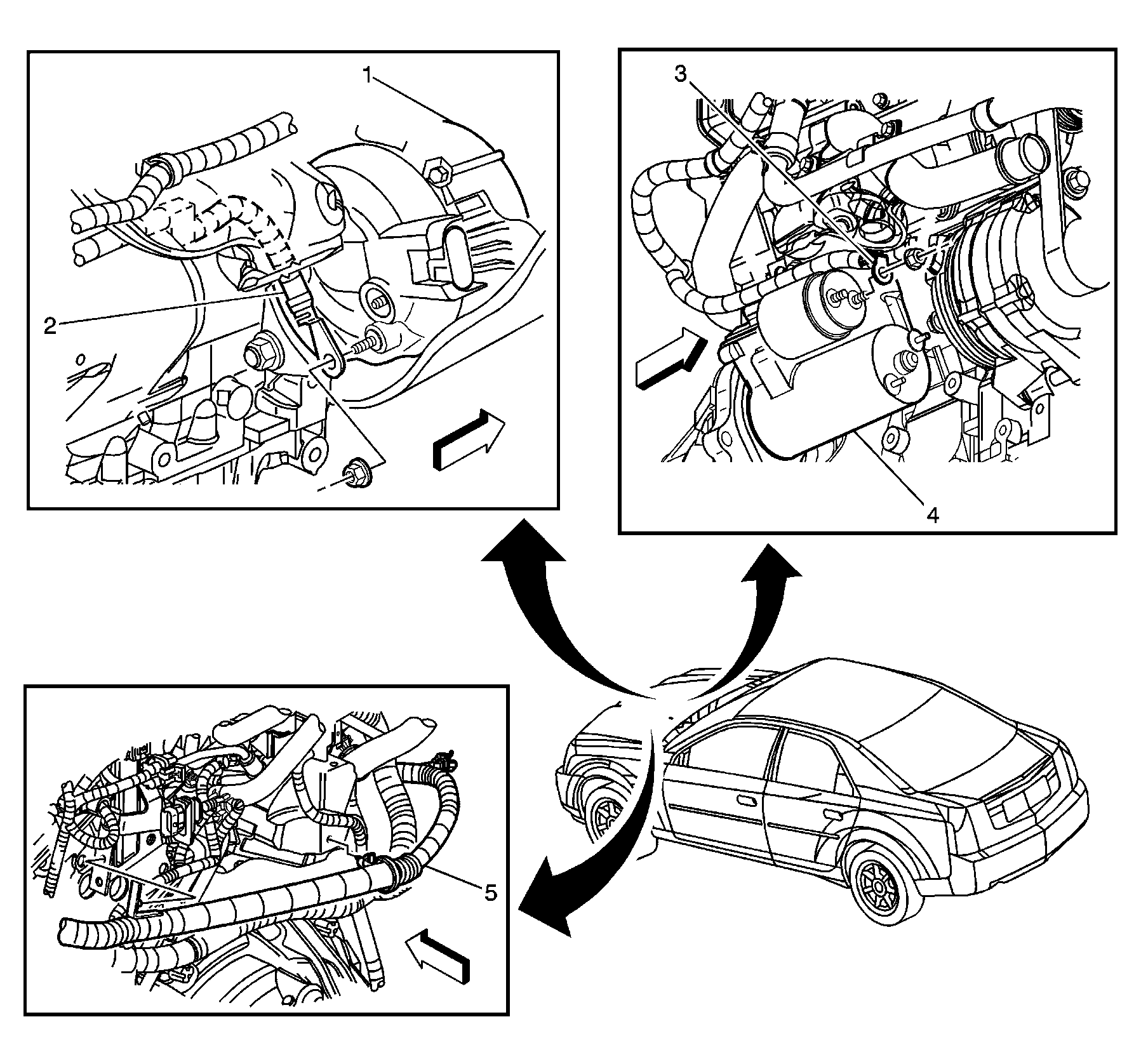

Fig 3: Battery Positive Cable (RHD) - 2.6L/3.2L (LY9/LA3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Battery Positive Cable Connection to Generator
3	Battery Positive Cable Connection to Starter
4	Starter
5	Battery Positive Cable at Rear of Engine

Fig 4: Battery Positive Cable Component View - 3.6L (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable Connection to Starter
2	Starter
3	Generator
4	Battery Positive Cable Connection to Generator

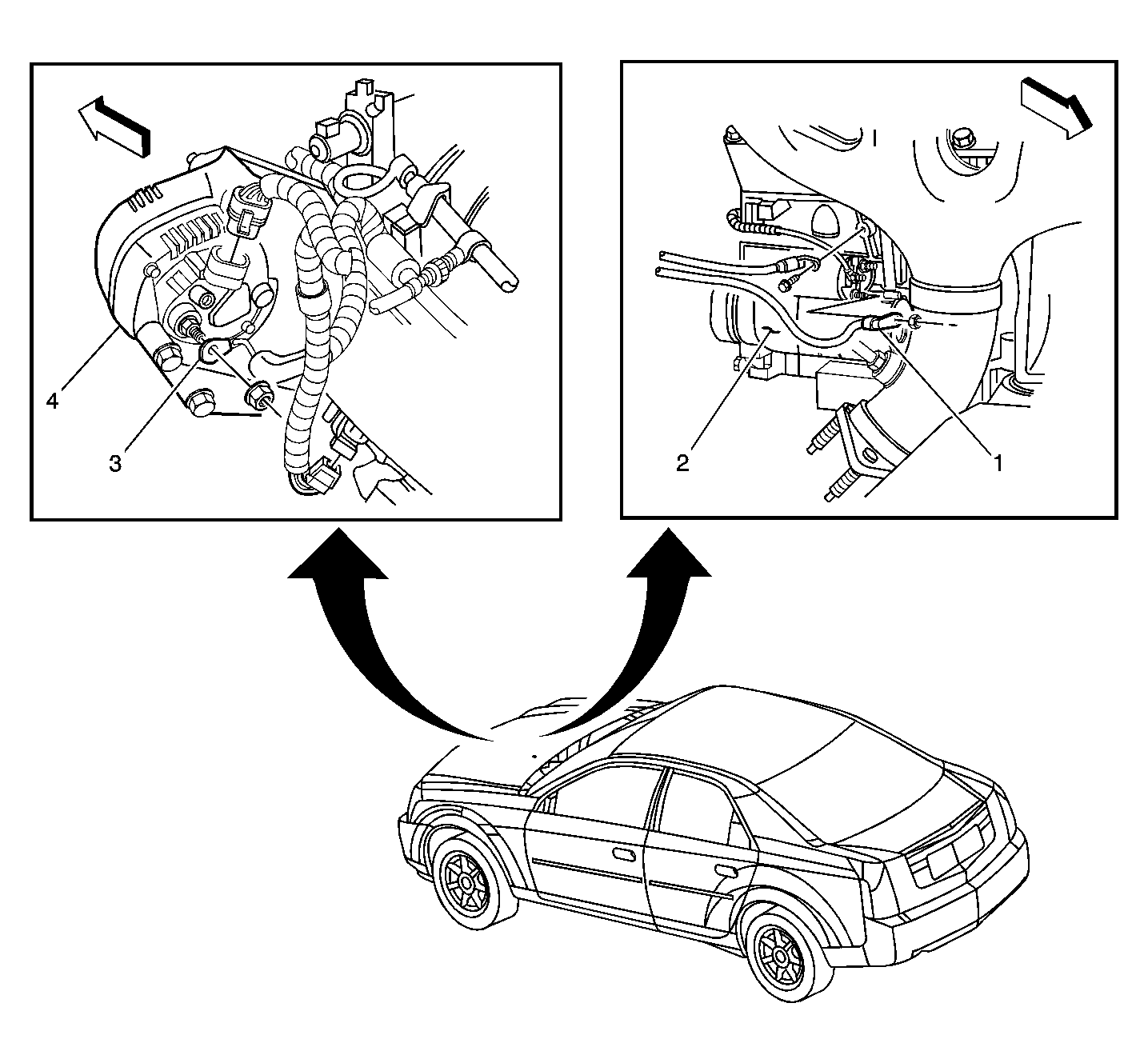

Fig 5: Battery Positive Cable Component View - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable Connection to Starter
2	Starter
3	Battery Positive Cable Connection to Generator
4	Generator

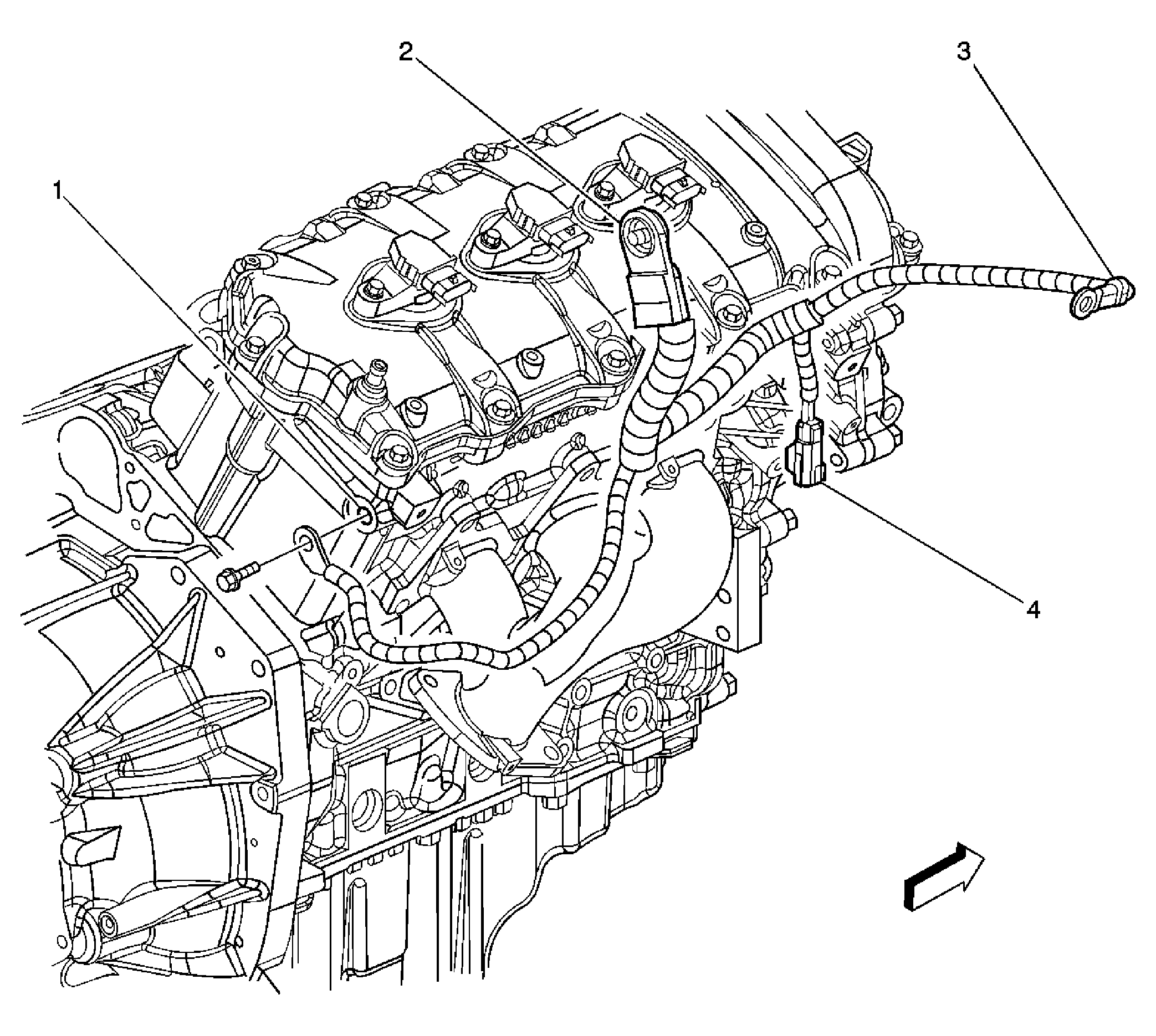

Fig 6: Battery Negative Cable Component View (LHD) - 2.6L/3.2L (LY9/LA3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Negative Cable Connection to Battery
2	Ground G105
3	C103
4	Ground G102

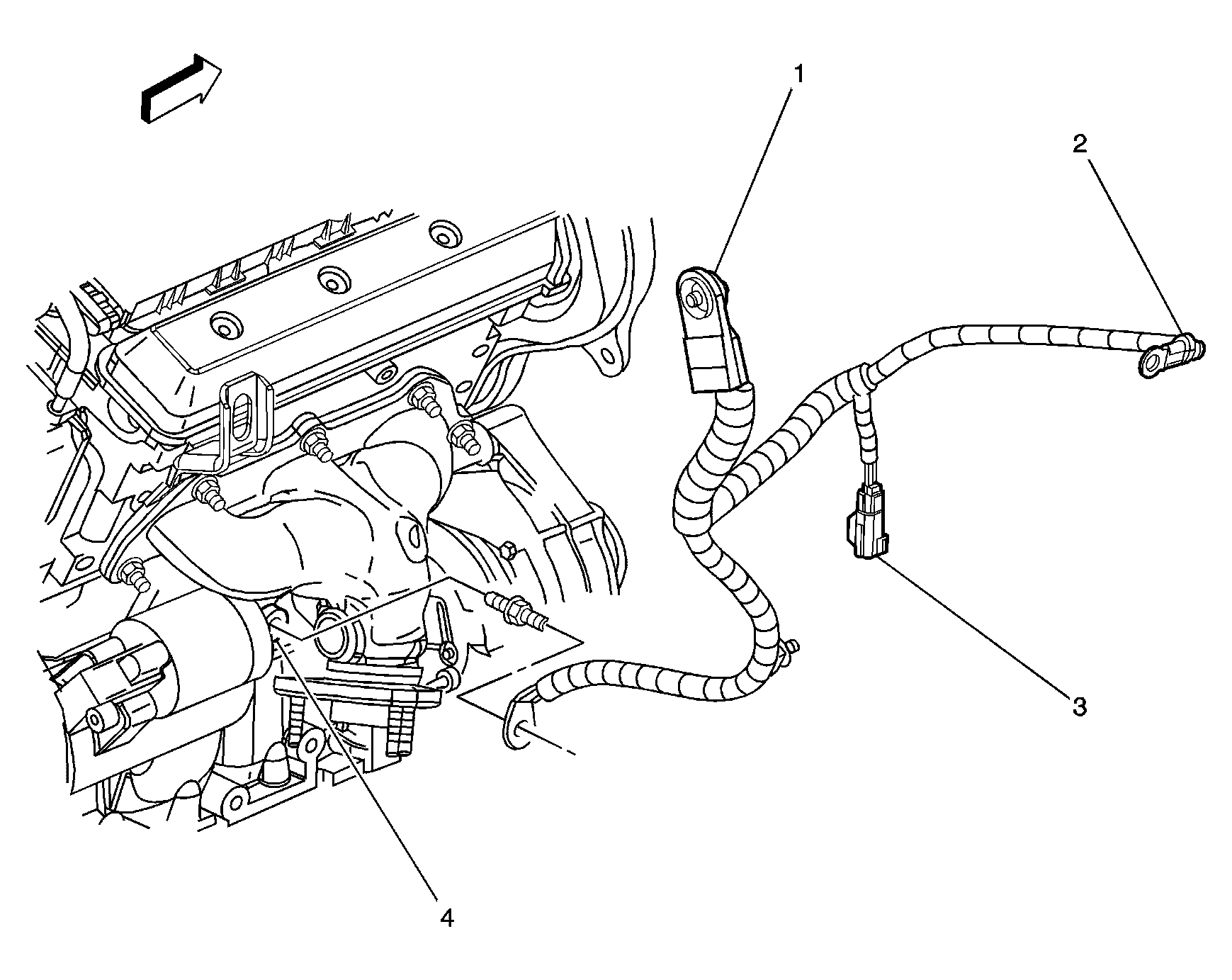

Fig 7: Battery Negative Cable Component View (RHD) - 2.6L/3.2L (LY9/LA3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G105
2	Battery Negative Cable Connection to Battery
3	C103
4	Ground G102

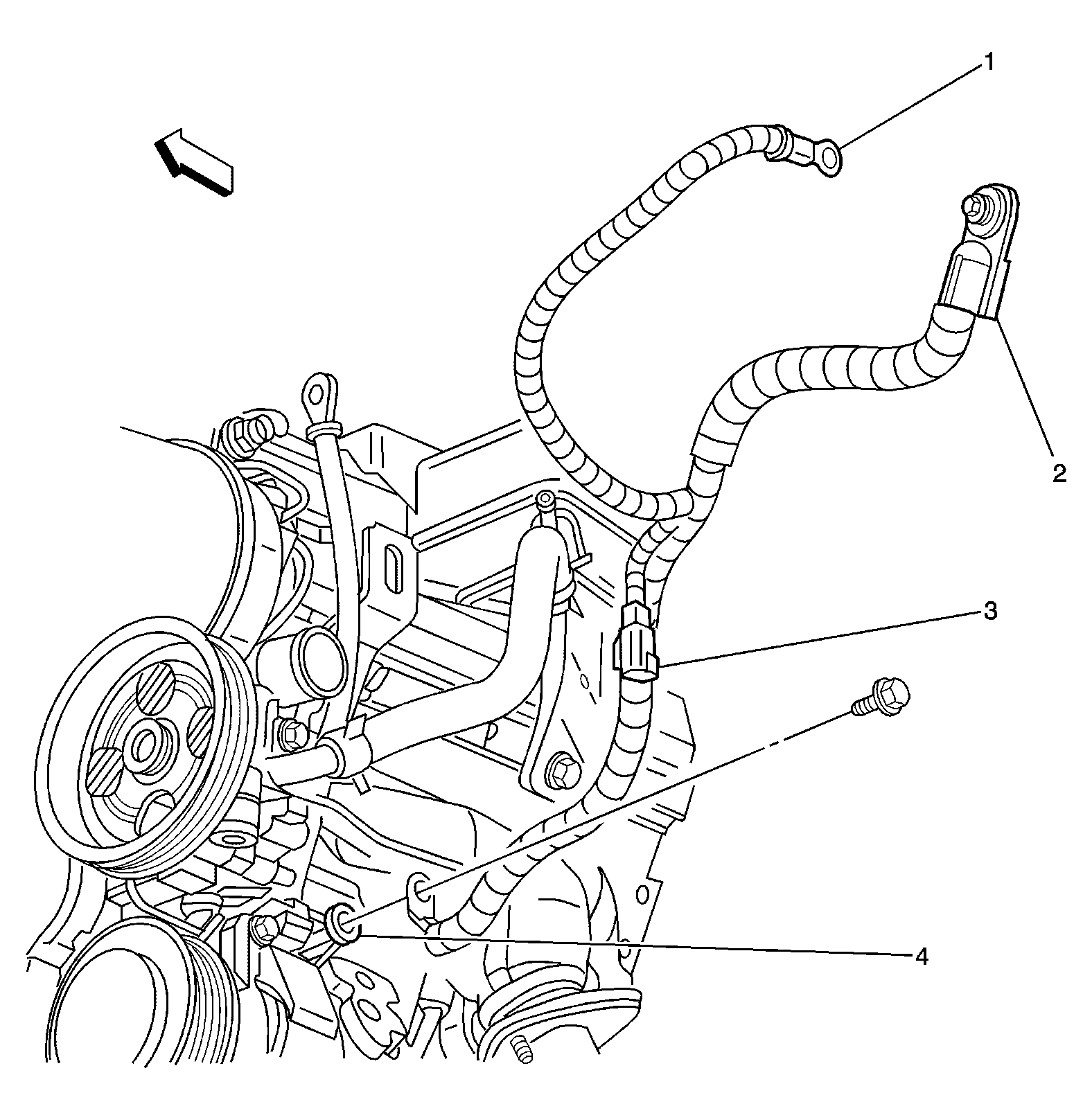

Fig 8: Battery Negative Cable Component View - 3.6L (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ground G102
2	Battery Negative Cable Connection to Battery
3	Ground G105
4	C103

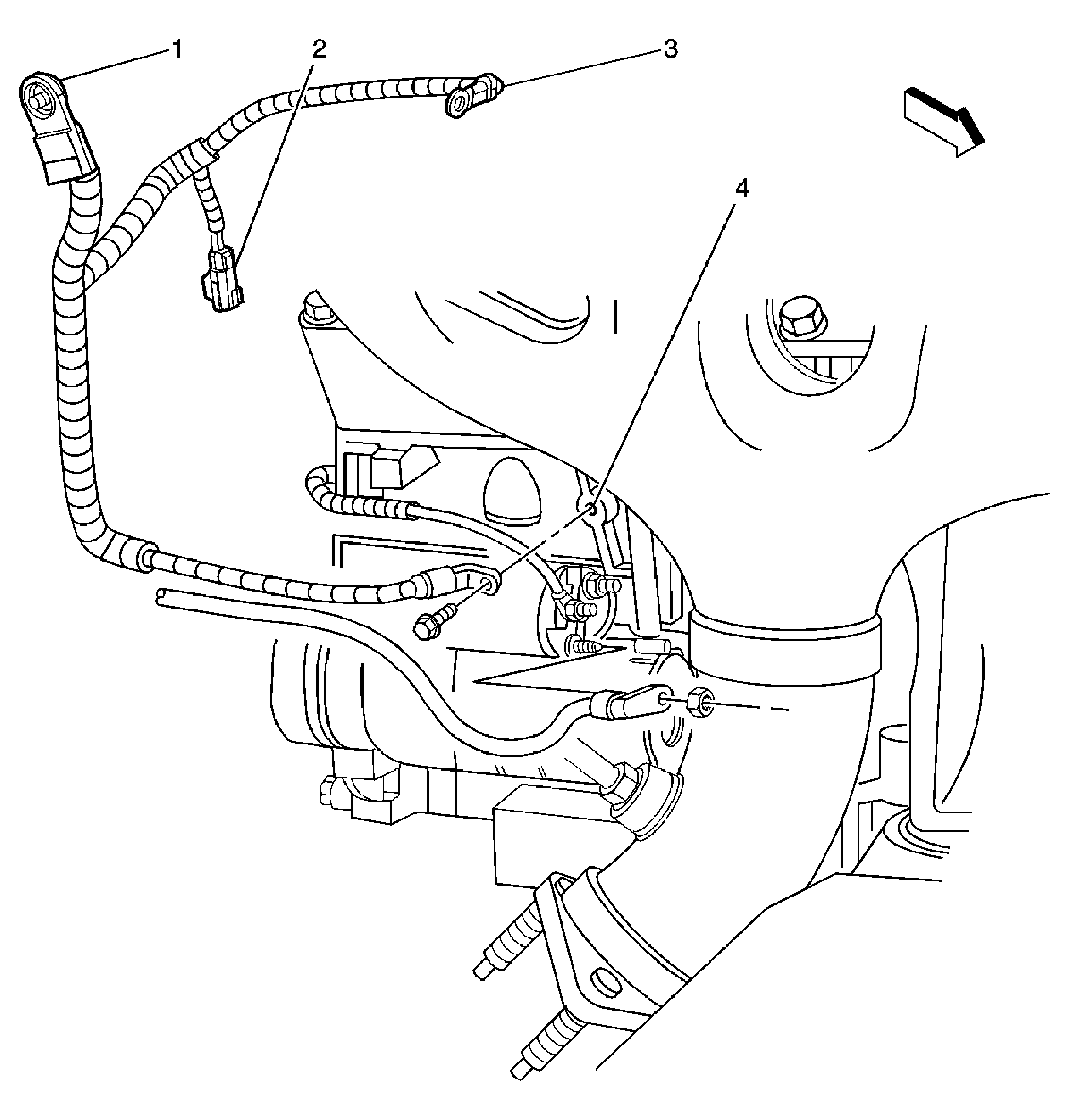

Fig 9: Battery Negative Cable Component View - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Negative Cable Connection to Battery
2	C103
3	Ground G105
4	Ground G102

Fig 10: Clutch Pedal Position (CPP) Sensor Component View (M35/M12/MN6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Switch
2	Clutch Master Cylinder
