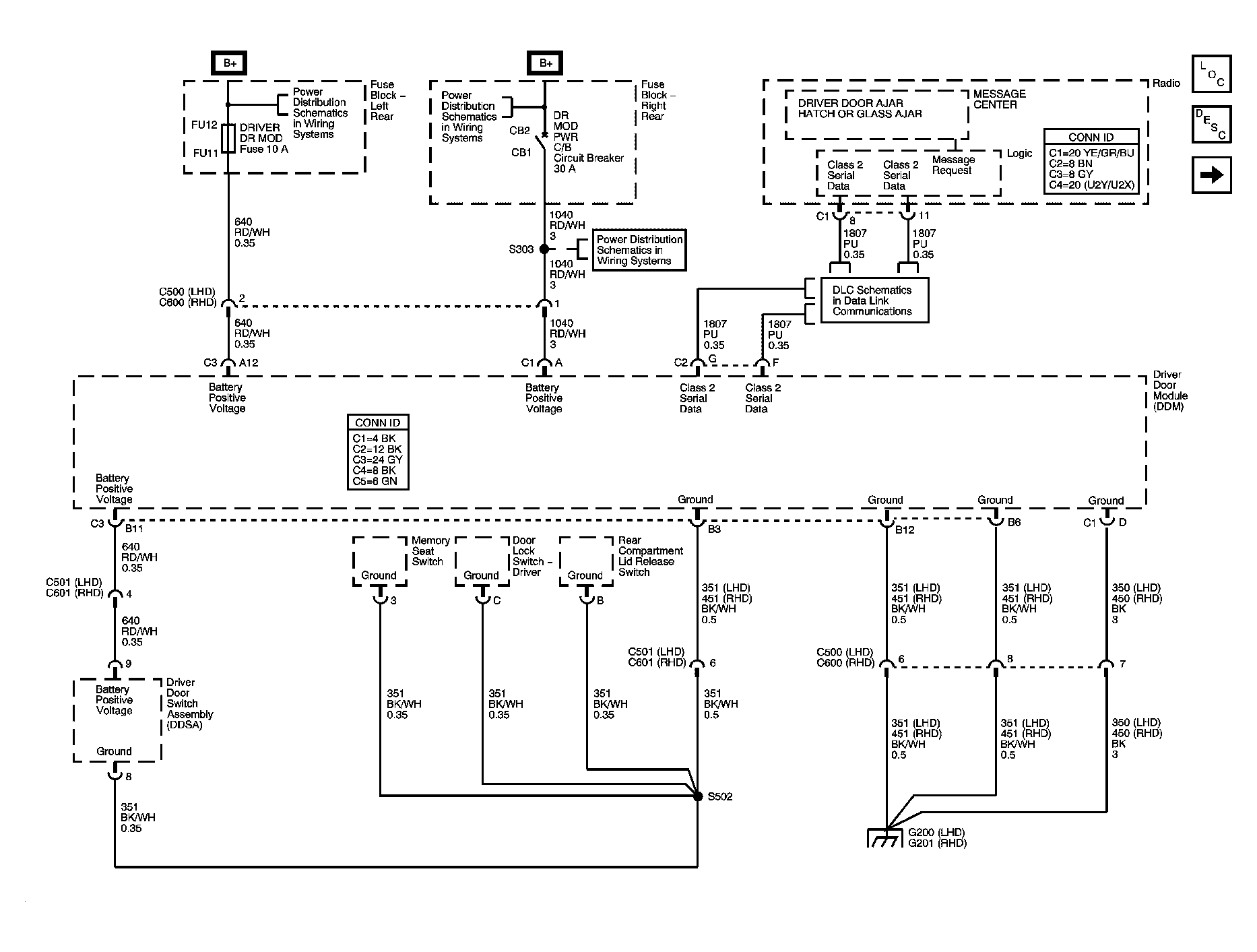

Fig 1: Driver Door Module (DDM) Power, Ground and Serial Data
Courtesy of GENERAL MOTORS CORP.

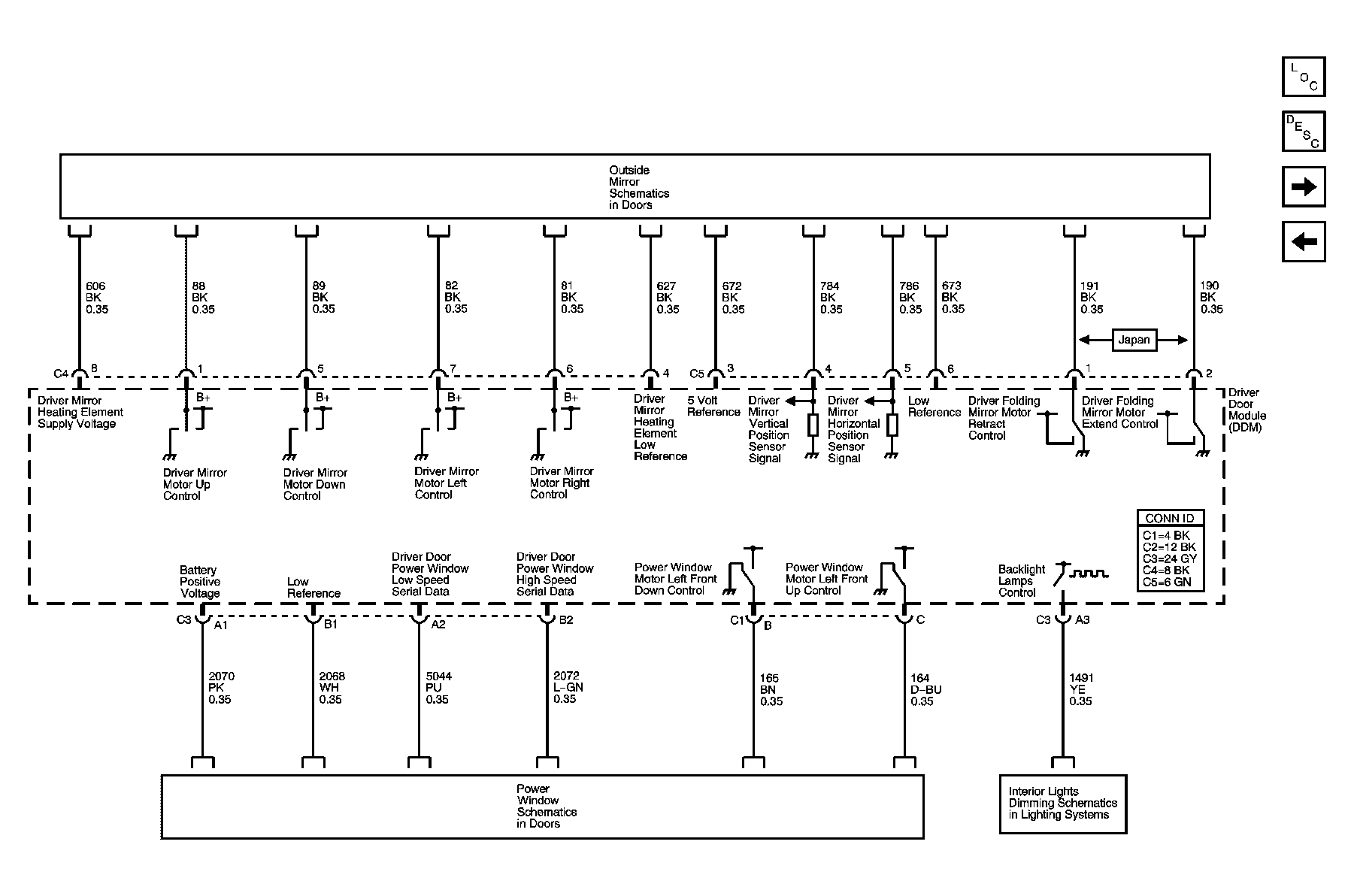

Fig 2: Driver Door Module (DDM) Controlled/Monitored Subsystem References (1 of 2)
Courtesy of GENERAL MOTORS CORP.

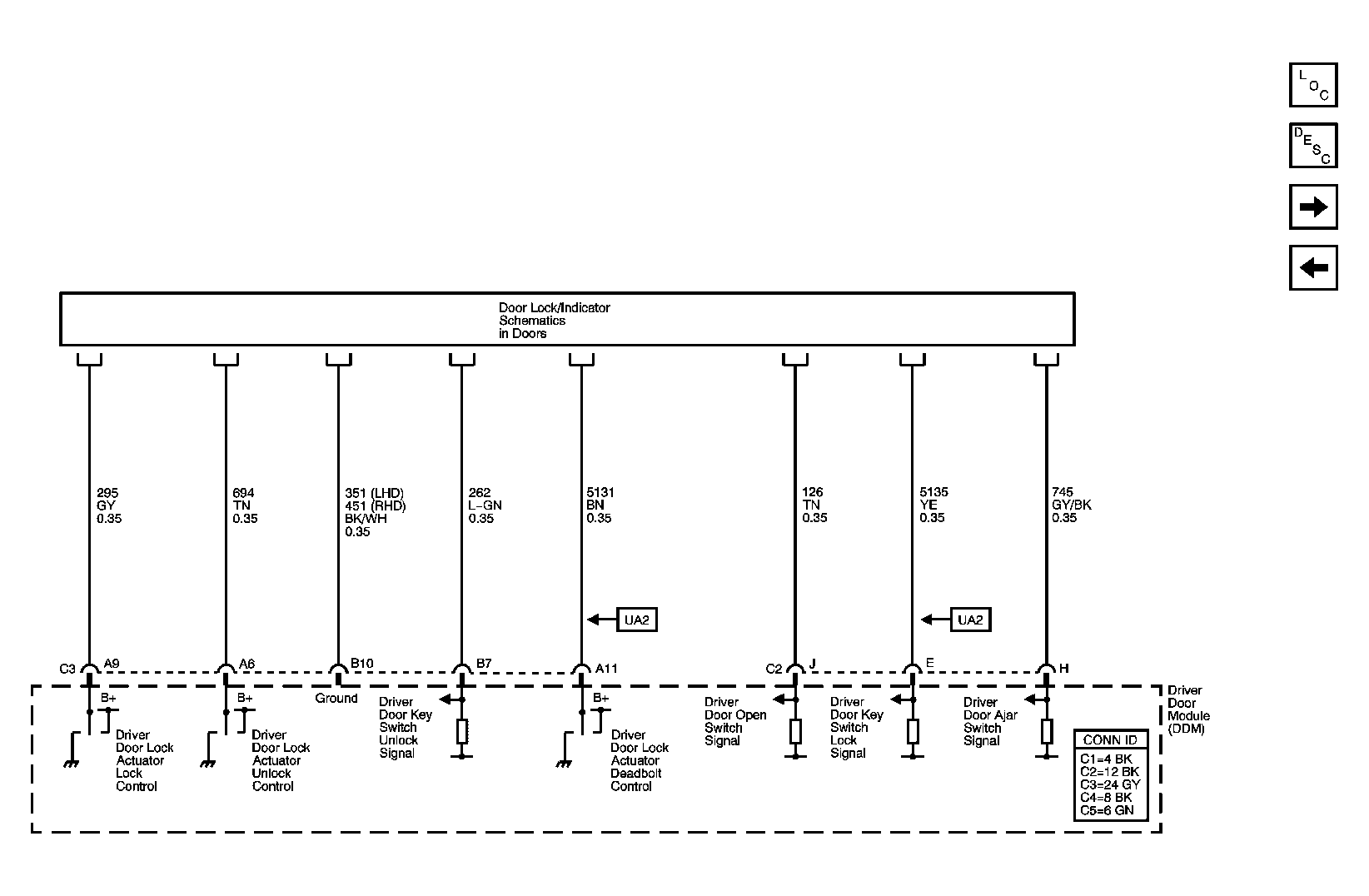

Fig 3: Driver Door Module (DDM) Controlled/Monitored Subsystem References (2 of 2)
Courtesy of GENERAL MOTORS CORP.

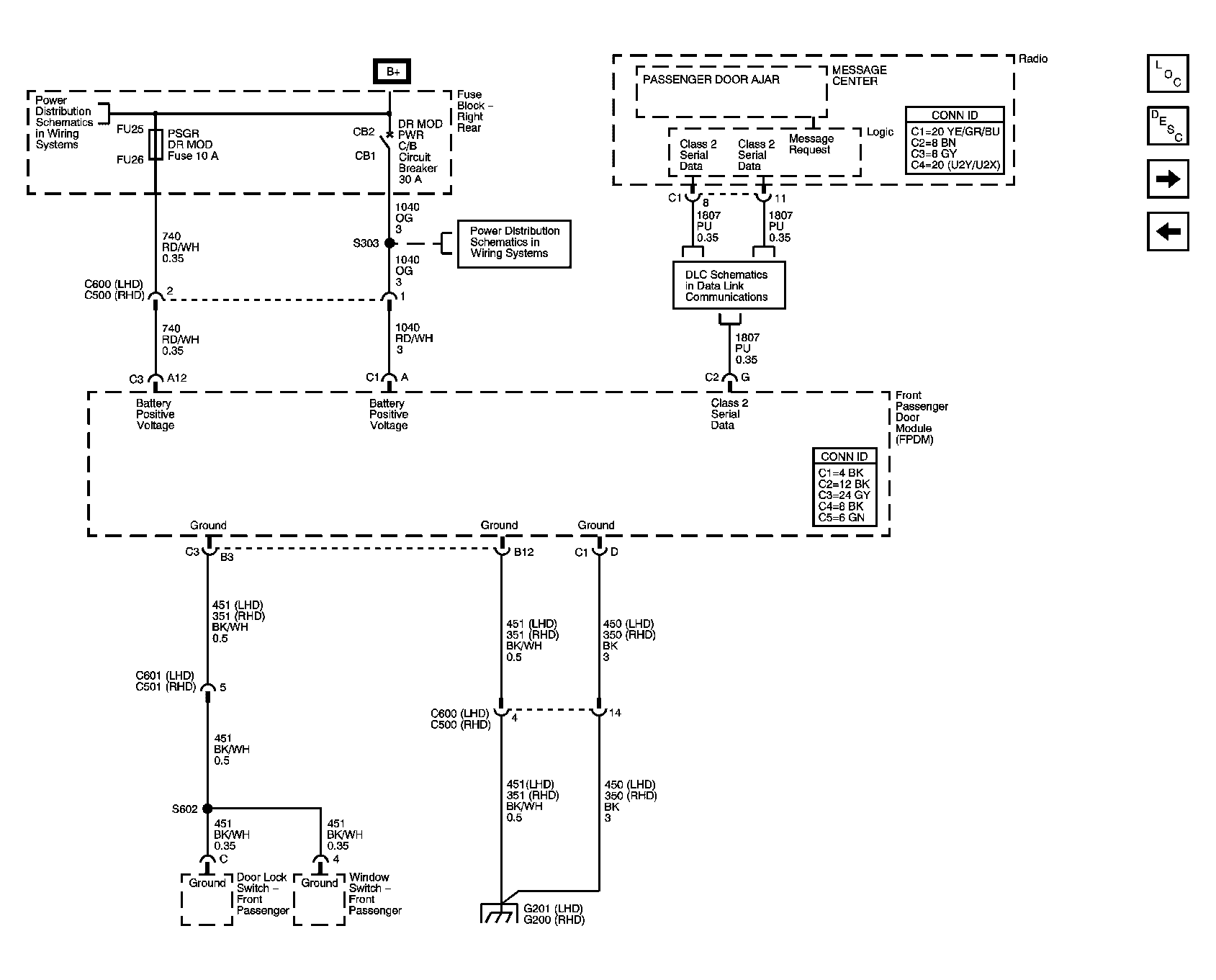

Fig 4: Front Passenger Door Module (FPDM) Power, Ground and Serial Data
Courtesy of GENERAL MOTORS CORP.

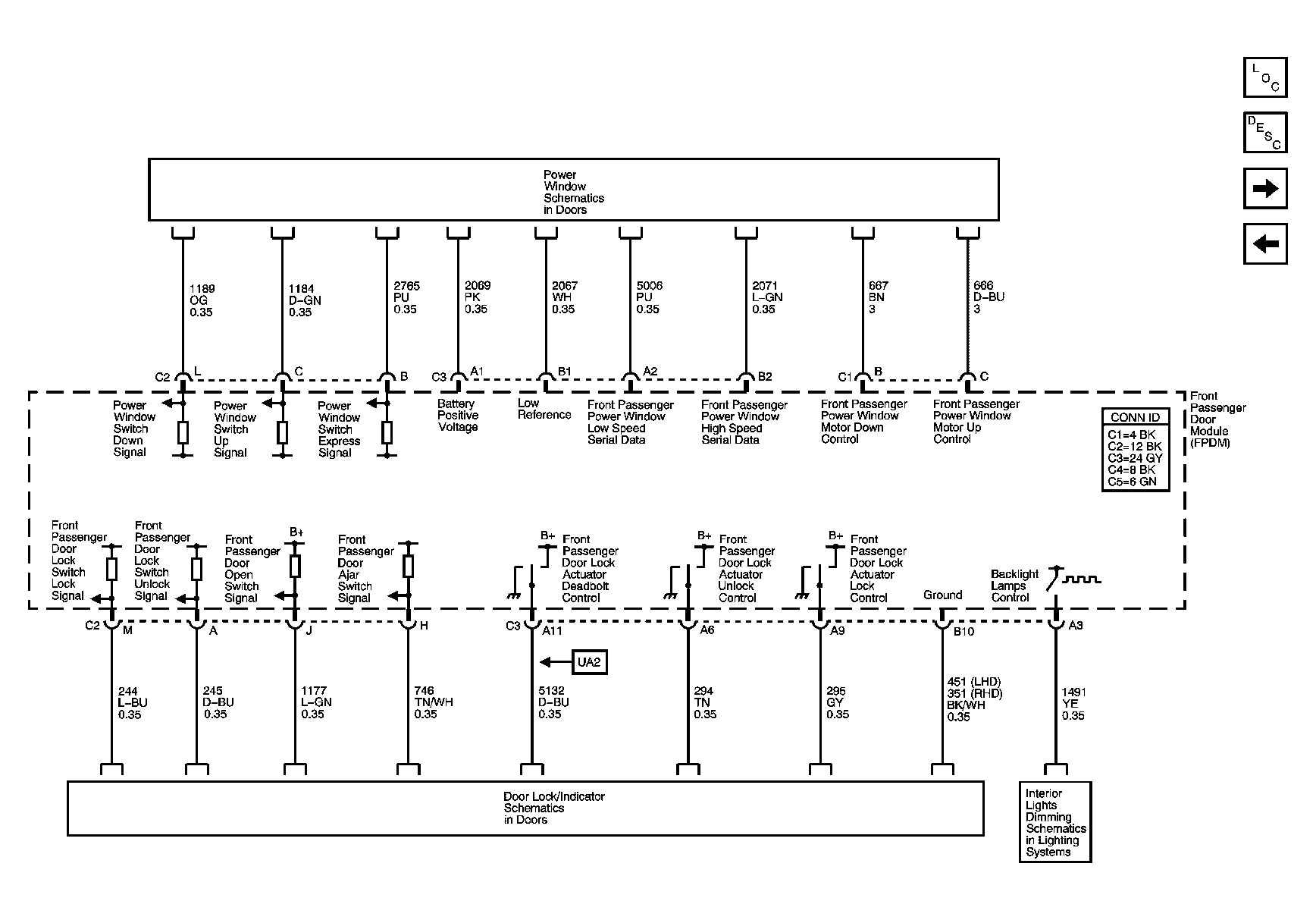

Fig 5: Front Passenger Door Module (FPDM) Controlled/Monitored Subsystem References (1 of 2)
Courtesy of GENERAL MOTORS CORP.

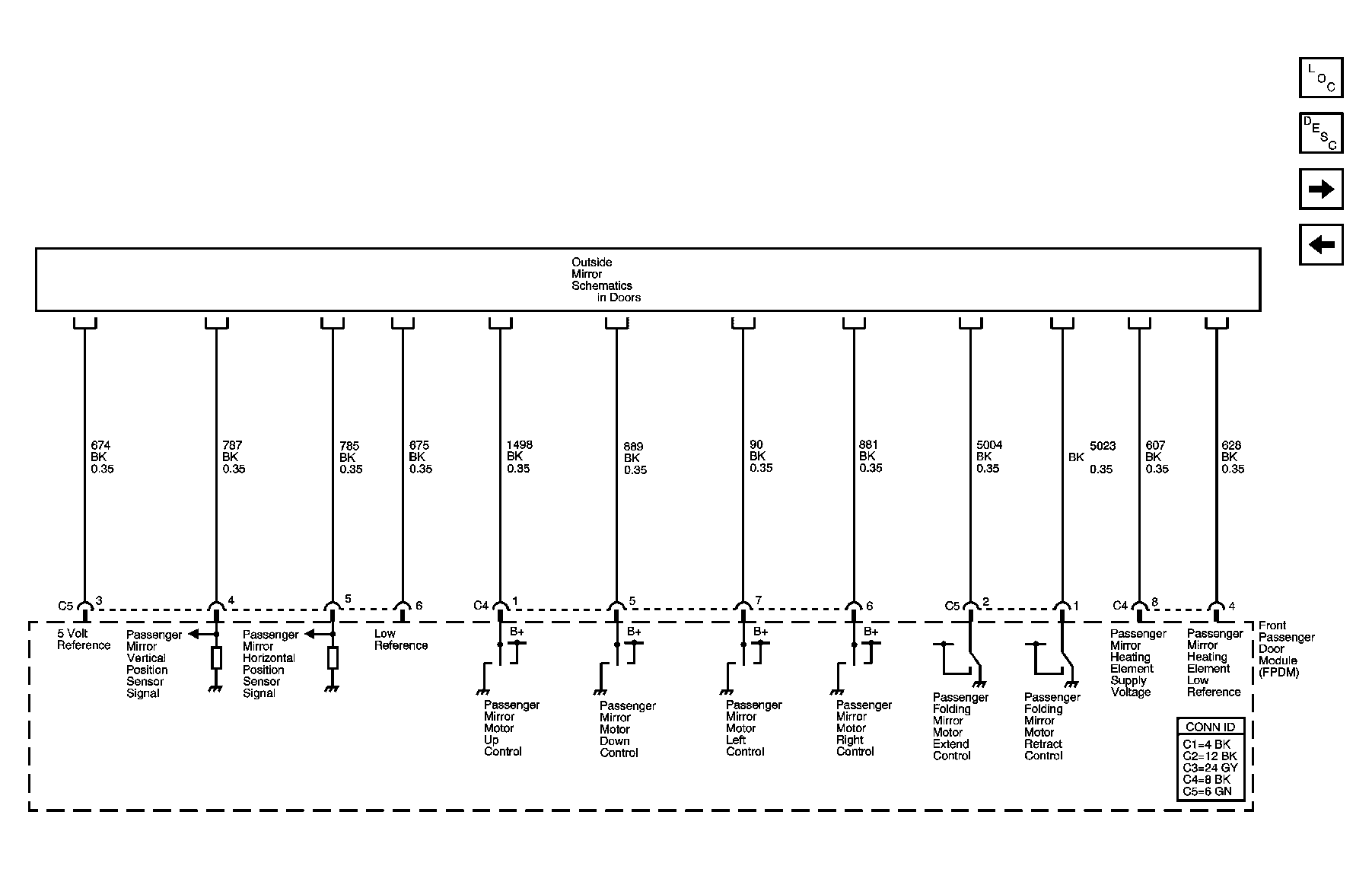

Fig 6: Front Passenger Door Module (FPDM) Controlled/Monitored Subsystem References (2 of 2)
Courtesy of GENERAL MOTORS CORP.

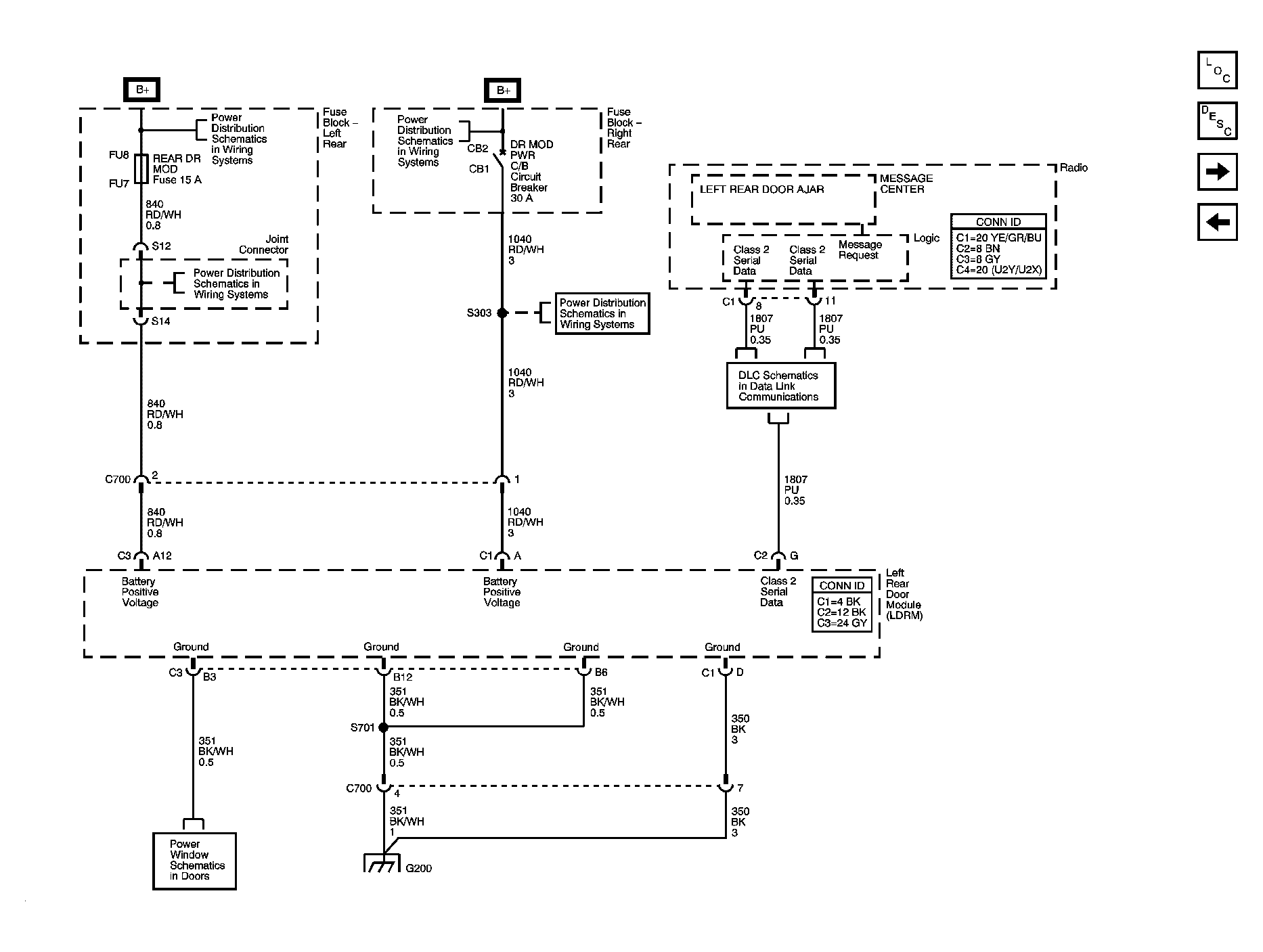

Fig 7: Left Rear Door Module (LRDM) Power, Ground and Serial Data
Courtesy of GENERAL MOTORS CORP.

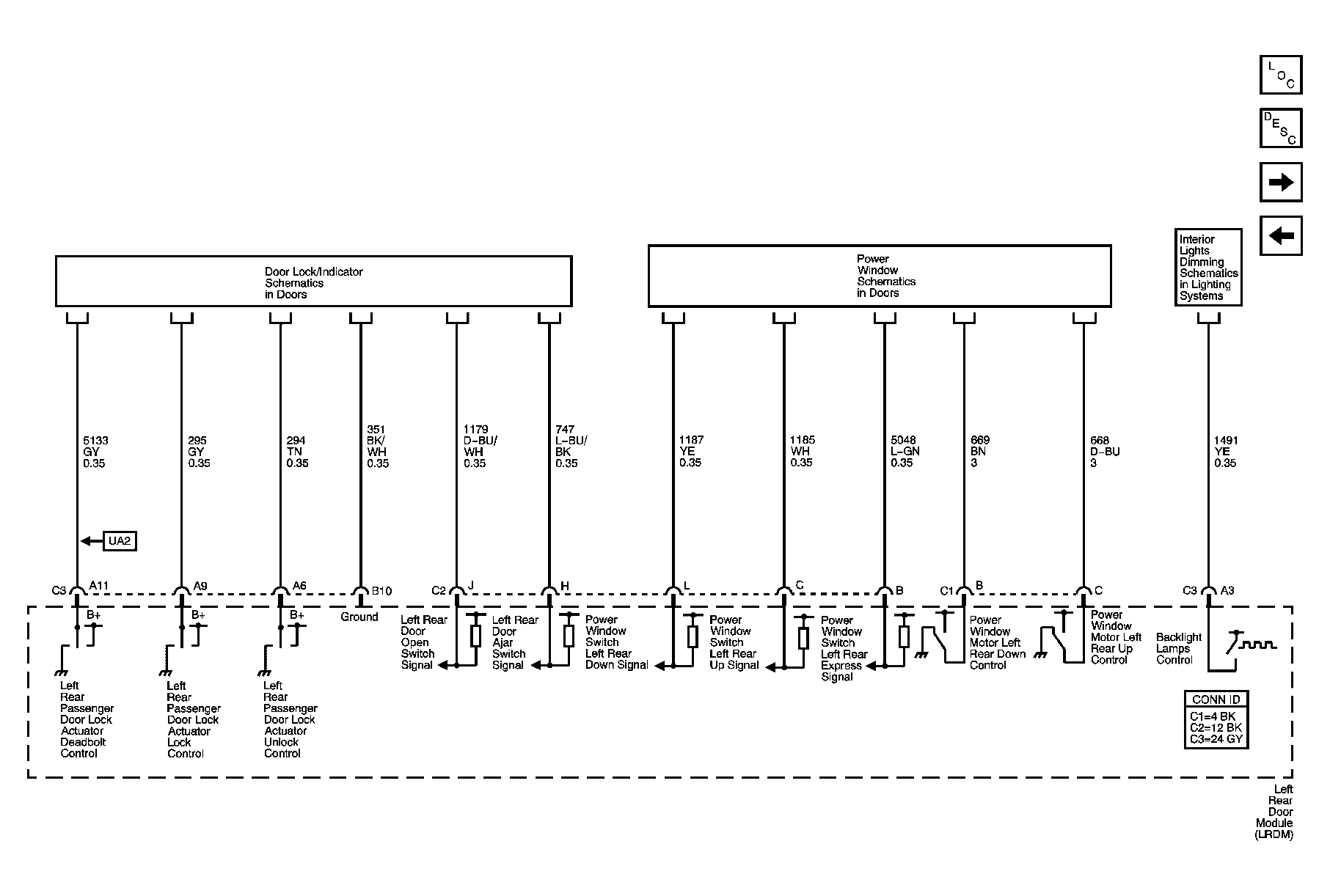

Fig 8: Left Rear Door Module (LRDM) Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.

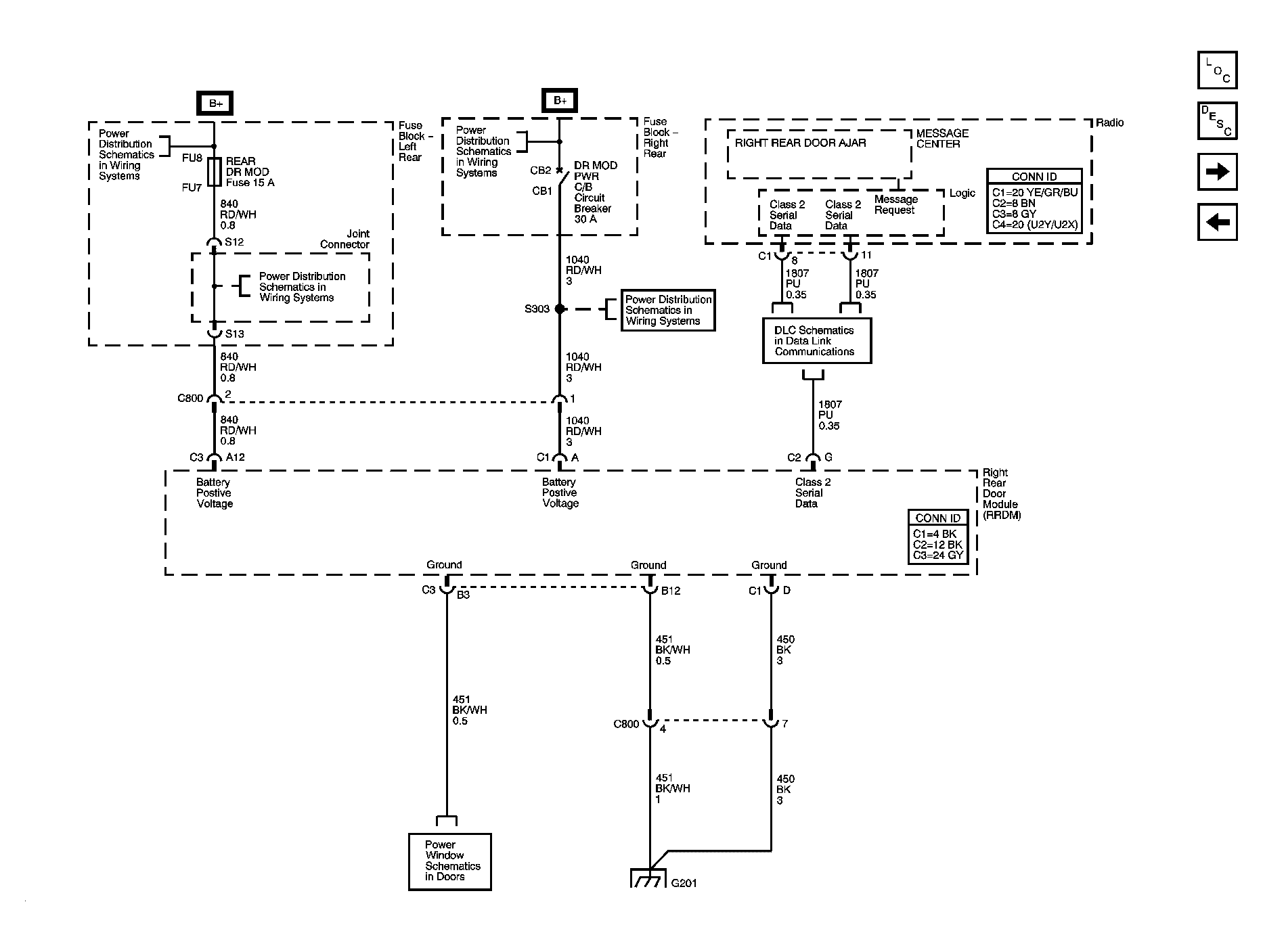

Fig 9: Right Rear Door Module (RRDM) Power, Ground and Serial Data
Courtesy of GENERAL MOTORS CORP.

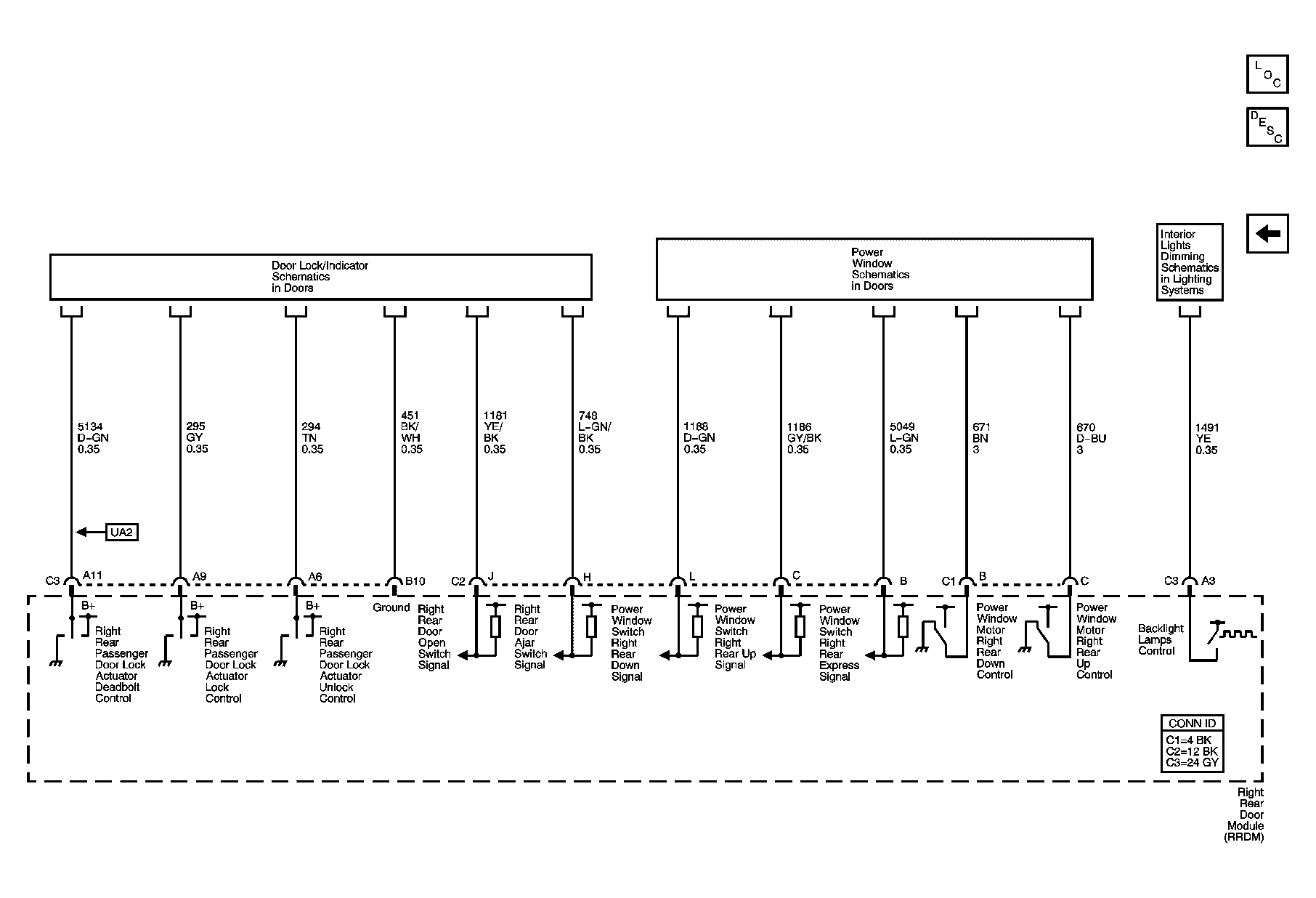

Fig 10: Right Rear Door Module (RRDM) Controlled/Monitored Subsystem References
