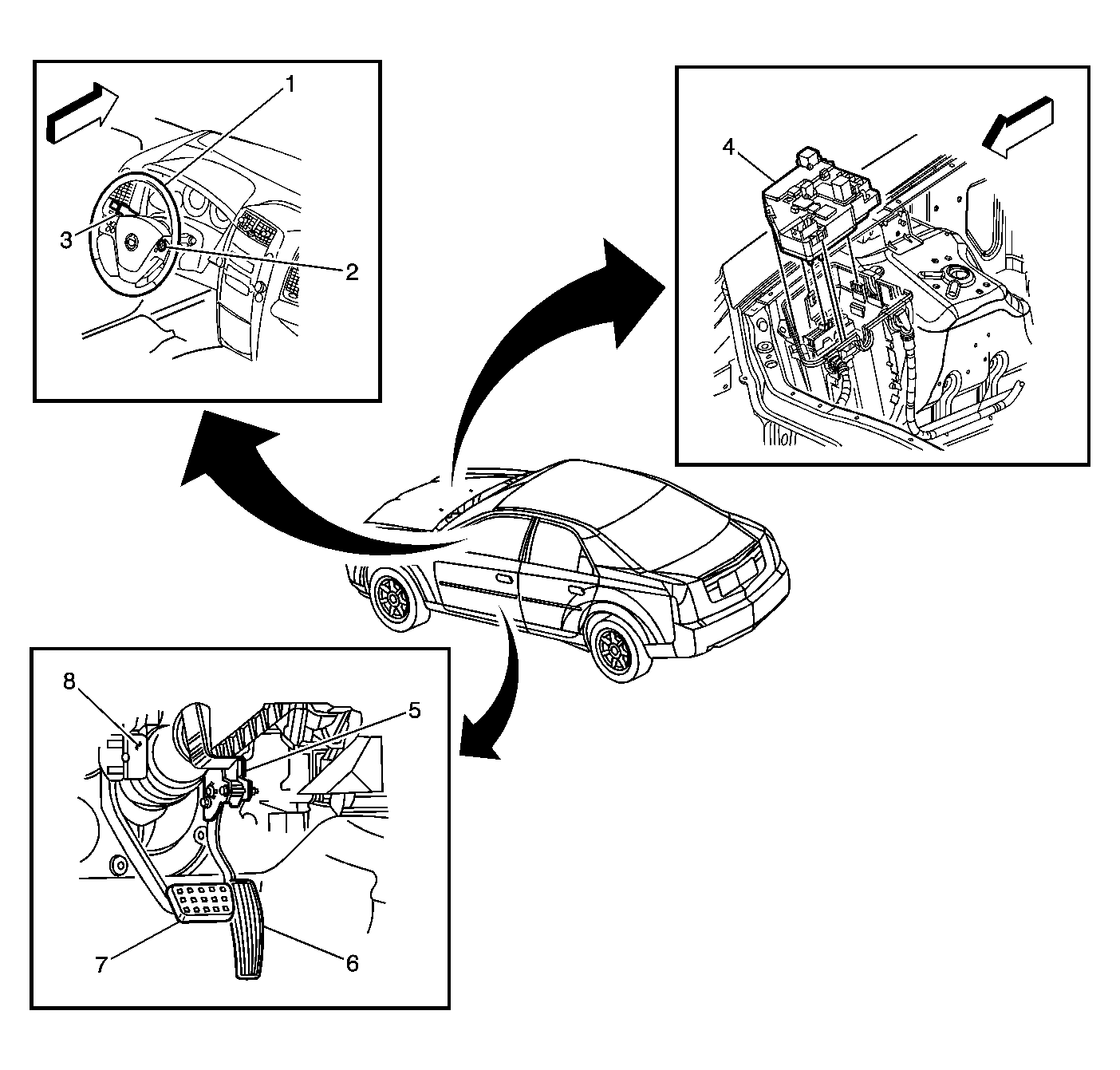

Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Steering Wheel (LHD shown, RHD similar) |
| 2 | Cruise Control Switch (LS6) (Part of Steering Wheel Controls - Right) |
| 3 | Cruise Control Switch (LY9/LA3/LY7) (Part of Turn Signal/Multifunction Switch) |
| 4 | Fuse Block - Underhood |
| 5 | Accelerator Pedal Position (APP) Sensor |
| 6 | Accelerator Pedal |
| 7 | Brake Pedal |
| 8 | Brake Pedal Position (BPP) Sensor |
